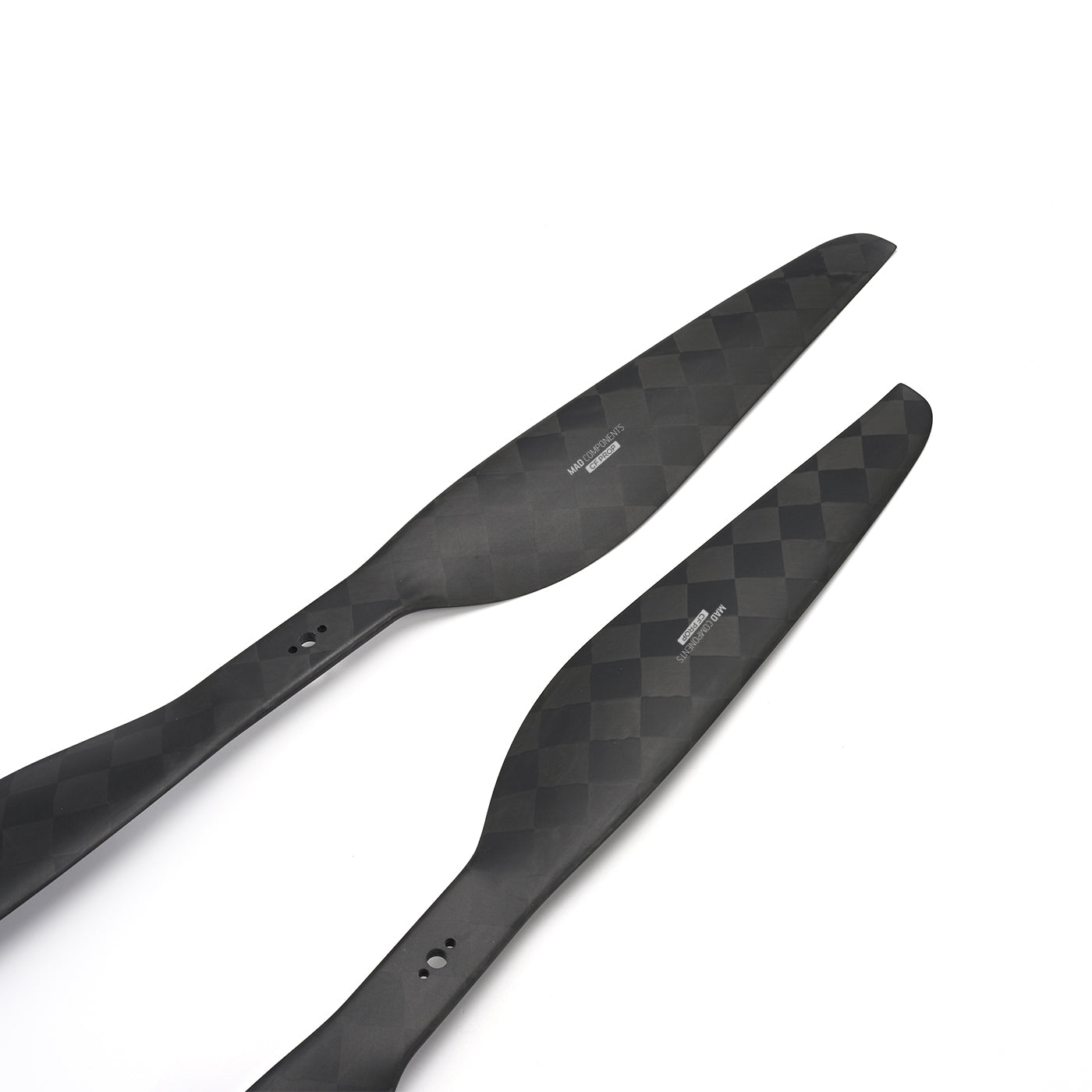

• MAD CB2 PRO 14x4.8in Carbon Fiber Propeller, MAD CB2 PRO carbon fiber propeller blades with checkered weave finish and mounting holes
  • MAD CB2 PRO 14x4.8in Carbon Fiber Propeller, MAD CB2 PRO carbon fiber propeller blades with checkered weave finish and mounting holes
1 2

MAD CB2 PRO 14x4.8in Carbon Fiber Propeller Set (CB2 PRO) 12K Matte Ultralight, 11±1.5g

MAD CB2 PRO 14x4.8in Carbon Fiber Propeller Set (CB2 PRO) 12K Matte Ultralight, 11±1.5g

MAD

$58.50 USD
$58.50 USD
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
Mounting holes
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visa alla uppgifter

Overview

The MAD CB2 PRO 14x4.8in carbon fiber propeller is a matte ultralight propeller designed to reduce inertia and improve response and control flexibility.

Key Features

  • Lightweight design using ultra-light carbon fiber material to reduce propeller weight and moment of inertia.
  • 12K carbon cloth for excellent fatigue resistance and higher strength.
  • Ultra high efficiency wing shape optimized to reduce air resistance and improve thrust and efficiency (5%).
  • Matte surface to reduce friction with the air and help lower flight noise (3%).
  • Ultra light customization service available per manufacturer statement.

Specifications

Model CB2 PRO
Size 14x4.8 in
Single propeller weight 11 ± 1.5 g
Common speed range 4500 ~ 5980 RPM
Common thrust range 0.6 ~ 1.3 kg
Maximum thrust / RPM 3.1 kg / 9000 RPM
Material Carbon Fiber + Resin
Working temperature -40 ~ 65 °C
Storage temperature -10 ~ 50 °C
Storage humidity 20 ~ 90 (RH%)
Mounting hole sizes (drawing) Ø12, Ø6, 2-Ø3
Drawing dimensions 355.6; 44.58; 10.5 (units not specified)

What’s Included

  • CB2 PRO 14*4.8 IN propeller: 2 pcs
  • Cover plate: 2 pcs
  • Ø6/Ø4 adapter ring: 2 pcs
  • Hex socket cap head screw M3*10: 4 pcs

For compatibility and setup questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Description

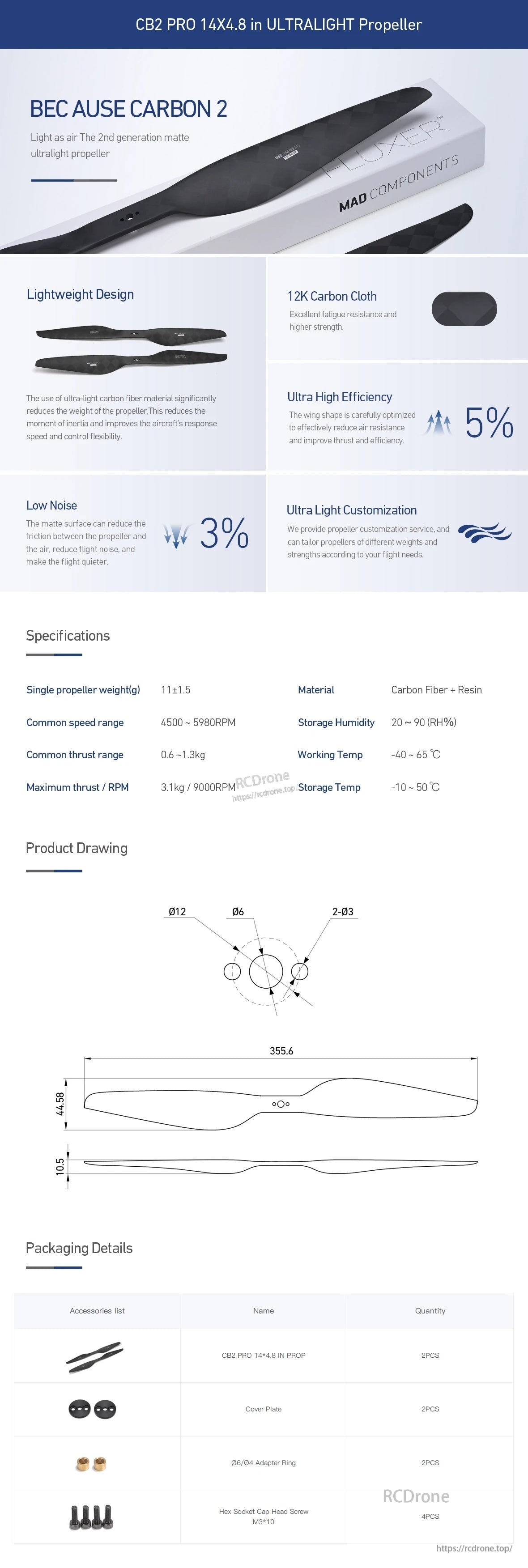

MAD CB2 PRO 14x4.8in Carbon Fiber Propeller, MAD CB2 Pro 14x4.8-inch carbon fiber propeller infographic with blade design, dimensions, and key specs

Details

MAD CB2 PRO 14x4.8 inch Carbon Fiber Propeller

The MAD CB2 PRO 14x4.8in carbon fiber propeller includes a quick spec overview and dimensional drawing to help confirm fitment and setup.
