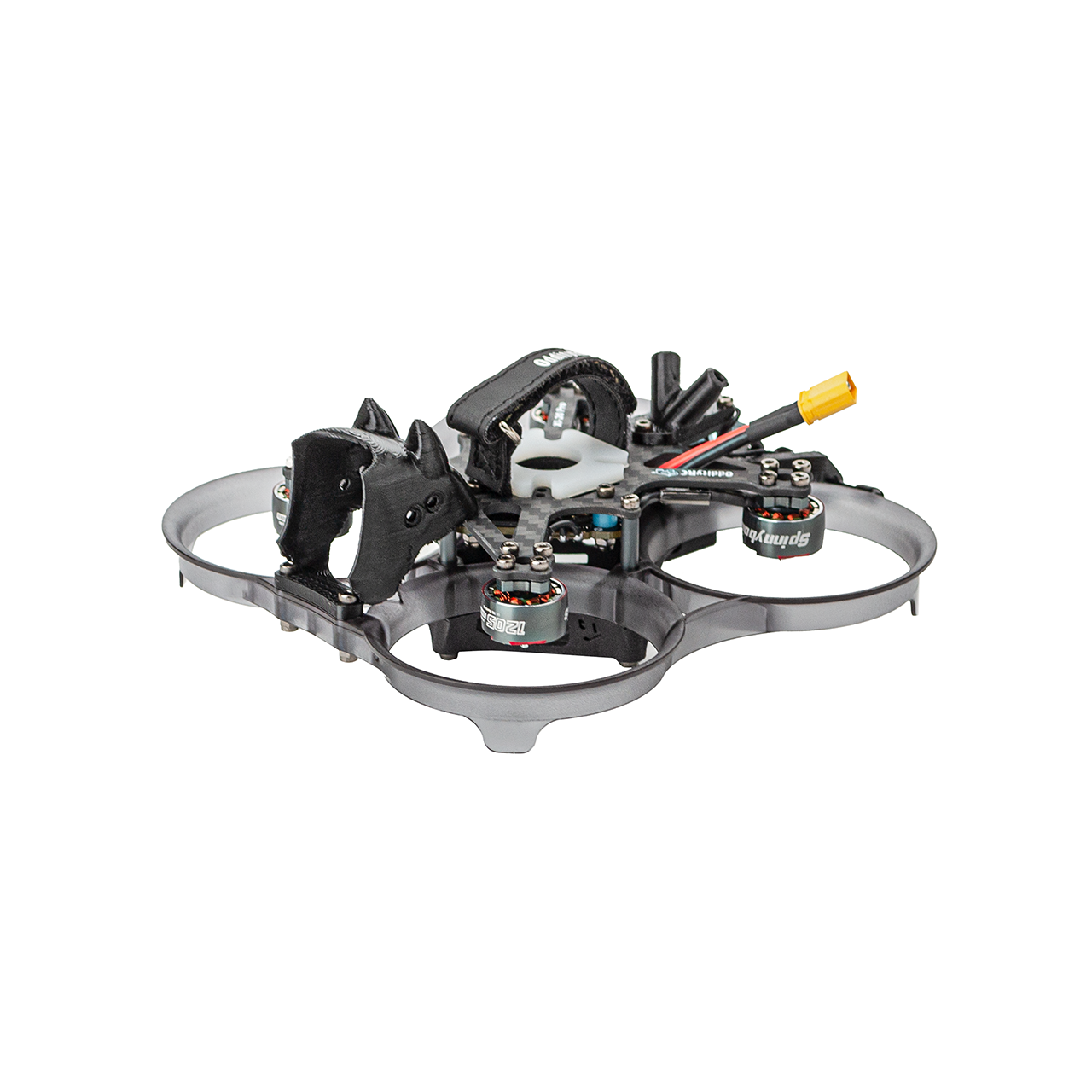

• OddityRC XI20 Pro 2-inch cinewhoop FPV drone frame with ducted guards and top strap, angled view

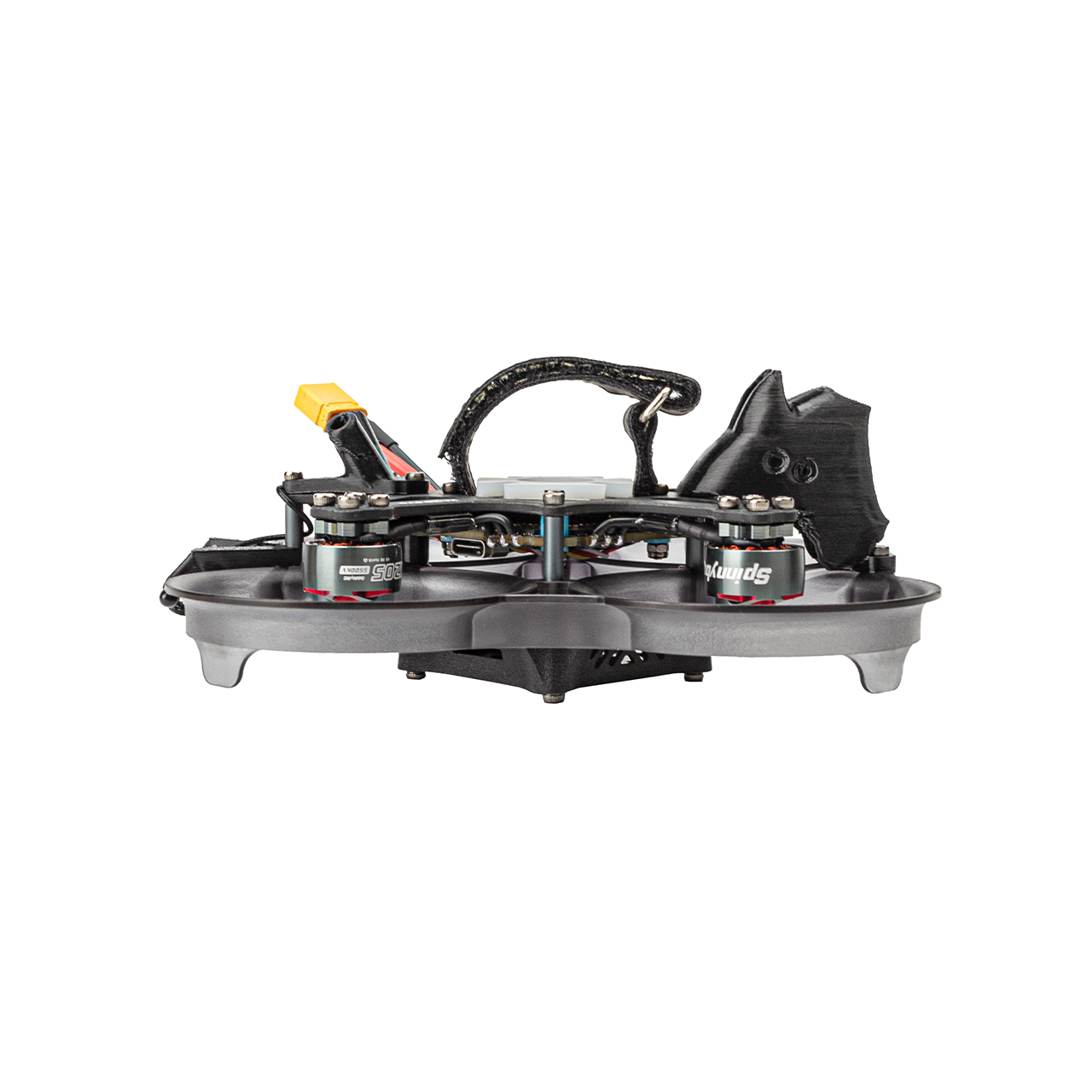

  • Low side profile of XI20 Pro cinewhoop showing duct height, carbon frame stack, and motor layout

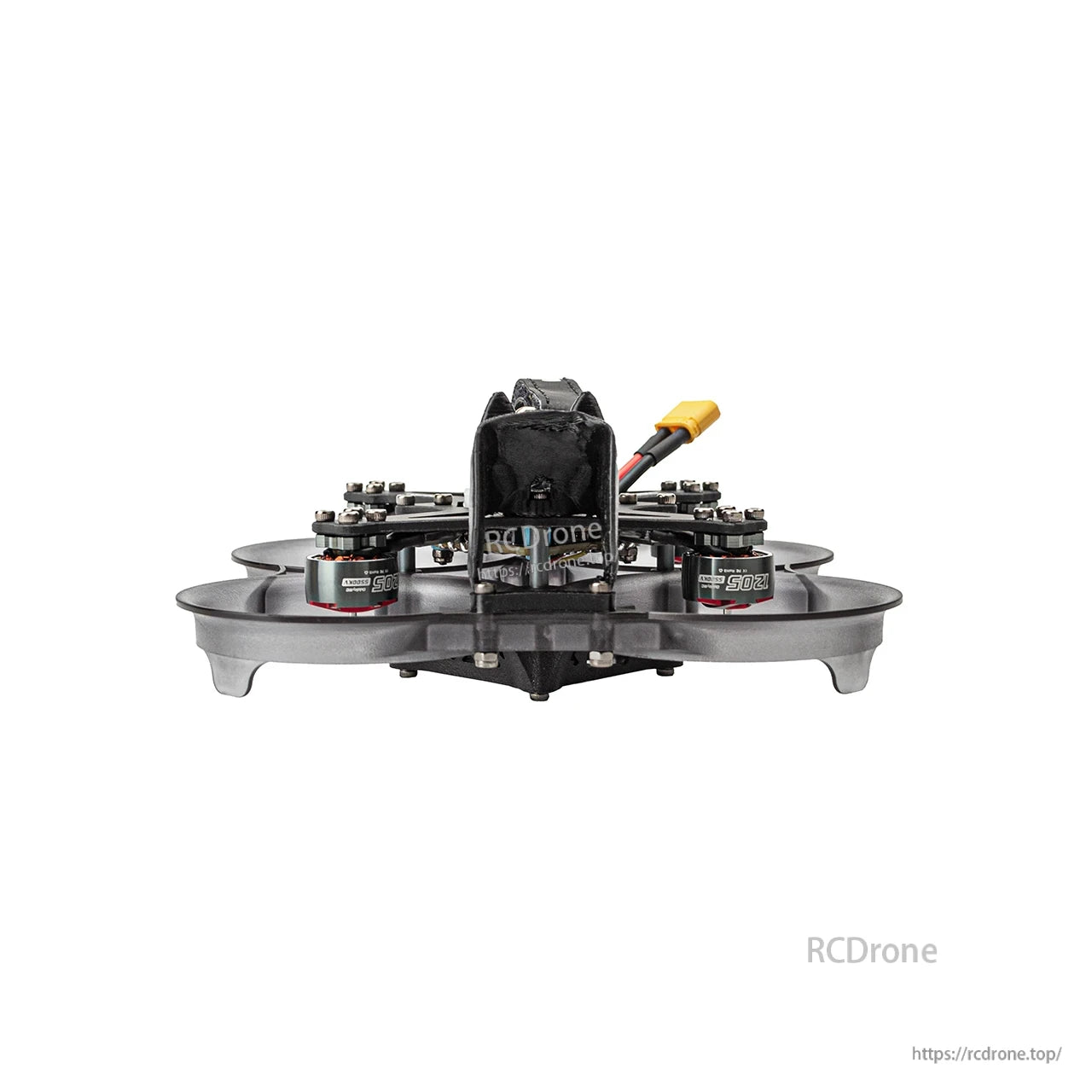

  • Front view of OddityRC XI20 Pro 4S 2-inch cinewhoop frame with battery strap and ducted guards
  • Bottom view of ducted cinewhoop frame showing carbon plate layout, motor mounts, and landing feet

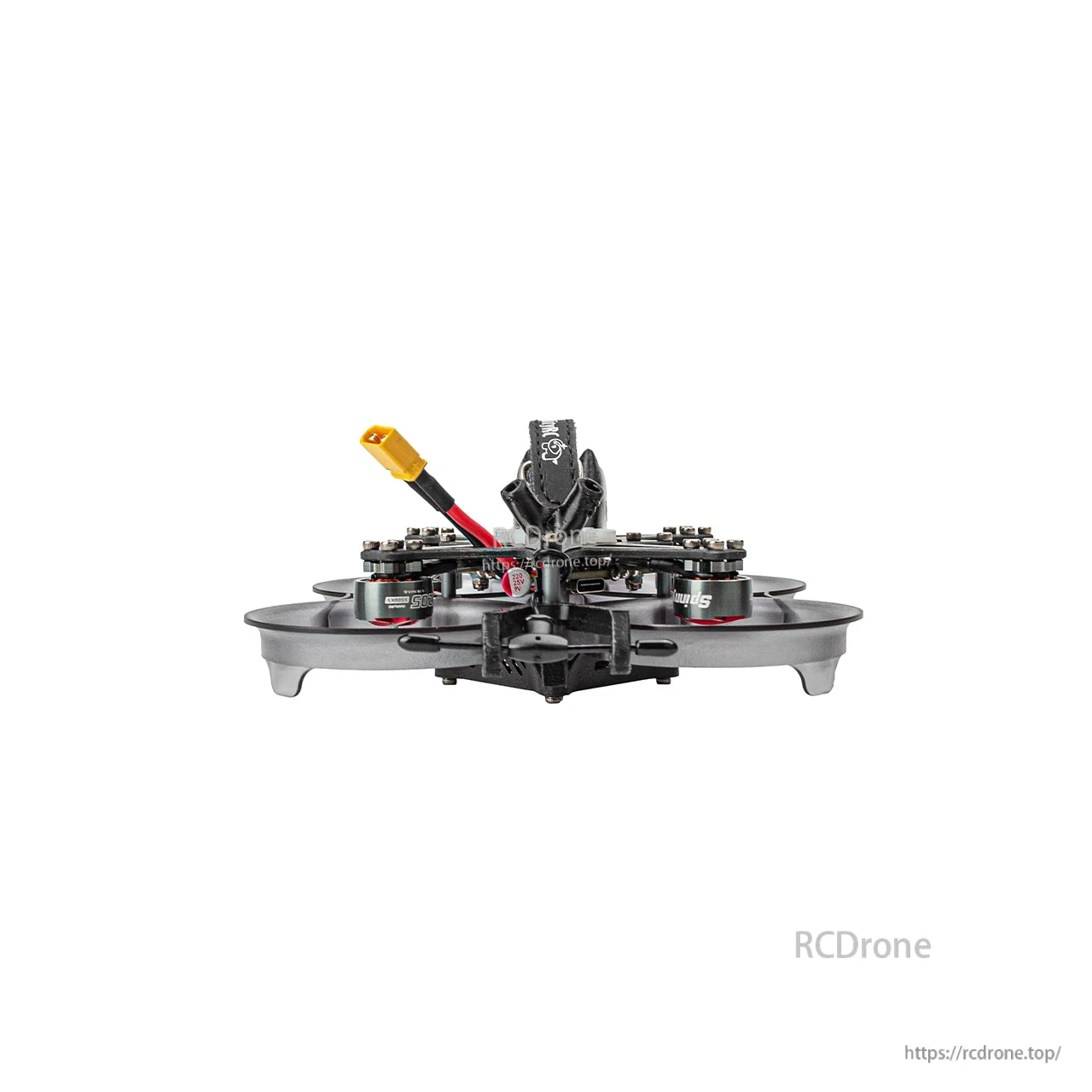

  • Rear view showing standoff stack, battery lead routing, and ducted guards on the 2-inch frame

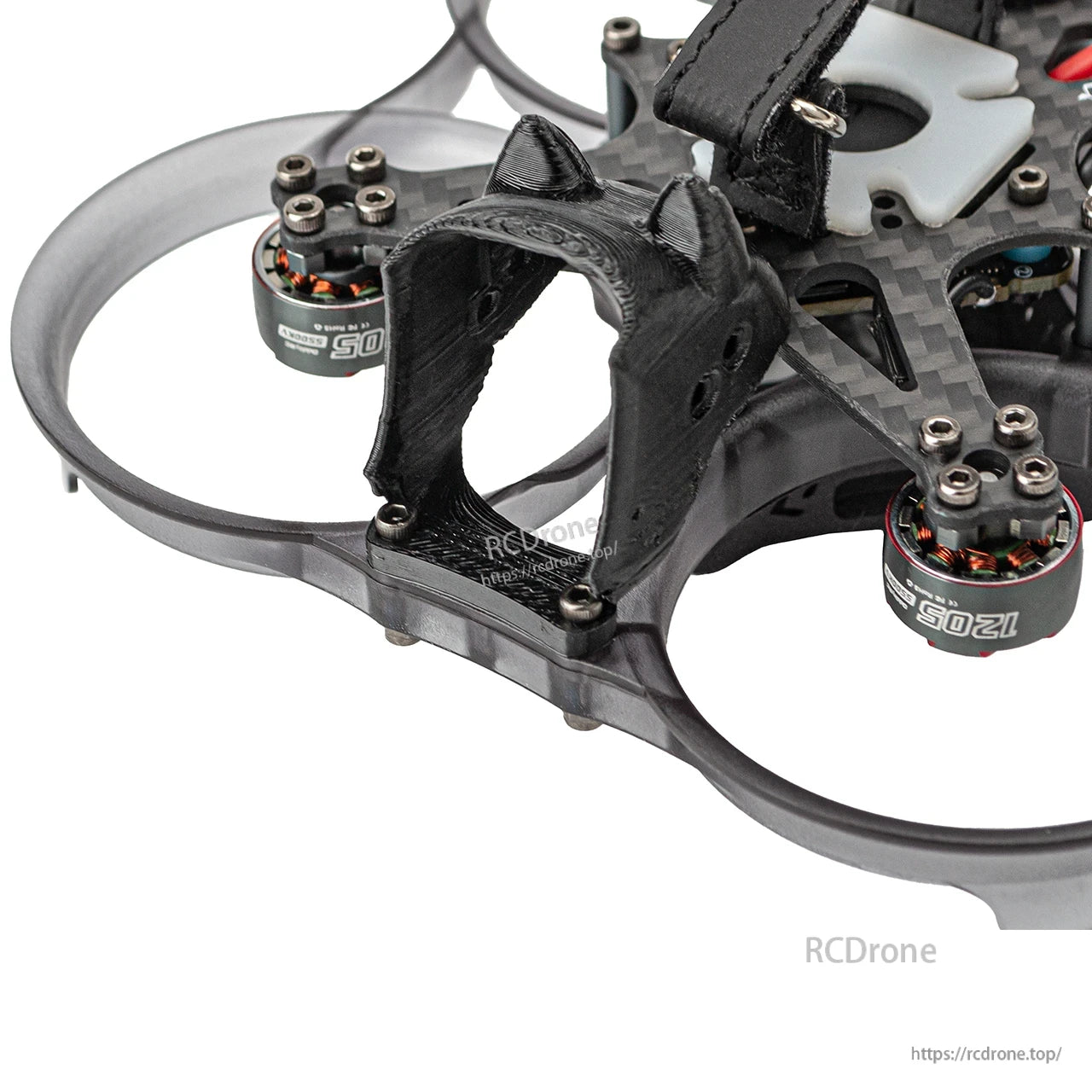

  • Close-up of front camera cage mount and duct guard section with carbon fiber top plate and motor

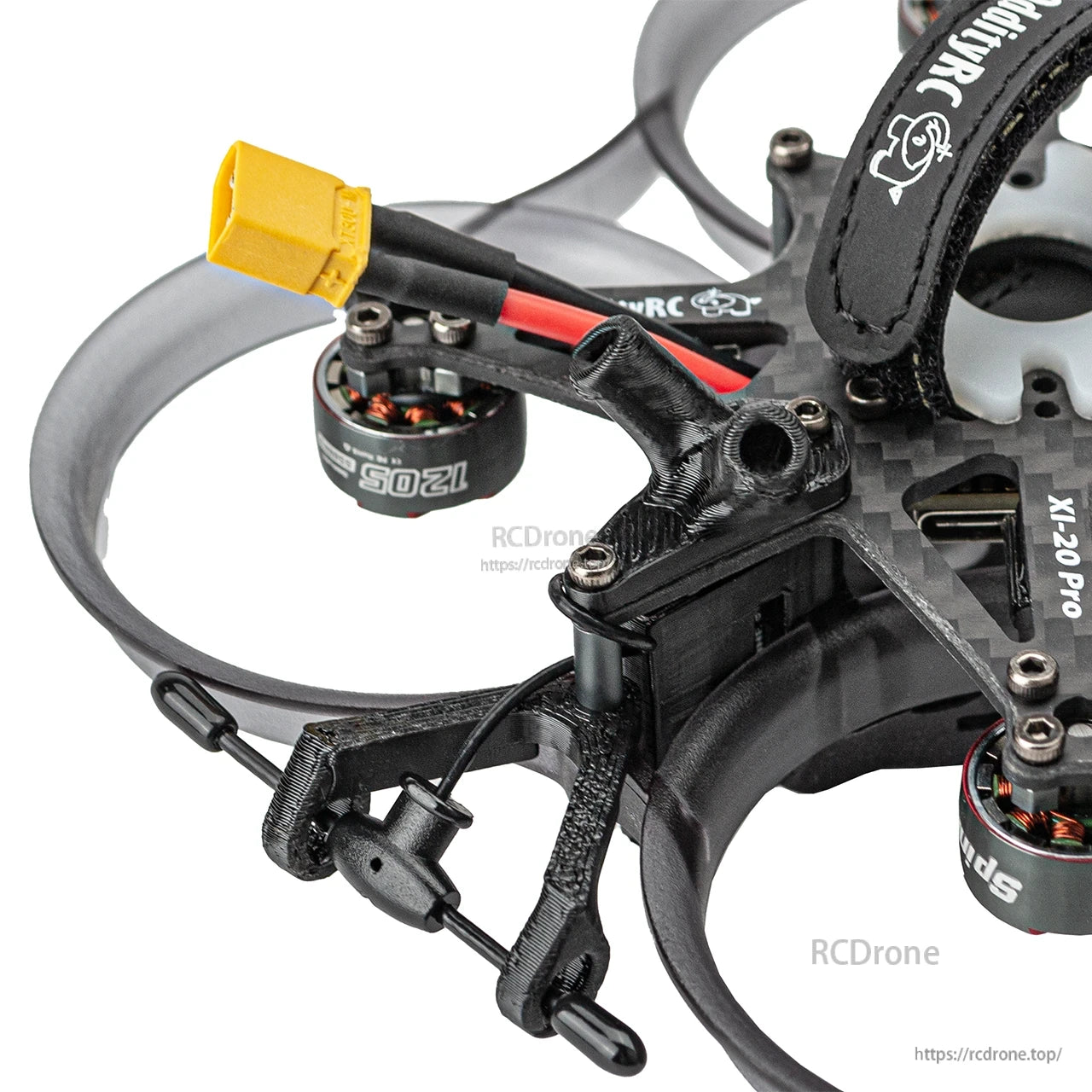

  • Close-up of XT30 battery connector lead and rear mount hardware on the ducted cinewhoop frame
1 7

OddityRC XI20 Pro HD O4 Pro Version 4S 2-tums Cinewhoop FPV-drönare (Ingen DJI O4 Air Unit Pro)

OddityRC XI20 Pro HD O4 Pro Version 4S 2-tums Cinewhoop FPV-drönare (Ingen DJI O4 Air Unit Pro)

OddityRC

$249.99 USD
$249.99 USD
Rea SlutsÄld
Skatter ingÄr. Frakt berÀknas i kassan.
Makt
Mottagare
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visa alla uppgifter

Översikt

OddityRC XI20 Pro HD O4 Pro Version 4S Àr en kompakt 2-tums cinewhoop-stil FPV-drönare byggd för att rymma en HD digital VTX-installation för DJI O4 Air Unit Pro (enhet ingÄr inte). Den anvÀnder en OddityRC F722 40A AIO flygkontroller, Spinnybois 1205 5500KV motorer och Gemfan D51-4 propellrar för en 4S-installation.

Observera

  • Denna produkt inkluderar inte DJI O4 Air Unit Pro.
  • Gemfan D51 5-bladiga propellrar kan orsaka jello i O4-filmer; Gemfan D51-4 propellrar rekommenderas för O4-versionen.

Nyckelfunktioner

  • XI20 Pro HD O4 Pro Version ramlayout
  • OddityRC F722 40A AIO flygkontroller (MAX 50A)
  • Spinnybois 1205 5500KV motorer
  • XT30 batterikontakt
  • Mottagaralternativ: PNP / ELRS 2.4G / ELRS 915M / TBS Nano RX

Specifikationer

Produktnamn XI20 Pro
Ram XI20 Pro HD O4 Version
Flygkontroller (FC) OddityRC F722 40A AIO (MAX 50A)
VTX DJI O4 Air Unit Pro (ingÄr ej)
Mottagare PNP / ELRS 2.4G / ELRS 915M / TBS Nano RX
Motor Spinnybois 1205 5500KV
Propeller Gemfan D51-4
Rekommenderat batteri 4S 650mAh-850mAh
Extern dimension 128*128*51mm
Wheelbase 95mm
Propellerdiameter max 2 tum
Tjocklek pÄ huvudplatta 2mm
Batterikontakt XT30
Vikt 94.6 g

Vad som ingÄr

  • XI20 Pro Drone * 1
  • Gemfan D51-4 Propellrar * 2
  • ErsĂ€ttningsskruvkit * 1
  • ErsĂ€ttningspropellerförsvar * 1

För frĂ„gor om installation och support (inklusive val av mottagare: PNP / ELRS / TBS), kontakta [email protected] or besök https://rcdrone.top/.

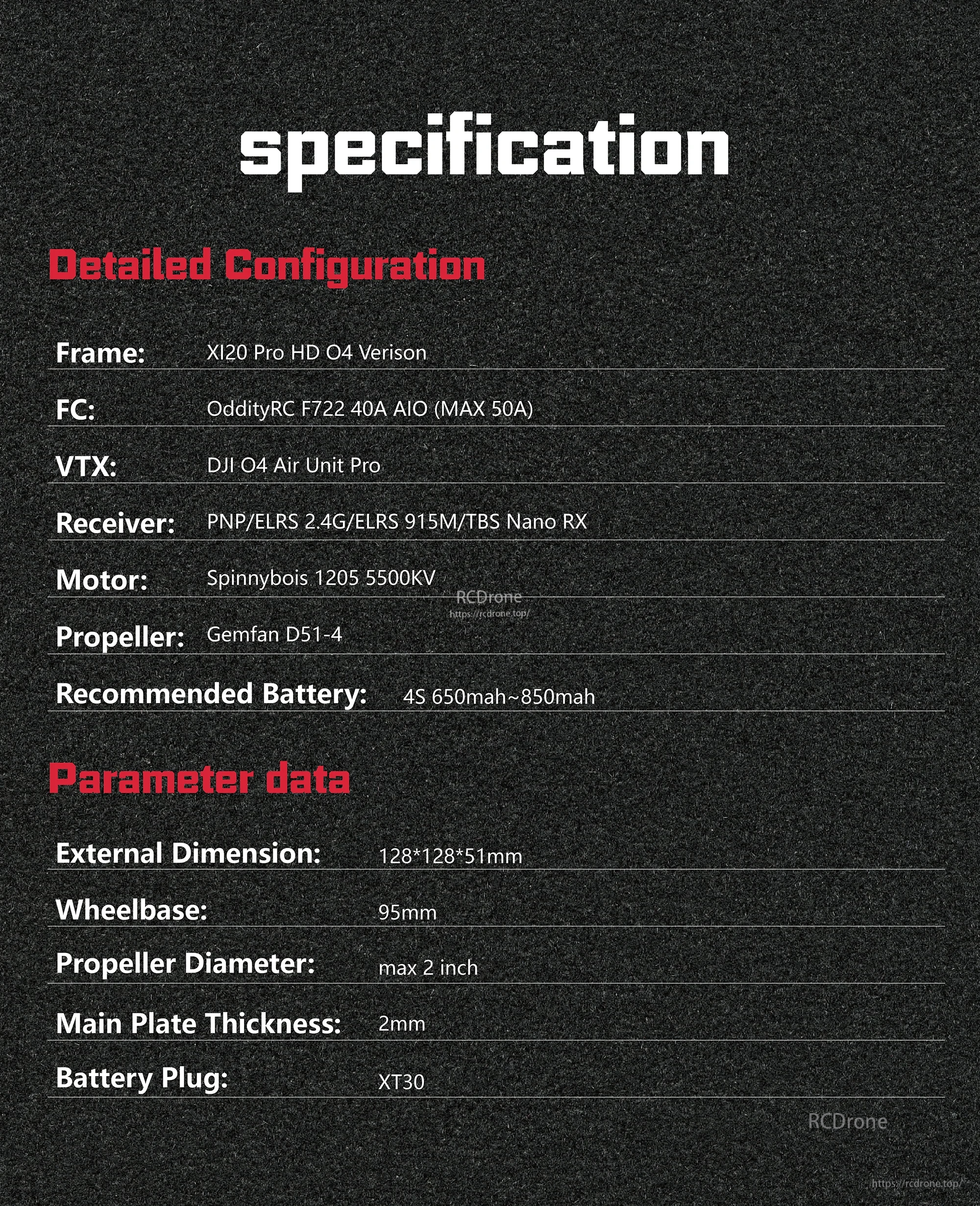

Specification chart for OddityRC XI20 Pro HD O4 Pro Version 4S 2-inch cinewhoop (O4 Air Unit Pro not included)

Byggd runt ett dedikerat DJI O4 Air Unit Pro installationsutrymme (luftenhet ingÄr inte) med 4S ström, XT30 och en 2-tums cinewhoop ram.

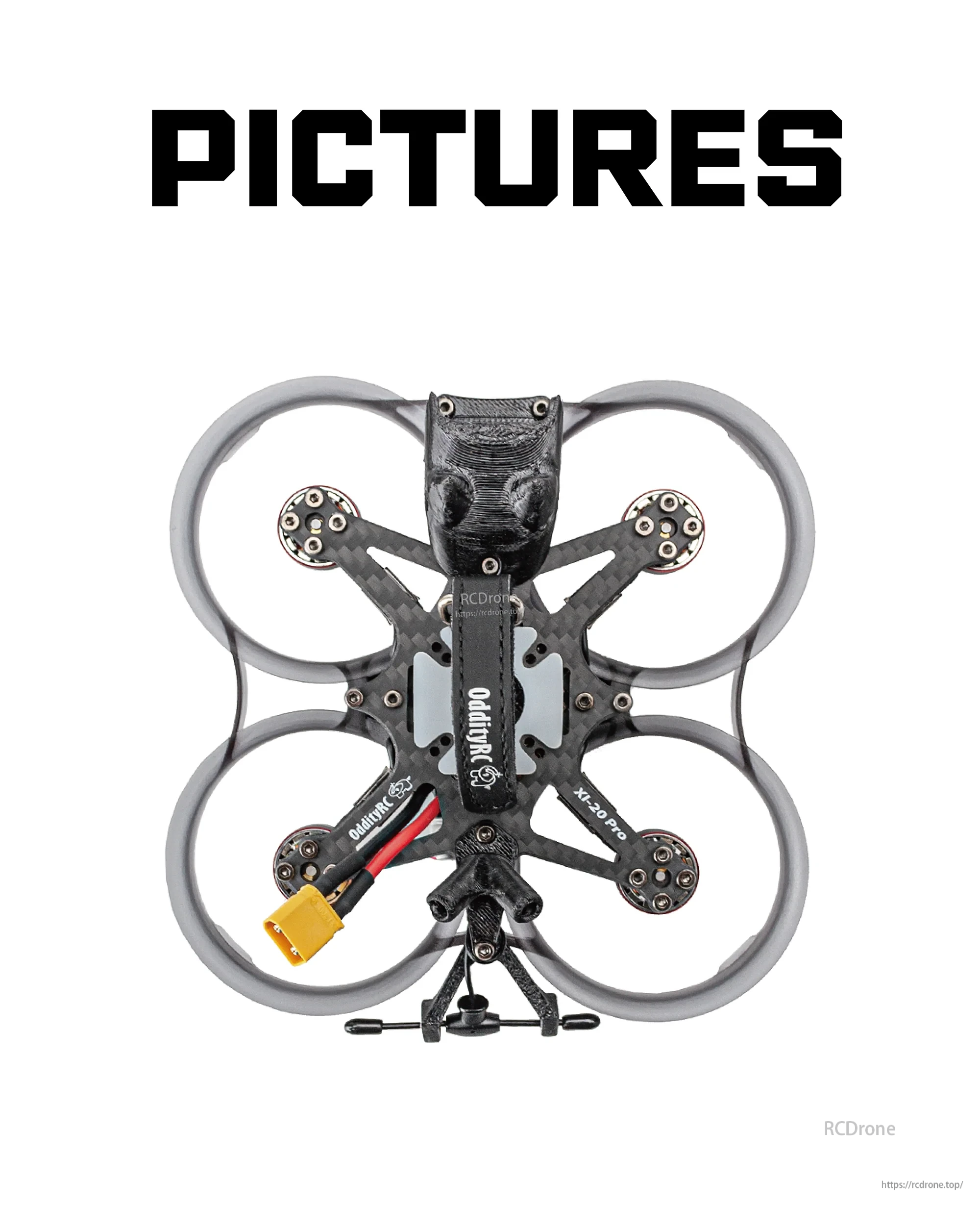

Top-down view of XI20 Pro HD O4 Pro Version 4S cinewhoop frame with ducted prop guards and XT30 lead

Den kompakta ducted-layouten skyddar 2-tums propellrar och hÄller bygget kompakt för inomhus- och nÀra flygning.

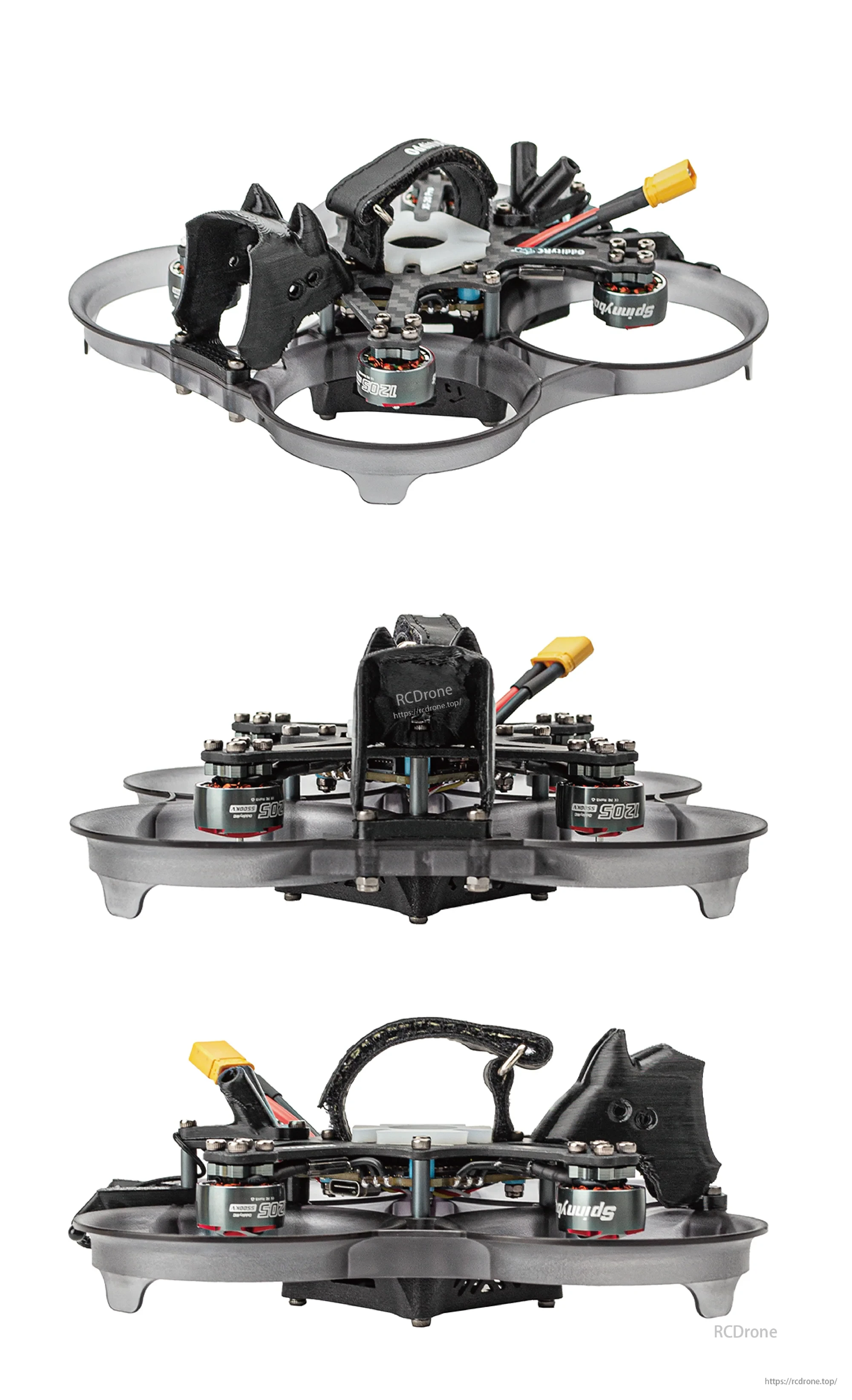

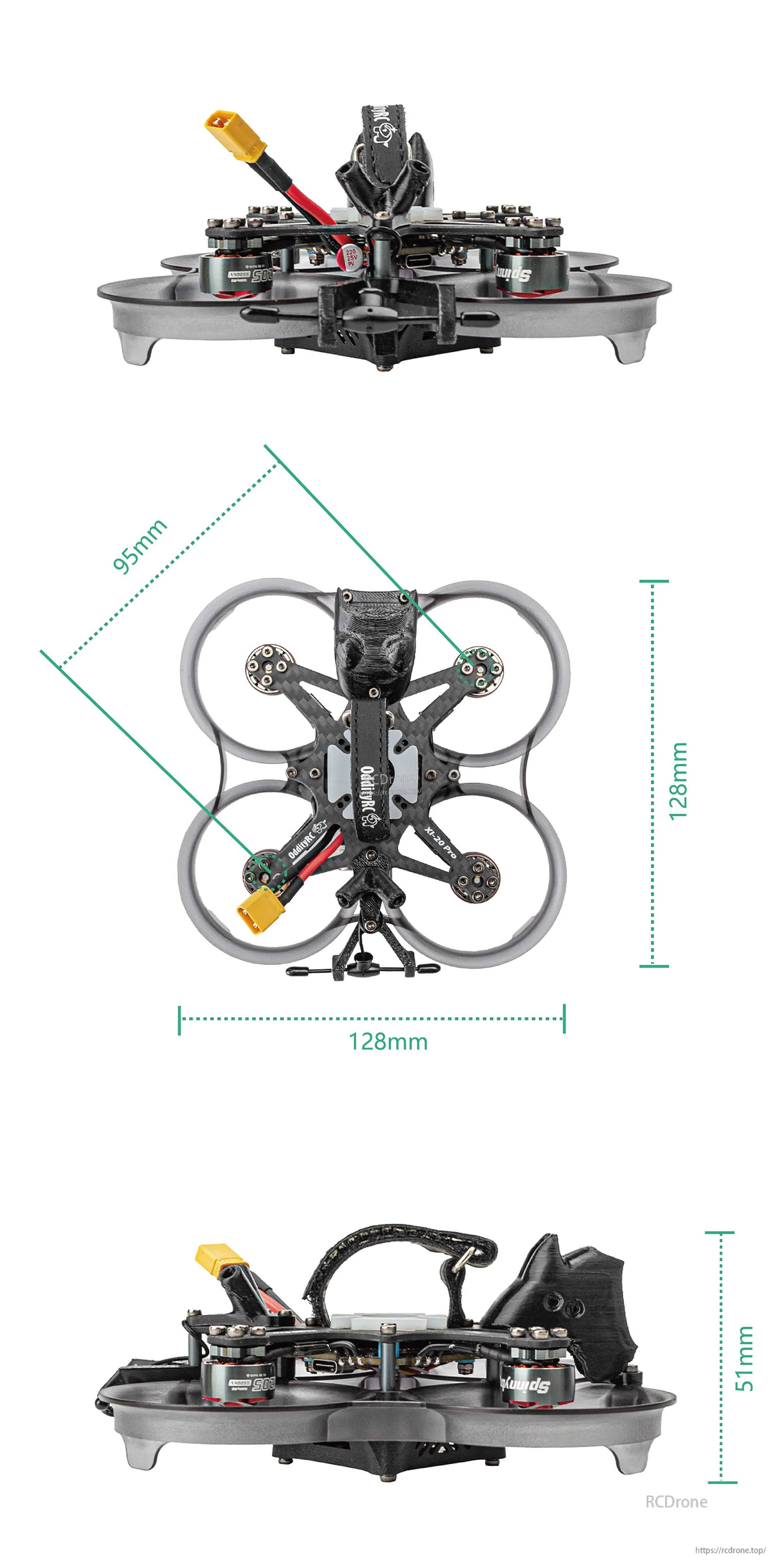

Angled and side views of the XI20 Pro HD O4 Pro Version quad showing stack height, ducts, and motor layoutDimension graphic of the XI20 Pro HD O4 Pro Version frame showing 95 mm wheelbase and 128×128×51 mm size

Den totala storleken Ă€r 128×128×51 mm med en hjulbas pĂ„ 95 mm, anpassad för en portabel 2-tums byggnad.

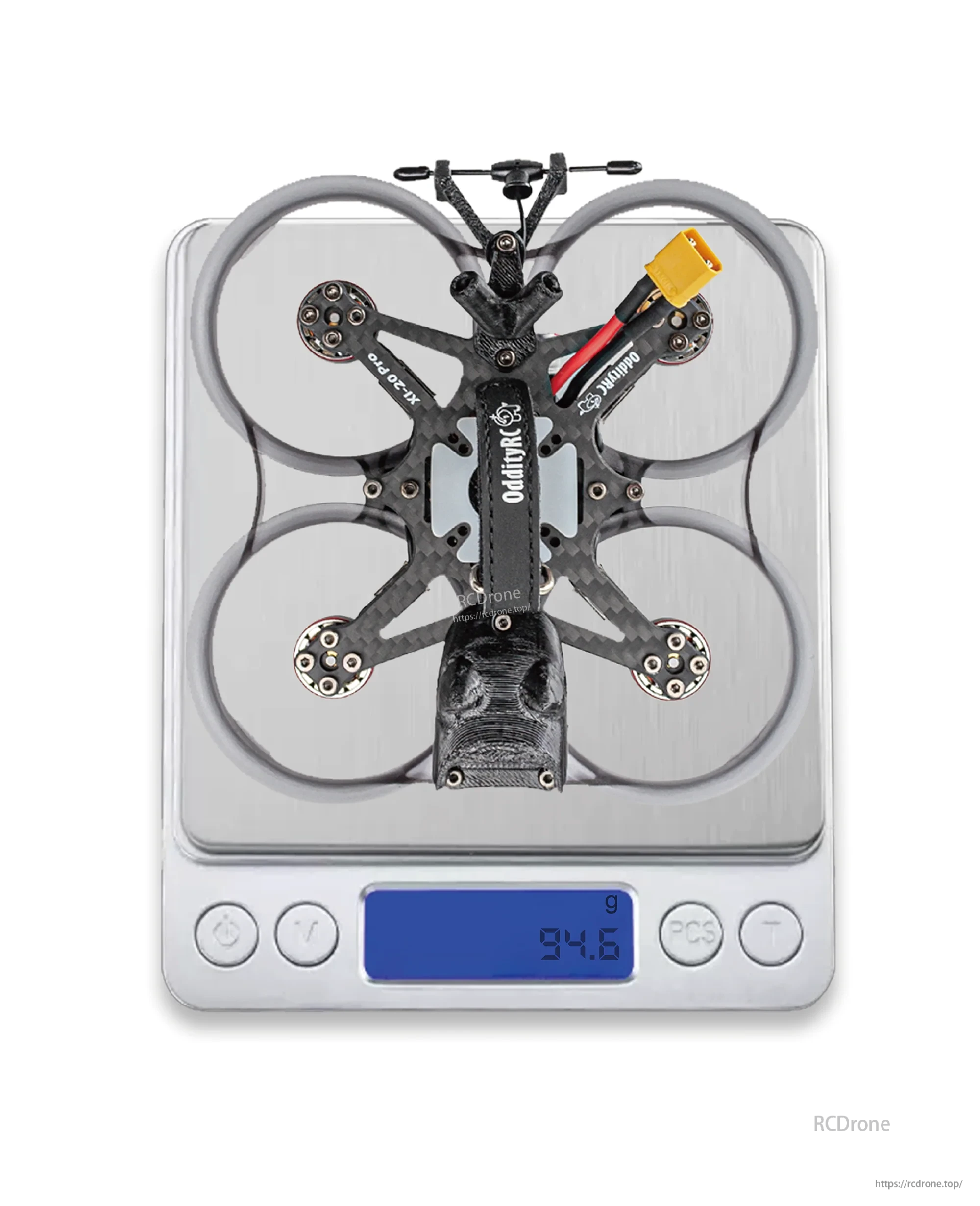

Drone on a digital scale showing 94.6 g weight with ducts and XT30 cable installed

Detaljer

Specs graphic listing frame, OddityRC F722 40A AIO (max 50A), Spinnybois 1205 5500KV, and Gemfan D51-4 propsTop view of the ducted carbon frame layout with mounting space for a digital HD VTX and front camera mountLow-profile cinewhoop build shown from multiple angles, highlighting ducts, motor position, and battery lead routingSize reference image with annotated width, height, and 95 mm wheelbase for the 2-inch cinewhoop frameScale photo confirming approximately 94.6 g dry weight for the XI20 Pro 2-inch cinewhoop build (no O4 unit)

En lÀtt torrbyggnad runt 94,6 g hjÀlper till att hÄlla 4S hantering responsiv nÀr elektronik och batteri Àr installerade.
