MKS HV9767 Cyclic + HV9780 Rudder Servo Motor Maelezo (6.0V~8.4V, Bila Msingi, Gia ya Chuma, BB)

MKS HV9767 Cyclic + HV9780 Rudder Servo Motor Maelezo (6.0V~8.4V, Bila Msingi, Gia ya Chuma, BB)

MKS Servos

$599.00 USD
$599.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Orodha hii ya Servo Motor inatoa vipimo vya MKS HV9767 servo ya mzunguko na MKS HV9780 servo ya rudder, kama ilivyopewa katika taarifa za bidhaa zilizotolewa.

Vipengele Muhimu

  • Motor isiyo na msingi
  • Gear ya aloi ya chuma
  • 2* mpira wa kubeba
  • Voltage ya kufanya kazi: 6.0V ~ 8.4V DC Volts

Vipimo

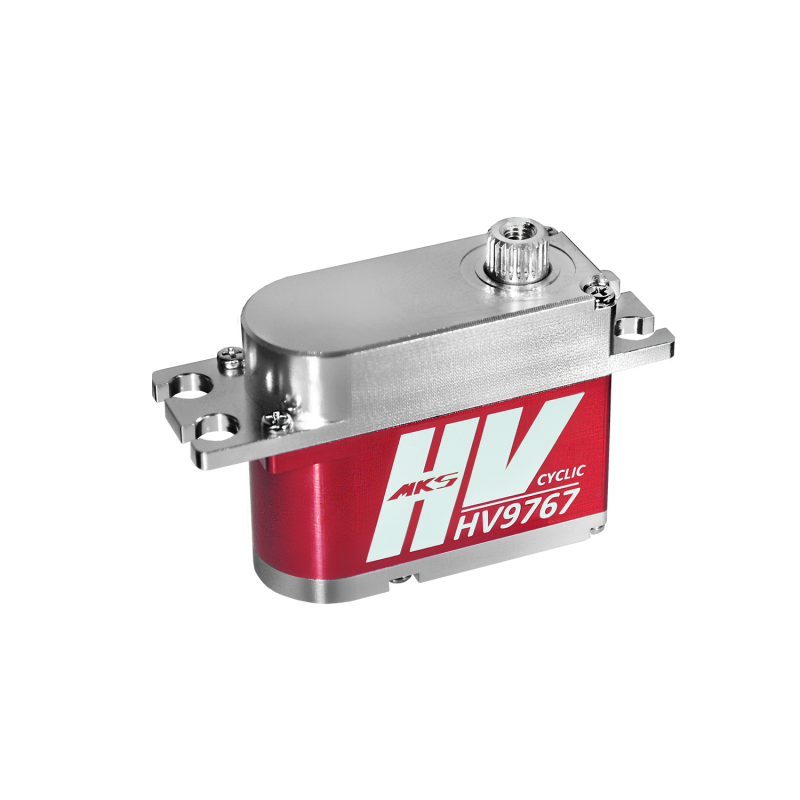

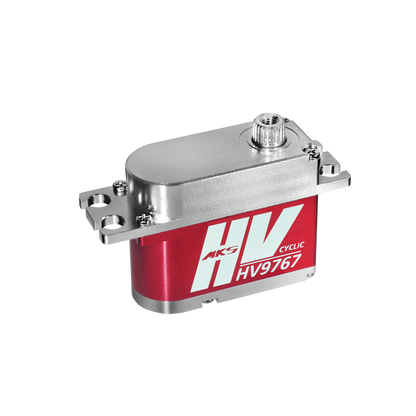

MKS HV9767 Servo ya Mzunguko

Torque (6.0V) 6.8 kg-cm / 94.4 oz-in
Torque (7.4V) 8.5 kg-cm / 118 oz-in
Torque (8.2V) 9.4 kg-cm / 130.5 oz-in
Speed 0.090 s (6.0V) / 0.078 s (7.4V) / 0.070 s (8.2V)
Uzito 38.55 g (1.36 oz)

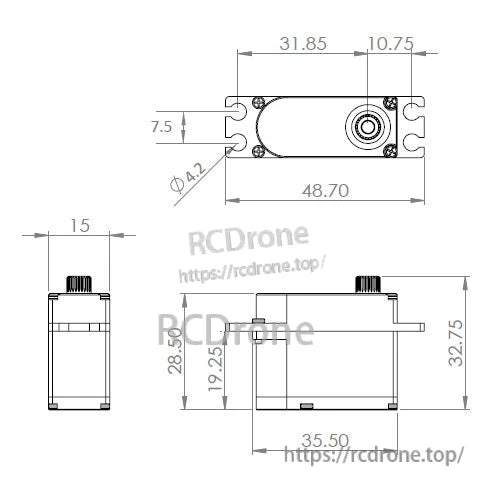

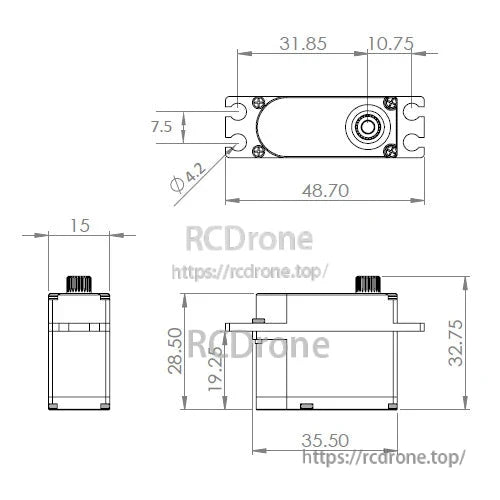

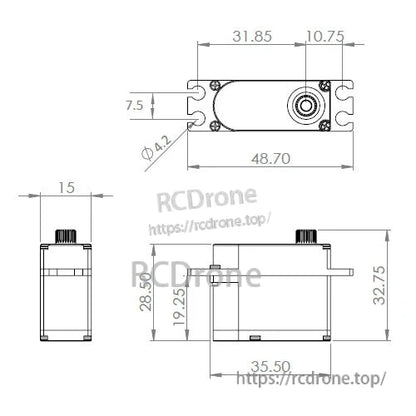

Dimension 35.5 x 15 x 28.5 mm
Stall Torque (kg-cm) 6.8 (6.0V) / 8.5 (7.4V) / 9.4 (8.2V)
Torque ya Stall (oz-in) 94.4 (6.0V) / 118 (7.4V) / 130.5 (8.2V)
Speed ya Bila Mkojo 0.090 s (6.0V) / 0.078 s (7.4V) / 0.070 s (8.2V)
Current ya Stall 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Voltage ya Kazi 6.0V ~ 8.4V DC Volts
Frequency ya Kazi 1520us / 333Hz
Dead Band 0.001 ms (Default)
Bearings 2* Ball Bearing
Gear Gear ya Metal Alloy
Motor Motor Isiyo na Kitu Gani
Urefu wa Waya 29.5 cm

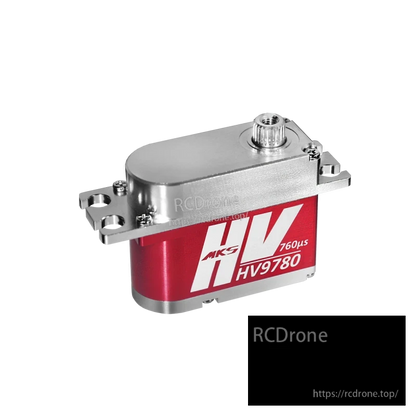

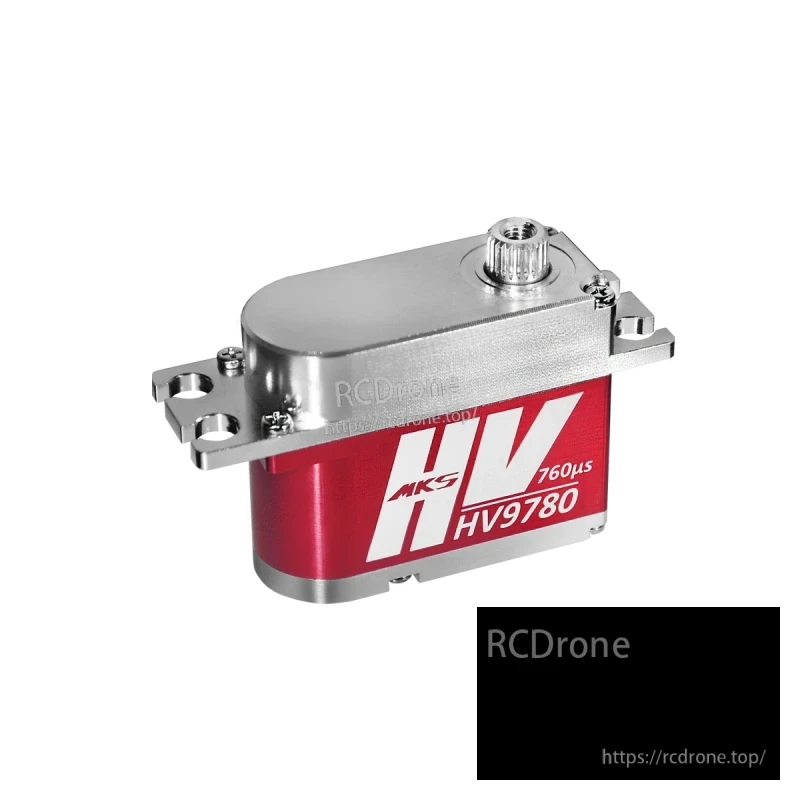

MKS HV9780 Rudder Servo

Gyros zinazopendekezwa zinazofaa Spartan DS760, Spartan Quark, Futaba GY611, GY601, GY520, ALIGN GP700, GP750, Mikado V-Bar Tail, CSM SL720, Curtis Youngblood Mini-G, Solid G, Thunder Tiger TG-7000, BeastX Mircobeast
Torque (6.0V) 3.3 kg-cm / 45.8 oz-in
Torque (7.4V) 4.0 kg-cm / 55.5 oz-in
Torque (8.2V) 4.5 kg-cm / 62.5 oz-in
Speed 0.055 s (6.0V) / 0.045 s (7.4V) / 0.040 s (8.2V)
Uzito 38.01 g (1.34 oz)
Dimension 35.5 x 15 x 28.5 mm
Stall Torque (kg-cm) 3.3 (6.0V) / 4.0 (7.4V) / 4.5 (8.2V)
Stall Torque (oz-in) 45.8 (6.0V) / 55.5 (7.4V) / 62.5 (8.2V)
Spidi isiyo na mzigo 0.055 s (6.0V) / 0.045 s (7.4V) / 0.040 s (8.2V)
Mtiririko wa Stall 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Voltage ya Kazi 6.0V ~ 8.4V DC Volts
Masafa ya Kazi 760us / 560Hz
Dead Band 0.0005 ms (Default)
Bearings 2* Ball Bearing
Gear Gear ya Metal Alloy
Motor Motor isiyo na msingi
Urefu wa Waya 29.5 cm

Kwa kuagiza na msaada wa bidhaa, wasiliana na support@rcdrone.top.

Maombi

  • Mipangilio ya servo ya mzunguko na servo ya rudder ambapo voltage na mahitaji ya masafa yaliyoorodheshwa yanasaidiwa
