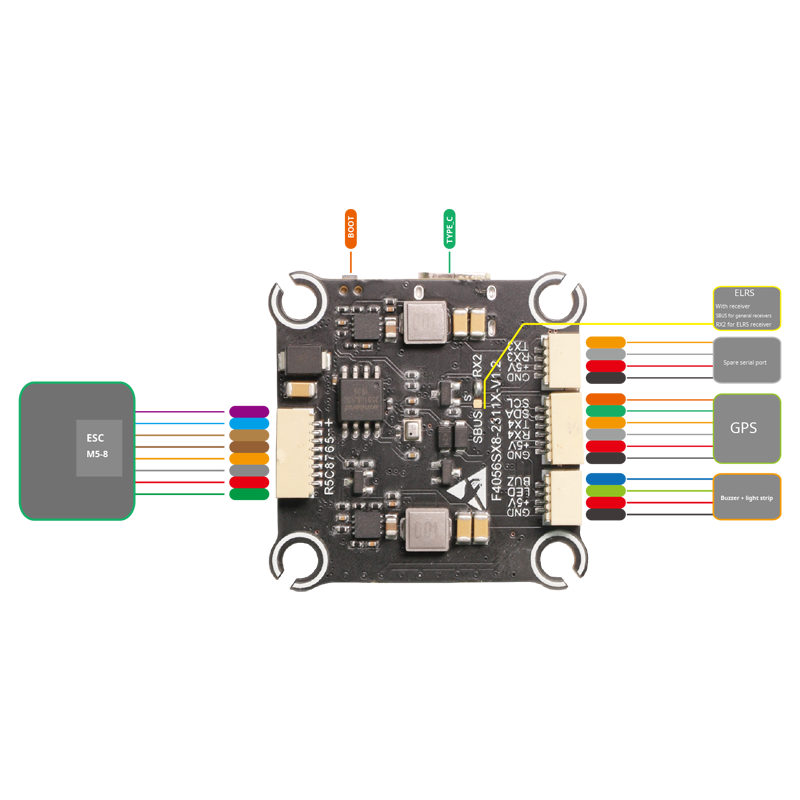

• MAD F405 70A Stack STM32F405 Flight Controller, MAD F405 flight controller board wiring diagram with labeled pads for ESC, GPS, and ELRS connections

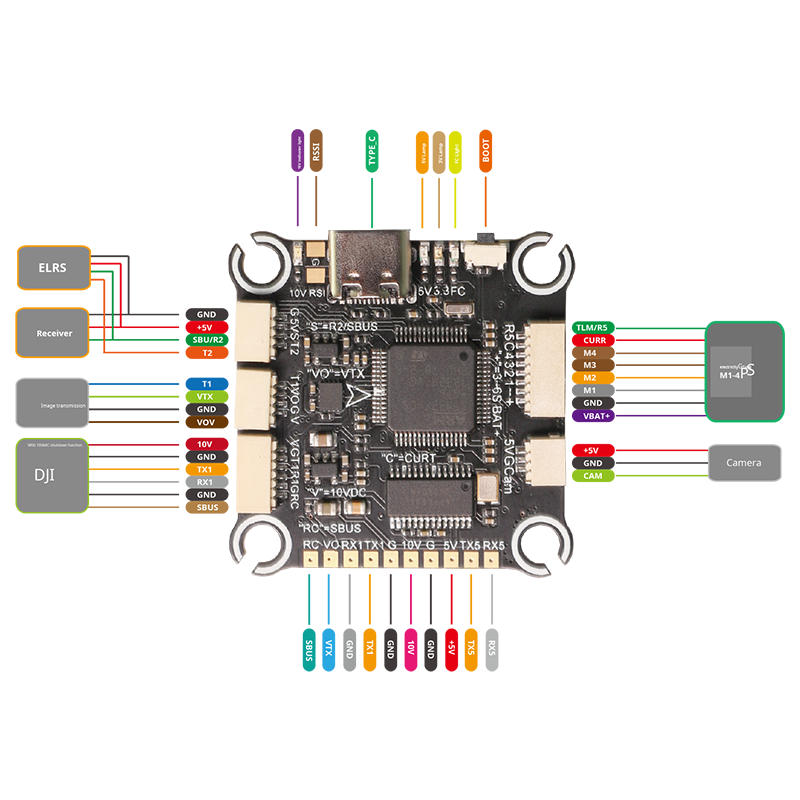

  • MAD F405 70A Stack STM32F405 Flight Controller, MAD F405 STM32F405 flight controller pinout diagram with labeled UART, receiver, DJI, motor and camera pads

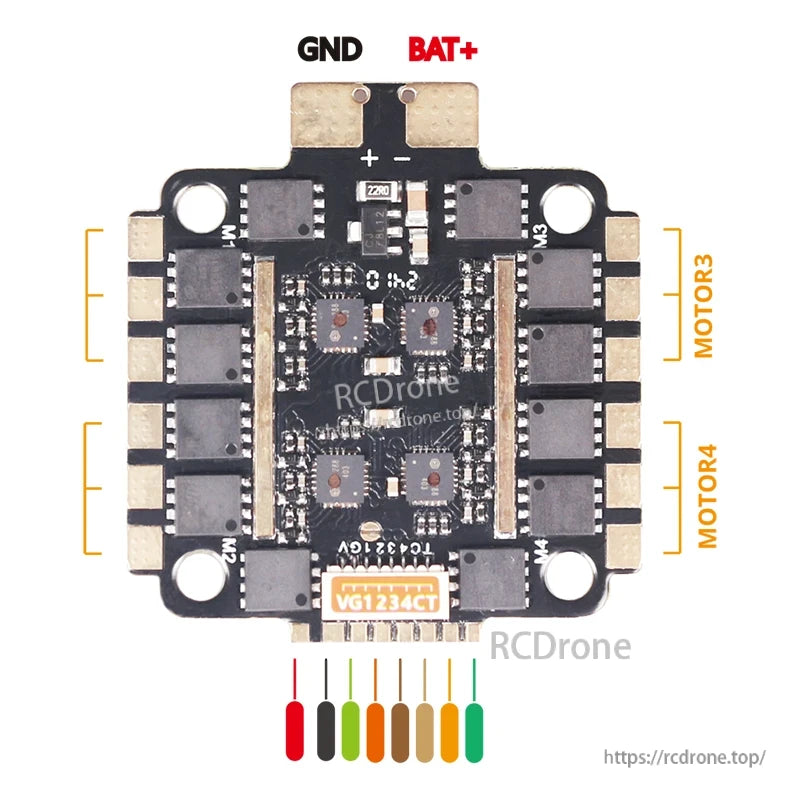

  • MAD F405 70A Stack STM32F405 Flight Controller, MAD F405 70A stack 4-in-1 ESC board with BAT+ and GND pads and labeled motor outputs

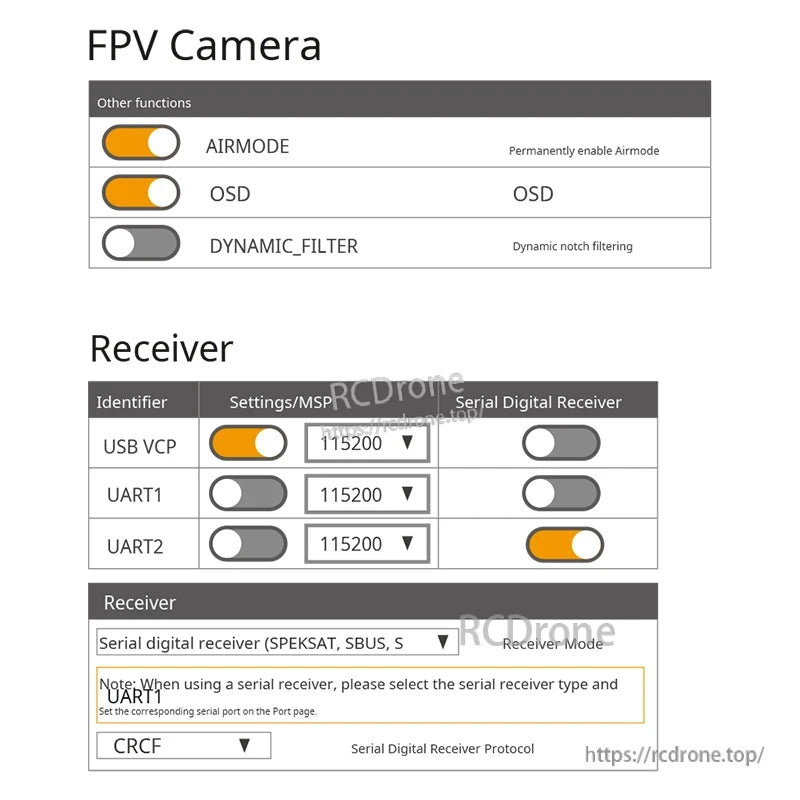

  • MAD F405 70A Stack STM32F405 Flight Controller, Betaflight setup screen for FPV camera options and receiver ports, showing Airmode, OSD, and serial RX/CRSF settings
1 4

MAD F405 70A Stack STM32F405 Kidhibiti cha Ndege + 32Bit ESC, ICM 42688-P, 16MB Blackbox, 3-6S

MAD F405 70A Stack STM32F405 Kidhibiti cha Ndege + 32Bit ESC, ICM 42688-P, 16MB Blackbox, 3-6S

MAD

$97.50 USD
$97.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Muhtasari

MAD F405 70A stack inayounganisha kidhibiti cha ndege STM32F405 na ESC ya 32Bit kwa ujenzi wa 3-6S LiPo.

Vipengele Muhimu

  • Firmware lengo: FLAOF405X8
  • MCU: STM32F405
  • Gyro: ICM 42688-P
  • Sanduku la Black: 16MB
  • Barometer: NDIYO
  • Matokeo ya BEC: 5V, 10V (10VBEC-ON/OFF: NDIYO)
  • Upeo wa sasa wa ESC: 70A (sasa ya papo hapo: 80A (6S))
  • Itifaki za ESC: Oneshot125/0neshot42/Mulishotmodes Dshot 150/300/600/1200

Maelezo

Kidhibiti cha Ndege

Firmware Lengo FLAOF405X8
Udhibiti mkuu STM32F405
Gyro ICM 42688-P
Sanduku la Black 16MB
Barometer NDIYO
BEC 5V, 10V
10VBEC-ON/OFF NDIYO
Vipimo vya nje vya juu 36*36mm Bodi
Mashimo ya kufunga 30.5*30.5mm (M3)
Voltage ya kuingiza 3-6S
Bandari ya uart serial 6

ESC

Vipimo vya nje vya juu 44.5*39mm Bodi
Mashimo ya kufunga 30.5*30.5mm (M3)
Mtiririko wa sasa wa kudumu 70A
Mtiririko wa sasa wa papo hapo 80A (6S)
Betri zinazoungwa mkono 3-6S Lipo
Firmware ya ESC 32Bit
Kukubali msaada Oneshot125/0neshot42/Mulishotmodes Dshot 150/300/600/1200

Kwa maswali ya wiring na usanidi (ikiwemo lengo la FLAOF405X8), wasiliana na support@rcdrone.top or tembelea https://rcdrone.top/.
