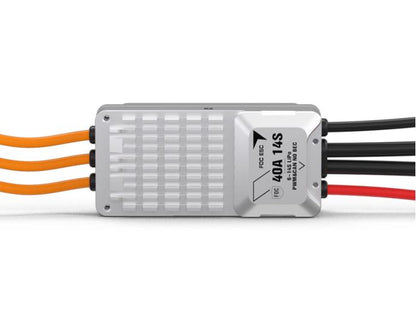

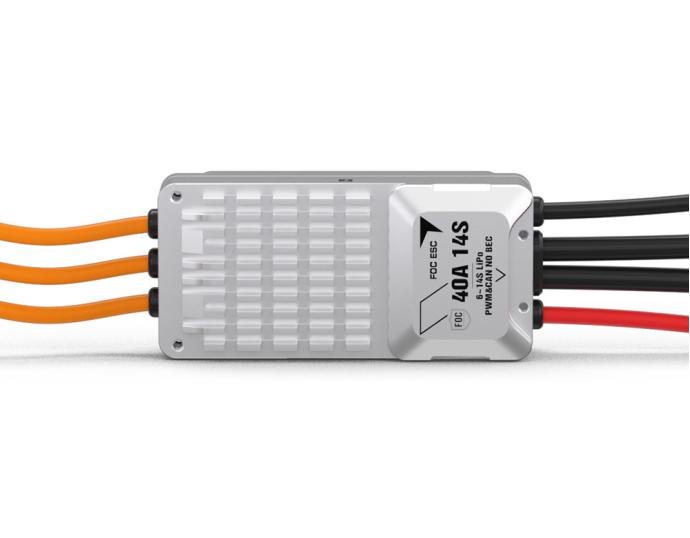

  • T-Motor V40A 14S UAV ESC, T-Motor 40A 14S UAV ESC with white heatsink case, three motor phase wires and PWM/CAN label (no BEC)

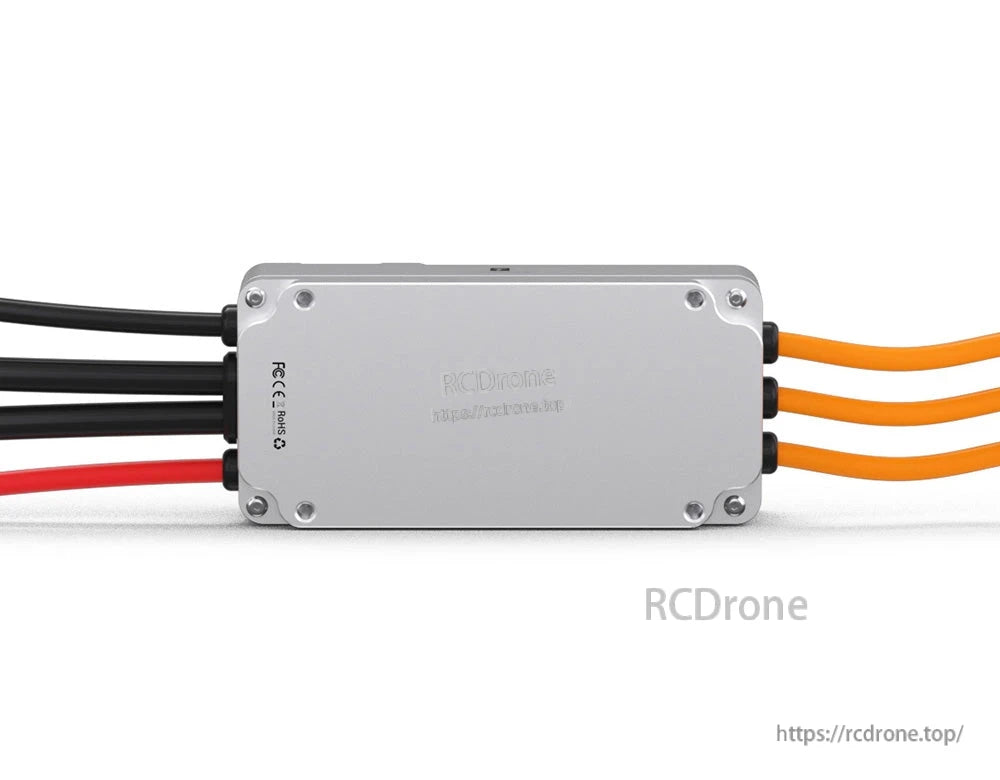

  • T-Motor V40A 14S UAV ESC, T-Motor V40A UAV ESC in aluminum case with three orange motor wires and black/red input leads

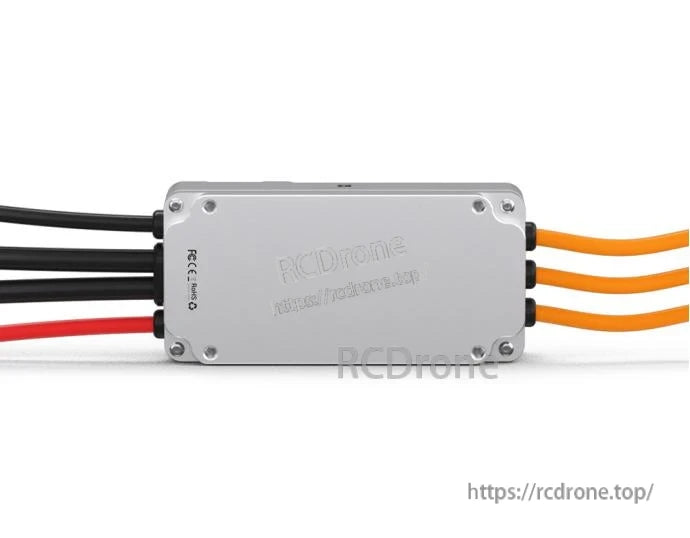

  • T-Motor V40A 14S UAV ESC in silver aluminum case with power leads on one side and three motor wires on the other

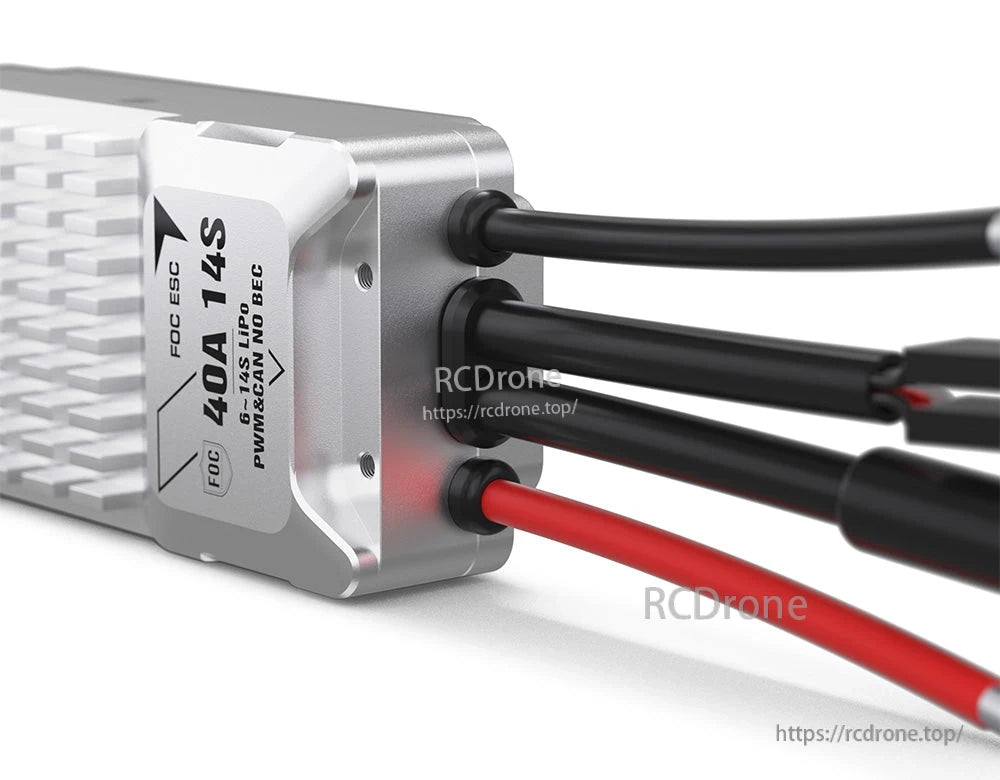

  • T-Motor V40A 14S UAV ESC, T-Motor V40A 14S FOC UAV ESC with heatsink and integrated wiring, labeled 6–14S LiPo PWM/CAN no BEC

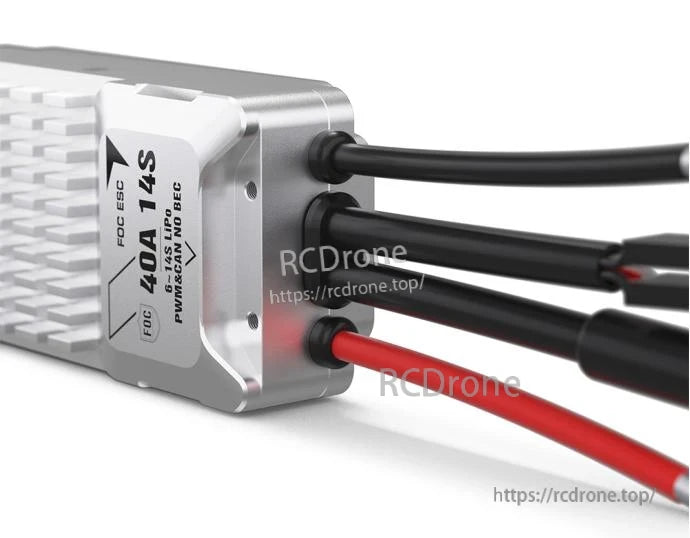

  • T-Motor V40A 14S UAV ESC, T-Motor V40A 14S FOC UAV ESC with finned aluminum case and three heavy-gauge wires, labeled PWM/CAN no BEC

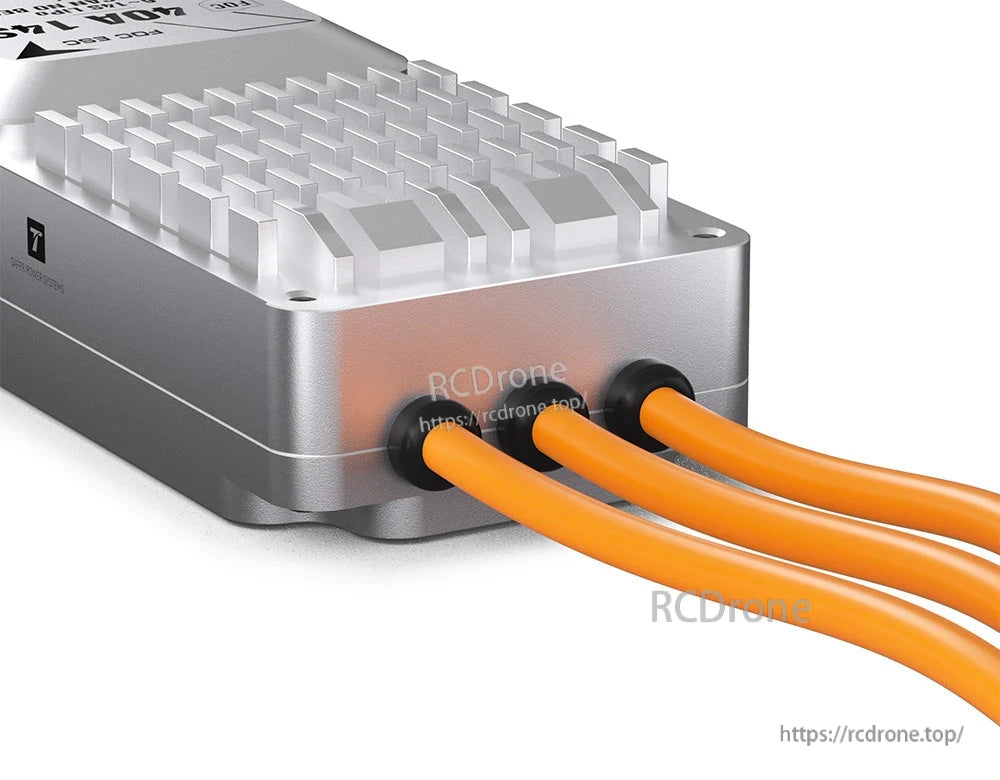

  • T-Motor V40A 14S UAV ESC, T-Motor V40A UAV ESC with finned aluminum heatsink case and three orange motor wires exiting sealed grommets

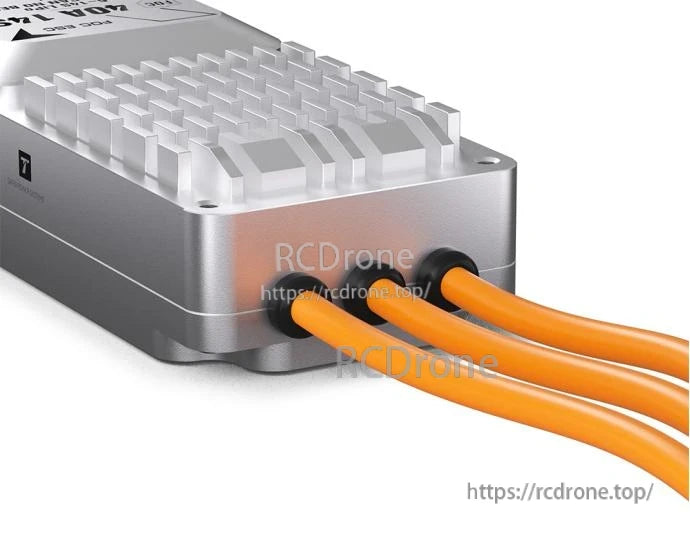

  • T-Motor V40A 14S UAV ESC, T-Motor V40A UAV ESC in aluminum case with finned heatsink and thick orange motor wires exiting the side

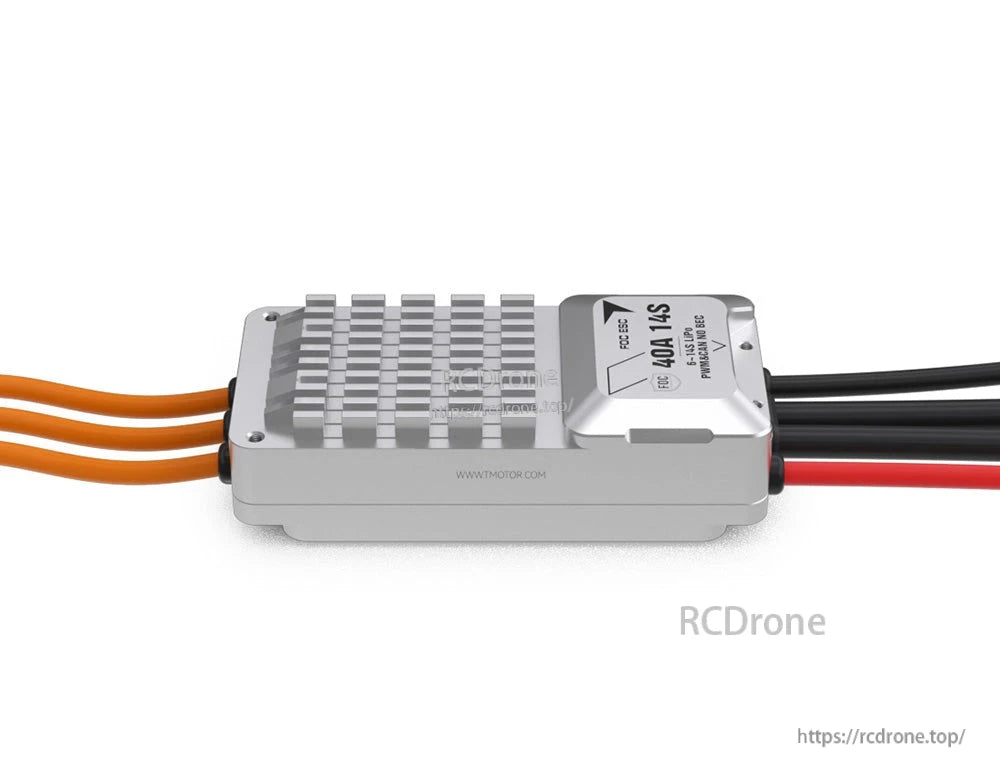

  • T-Motor V40A 14S UAV ESC, T-Motor V40A 14S FOC UAV ESC in aluminum heatsink case with prewired motor leads and power cables

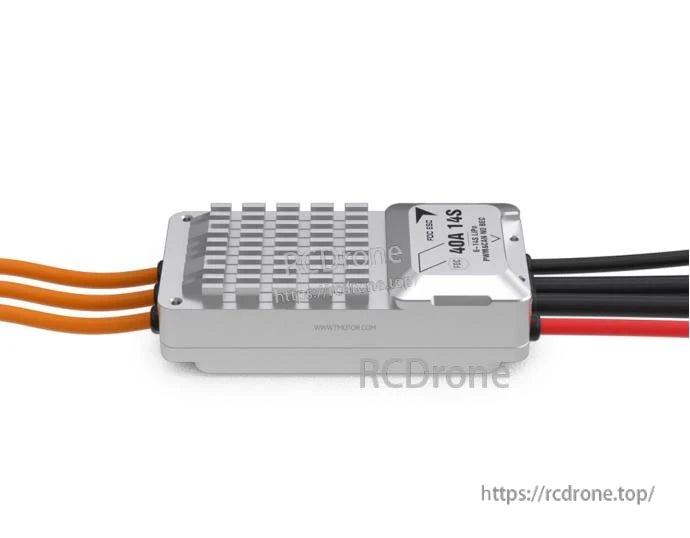

  • T-Motor V40A 14S UAV ESC in silver heatsink case with labeled top plate and prewired power and motor leads
1 10

T-Motor V40A 14S UAV ESC (FOC) 6-14S LiPo 20A Endelevu 40A Kilele PWM/CAN Hakuna BEC

T-Motor V40A 14S UAV ESC (FOC) 6-14S LiPo 20A Endelevu 40A Kilele PWM/CAN Hakuna BEC

T-MOTOR

$139.86 USD
$139.86 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

T-Motor V40A 14S ni ESC ya UAV (FOC ESC) iliyoundwa kwa ajili ya majibu ya haraka, kuendesha kwa ufanisi, udhibiti sahihi, na uendeshaji wa kelele ya chini. Inasaidia 6~14S LiPo input (18~60V) na inatoa udhibiti wa PWM/CAN (NO BEC).

Vipengele Muhimu

  • Majibu ya haraka
  • Kuendesha kwa ufanisi
  • Udhibiti sahihi
  • Uendeshaji wa kelele ya chini
  • Protokali: PWM/CAN
  • BEC: HAPANA

Kwa msaada wa kuagiza na msaada wa kiufundi, wasiliana na https://rcdrone.top/ au tuma barua pepe support@rcdrone.top.

Maelezo ya Kiufundi

Nambari ya Mfano V40A 14S
Voltage ya Msaada 18~60V (6~14S)
Current ya Kuendelea 20A
Current ya Kilele (<10s) 40A
Uzito wa ESC 50g (bila kebo) / 68g
Uzito (Ikiwa Cables) 69g
Ukubwa 62*30*18mm (P*W*H)
Protokali PWM/CAN
BEC HAPANA
Throttle Pos. Range 1040~1940μs
Throttle Refresh Frequency 50~500Hz
Throttle Response Speed 300ms
Matumizi ya Standby ≤50mA@48V
Kauli ya Ingizo Waya ya Silicone-Red/Black-14AWG-150mm
Kauli ya Kutoka Waya ya Silicone-Orange-16AWG-65mm
Kauli ya Ishara Waya za Kifaa-Black-OD4.2-5C-300mm-JP-3P*2-Nyeusi Blank Nyeupe-Kijani Njano Kijivu
Nyaya za Encoder Nyaya Zilizoimarishwa-Nyeusi-24AWG-5C-300mm-M6 Aviation Connector

Mapendekezo

  • Motor: U5
  • ESC: V40A
  • Propeller: P17

Nini Kimejumuishwa

  • Sanduku la Ufungashaji*1
  • V40A 14S*1

Pakua

Maelezo

T-Motor V40A 14S UAV ESC

ESC ya T-Motor V40A 14S FOC ina mwili wa heatsink wa alumini wenye fin na nyaya za nguvu za gauge nzito pamoja na wiring ya PWM/CAN signal.

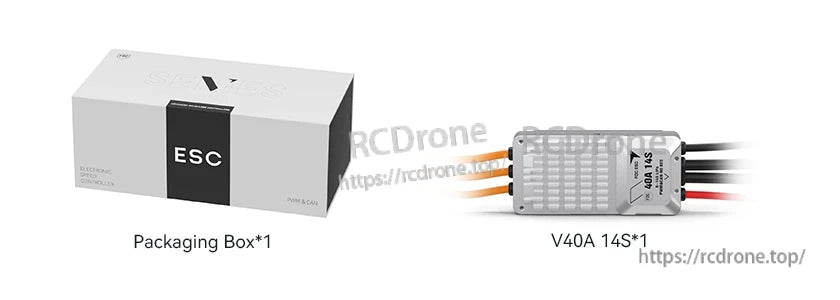

V40A 14S technical drawingV40A 14S packing list

ESC ya T-Motor V40A 14S inakuja na sanduku la ufungaji na kitengo cha ESC chenye nyaya za motor na nguvu zilizounganishwa awali kwa ajili ya wiring safi.
