Overview

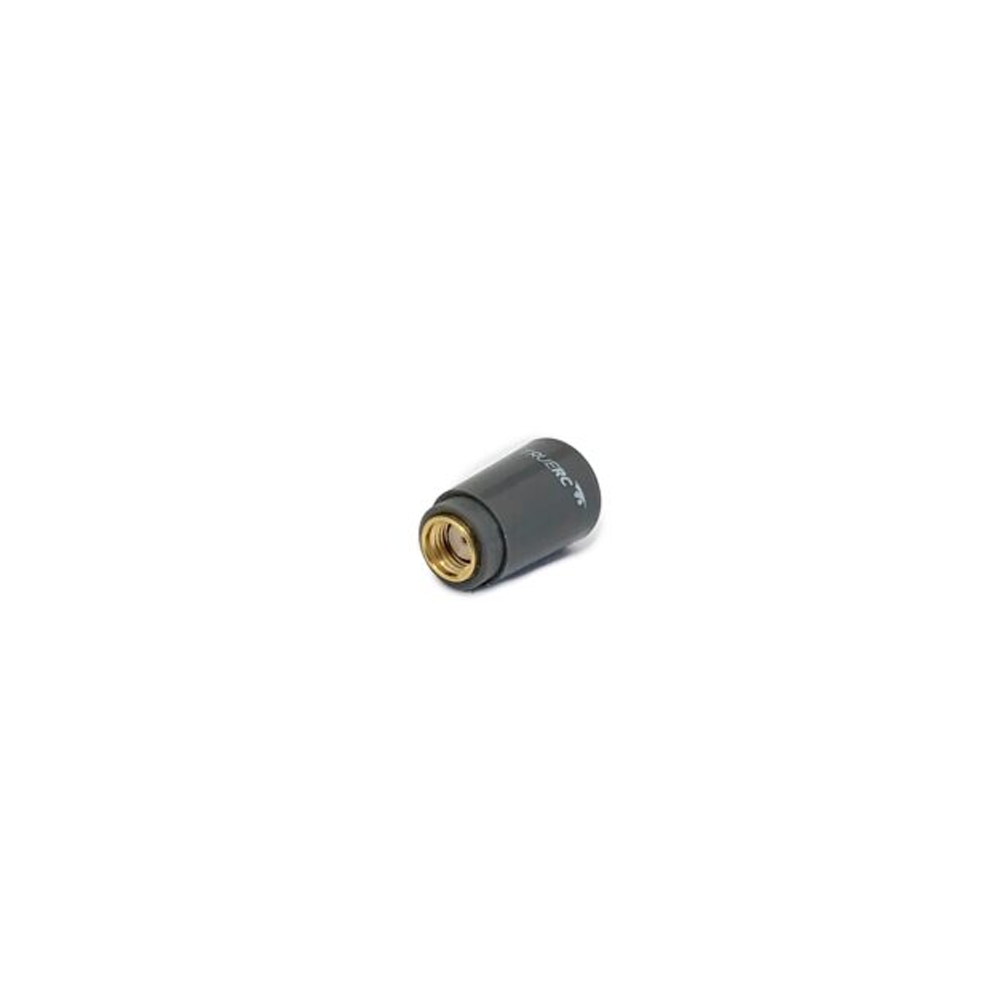

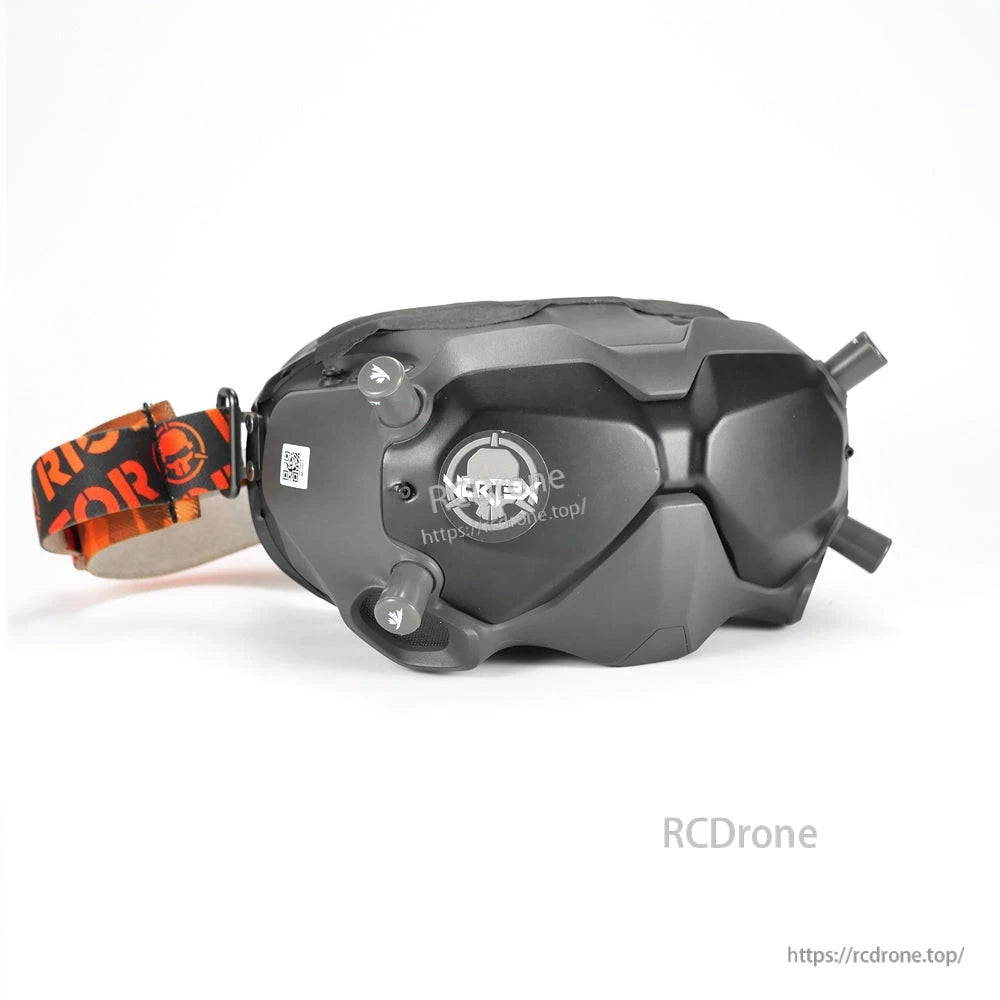

The TrueRC Singularity 5.8 Stubby LHCP antenna is designed to replace stock antennas on compatible FPV goggles to improve video quality while reducing overall antenna footprint. This antenna uses LHCP polarization and an RP-SMA connector, and versions are available as a Single or 4-Pack for Dominator HD and DJI FPV Goggles setups.
Key Features
- Stubby Singularity form factor to lower the overall footprint on FPV goggles
- LHCP polarization
- 5.6GHz-6.0GHz bandwidth
- High radiation efficiency (99%)
- Cross-polar rejection: -15 to -30dB (1.9%)
- RP-SMA connector
Specifications
| Product | TrueRC Singularity 5.8 Stubby Antenna |
| Polarization | LHCP |
| Bandwidth | 5.6GHz-6.0GHz |
| Cross-Polar Rejection | -15 to -30dB (1.9%) |
| Radiation Efficiency | 99% |
| SWR | <=1.5:1 |
| Connector | RP-SMA |
| Size | 12.7mm x 20mm |
| Weight | 3.7 g |
What’s Included

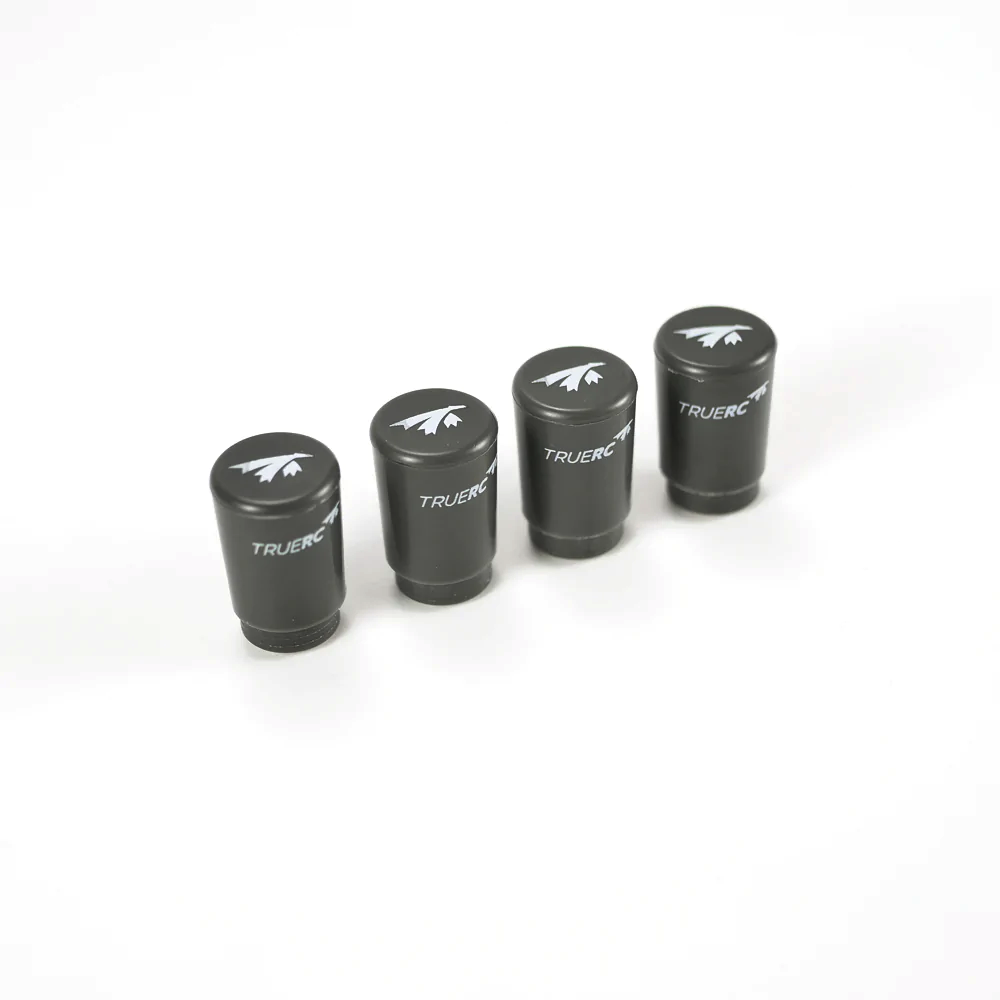

- 1x Singularity Antenna for DJI FPV (Single version) or 4x Singularity Antenna for DJI FPV (4-Pack version)
For compatibility questions (connector type, LHCP matching, or pack selection), contact support@rcdrone.top or visit https://rcdrone.top/.
