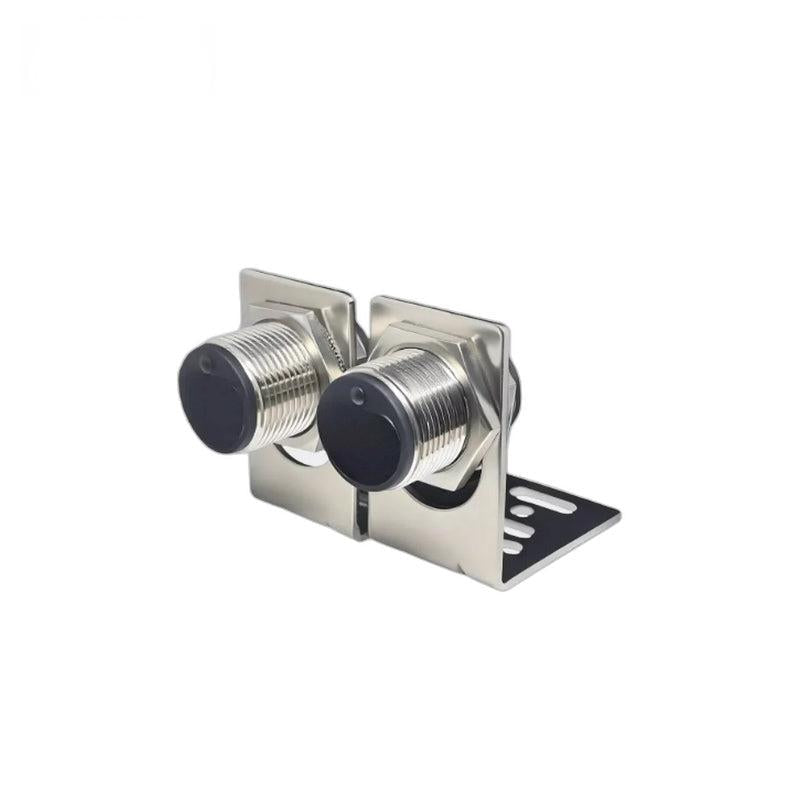

• Yunshis MVI2 LiDAR ToF laser ranging sensor pair in metal mounting bracket, front view

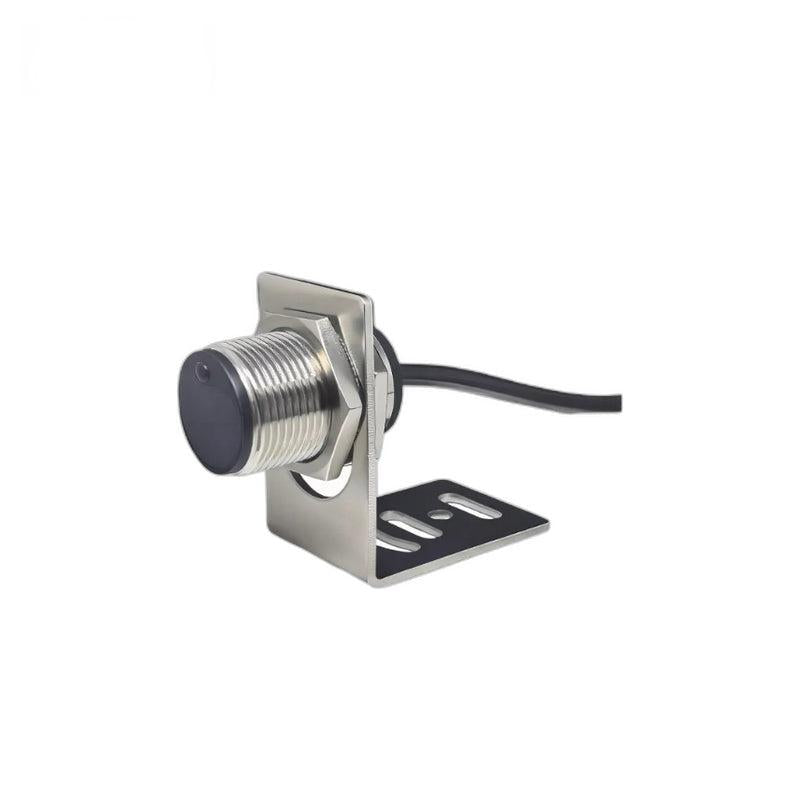

  • Single LiDAR ToF ranging sensor on slotted L-bracket with attached cable, side view

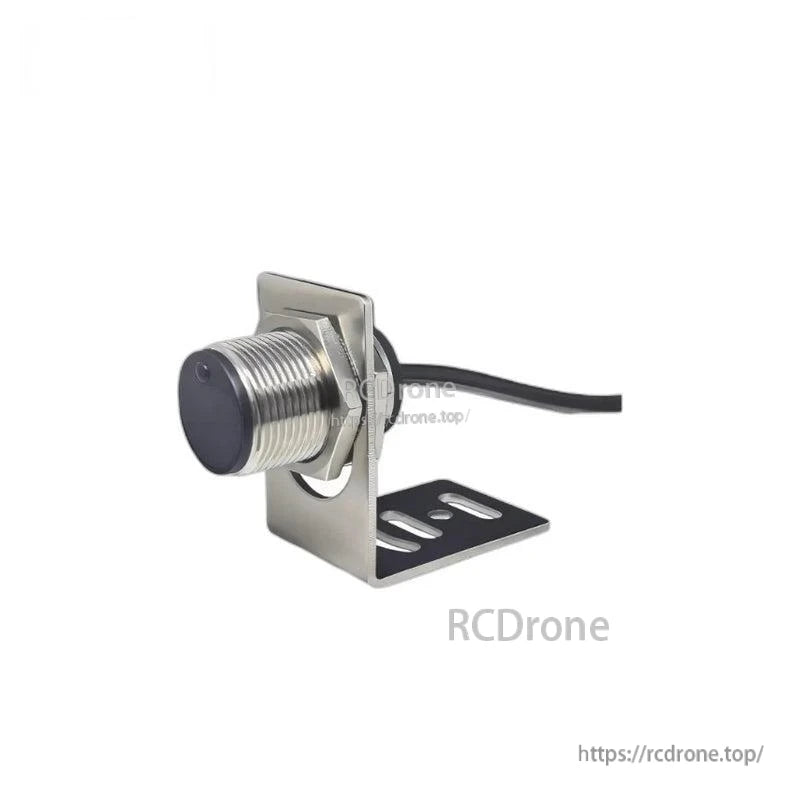

  • Cylindrical laser ranging sensor module on adjustable metal bracket with cable, side angle
1 3

Yunshis MVI2 LiDAR ToF Laser Ranging Sensor 0.1-10 m IP65 UART/RS485/4-20mA for Robots

Yunshis MVI2 LiDAR ToF Laser Ranging Sensor 0.1-10 m IP65 UART/RS485/4-20mA for Robots

Yunshis

$75.75 USD
$75.75 USD
Розпродаж Продано
Taxes included. Доставка розраховується під час оформлення замовлення.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Переглянути повну інформацію

Overview

Yunshis MVI2 LiDAR is a ToF laser ranging sensor designed for distance measurement and obstacle avoidance integration in robotics and drone systems. It features IP65 protection and a DToF solution tested to withstand up to 100kLux sunlight interference, supporting multiple industrial interfaces including UART serial, RS485, and 4-20mA.

Key Features

  • Working distance (measurement range): 0.1-10 m (indoor environment, 90% reflective whiteboard)
  • IP rating: IP65
  • Anti-sunlight interference: tested up to 100kLux (DToF solution)
  • Interfaces supported: UART serial / RS485 / 4-20mA
  • Working voltage: 5-24 V

Specifications

Item Value Notes
Measurement Range (D) 0.1 to 10 m Indoor environment, 90% reflective whiteboard
Measurement Spot Size (dSPOT) @ D=4.0m Min 4 cm / Typical 5 cm / Max 7 cm
Measurement Frequency (F) Min 10 Hz / Typical 50 Hz / Max 100 Hz
Field of View (FOV) 2 to 3 deg
Accuracy (0.1-6.0m) (Acc) Max +/-6 cm
Accuracy (6.0-10.0m) (Acc) Max +/-3 %
Resolution (R) Typical 10 mm
ESD Protection (ESD) Max 2 kV Human Body Model (HBM)
Operating Temperature (TA) -10 to 60 C
Storage Temperature (TSTO) -20 to 65 C
Relative Humidity (RH) 15 to 90 % Non-condensing environment
Working voltage 5-24 V
Interfaces supported UART serial / RS485 / 4-20mA
Protection rating IP65 Dust-tight; test condition stated as 2.5 m from water nozzle, water flow 12.5 L/min (750 L/h) for 30 minutes
Mechanical Cylindrical type: L35mm x M24mm; weight 41g

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots
  • Mobile target obstacle avoidance
  • Medium and low speed obstacle avoidance
  • Drone altitude holding / obstacle avoidance

What's Included

  • Installation bracket (standard accessory)
  • Mounting hardware as shown (nut)

For integration guidance and pre-sales compatibility questions, contact [email protected] or visit https://rcdrone.top/.

Details

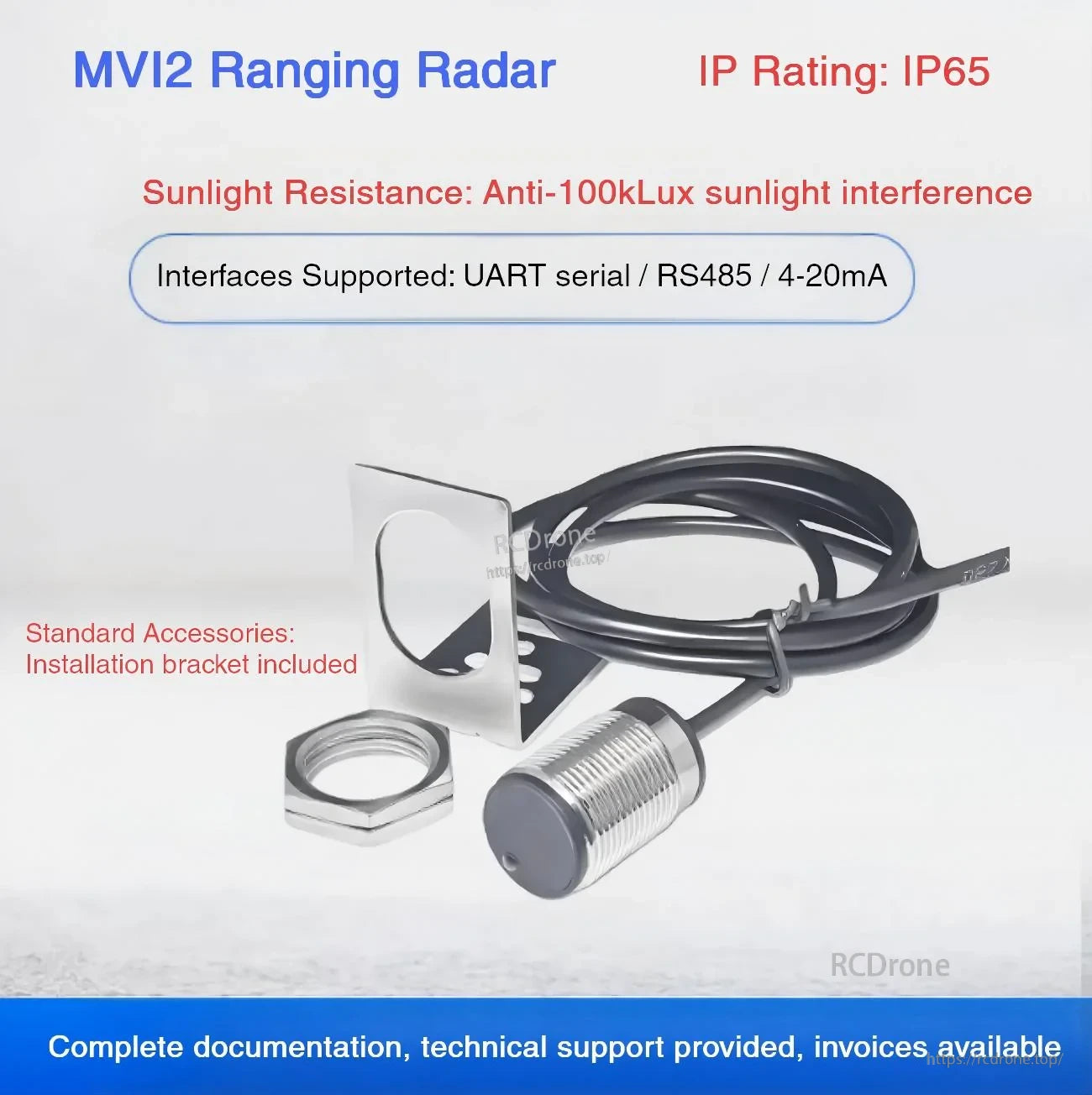

Yunshis MVI2 LiDAR ToF laser ranging sensor kit with mounting bracket, nut, and cable; IP65 and multi‑interface support

A compact ToF LiDAR ranging module supplied with an installation bracket and mounting hardware for fast integration into robots or drones.

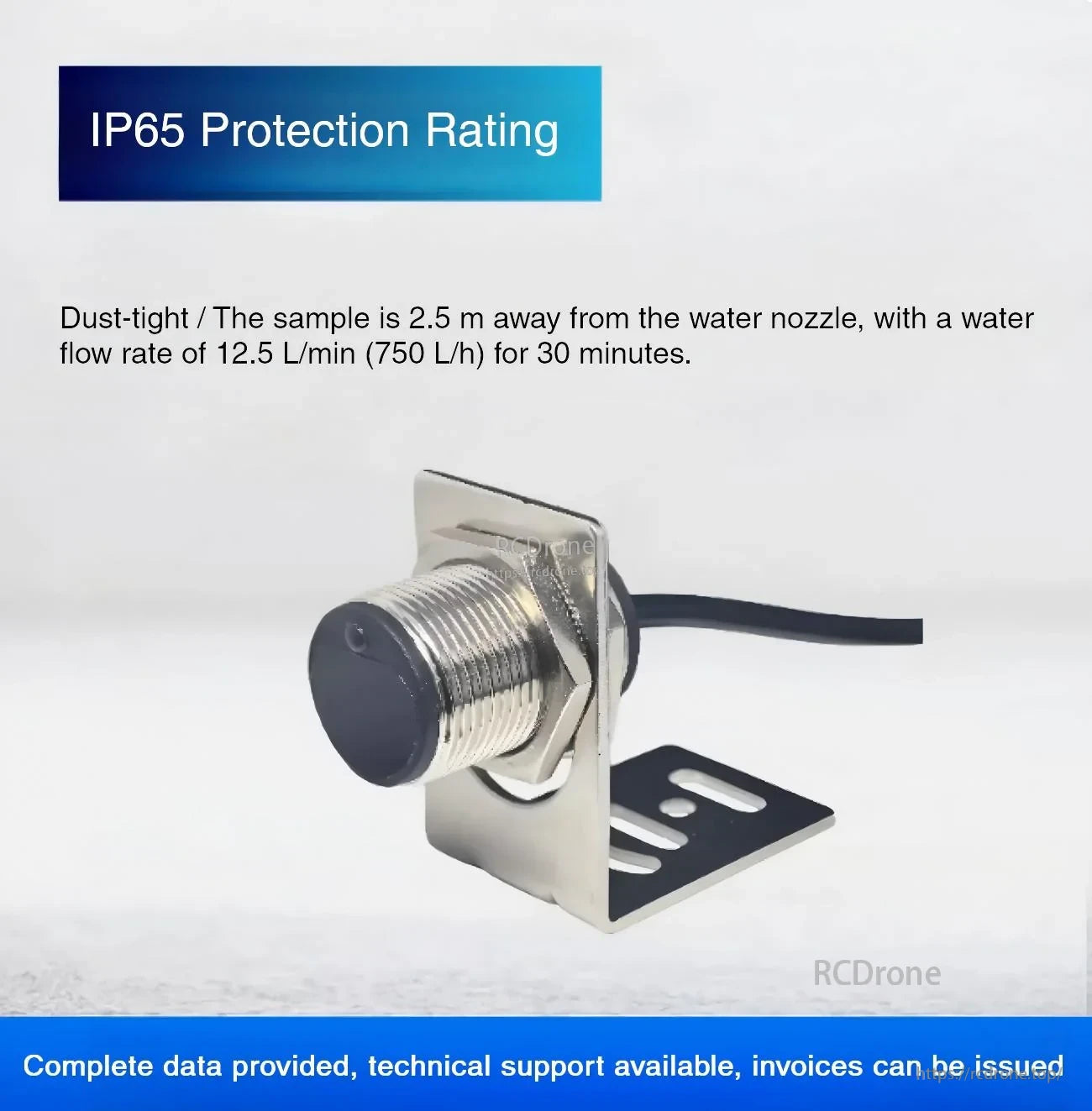

MVI2 cylindrical LiDAR sensor mounted on metal bracket, highlighting IP65 dust-tight and water-jet protection design

IP65-rated housing helps keep the sensor protected from dust and water spray in demanding industrial environments.

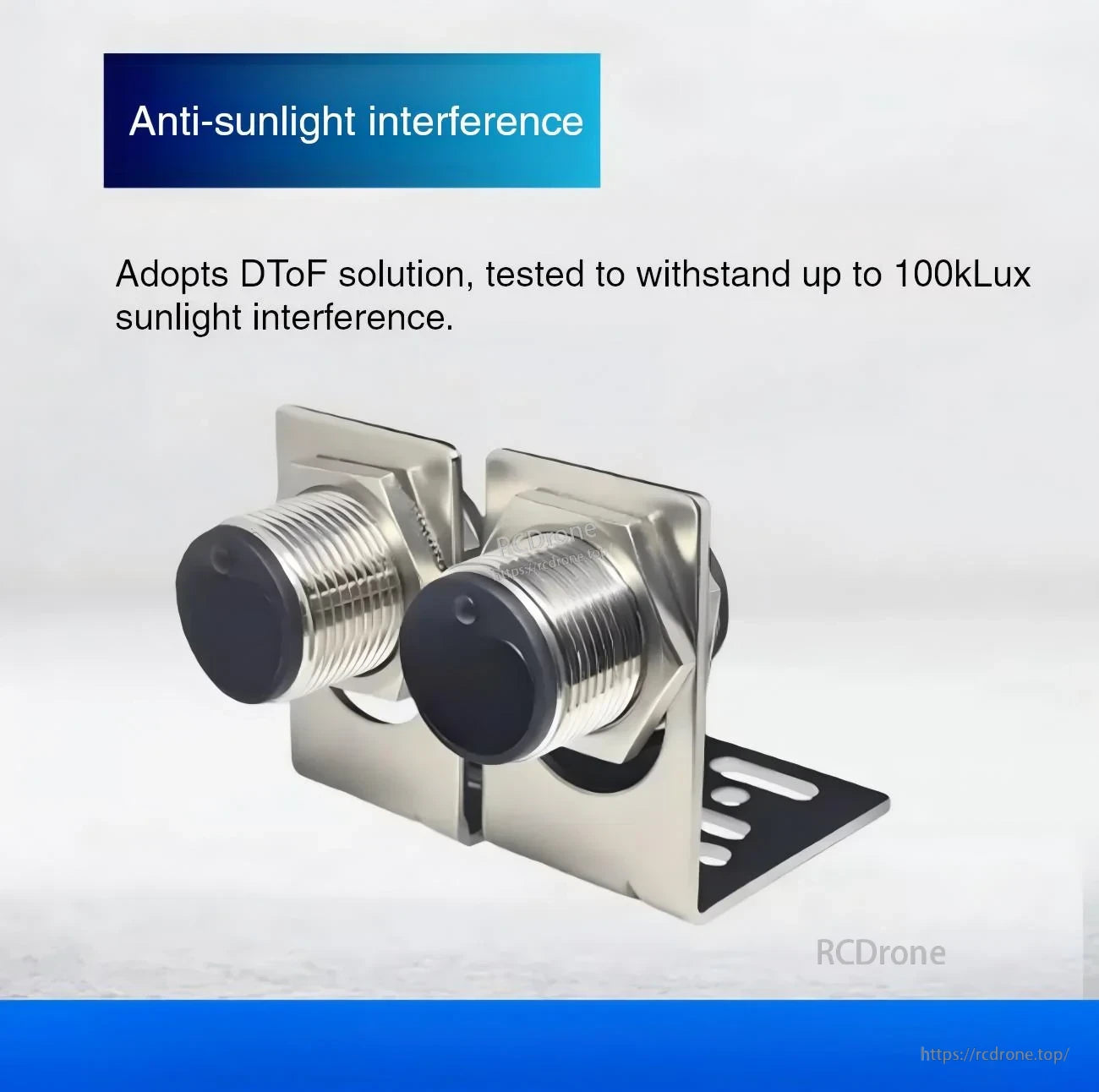

Pair of cylindrical ToF laser ranging sensors on brackets; DToF design noted for strong anti-sunlight interference up to 100kLux

DToF anti-sunlight design is tested to withstand up to 100kLux interference for more stable outdoor measurements.

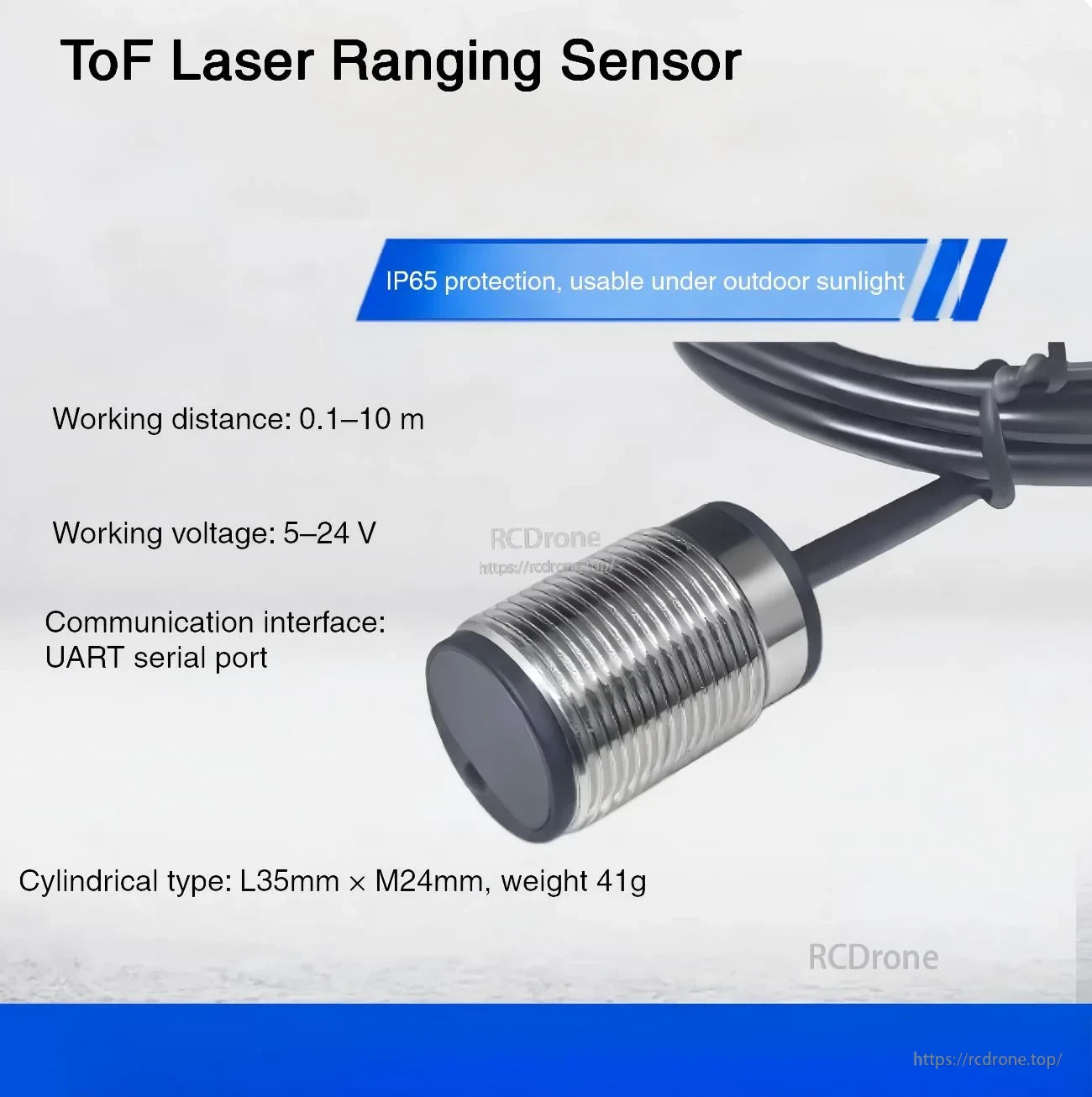

Close-up of Yunshis MVI2 ToF laser ranging sensor body and cable with key specs: 0.1–10 m range and 5–24 V input

Key integration basics include 0.1–10 m working distance, 5–24 V operating voltage, and UART serial communication.

Application examples for the MVI2 ToF ranging sensor: mobile robot obstacle avoidance and drone altitude holding/avoidance

Common uses include mobile target obstacle avoidance and drone altitude holding or obstacle avoidance at medium to low speeds.
