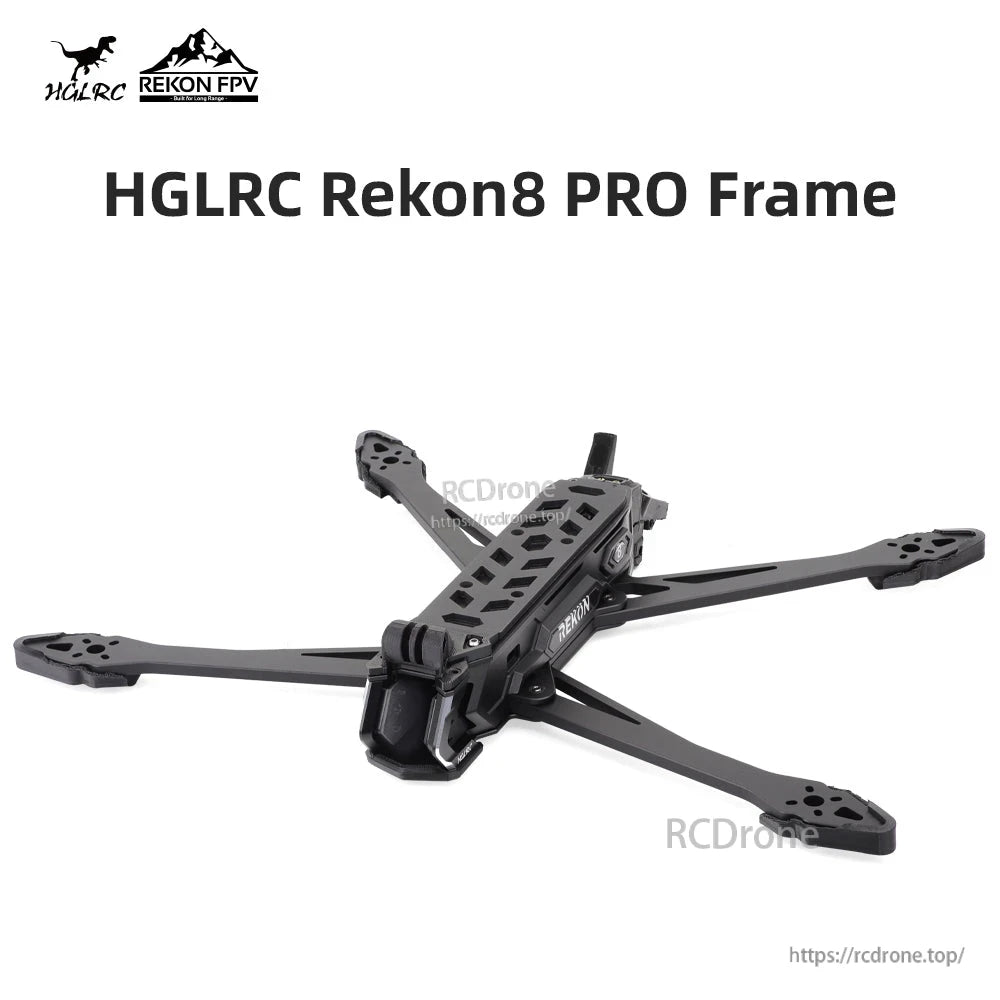

HGLRC Rekon8 PRO 8-Inch Long-Range FPV Frame Kit, Compatible with DJI O4/O3 HD & Analog Cameras
HGLRC Rekon8 PRO 8-Inch Long-Range FPV Frame Kit, Compatible with DJI O4/O3 HD & Analog Cameras
HGLRC
無法載入取貨服務供應情況
Overview

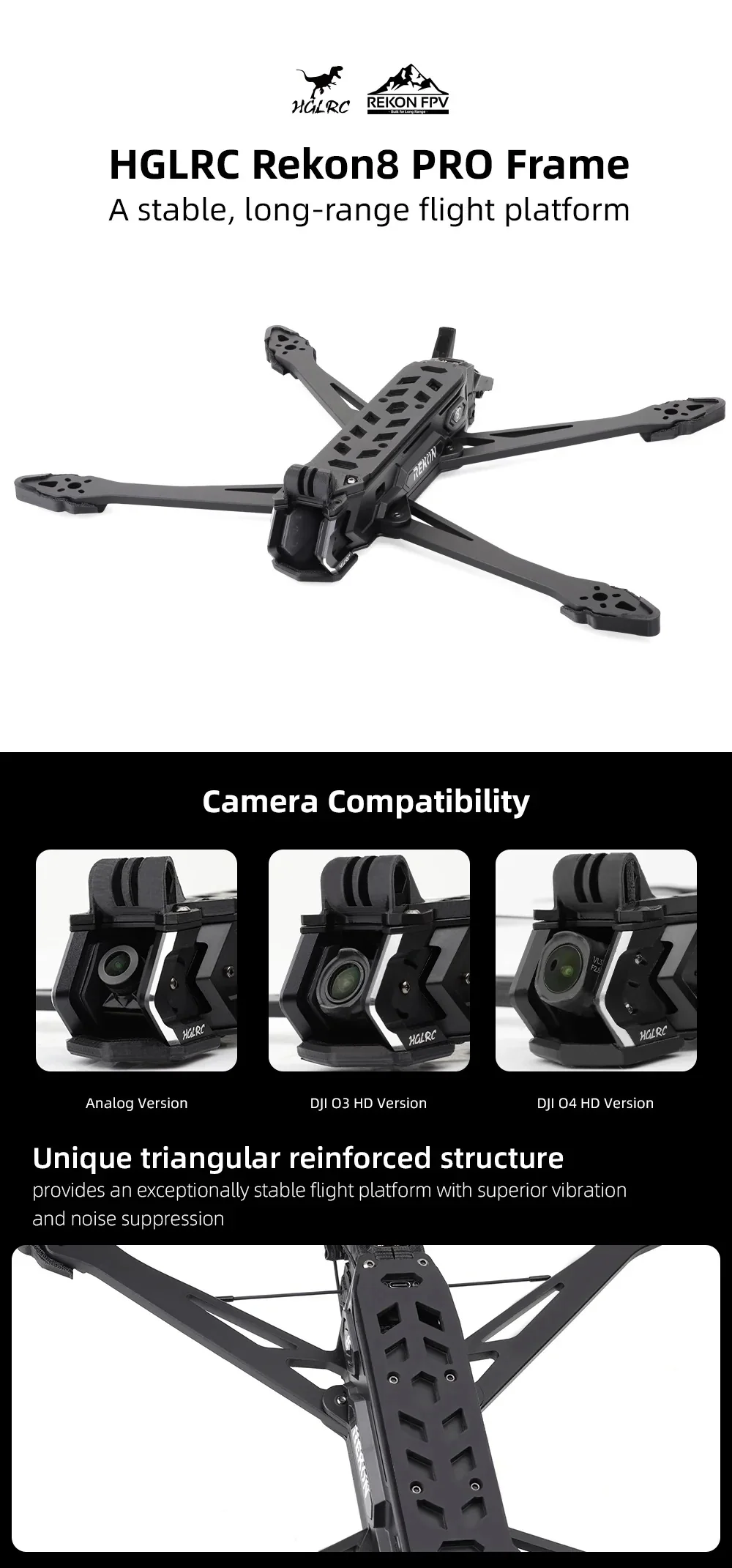

The HGLRC Rekon8 PRO is an 8-inch long-range FPV frame designed as a stable flight platform. It uses a unique triangular reinforced structure for improved vibration and noise suppression, and features a CNC aluminum nose section to enhance camera lens protection. Camera compatibility options shown include Analog Version, DJI O3 HD Version, and DJI O4 HD Version.
Key Features
- Unique triangular reinforced structure for a stable flight platform with vibration and noise suppression
- CNC aluminum nose section for enhanced camera lens protection
- Fully enclosed, injection-molded side panels to help protect internal electronics from dust, debris, and impacts
- Customizable RGB lighting effects
- Detachable vertical antenna mount design; compatible with ELRS dual-frequency receivers for a more stable radio link
- Larger frame size supports mounting powerful motors for greater power redundancy

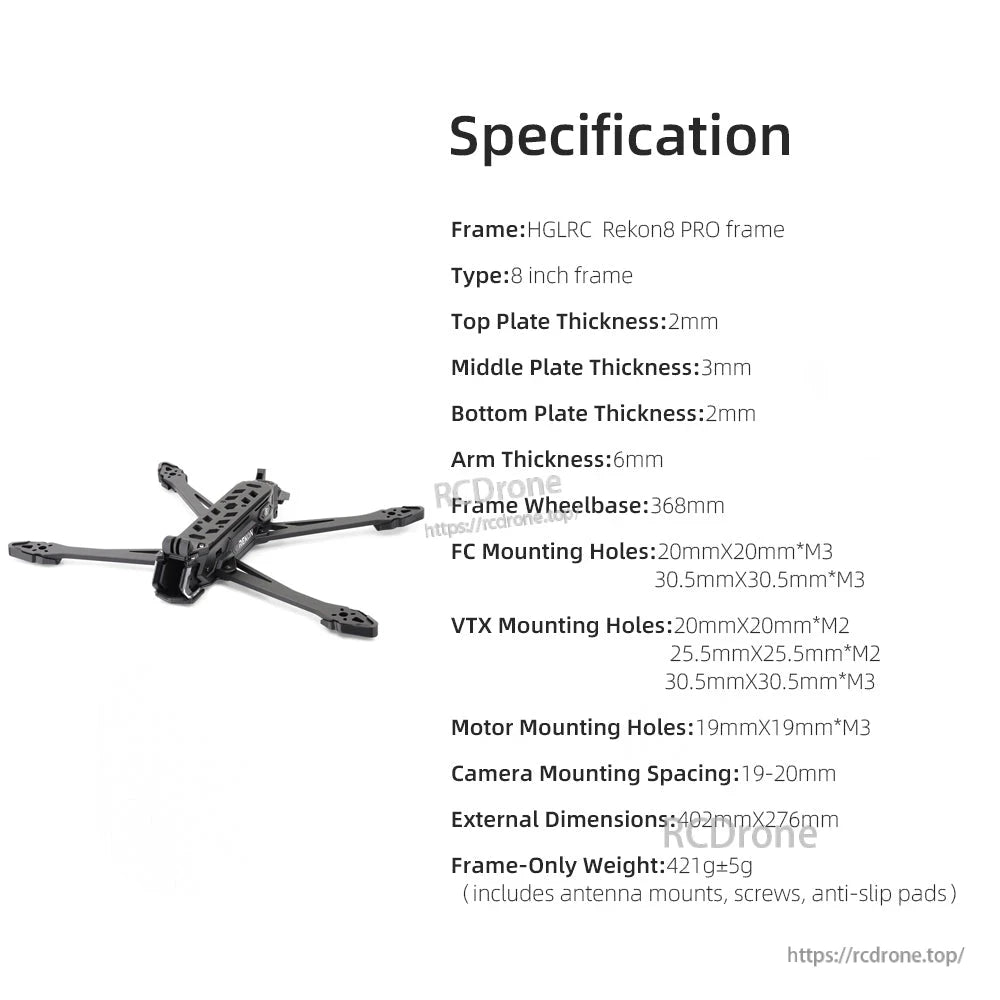

Specifications
| Frame | HGLRC Rekon8 PRO frame |
| Type | 8 inch frame |
| Top Plate Thickness | 2mm |
| Middle Plate Thickness | 3mm |
| Bottom Plate Thickness | 2mm |
| Arm Thickness | 6mm |
| Frame Wheelbase | 368mm |
| FC Mounting Holes | 30.5mm x 30.5mm x M3; 20mm x 20mm x M3 |
| VTX Mounting Holes | 25.5mm x 25.5mm x M2; 20mm x 20mm x M2; 30.5mm x 30.5mm x M3 |
| Motor Mounting Holes | 19mm x 19mm x M3 |
| Camera Mounting Spacing | 19-20mm |
| External Dimensions | 402mm x 276mm |
| Frame-Only Weight | 421g ±5g (includes antenna mounts, screws, anti-slip pads) |
| Total Weight | 665g |
| Box Dimensions | 308.2mm x 175.4mm x 53.6mm |
What’s Included
- HGLRC Rekon8 PRO Frame x1
- Accessory kit x1

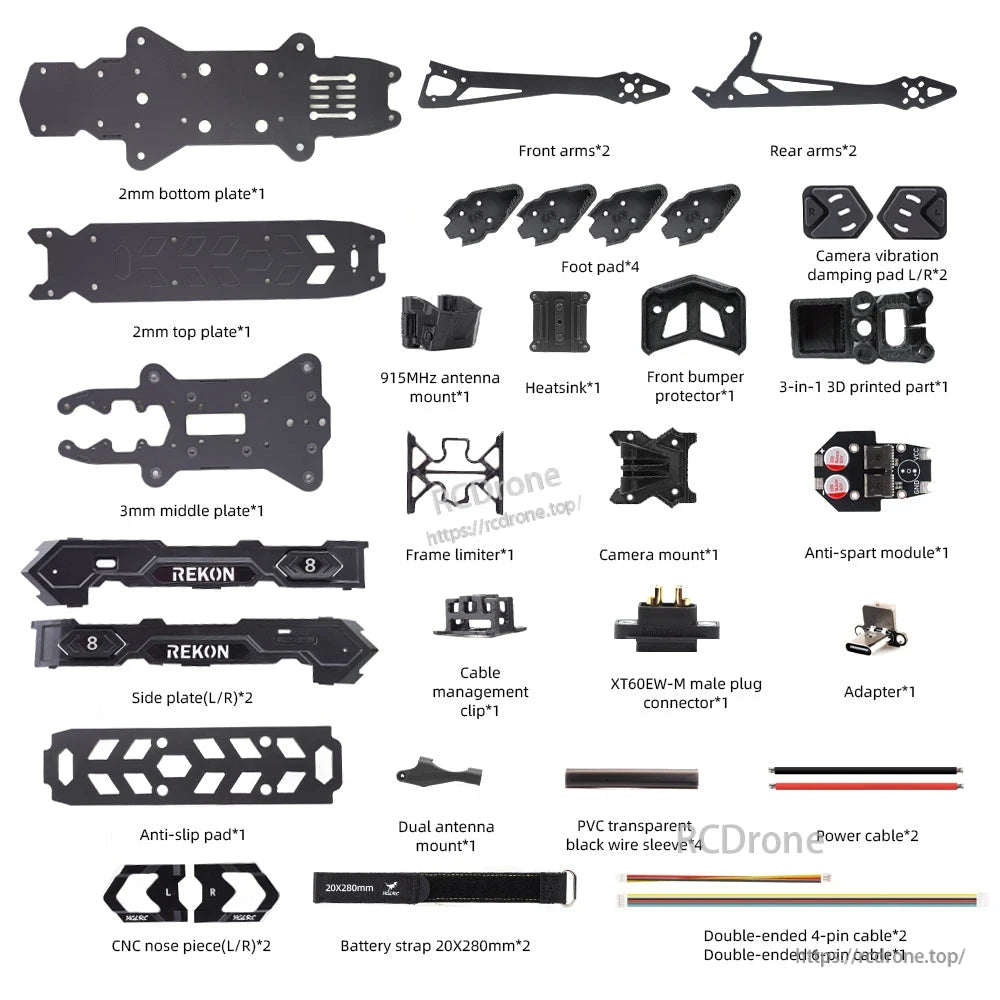

Product List (as shown)
- 2mm bottom plate x1
- 2mm top plate x1
- 3mm middle plate x1
- Front arms x2
- Rear arms x2
- Foot pad x4
- Side plate (L/R) x2
- Anti-slip pad x1
- Camera vibration damping pad (L/R) x2
- 915MHz antenna mount x1
- Dual antenna mount x1
- Cable management clip x1
- Frame limiter x1
- Heatsink x1
- Front bumper protector x1
- 3-in-1 3D printed part x1
- Camera mount x1
- Anti-spark module x1
- XT60EW-M male plug connector x1
- Adapter x1
- PVC transparent black wire sleeve x4
- Power cable x2
- Battery strap 20 x 280mm x2
- Double-ended 4-pin cable x2
- Double-ended 6-pin cable x1
- CNC nose piece (L/R) x2
For installation and parts support, contact https://rcdrone.top/ or email support@rcdrone.top.
Details

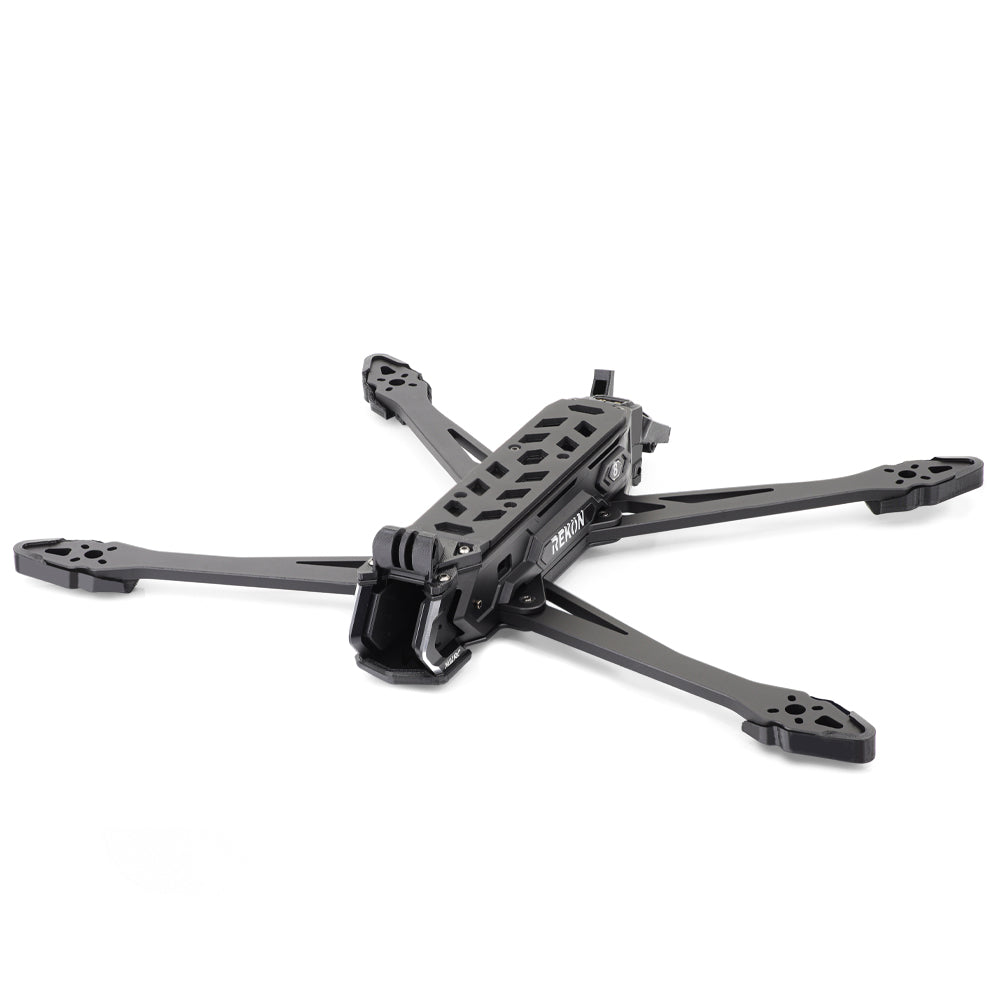

Built around a rigid, triangular reinforced layout, Rekon8 PRO is tuned for stable long-range cruising and reduced vibration.

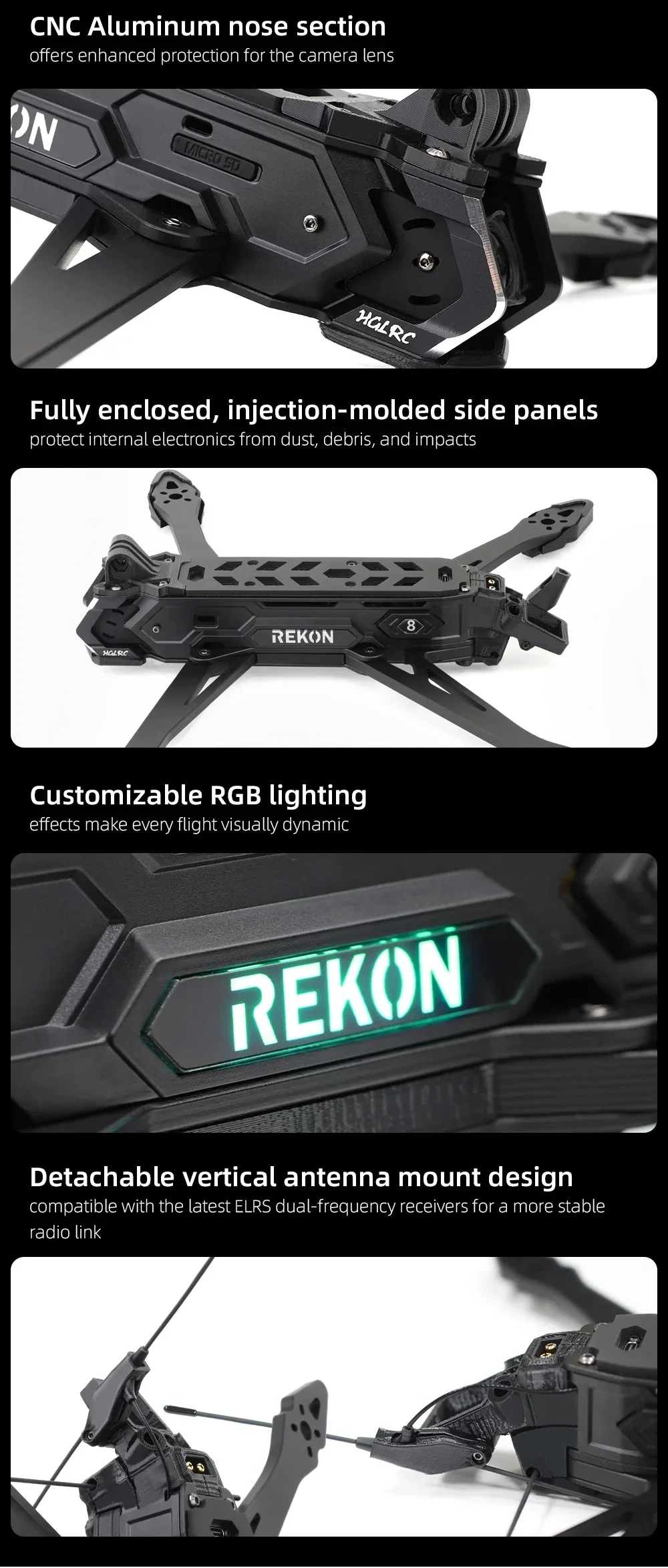

A CNC aluminum nose helps protect the camera lens, while enclosed side panels shield internal electronics from dust and impacts.

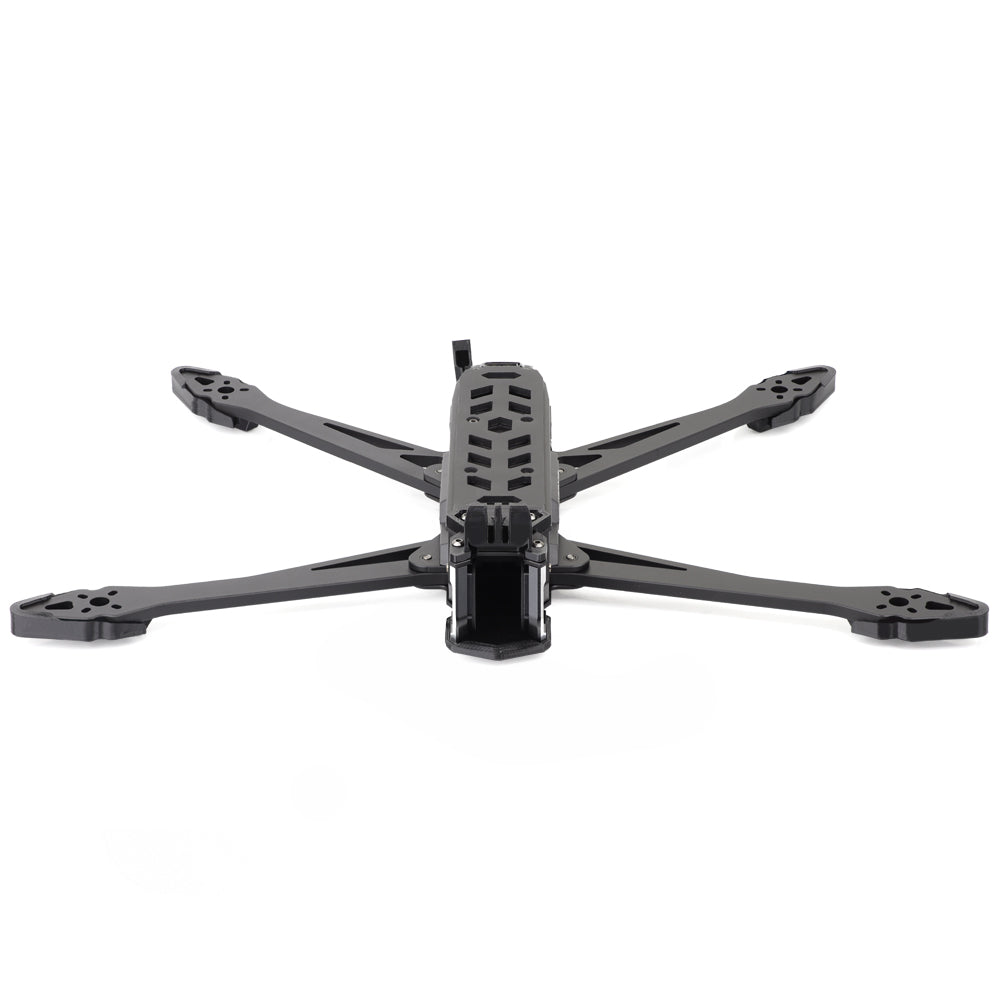

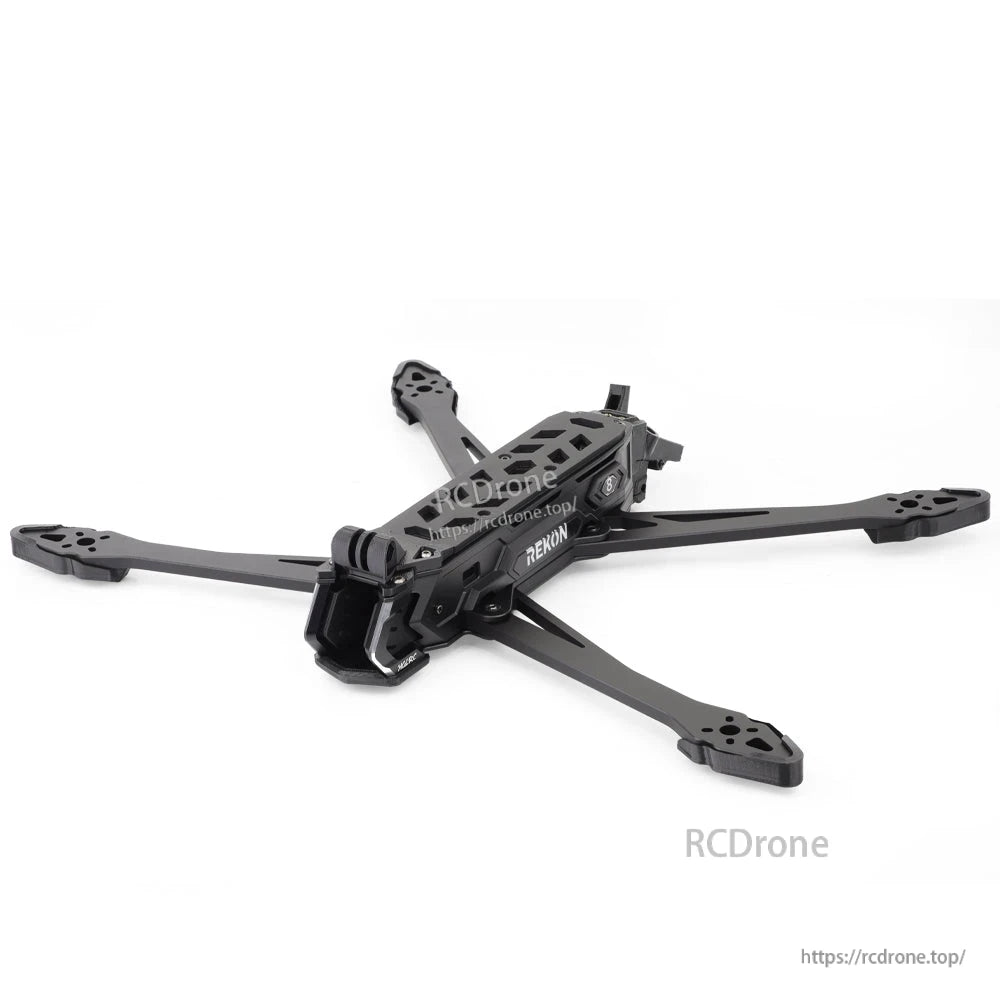

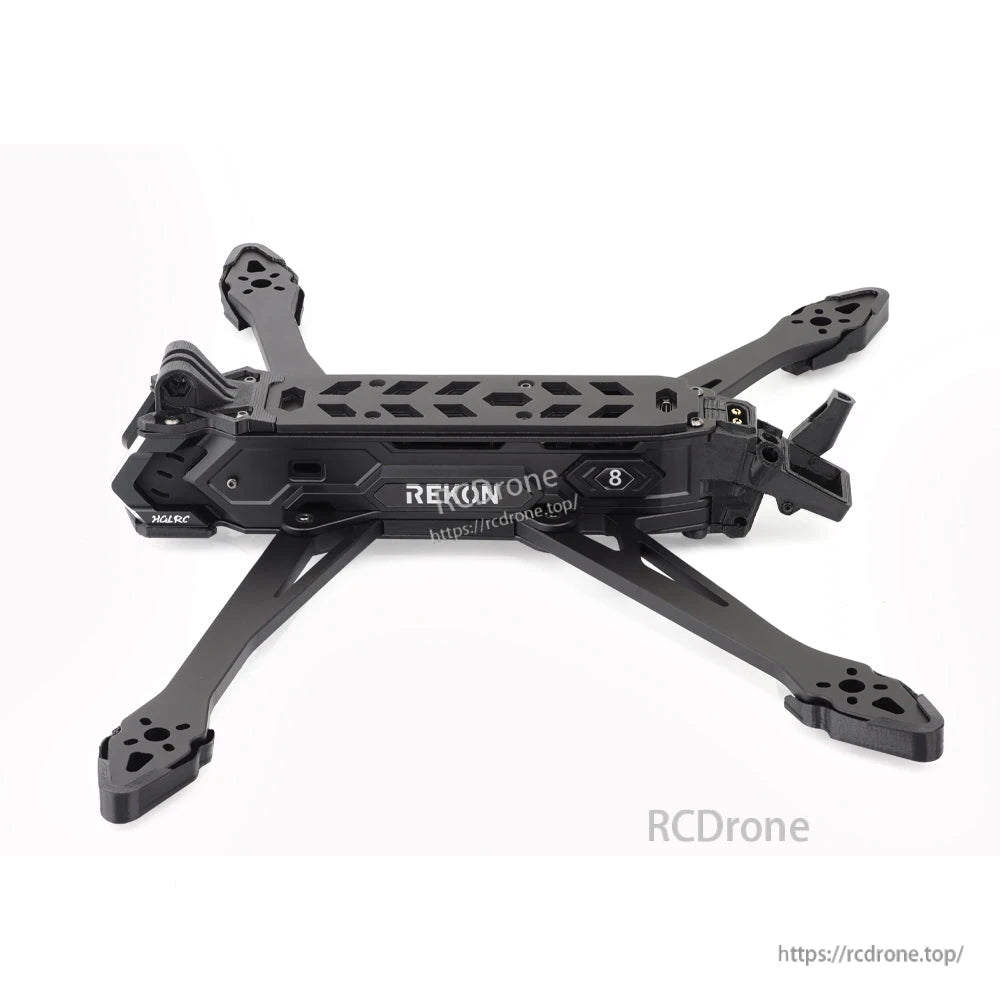

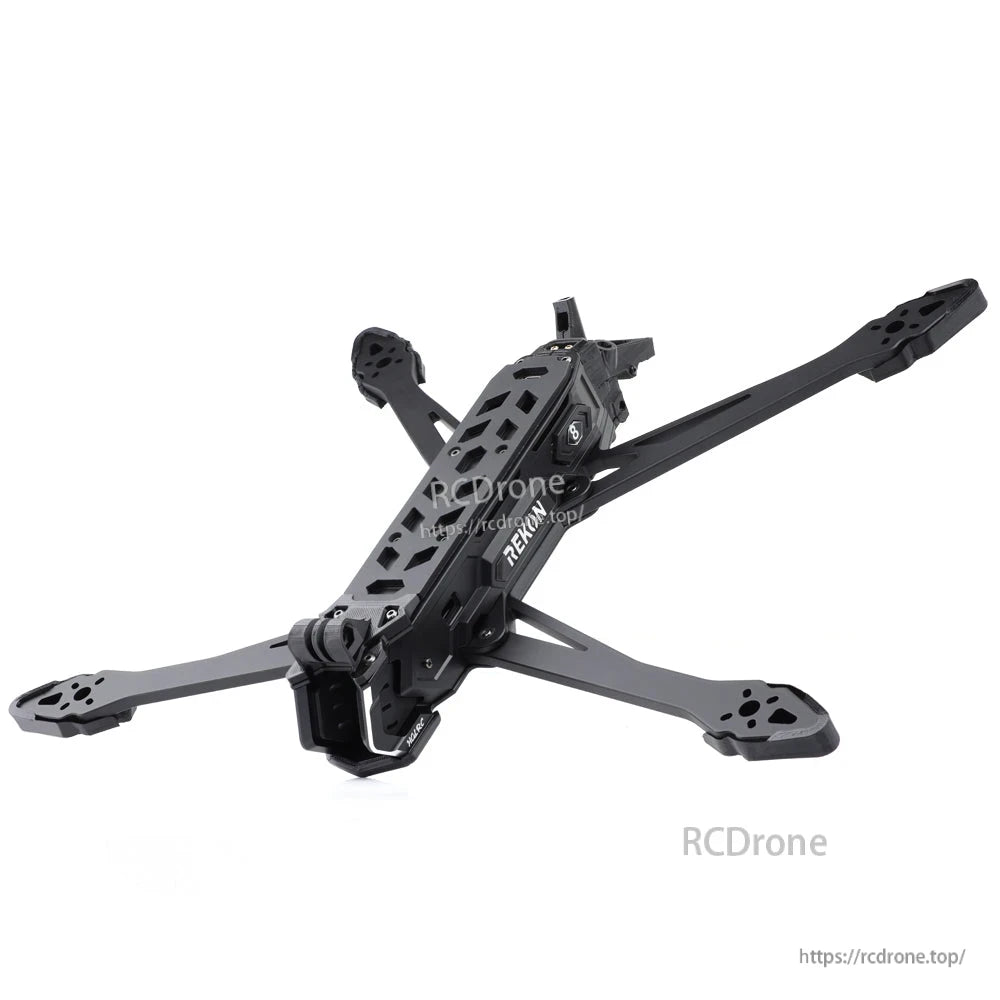

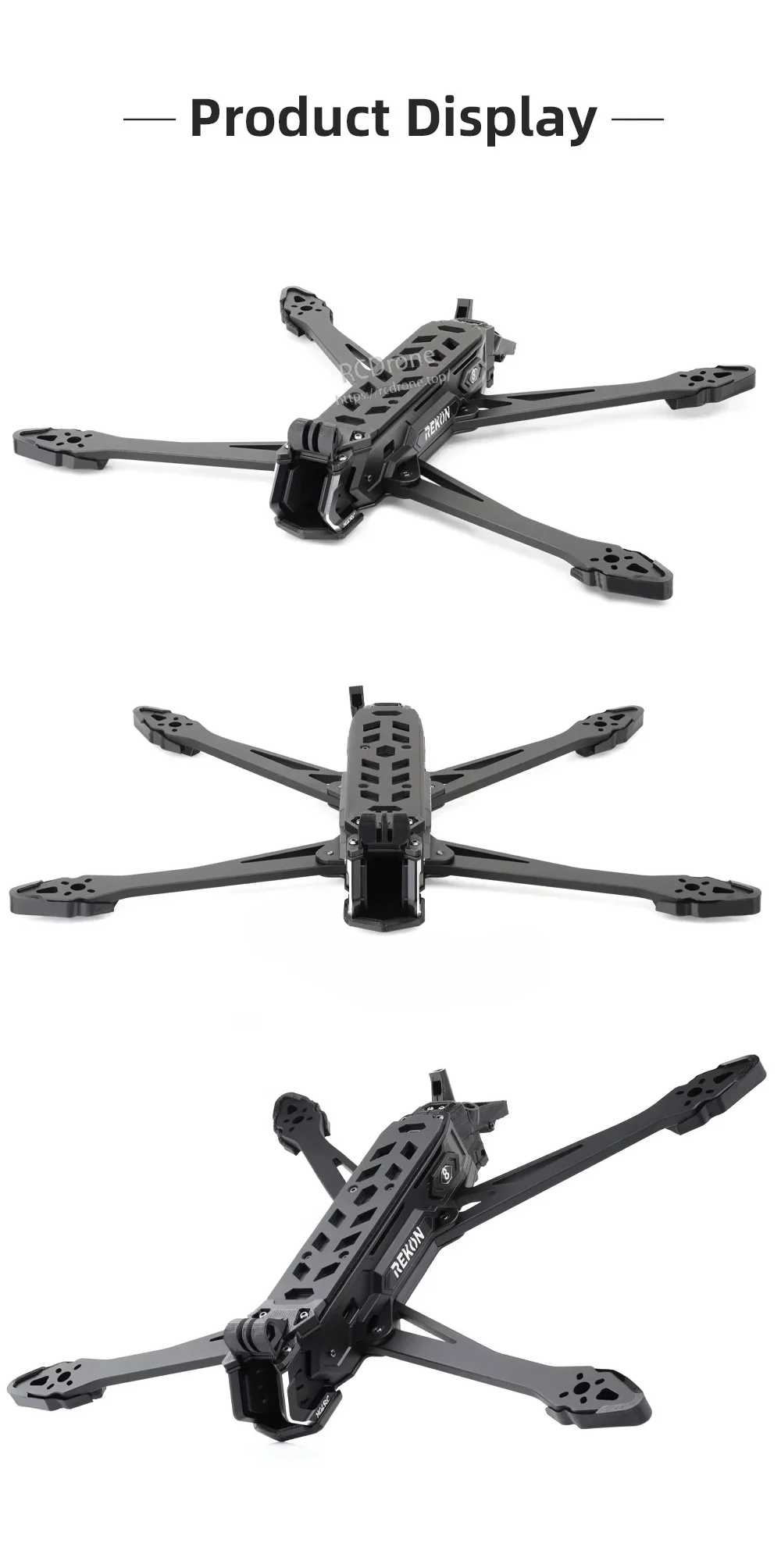

Multiple viewing angles highlight the low-profile center stack area and wide 8-inch arm stance for big-prop builds.

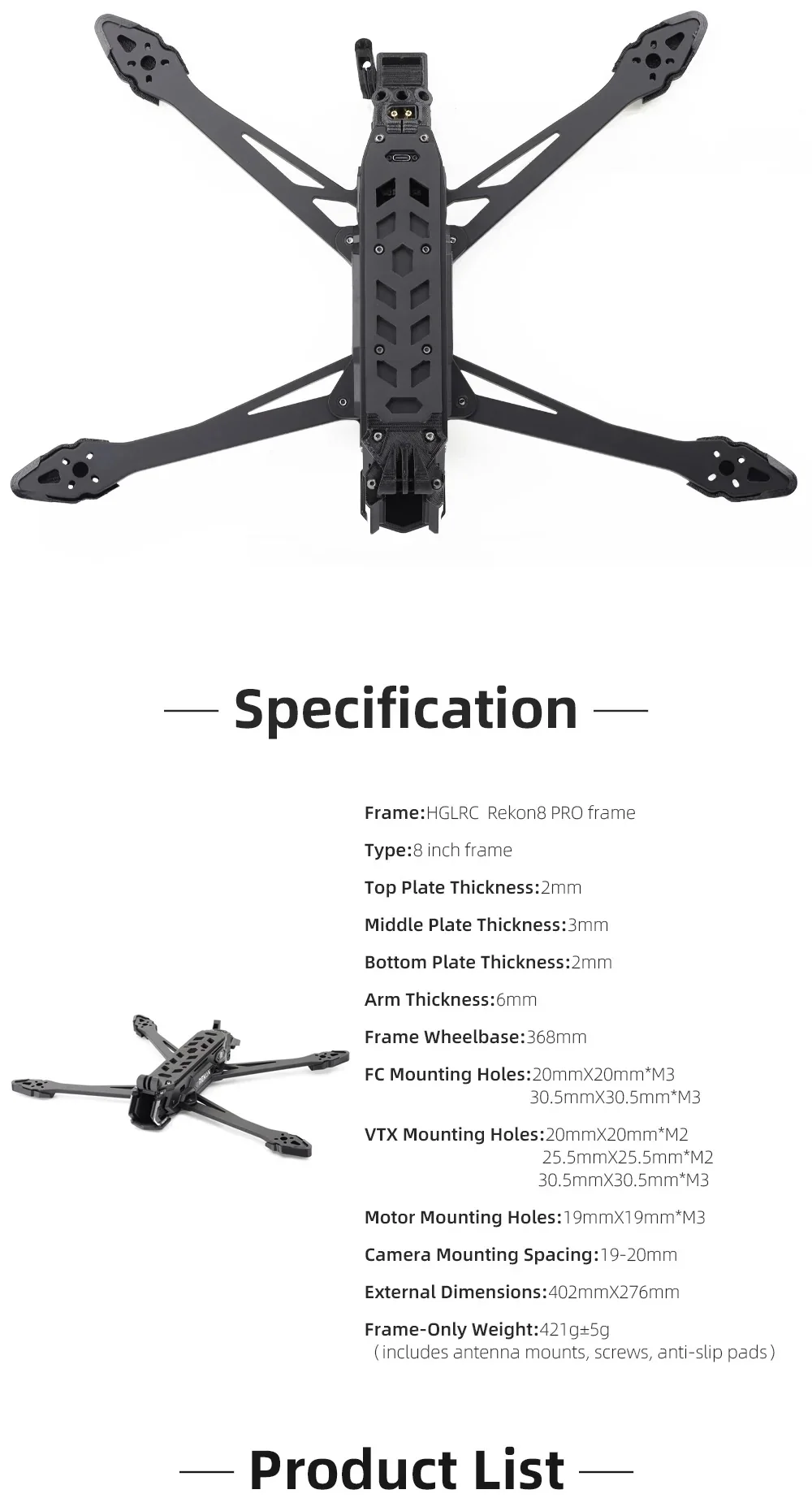

Key dimensions and mounting patterns are listed for planning FC/VTX fitment and overall build weight.

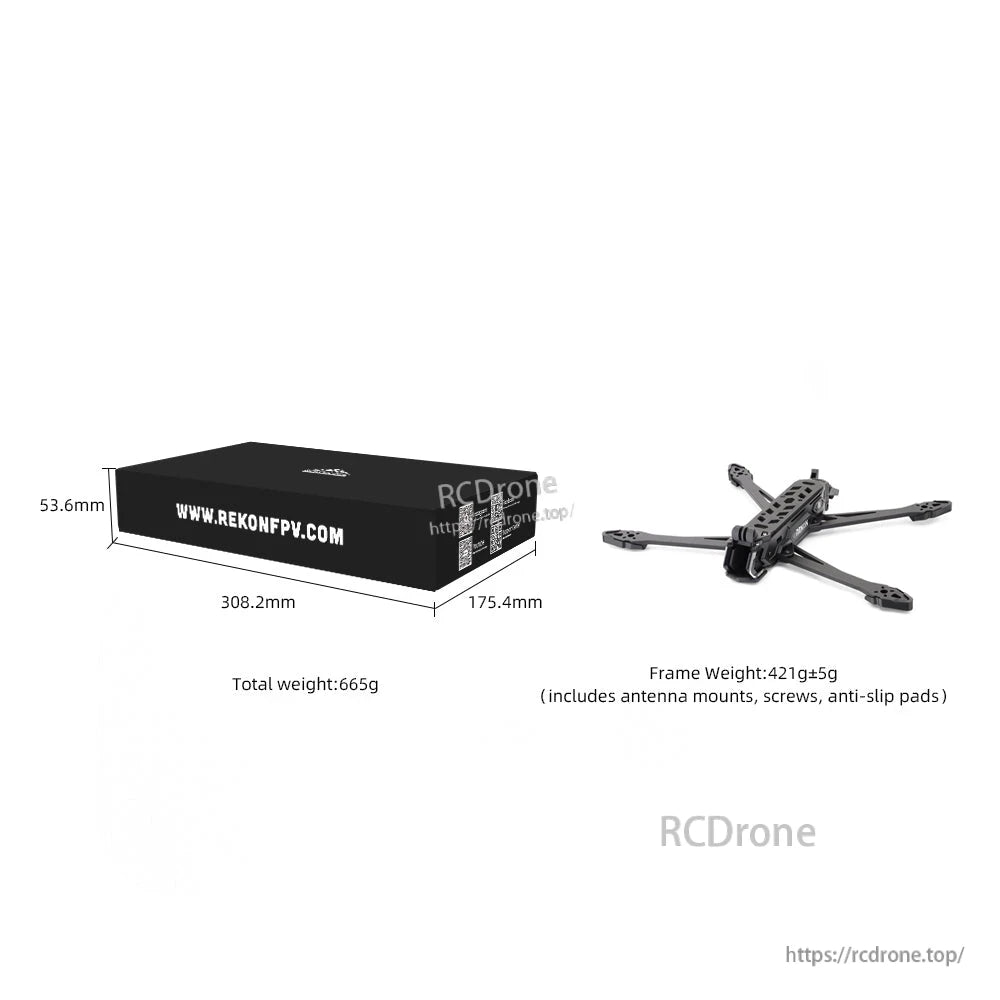

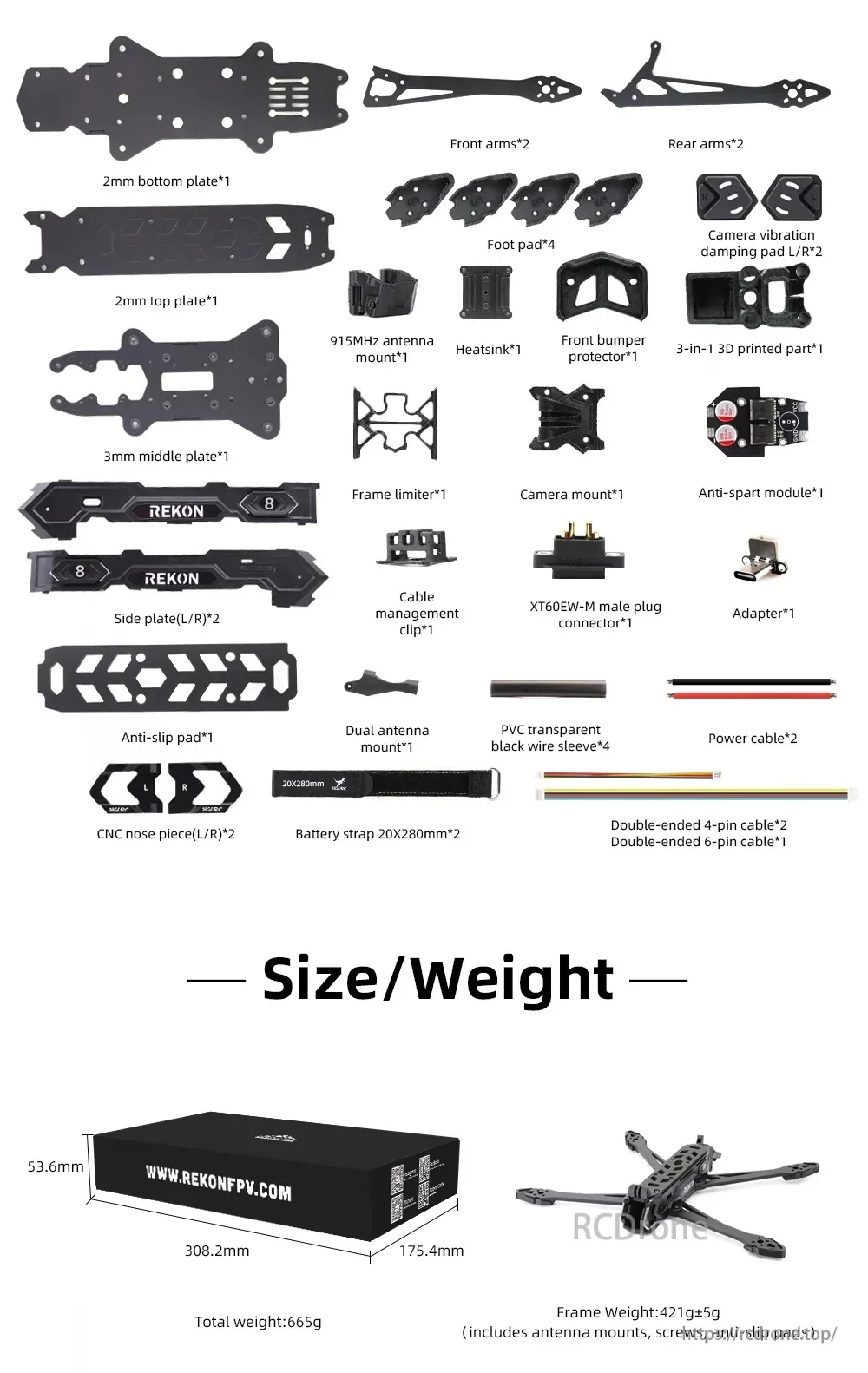

A complete parts list and packaging size/weight overview makes it easy to verify what’s included before starting the build.
