Overview
Hobbywing QUICRUN WP 12BL45 G2 is a waterproof sensorless brushless ESC for 1/12th and 1/14th scale on-road and off-road hobby vehicles, supporting 2-3S input and 45A/200A current rating.
The ESC adopts intelligent freewheeling technology to enhance drive efficiency, reduce operating temperatures, and improve stability during prolonged high-load operation. IP67-rated protection is specified for splash resistance, water resistance, and dust resistance under normal usage conditions (see note in Key Features).
Key Features
- Waterproof design with IP67 protection rating; specified for splash resistance, water resistance, and dust resistance.
- Intelligent freewheeling technology for higher drive efficiency and lower operating temperatures.
- Built-in BEC with selectable output voltage: 6V/7.4V.
- Multiple parameter adjustment methods: LCD Program Box Pro, LED Program Box, and SET button on ESC.
- Independent program port designed to avoid unplugging the throttle cable during parameter adjustments; can also be used to connect an external fan or other cooling devices.
- Compact size note from provided description: compared to 16BL30 ESC, 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height.
- Compatibility statement shown for pairing with QUICRUN 2840/2850 G2 motors.
IP67 note: The IP67 protection rating applies under normal usage conditions and has been tested under controlled laboratory conditions. Protection may degrade over time due to wear and aging. Do not submerge the product in water for extended periods, as this may result in damage.
Specifications
| Product Name | QUICRUN WP 12BL45 G2 |
| Scale | 1/12th, 1/14th |
| Brushed/Brushless | Brushless |
| Sensored/Sensorless | Sensorless |
| Waterproof | Waterproof |
| Cont./Peak Current | 45A/200A |
| Input Voltage | 2-3S |
| BEC Output | 6V/7.4V, 4A |
| BEC Maximum Output Current | 7A |
| Input Wires | Black-14AWG-110mm*1, Red-14AWG-110mm*1 |
| Output Wires | Black-14AWG-85mm*3 |
| Input Connectors | XT60 |
| Output Connectors | 3.5MM Gold (female) |
| Fan Type | Framed |
| Fan Size | 20x20x8mm |
| Fan Voltage Range | 6-7.4V |
| Fan Powered by | Powered by BEC |
| ESC Programming via | SET Button on ESC (Supported); LED Program Box (Supported); LCD G2 Program Box (STOPPED) (Supported); LCD PRO (Supported); OTA Programmer (Not Supported); WiFi Module (STOPPED) (Not Supported); Program Port: Independent program port |
| Data Recording | Extreme value (Not Supported); Real-time Data (Not Supported); Historical data (Graph) (Not Supported) |
| Firmware Upgrade | Not Supported |
| Size | 39.2*29.2*25.6mm |
| Weight | 57g (Included wires & connectors) |
| Motors | Sensorless / Sensored Brushless Motor (only in sensorless mode) |
| Vehicles | 1/12th, 1/14th On-Road & Off-Road |
| KV Rating/T Count | QUICRUN 2840/2850 G2 |
What's Included
- (1) HOBBYWING ESC
- (1) Manual
Customer service: https://rcdrone.top/ or support@rcdrone.top
Applications
- 1/12th and 1/14th scale on-road and off-road hobby vehicles
- For use with sensorless brushless motors (sensored motor supported only in sensorless mode)
Manuals
- User's manual: QuicRun 12BL45 G2 ESC.pdf
Details

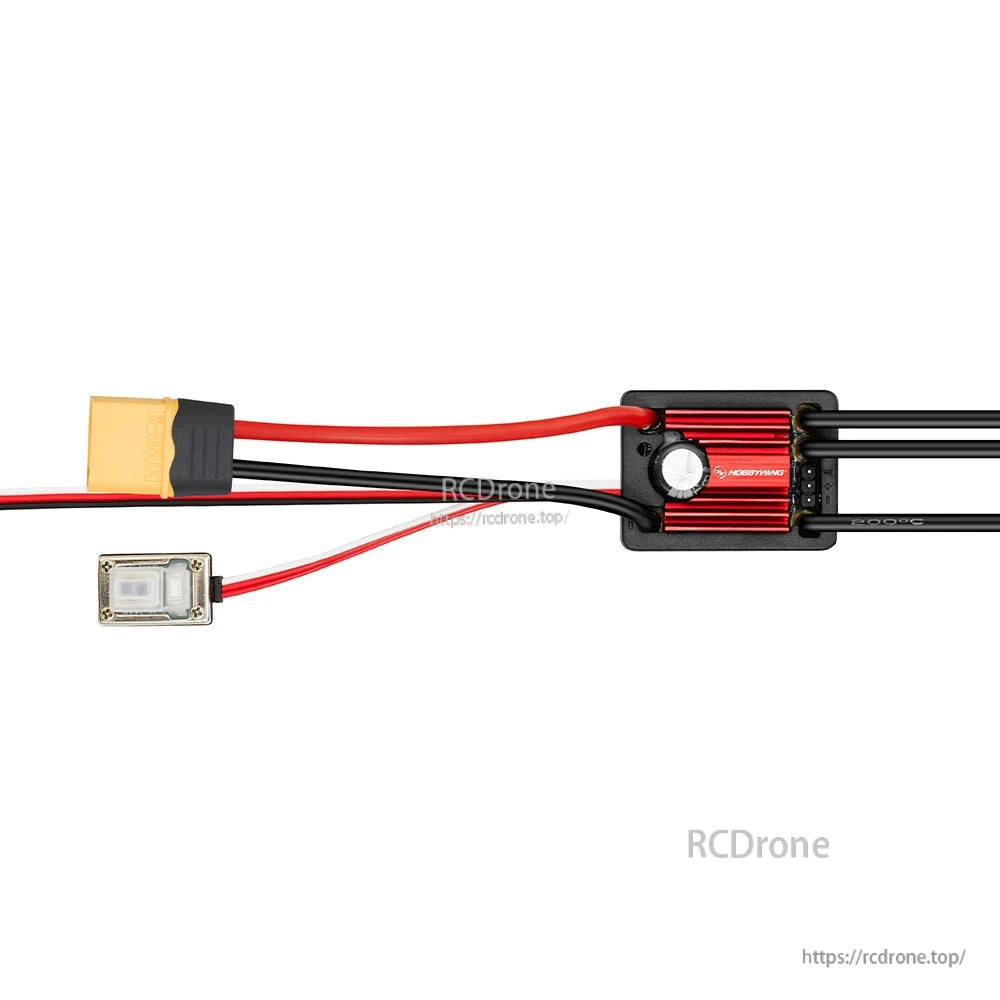

The QUICRUN WP 12BL45 G2 is a waterproof, sensorless brushless ESC rated 45A (200A peak) for 2–3S setups with an XT60 input and 6V/7.4V 4A BEC output.

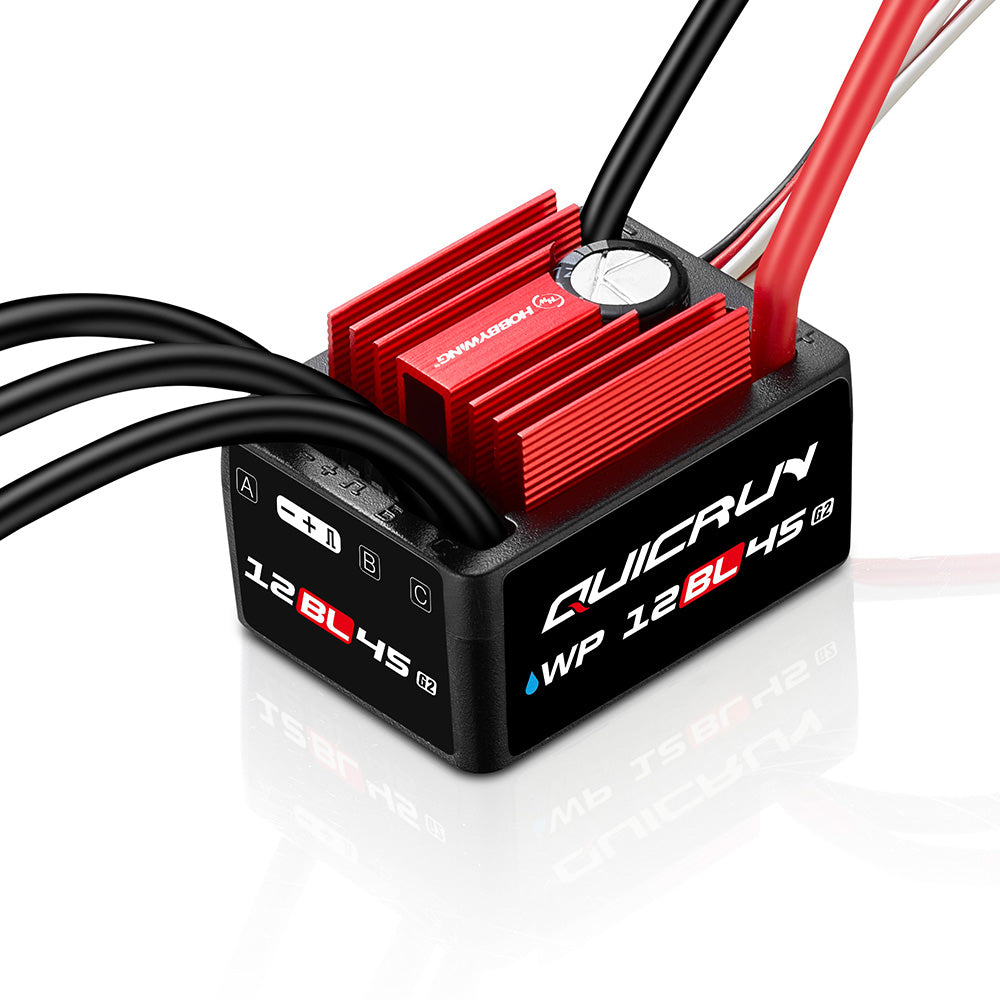

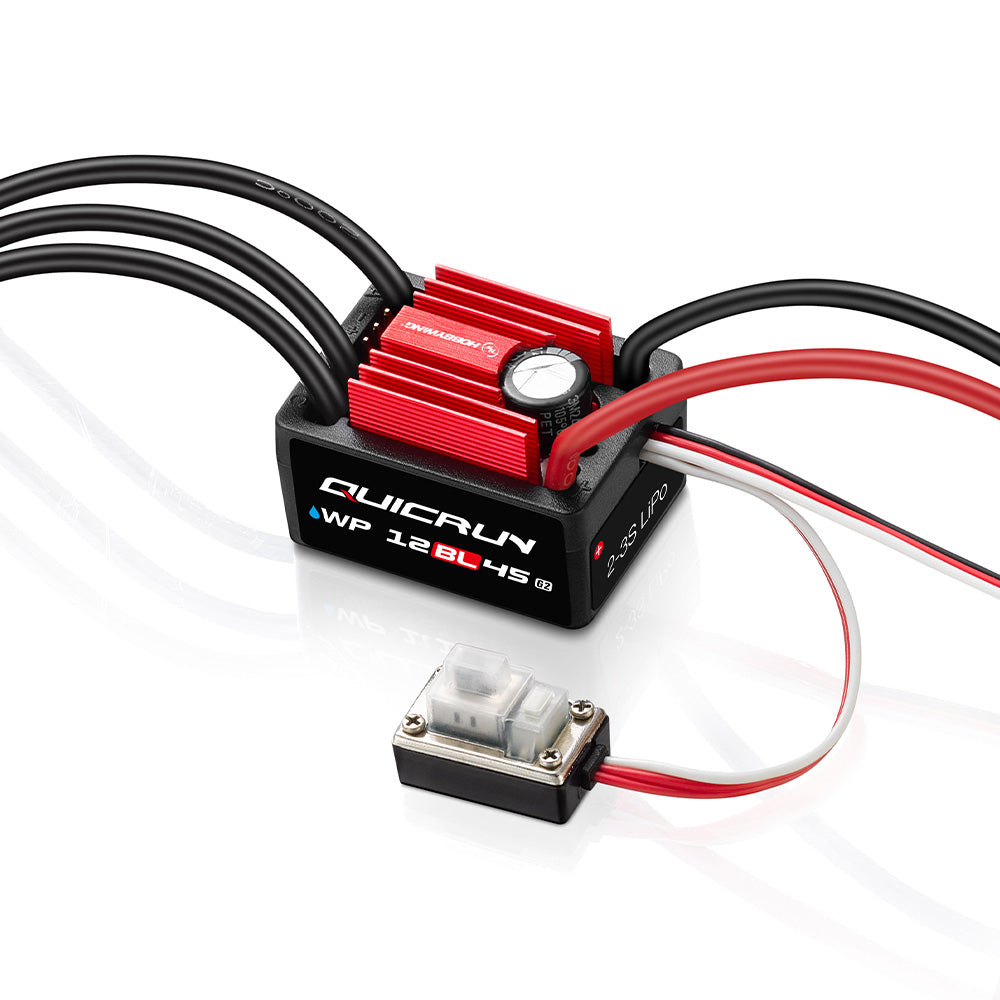

The QuicRun WP 12BL45 G2 ESC features a compact case with a red heat sink, pre-wired leads, and a separate on/off switch for easy installation.

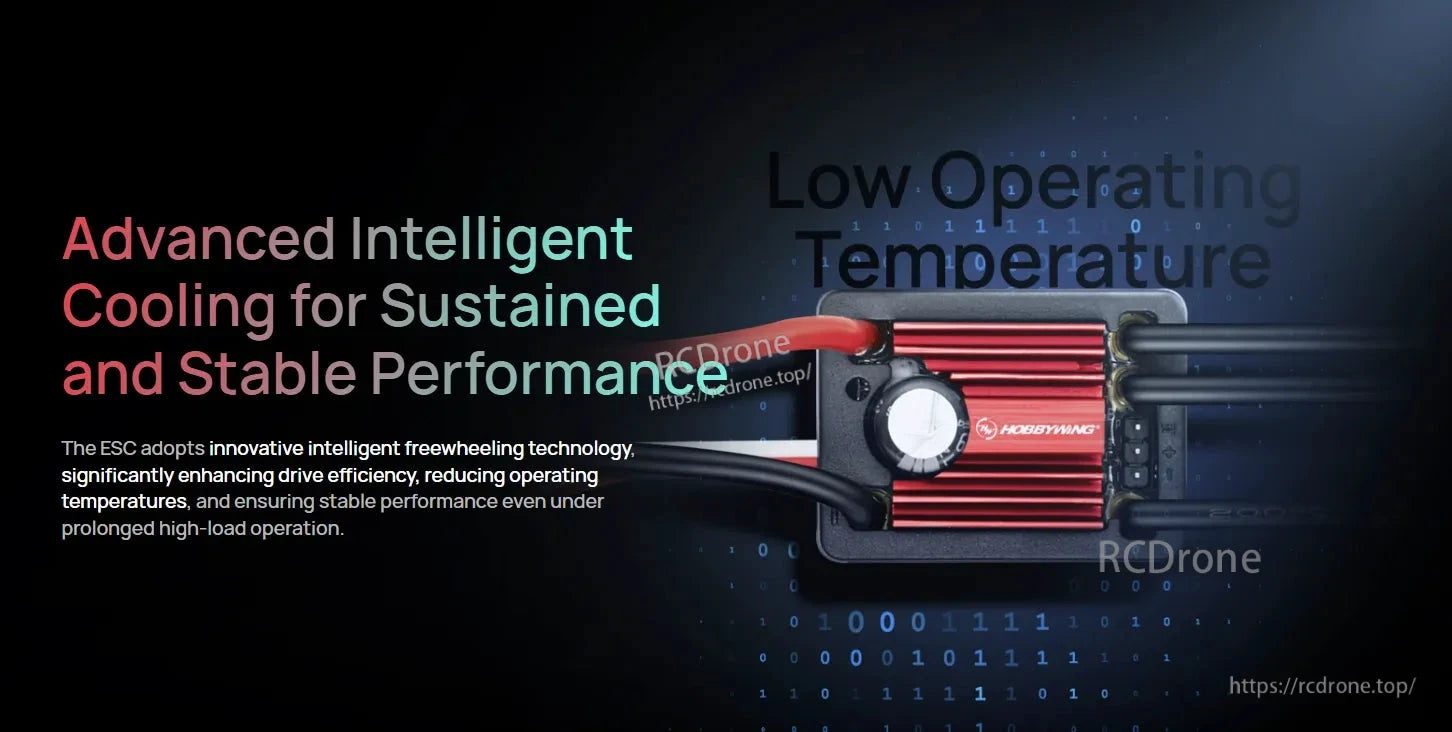

The QUICRUN WP 12BL45 G2 ESC uses a finned aluminum heatsink design to help keep operating temperatures lower during running.
The QUICRUN WP 12BL45 G2 ESC includes a built-in high-power BEC rated 4A continuous (7A max) with selectable 6V or 7.4V output.
The QUICRUN WP 12BL45 G2 ESC is rated IP67 for water and dust protection for more reliable operation in wet or dirty conditions.
The QUICRUN WP 12BL45 G2 ESC is built for splash/water resistance and dust resistance to help protect electronics in messy driving conditions.

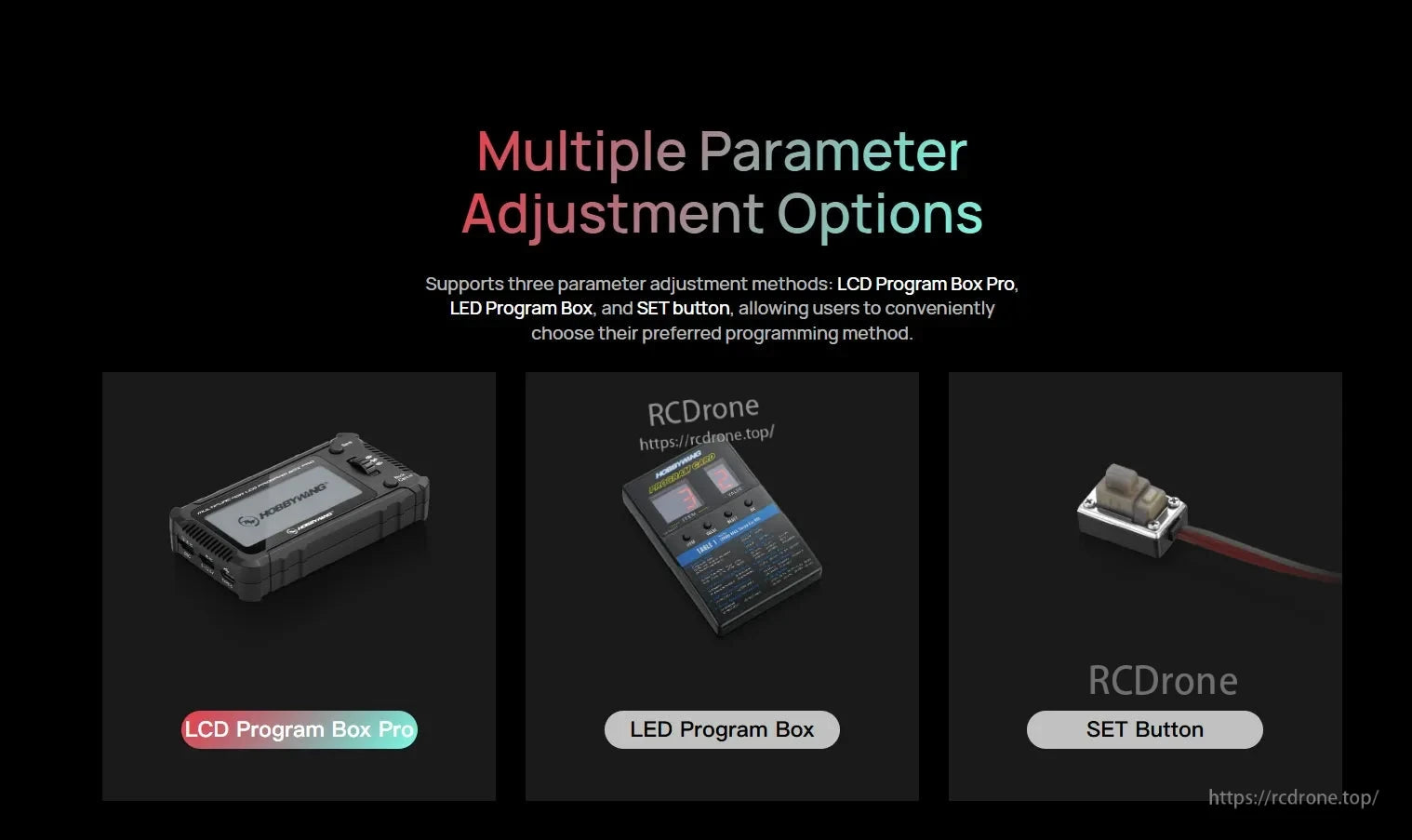

The QUICRUN WP 12BL45 G2 ESC supports three programming methods—LCD Program Box Pro, LED Program Box, or the built-in SET button.
The QUICRUN WP 12BL45 ESC includes a dedicated programming port that can be used for an LCD/LED program box or an external fan connection.

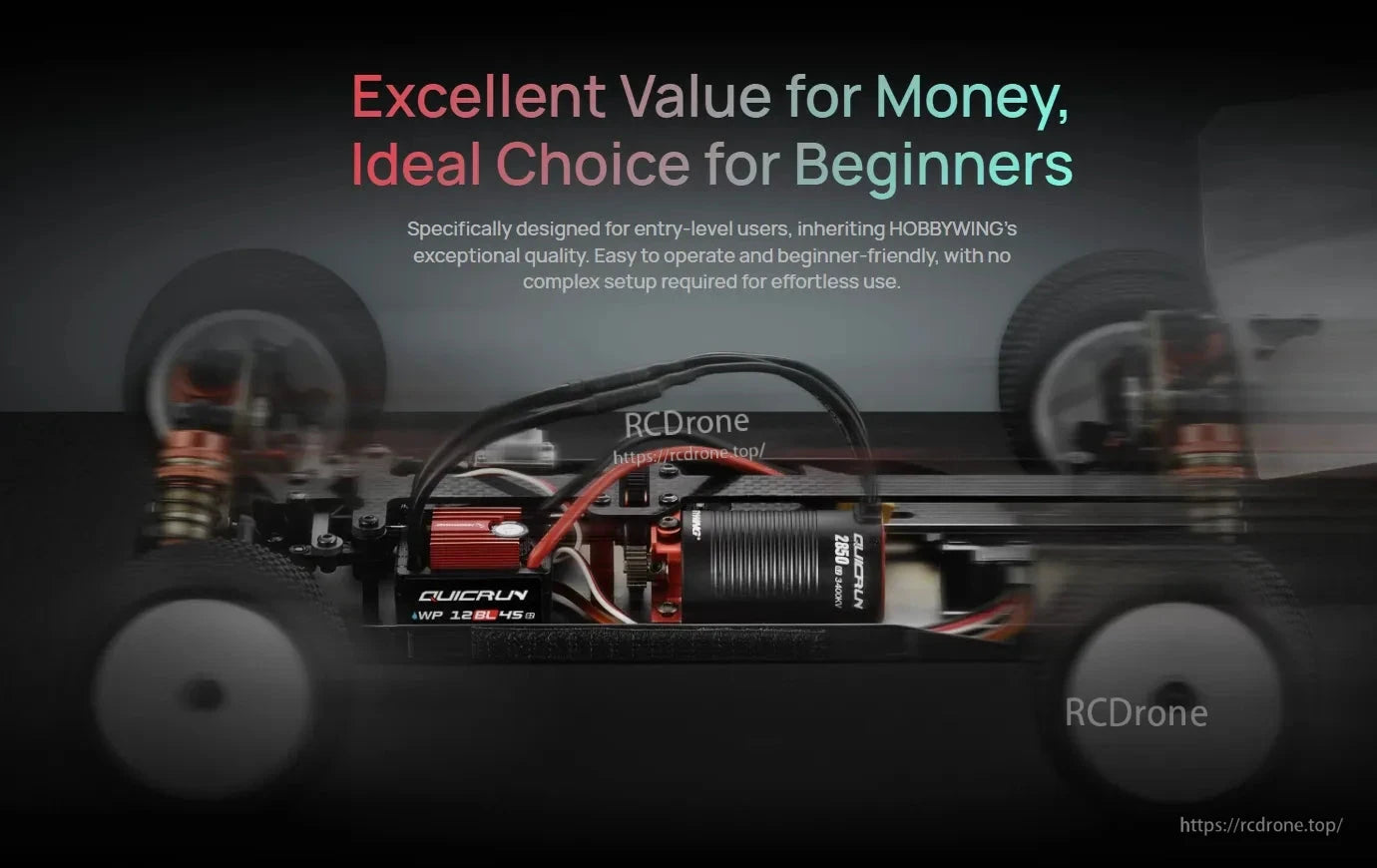

The Hobbywing QUICRUN WP 12BL45 G2 ESC mounts neatly on the chassis with a straightforward wire layout to the brushless motor.

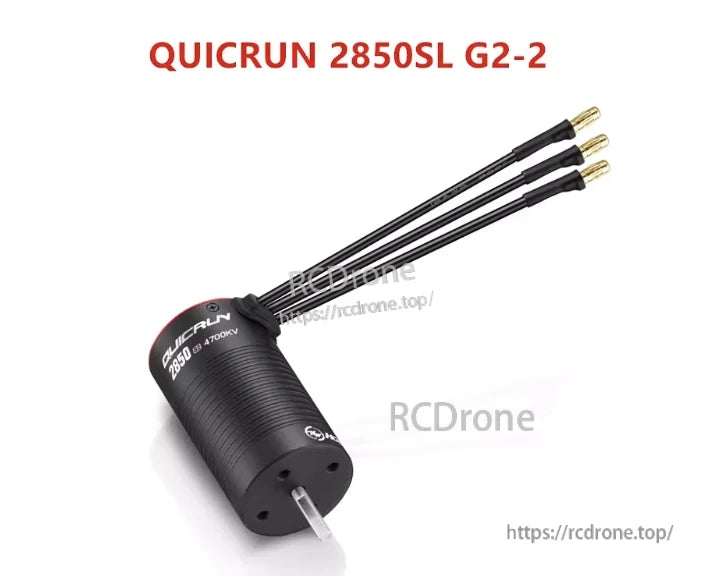

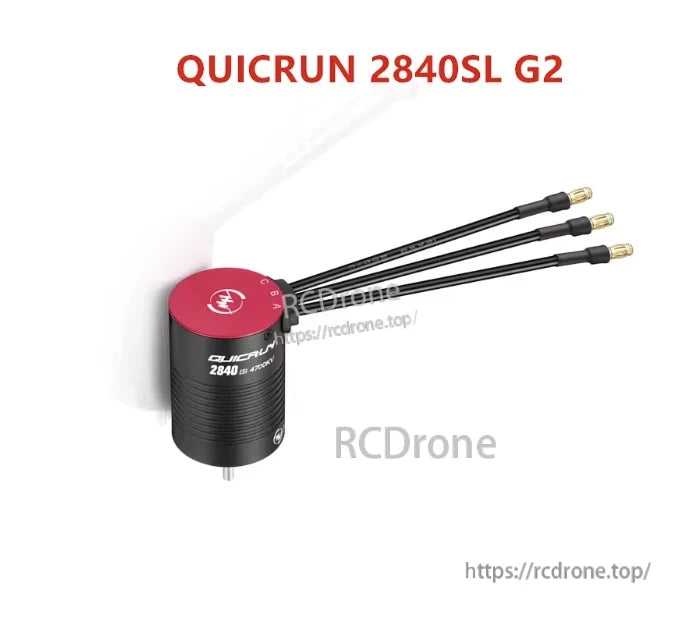

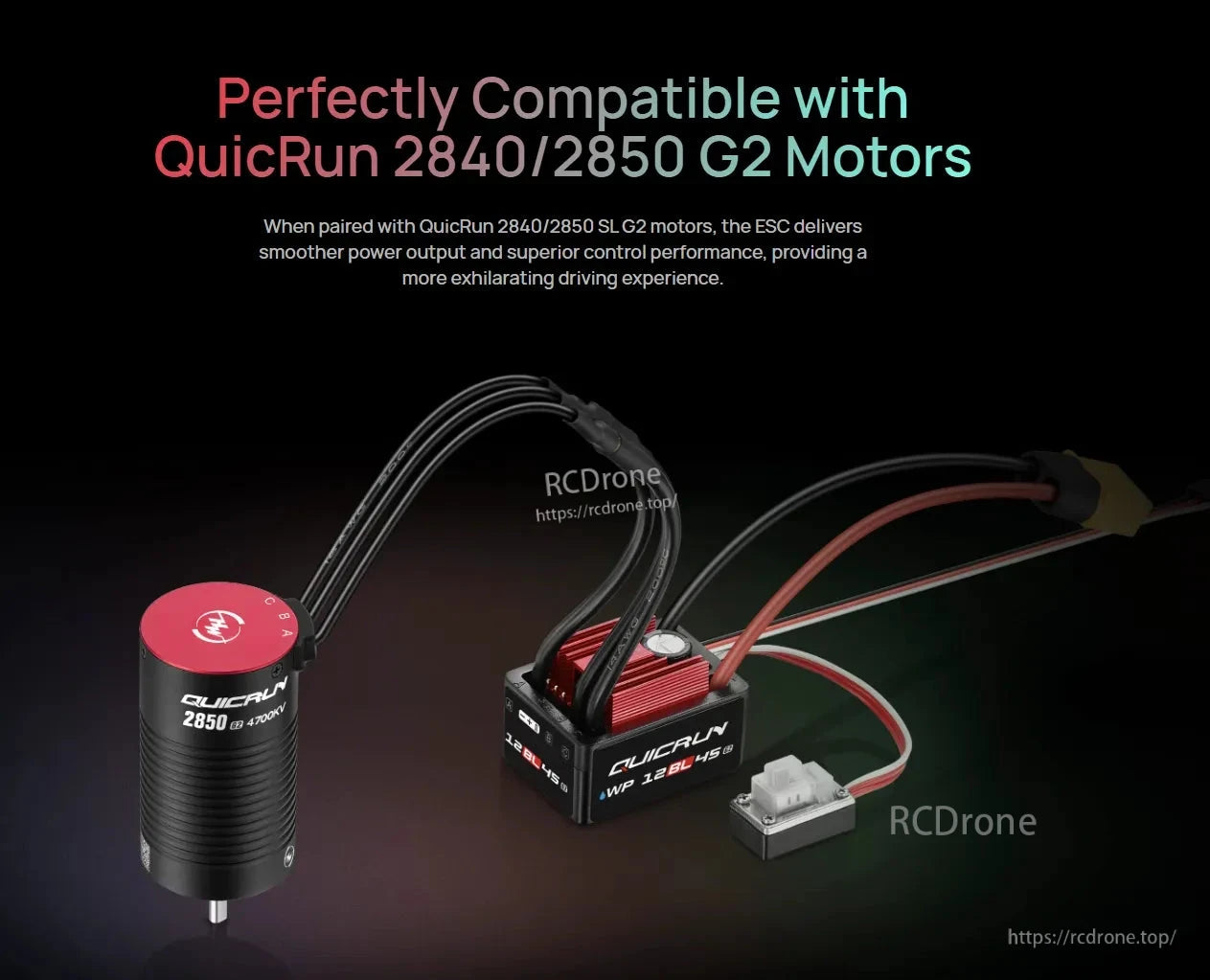

The QUICRUN WP 12BL45 G2 ESC is designed to pair with QuicRun 2840/2850 G2 motors for a tidy, plug-in-style RC power setup.
The QUICRUN WP 12BL45 G2 ESC is designed to suit both 1/12 and 1/14 scale hobby vehicles.
