Overview
The Hobbying QUICRUN WP 880 Dual Brushed ESC is a waterproof and dustproof ESC for various 1/8 & 1/10 vehicles, designed for all-weather races. It provides two sets of output wires for connecting two motors, with tunable braking and throttle settings.
Please make sure to uninstall the cooling fan before using this ESC in water. Clean and dry soon after use to avoid rusting the connectors.
Key Features
- Fully waterproof design for all conditions (clean and dry after use to avoid rusty connectors).
- Two sets of output wires for simultaneously connecting to two motors; the two outputs are connected in parallel and can only drive motors synchronously. Driving directions should be the same when connecting two motors.
- HOBBYWING patented copper heat-conductive plates attached to the MOSFET board transfer heat to the aluminum heat sink for heat dissipation.
- Built-in switch-mode BEC with continuous current of 4A.
- Tunable drag brake and drag brake rate.
- Adjustable PWM frequency with advanced DEO/freewheeling technology for throttle linearity and driving feel.
- 9 levels of acceleration/punch from soft to aggressive.
- Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
- Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
- Separate programming port; the separate PRG/FAN port can power an external fan or connect to a LED program box for ESC programming.
- 15 programmable parameter items.
- ESC programming via HOBBYWING LED Program Card (purchase separately).
Specifications
| Model / SKU | QUICRUN-880-DUAL-Brushed ESC / 30120301 |
| Cont./Peak Current | 80A/400A |
| Motor Type Supported | Brushed Motor (540, 550, 775 Size Motor) |
| Applicable Car | Various 1/10th & 1/8th Vehicles |
| Motor Limit |
Brushed Motor Limit with 2S LiPo /6S NiMH: >= 12T or RPM<30000@7.4V (540, 550 Size Motors) Brushed Motor Limit with 3S LiPo /9S NiMH: >= 18T or RPM<20000@7.4V (540, 550 Size Motors) Brushed Motor Limit with 4S LiPo /12S NiMH: >= 24T or RPM<15000@7.4V (540, 550 Size Motors) |
| LiPo / NiMH Cells | 2-4S LiPo or 5-12S NiMH |
| BEC Output | 6V@4A (Switch-Mode) |
| Connectors | Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors |
| Size/ Weight | 45.9*34.7*26.5mm/ 75g |
| Programming Port | Separate Port |
| Waterproof | Waterproof |
| Fan | Not Included |
Note: WP-880-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turn of the motors needs to be increased.
Customer service: support@rcdrone.top or https://rcdrone.top/
Applications
- All-weather racing use (waterproof and dust-proof design).
- Various 1/10th & 1/8th RC vehicles using brushed motors (540, 550, 775 size).
- Dual-motor vehicle setups using the parallel dual outputs (synchronous drive).
Manuals
Details

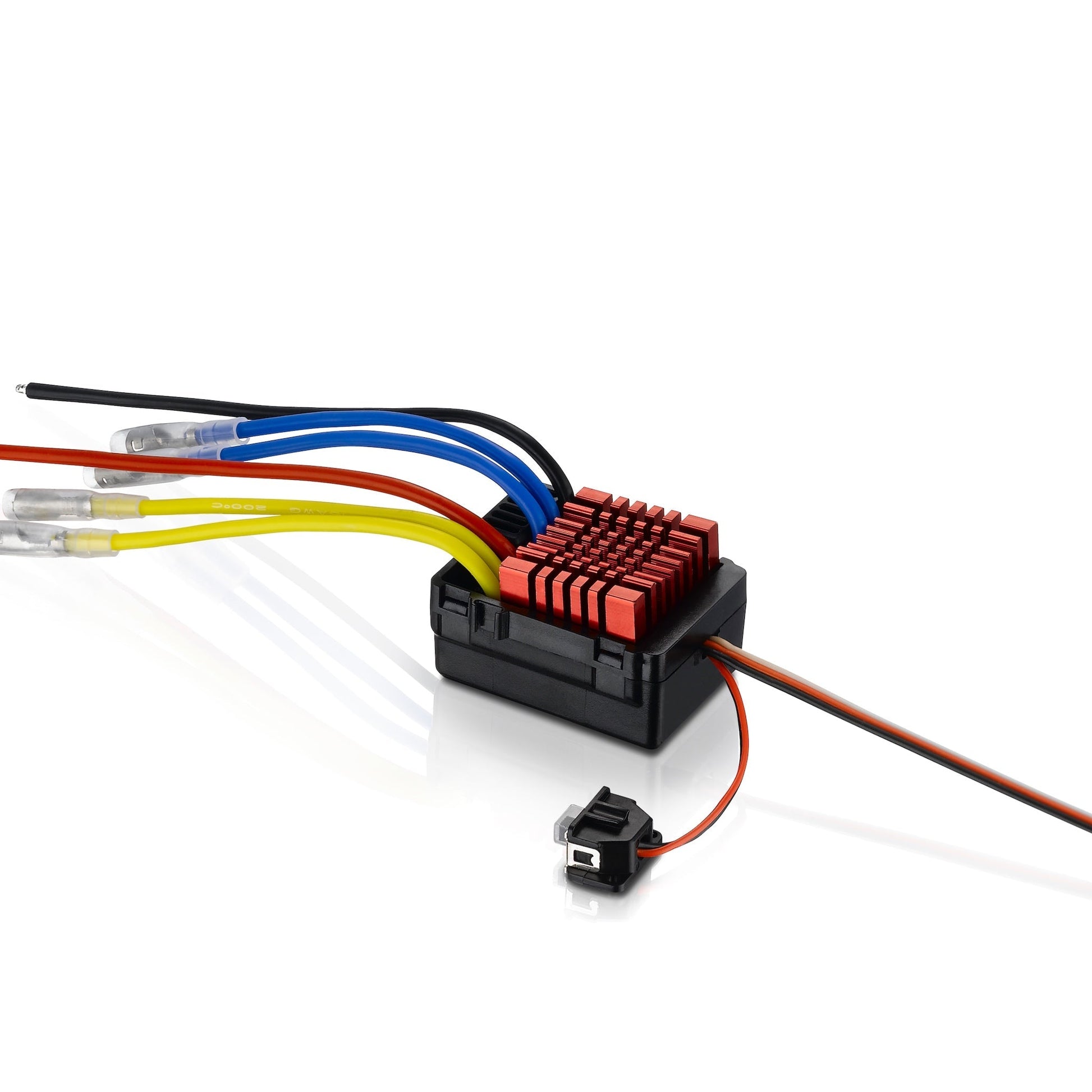

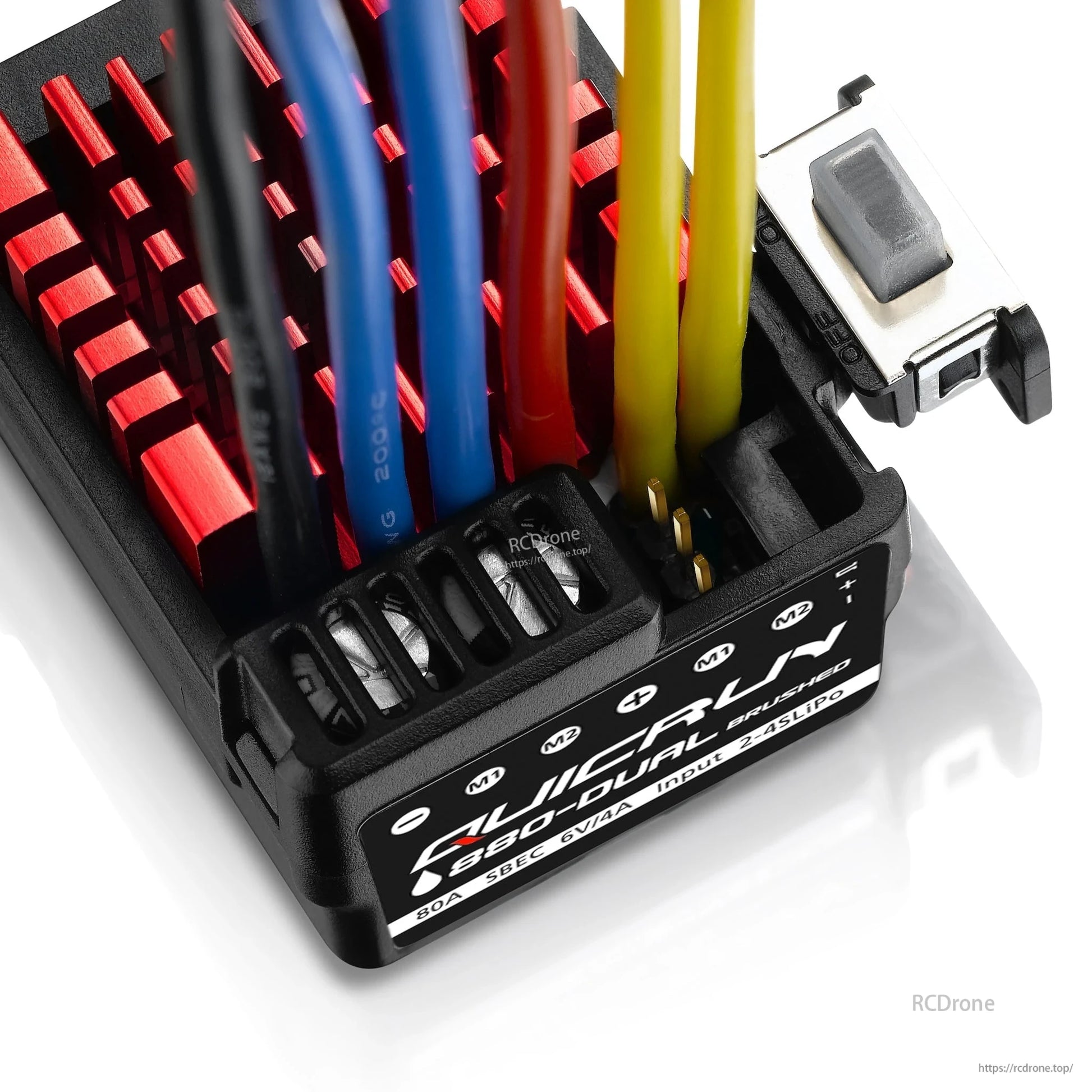

The QUICRUN WP 880 uses two sets of output wires wired in parallel for connecting and driving two brushed motors together.

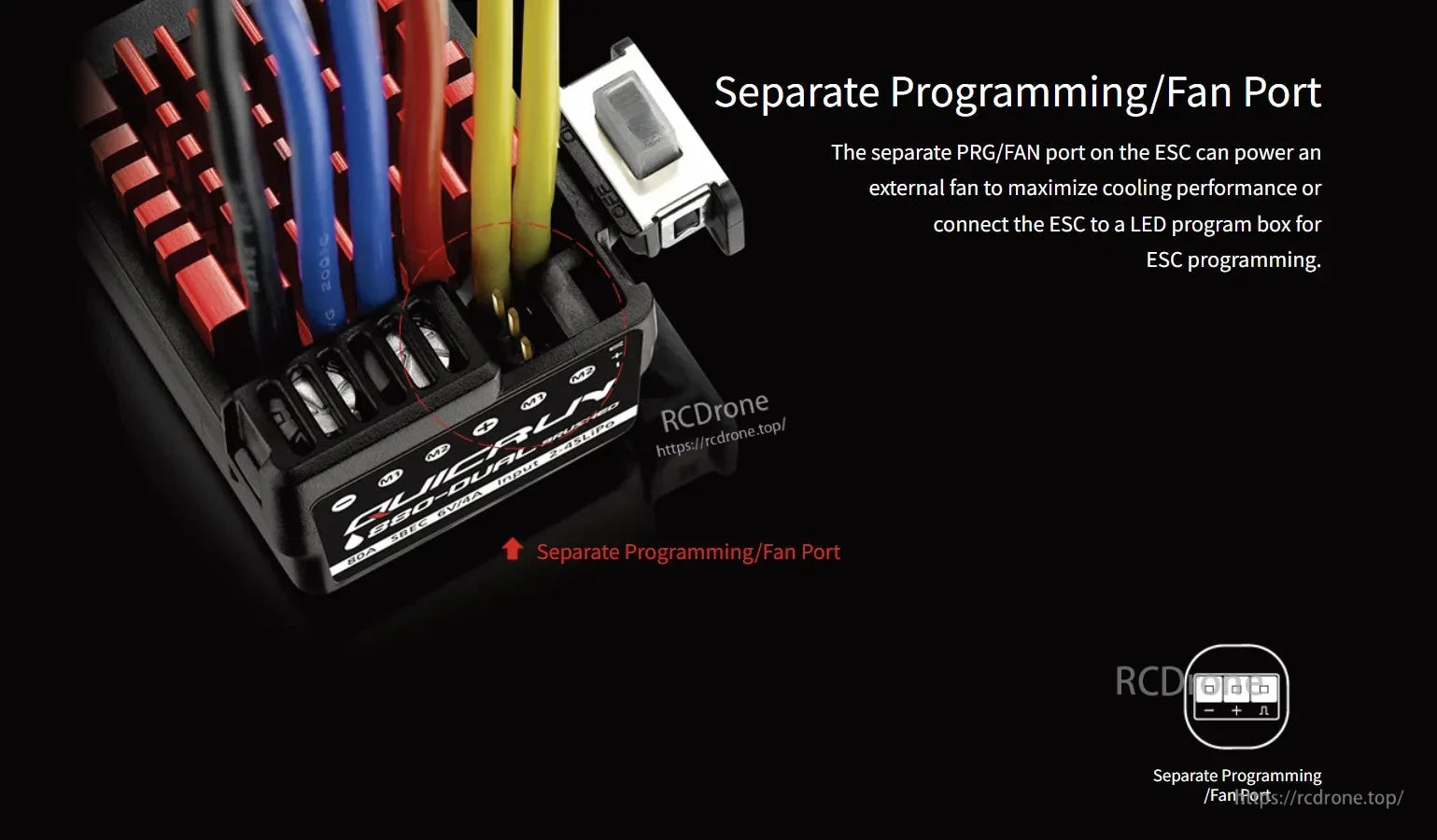

The QUICRUN WP 880 dual brushed ESC includes a dedicated PRG/FAN port for connecting an external fan or a programming box.

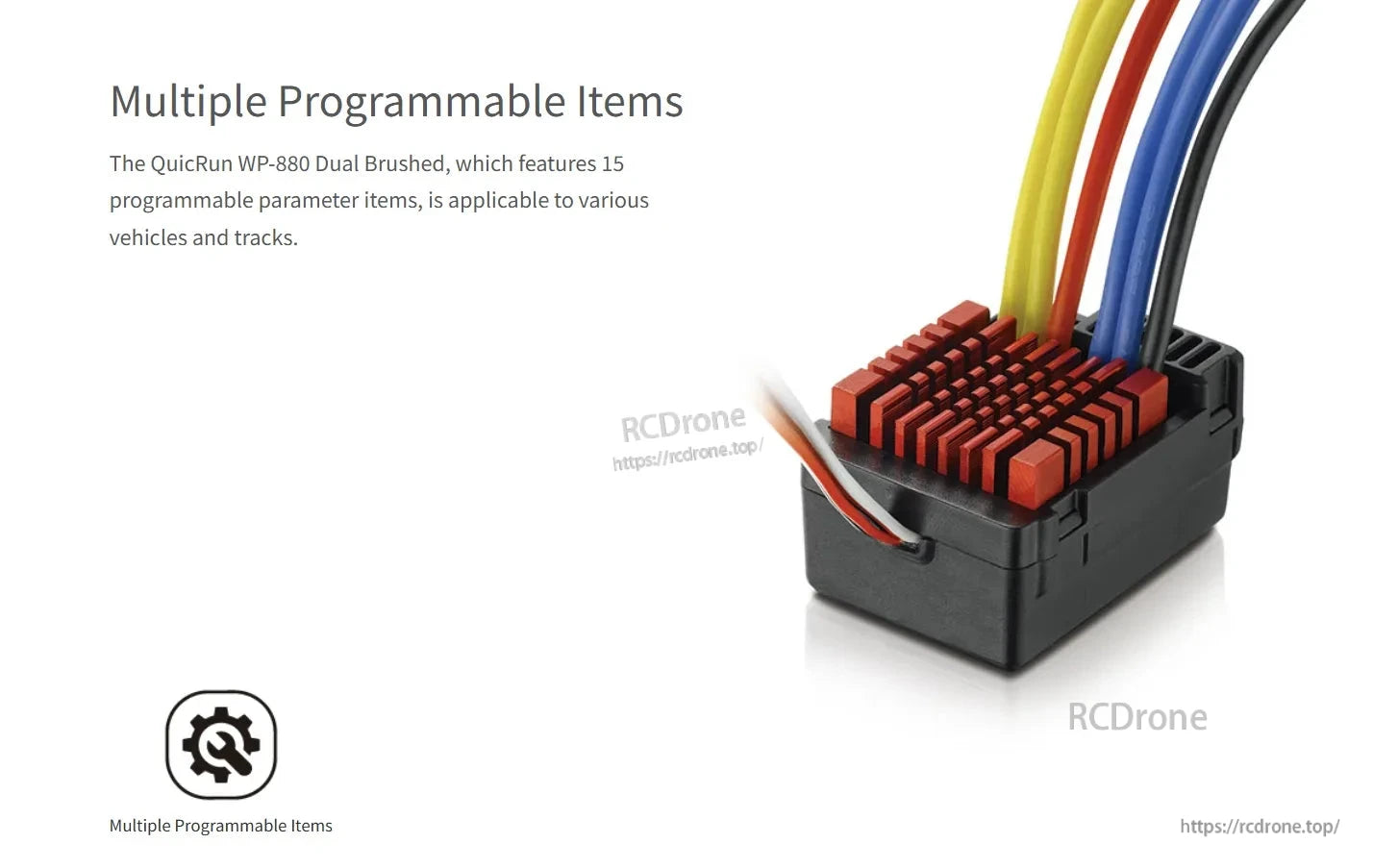

The QuicRun WP-880 dual brushed ESC supports multiple programmable items, with up to 15 adjustable parameters for setup tuning.
The QUICRUN WP 880 dual brushed ESC supports adjustable drag brake rate and brake force for more controlled braking response.

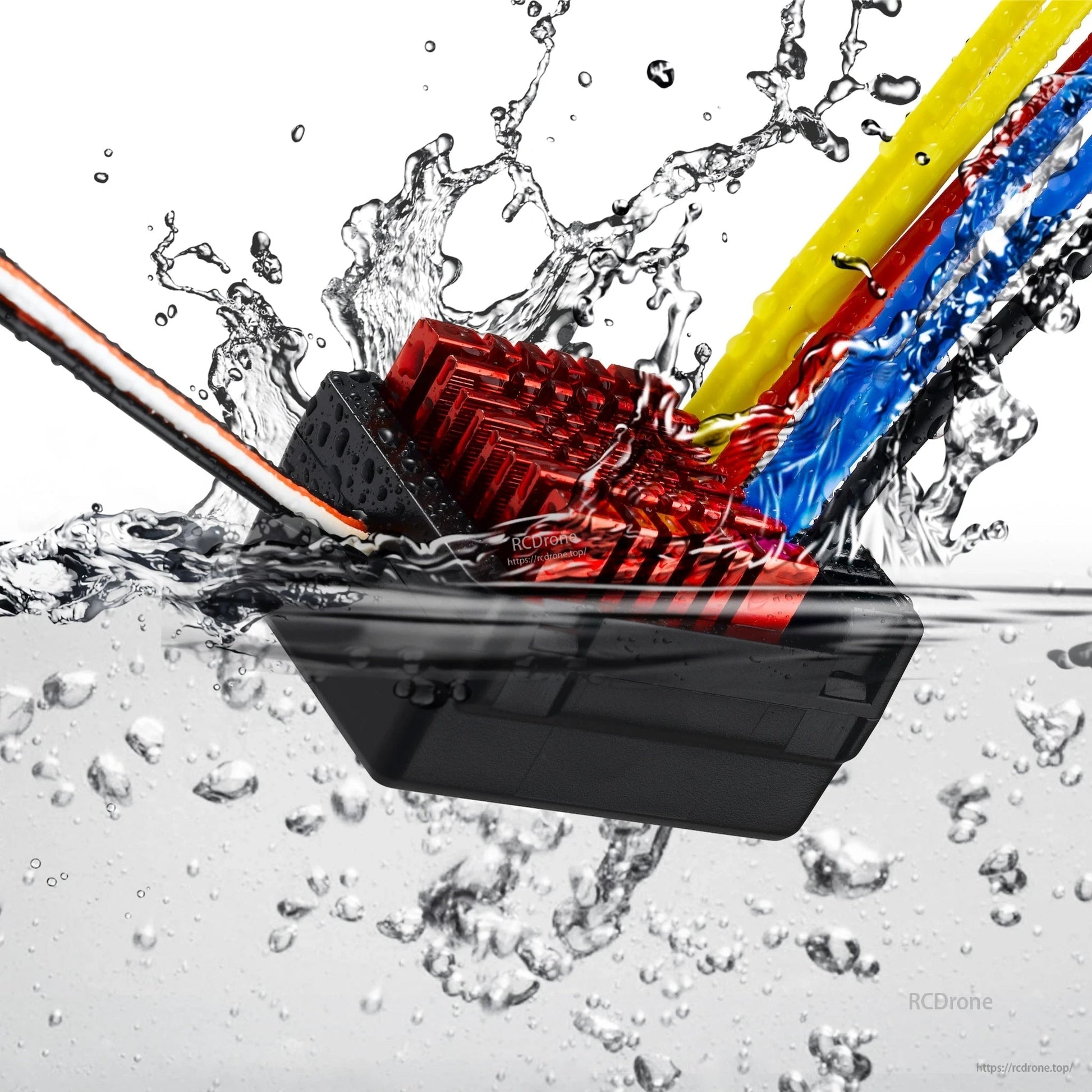

The QUICRUN WP 880 Dual Brushed ESC is described as waterproof and dust-proof for reliable running in all weather conditions.
The QuicRun WP 880 dual brushed ESC features adjustable PWM frequency and advanced DEO/freewheeling technology for smoother throttle feel.
