Overview

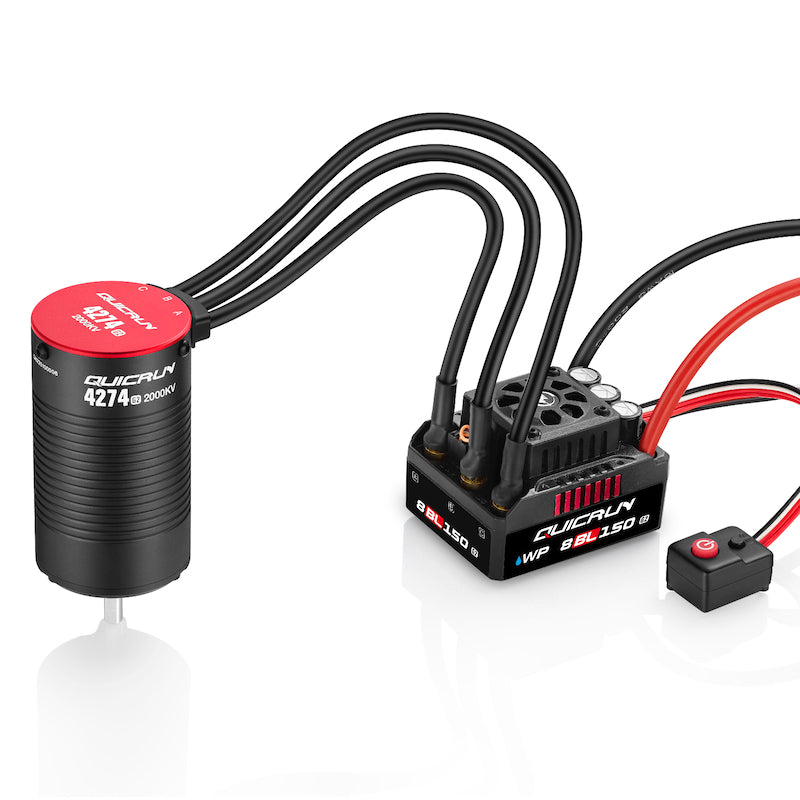

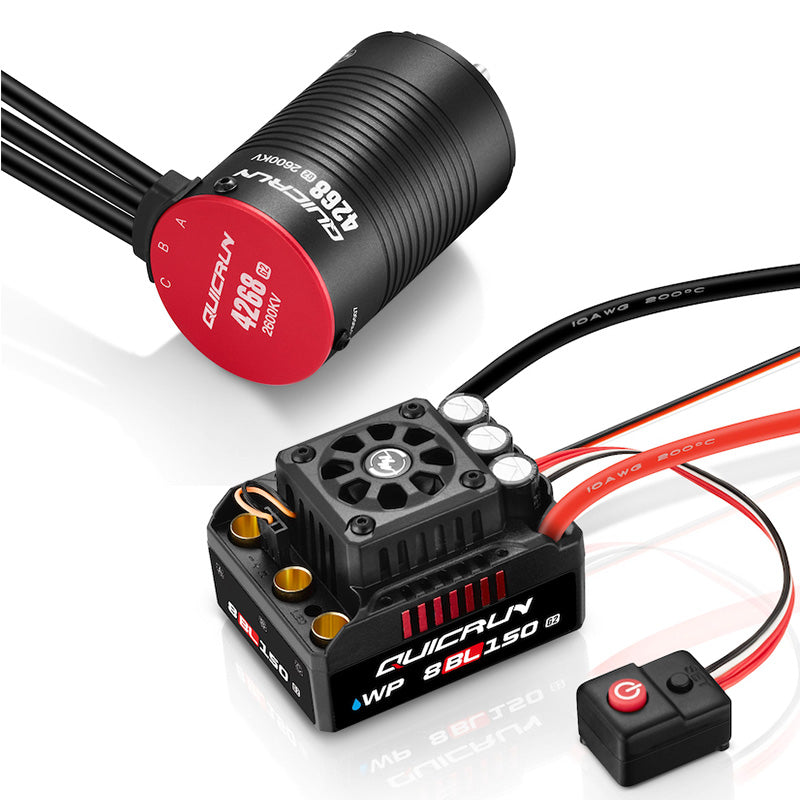

This ESC and motor combo pairs the Hobbywing QUICRUN WP 8BL150 G2 with a QUICRUN 4268SL 2600KV G2 or QUICRUN 4274SL 2000KV G2 brushless motor for RC vehicle builds. The ESC supports sensorless and sensored brushless motors (sensored operation only in sensorless mode) and is specified for 3-6S LiPo use.
Key Features
- ESC rated current: 150A continuous / 950A peak
- BEC output: 6V / 7.4V adjustable, continuous current 6A (Switch-mode)
- Cooling fan powered by built-in BEC
- Programming port shared with fan port
- Motor options: QUICRUN 4268SL 2600KV G2 or QUICRUN 4274SL 2000KV G2

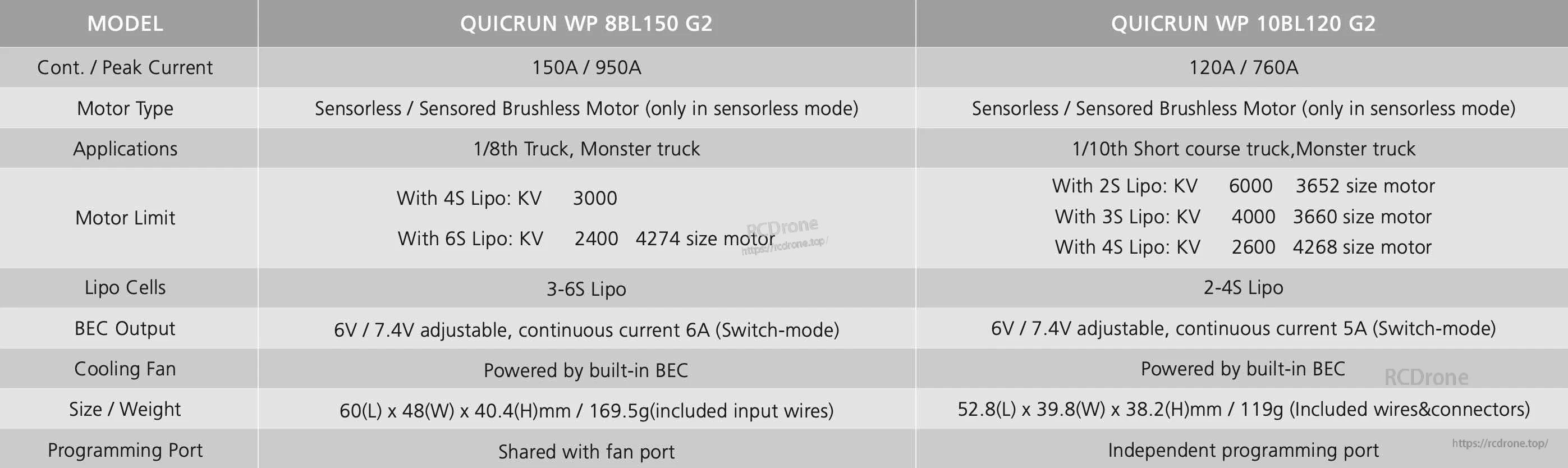

Specifications

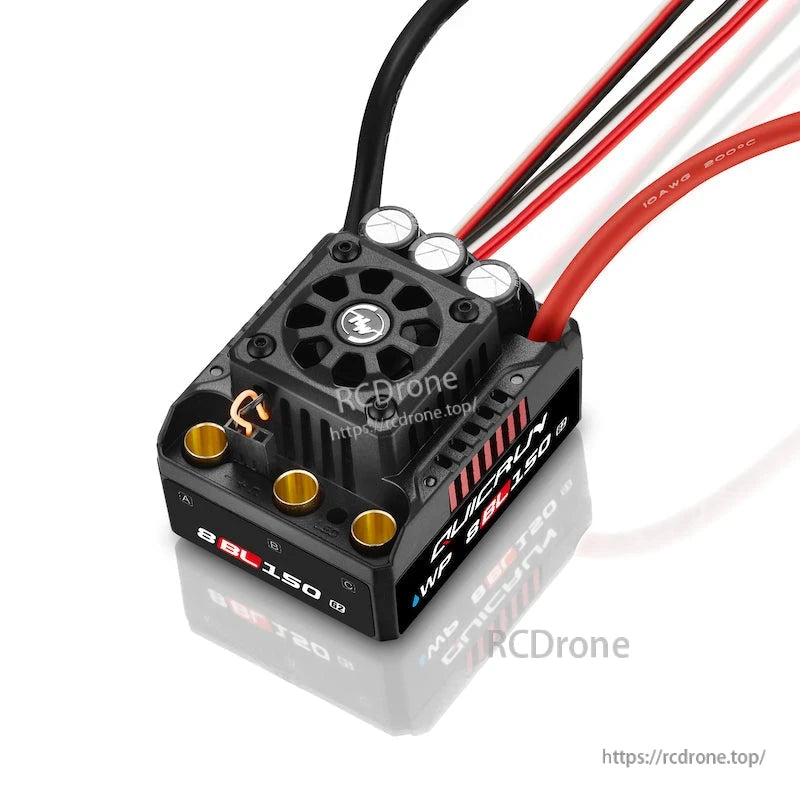

ESC: QUICRUN WP 8BL150 G2
| Continuous / Peak Current | 150A / 950A |
| Motor Type | Sensorless / Sensored Brushless Motor (only in sensorless mode) |
| Applications | 1/8th Truck, Monster truck |
| Motor Limit | With 4S Lipo: KV 3000 With 6S Lipo: KV 2400 (4274 size motor) |
| LiPo Cells | 3-6S Lipo |
| BEC Output | 6V / 7.4V adjustable, continuous current 6A (Switch-mode) |
| Cooling Fan | Powered by built-in BEC |
| Size / Weight | 60(L) x 48(W) x 40.4(H)mm / 169.5g (included input wires) |
| Programming Port | Shared with fan port |
Motor Options
| Model | KV | LiPos | No-load Current (A) | Diameter / Length (mm) | Shaft Diameter / Length (mm) | Bearing Size (mm) | Poles | Weight (g) | Applications |
| QUICRUN 4274SL 2000KV G2 | 2000KV | 3-6S | 5.9A | Diameter: 42mm (1.65 in) Length: 74.9mm (2.95 in) |
Diameter: 5mm (0.20 in) Length: 18.5mm (0.73 in) |
Front: D16*D5*T5 Rear: D13*D5*T4 |
4 | 477g | 1/8th Truck, Monster truck |
| QUICRUN 4268SL 2600KV G2 | 2600KV | 3-4S | 6.1A | Diameter: 42mm (1.65 in) Length: 68.4mm (2.69 in) |
Diameter: 5mm (0.20 in) Length: 18.5mm (0.73 in) |
Front: D16*D5*T5 Rear: D13*D5*T4 |
4 | 417g | 1/8th Buggy & 1/10th Monster truck |
What’s Included
- (1) QUICRUN 8BL150 G2 ESC: 1pcs
- Ezrun 4268SL G2 or 4274 G2 Motor: 1pcs
Applications
- 1/8th Truck
- Monster truck
- 1/8th Buggy (with QUICRUN 4268SL 2600KV G2)
- 1/10th Monster truck (with QUICRUN 4268SL 2600KV G2)
Customer service: support@rcdrone.top
Details
QUICRUN WP 8BL150 G2 is rated 150A continuous (950A peak), supports 3–6S LiPo, and includes an adjustable 6V/7.4V BEC.
QUICRUN 4274SL 2000KV G2 and 4268SL 2600KV G2 motors list 3–6S/3–4S LiPo support, a 5mm shaft, and 4-pole design for 1/8 truck or buggy setups.
