Hobbywing QUICRUN WP Mini24 ESC & Motor Combo - WP Mini24 ESC + 1621 3500KV Outer Motor

Overview

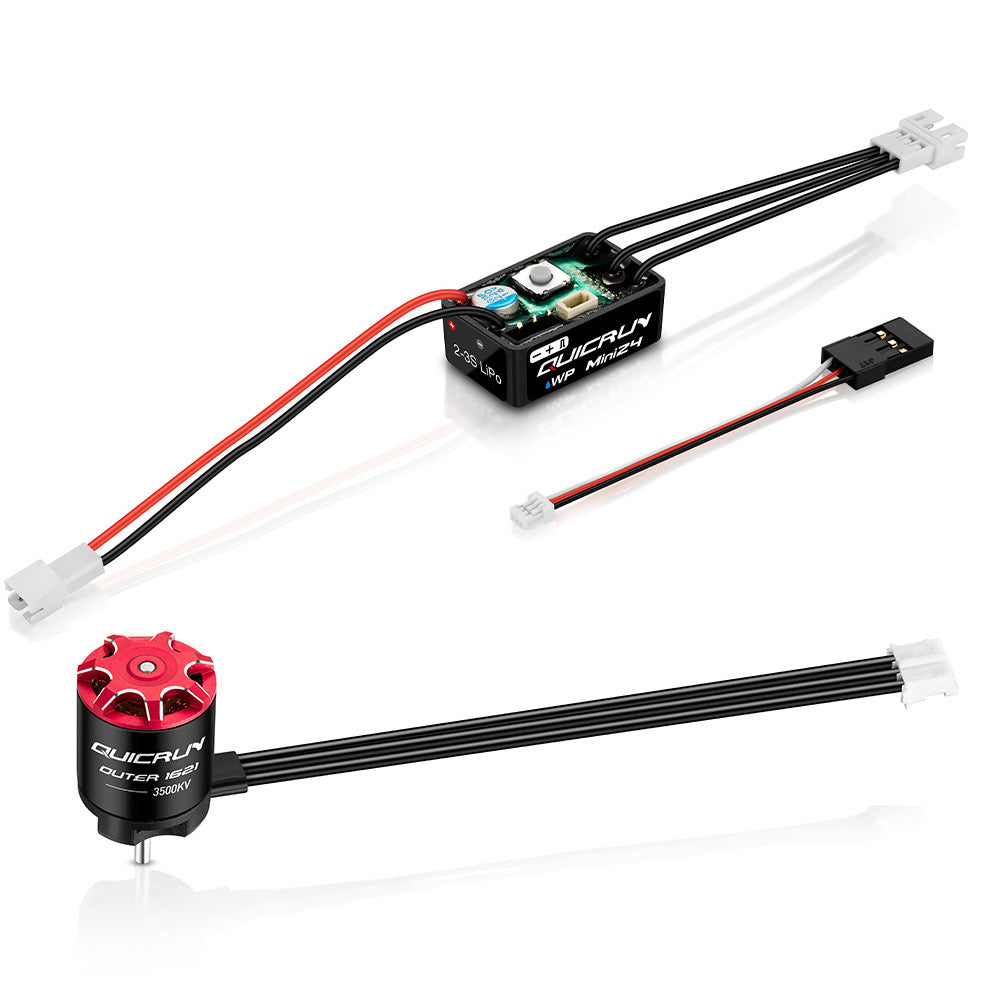

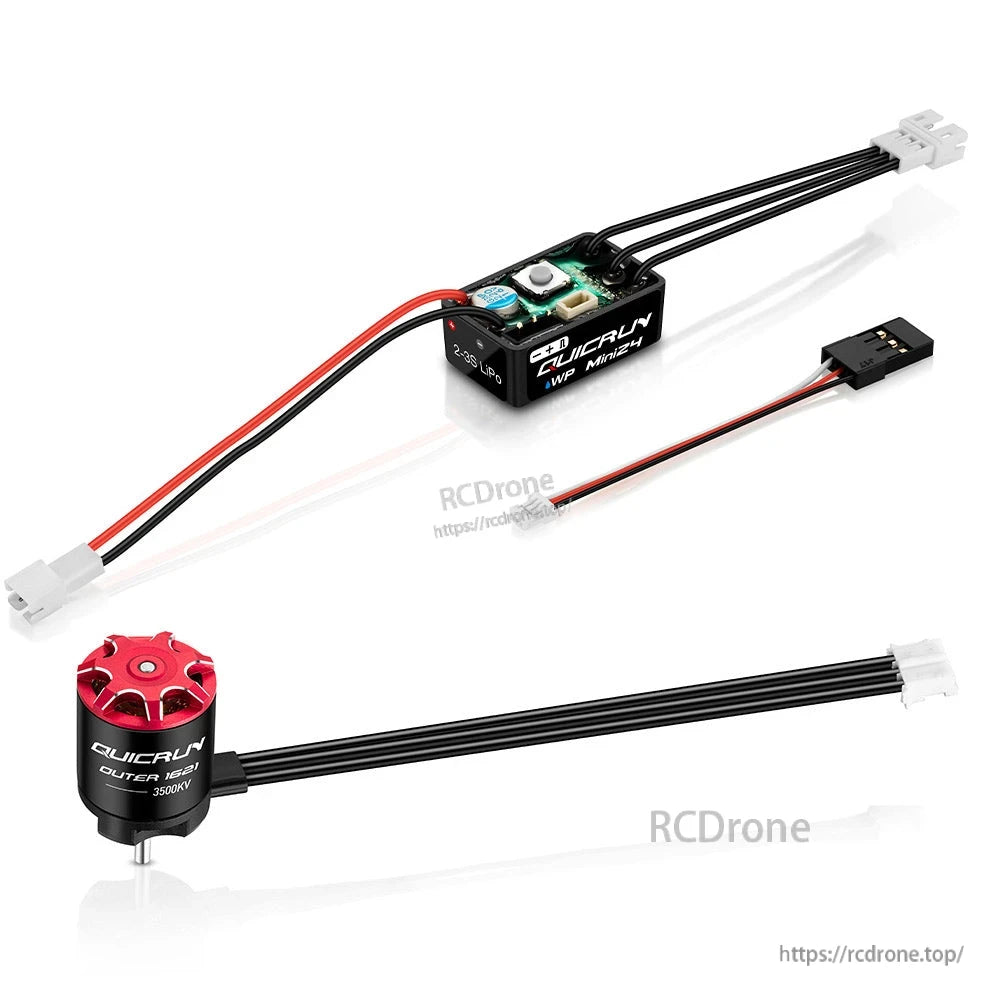

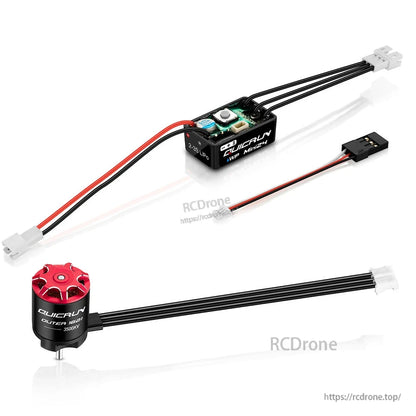

The Hobbywing QUICRUN WP Mini24 Combo is an ESC & motor combo consisting of the QUICRUN WP Mini24 electronic speed controller and a QUICRUN 1621 Outer 3500KV motor. The ESC supports both sensorless brushless motors and brushed motors, with a waterproof design for operation in wet conditions.

For product support and after-sales service, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

WP Mini24 ESC

• Supports sensorless brushless motors and brushed motors.
• Waterproof design.
• Switch-mode BEC with switchable output: 6V/7.4V.
• Separate programming port for LED program card or LCD Pro program box.
• Protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
• Drag brake force can be adjusted in real time via transmitter AUX channel.
• Wiring diagram labels: Battery, Electronic Speed Controller, Receiver, Brushless motor, Brushed motor; motor phase leads marked A/B/C.

1621 Outer Motor

• Designed to pair with the QUICRUN WP Mini24 ESC for matched performance.
• Good low-speed linearity with reduced vibration (precision dynamic rotor balancing).
• Silicone wire outlet for easier wiring compared with traditional enameled wire outlets.
• High installation compatibility with three sets of M2 mounting holes.
• Low cogging torque for smoother low-speed operation.
• Modular design for easier disassembly and maintenance.
• Durable construction using a high-performance iron core, 220°C high-temperature resistant enameled wire, and high-precision bearings.

Specifications

Manuals

Manual download > Manual_QUICRUN WP Mini24 ESC.pdf

Manual download > Manual_QUICRUN 1621 Outer Motor.pdf

Product Brochure > QuicRun WP Mini24-Leafiet-en.pdf

Details

The QUICRUN WP Mini24 ESC wiring layout shows battery and receiver connections and supports both brushed and brushless motor hookups.
