T-Motor V60A 24S UAV ESC (FOC) PWM/CAN, 12-24S Max 105V, 35A Continuous 65A Peak, No BEC

T-Motor V60A 24S UAV ESC (FOC) PWM/CAN, 12-24S Max 105V, 35A Continuous 65A Peak, No BEC

T-MOTOR

$377.86 USD
$377.86 USD
特價 售罄
已包含稅額。 結帳時計算運費。
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
查看完整資訊

Overview

The T-Motor V60A 24S is a UAV ESC (FOC ESC) designed for fast response, efficient driving, accurate control, and low-noise operation. It supports PWM/CAN input and operates on 12~24S (Max 105V) power systems.

Key Features

  • FOC ESC: advanced edition of FOC ESCs
  • Fast response
  • Efficient driving
  • Accurate control
  • Low-noise operation
  • Control protocol: PWM/CAN
  • BEC: NO

Recommendation

  • Motor: U13 II
  • ESC: V60A 24S
  • Propeller: G32

Specifications

Model No. V60A 24S
Support Voltage 12~24S (Max 105V)
Continuous Current 35A
Peak Current (<10s) 65A
Size 115*57*26.5mm (L*W*H)
Weight (Incl. Cables) 283.5g
ESC Weight 180g (Excl. Cable) / 283.5g
Protocol PWM/CAN
BEC NO
Throttle Pos. Range 1040~1940
Throttle Refresh Frequency 50~500Hz
Throttle Response Speed 300ms
Standby Consumption ≤50mA@100V
Input Cable Silicone Wire-Red/Black-14AWG-1200mm
Output Cable Silicone Wire-Orange-14AWG-250mm
Signal Cable Shielded Cables-Black-OD4.2-5C-330mm-JP-3P*2-Black Blank White-Green Yellow Gray
Encoder Cables Shielded Cables-Black-24AWG-5C-370mm-M6 Aviation Connector

For wiring, setup, and compatibility help, contact support@rcdrone.top or visit https://rcdrone.top/.

What’s Included

  • Packaging Box*1
  • V60A 24S*1

Downloads

Details

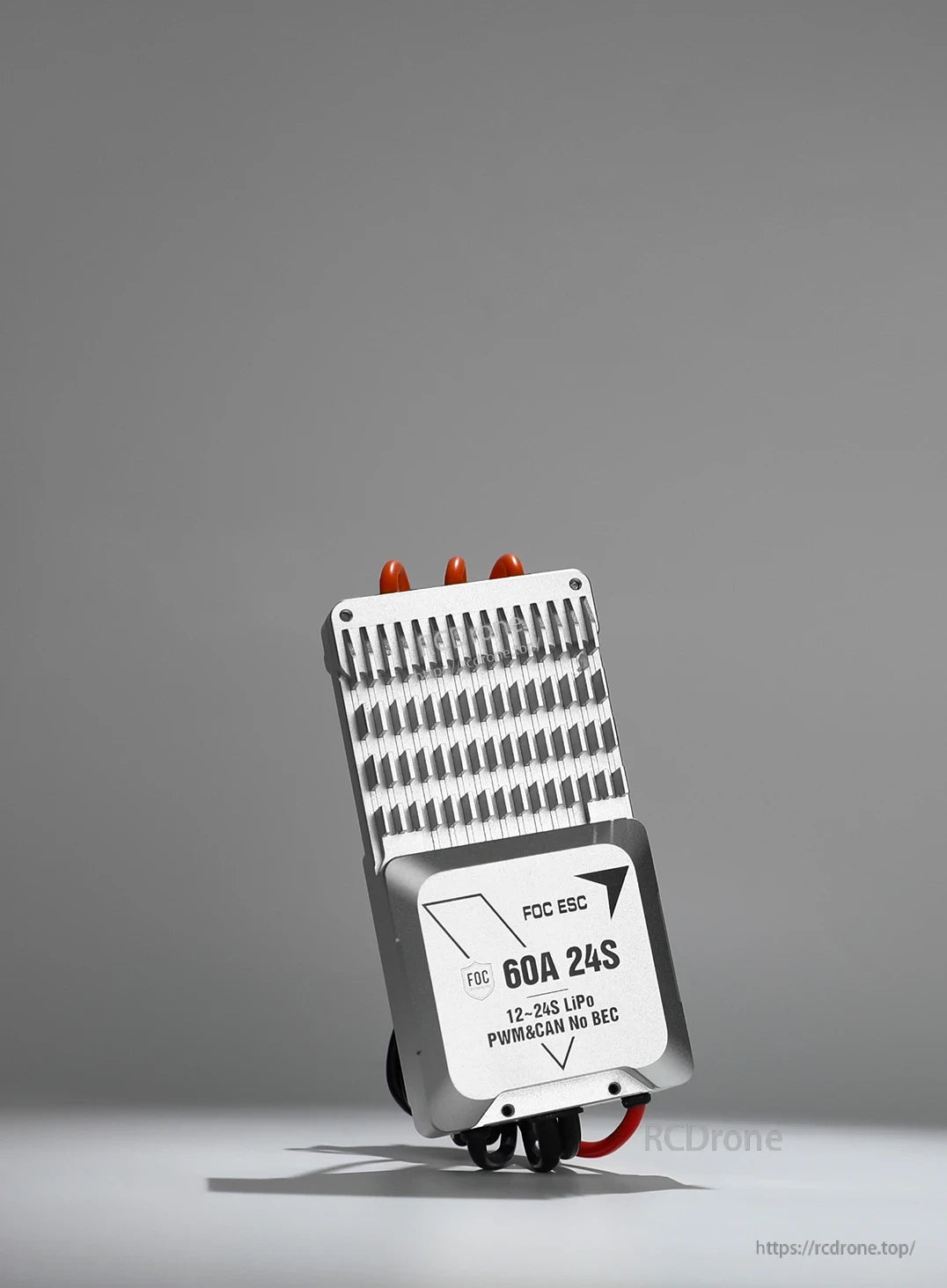

T-Motor V60A 24S UAV FOC ESC

The V60A 24S FOC ESC is labeled for 12–24S LiPo and supports PWM and CAN control with no built-in BEC.

T-Motor V60A 24S technical drawingT-Motor V60A 24S packing list

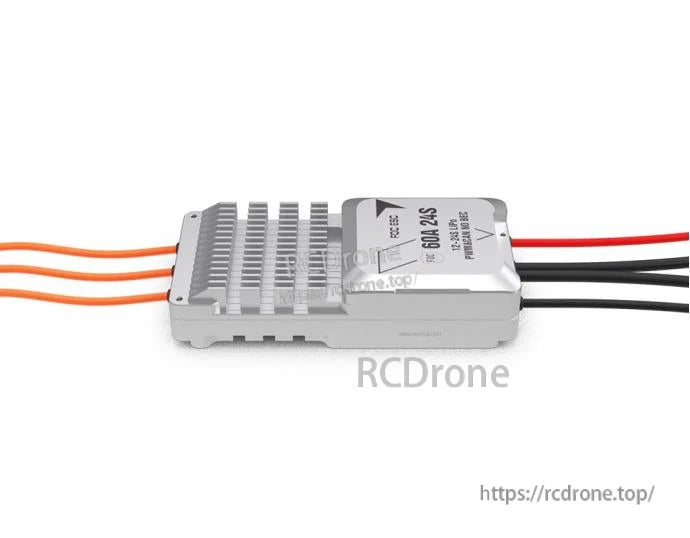

The T-Motor V60A 24S 60A UAV ESC comes in a finned metal housing with pre-wired leads for straightforward connection to motors and power.
