300W Anti Drone Device SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

DIY Supplies: Paint & Decorating

Type: Drone Detection System

Certification: CE

Certification: RoHS

Model Number: Drone detector

Size: 370*295*140mm

Style: Drone Defense System

Output Type: 300W

Coverage: 800-2000m

Operational Power: 90-260 V AC using a directional AC power 12/24 VDC

Frequency Range: 433/900/2.4/5.8/5.2/1.5MHz

Quality Warranty: 1 years

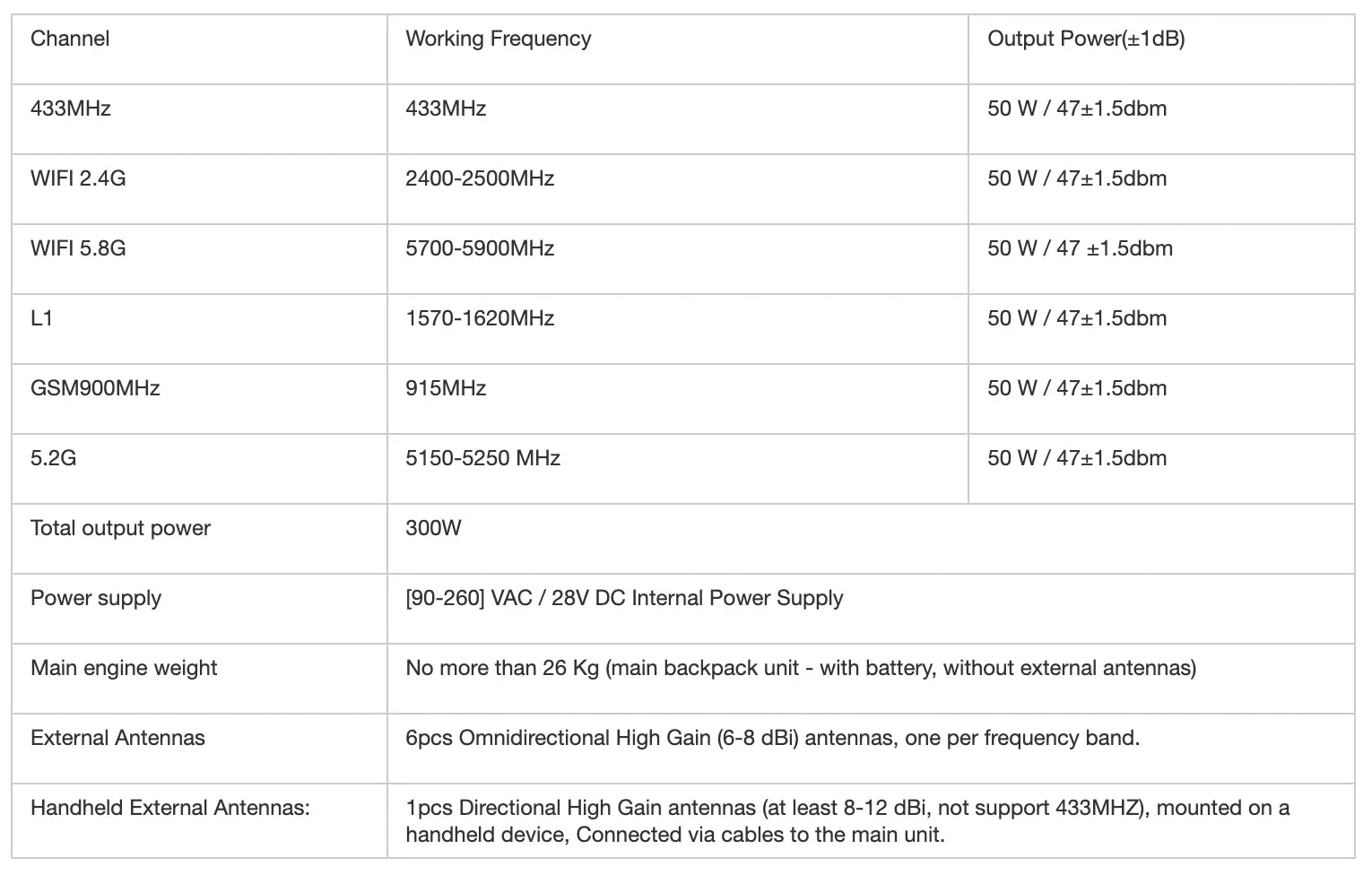

Channel	Working Frequency	Output Power(±1dB)
433MHz	433MHz	50 W/47±1.5dbm
WIFI2.4G	2400-2500MHz	50 W/47±1.5dbm
WIFI5.8G	5700-5900MHz	50 W / 47 ±1.5dbm
L1	1570-1620MHz	50 W /47±1.5dbm
GSM900MHz	915MHz	50W/47±1.5dbm
5.2G	5150-5250 MHz	50 W / 47±1.5dbm
Total output power	300W
Power supply	[90-260] VAC / 28V DC Internal Power Supply
Main engine weight	No more than 26 Kg (main backpack unit - with battery, without external antennas)
External Antennas	6pcs Omnidirectional High Gain (6-8 dBi) antennas, one per frequency band.
Handheld External Antennas:	1pcs Directional High Gain antennas (at least 8-12 dBi, not support 433MHZ), mounted on a handheld device, Connected via cables to the main unit.

The device supports wireless frequencies including WiFi (2.4GHz: 2400-2500MHz, 50W, 47+1.5dBm) and WiFi 5.8GHz (5700-5900MHz), as well as GSM/IOO/MHz. The total output power is 300W, with the main engine weighing no more than 26 kg.
