FPV Motor - A2212 2212 1400KV / 2200KV Brushless Motor 30A ESC Motor SG90 9G Micro Servo 8060 Propeller for RC Fixed Wing Plane Helicopter

FPV Motor - A2212 2212 1400KV / 2200KV Brushless Motor 30A ESC Motor SG90 9G Micro Servo 8060 Propeller for RC Fixed Wing Plane Helicopter

RCDrone

$19.40 USD
$38.80 USD $19.40 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

150 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: KV1100

Size: 2212

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: XXD 2212 1400KV

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Readytosky

FPV Motor, readytosky is a professional FPV RC Module accessories company . we will

readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .


SG90A 9G Micro Servo
This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key features:
• Translucent body
• Lightweight
• Less noise
TS90A 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

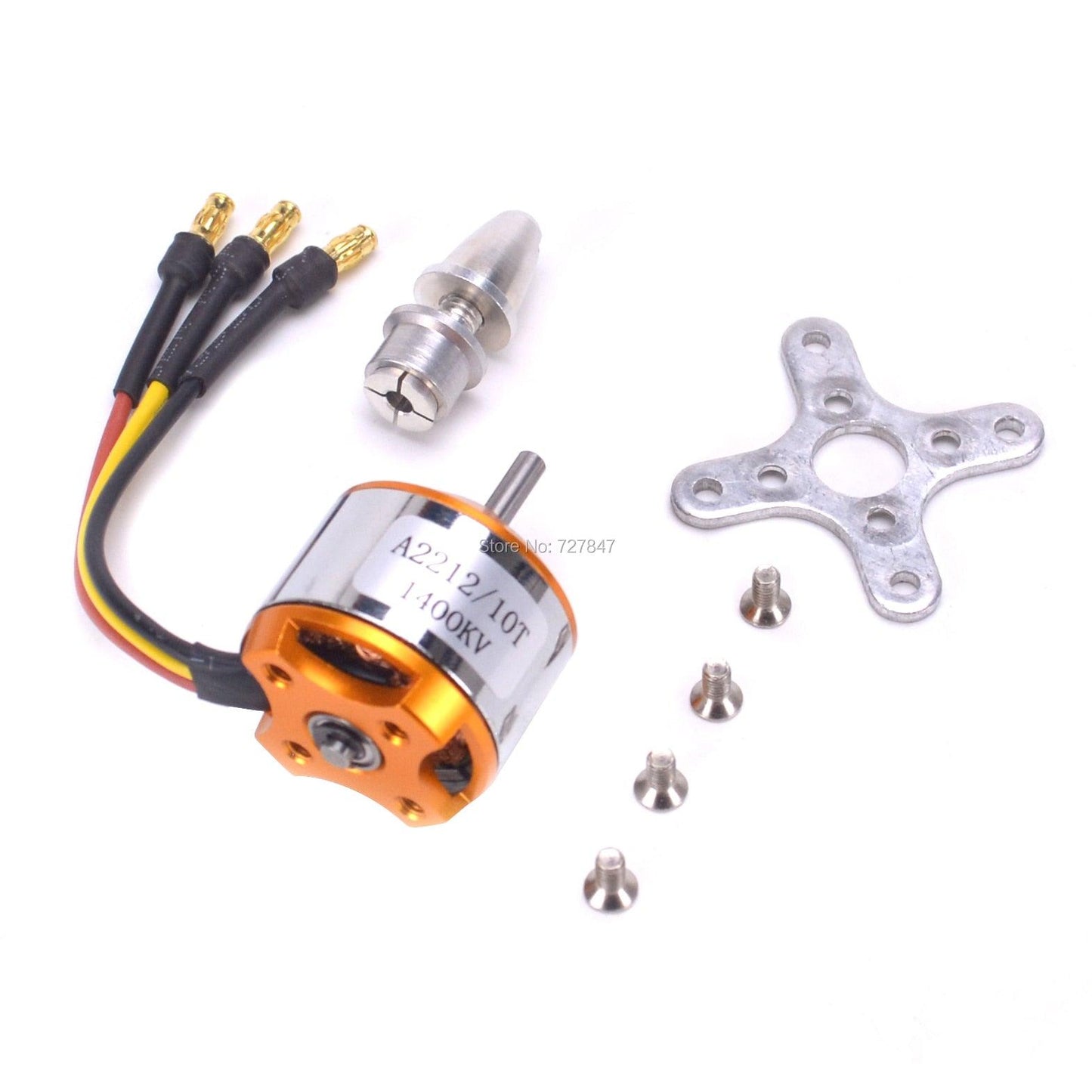

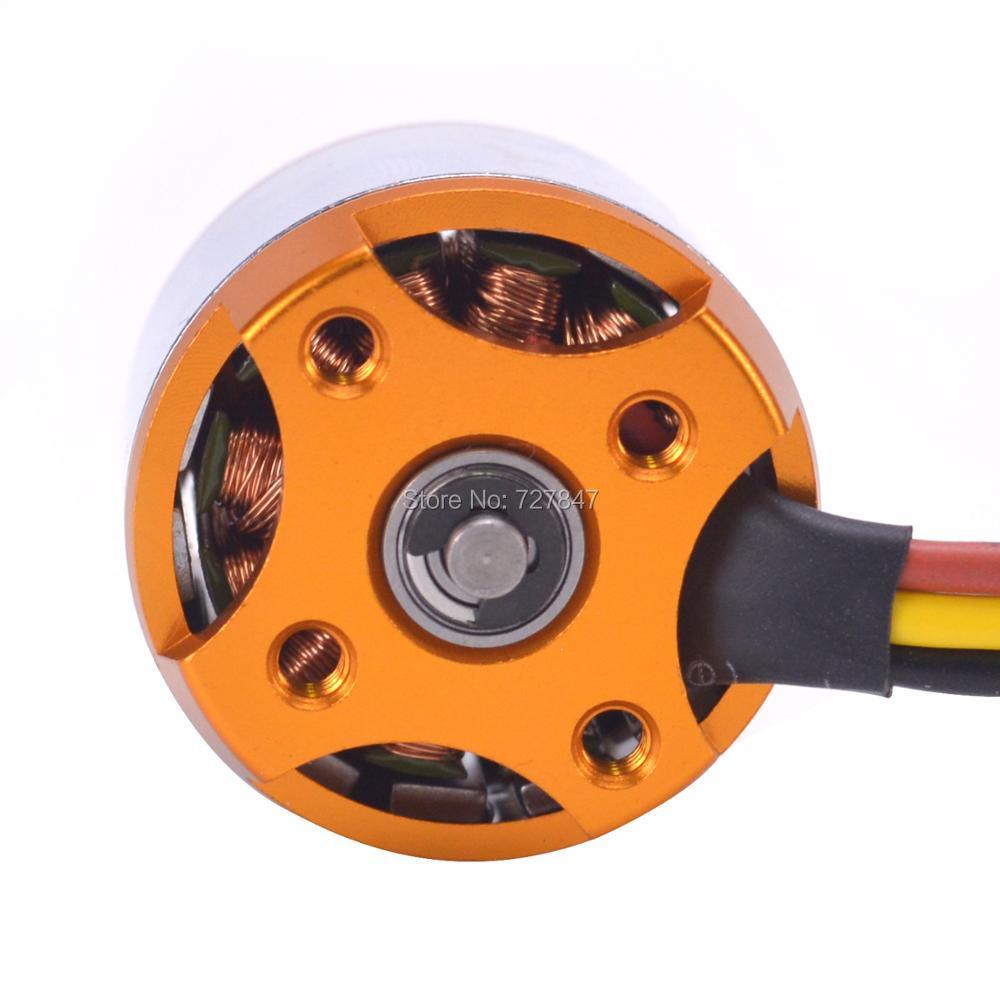

A2212 1400kv Motor Specification:
KV: 1400

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 60.1g





A2212 2200kv Motor Specification:
KV: 2200
Ri(M Ω): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7x3/7x4
Motor Size: 27.5x38mm/1.08''x1.5''
Shaft Diameter: 3.17mm/0.12''

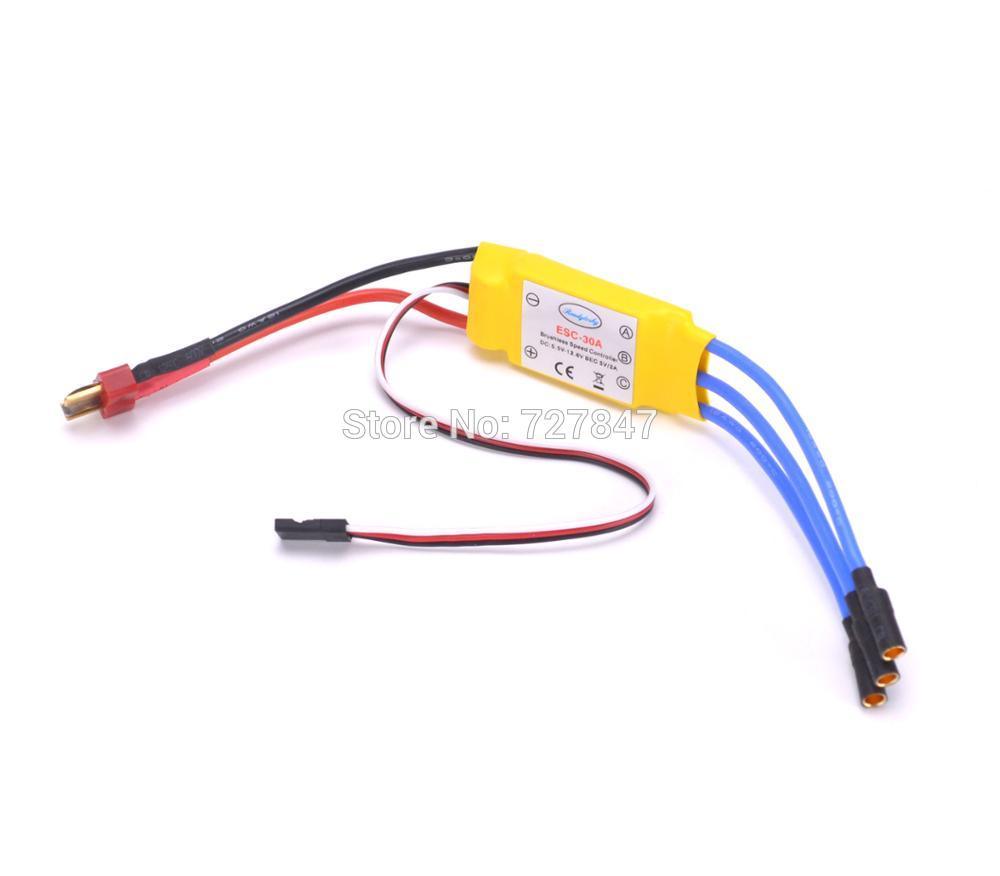

30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter
Specification:
Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors


Note : the esc can not be programmed .

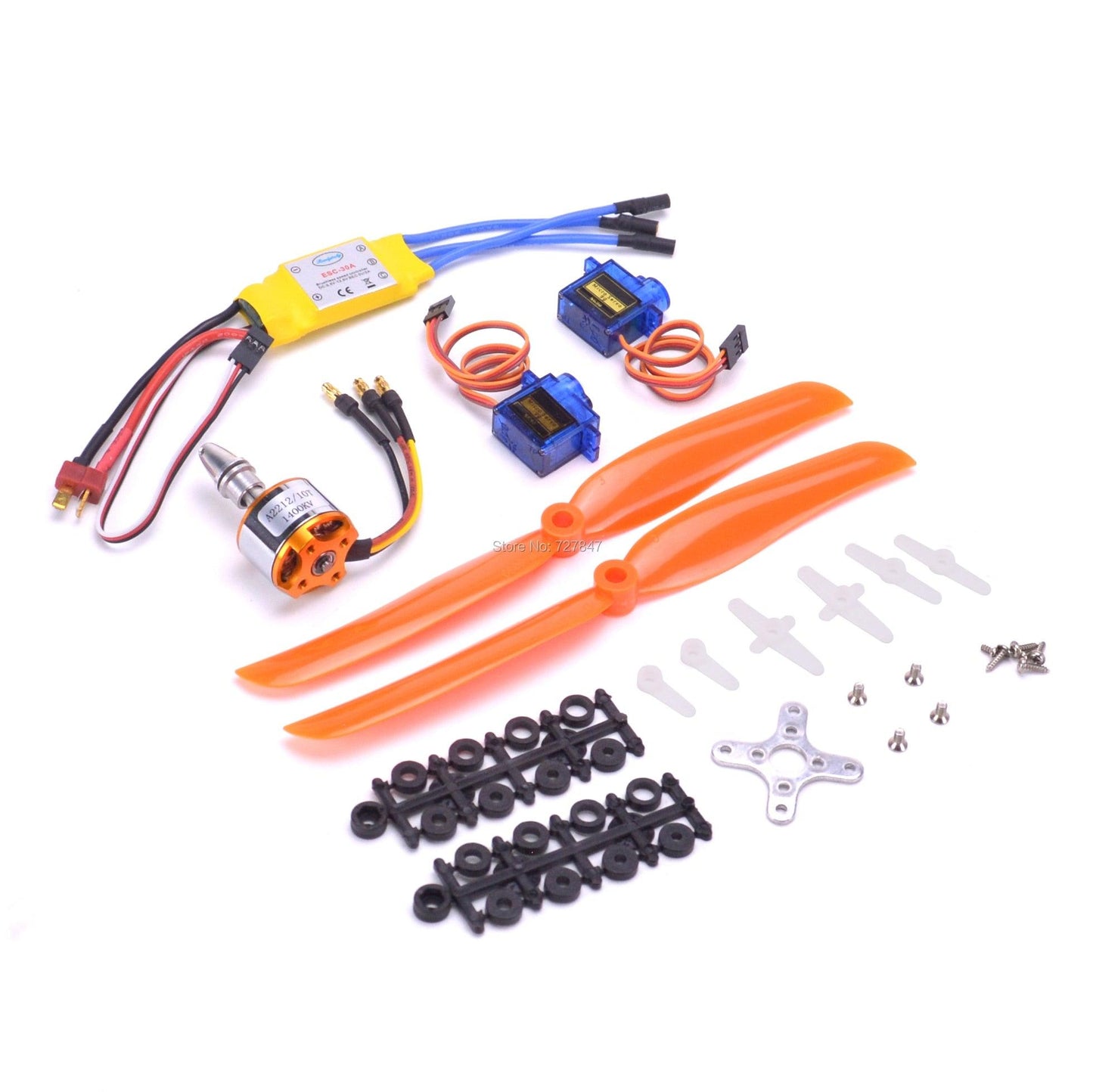

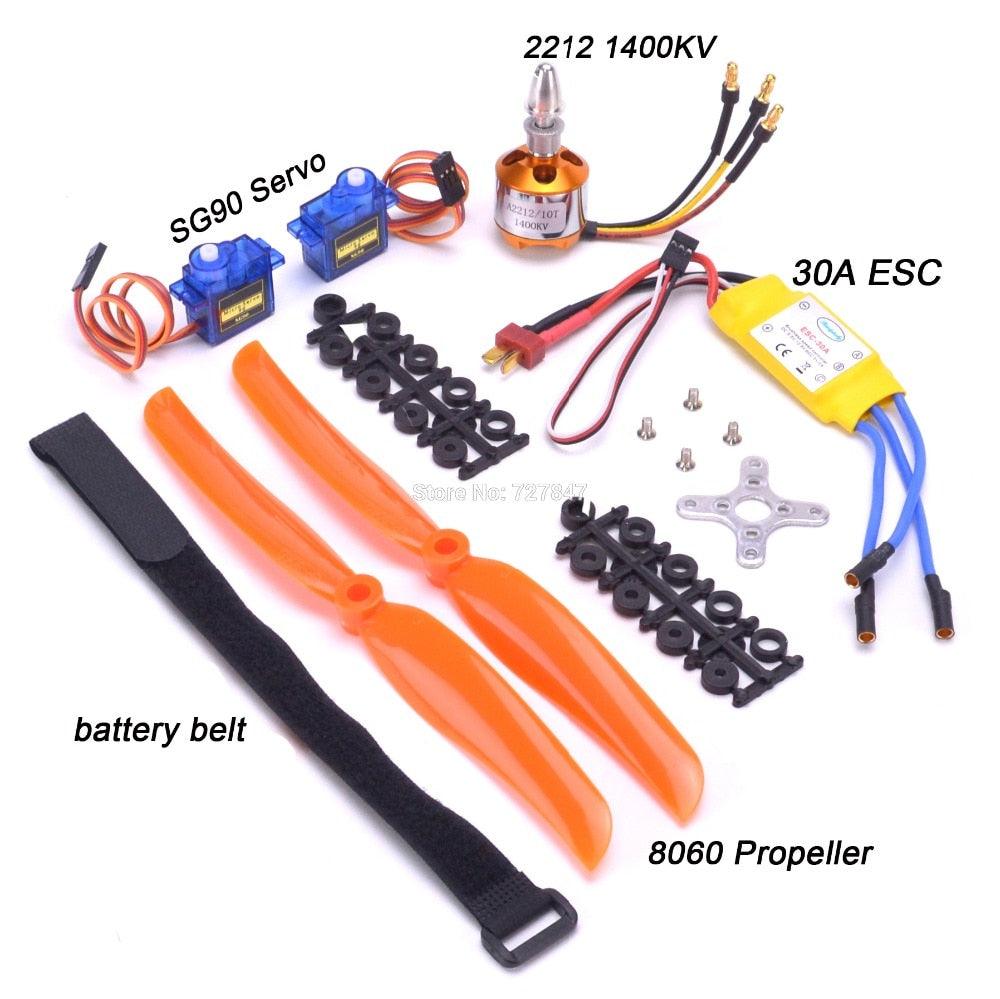

Package Included : (Send it as your choice)
1 x A2212 1400kv / 2200kv Brushless Motor
1 x 30A Brushless ESC
2 x 8060 / 6035 Propeller ( 2212 1400kv motor set with 8060 propeller , 2212 2200KV motor set with 6035 propeller)
2 x SG90 9G Micro Servo








FPV Motor, ESC Store No; 7278 battery belt 8060 Propeller Servo SG9

ESC Store No; 7278 battery belt 8060 Propeller Servo SG9O 42212/101 TaQokv 1400KV 30A

FPV Motor, No load speed: 0.12 sec / 60 deg (4.8 V) Locked


FPV Motor, -Input Voltage: 2-3cells lithium battery or 5-9 cells NiCdFPV Motor - A2212 2212 1400KV / 2200FPV Motor, the esc can not be programmed .FPV Motor, only weighs 9 gram and gives you a 1.5 kg/cm torque
