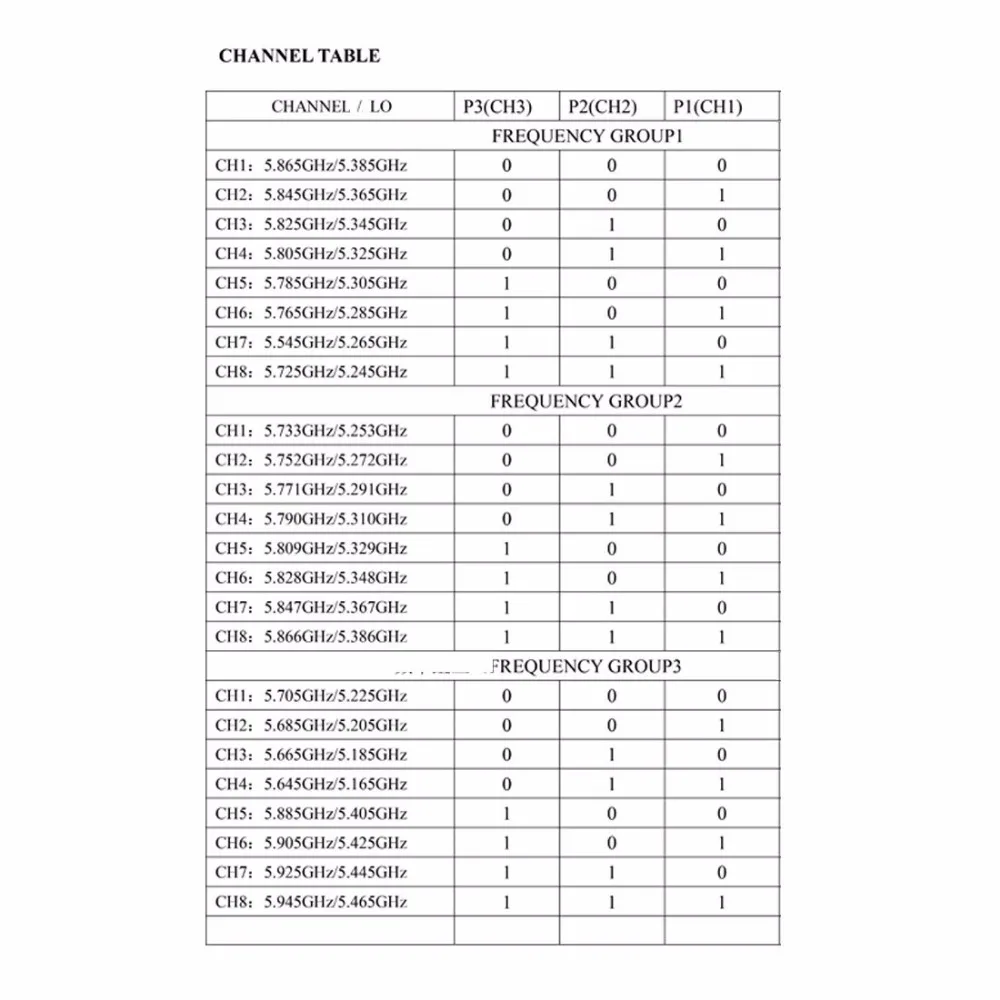

  • AKK 331 VRX, CHI: $.733GHz $.2S3GIz CHIZ:
1 6

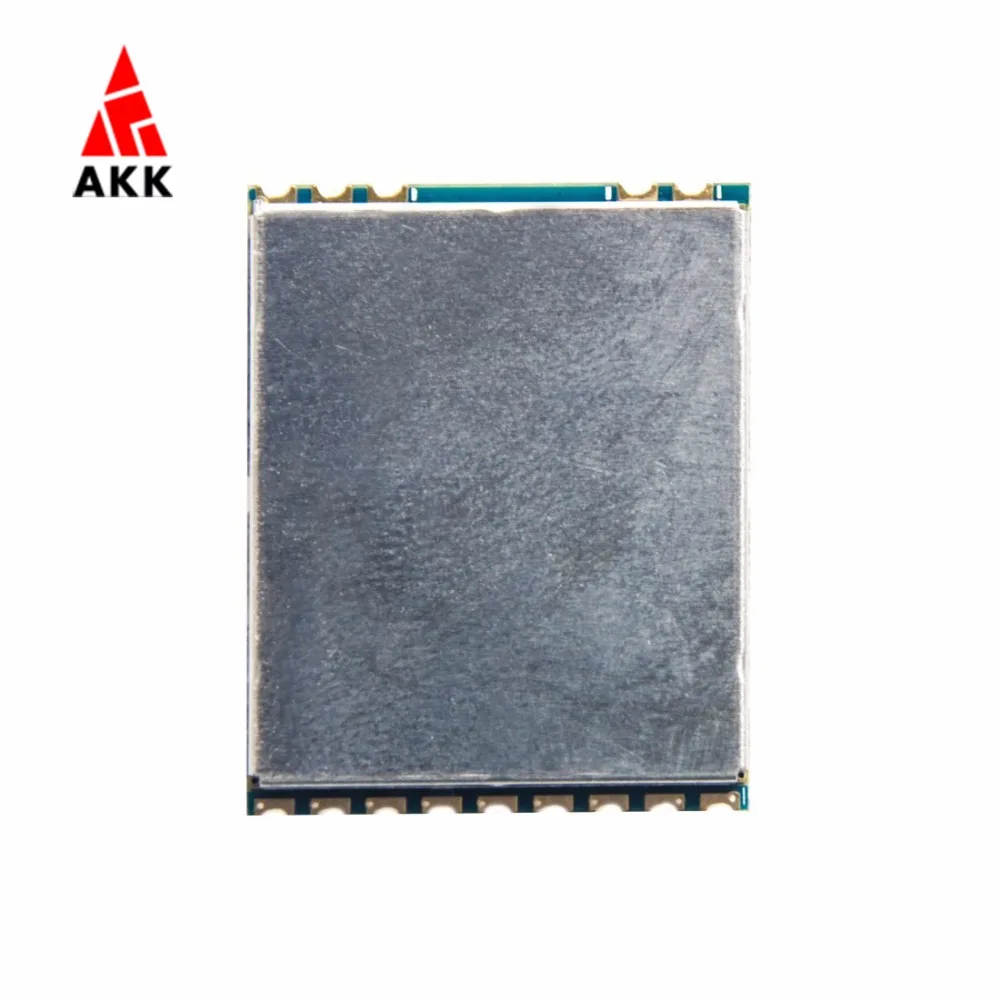

AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build

AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build

AKK

$16.78 USD
$23.49 USD $16.78 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

118 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

AKK 331 VRX SPECIFICATIONS

Brand Name: akk

Origin: Mainland China

Material: PCB

RC Parts & Accs: Receivers

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: RX

Remote Control Peripherals/Devices: Receivers

Tool Supplies: soldering

Model Number: K331

Four-wheel Drive Attributes: Assemblage

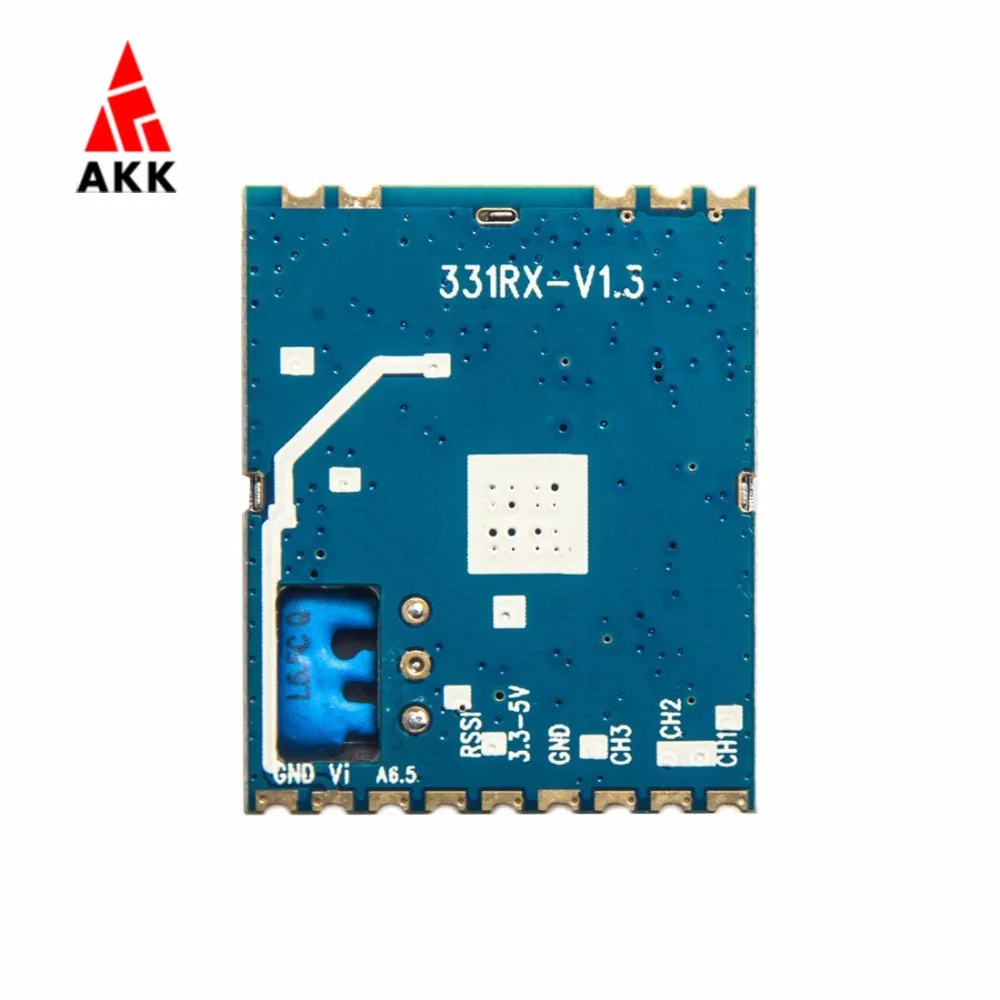

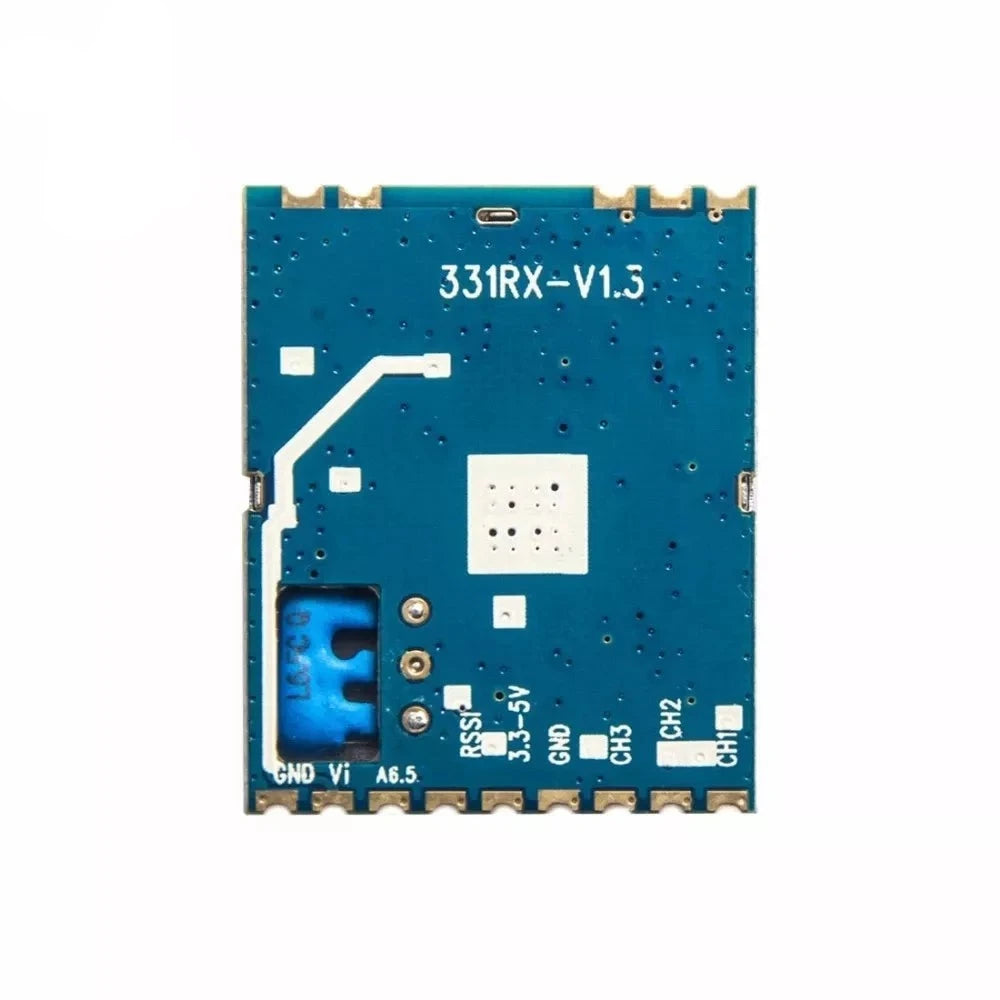

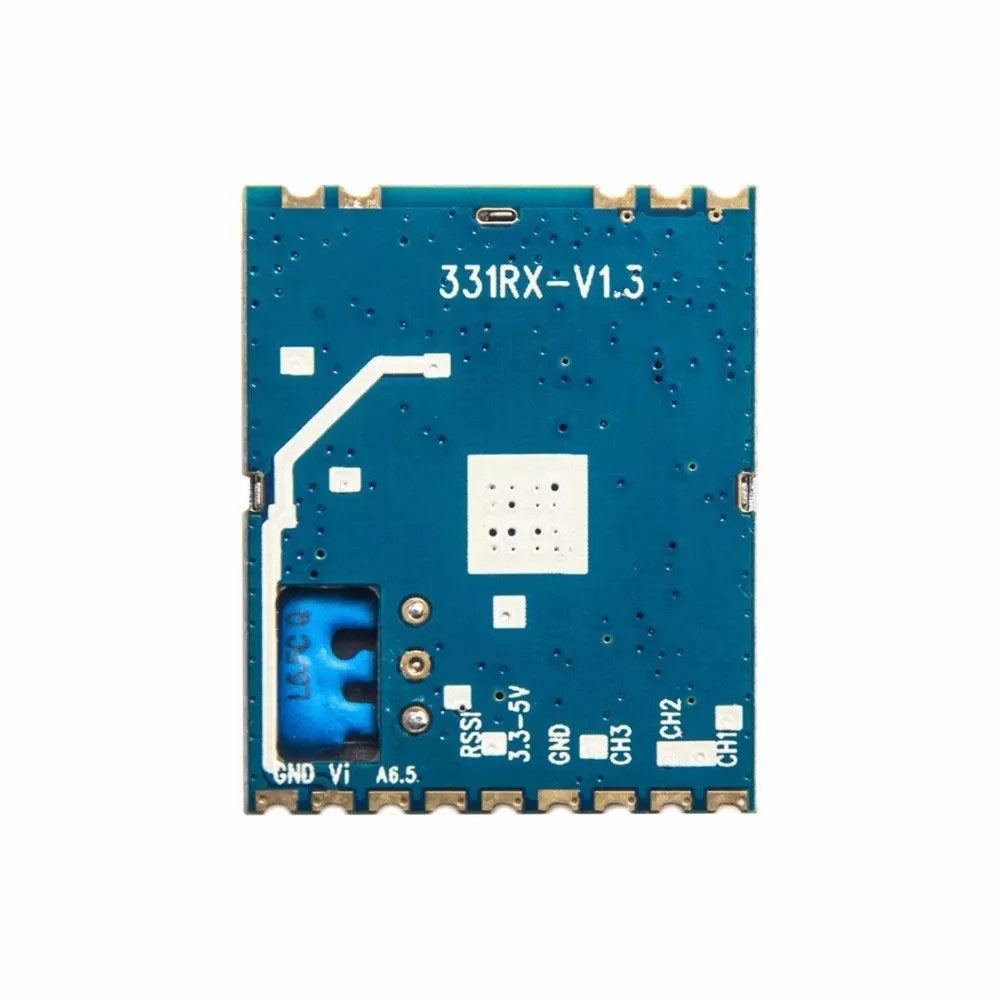

331 Receiver Module:


product features：
POWER SUPPLY：+3.3~5.0V, Current Consumption：200mA , Max

For fpv receiver for goggles and monitors.

For DIY hobby fan and hams.

Support audio and SPI.



Suitable for fatshark goggles.

Specifications:
POWER SUPPLY：+3.3~5.0V
Current Consumption：200mA , Max
Operating Temperature：-10~+65 ºC
Storing Temperature：-30~+85 ºC
Operating humidity：85%RH

RF：
Receiving frequency range：5645 ~ 5945MHz
Voltage Standing Wave Ratio：2:1
Demodulation system：FM/PLL
IF：480MHz
ANT. input impedance：50Ω, Typ.
LO Frequency stabilization：±100kHz
LO Frequency Precision：±100kHz
LO Control：PLL
Input LO Leak：-55dBm
Receiving Sensitivity：-93dBm
Input Level Range：-93 dBm ~+5 dBm

Video Characteristics：
Video Output impedance：75Ω, Typ.
Video Output Level：1Vp-p, Typ.
Video Polarity：NEGATIVE
Video Frequency Respone：±5 dB, Max. 50Hz ~ 6MHz
Differential Gain：±5 %, Max
Differential Phase：±5 Deg., Max
3Db IF WIDEBAND：16.5MHz
S/N：38dB, Min

Audio：
Audio Output impedance：2KΩ, Typ.
Audio Output Level：1±0.2Vp-p, Typ.
Audio Output Frequency Range：100Hz ~ 20kHz
Audio carrier：6.5MHz(AL)
Audio carrier precision：±30kHz
S/N (50Hz ~ 15kHz): 50dB, Min
THD：(50Hz ~ 15kHz, 3 Vp-p): 1.5 %, Max
Audio input voltage：1.0Vp-p , 1KHz

Package Included:
1 x 331 Receiver Module


Product shows:

351T 5.8GHz 40CH FPV Transmitter Module:


Features:

Supply voltage: 5v.

Impedance: 75 ω.

Audio input voltage：1. 0vp-p.

Tx power: 25mw/200mw/600mw.

Suitable for fpv goggles.


Specifications:

Modulation type： FM
Transmitter Frequency: 5645-5945MHz
Temperature: -10℃ ~ +60℃
Video input voltage：1.0Vp-p,150 (IRE)
Audio input voltage：1.0Vp-p（sine wave signal） 1KHz
Supply Voltage: 5V
Current Consumption: 600mW: 500-560mA
200mW: 300-360mA
25mW: 190-230mA
Input Impedance: 75 Ω
Peak Deviation: 1.2 MHz
Tx Power: 600mW: 26-28dBm
200mW: 22-24dBm
25mW: 13-15dBm
Audio subcarrier Level: -26- -30 dBc


Package Include:

1 x 351T transmitter module



AKK 331 VRX, AKK 2.0Omm 351TX-V1.O PAegV3

AKK 2.0Omm 351TX-V1.O PAegV3 1.9Omm Video 65M 19.1Omm CS2 GND csI +5V2.54mm 2.54mm .

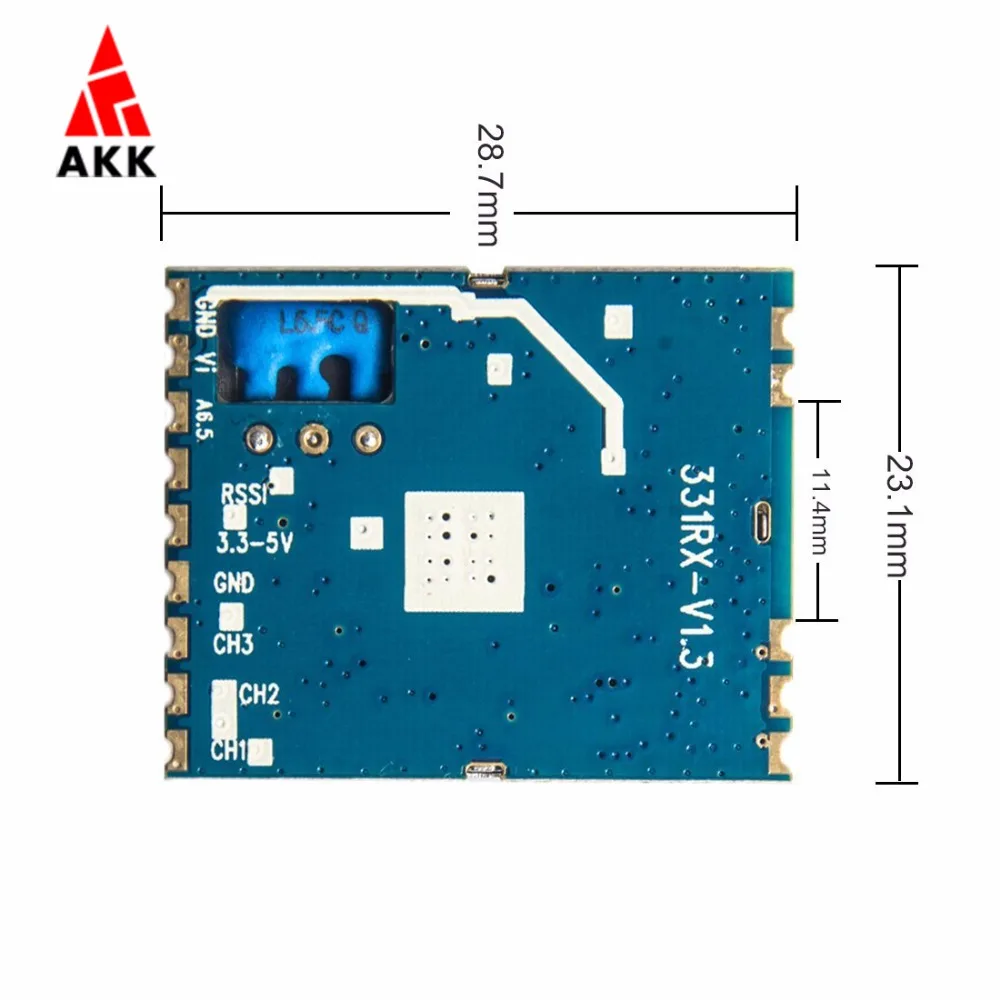

AKK 331 VRX - 5.8GHz FPV AV Receiver Module

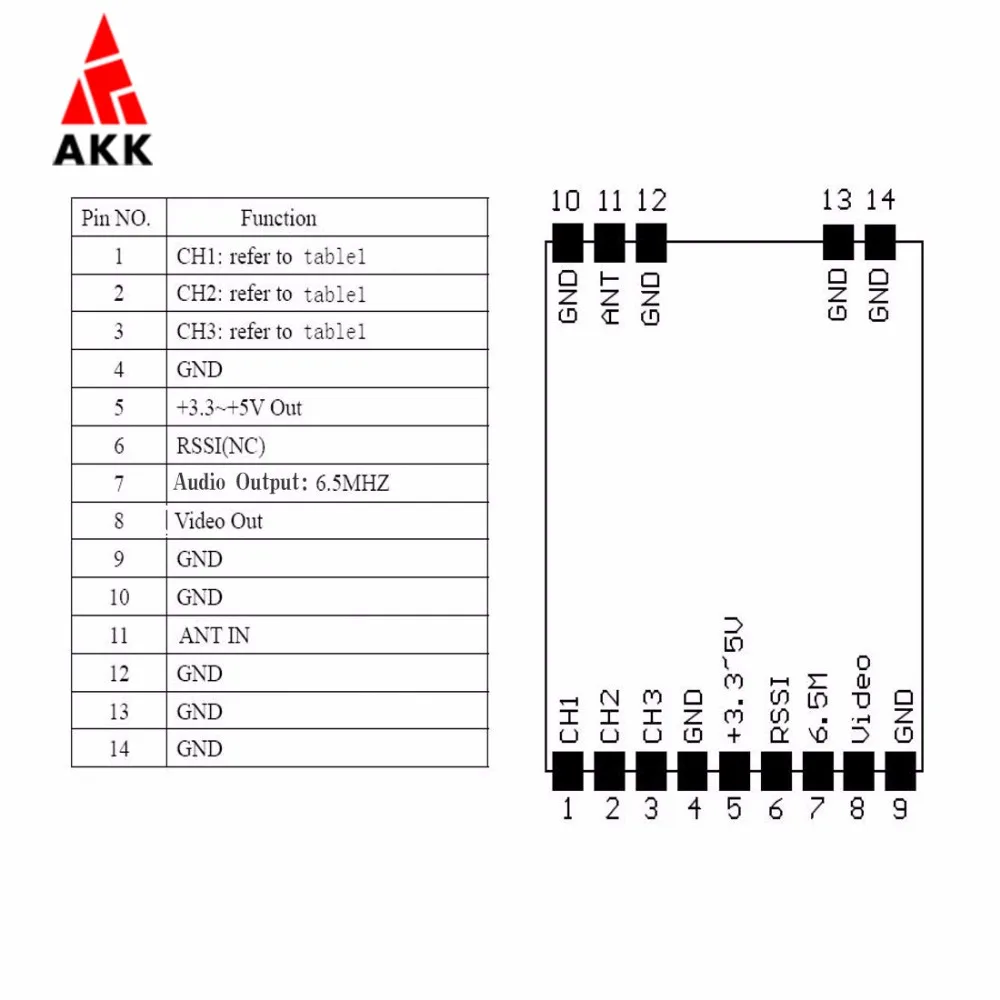

AKK 331 VRX, Pin NO Function 3V3 OUT (MAX-ZOOMA) GND 7

Pin NO Function 3V3 OUT (MAX-ZOOMA) GND 7-0*3V3 13-GND +3.3-+SVNN 6-VIDEO 12-ANT GND Audio 6.SM NN 5-6.5M 11-GNd Vidoe IN 03V1 CTRL POWER 4-GND 10-CS2 CSO (DATA) 3-5V 9-CS1 CS1 (LE) 10 CS2 (CLK) 2-GND 8-CSO 11 GND 1-3

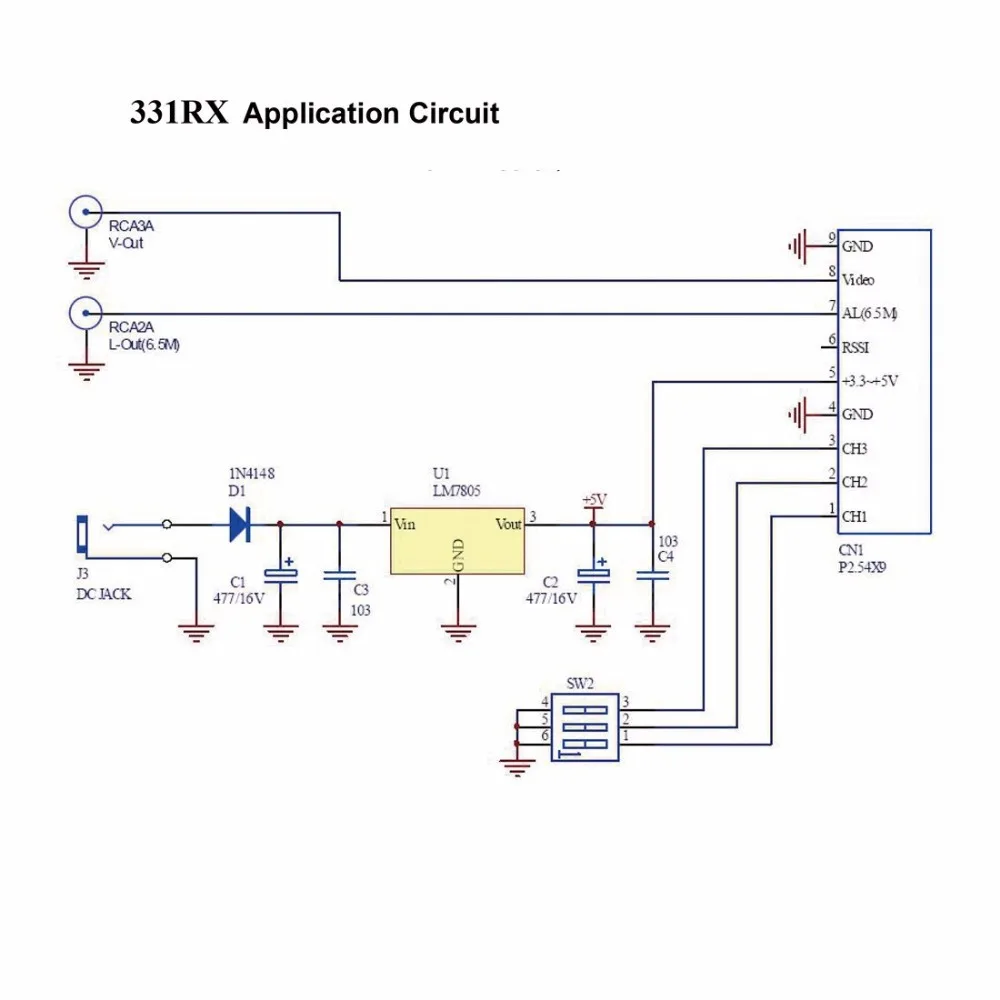

AKK 331 VRX, Application Circuit AnT CS2 10 Csi VIDEO AUDIO CSO

Application Circuit AnT CS2 10 Csi VIDEO AUDIO CSO 0 JvJ Lm7805 01 IN Out 5819(SS14) GND 5 JVJ-Out C9 C6 470u/10v 47ou/10v

AKK 331 VRX, Specifications: POWER SUPPLY:+3.35.0V Current Consumption:
