Product parameters:

Name: Aocoda-RC F7 MINI speed, special flight control for Huafei

Main control chip: STM32F722RET6

MPU: MPU6500

Barometer: BMP280

Character overlay: AT7456E

Black box: integrated 16M Flash

Serial port: 5 channels optional

Motor output: 8 channels optional

LED strip: support

Buzzer: support

Input voltage: 3-6S Lipo

Power output: 5V/2.5A, 9V/3A

Weight: 4.9g

PCB size: 28x28mm, mounting hole 20mm

Firmware: AOCODAF722MINI

Package Included:

1 x Aocoda-RC F7 MINI V1.0 Flight Controller

Note: About the shock absorbing balls, there are red, purple or black color in stock, we will send it at random.

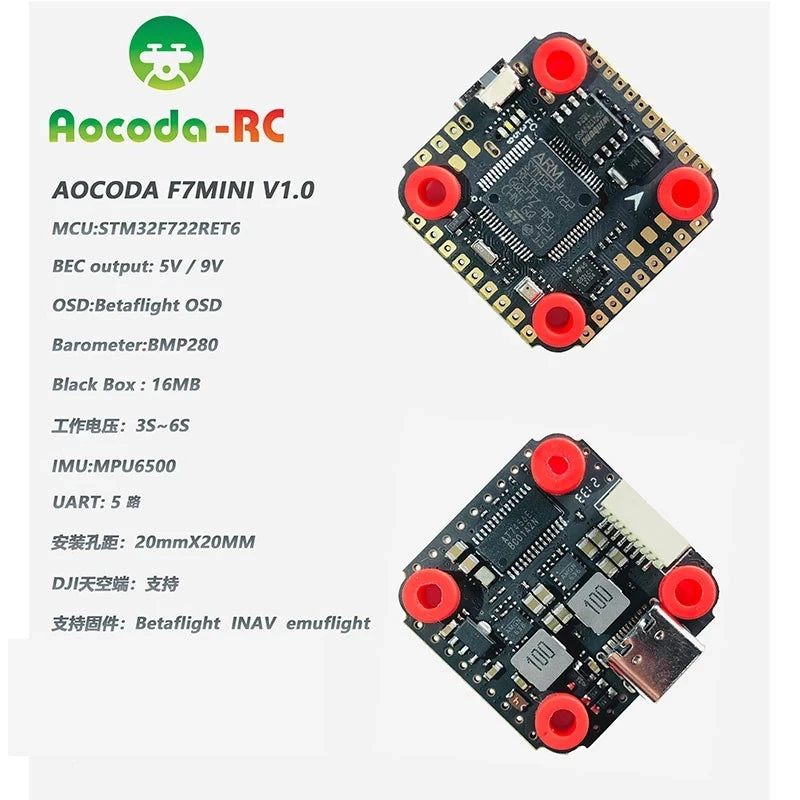

Aocoda-RC AOCODA FZMINI V1.O MCU:STM3ZF722RET6 BEC output: SV / 9V OSD Betaflight OSD Barometer:BMP280 Black Box 16MB IMFEE: 3565 IMU:MPU65OO UART: 5 3 ZMAE: 2OmmXZOMM DJIRZE: %8 S8E#: betaflight INAV emuflight I

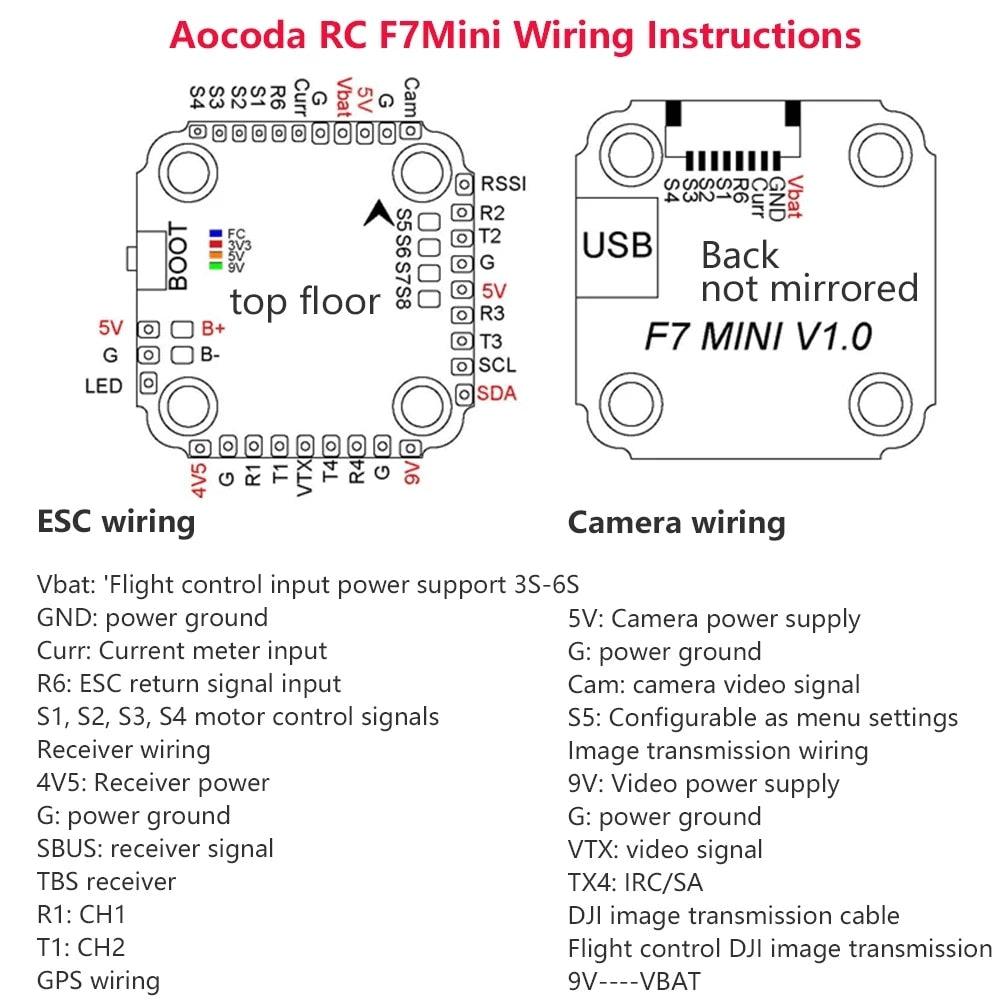

Aocoda RC F7 Mini Wiring Instructions: 1. Power Input: * VBAT (8V): Flight controller input power support, 35-65V 2. Ground Reference: * GND: Power ground connection 3. Camera Power Supply: * SV: Camera power supply input 4. Current Meter Input: * Curr: Current meter input for monitoring power consumption 5. ESC Return: * R6: ESC return wire (connect to battery or power source) Note: * SCL/SDA pins are for LED indicator and not mirrored * 2V and 0V represent the same ground reference * 5V is present on both the top and bottom layers, but not mirrored
