The atomrc gimbal is special designed for the fixed wing, the quick release design allow user to use one air unit(camera&vtx) on multiple platforms, light weight and compact size. The gimbal have one axis and two axis for choice.

The gimbal comes with servos, the one axis version have pan servo with 270degrees, two axis version add tilt servo with 90 degrees.

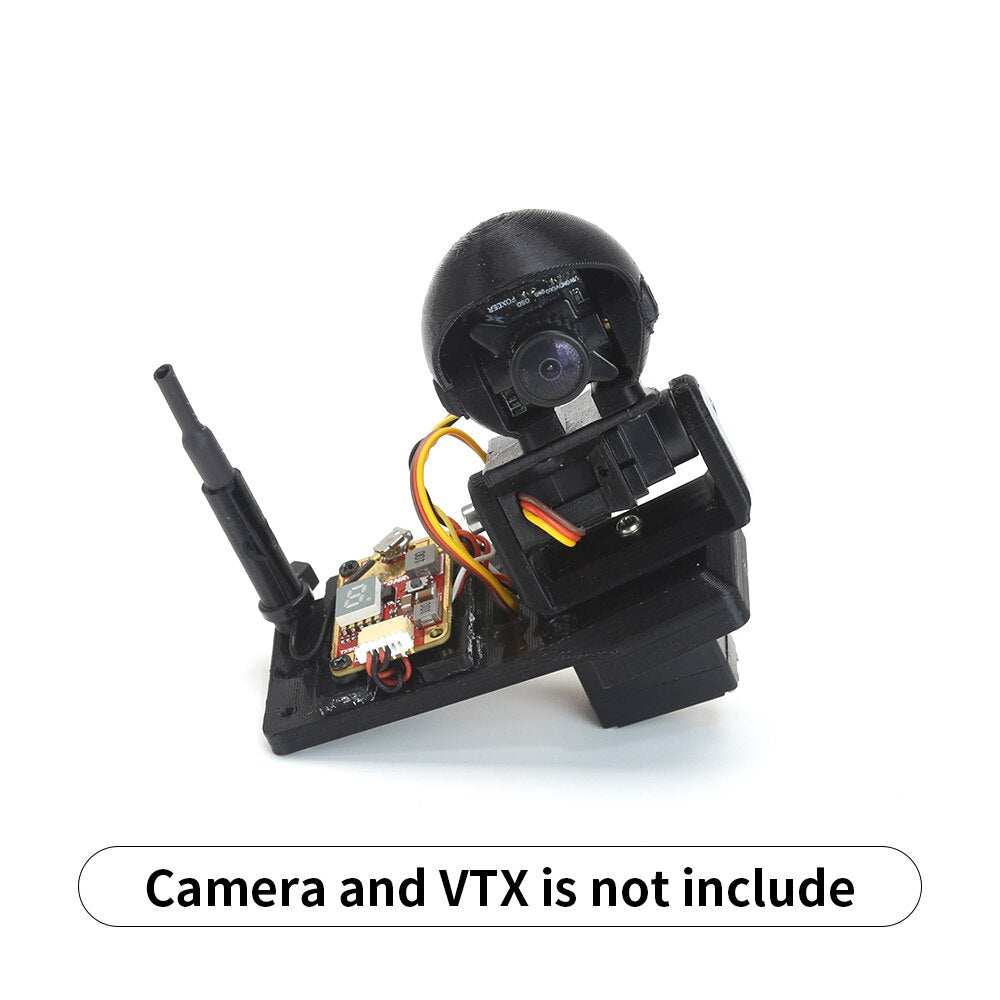

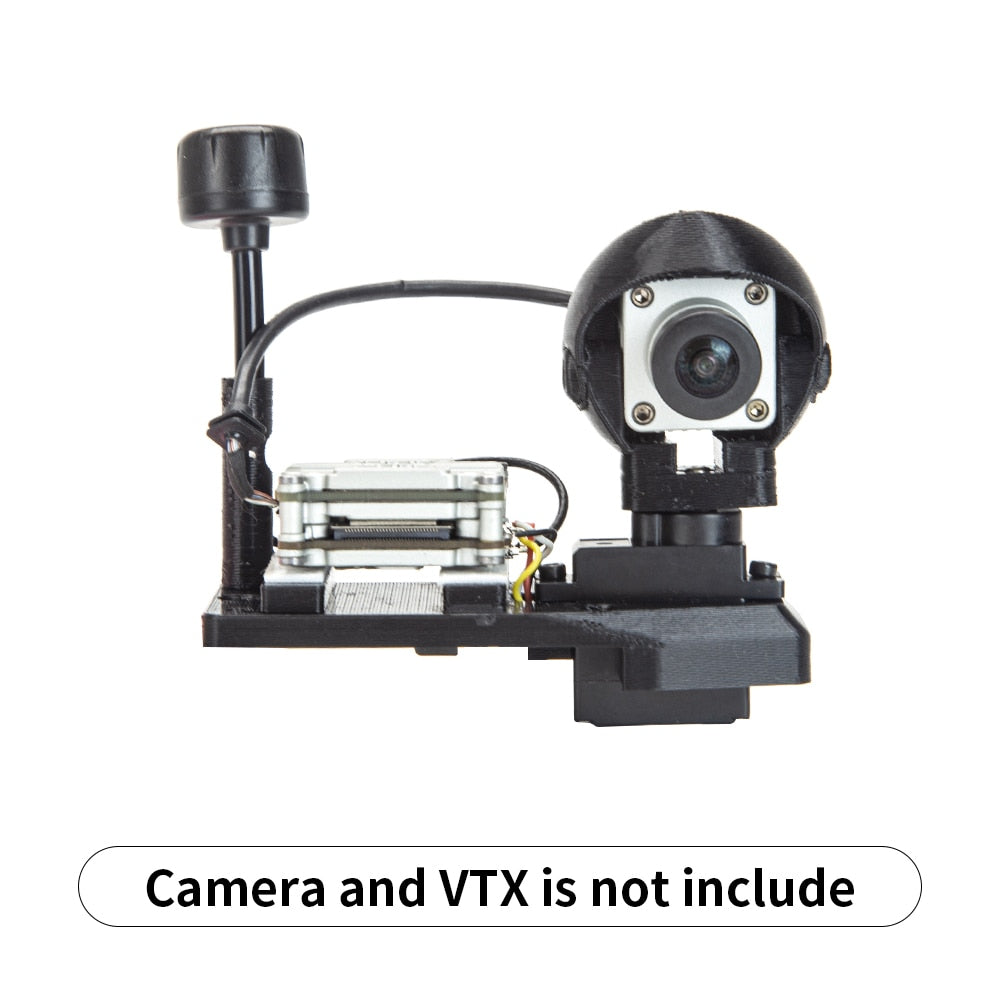

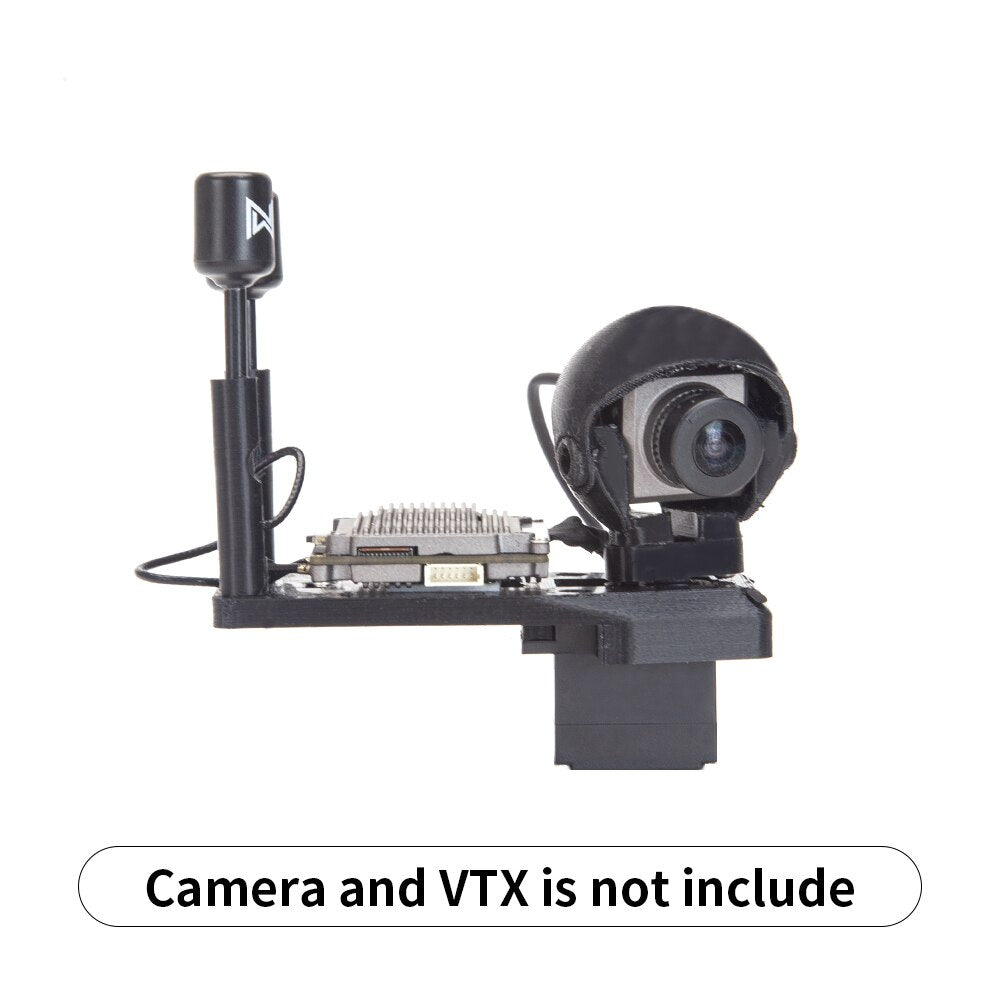

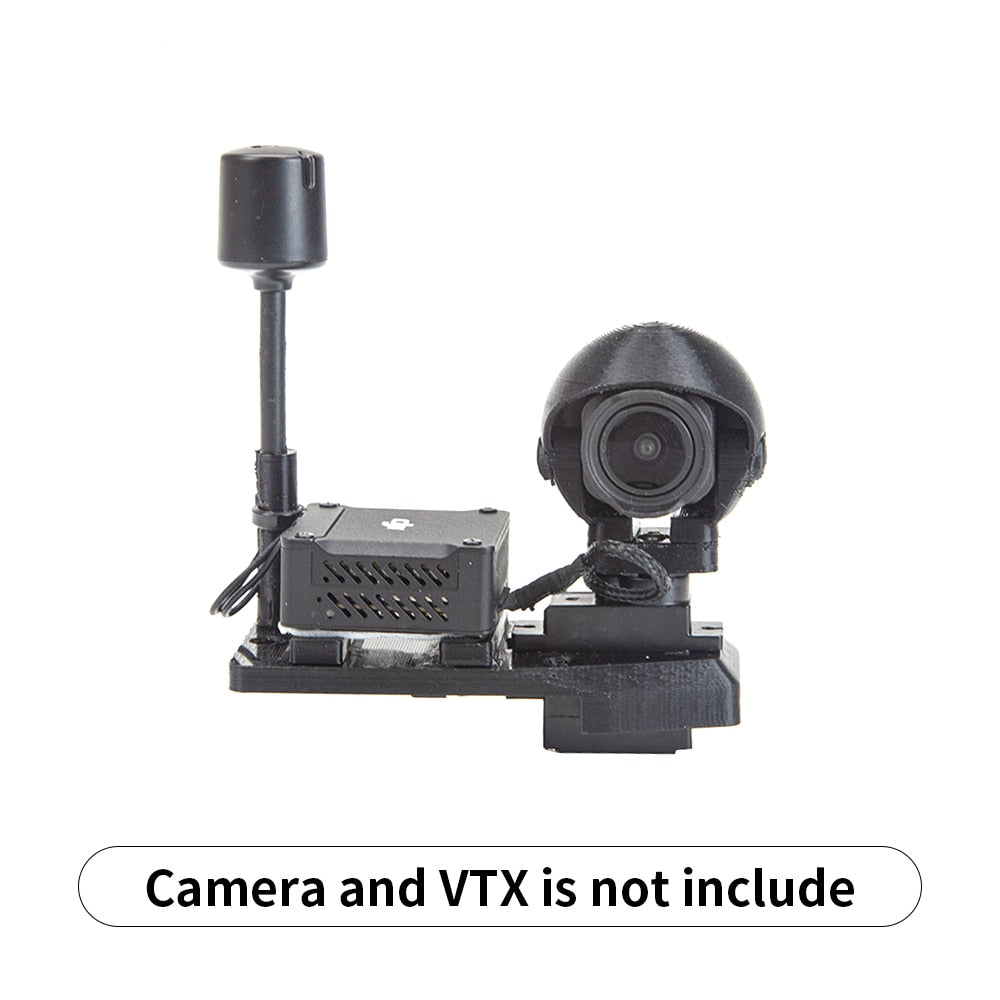

Notice: the air unit (camera &VTX )is not include

>>>Features:

Quick Release, one gimbal on multiple platforms

One axis/Two axis platform for choice

3D printed, light weight and compact

>>>Package List:

One axis

One axis

1*gimbal（3D printed），

2*bottom base，

1*Screw Set，

1*ATOMRC S09P 270-degree 9g Servo，

2*4pin DuPont cable，

2*3pin DuPont cable.

Two axis

1*gimbal（3D printed），

2*bottom base，

1*Screw Set，

1*ATOMRC S09P 90-degree 9g Servo，

1*ATOMRC S09P 270-degree 9g Servo，

2*4pin DuPont cable，

3*3pin DuPont cable.

Quick Release Design One VTX/ Air Unitfor Multiple Plane Compatible With AnalogAnd Digital System SupportDJI 03/Vista WalksnailAvatar and Analogairunit; Support20/14mm Camera Size Camera and VTx is not

Featuring a one-axis or two-axis design, this gimbal provides a stable flight experience with a low center of gravity (CG) and lower wind resistance.

The gimbal's servo is 3D printed to guarantee a high-quality appearance and functional performance. Although there might be minor imperfections in the printing process that may affect the product's appearance, it won't compromise its normal usage.

Package includes: One-axis base, 4-pin Dupond cable, Gimbal antenna mount, VMLA camera mount, VTX mount, Servo arm (Two-axes), and MT-TFF ATOMRC SOG P servo.

The package includes: Quick-release gimbal, ARC M2 (8mm) self-tapping screw, M2 (6mm) nylon standoff, VTX mount, camera mount (M24), six screws (M2), M2 nut, antenna mount (M2.6), self-tapping top platform, servo arm with M2 + 14 cup head screw, blade connector (M3 x 10), and countersunk head screw (M3 + 12) and self-tapping screw (270 degrees).

Camera Assembly Diagram and Camera Installation Instructions: For the 14mm camera, use washers and M2 x 8mm screws for installation.
