Axisflying KOLAS6" SPECIFICATIONS

Usage: Fan

Type: Micro Motor

Protect Feature: waterproof

Output Power: 570W

Origin: Mainland China

Model Number: KOLAS 6''

Continuous Current(A): 43A

Construction: Permanent Magnet

Commutation: Brushless

Color: Black

Certification: CE

Brand Name: AXISFLYING

*Be aware

O3 or LINK VTX of the drone has been activated for better testing.

If activation is not required, please note when placing an order.

*Forword

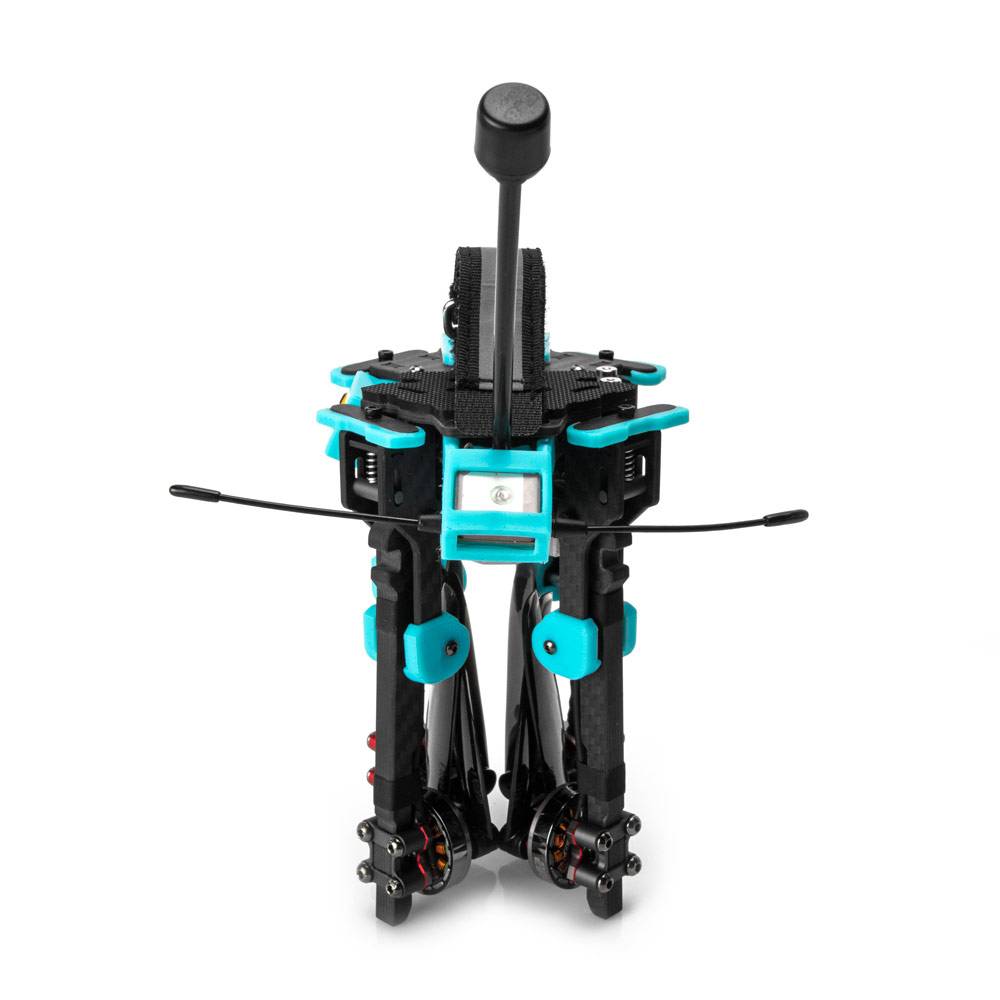

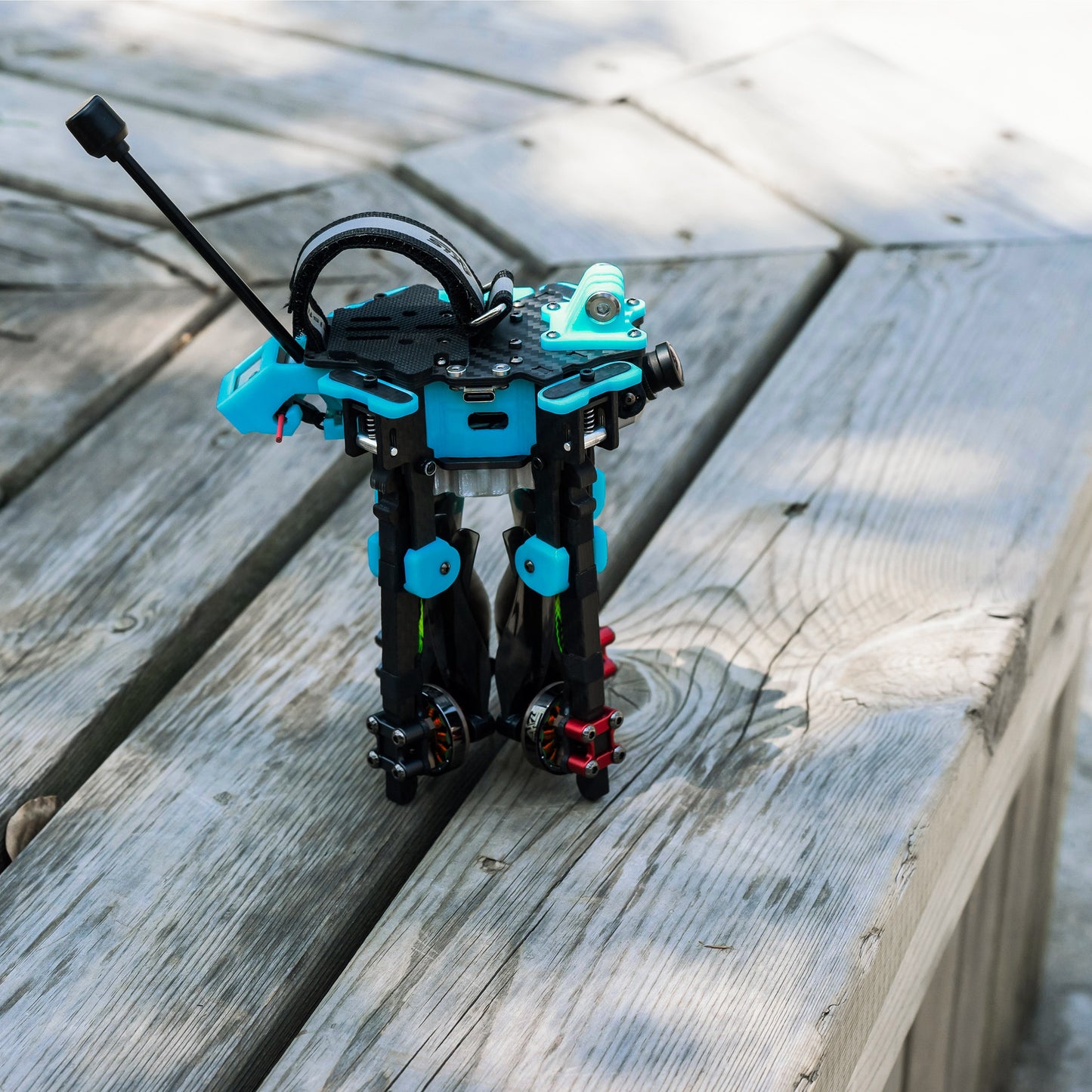

- Axisflying KOLAS series drone is innovation foldable structure design.  KOLAS series are main for LongRang / LR market for easy storage and travelling. We want to bring users a new experience

*Feature

      - The frame adopts high-strength T700 carbon plate, with 7MM thickness arm and 2.5MM thickness top plate. Customized aluminum design and ingenious structural make it compatible with 19/20MM camera installation.

      - Bottom to top distance is 25MM, which is compatible with VISTA (not compatible with air unit). The stack and AIO mounting holes are compatible with 20MM/25MM/26.5MM. We recommend that the AIO be assembled under the aluminum parts for easy disassembly and maintenance

      - To provide high-efficiency power for long range, Kolas6 is equipped with high-performance AIO F722 (ESC40A-6S) as standard and INAV fully supported, AF223-1610KV/2910KV motor matching Gemfan 6030-2 folding prop, carrying GoPro 6, the flight time is about 15 minutes (6S).   The motor mounting hole is 16*16MM (12*12MM is not supported), if you want more power, you can choose a regular 5-inch or 6-inch motor

      -The XT60 plug is installed on the left side of the frame in a fixed way to ensure flight safety. The opening design of the 3D print part on the right side is convenient and quick for tuning. Independent receiver compartment to allow for easy assembly and binding. Underslung navigation light, for better visual reference, and easier to identify when flying at night

*Specs

- Wheelbase :245mm  /  Weight: 138g  /  Carbon Fiber: T700  /  Props: Max 6inch

*Recommended Configuration

- MOTORS:  Axisflying AE2306.5-1800KV @6S

- Lipos: 1800-3000mAh 6S / VTC6 3000-4000mah /18650 6S

- AIO: 40A -6S / F722

- Propellers: Gemfan 6030-folding props

Kolas 6 Wheelbase: 245mm Weight: 138g (excl.tup parts) Recommended prop: GEMFAN 6030 2-blades folding prop Recommended Stack: AIO 35 40A 6S

Axisflying.com recommends using 4S, 1700mAh batteries for optimal performance.

Installation Guide: GPS Installation in 15 Steps. Here's how to install parts, including the plate and battery anti-slip mat, top and bottom standoffs, camera side plates, and more.
