Boscam RC832 Receiver - FPV 5.8G 32CH Wireless AV Receiver for RC Drones With HD Camera FPV Transmitter Quadcopter DIY Spare Parts

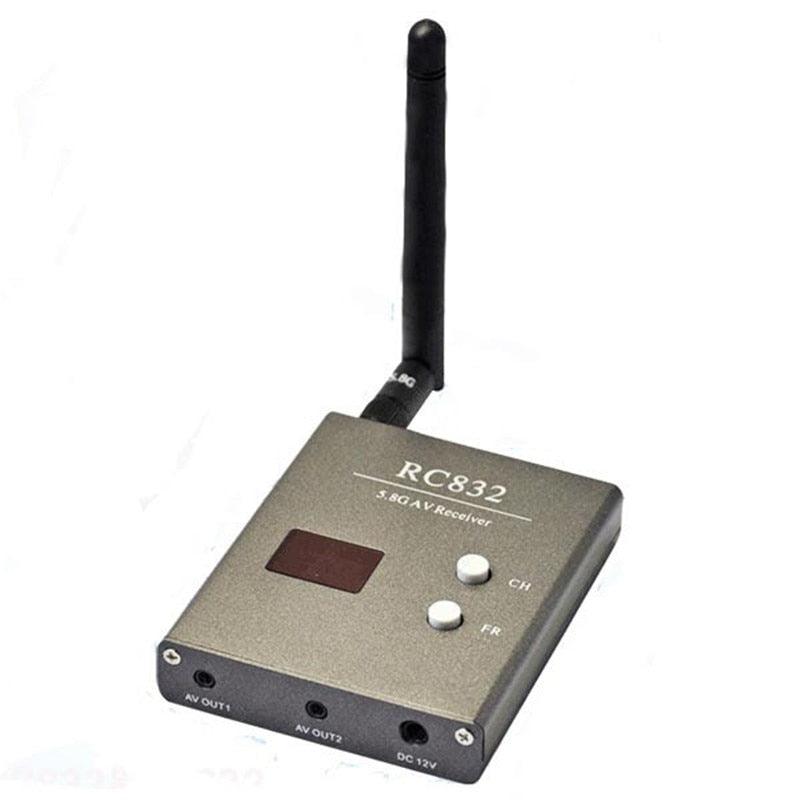

The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn\'t get any simpler than this.

*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory\'s tab

Features:
• 32 channels: Cover A, B, E,F bands and L bands
• Two switching buttons for the band and channel
• Two digits display for  the band and channel
• Power off memory for last channel and band

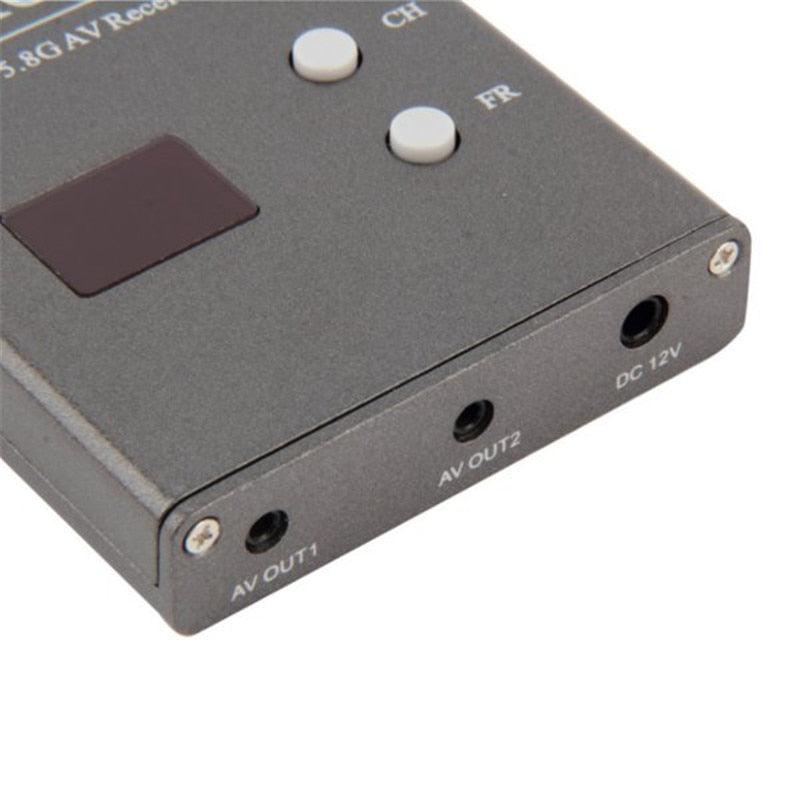

• dual Independent video and audio signal outputs

Specs:
Video format supported: NTSC/PAL

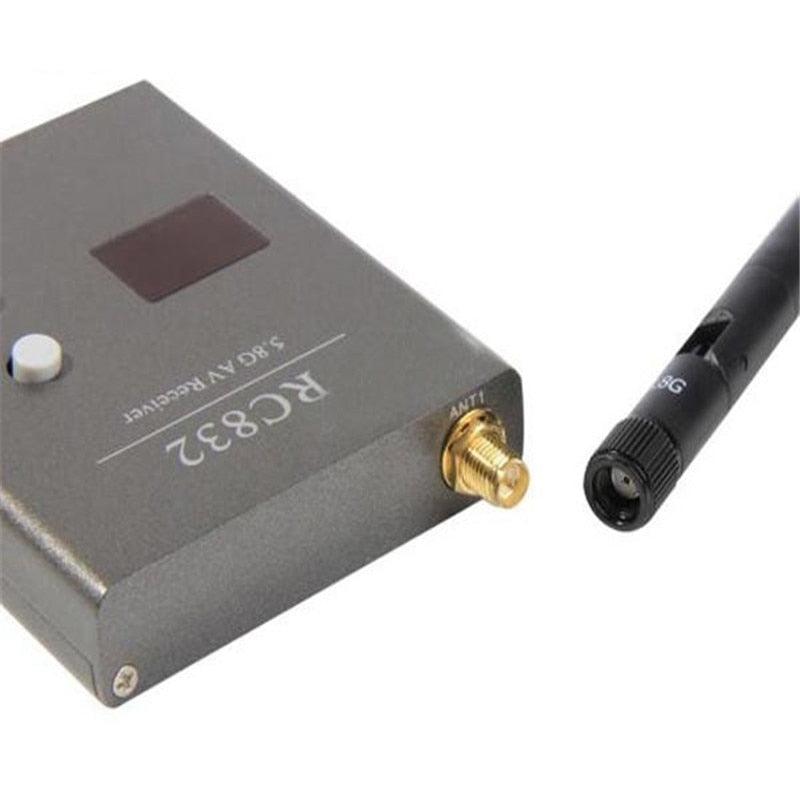

Antenna connection: RP-SMA, jack
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g


Frequency range:

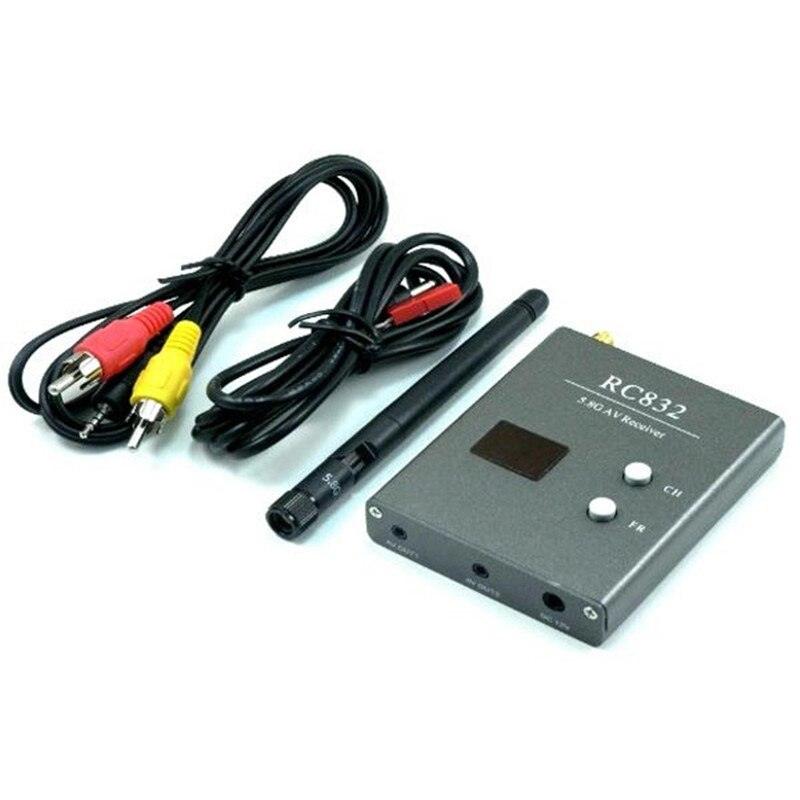

Package Included:
