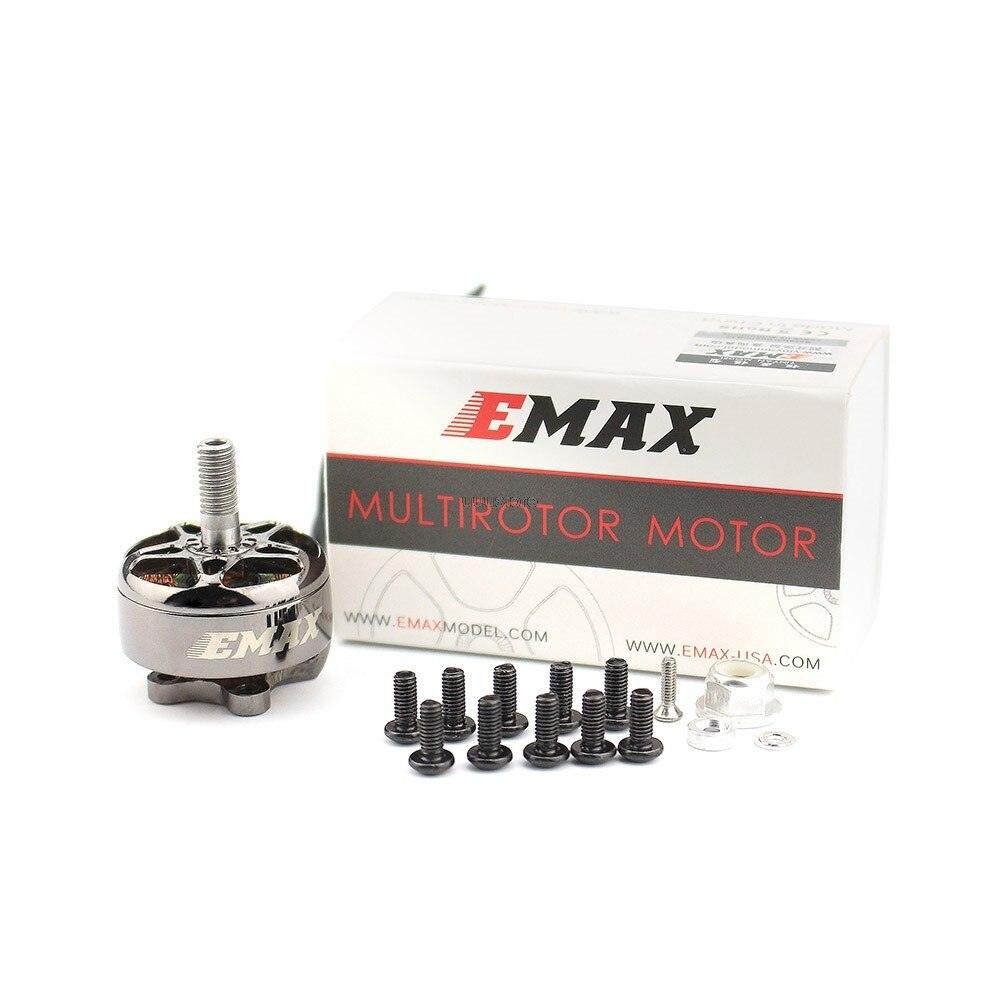

Package Included:
5* M3*8 Screw
5* M3*7 Screw
5* M3*6 Screw
1* Aluminum M5 nylock nut
1* Washer and Screw for shaft

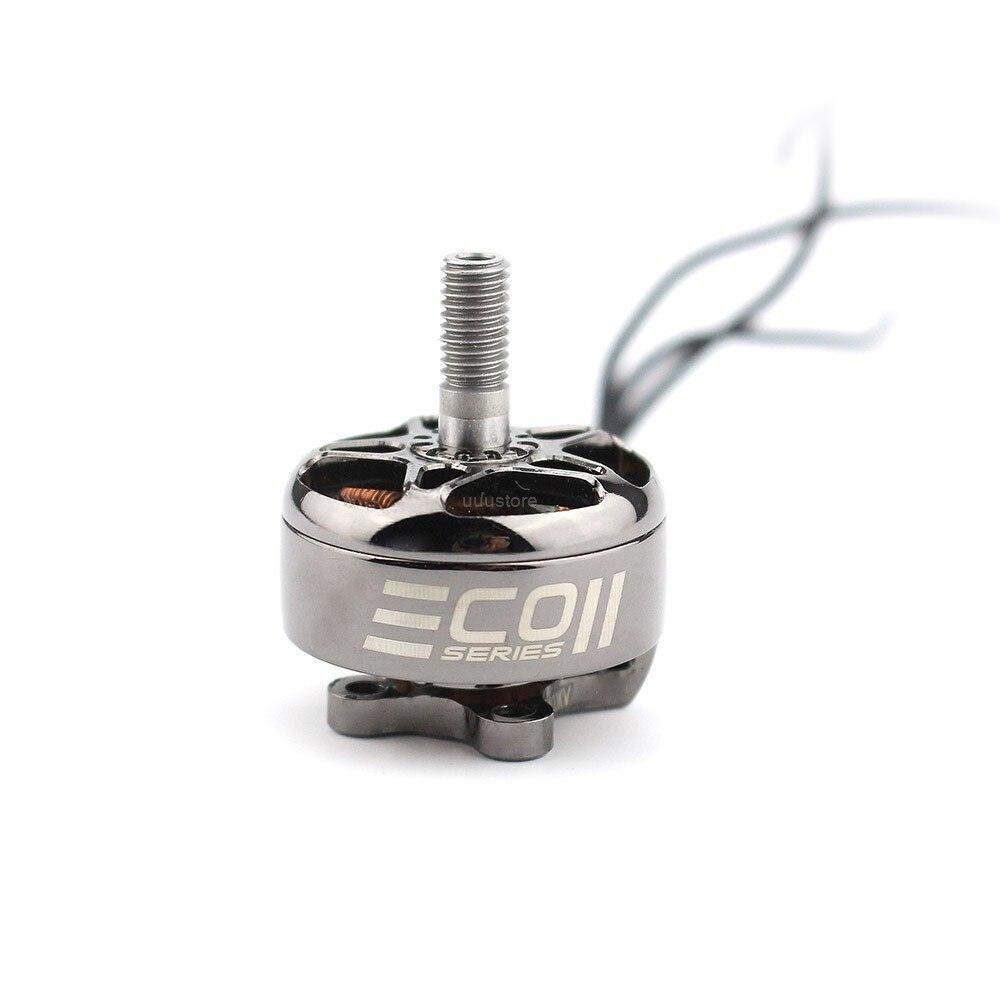

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.
Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.

Specifications:
Brand: Emax

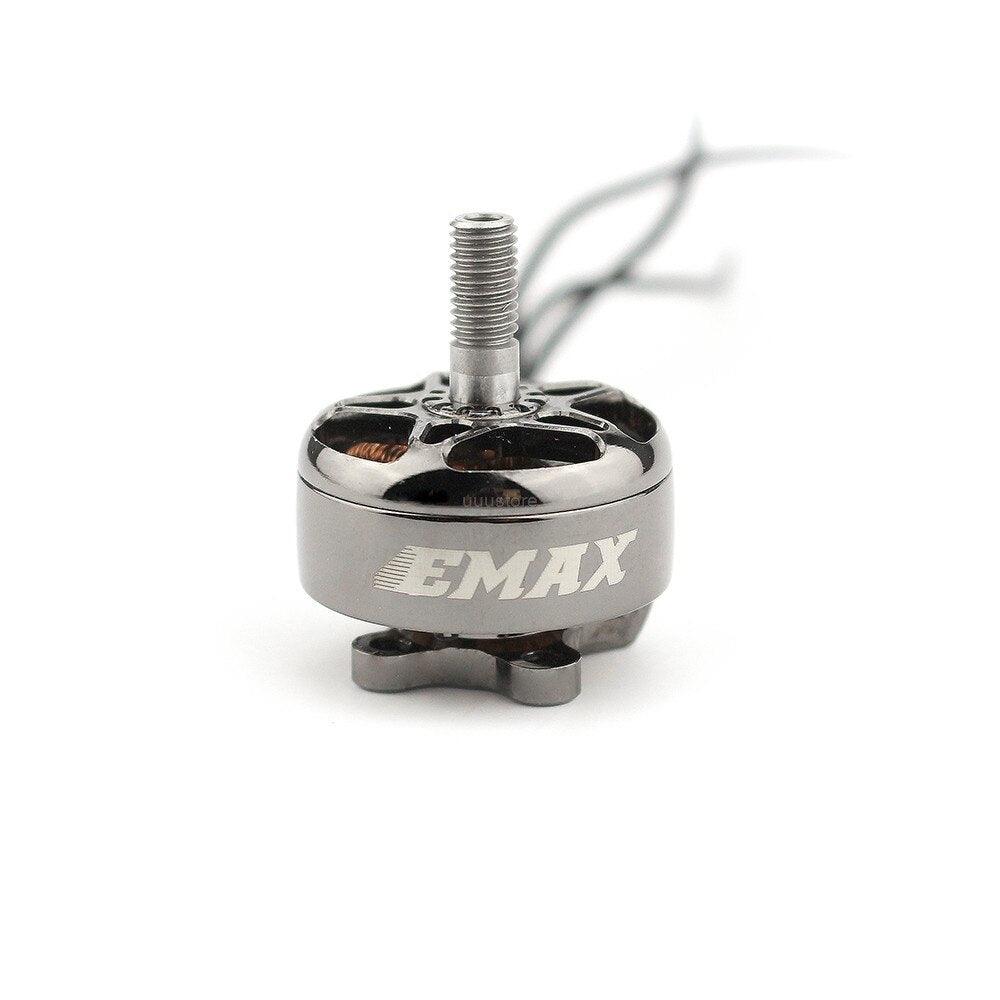

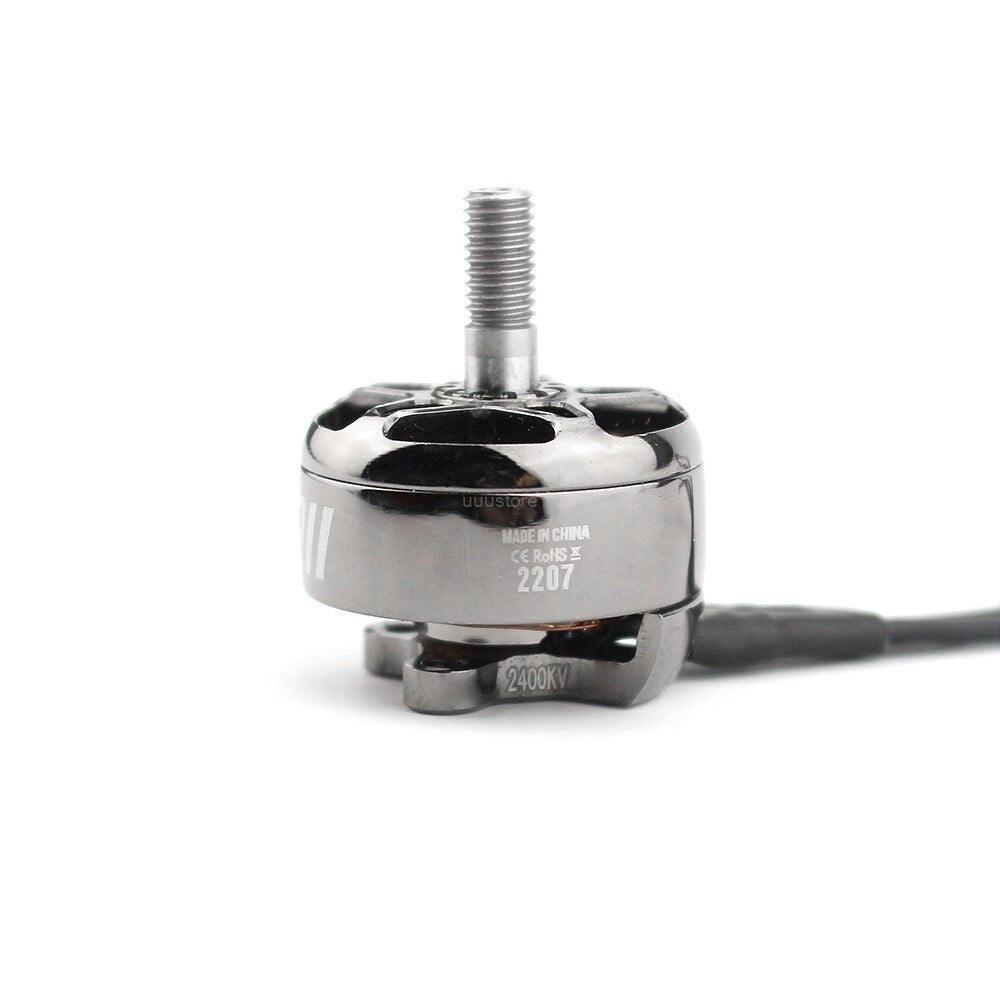

Item Name: EMAX ECOII 2207 Motor
KV : 1700KV/1900KV/2400KV (Optional)
Framework: 12N14P
Length: 33.2mm
Diameter: 27.5mm
No.of cells: 3-6S  1700KV
No.of cells: 3-6S  1900KV
No.of cells: 3-4S  2400KV
Propeller: 5"-5.5"
Weight: 33.4g(W/O Silicone Wire)  1700KV
Weight: 33.6g(W/O Silicone Wire)  1900KV
Weight: 33.5g(W/O Silicone Wire)  2400KV
Prop adapter shaft thread: M5
Bearing Shaft:4mm
Shaft Thread:CW

Feature:
Precision bearing
Steel shaft
Anodizing
16*16mm hole pattern

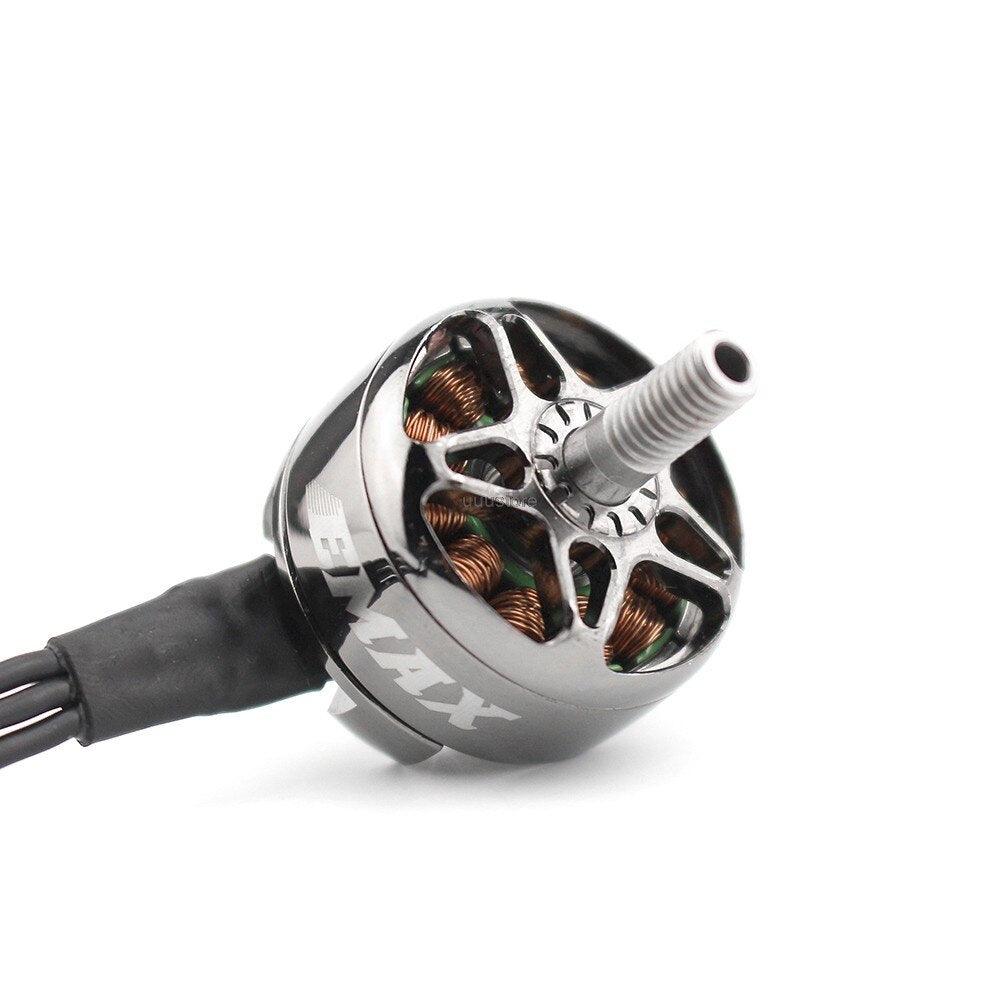

Multi-strand winding
120mm 20 AWG silicone wire



Engineers at EMAX continually strive to develop the perfect motor, emphasizing the advantages of brushless technology. As pioneers in the field, they believe that brushless motors will shape the future of motor innovation.

The ECO II series represents a new generation of brushless motors, boasting enhanced performance and durability without compromising on affordability.

The ECO II series features a modern redesign, with a fresh architecture that prioritizes durability. By combining a sleek, rounded design with robust reinforcements, we've achieved unparalleled strength and resilience.

the ECO Il utilizes n52 magnets over n48 magnets, allowing more powerful throttle response and higher RPM's to be achieved . NEXT GENERATION The ECO II Series marks the next evolution in the industry .

Feature:

Frecision bearing Steel shaft Anodizing 16*16mm hole pattern Multi-strand winding . 120mm 20 AWG silicone wire

ECOII 2207 1700KV

ECOII 2207 1900KV
