F450 450mm Quadcopter Frame Kit w/ APM2.8 Flight Controller 7M GPS 30A Simonk ESC 2212 920KV Flysky FS-i6 IA6 For RC Quadcopter

F450 450mm Quadcopter Frame Kit w/ APM2.8 Flight Controller 7M GPS 30A Simonk ESC 2212 920KV Flysky FS-i6 IA6 For RC Quadcopter

RCDrone

$102.05 USD
$153.08 USD $102.05 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

24 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 6

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Landing Gear

Origin: Mainland China

Model Number: F450 450mm Quadcopter Frame Kit APM2.8 Module built-in Compass

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Readytosky



readytosky is a professional FPV RC Module accessories company . we will

readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

6-pos DF13 cable plugs directly to APM 2.5's 'PM'


F450 Frame


Features:
Built from quality glass fiber and polyamide nylon.
Integrated PCB connections for direct soldering of your ESCs
Pre-threaded brass sleeves for all of the frame bolts.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera mounting.
Easy assembly.
Specs:
Width: 450mm
Height: 55mm
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm
G.Weight: 395g
Wheelbase: 17.7in/450mm
Net weight: 272g

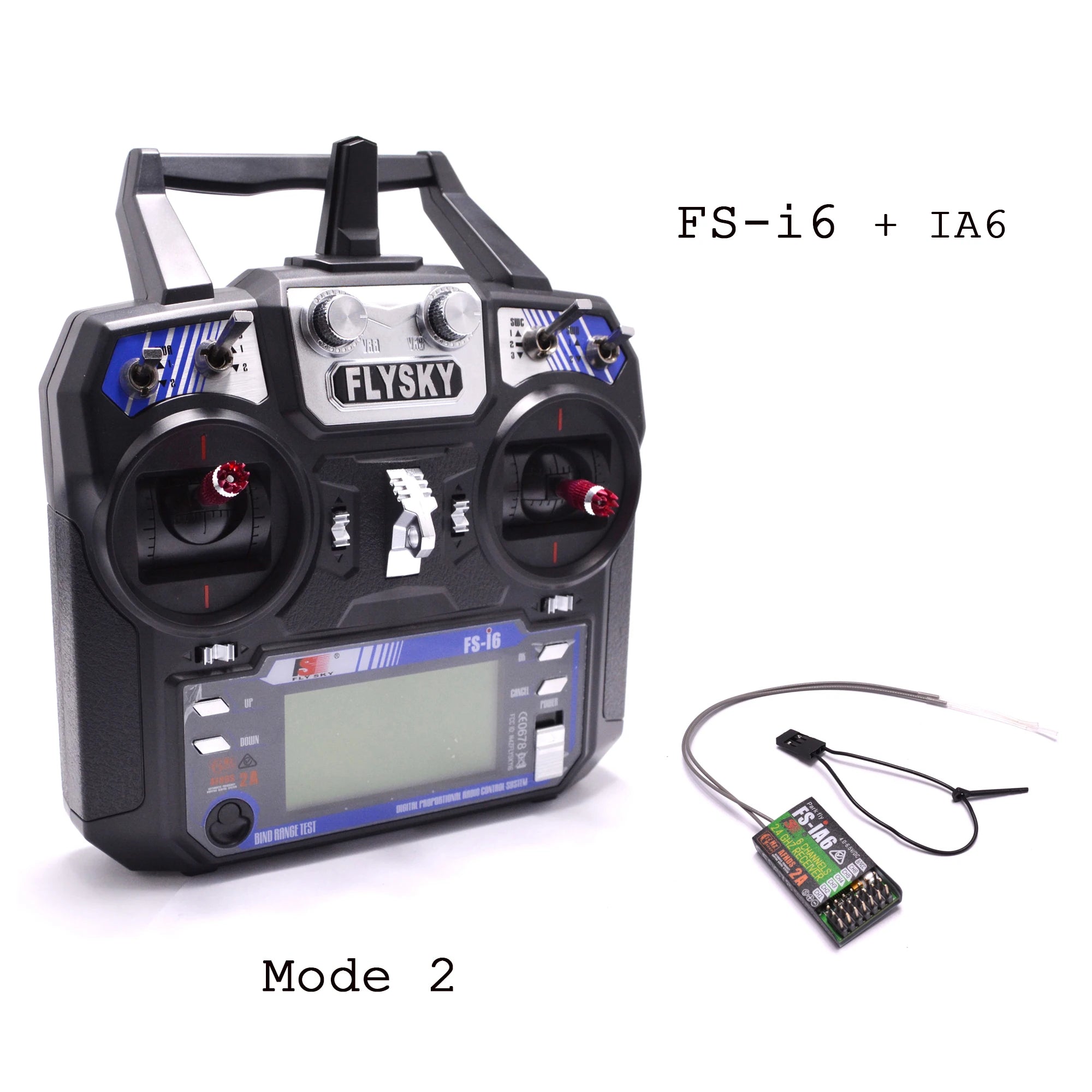

Brand Name: FlySky
Item Name: FS-i6 transmitter
Channel: 6
Model Type: fixed wing/helicopter/glider
Channel resolution: 1024 steps
Low voltage warning: less than 4.2v
ANT length: 26 x 2mm( dual antenna)
Weight: 392g
Battery: 6v 1.5AA x 4(not included)e
Size: 174 x 89 x 190 mm
Color: black
Certificate: CE ,FCC
RF specification:
RF Range: 2.405 - 2.475GHz
Bandwidth: 500khz
RF Power: less than 20dBm
RF mode: AFHDS 2A
Modulation type: GFSK
RX Sensibility: -105dBm
Receiver specification:
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 6.4g
Antenna lenght: 26mm
Size: 40.4 x 21.1 x 7.35 mm
Certificate: CE ,FCC
Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

Mode 1 is Right Hand Throttle, mode 2 is Left Hand Throttle


100% brand new

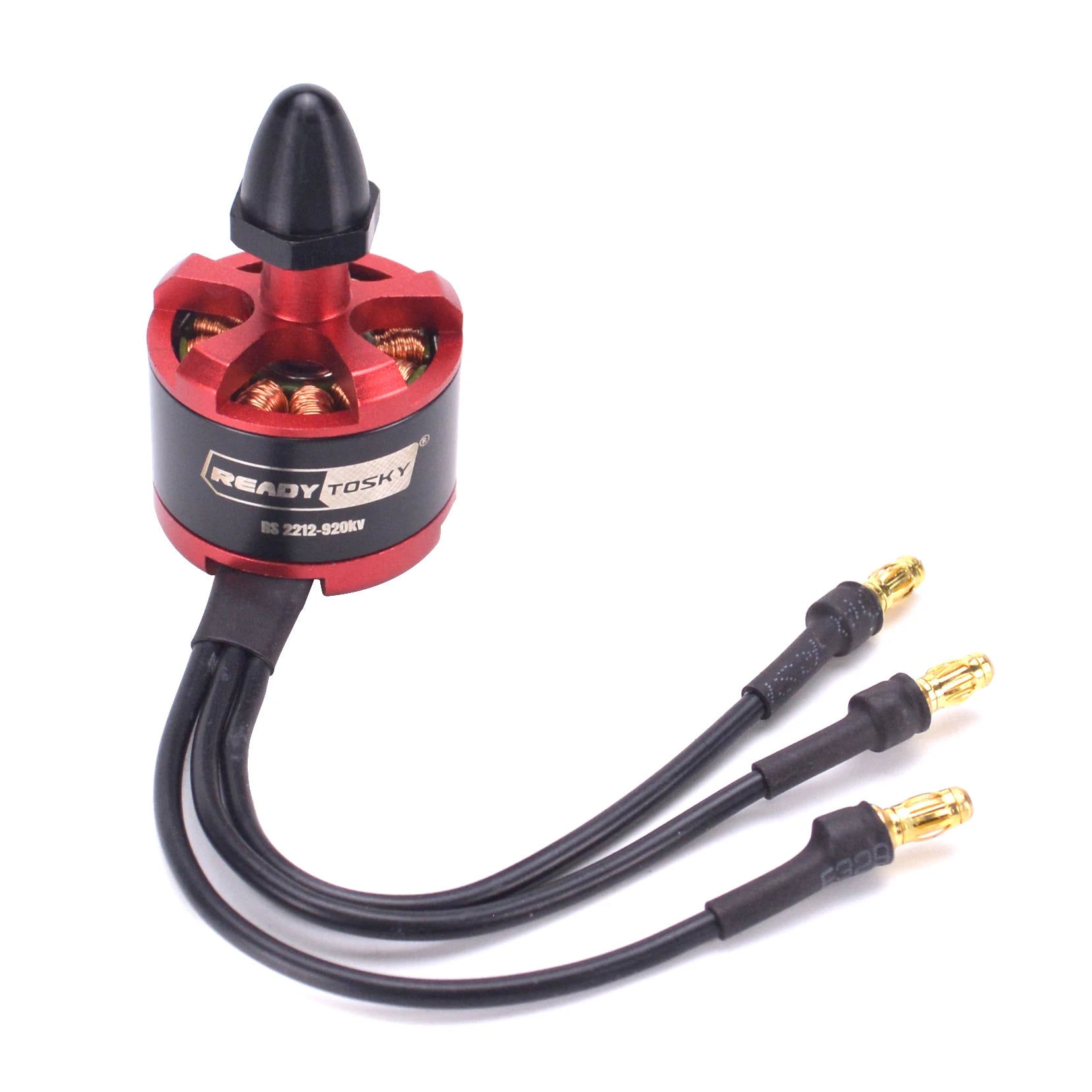

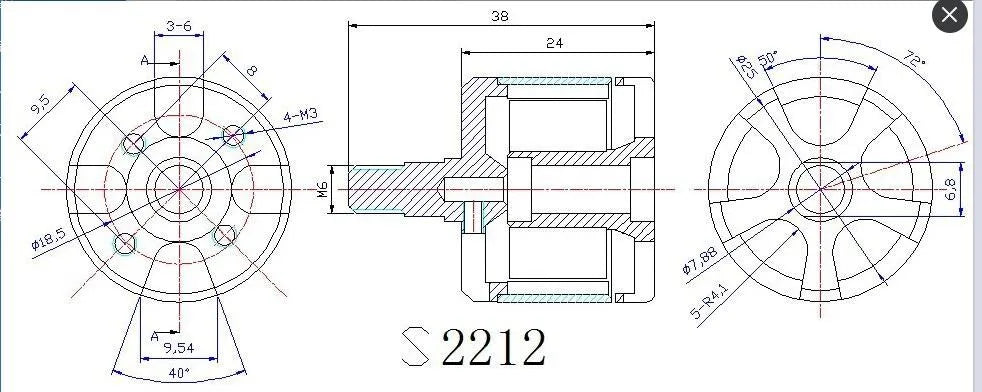

2212 920KV Brusheless Motor
- Type : 22 x 12mm
- KV: 920rpm/V
- Voltage: DC 7-12V
- Weight: 53g
DF13-5P GPS interface with external compass interface, convenient for the connection of

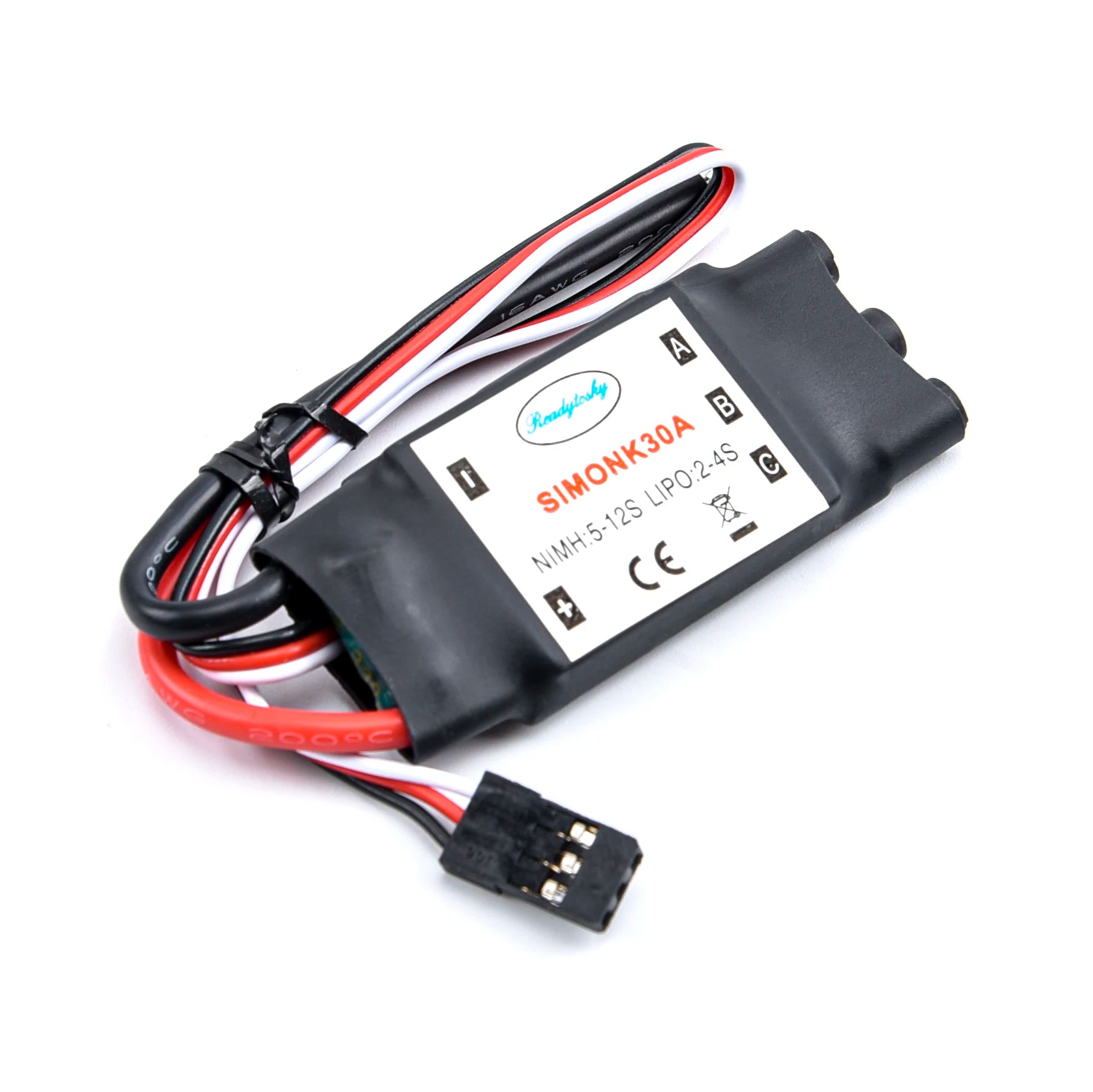

30A simonk esc :
100% brand new
30A SimonK firmware Brushless ESC.
Soldered with 3pcs 3.5mm gold female plug, very convenient to connect motor.
ESC Specs:
Cont. current: 30A
Max. current: 35A
Input Voltage: 2-3S lipo / 4-12 cell Ni-MH/Ni-Cd
BEC: 5V 2A (Linear mode)
Size: 55x26x8mm (length 145mm including power cable)
Weight: ~24g

APM V2.8.0 with compass description:


- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
- V2.52 I2C interface changes to multifunctional MUX interface
- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

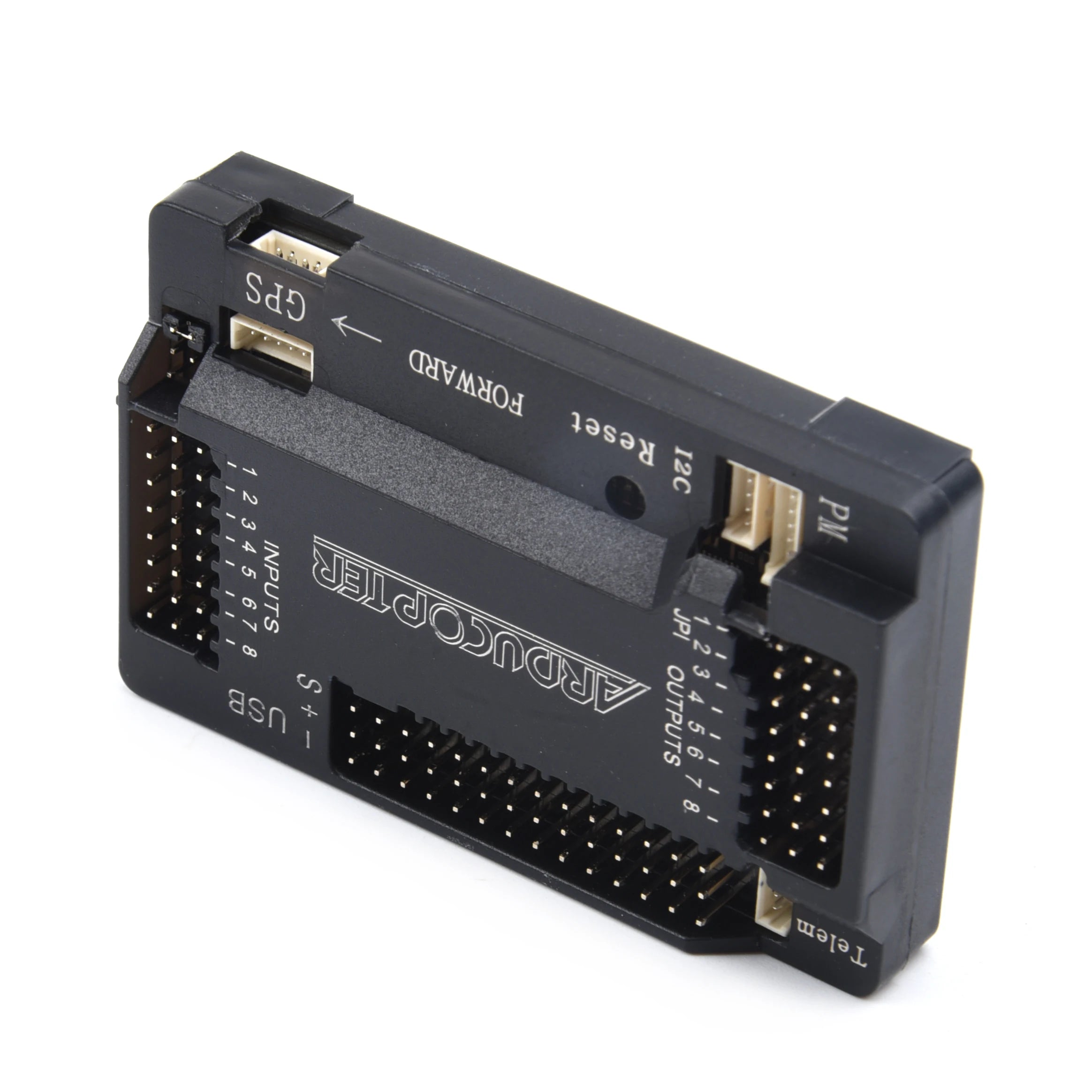

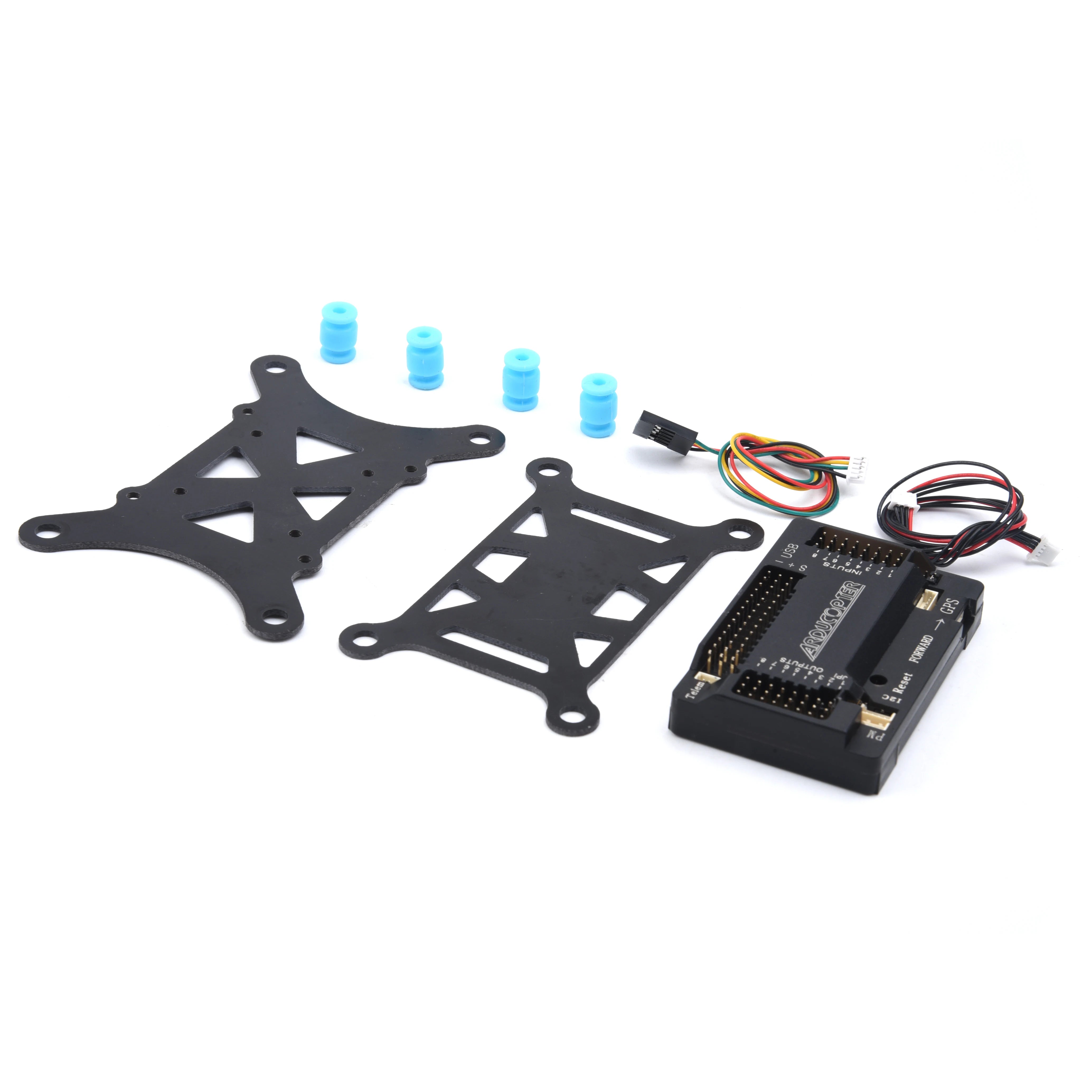

APM V2.8.0 Flight Controller
- Needle: staight
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)
Jumper cap choose:
- Built-in compass: plug the jumper cap in the MAG pin header.
- External compass: pull up the jumper cap from the MAG pin header.


7M GPS High Precision Built in Compass


With compass,and shell,especially for APM APM2.6 2.8


7M GPS Module for MWC/APM

These are Pre-configured, Flashed with the correct settings, and tested. To make them Plug and Play. This is NOT normally done in any other store!

Super Bright LED

BlackPlane with Standard Mk style mounting holes 45mm X 45mm

Blox Neo 6M Chipset

38400 bps (Default) Changed to 115200bps !

Output GGA, GSA and RMC frames

1Hz (Default) Changed to 5Hz!

Permanent Configuration Retention

Cable included

+ Moved LED to the Top
+ Bigger battery
+ compass on board
+ 6 pin connector for EZ connect to MEGA BLACK
+ 4 pin connector for onlyGPS use
+ 4 pin connecton for compass only use
+ GPS "PCB HOOD" for More EMI/RFI Shielding

can use both 4 pin at once

The GPS unit is per-configured for multiwii !! Unlike other shops send it out default settings, and yet you figure it out.

pre tested = PLUG AND PLUG for MWC 2.1!

MultiWii GPS assited Position Hold and RTH functions


7M  GPS Module with on-board compass HMC5883 (compass) (mag)


Description:

- Main chip:U6M
- C/A code,1.023MHz
- Receiver Frequency:L1 [1575.42MHz]
- Locate performance
- 2D :3m(Average)
- 2D:2m(average),with WAAS
- drifting<0.02m/s
- accuracy:1us
- coordinate system:WGS-84
- max attitude height:18000
- Max speed:515m/s
- accerlaration:<4g


Specification:


- tracking sensitivity:-161dBm
- Capture sensitivity:-148dBm
- cold start time:38s average
- Warm start time:35s average
- hot start time:1s average
- Capture time:0.1s Average
- Temperature:40to +80
- wide power supply voltage:+3.5V~+5.5V

- Module V2.0


Power Module w/ UBEC and XT60 connectors for APM APM2.6 / APM 2.8 Controller



The APM Power Module is a simple way of providing your APM 2.8 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It isnotdesigned to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Max input voltage: Support 6S battery
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 3A max
6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector

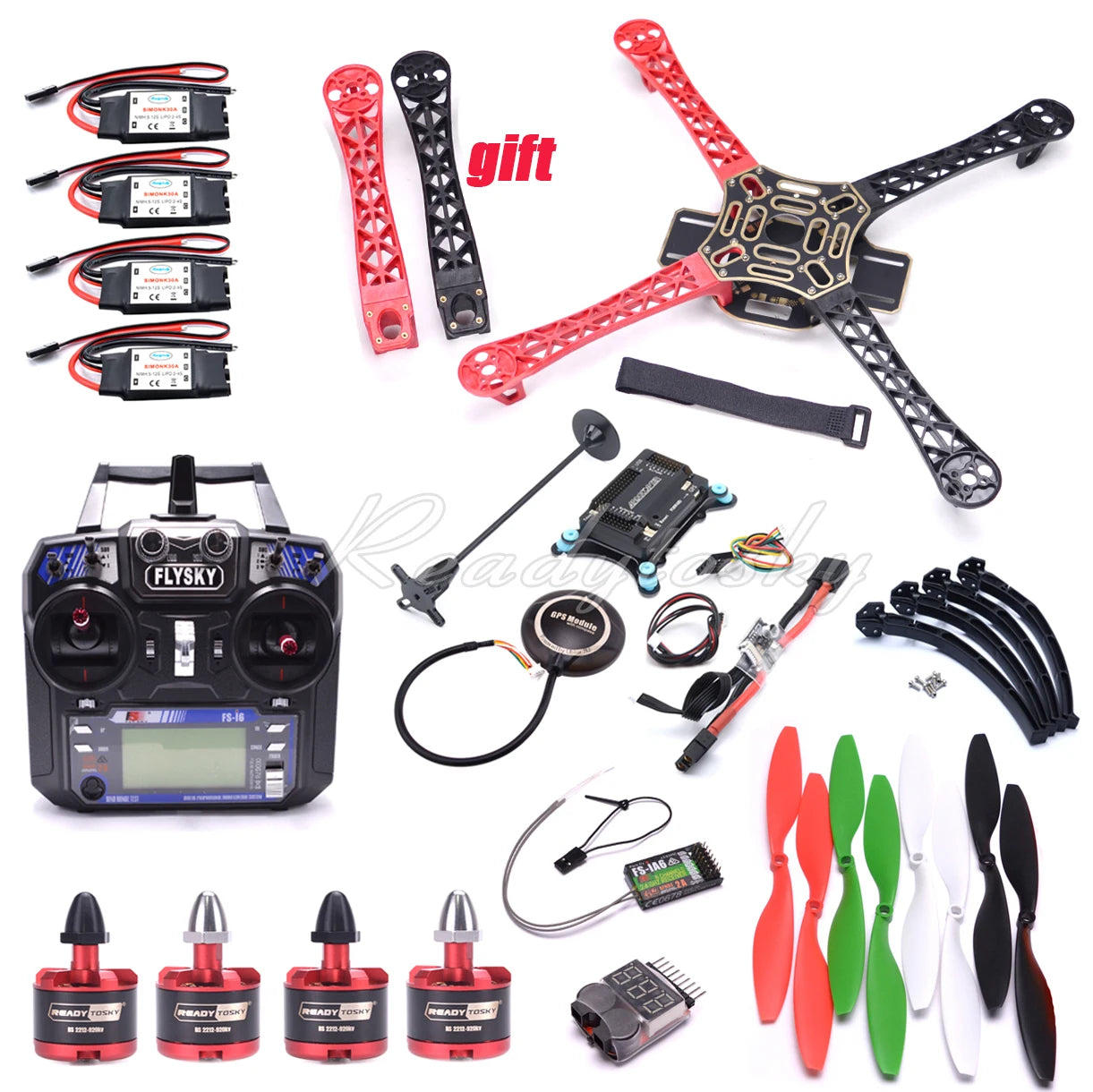

READYTSSKY |Package Included


- 1 x Flysky I6 with IA6 Receiver （ send it as your choice）

- 1 x F450 quadcopter frame kit with Plastic gear

- 4 X 2212 920KV Brushless  Motor   (2 CW , 2 CCW )

- 4 X 30A Simonk ESC

- 1 x APM2.8 Flight Controller
- 1 x shock absorber
- 1 x 7M Gps Module
- 1 x Black Gps Holder
- 1 x Power Module
- 1 x battery Alarm  Low Voltage Buzzer

- 4Pairs X 1045 propeller (4 CW , 4 CCW)
