HGLRC ZEUS VTX 2.5W 5.8G 40CH High Power 2500mW Image Transmission Adjustable Power Aerial Photography Travel FPV

Advantage:
* The actual measured distance when flying near a lake is 9 kilometers under interference in urban environment, and it can easily fly more than 10 kilometers in suburban/mountainous environment.
* 2500mW high power, maintaining sufficient power output, suitable for long range and ultra-long distance flights.
* 6 power levels adjustable PIT/25mW/200mW/800mW/1600mW/2500mW.

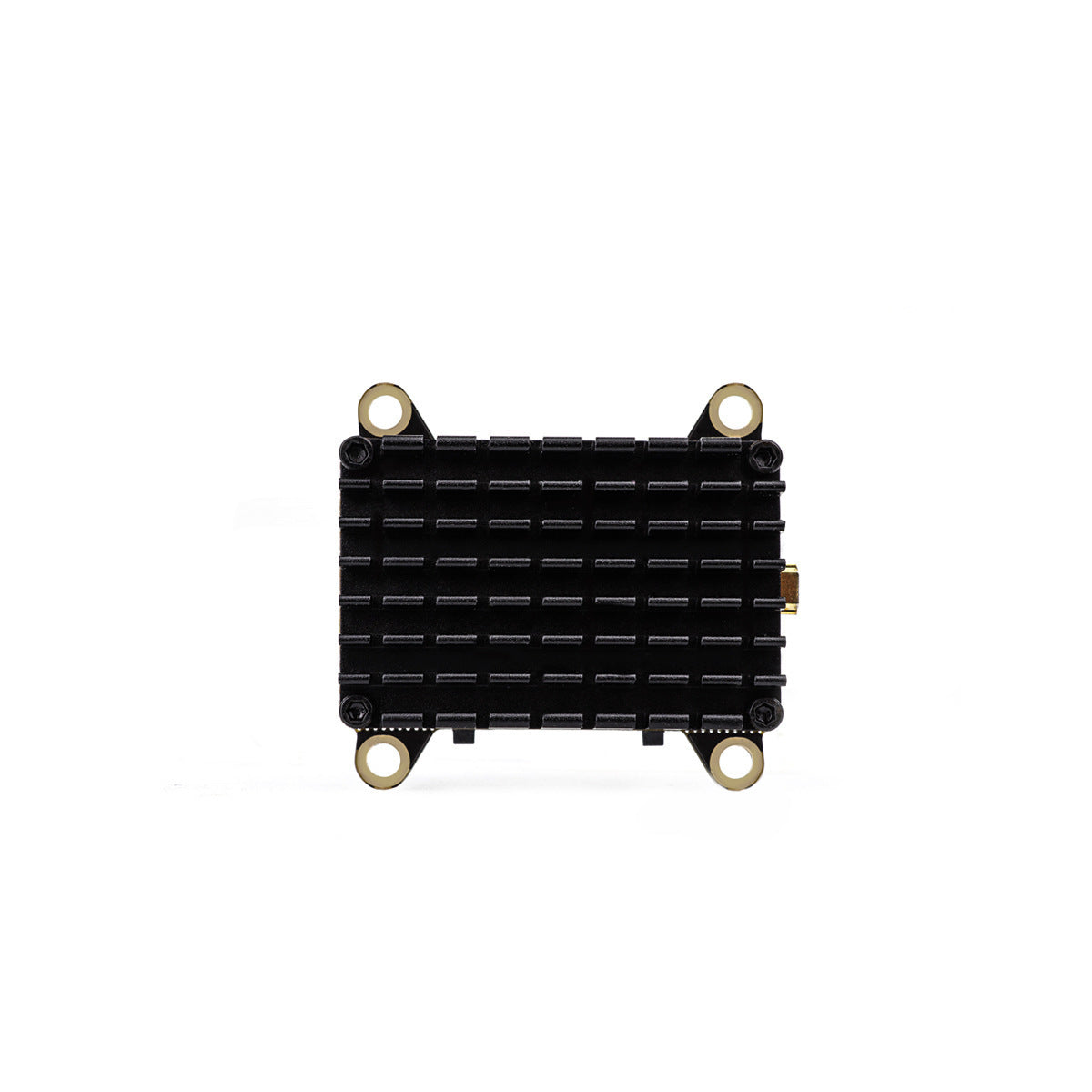

* CNC integrated upper and lower shell covering structure, strong heat dissipation effect, maintaining stable performance.

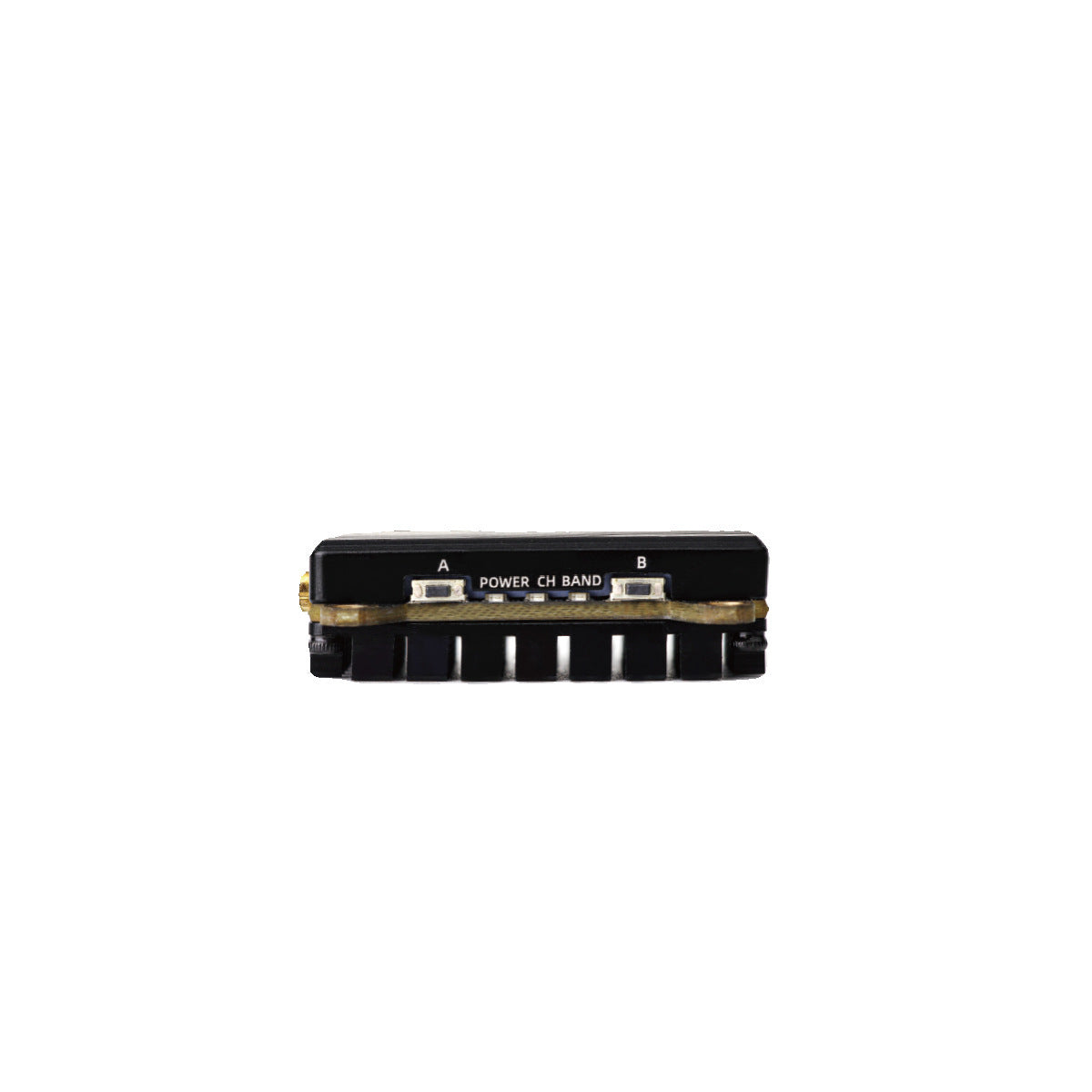

* Dual-function buttons make parameter adjustment easier, and 3 sets of LED indicators display power/frequency group/frequency points at a glance.
* Supports IRC Tramp protocol OSD parameter adjustment.
* Supports 2-6s (7-26V) wide voltage input.
* Supports 30.5x30.5 M3 hole installation.

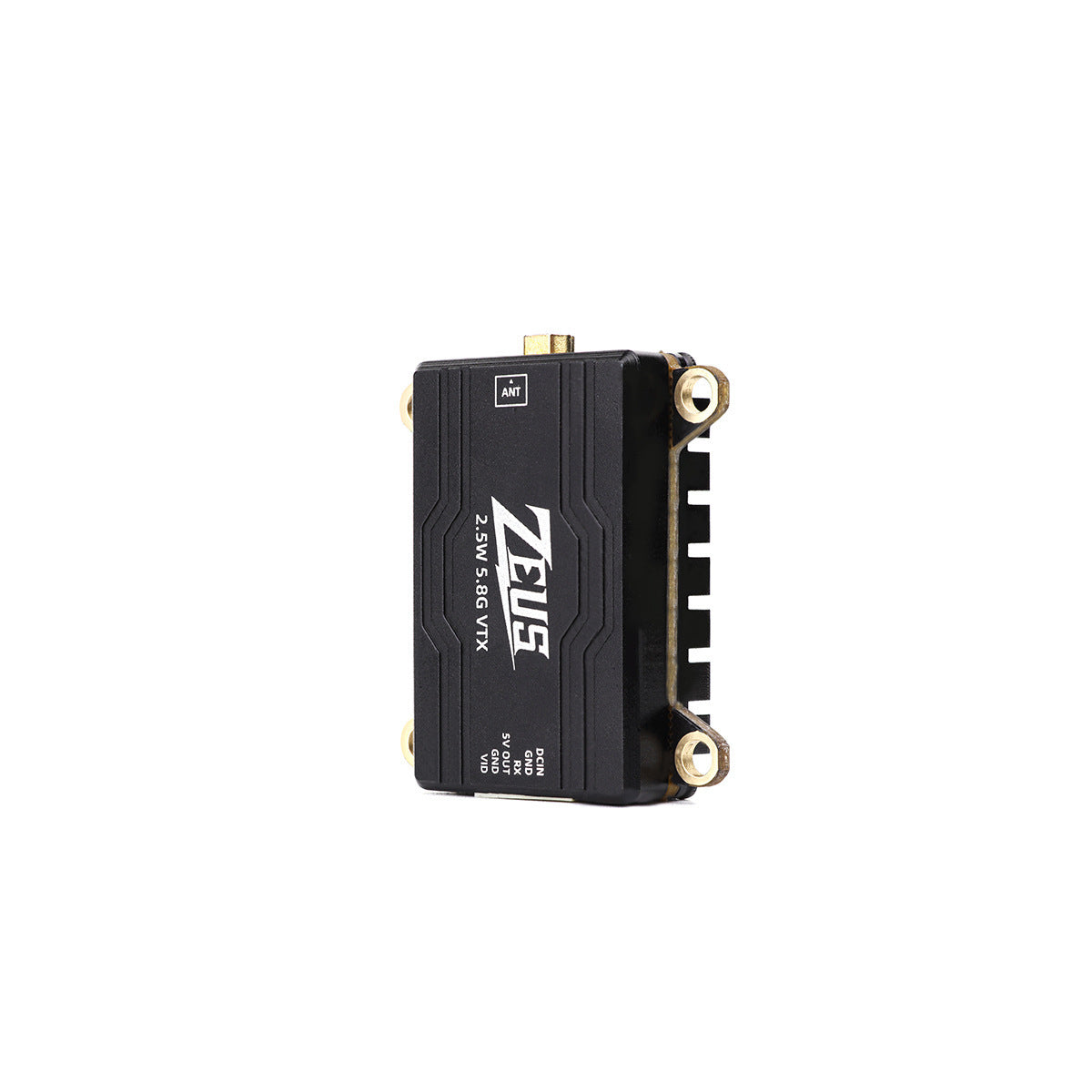

Product name: Zeus VTX 2.5W
Support voltage: DC 7-26V (2-6S)
BEC: 5V/800mA
Antenna interface: MMCX
Cable interface: GH1.25 6P
Video format: PAL/NTSC
Standard 40 channels: A/B/E/F/R frequency group
Protocol: IRC Tramp
Output power: PIT/25/200/800/1600mW/2500mW
PitMode/0dbm
25mW/13.95dBm
200mW/23.01dBm
800mW/29.03dBm
1.6W/32.04dBm
2.5W/33.98dBm
Installation hole position: 30.5*30.5*M3
Dimensions (L*W*H): 40mm x 35mm x 11.8mm
Weight: 19.6g

Product List:
1x Zeus VTX 2.5W
1 x MMCX 80mm copper tube antenna
1 x MMCX to SMA 100mm adapter
1 x GH1.25 6Pin 100mm single-ended cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
