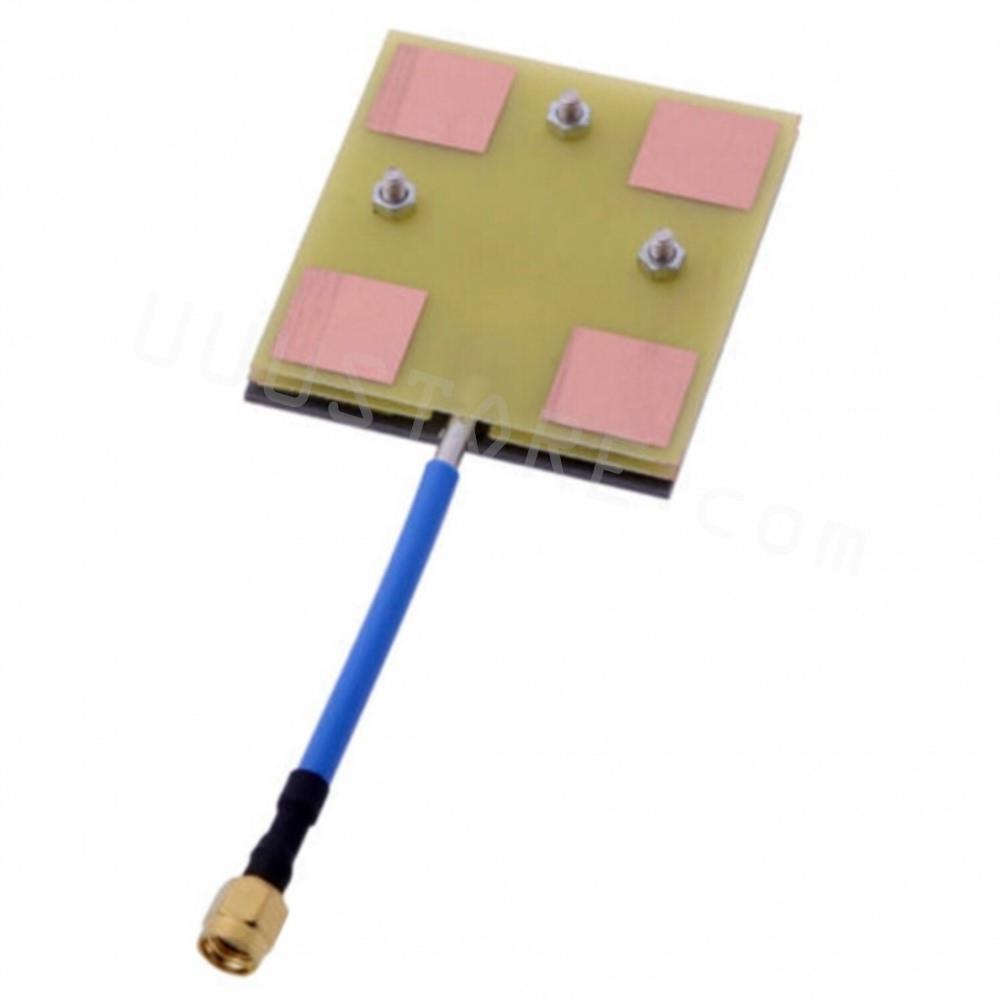

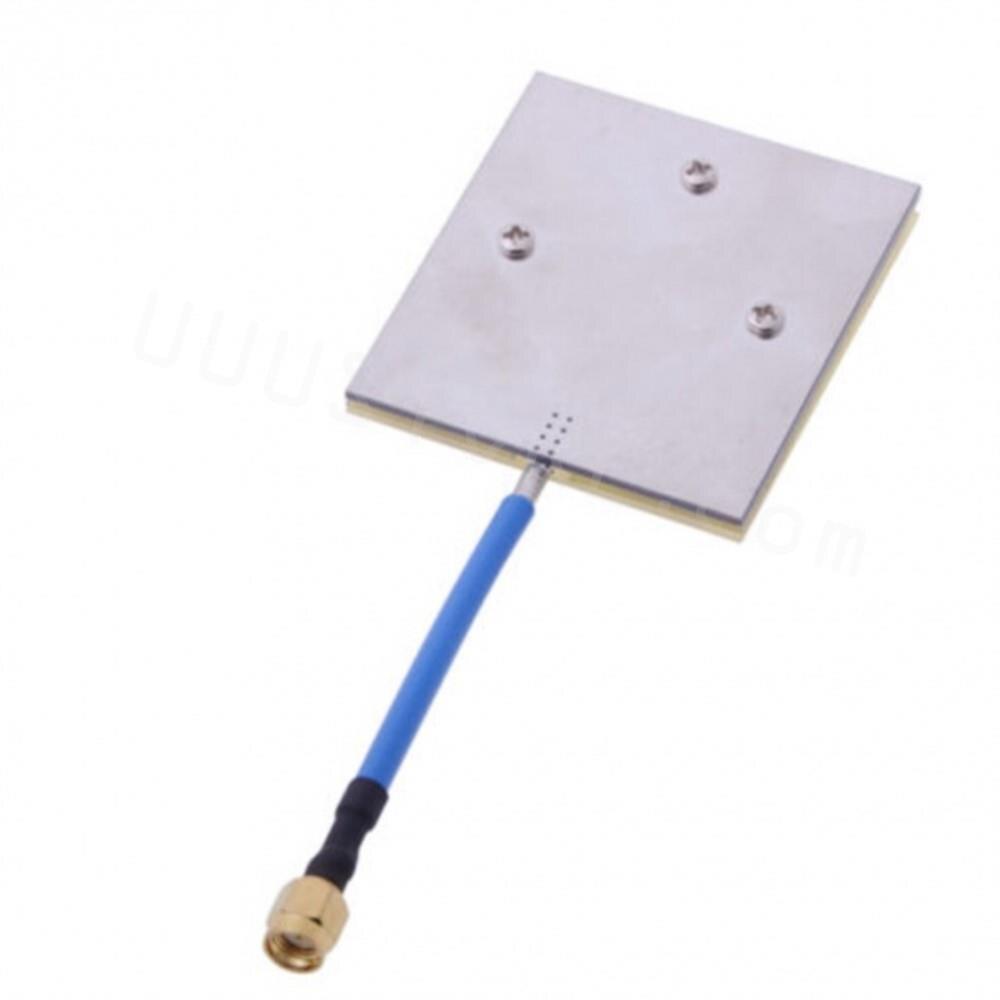

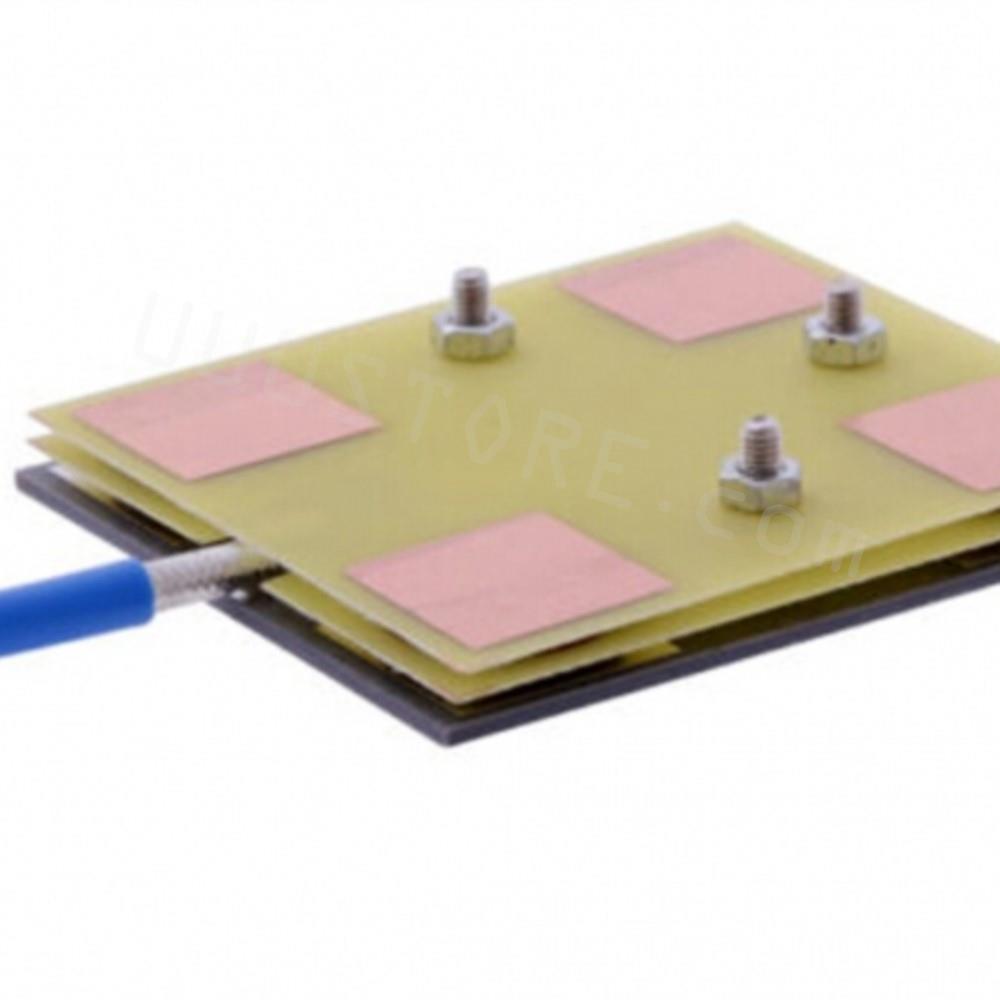

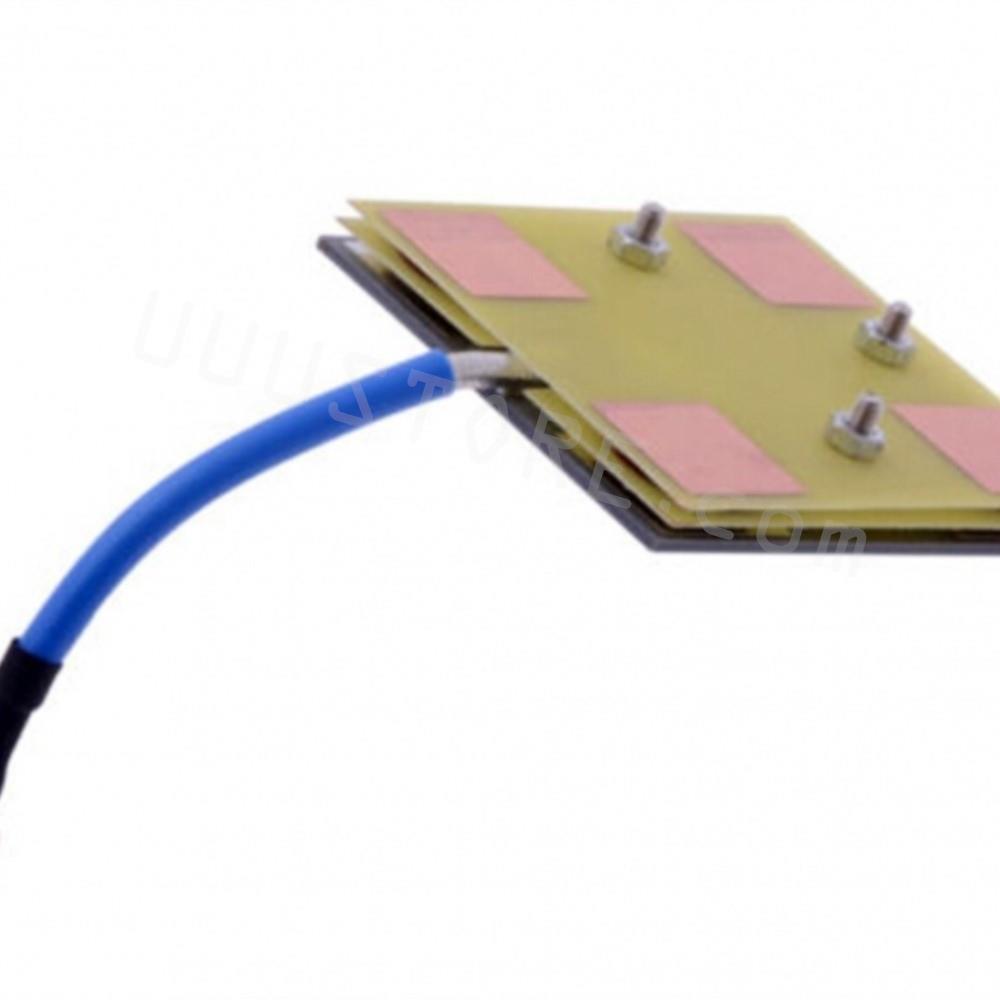

5.8G 14dBi High Gain Panel Antenna RC FPV Antenna for DJI Phantom/Transmitter RC832 RC805 Receiver QAV250 F450 Quadcopter


Description:
- Best 5.8Ghz panel antenna (far distance flight must have) !!!
- The antenna is a DIY product.
- Boscam 5.8Ghz panel antenna is specifically designed for 5.8G graphic transmission directional panel antenna, it is compact, easy to use, with a high gain, high performance and other features! Mounted directly to the antenna terminals of the receiver can be used without an extension feeder to further enhance the stability of the signal. It can be used to enhance the stability of the image received, and greatly enhance the reception range.
- The antenna can be bent at any angle, high strength. The antenna can be applied to any receiver or built-in 5.8G 5.8G receiver on the display, using the SMA antenna connector threaded bore design, check your receiver or display if it  is "external thread the needle" when ordering this item ,  If not, please purchase TC004 adapter yourself .

Use with 5.8g 200mw TX in our store,You can reach 1km (Video is very clear,without snow)

Use with 5.8g 400mw TX in our store,You can reach 3km (Video is very clear,without snow)

Use with 5.8g 600mw TX in our store,You can reach 5km (Video is very clear,without snow)

Use with 5.8g 1000mw - 2000mw TX in our store,You can reach over 10km (Video is very clear)

Specific:

Color: White

Item size: 60 * 55 * 6mm / 2.4 * 2.2 * 0.2in

Total weight: 27g / 0.9oz

5km with 5.8G 600mw VTX/RX.

Frequency: 5600-5950MHz

Gain-dBi: 14dBi

3db vertical beamwidth: 40 degree

3db horizontal beamwidth: 35 degree

Impedance: 50ohm

Polarization: Vertical

Sidelobe suppression≥13DB

VSWR: ≤1.5

Front-to-back ratio: ≥25DB

Maximum power: 50W

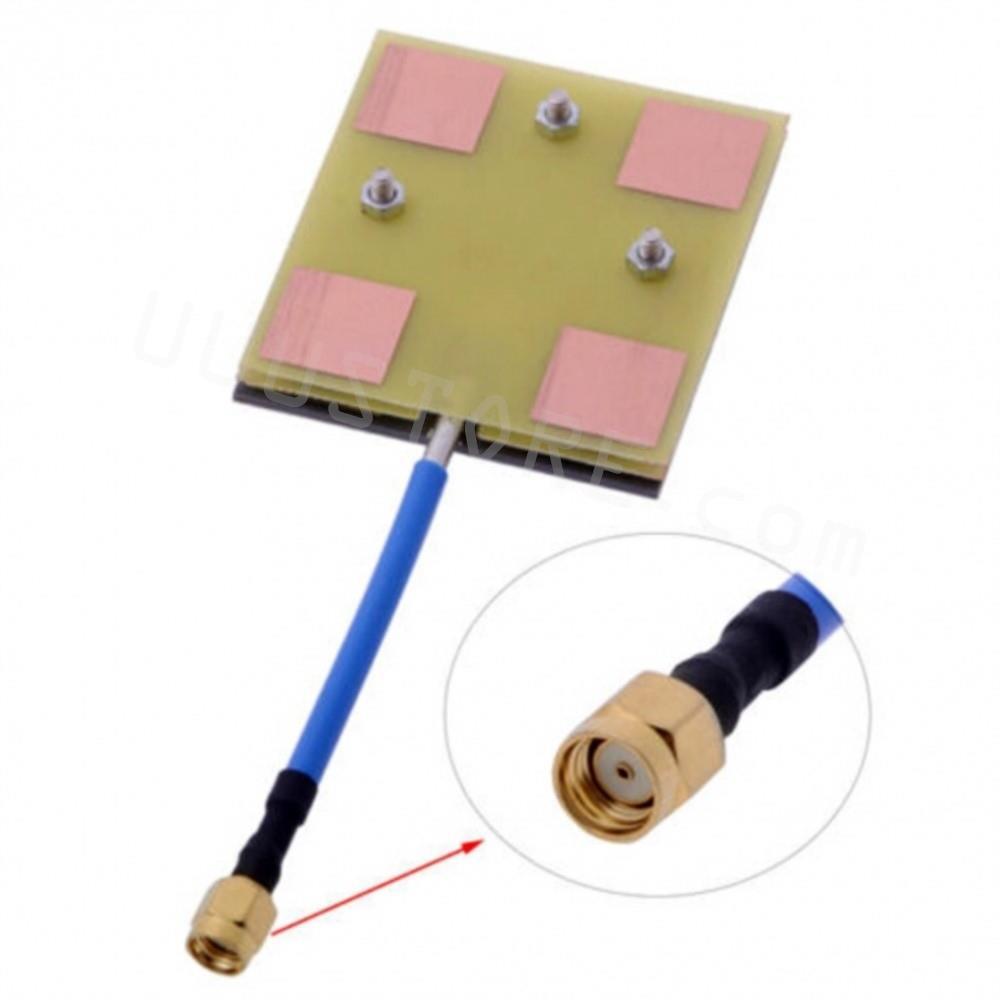

Connector: RP-SMA

DC grounded.

High self recovery function.

Specially designed for RC FPV, mini size, high gain, low SWR and high self recovery function at any angle. Transmitting distance: 15km with 5.8G 1200mw VTX/RX.

5.8Ghz 14DBi High Gain Mini Panel Antenna x 1
