Product Information and Description

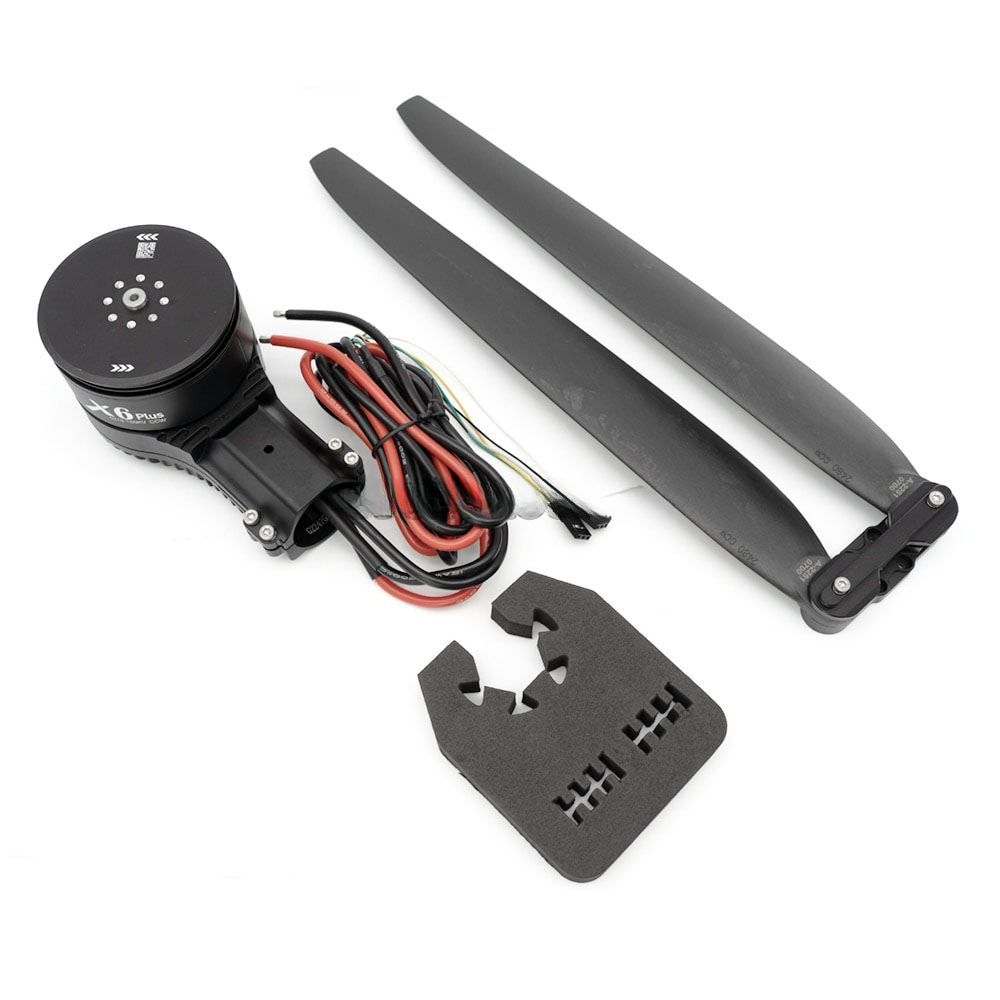

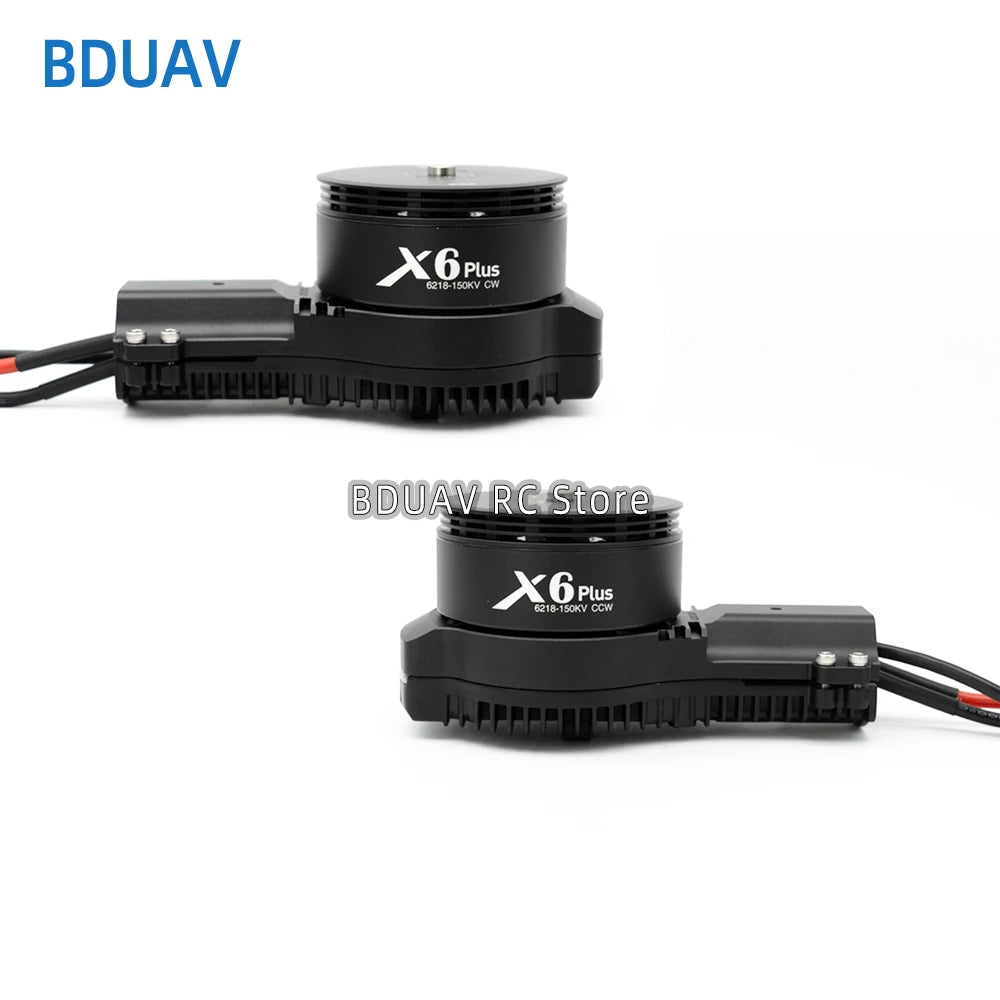

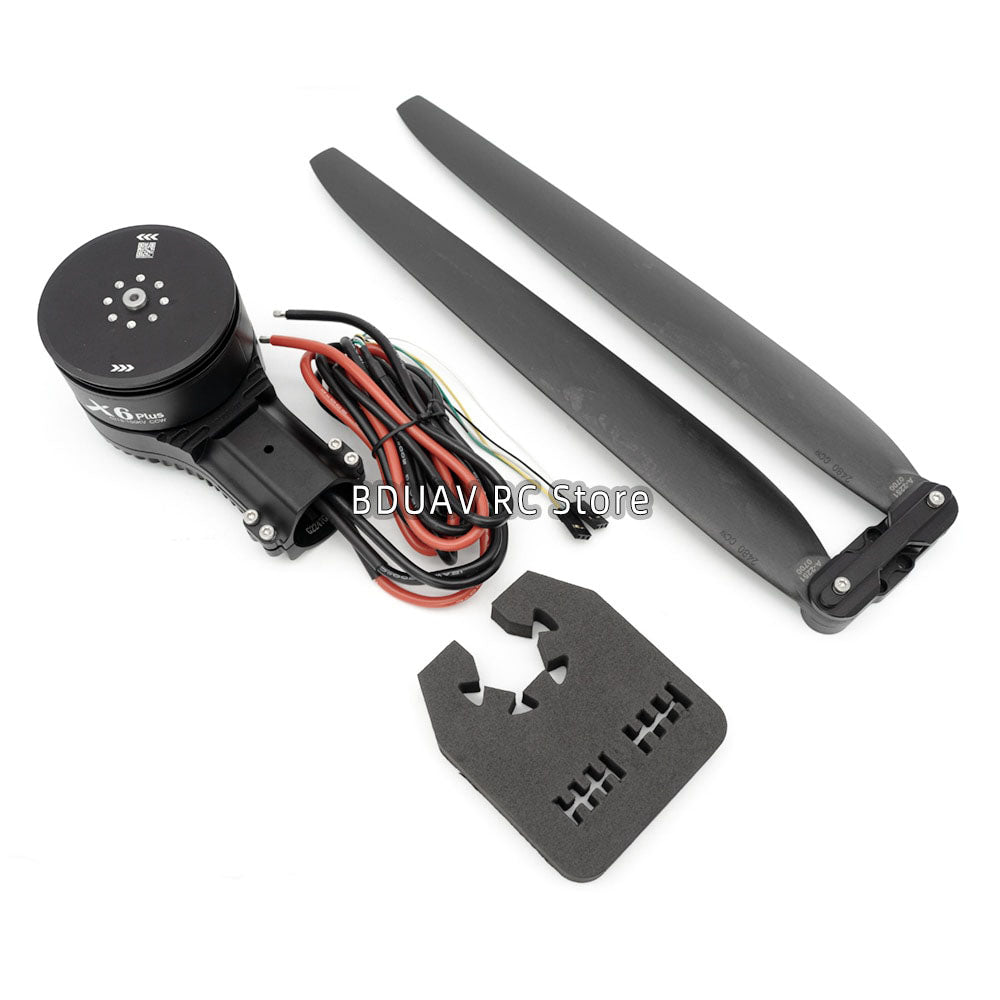

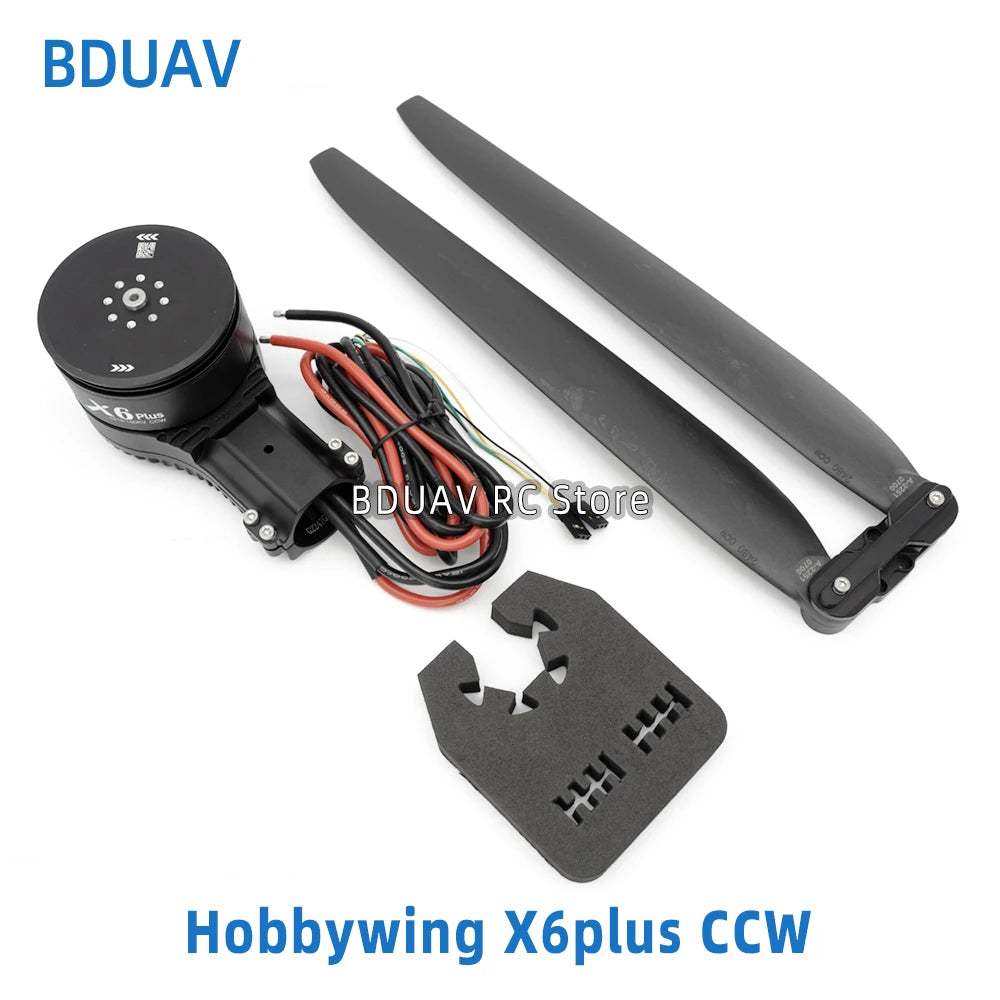

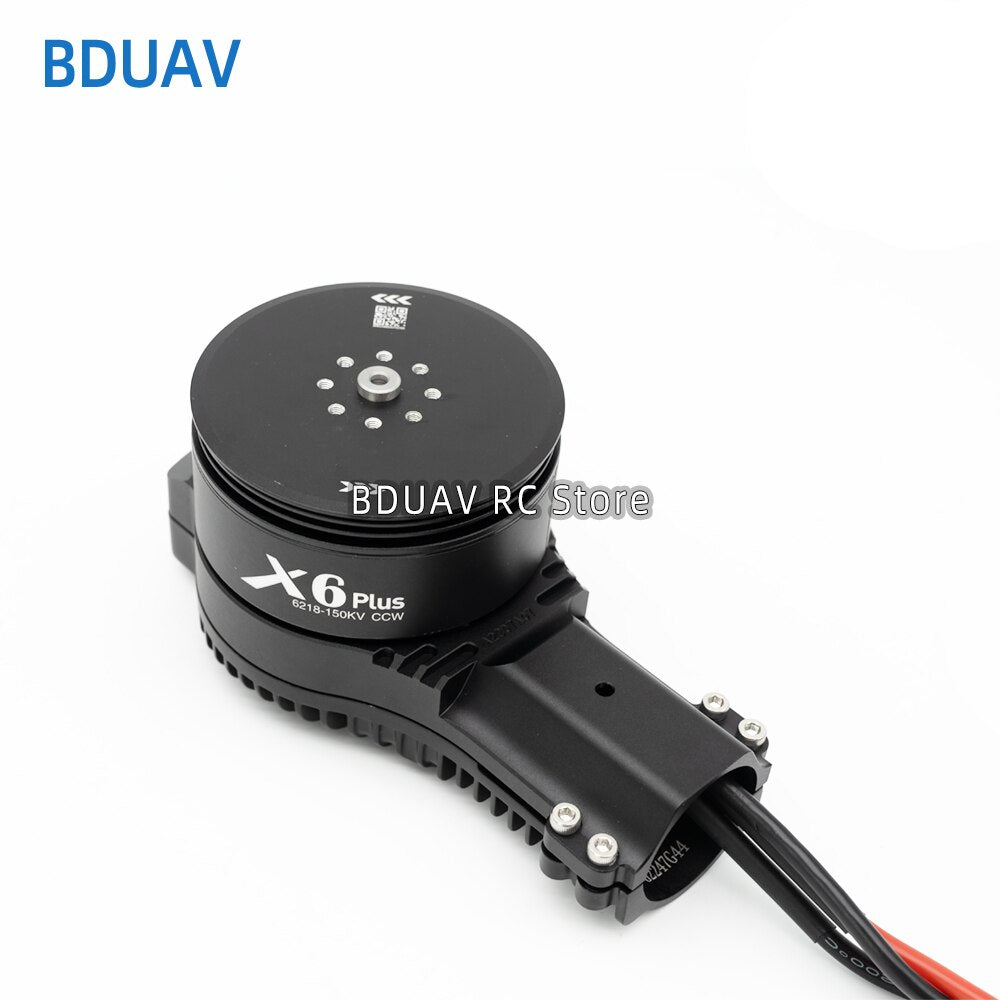

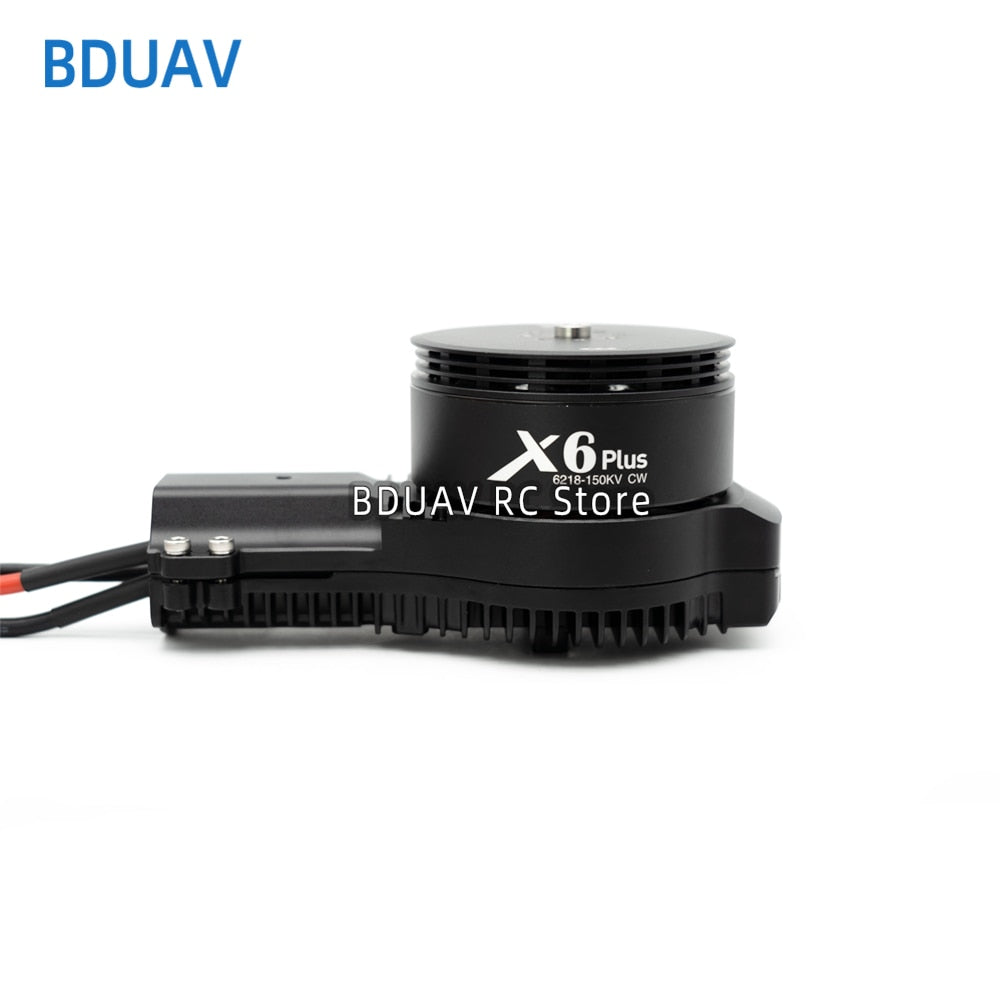

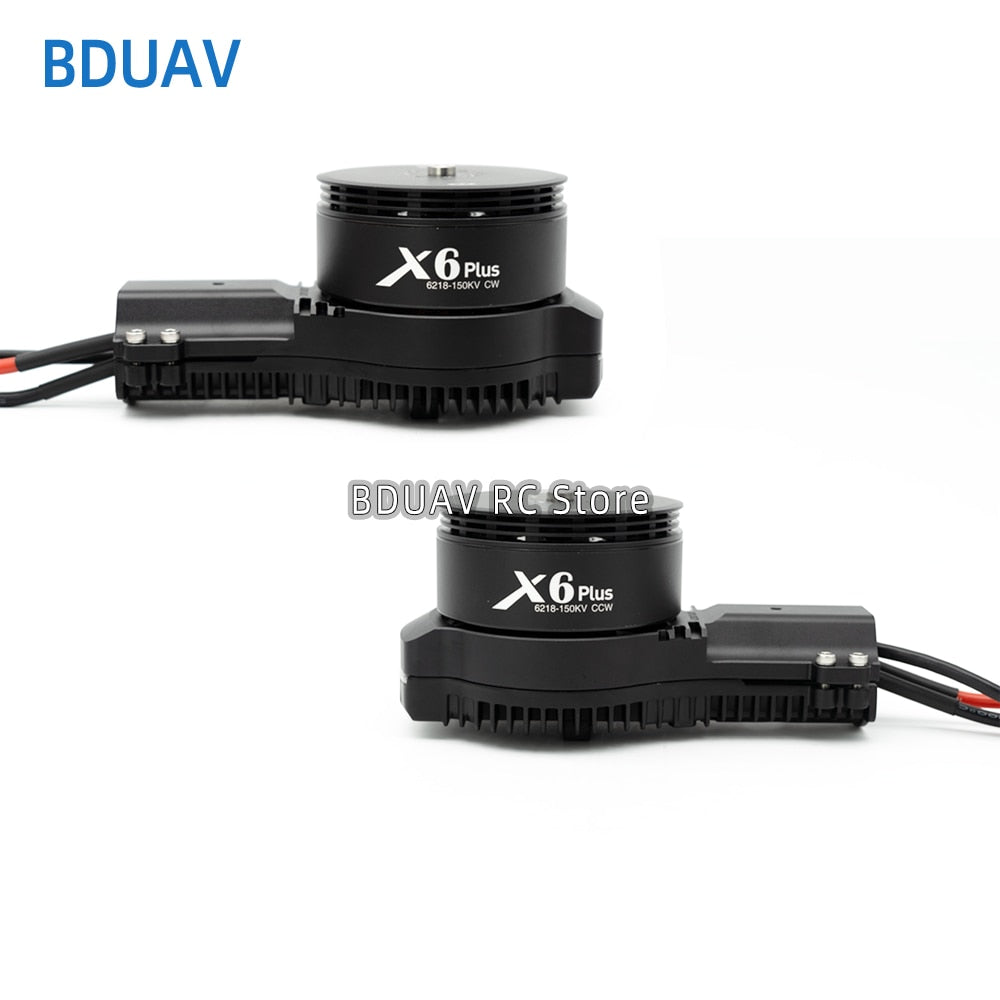

Product Name: Hobbywing X6 Plus Motor Power System Combo

Specifications:

• Motor: Xrotor X6 Plus
  • KV Rating: 150 RPM/V
  • Stator Size: 62x18mm
  • Powertrain Arm Tube Diameter: 30mm
  • Thrust: 11.8kg/axis (46V, sea level)
  • Recommended Takeoff Weight: 3.5-5.5kg/axis (46V, sea level)
  • Waterproof Rating: IPX6

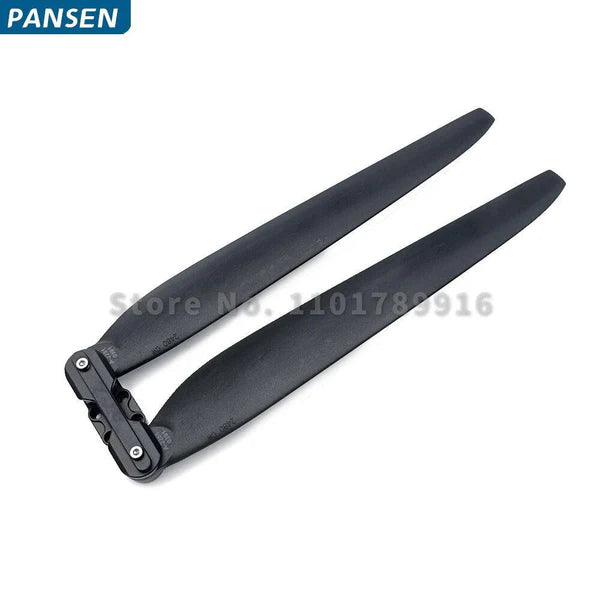

• Propeller: 24x8.0 inch
• Recommended LiPo Battery: 12-14S (LiPo)
• Operating Temperature: -20 to 50°C
• Combo Weight: 790g
• Bearing: Imported from Japan

Functional Selling Points:

1. Prolonged Stability and Efficiency:

• Achieve an 8% increase in flight efficiency.
• Double throttle signal for increased battery lifespan and stability.

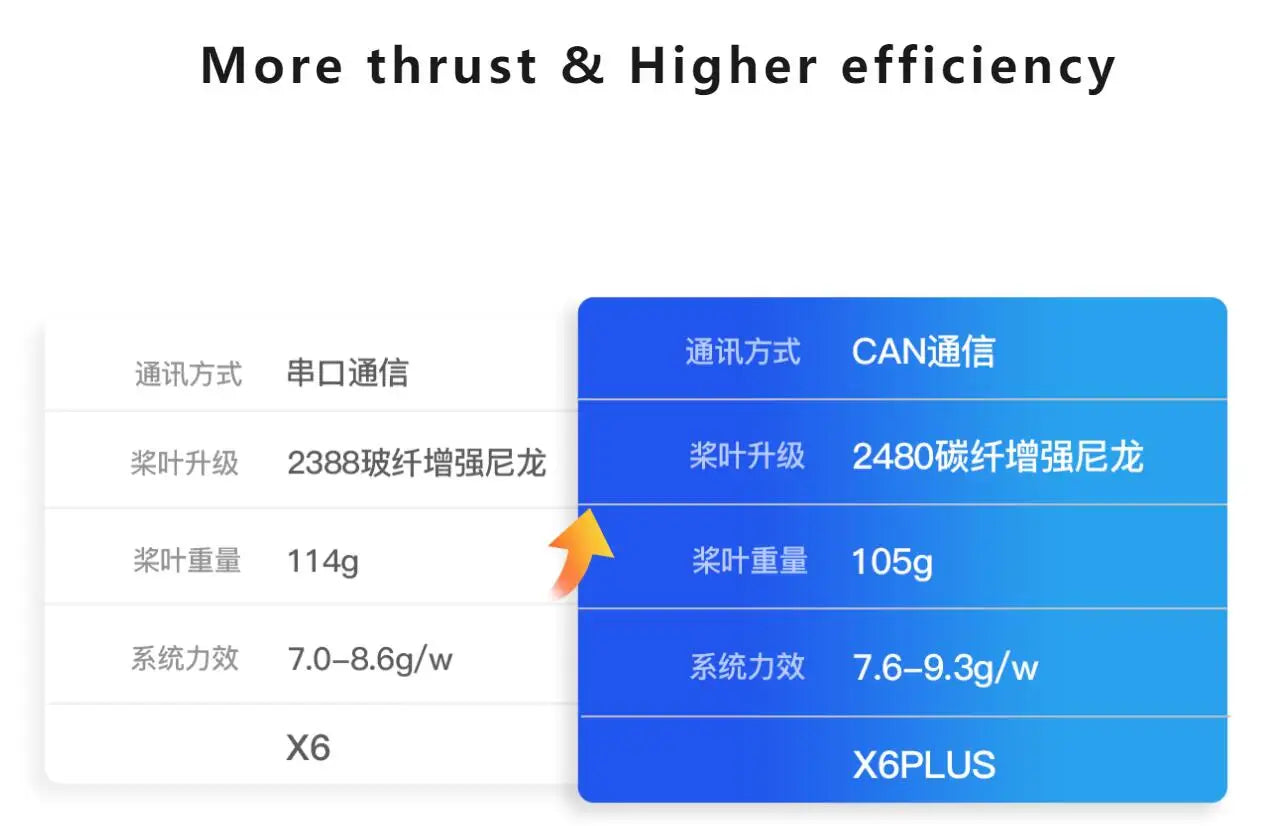

• More thrust and higher efficiency compared to previous models.

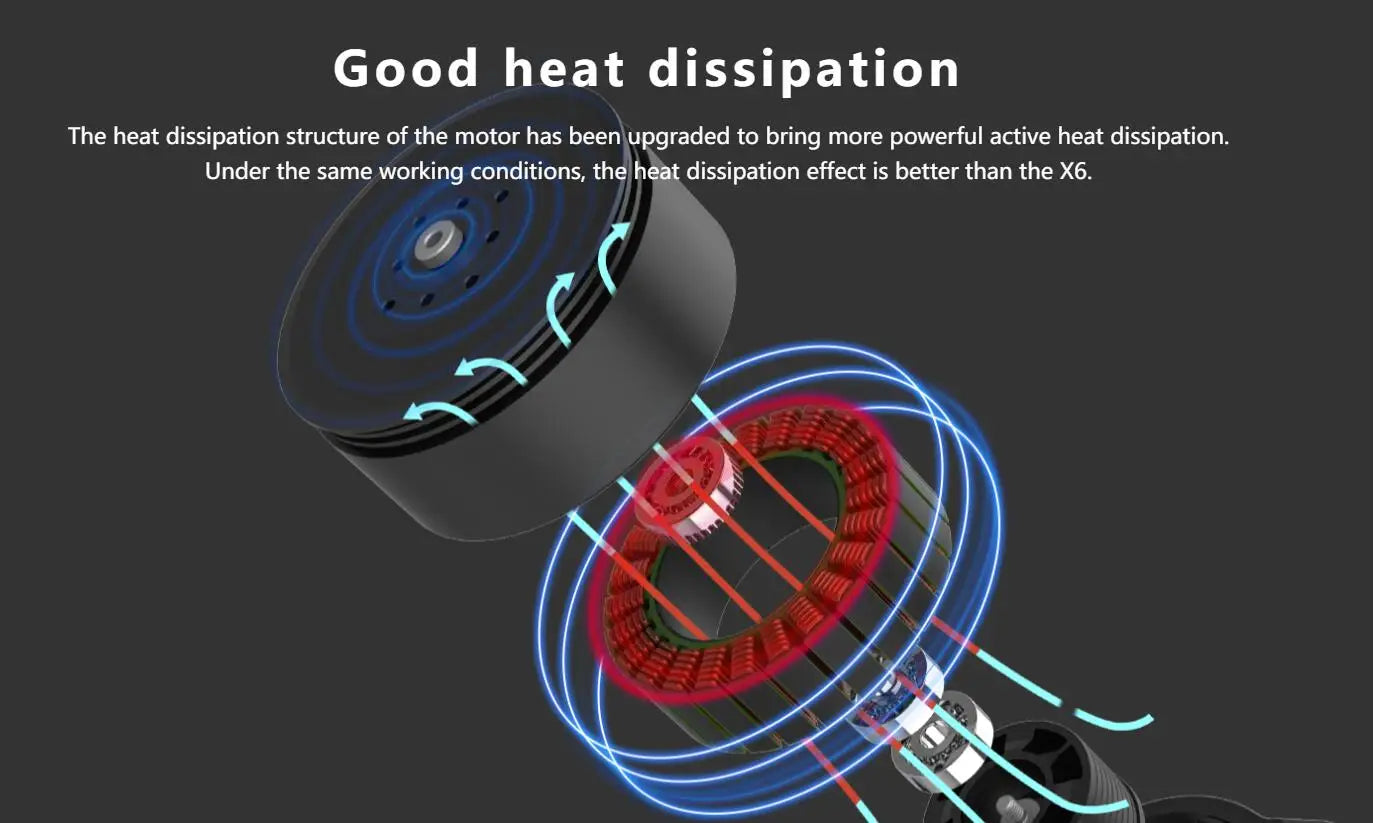

2. Good Heat Dissipation:

• Upgraded motor heat dissipation structure for more powerful active heat dissipation.
• Improved heat dissipation compared to the X6 model.

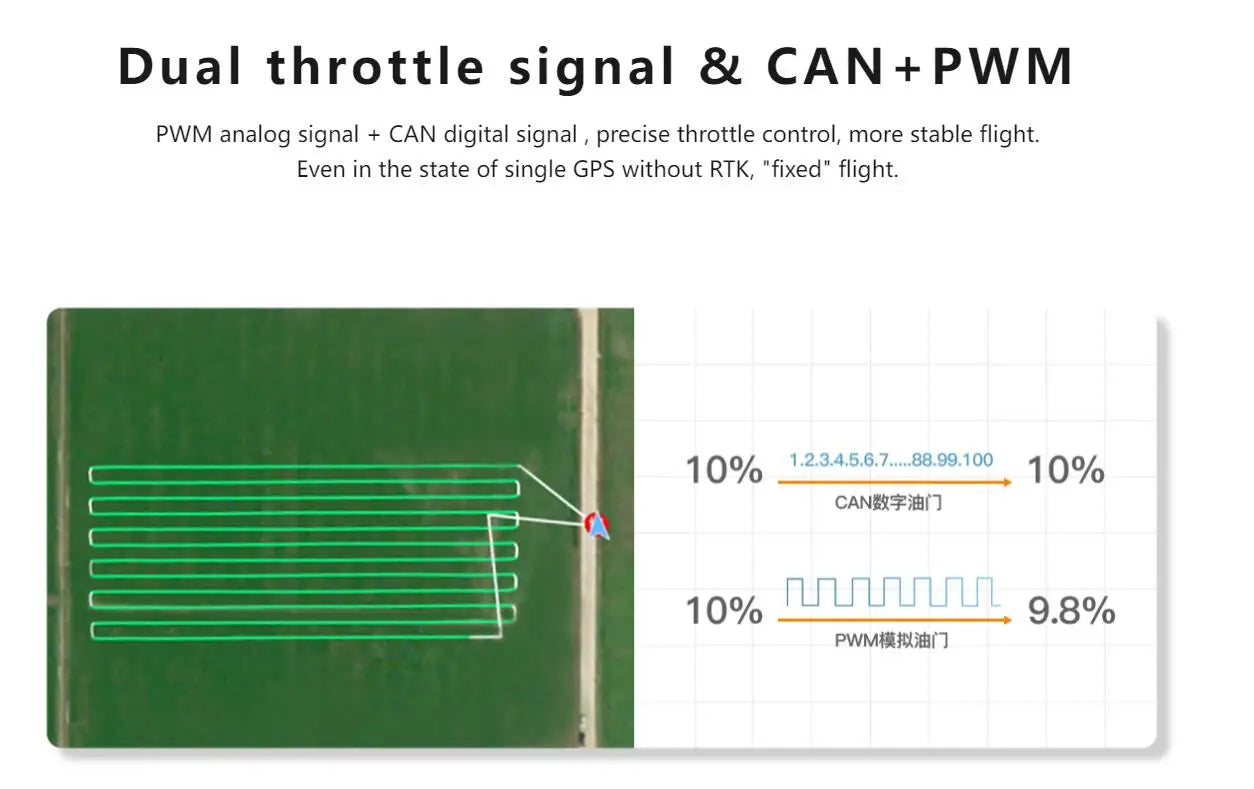

3. Dual Throttle Signal (Can+PWM):

• Can handle both digital and analog signals.
• Provides precise throttle control for a stable flight, even without RTK GPS.

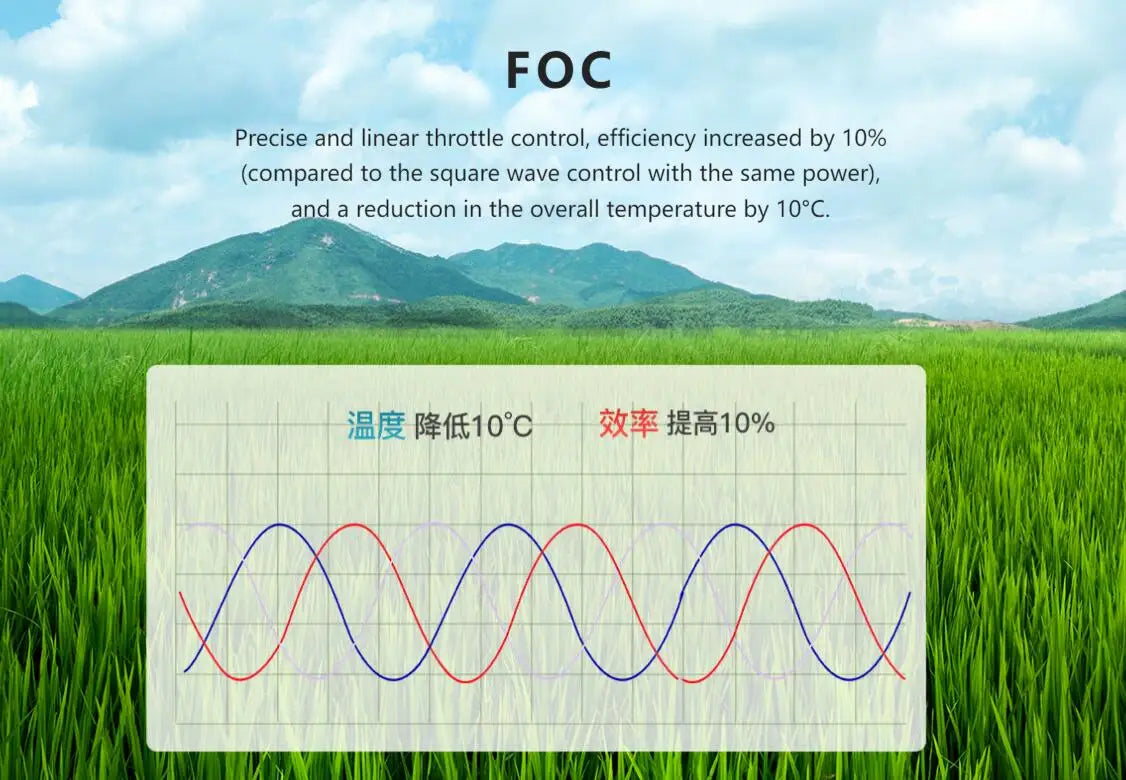

4. FOC (Field-Oriented Control):

• Precise and linear throttle control.
• Efficiency increased by 10% compared to square wave control.

5. Fault Storage:

• Built-in fault storage function.
• Use the datalink data box to download and view faults for quick problem resolution.

6. IPX6 Protection:

• Fully sealed and protected ESC for enhanced anti-corrosion and anti-rust properties.
• Multiple protection mechanisms for flight safety.

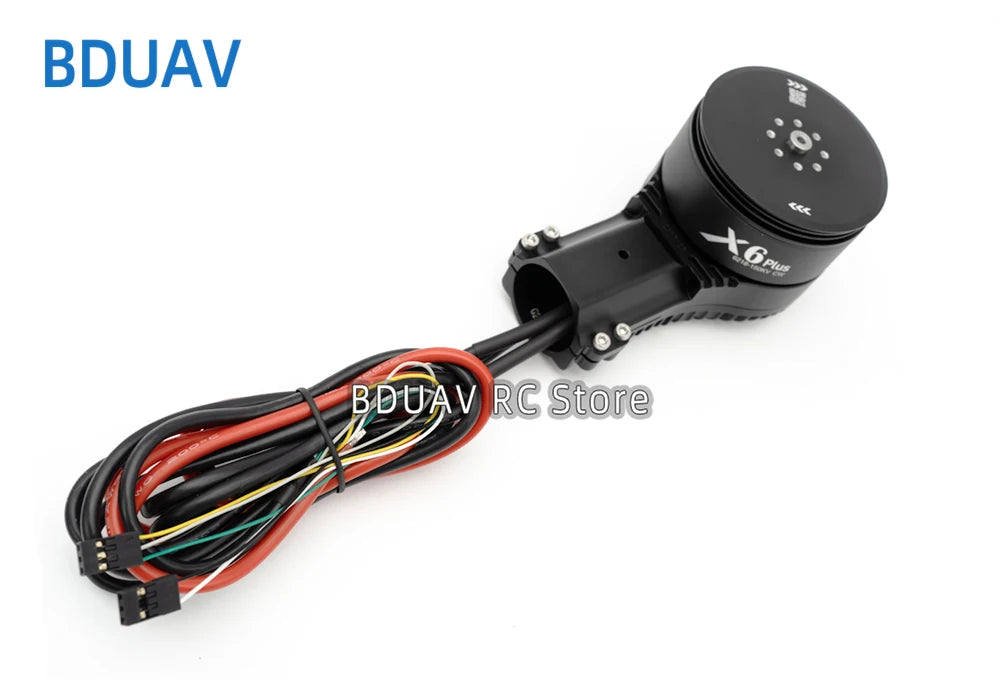

7. Communication & Upgrade:

• Default CAN communication with optional serial port.
• Real-time transmission of power system data.
• Supports online ESC firmware upgrade using the Hobbywing datalink data box.

Performance Data:

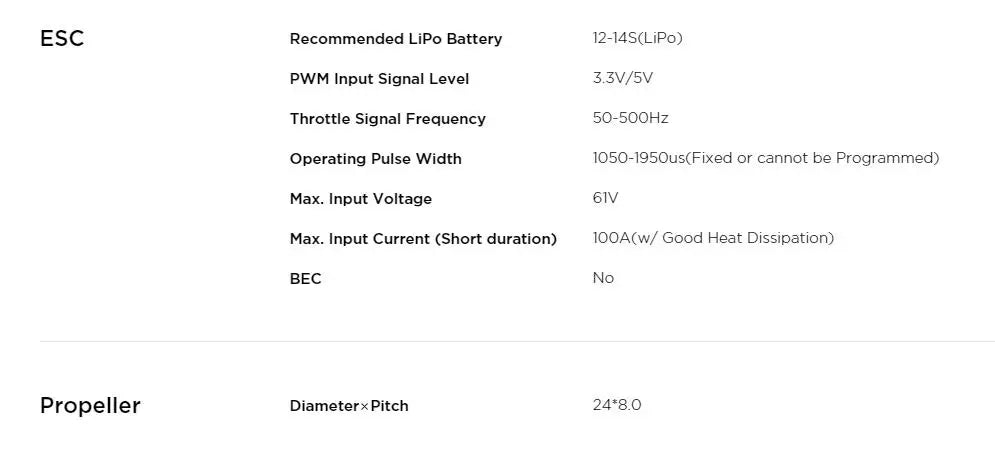

ESC Specifications:

• Recommended LiPo Battery: 12-14S (LiPo)
• PWM Input Signal Level: 3.3V/5V
• Throttle Signal Frequency: 50-500Hz
• Operating Pulse Width: 1050-1950us (Fixed or cannot be programmed)
• Max Input Voltage: 61V
• Max Input Current (Short Duration): 100A (with good heat dissipation)

Product Compatibility:

• Compatible with various UAV drone models, including Bduav X6 Plus, X6 Plus 6218-150KV CCW, 3G Plus, and more.

Updated Description:

Enhance your agricultural drone's performance with the Hobbywing X6 Plus Motor Power System Combo. This system provides prolonged stability, increased efficiency, and advanced features such as dual throttle signals, good heat dissipation, and precise FOC throttle control. The IPX6 protection ensures durability, and the fault storage function aids in quick issue resolution. With excellent communication and upgrade options, this combo is designed to elevate your UAV drone experience.

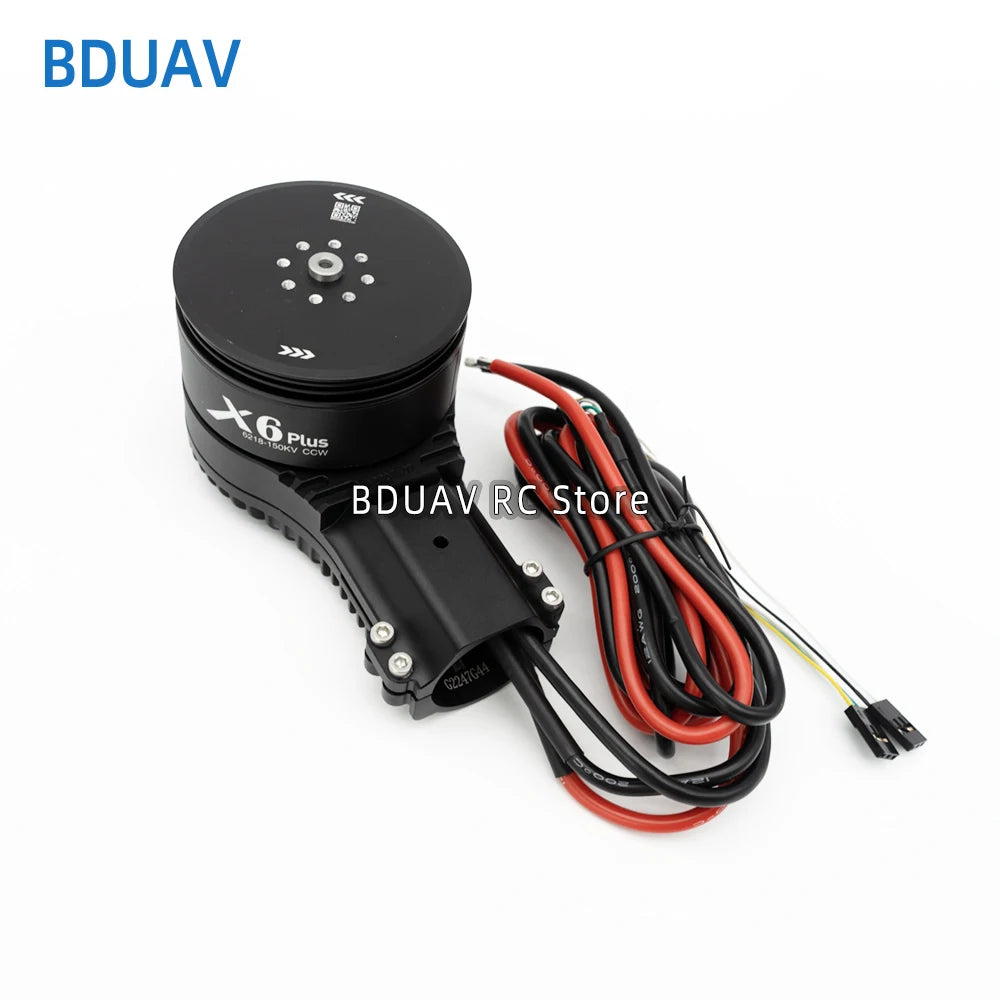

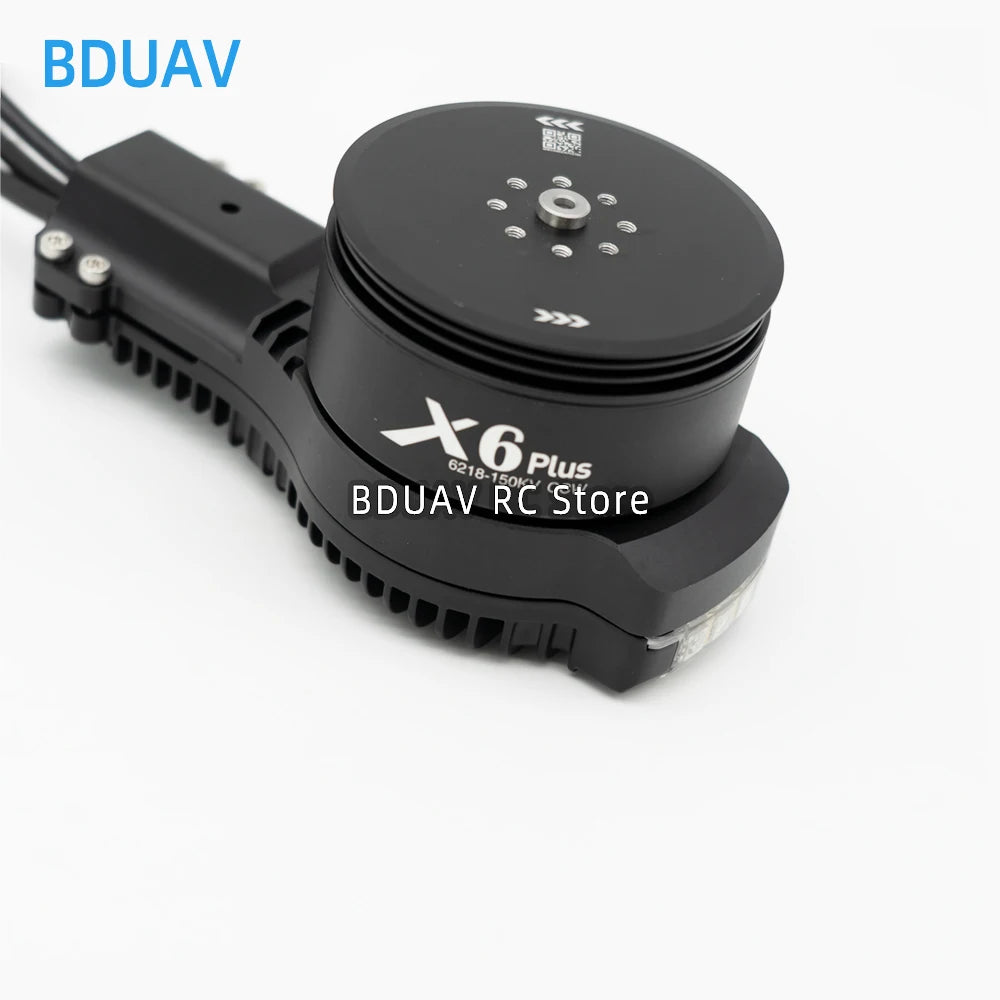

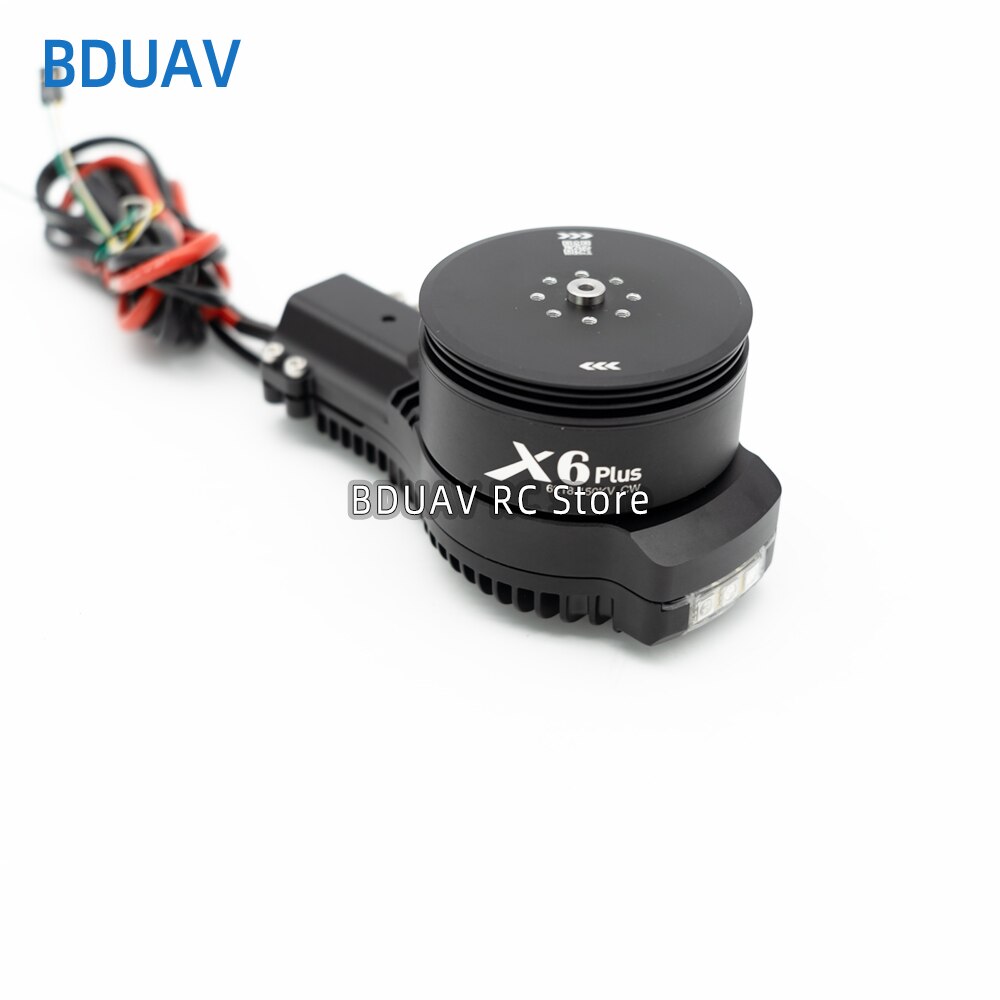

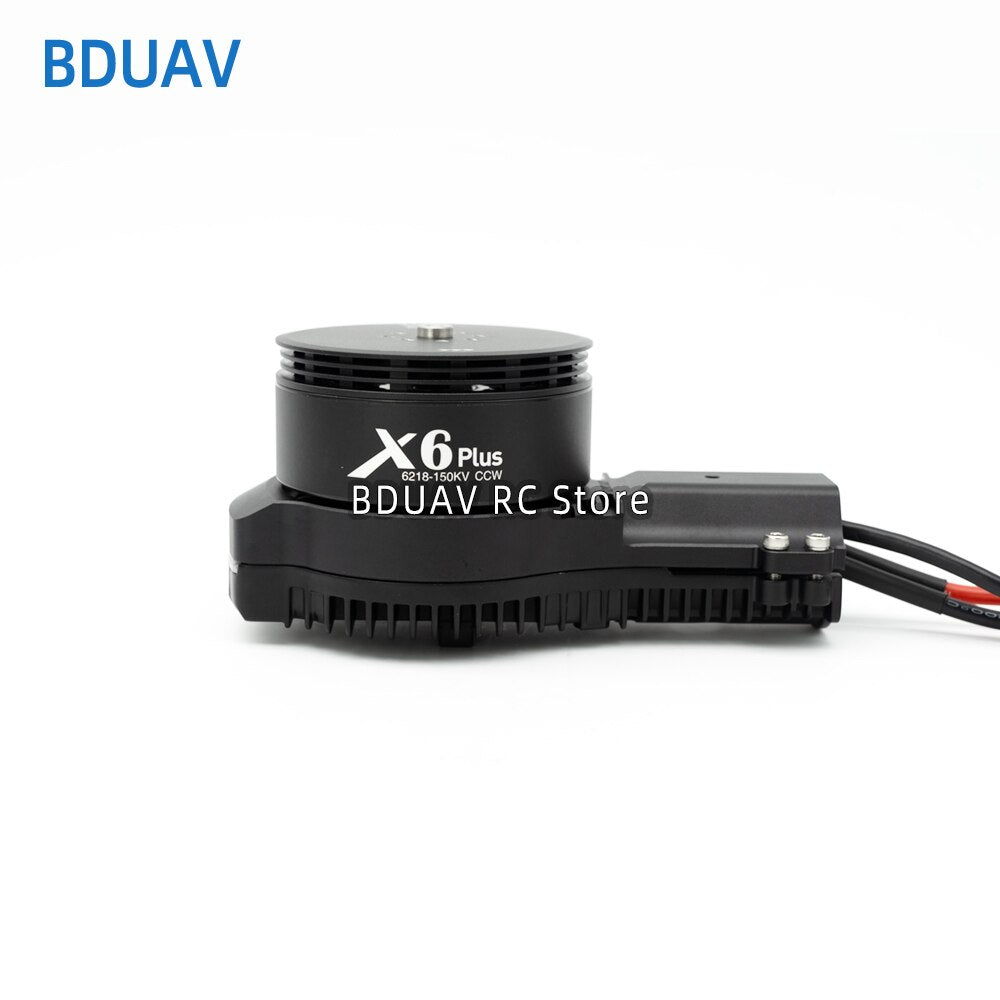

8. Motor Specifications:

• Model: X6 Plus
• KV Rating: 150 RPM/V
• Stator Size: 62x18mm
• Powertrain Arm Tube Diameter: 30mm
• Waterproof Rating: IPX6
• Thrust: 11.8kg/axis (46V, sea level)
• Recommended Takeoff Weight: 3.5-5.5kg/axis (46V, sea level)
• Operating Temperature: -20 to 50°C
• Combo Weight: 790g
• Bearing: Imported from Japan

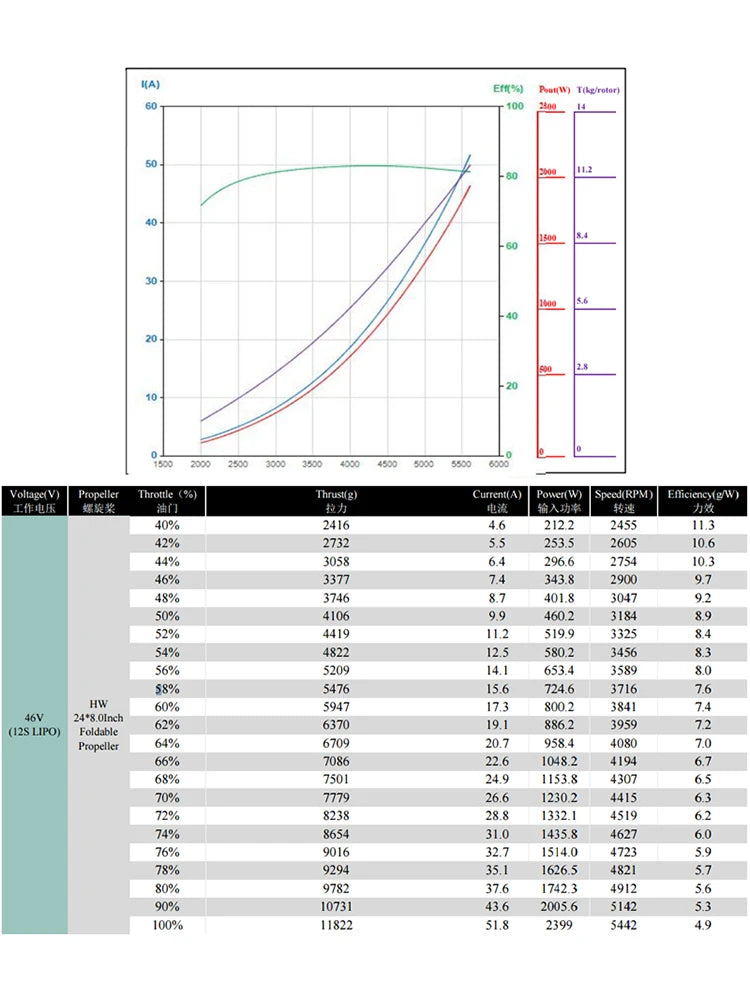

9. Performance Data:

• Throttle range from 40% to 100% with corresponding RPM, current, and efficiency values.

10. ESC Recommendations:

• Compatible with LiPo batteries ranging from 12 to 14S.
• PWM input signal level of 3.3V/5V.
• Throttle signal frequency between 50-500Hz.
• Operating pulse width fixed at 1050-1950us.

Summary:

The Hobbywing X6 Plus Motor Power System Combo is a versatile and efficient solution for agricultural UAV drones. With its advanced features, including dual throttle signals, FOC control, fault storage, and IPX6 protection, this combo is designed to deliver optimal performance and reliability. The upgraded heat dissipation structure ensures prolonged stability and efficiency, making it an excellent choice for extended flight times. Whether you're involved in crop monitoring or spraying applications, the X6 Plus offers the power and precision needed for successful agricultural drone operations.

Note: Ensure compatibility with specific drone models and configurations. Regularly check for firmware updates using the Hobbywing datalink data box for continuous performance improvements. Elevate your agricultural drone capabilities with the cutting-edge technology of the Hobbywing X6 Plus Motor Power System Combo.
