Hobbywing X8 Integrated Style Power System SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Material: Metal

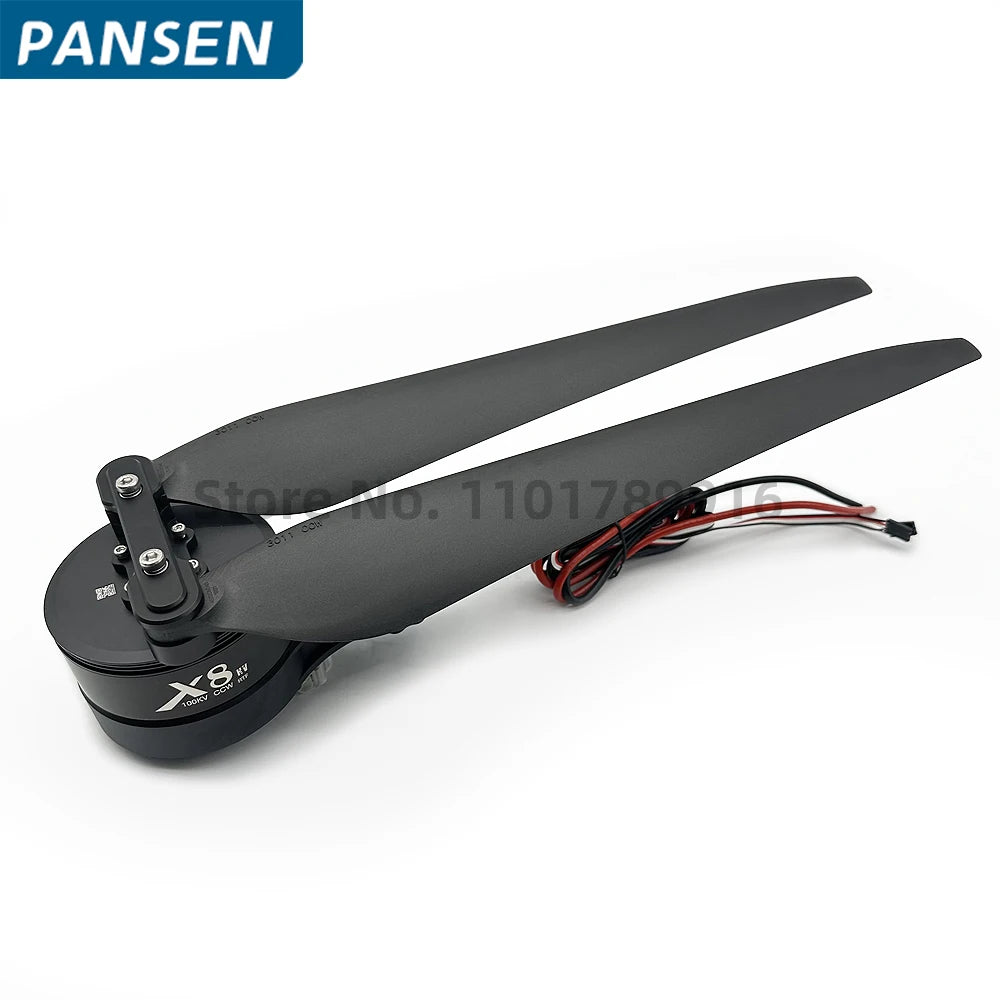

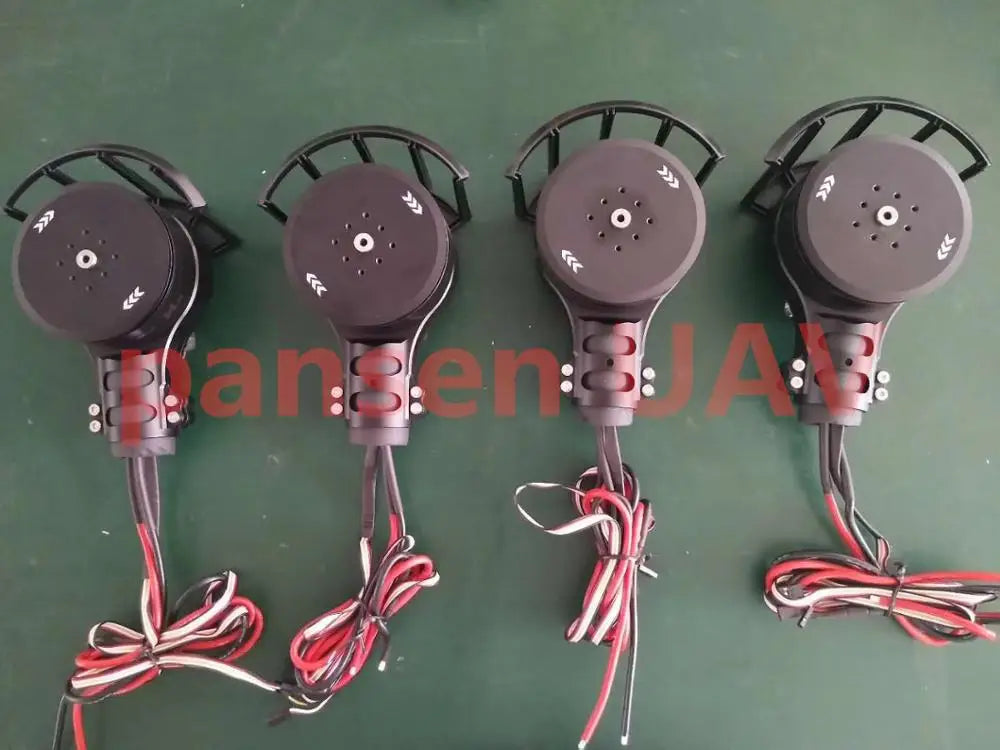

Hobbywing X8 Power System Motor with Propeller for Agricultural Drone

Model
X8 motor set
Motor X8 KV100
ESC FOC 80A 12S-14S
Propeller 3011
Motor Base 35mm/40mm
Weight Total Weight : 1540g
Motor: 573g
Propeller: 212g
Lithium Battery 12S-14S
Max Con. Current 100A(12S lipo+ propeller 3011 )
Max Con. Thrust 15.3kg

stule no: 1101789916 0.kg length: 36.scm

Agricultural drone model 'Pantura' (part number 252769620-526) with part reference number 40421398.

Product Specification

the x8 propulsion system integrates motor; esc, propeller and motor mount (with the stock/standard tube adapter) together . it provides the thnist ofup to 15 3kg peraxis dedicated

X8 propulsion system integrates motor; ESC, propeller and motor mount (with the stock/standard tube adapter) together . foldable 3090 propeller provides thrust of up to 16.1KG per axis .

Using FOC-based PMSM algorithms, the integrated power system optimizes the collaboration between the ESC, motor, and propeller, resulting in a well-balanced propulsion system that features high stability, reliability, and efficiency.

pmsm algorithm is an optimized algorithm for improving the collaborative performance of the esc, motor & propeller . it makes the motor-propeller more balanced and creates a propulsion system features high stability, reliability and efficiency

The Hobbywing X8 Integrated Style Power System features an IPX7 waterproof rating, making it suitable for use in various harsh environments, including exposure to rainwater, pesticides, salt spray, extreme temperatures, sand, and dust.

the x8 propulsion system is waterproof to ipxz standard its applicable to almost all the harsh working conditions like rainwater; pesticides, salt spray; high temperature, sand and dust . combined with the

The Hobbywing X8 Power System features an ESC (Electronic Speed Controller) that includes various protection functions. This ESC can transmit real-time data to the flight controller (FC), including input throttle, output throttle, RPM, input voltage and current, output current, capacitor temperature, and MOSFET temperature, during testing.

the x8 power propulsion features a series of protection functions like power-on test . it can output the running data like input throttle; output throttle; rpm; input voltage & current; output current; capacitor temperature

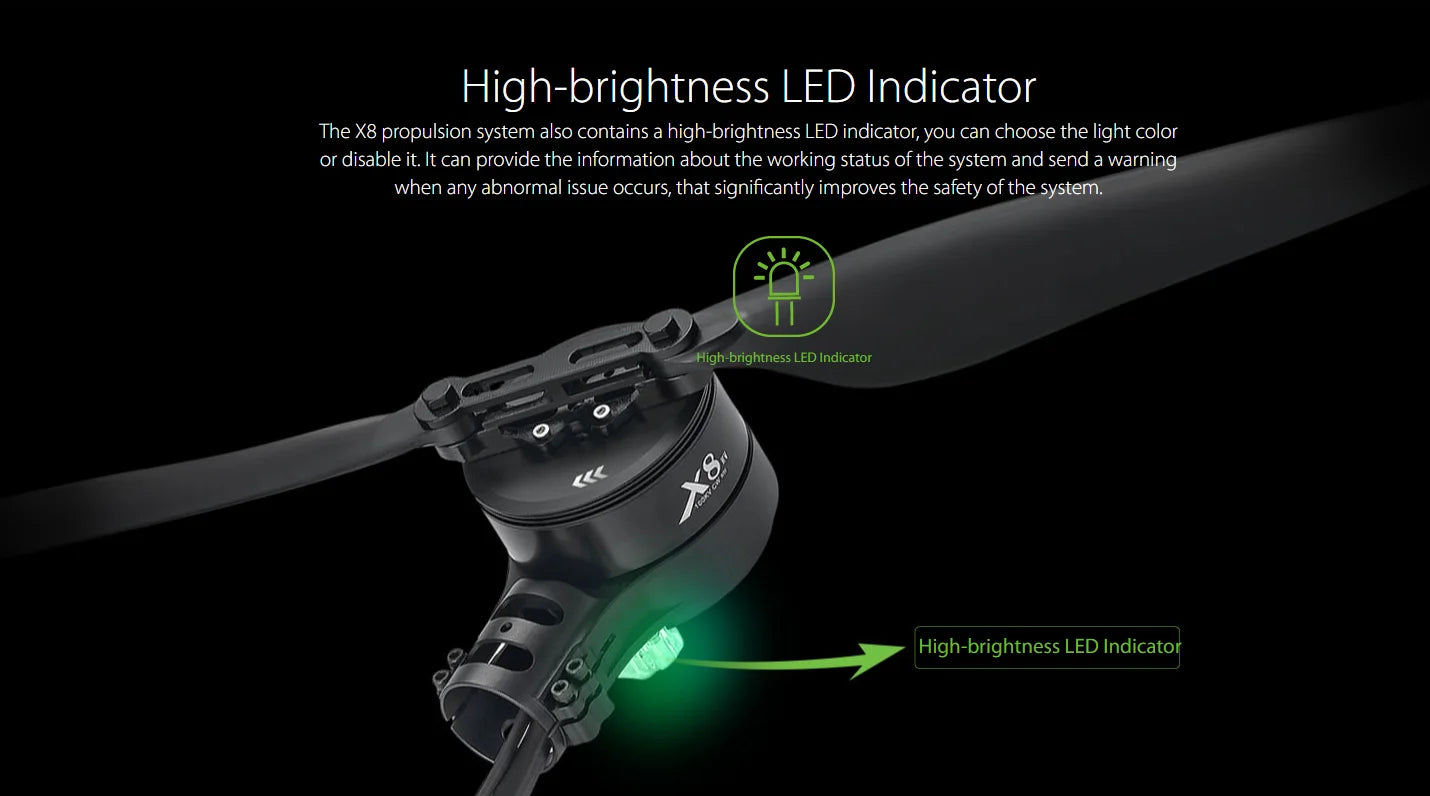

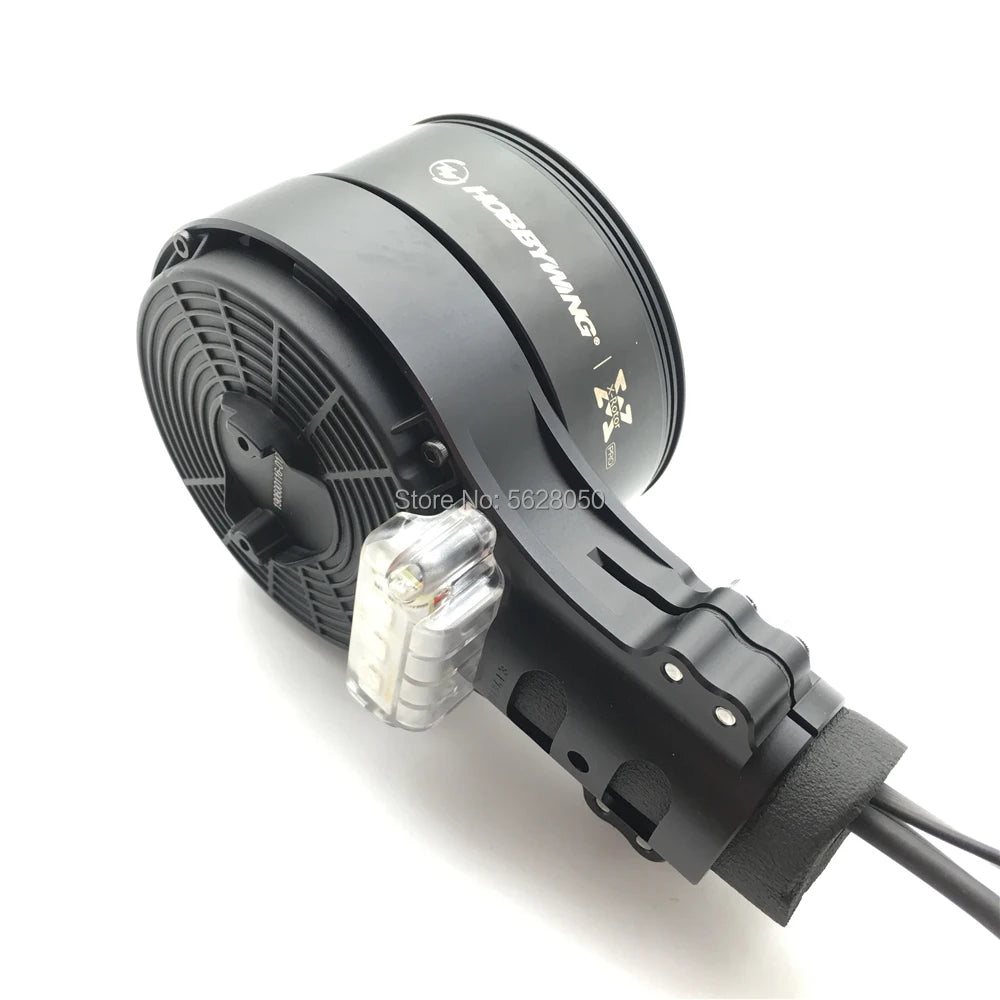

The Hobbywing X8 Integrated Power System features a high-brightness LED indicator that provides real-time status updates, alerting you to any abnormal issues or potential problems that may arise during operation.

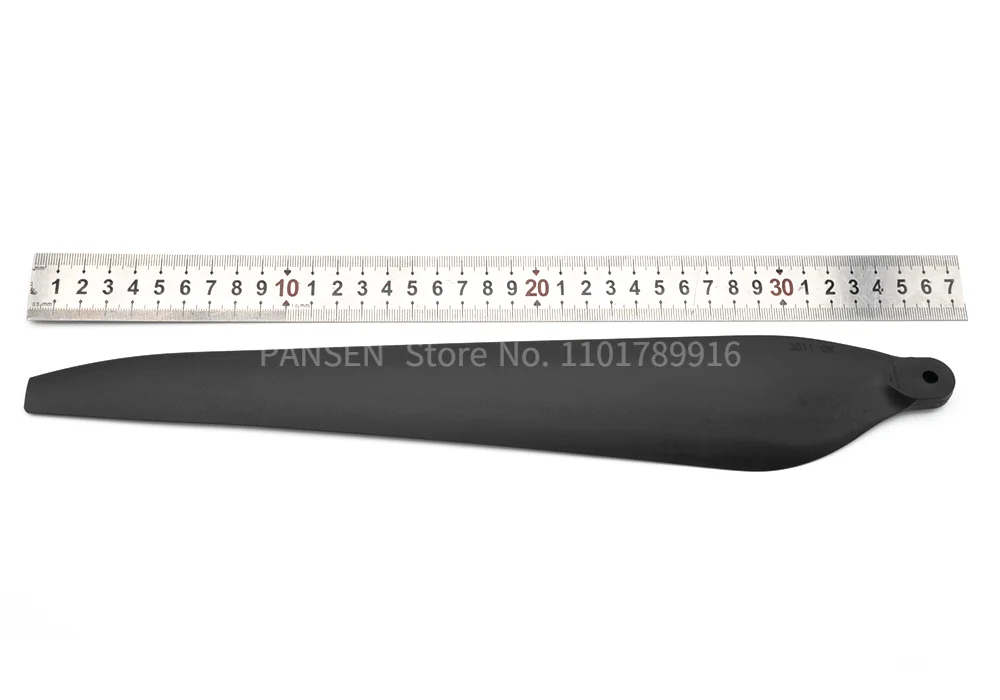

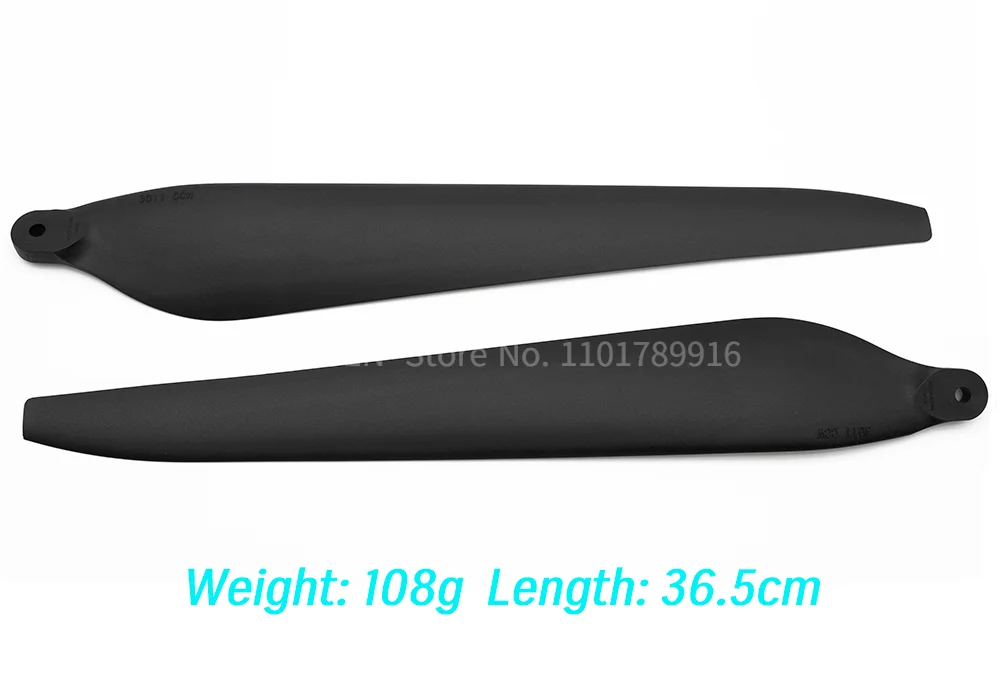

This high-strength carbon fiber propeller, measuring 3090mm in diameter, boasts exceptional solidity and lightness, ensuring consistent performance and excellent dynamic balance. The optimized aerodynamic shape and unique blade tip design, when combined with the motor's optimized electromagnetic design and the ESC's advanced Field Oriented Control algorithm, result in a propulsion system that delivers high thrust efficiency.

high thrust & efficiency propeller 3090 propeller made of special high-strength carbon fiber is solid and light; and guarantees great consistency and excellent dynamic balance . the optimized aerodynamic shape and unique blade tip design combined with

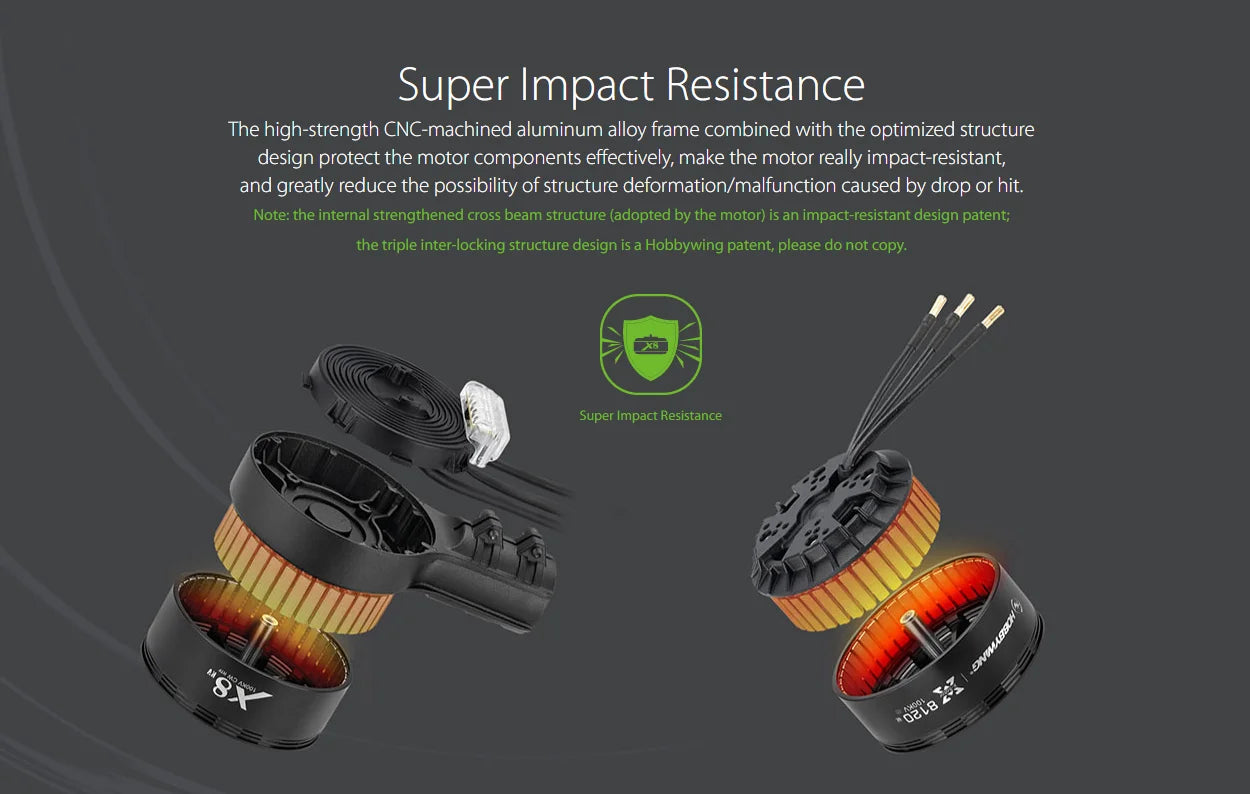

The Hobbywing X8 features a robust, high-strength CNC-machined aluminum alloy frame that provides superior impact resistance. Additionally, its patented internal strengthened cross-beam structure, adopted by the motor, further enhances its impact-resistance capabilities.

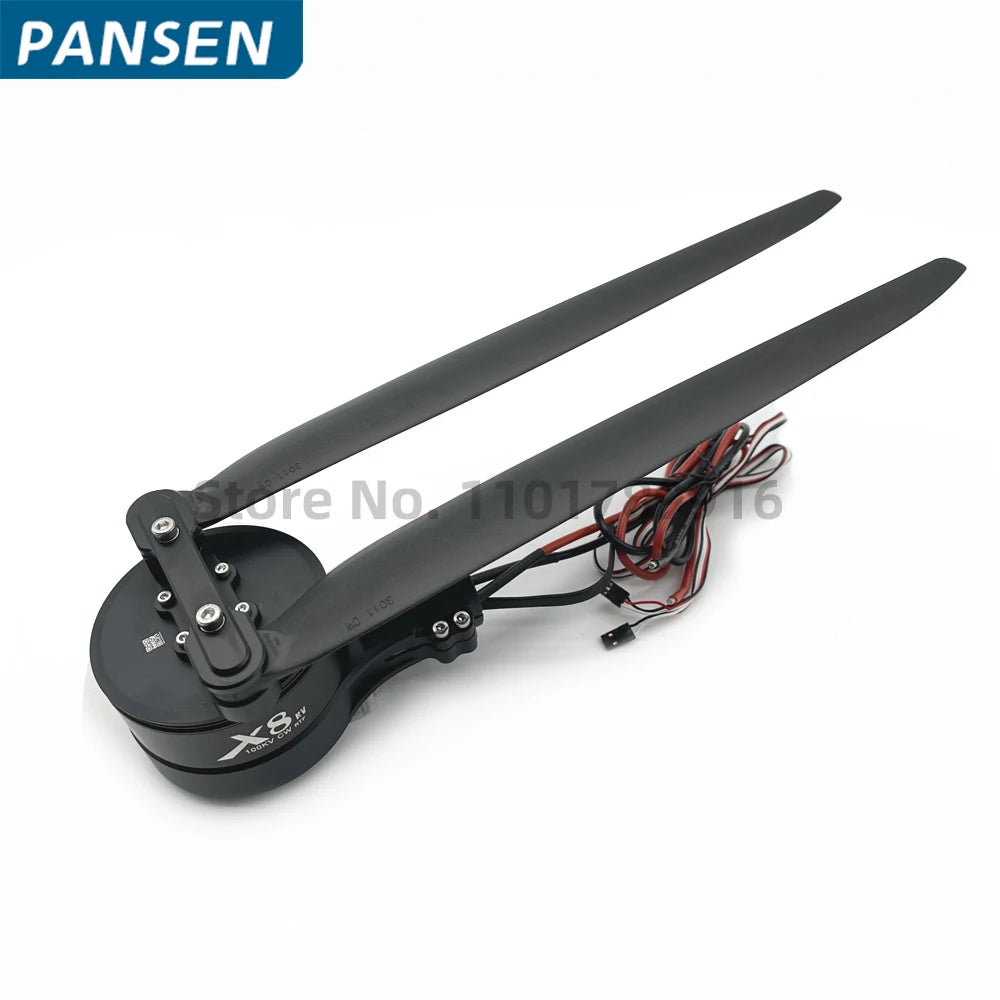

super impact resistance high-strength cnc-machined aluminum alloy frame protect the motor components effectively . triple inter-locking structure design is a hobbywing patent; please do not copy .

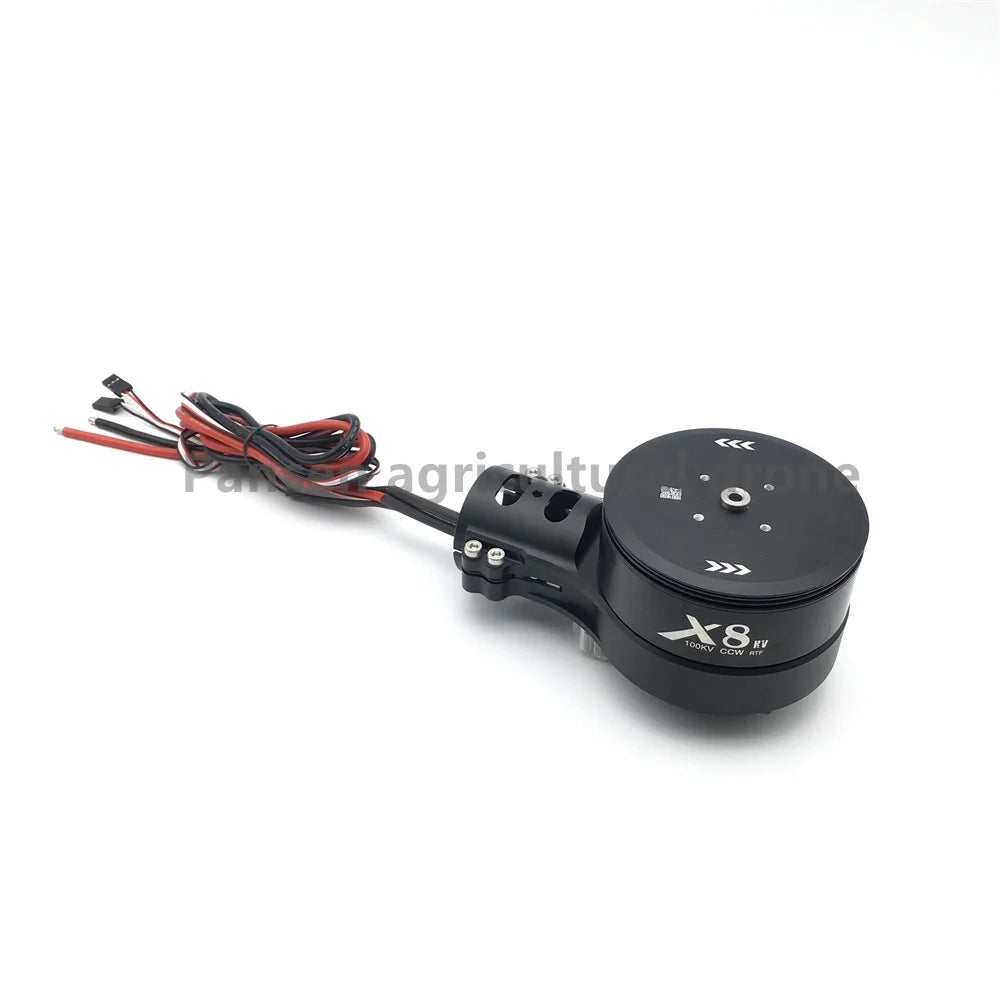

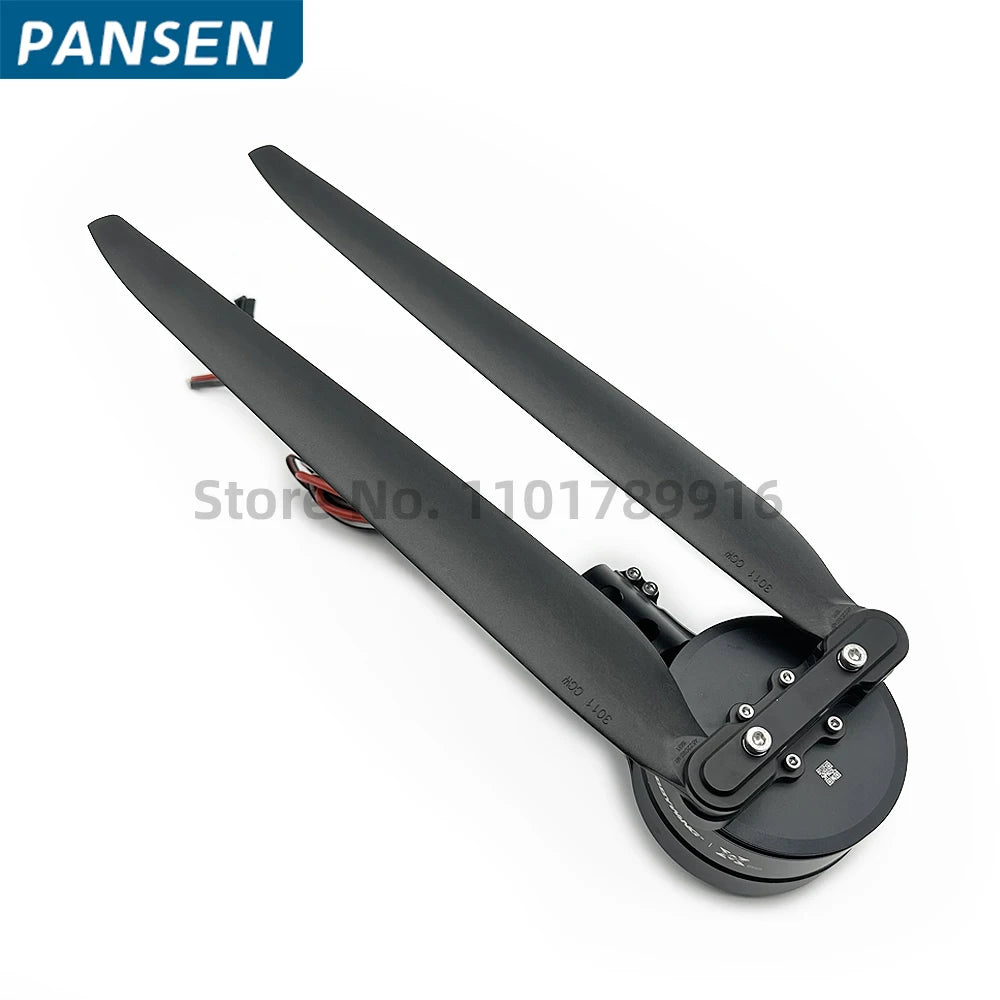

The Hobbywing X8 Integrated Propulsion System offers a modular design, allowing for easy replacement of individual components, such as single or dual blades or the propeller adapter, in case of damage.

when it is damaged,you can change the damaged part like blades (single or two), the propeller adapter; or the integrated power combo (esc+motor) easily .



=====

Hobbywing X8 Integrated Style Power System

Product Overview

The Hobbywing X8 Integrated Style Power System is a comprehensive solution designed for Agriculture Drones. This power system includes the XRotor PRO Motor, 80A ESC, 3011 Blades Prop, and a foldable blade. Let's explore its key features and specifications.

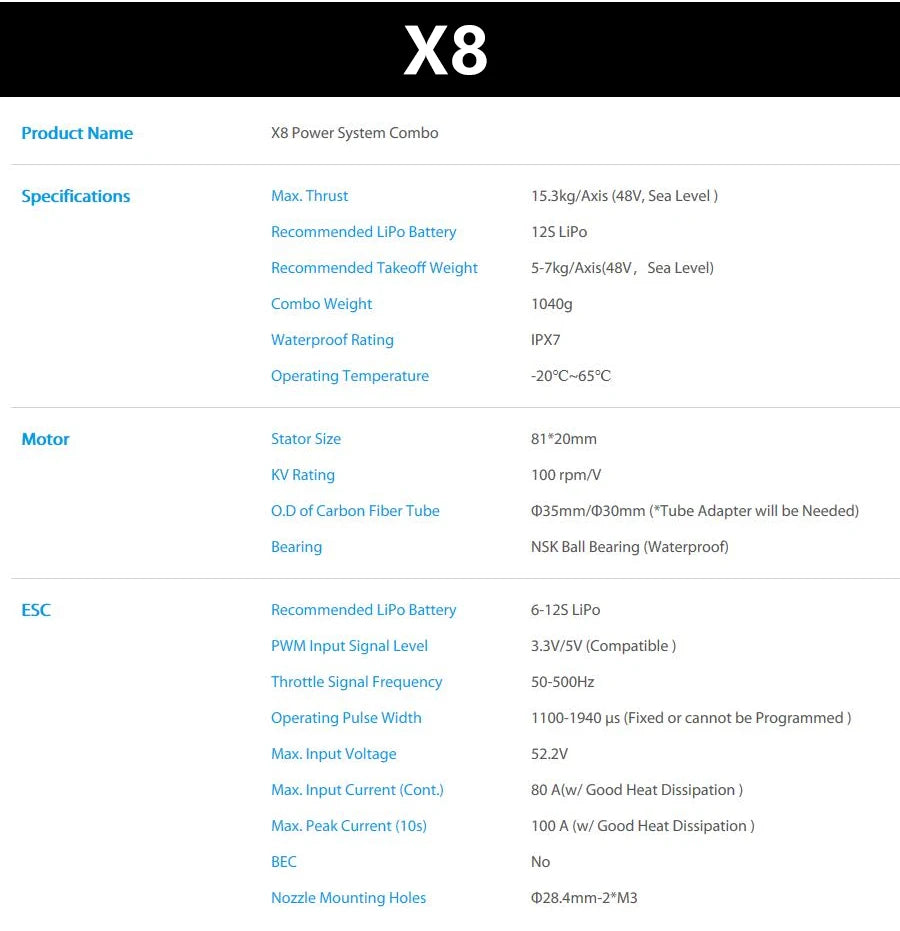

Specifications

• Max Thrust: 15.3kg/axis (48V, sea level)
• Recommended LiPo Battery: 12S LiPo
• Recommended Takeoff Weight: 5-7kg/axis (48V, sea level)
• Combo Weight: 1040g
• Waterproof Rating: IPX7
• Operating Temperature: 20°C to 65°C
• Motor Stator Size: 81x20mm
• KV Rating: 100 RPM/V
• Carbon Fiber Tube Diameter: D35mm/D30mm (Tube adapter required)
• Bearing: NSK Ball Bearing (Waterproof)
• ESC Recommended LiPo Battery: 6-12S LiPo
• PWM Input Signal Level: 3.3V/SV (Compatible)
• Throttle Signal Frequency: 50-500Hz
• Operating Pulse Width: 1100-1940μs (Fixed or cannot be programmed)
• Max Input Voltage: 52.2V
• Max Input Current (Continuous): 80A (With good heat dissipation)
• Max Peak Current (10s): 100A (With good heat dissipation)
• Nozzle Mounting Holes: 2*M3, 28.4mm

Propeller Specifications

• Propeller Diameter x Pitch: 30x11
• Throttle (%): 56%, 61%, 76%, 84%, 90%, 100%
• Thrust, Ampere, Power:
  • 5012, 61%, 5999, 14.2, 6690
  • 7090, 7988, 22, 7390, 9019
  • 7700, 9990, 81%, 11017, 84%
  • 12005, 90%, 13991, 54.8, 15289, 65.3

Integrated & Ready-to-Use Propulsion System

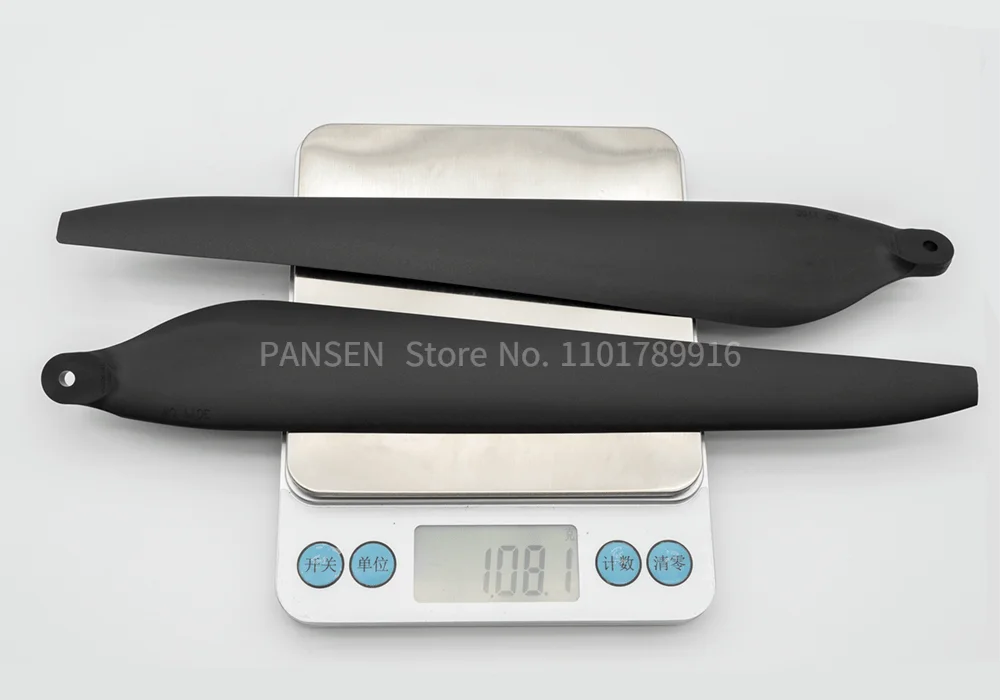

The X8 Power System integrates the motor, ESC, propeller, and motor mount into a cohesive unit. Compatible with 30mm & 35mm diameter carbon fiber arm tubes, it offers ease of mounting and use. With dedicated adapters and blades, it can handle a load of 5-7kg, providing up to 15.3kg thrust per axis.

FOC-Based PMSM Algorithm

Utilizing Field Oriented Control (FOC)-based Permanent Magnet Synchronous Motor (PMSM) algorithm, the X8 Power System achieves a balanced and efficient collaboration between ESC, motor, and propeller. This algorithm ensures high stability, reliability, and efficiency.

Super Waterproof Design

With an IPX7 waterproof rating, the X8 Power System is suitable for various harsh working conditions, including exposure to rainwater, pesticides, salt spray, high temperature, sand, and dust. The system can be rinsed directly with fresh water after use.

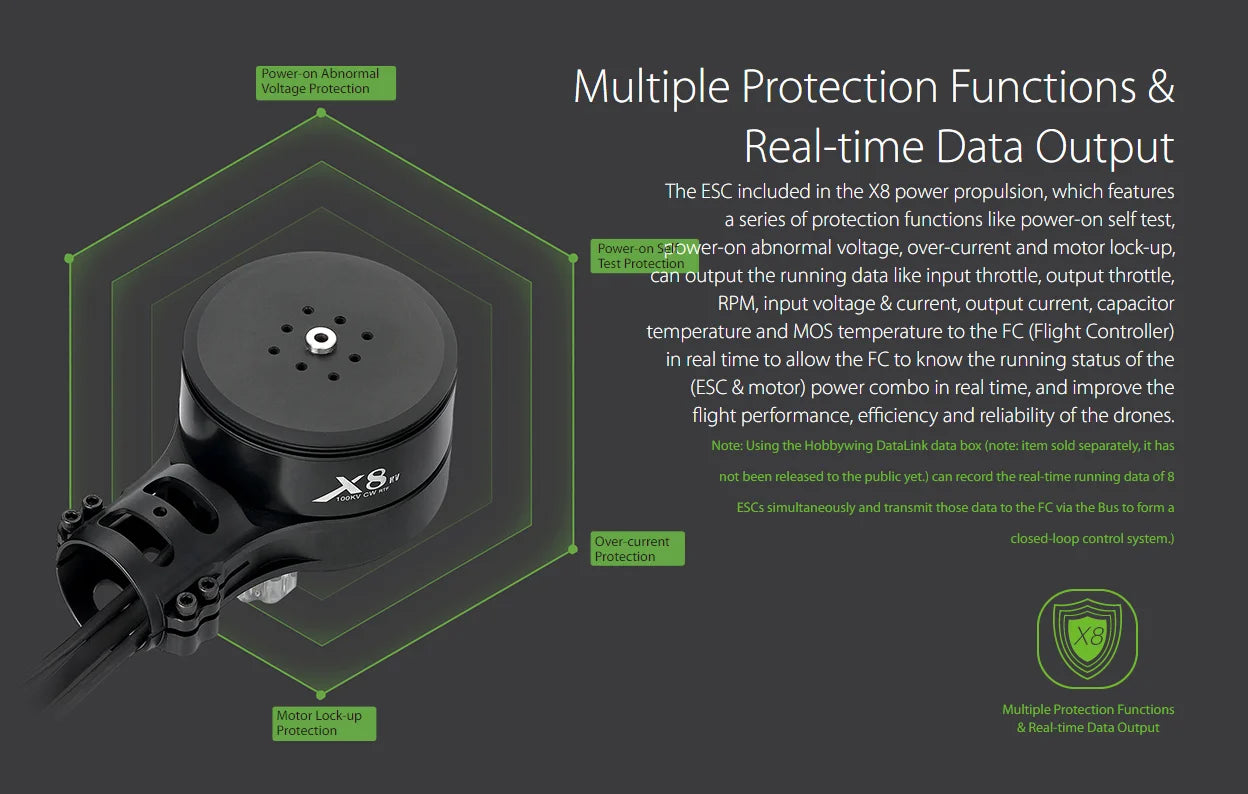

Protection and Real-Time Data Output

The ESC features multiple protection functions, including power-on self-test, power-on abnormal voltage, over-current, and motor lock-up protection. Real-time data output includes information on input/output throttle, RPM, input voltage/current, output current, capacitor temperature, and MOS temperature. Using the Hobbywing datalink data box, real-time data for up to 8 ESCs can be recorded simultaneously, forming a closed-loop control system.

High-Brightness LED Indicator

The X8 Power System is equipped with a high-brightness LED indicator, providing information on the system's working status. It also serves as a warning indicator for abnormal issues, enhancing overall safety.

High Thrust & Efficiency Propeller

The 3011 propeller, crafted from special high-strength carbon fiber, ensures solidity, lightness, and excellent dynamic balance. Combined with advanced aerodynamics, unique blade tip design, and efficient FOC algorithm, the propeller guarantees high thrust and efficiency.

Super Impact Resistance

The CNC-machined aluminum alloy frame and optimized structure design provide effective protection to motor components, significantly reducing the risk of structure deformation or malfunction due to impacts.

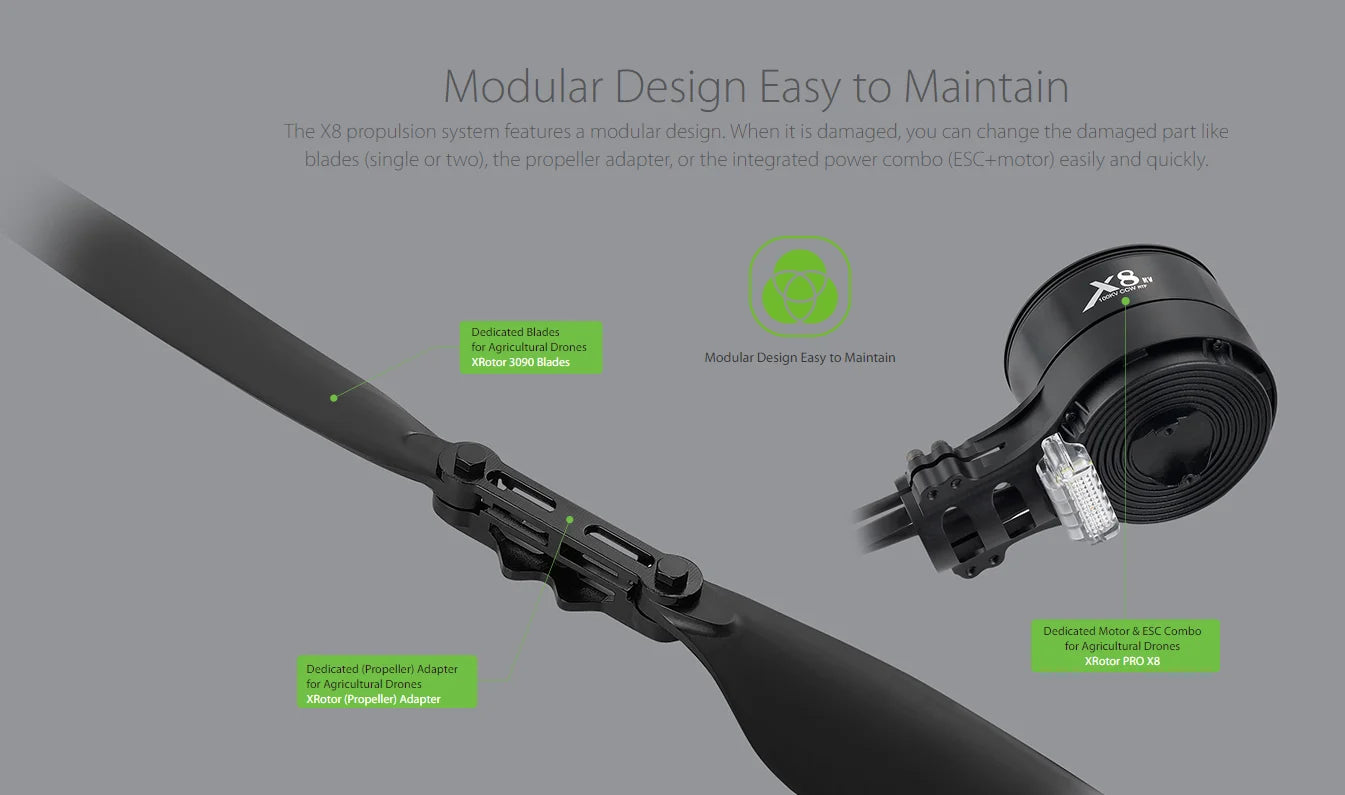

Modular Design for Easy Maintenance

The X8 Power System features a modular design, allowing easy and quick replacement of damaged parts, such as blades, propeller adapters, or the integrated power combo (ESC+motor).

FAQ

Q: What is the waterproof rating of the X8 Power System?
A: The X8 Power System has an IPX7 waterproof rating.

Q: What LiPo battery is recommended for the ESC?
A: The recommended LiPo battery for the ESC is 6-12S.

Q: Can the X8 Power System be used in rainy conditions?
A: Yes, the system is waterproof and suitable for rainy conditions.

Q: How can I record real-time data for multiple ESCs simultaneously?
A: Use the Hobbywing datalink data box (sold separately) to record real-time data for up to 8 ESCs simultaneously.

Q: Is the X8 Power System compatible with different propeller sizes?
A: The system is optimized for use with the included 3011 propeller.

Note: Specifications and features are subject to change with firmware updates.
