Hobbywing X9 plus Power system Details

x9 pus xiplus powertrain breaks through both force and efficiency .

Hobbywing Technology Co., Ltd., the leading manufacturer of DC brushless motors and their controls, presents...

Features Power Efficiency, Super Aerodynamic Body Design for Optimized Thrust, Rapid Heat Dissipation, and Multiple Protection Functions including IPX7 Waterproofing.

power efficiency super a body upgrade optimize thrust structure rapdheat ipx7 multiple free disspation rap

X9-Plus power system has a maximum load of 3kg/ shaft and maximum pulling force of 26.5kg for 36-inch composite aviation folding blades . it is recommended to use 10-13kg single-axis load, with better efficiency in the range of 10-12kg .

x9-plus power system is a double breakthrough in strength and efficiency . maximum load of 3kg/ shaft and maximum pulling force of 26.5kg for 36-inch composite aviation folding blades . recommended to use 10-13

The motor features Hobbywing's 9-series high-load platform, incorporating an optimized electromagnetic design to support a single-axis load capacity of up to 13 kg.

motor adopts hobbywing 9 series big load frame platform_ make electromagnetic design and optimize system for 13kg single axle load . performance and efficiency go hand in hand .

The efficiency of the motor has been optimized to achieve maximum performance, with reduced internal resistance. Additionally, the shaft diameter has been increased, resulting in a significant increase of over 50% in load capacity.

with the optimized foc vector control drive technology; the efficiency is promoted from the bottom of the motor again and increase the endurance . the shaft diameter is increased, and the load capacity is increased by more than 50% .

The Hobbywing X9 PLUS power system provides real-time output of operational status data to the flight controller, allowing it to monitor and control the electronic speed controller (ESC) and motor performance in real-time.

multiple protection functions improve system reliability x9plus power system has a series of protection functions . power on self-inspection, power on voltage abnormal protection, current protection, lock-up protection . flight controller can master the

The Hobbywing X9+ power system features an anti-corrosion design with an IPX7 rating, making it suitable for use in various working environments and climates worldwide. Additionally, the ESC is fully encapsulated, providing an overall protection grade of IPXZ.

anticorrosion x9 9670 protection grade ipx7 in order to deal with the different areas of plant protection indlustry and more severe use environment . the overall protection grade is 'it can apply to

Details reveal that the navigation lights flash to indicate a power failure, alerting the user to the specific fault status and enabling timely discovery and confirmation of any issues.

The product features a rapid cooling structure design that follows an excellent heat dissipation concept. This design widens the cooling duct of the motor rotor, effectively reducing the current and thermal load even at high power loads, resulting in the same thrust performance.

02 detatls show rapid cooling anti-collision structure design following the excellent heat dissipation structure . widen the cooling duct of the motor rotor under high power load . increase the torque

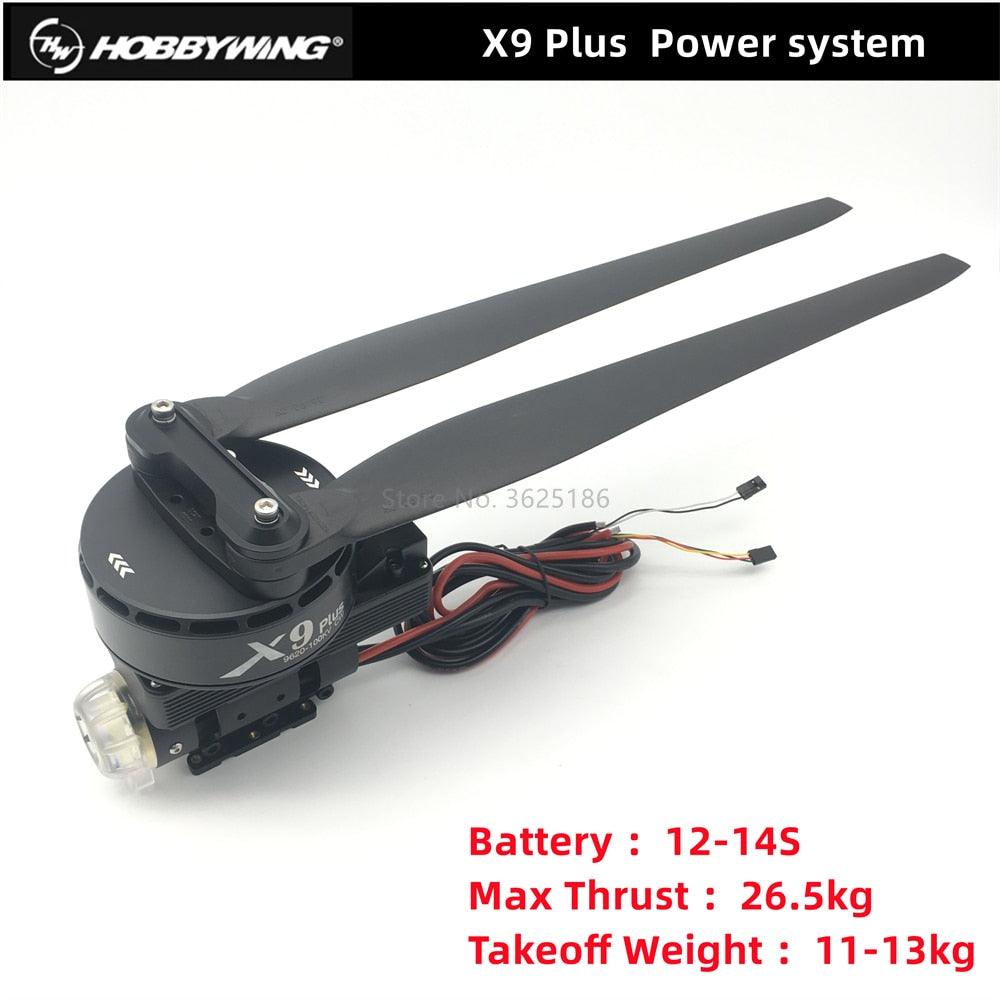

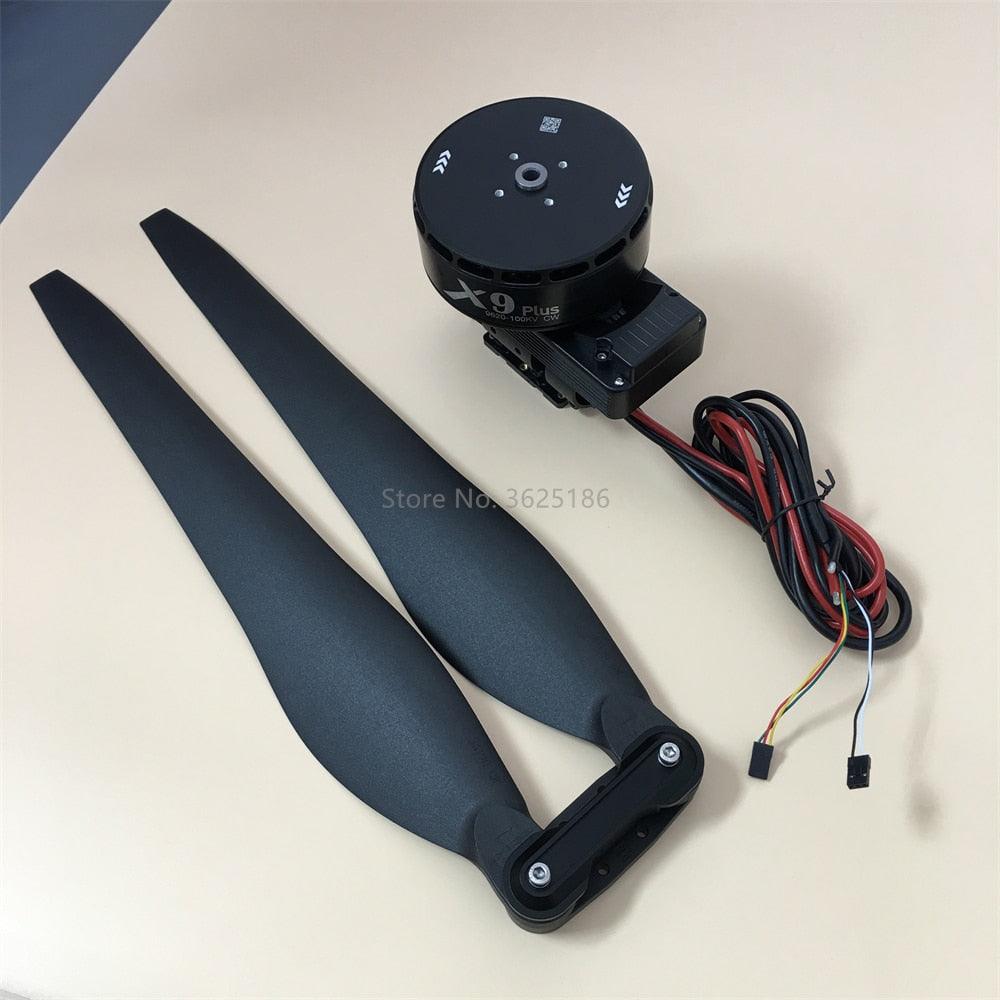

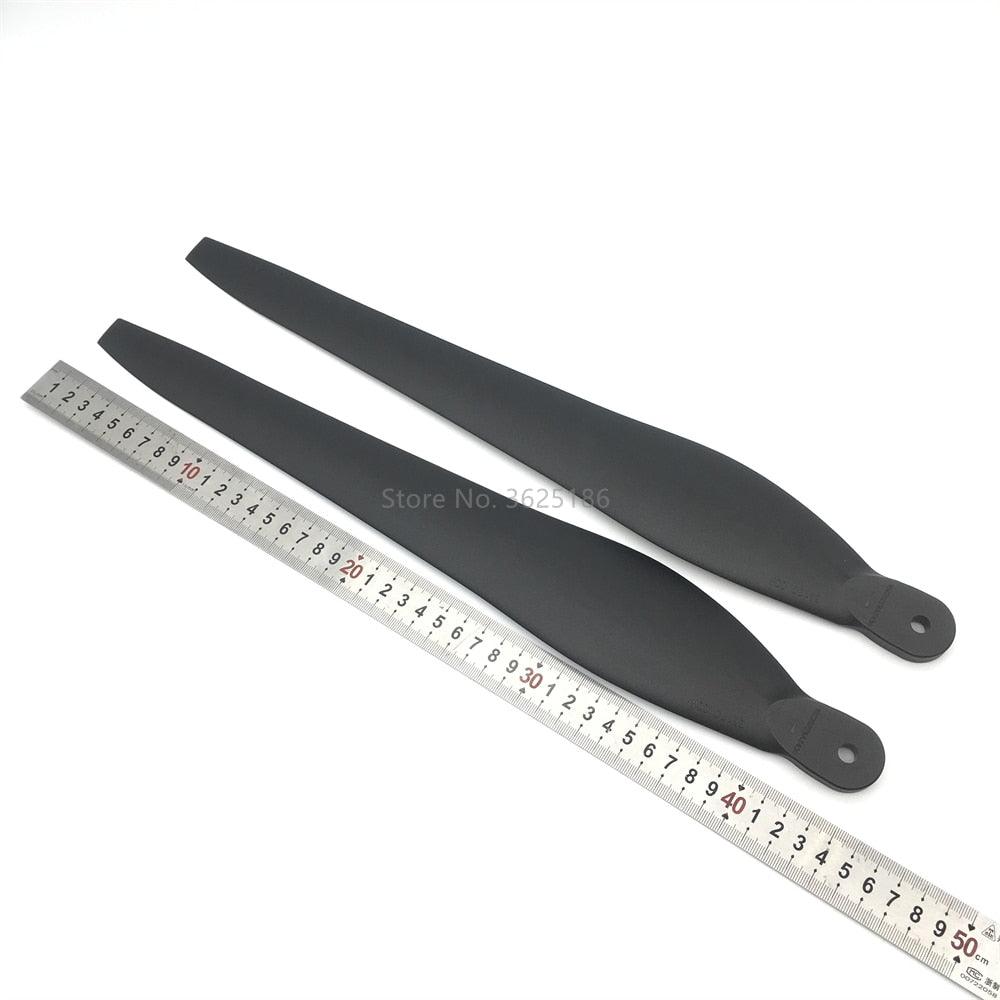

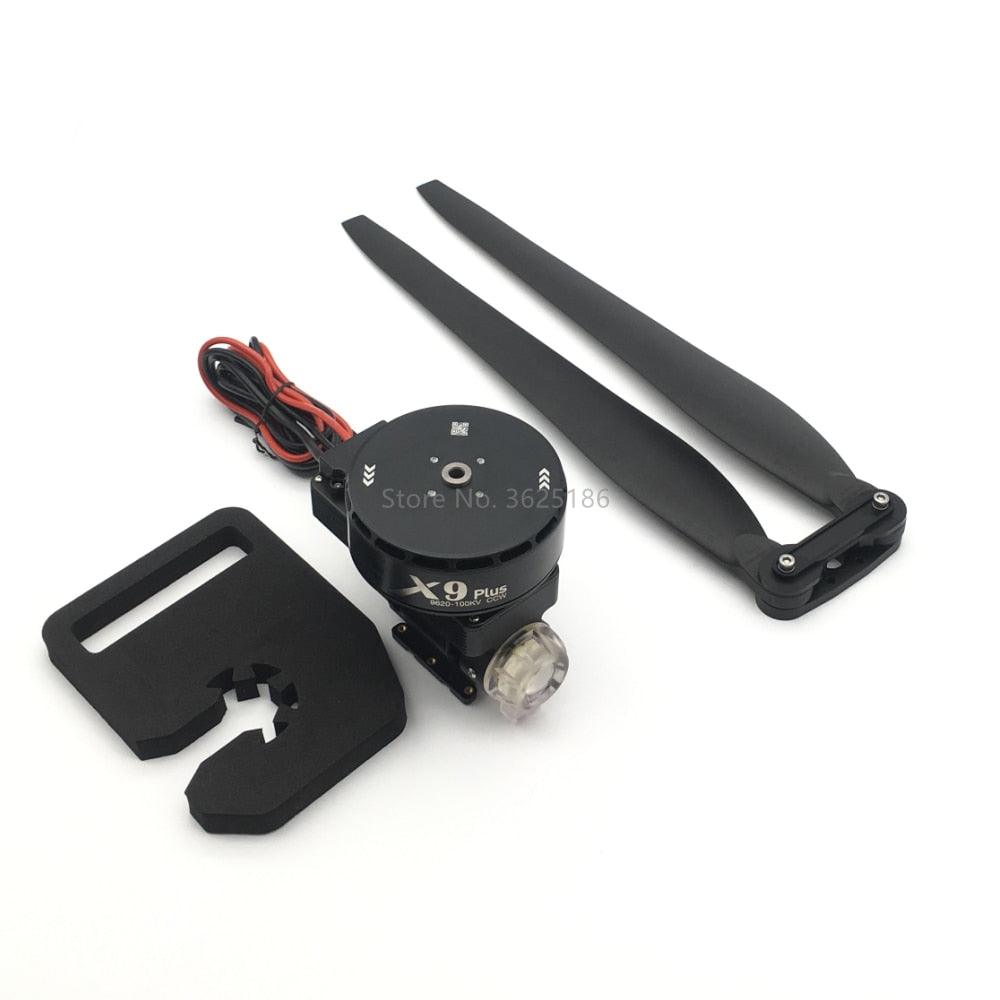

kobbywing x9 plus power system store no; 3629186 x 9 noci battery 12-145 max thrust 26.5kg takeoff weight 8 11-13kg 3

Hobbywing X9 Plus Power System, Store Part Number 3625186, includes a battery that provides up to 12-14.5V max thrust, weighs around 8.26kg (takeoff weight: approximately 11-13kg).

kobbywing x9 plus power system stor-e 3625186 battery : 12-145 max thrust 8 26.skg takeoff weight '11-13kg oplys lx9

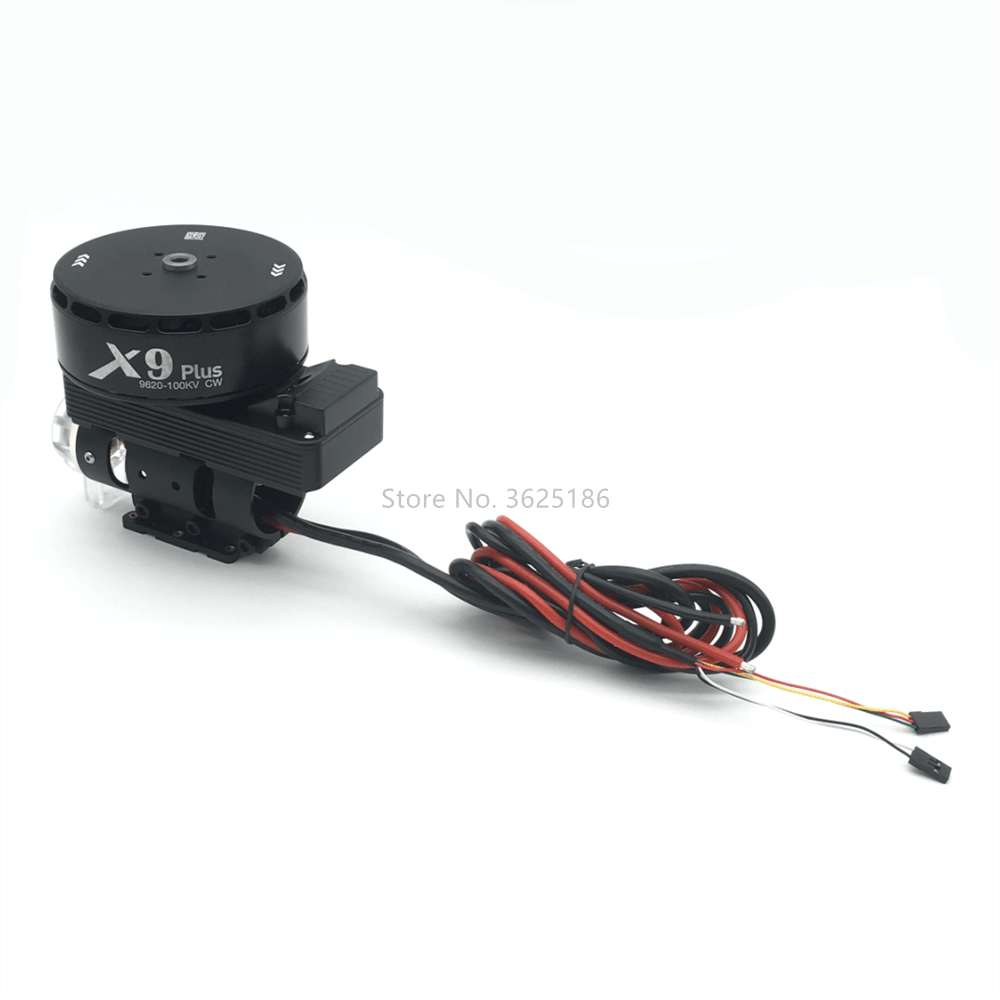

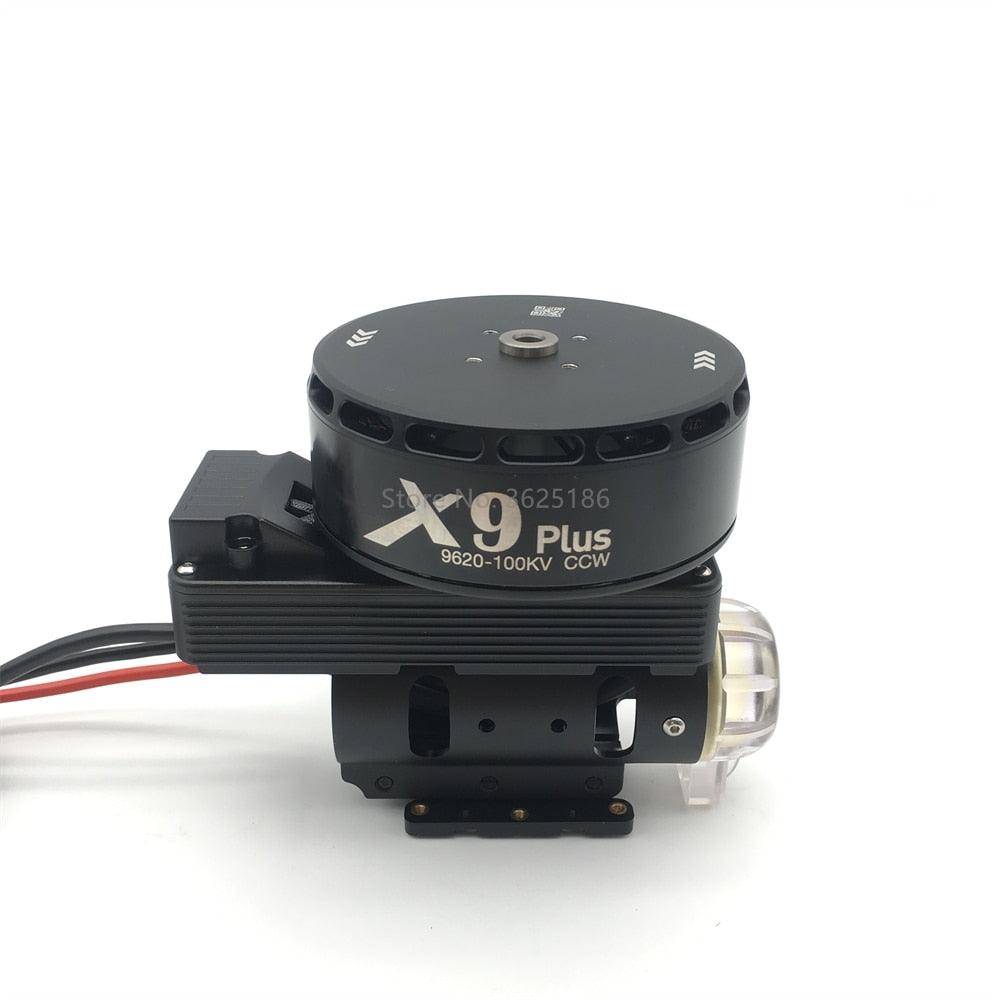

x9 plus 9020-10okv cw store no; 3625

store no. 36257 2 2 s82vkncz1zzul mmc 8

XROTOR PRO X Series ESC+Motor+Prop - All in One

Model	X9 Power System Combo	X8Power System Combo	X6 Power System Combo
p/n	30410030023 / 30410030024	30414000 / 30414001	30414050 (CW) / 30414051 (CCW)
Max Thrust	19.2kg/Axis (46V, Sea Level )	15.3kg/Axis (48V, Sea Level )	12kg/Axis (48V, Sea Level )
Recommended LiPo Battery	12S LiPo	12S LiPo	12S LiPo
Recommended Takeoff Weight	7-9.5kg/Axis (46V, Sea Level )	5-7kg/Axis(48V，Sea Level)	3-5kg/Axis(48V，Sea Level)
Product Weight (ESC/Motor/Prop)	1400g	1040g	720g
Waterproof Rating	IPX7	IPX7	IPX7
Operating Temperature	-20-55℃	-20℃~65℃	-20℃~50℃
Motor
Stator size	96*16mm	81*20mm	70mm
KV Rating	110KV	100KV	180KV
O.D of Carbon Fiber Tube	φ40	Φ35mm/Φ30mm (*Tube Adapter will be Needed)	φ30mm/φ28mm (*Tube Adapter will be Needed)
Bearing	Imported Waterproof Bearing	NSK Ball Bearing (Waterproof)	Imported Bearing
ESC
Recommended LiPo Battery	6-12S LiPo	6-12S LiPo	6-12S LiPo
PWM Input Signal Level	3.3V/5V (Compatible )	3.3V/5V (Compatible )	3.3v/5v (Compatible )
Throttle Signal Frequency	50-500Hz	50-500Hz	50-500Hz
Operating Pulse Width	1100-1940 μs (Fixed or cannot be Programmed )	1100-1940 μs (Fixed or cannot be Programmed )	1100~1940μs (Fixed or cannot be Programmed )
Max. Input Voltage	52.2V	52.2V	52.2V
Max. Input Current (Cont.)	120 A (w/ Good Heat Dissipation )	80 A(w/ Good Heat Dissipation )	80 A(w/ Good Heat Dissipation )
Max. Peak Current (10s)	150 A (w/ Good Heat Dissipation )	100 A (w/ Good Heat Dissipation )	100 A (w/ Good Heat Dissipation )
BEC	No	No	No
Nozzle Mounting Holes	φ28.4mm-2*M3	Φ28.4mm-2*M3	φ28.4mm-2*M3
Propeller
Diameter×Pitch	34.7×11 inch	3090	2388
Weight	-	180g	91g (w/ Propeller Adapter, Single Blade: 36g)

The COMBO-XRotor Pro-X9 brushless power system is a plant protection power system that adapts to uniaxial 7-9.5kg load. The maximum pulling force of uniaxial is 19.2kg, integrated with a 40mm carbon fiber tube arm. The waterproof grade is IPX7. It is resistant to rainwater, pesticides, salt spray, high temperature, sand and dust, impact, mud, and soil. ESC FOC-motor PMS system has optimized computing, with multiple protection functions such as power-on self-check, power-on voltage abnormal protection, overcurrent protection, lock-up protection and etc. as well as real-time data transmission.

Model	X9 Power System Combo RTF (Prop is not included)
p/n	30410030023 / 30410030024
Max Thrust	19.2kg/Axis (46V, Sea Level )
Recommended LiPo Battery	12S LiPo
Recommended Takeoff Weight	7-9.5kg/Axis (46V, Sea Level )
Product Weight (ESC/Motor/Prop)	1400g
Waterproof Rating	IPX7
Operating Temperature	-20-55℃
Motor
Stator size	96*16mm
KV Rating	110KV
O.D of Carbon Fiber Tube	φ40
Bearing	Imported Waterproof Bearing
ESC
Recommended LiPo Battery	6-12S LiPo
PWM Input Signal Level	3.3V/5V (Compatible )
Throttle Signal Frequency	50-500Hz
Operating Pulse Width	1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage	52.2V
Max. Input Current (Cont.)	120 A (w/ Good Heat Dissipation )
Max. Peak Current (10s)	150 A (w/ Good Heat Dissipation )
BEC	No
Nozzle Mounting Holes	φ40mm
Recommended Propeller
Diameter×Pitch	34.7×11 inch
Weight	-

IMPORTANT NOTE;

• X9 series is designed for Agricultural application or logistics transportation. farmland. Agricultural UAV features high thrust, heavy loaded, good anticorrosive and antirust performance. Due to heavy motor/ESC, its thrust effect is lower compared to aerial photography UAV. It focuses on the durability and long term reliability. In contrast, Aerial photography UAV features a high thrust effect. It requests highly on reliability and stability than plant protection UAV.  Due to lightweight motor / ESC, it is not recommended to use it in a severe / harsh environment.
• Made to order available

Download

• Hobbywing X9 Plus User's manual
•  Data sheet
