HolyBro Kakute H7 / H7 Mini Flight Controller - Bluetooth Baro OSD 5V 9V BEC Blackbox 2-6S FC for RC FPV Analog Digital Drones

HolyBro Kakute H7 / H7 Mini Flight Controller Bluetooth Baro OSD 5V 9V BEC Blackbox 2-6S FC for RC FPV Analog Digital Drones

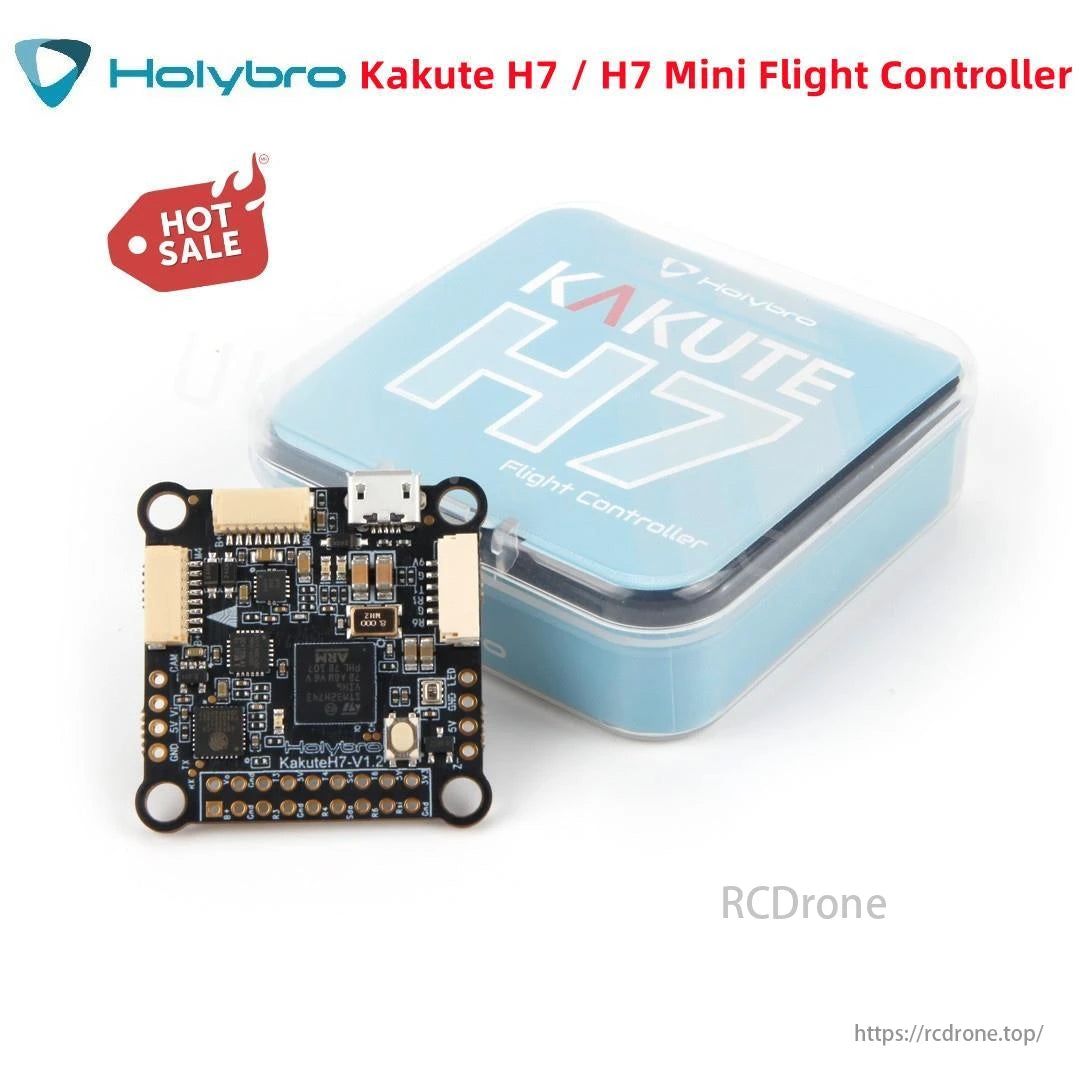

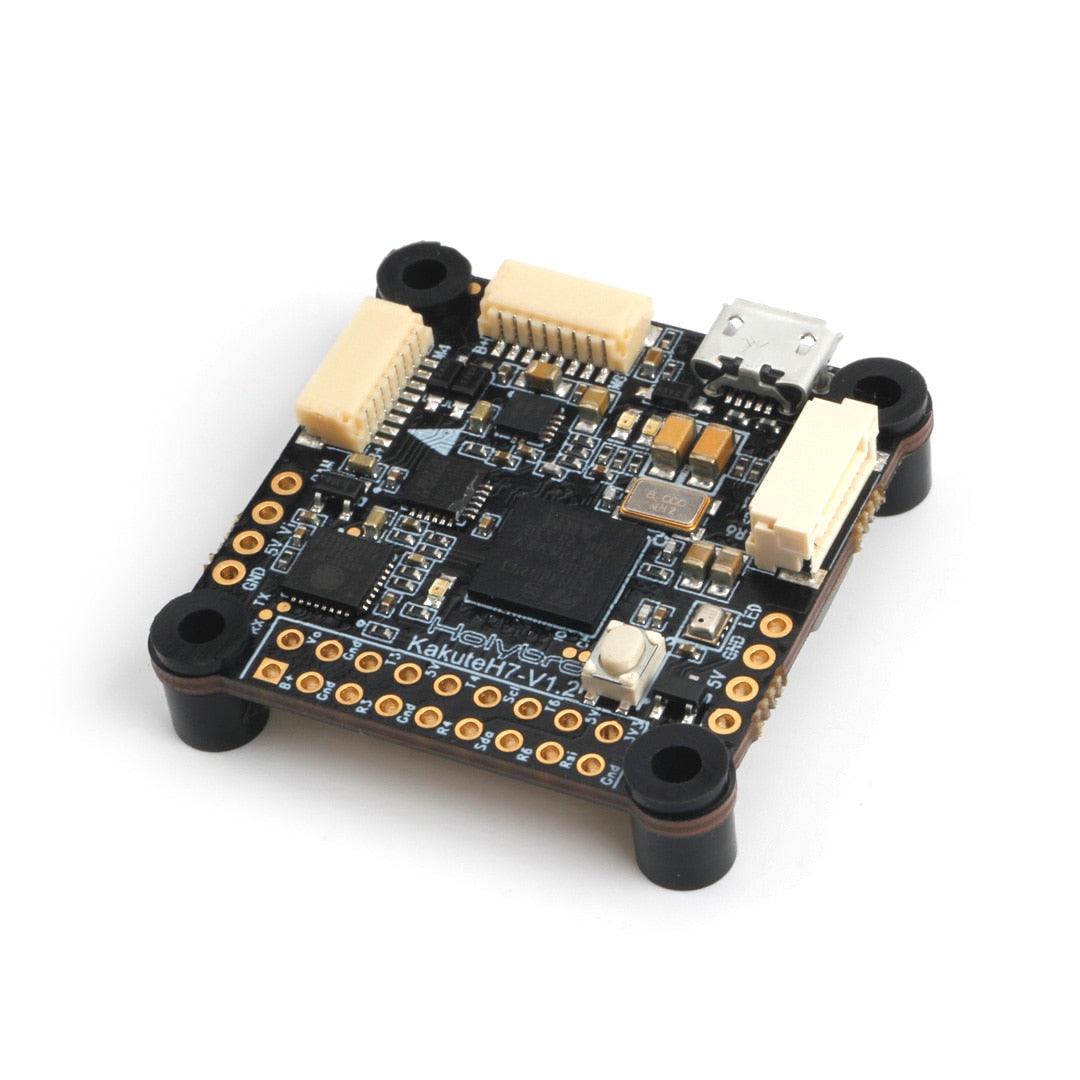

Kakute H7

Description:

The Holybro Kakute H7 Flight Controller is full of features including integrated Bluetooth, dual plug-and-play 4in1 ESC ports, HD camera plug, barometer, OSD, 6x UARTs, full Blackbox MicroSD card slot, 5V and 9V BEC, easy soldering layout and much more.

The Kakute H7 builds upon the best features of its F7 predecessor and further improves on hardware components and layout. With the additional integrated Bluetooth chip onboard, you can perform Betaflight configuration and tuning wirelessly on your phone with the SpeedyBee Android & IOS App. The Kakute H7 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V regulator designed to power your HD video transmitter like DJI/Caddx FPV Air Unit & Caddx Vista while supporting analog system.

It has 6x dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry), along with a full MicroSD Card slot for virtually unlimited Blackbox data logging. Dual plug-and-play 4in1 ESC connectors, allowing easy plug-and-play support for x8 Octocopter configuration and keeping it simple and clean. The integrated BetaFlight OSD makes it easy to display important information on your FPV display like battery voltage, flight time, warnings, RSSI, smart audio features and more. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers

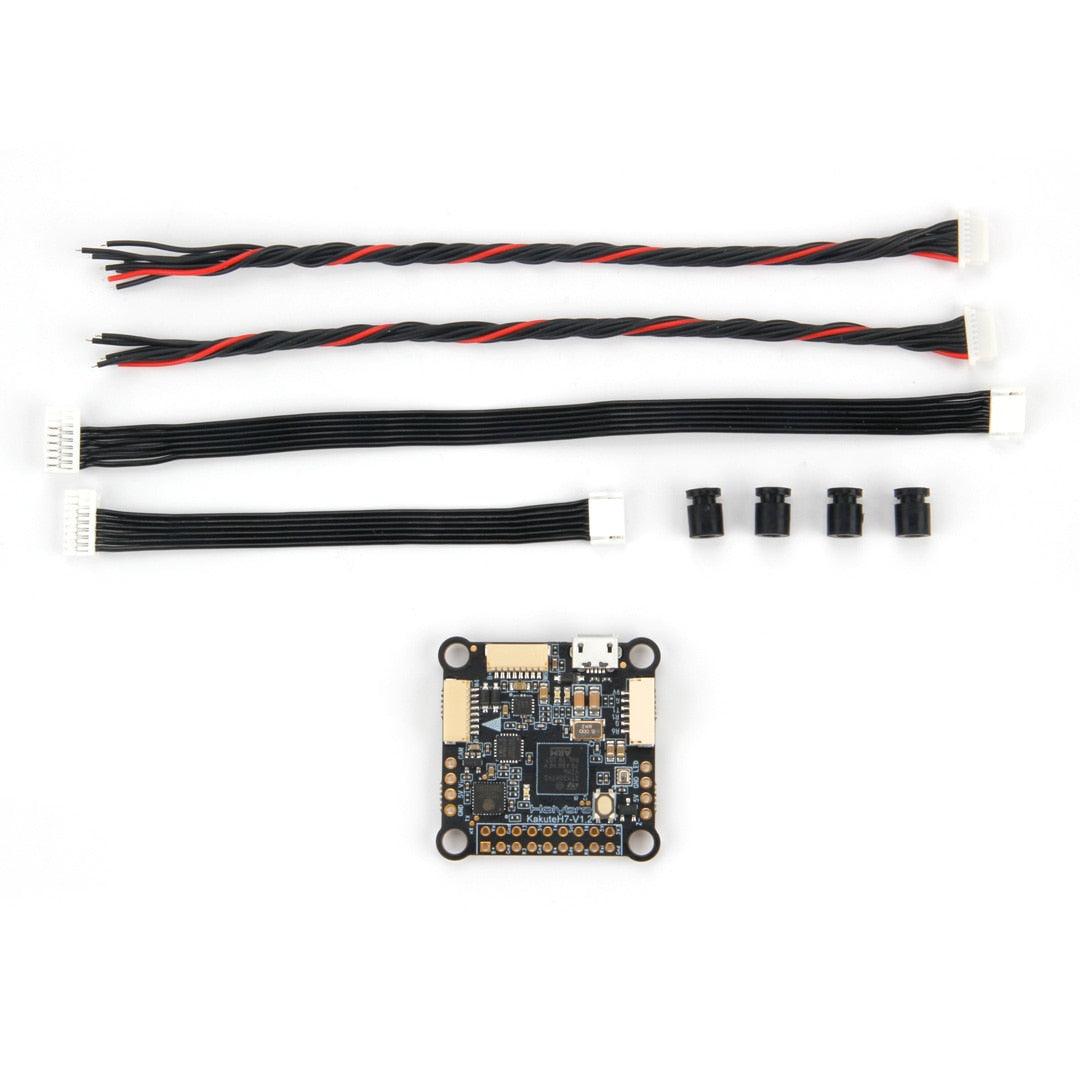

Package Includes:

   FC board *1
   M3 Anti-Vibration Silicone Grommet Insert *4
   JST SH 8pin 150mm cable*2
   JST GHR 8pin to JST GHR 6pin 80mm cable*1
   JST GHR 8pin to JST GHR 6pin 150mm cable*1

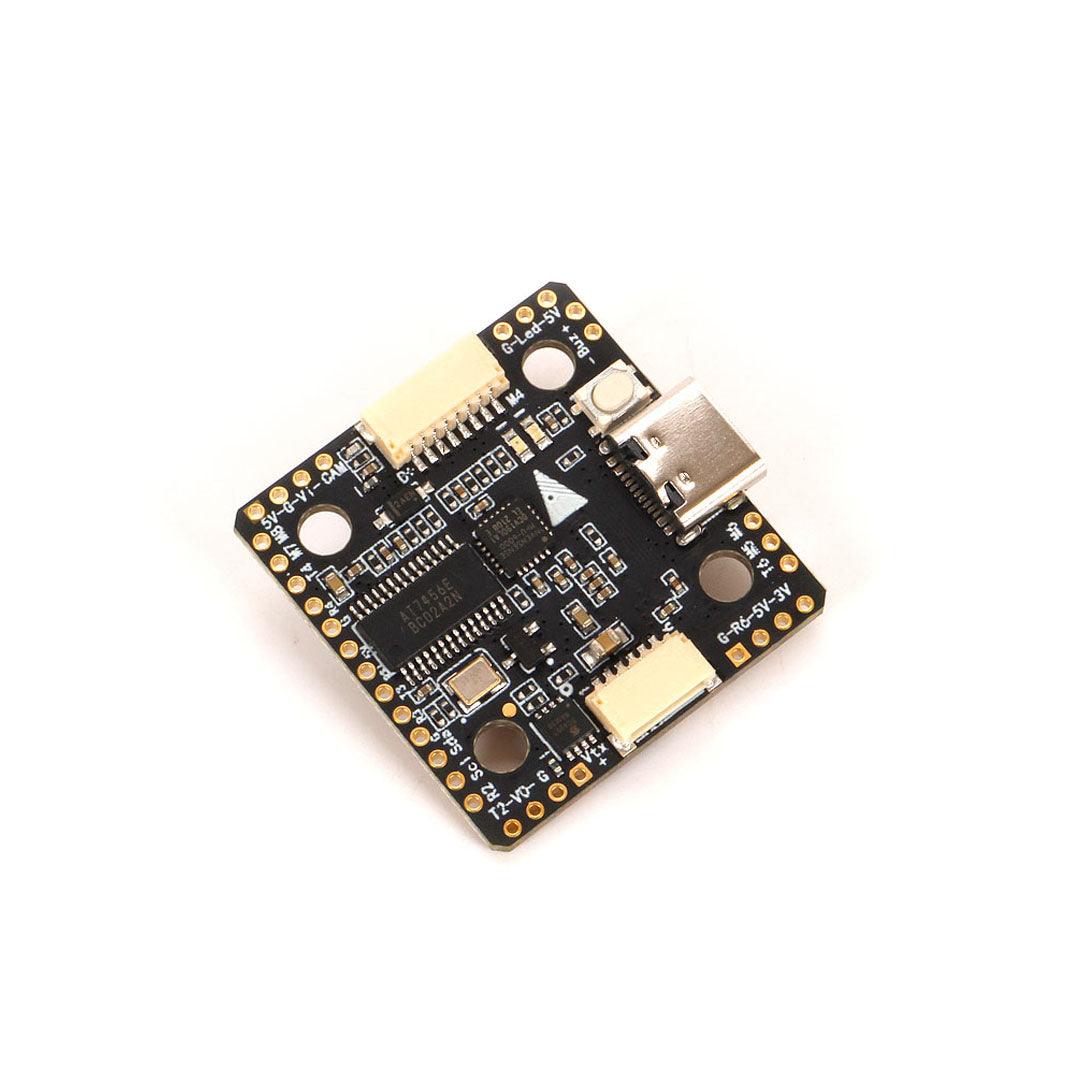

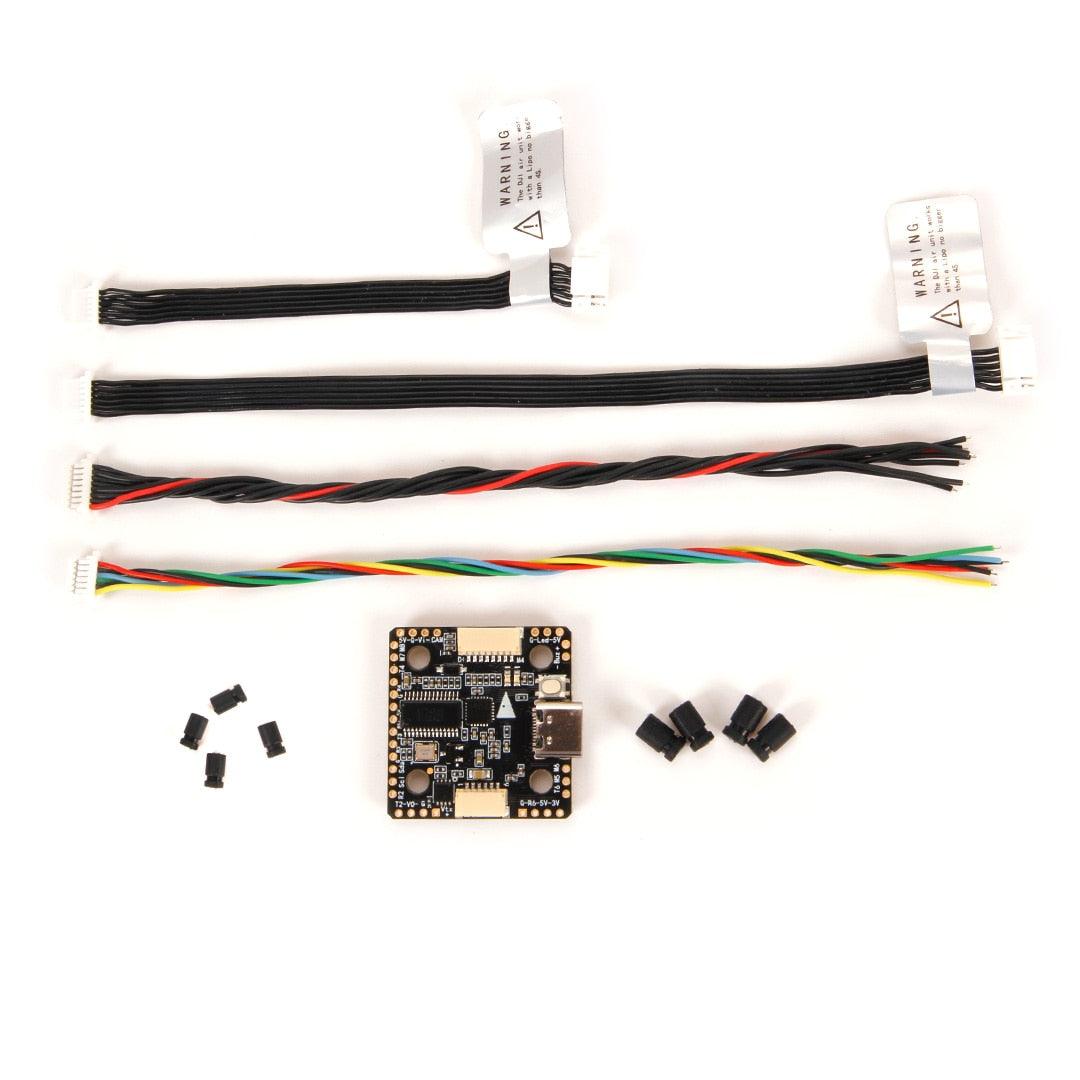

Kakute H7 Mini

VTX+ ONIOFF switch can enable using USERI Mode tab Betaflight, configure the AUX Range your liking .
