Holybro Pixhawk 6X Autopilot Flight Controller - Module Standard Base Mini Base H753 PM02D M8N M9N M10 GPS for RC Multirotor Airplanes Drone

Holybro Pixhawk 6X Autopilot Flight Controller - Module Standard Base Mini Base H753 PM02D M8N M9N M10 GPS for RC Multirotor Airplanes Drone

HolyBro

$234.33 USD
$328.06 USD $234.33 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

44 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Holybro Pixhawk 6X Autopilot H753 Flight Controller Module Standard Base SPECIFICATIONS

Upgrade Parts/Accessories: other

Tool Supplies: other

Remote Control Peripherals/Devices: other

Recommend Age: 12+y

RC Parts & Accs: other

Origin: Mainland China

Model Number: Pixhawk 6X

Material: other

Four-wheel Drive Attributes: other

For Vehicle Type: Helicopters

Brand Name: DUMBORC




Holybro Pixhawk 6X Autopilot Flight Controller, PX4 Autopilot® comes pre-installed.


Overview

The Pixhawk® 6X is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6X Open Standard and the Pixhawk® Autopilot Bus Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6X, you can find an STMicroelectronics® based STM32H753, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6X's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability. An independent LDO powers every sensor set with independent power control. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via ethernet is now possible.

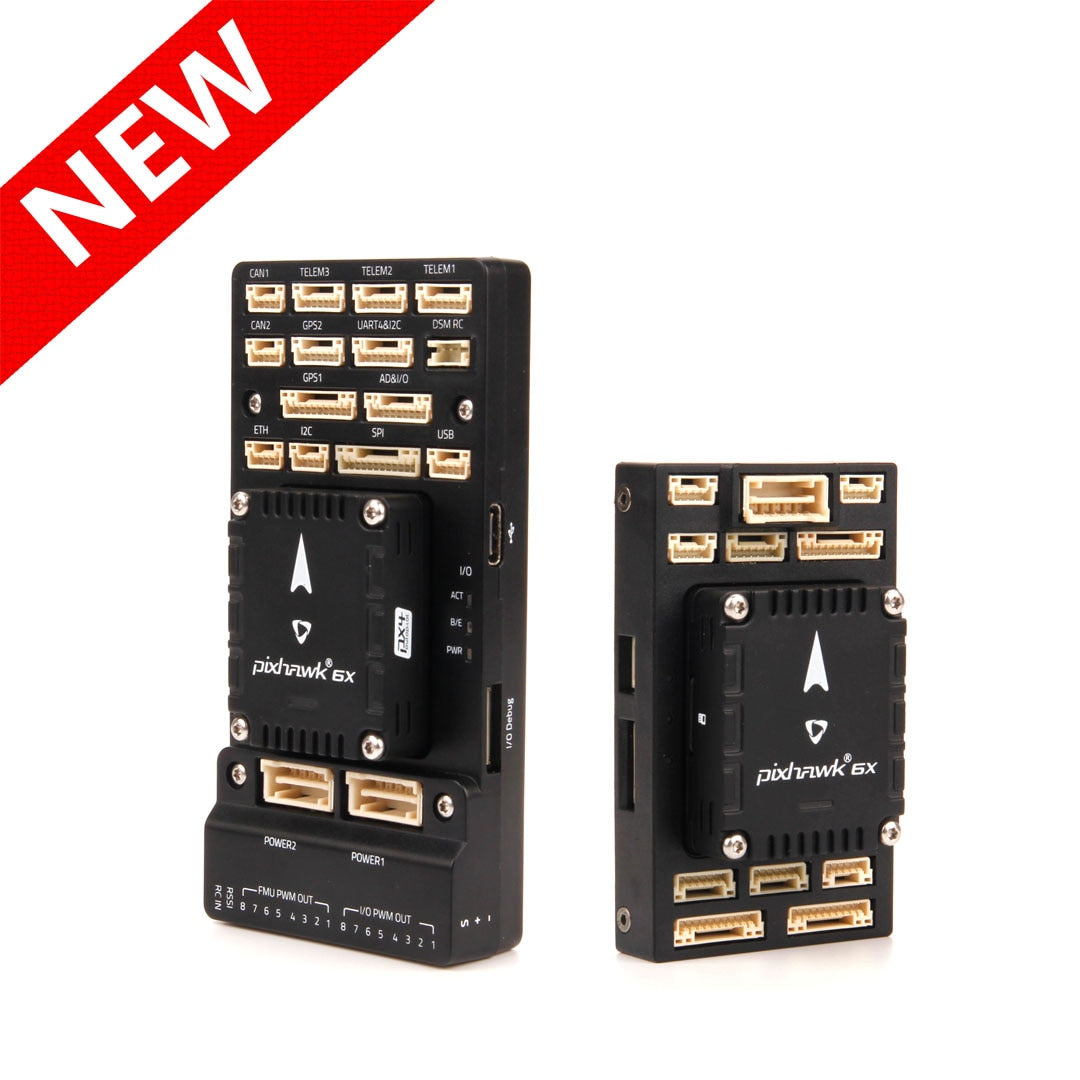

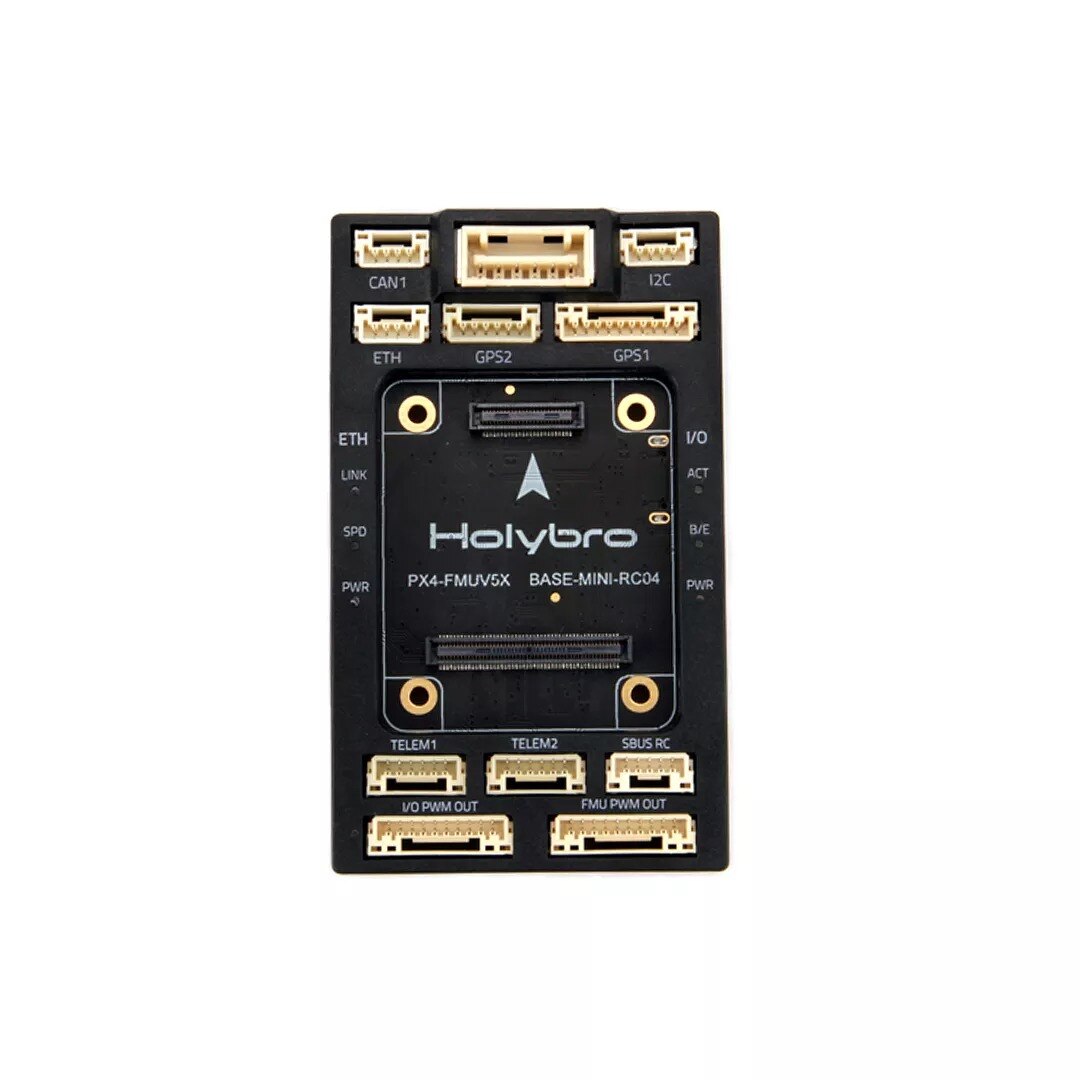

The Pixhawk® 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application. Holybro offers the Pixhawk Baseboard and the Pixhawk Mini-Baseboard, each with different form factor and interfaces.


Key Design Points

  • High performance STM32H753 Processor with clock speed up to 480 MHz

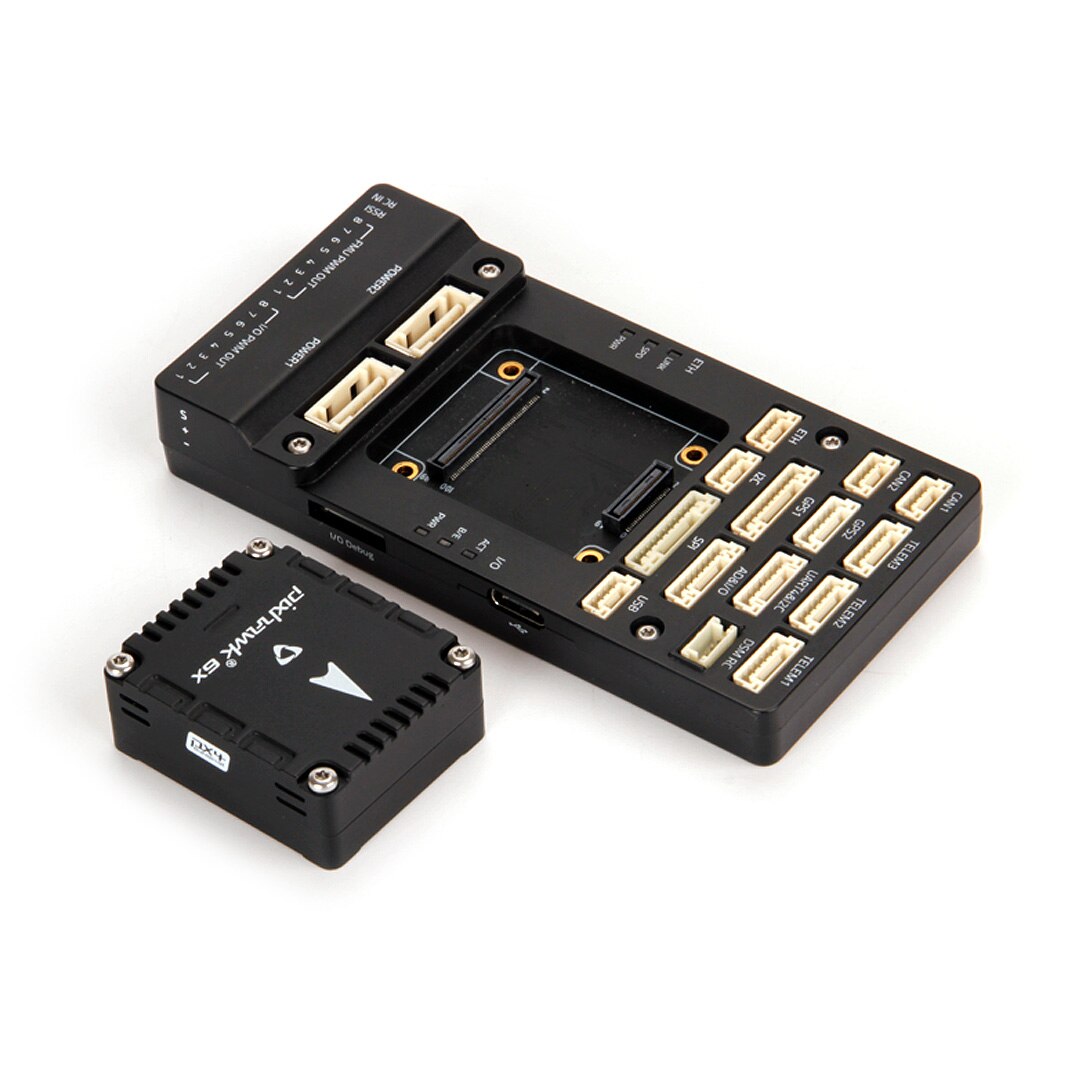

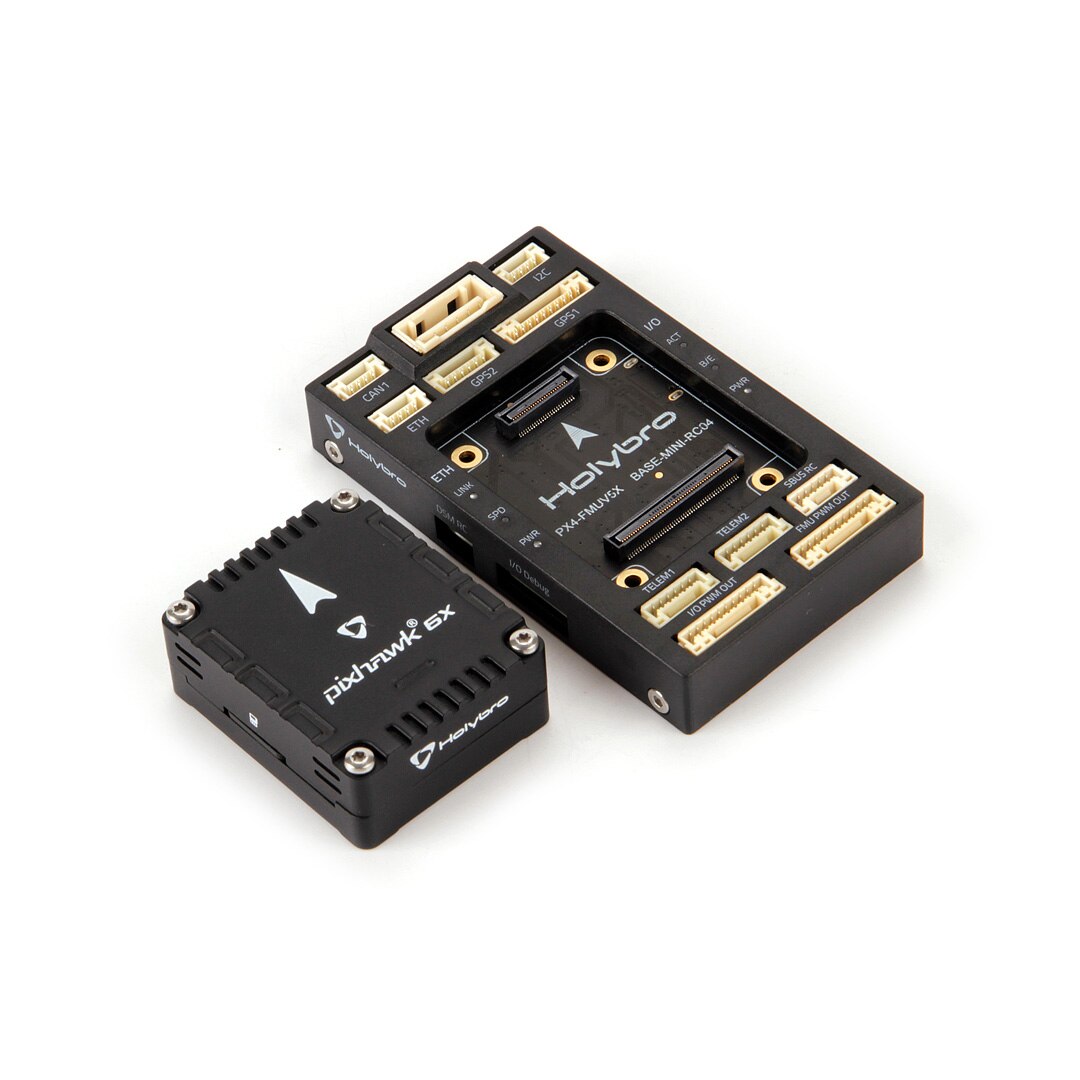

  • Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
  • Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses
  • Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
  • Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
  • Ethernet interface for high-speed mission computer integration
  • IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

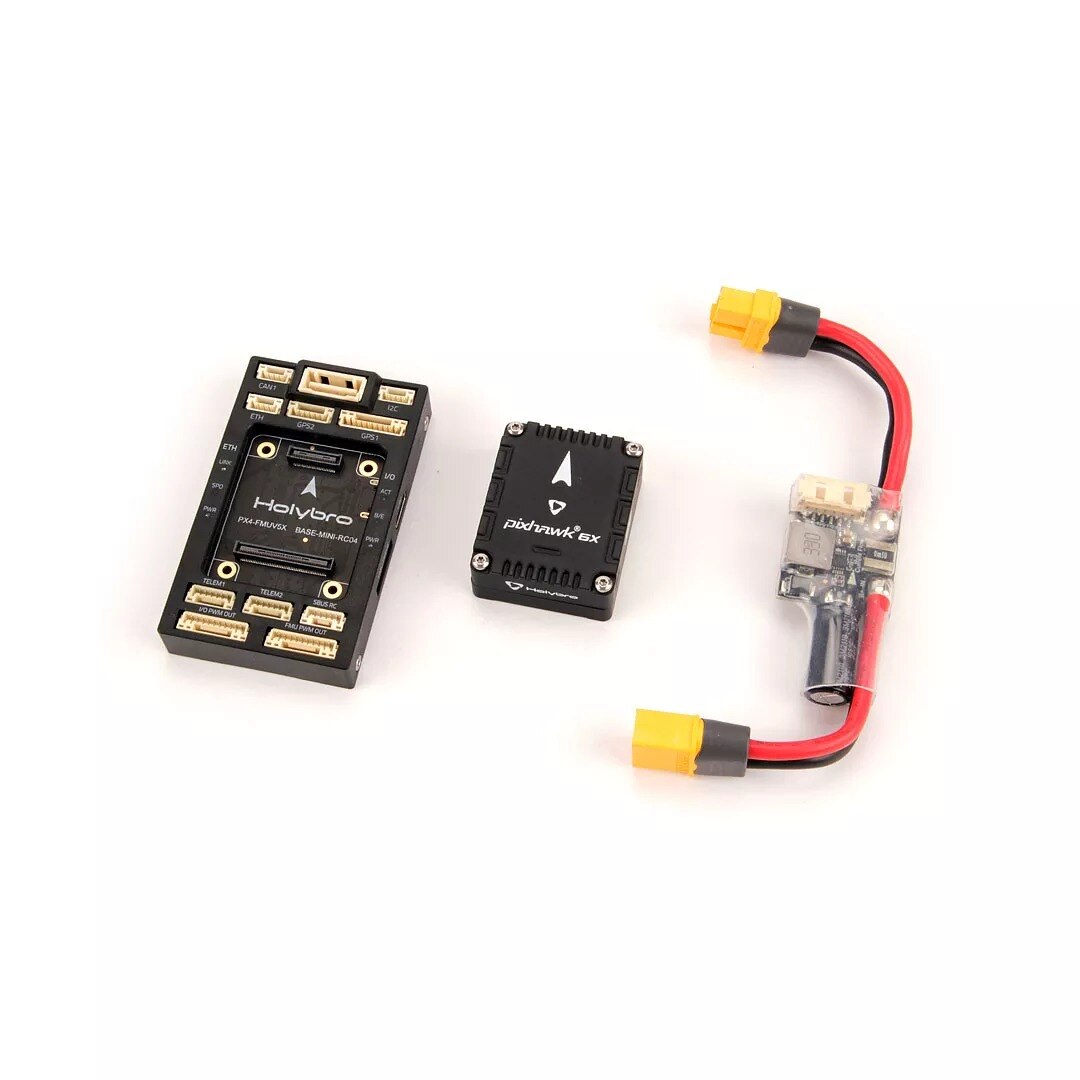

SKU20172 Standard Set/ SKU20173 Mini Set Includes:

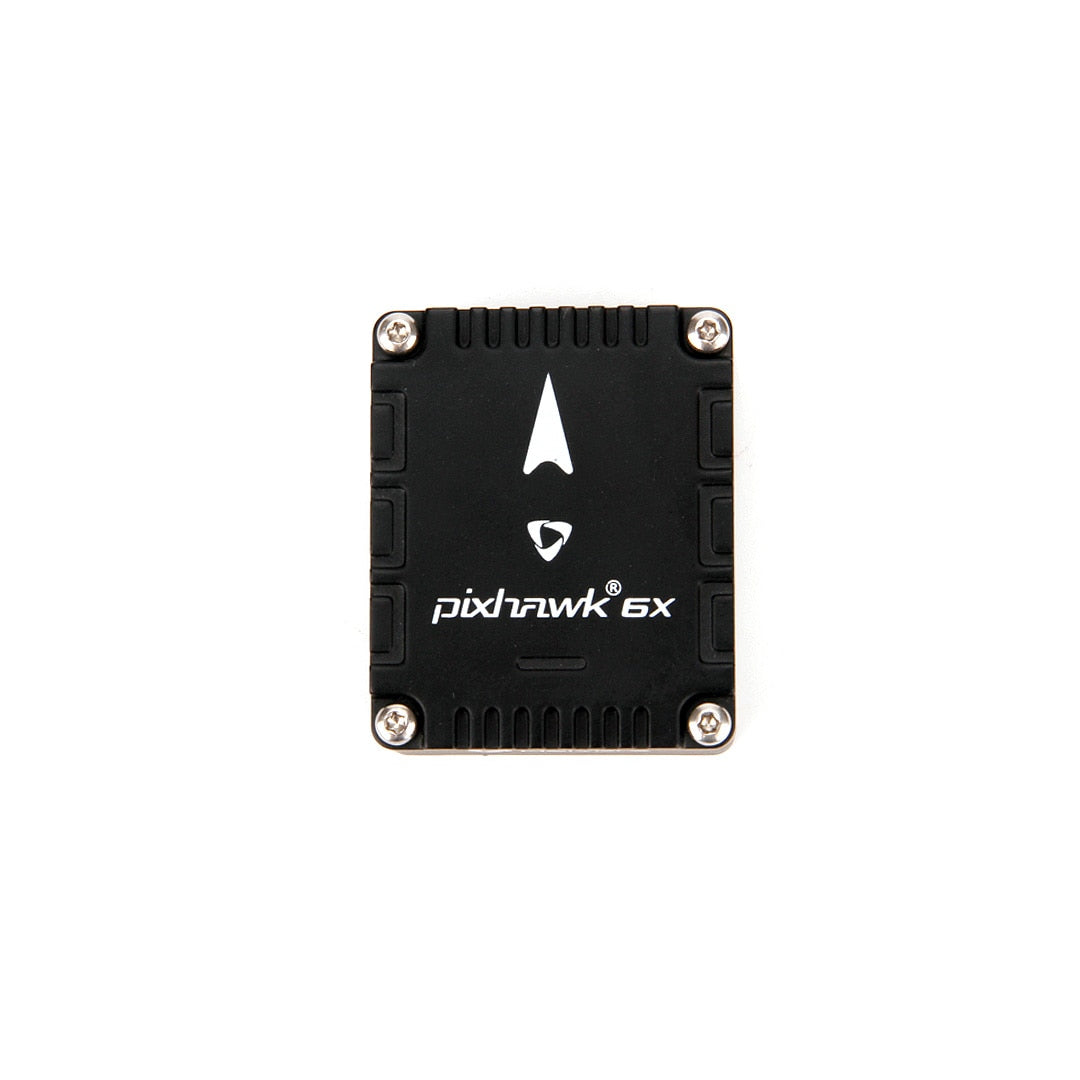

  • Pixhawk 6X Flight Controller Module

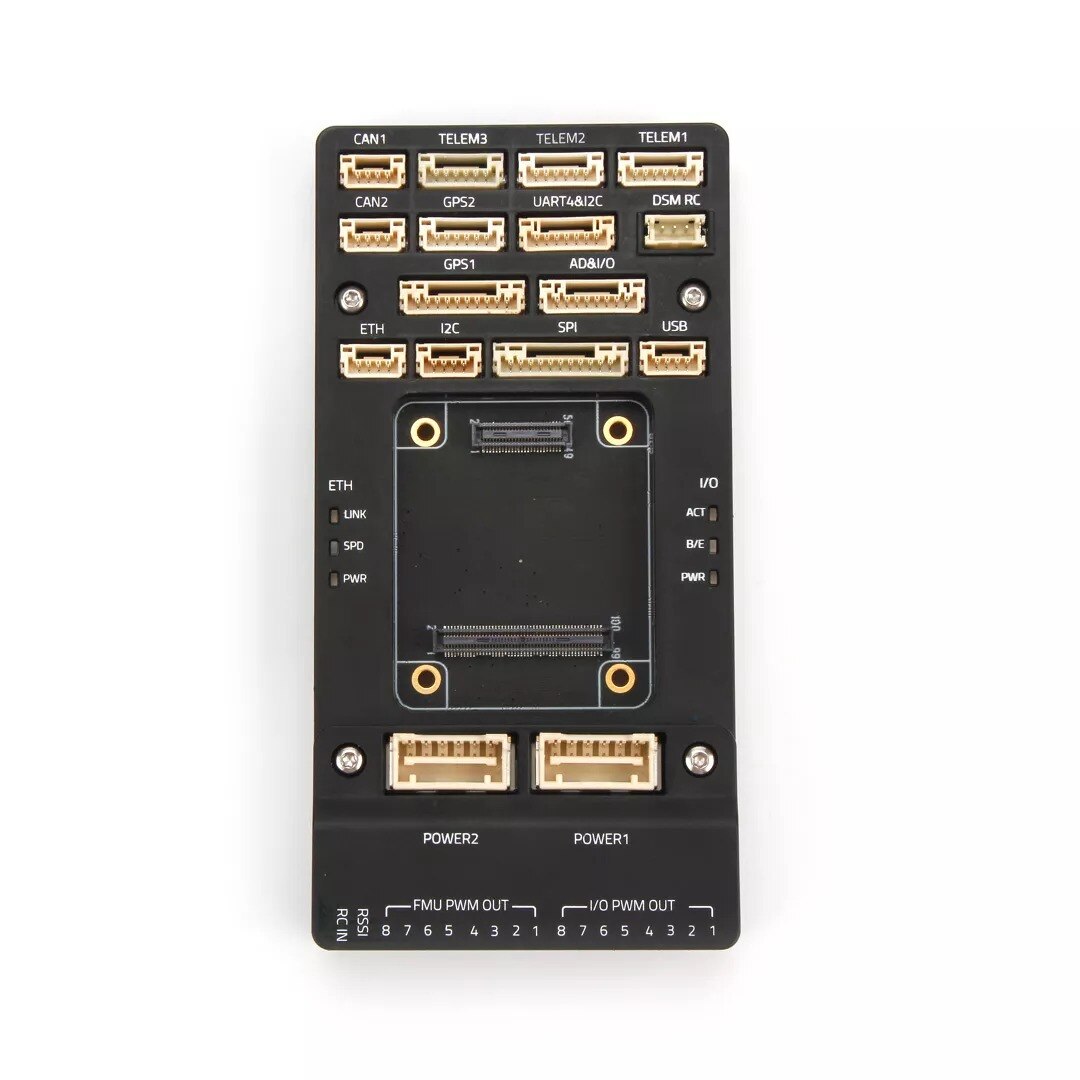

  • Pixhawk Standard Base / Pixhawk Mini Base
  • PM02D Power Module
  • Cable Set

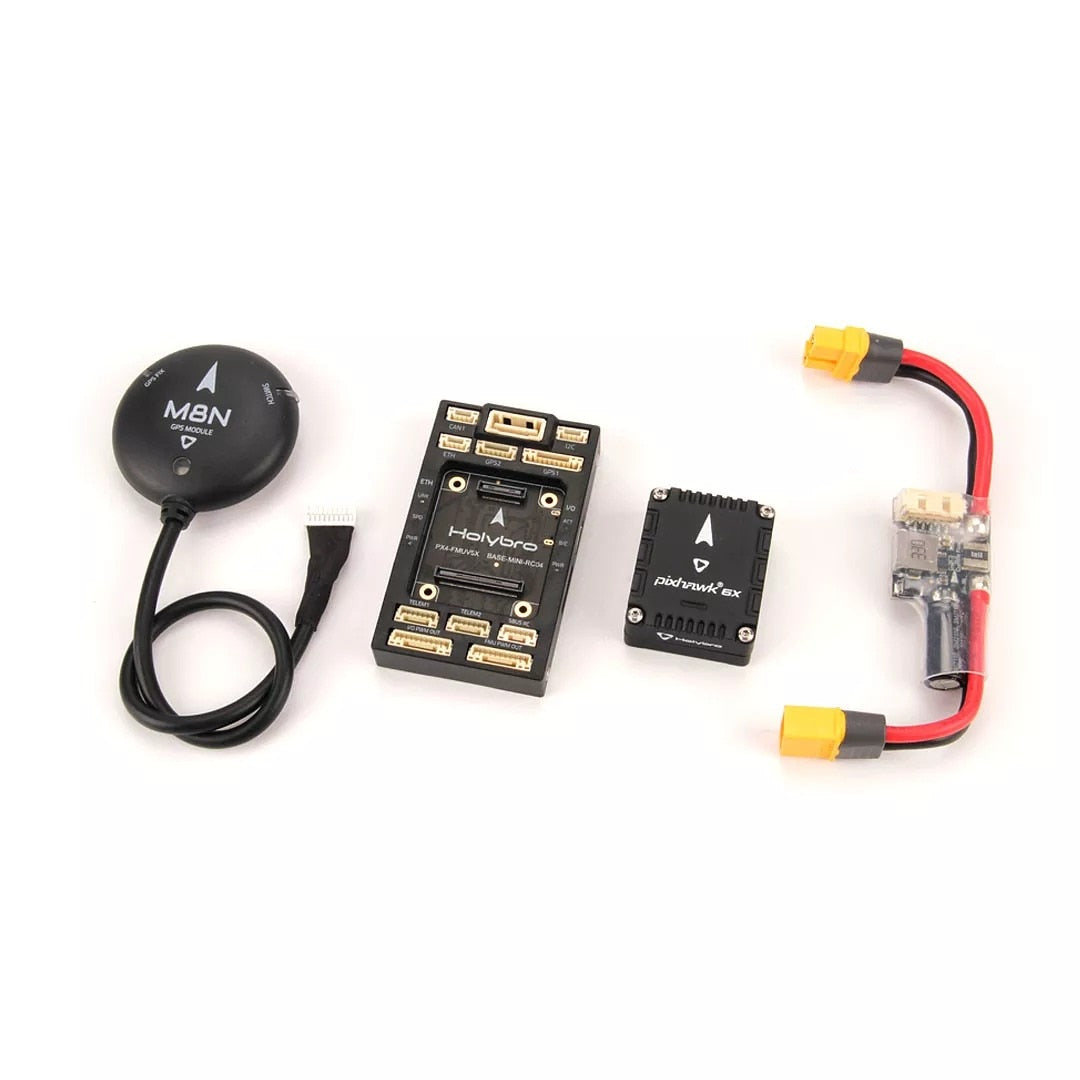

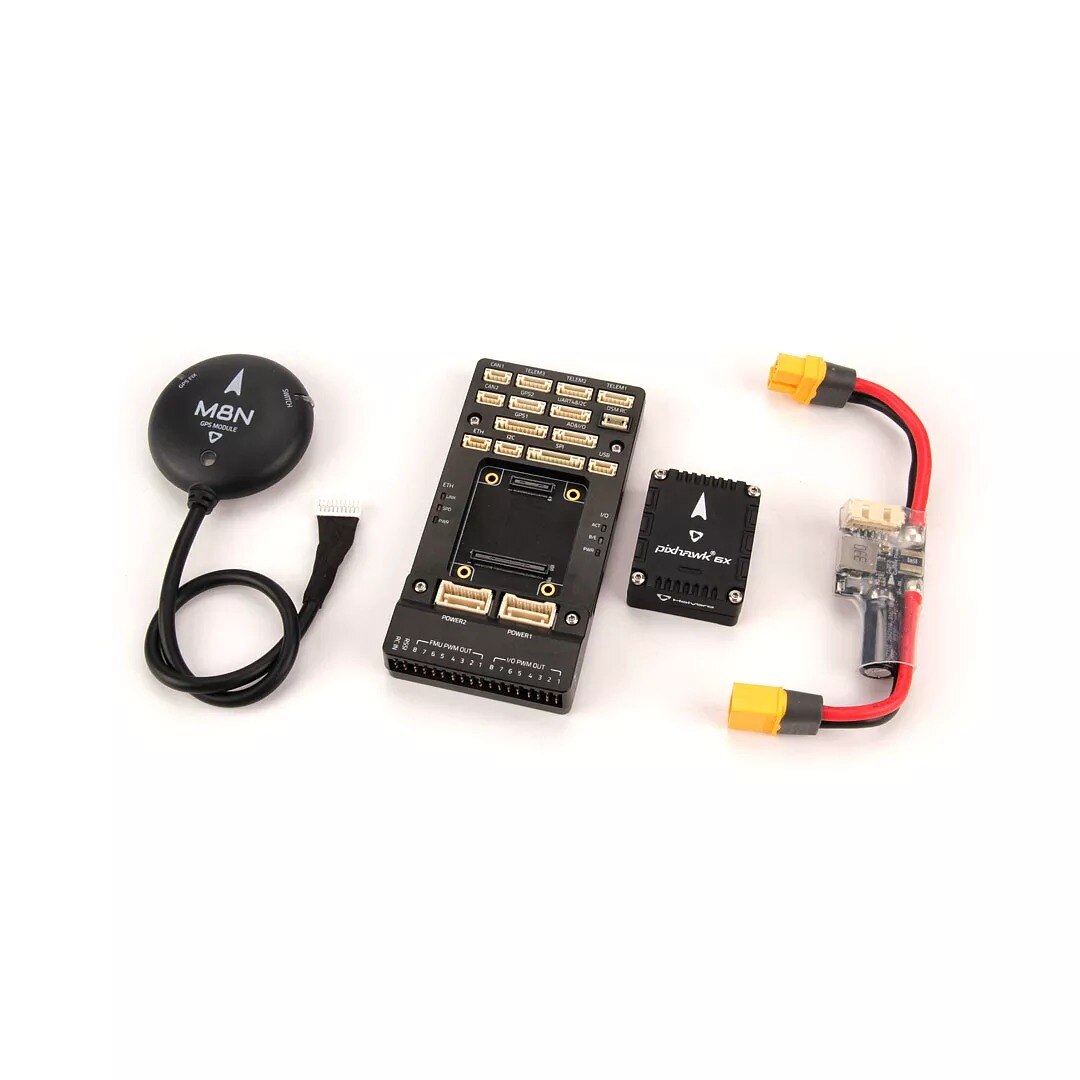

SKU20174 Standard Set/ SKU20175 Mini Set Includes:
  • Pixhawk 6X Flight Controller Module
  • Pixhawk Standard Base / Pixhawk Mini Base
  • PM02D Power Module
  • Cable Set
  • M8N GPS


Holybro Pixhawk 6X Autopilot Flight Controller, the Pixhawk® 6X is perfect for developers at corporate research labs, startups,
Holybro Pixhawk 6X Autopilot Flight Controller, the PX4 Autopilot detects a sensor failure, the system seamlessly switches to anotherHolybro Pixhawk 6X Autopilot Flight Controller, Holybro Pixhawk 6X Autopilot H753 Flight Controller Module Standard Base SPECHolybro Pixhawk 6X Autopilot Flight Controller, Holybro offers the Pixhawk Baseboard and the PiXhawk Mini-BaseboardHolybro Pixhawk 6X Autopilot Flight Controller, developers can be more productive and efficient with their development work . thanks to the updated processing power
Holybro Pixhawk 6X Autopilot Flight Controller, SHOPPING PROCESS Browse the Add to cart Pay with goods Escrow Con

SHOPPING PROCESS Browse the Add to cart Pay with goods Escrow Confirm and givel Sign for Dispatch the us Sstarts the parcel

Holybro Pixhawk 6X Autopilot Flight Controller, if you can't checkout immediately after auction close,please wait for few minutes and

if you can't checkout immediately after auction close,please wait for few minutes and retry . we guarantee to ship out within 48 hours after payment confirmation(except Holiday)


Holybro Pixhawk 6X Autopilot Flight Controller, OUR SERVICE On- Time Delivery Full refund if product isn't received in guaranteed

Our Service: Timely Delivery and Hassle-Free Returns. We guarantee on-time delivery, and if there's an issue, we offer a full refund or replacement. Additionally, our 15-day return policy provides extra protection for your purchase - you can return any product in perfect condition.


Holybro Pixhawk 6X Autopilot Flight Controller, if you are unhappy with our product and service,please contact us befoere

If you're not satisfied with your purchase or experience with our product and service, please reach out to us before leaving feedback, and we'll work to resolve any issues promptly.
