Description：

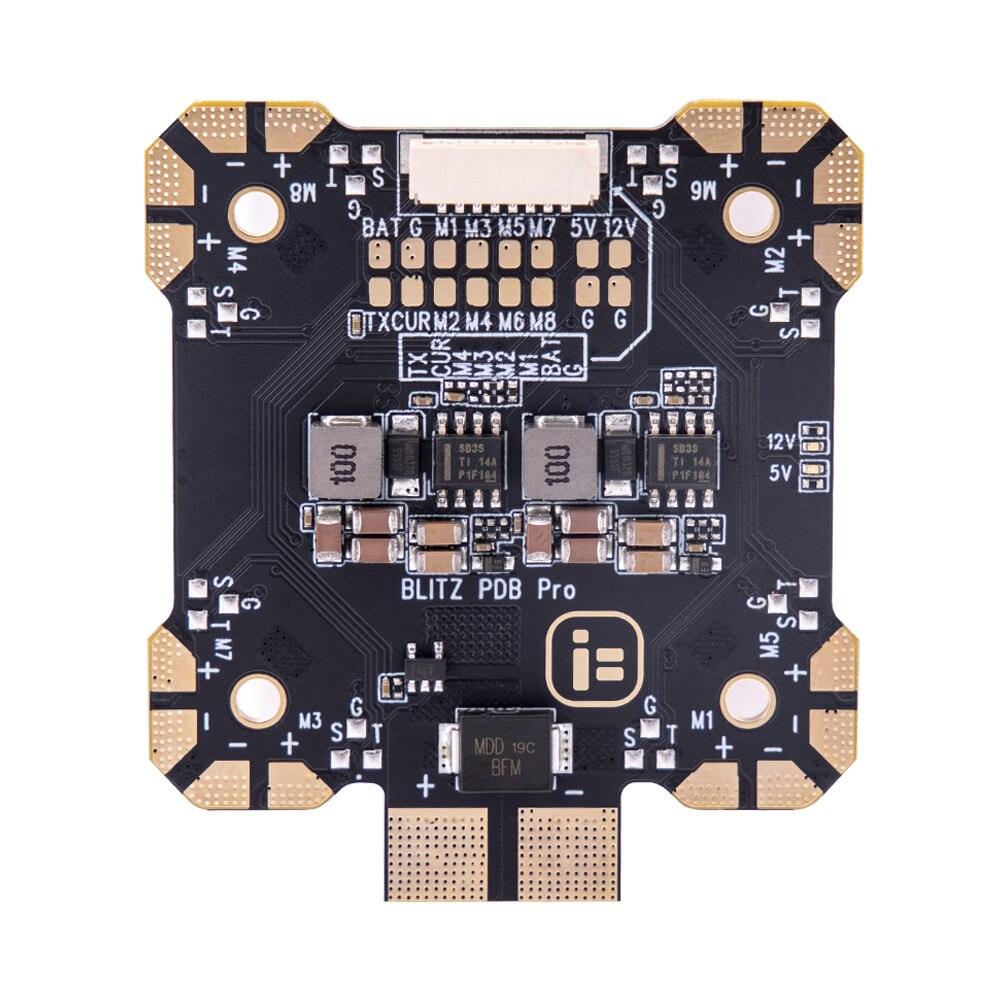

• BLITZ PDB Pro is a power distribution board designed for X8, X4 or XCLASS FPV drone. 6-layer 2OZ and supports 80A current . Texas Instruments and high-voltage DC-DC chips on board, which support 4-8S LIPO battery input, and BEC for 5V/3A, 12V/2A outputs, providing stable and reliable voltage for the equippment. In addition, it can also collect the signal of the single ESC to the GH1.25 interface, which can be directly connected to the BLITZ F7 Pro flight controller, so as to make it have the most efficient, concise and simple flying experience.


Specification：

• Dimensions: 51*58mm

• Mount pattern: 35*35mm/φ3（It can be transferred to 30.5mm through CNC adapter）

• 5V BEC：5V 3A

• 12V BEC：12V 2A

• Current max：330A

• Current scale：200（1/10mV/A）

• Telemetry: Yes，connect the telemetry of the single ESC to the T of the PDB (the ESC must support telemetry)

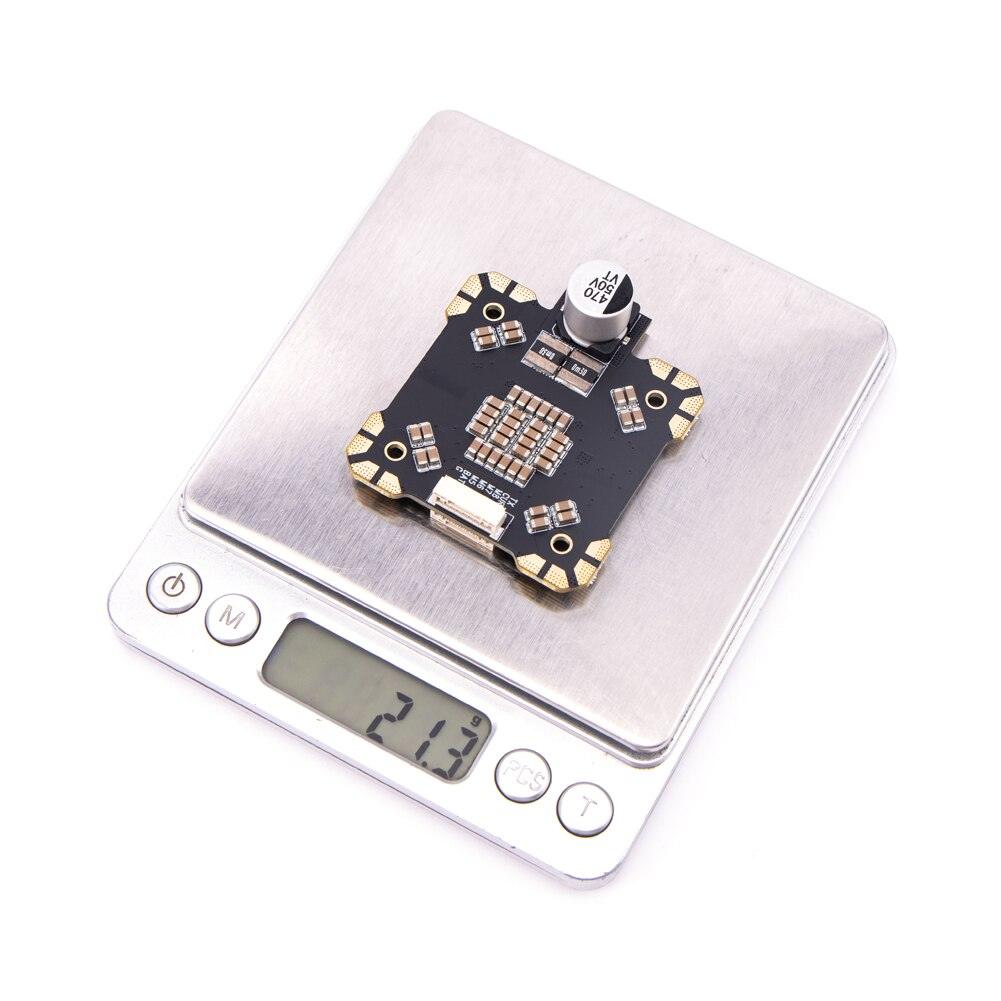

• Weight: 22g
