Description：

Features：

• 10 Hz Refresh rate (600 times/second)

• Additional front-end LNA (Low Noise Amplifier)

• High sensitivity 15x15mm GPS patch antenna

• Built-in TCXO crystal and farad capacitor for faster hot start

• Compass module QMC5883L integrated

Specifications:

• GPS module: GPSSAM-M8Q

• Frequencies： 72 channel

• Compass module: QMC5883L

• Baud Rate：4800bps-115200bps (Default - 9600bps)

• Sensitivity:  Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm

• Cold start：<29s

• Hot start： <2s

• Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

• Maximum height: 50.000m

• Maximum speed: 500 m/s

• Speed accuracy: 0.05 m/s

• Maximum acceleration: ≦ 4G

• Refresh Rate: 10 Hz

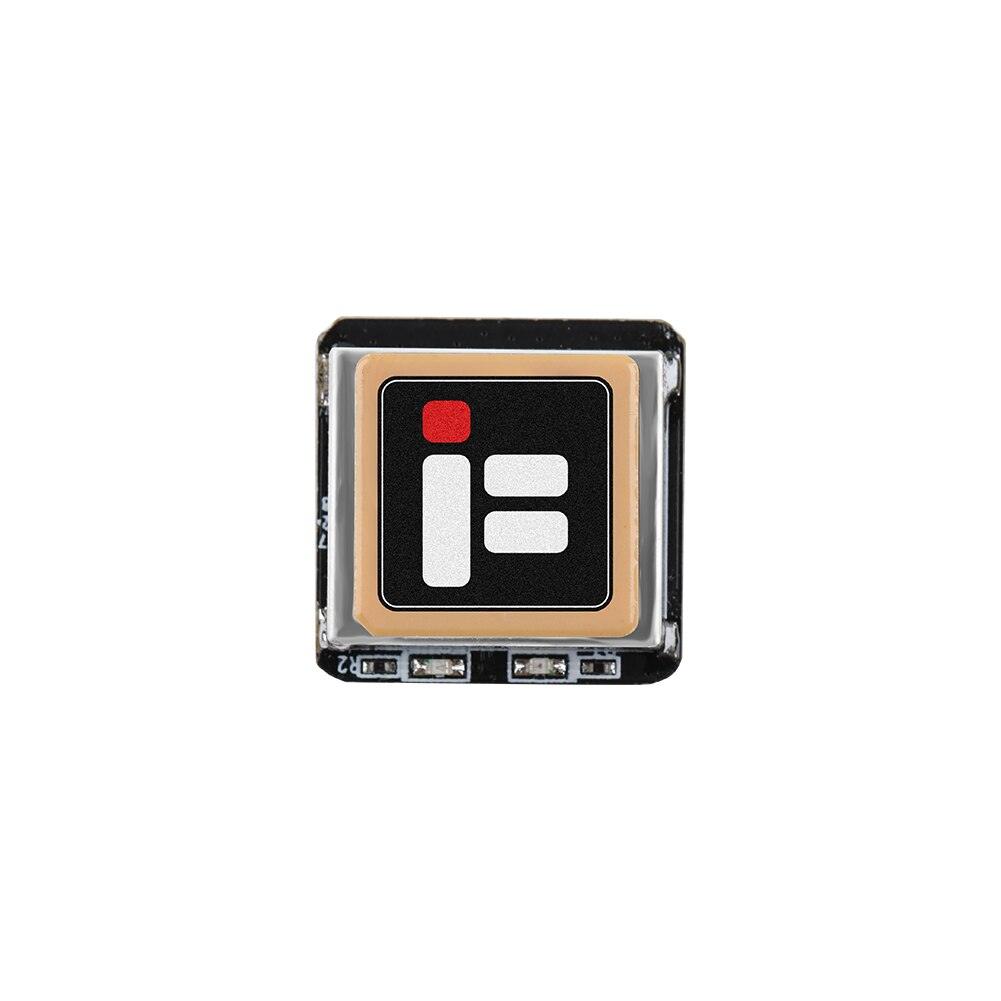

• GPS patch antenna size: 15 x 15 mm

• Total dimensions：20 x 20 x 10.5 mm

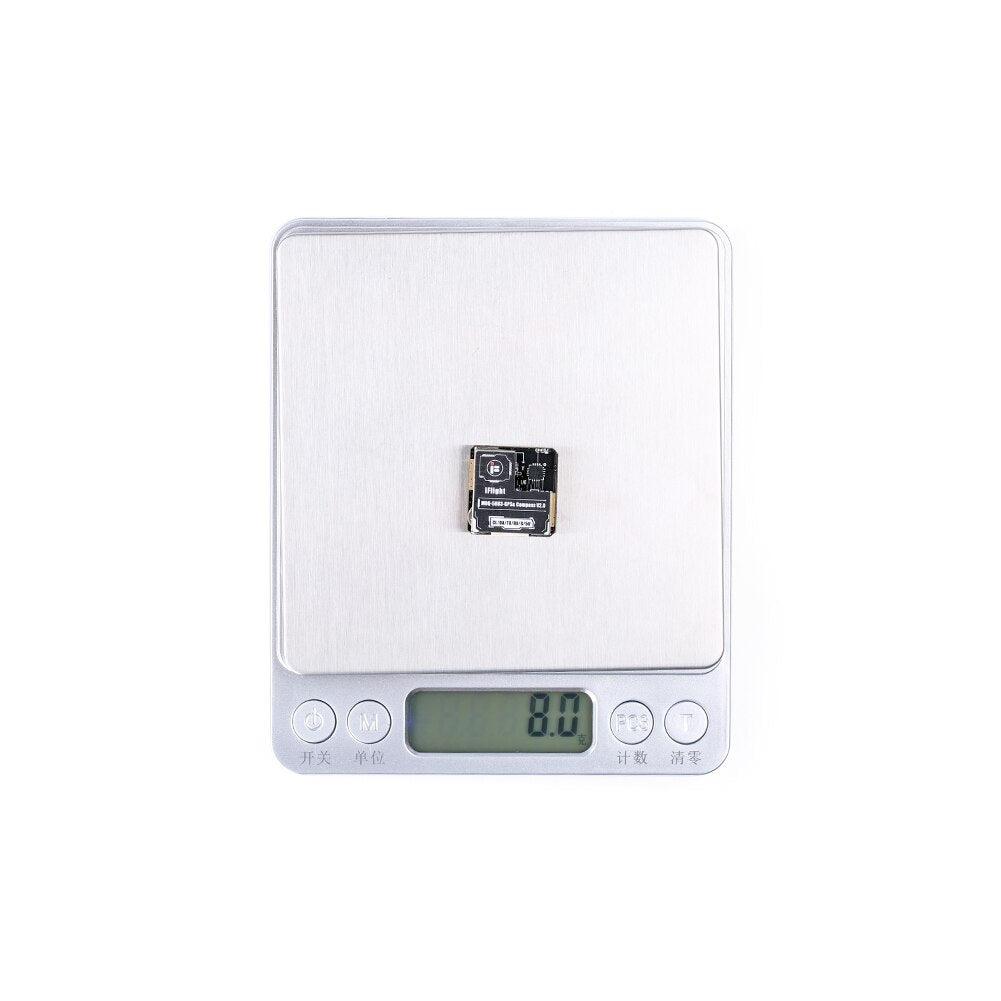

• Weight:  8g

• Input Voltage： 3.3V-5V，current 25mA

• GPS pin definition: RX/TX UART

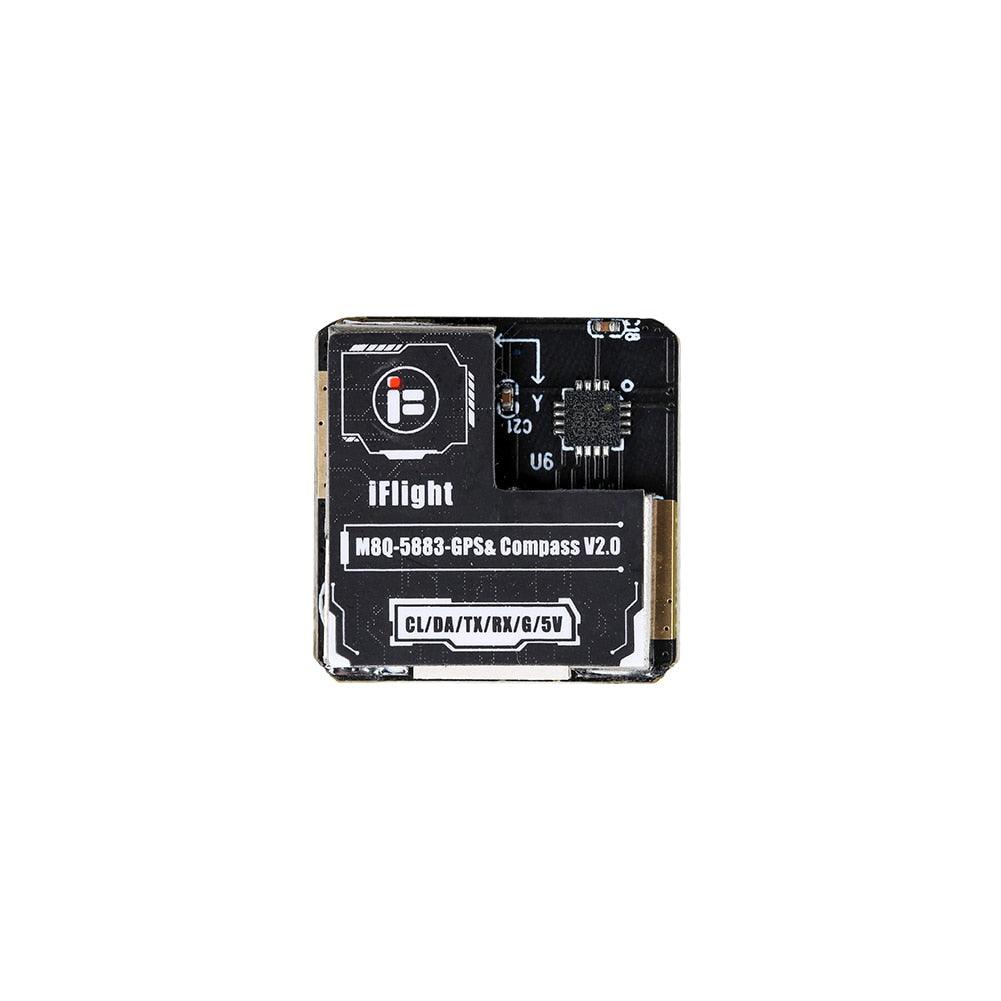

• Compass pin definition: SDA/SLA

Package included:

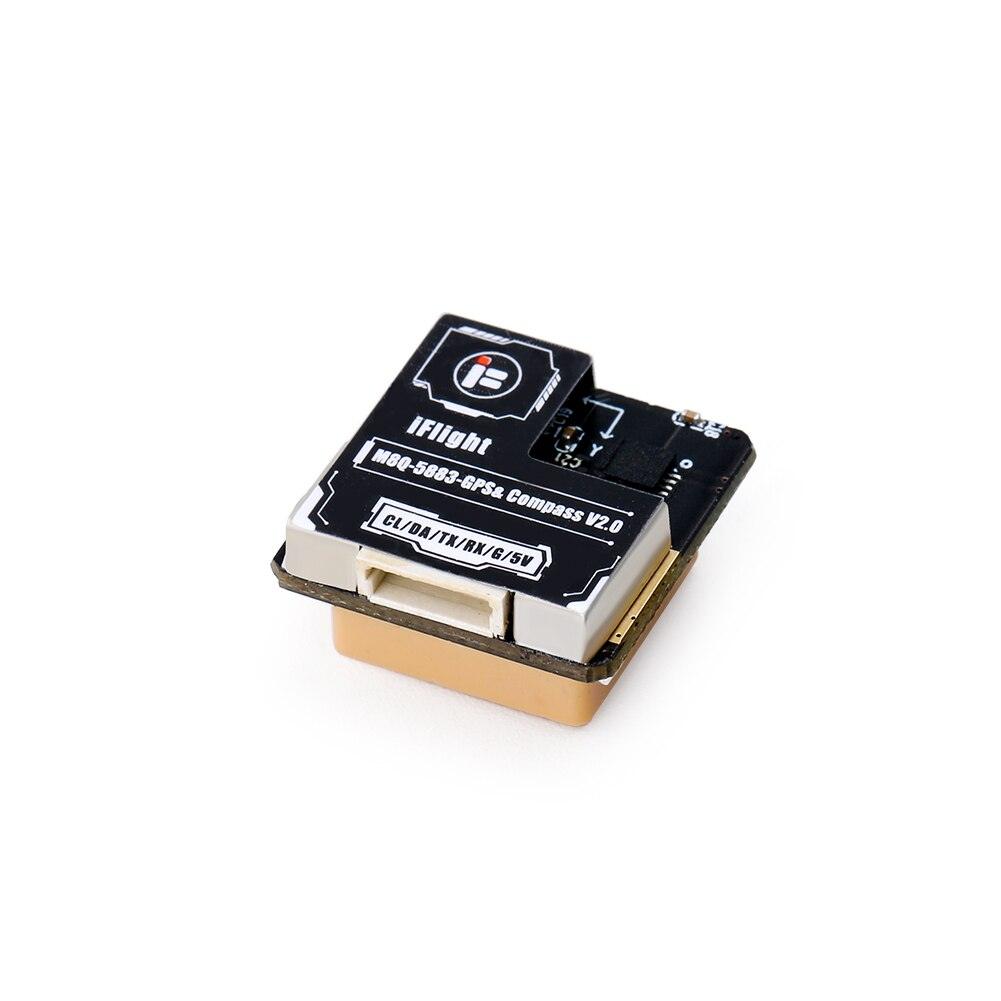

• iFlight M8Q-5883 GPS *1 pc

• SH-1.0-4Pin silicon wire *1 pc
