iFlight iH3 SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 3inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: iH3 HD O3

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description：

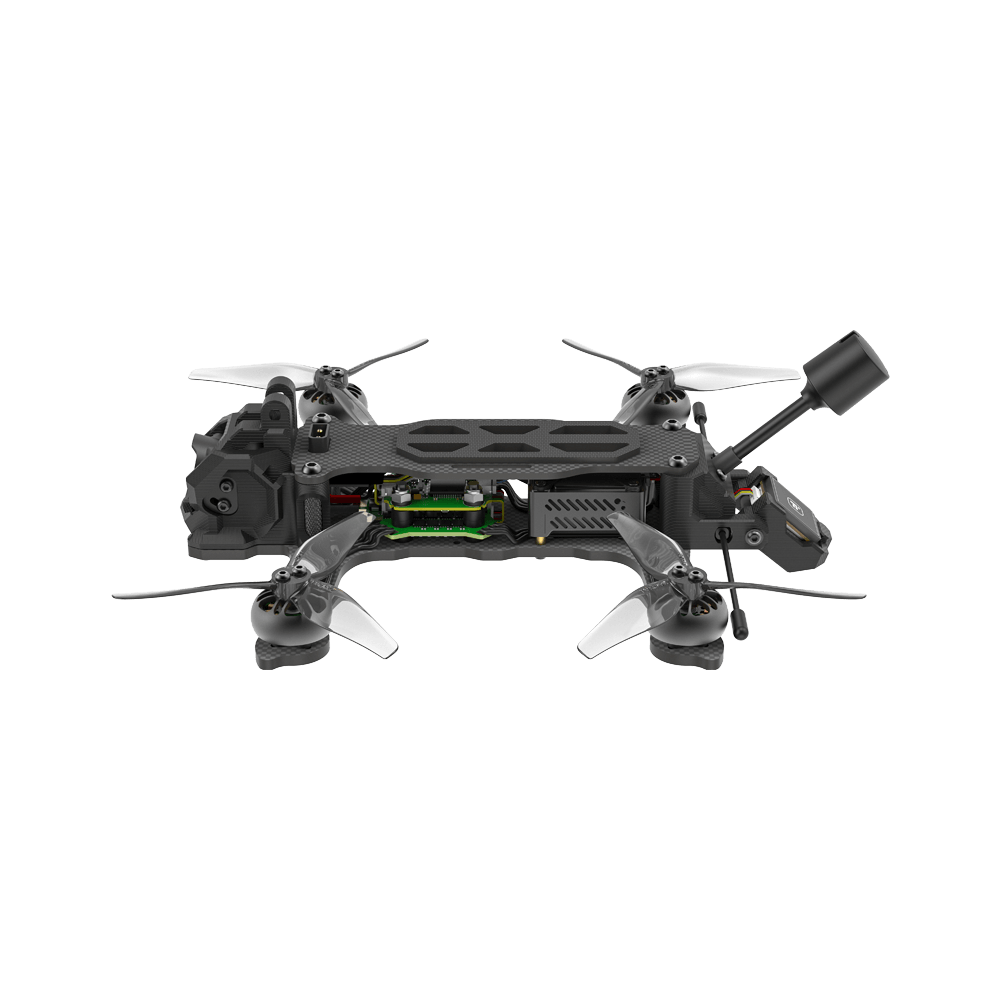

• Let’s meet the iH3 - a new high-quality cruise drone that offers an exceptional flying experience at an affordable price.
• Equipped with DJI O3 digital system, the iH3 is a 3.5-inch drone that boasts stable flight, easy operation, and superior quality. Its H-shaped frame structure and Anti-Spark Filter ensure balance and stability even during intense operations. Moreover, it can carry a naked GoPro for more exciting flight footage.

Highlights

• DJI O3 HD Air Unit Low-Latency digital transmission
• 4K Stabilized Video with 155° Ultra-Wide Angle
• Secured Battery Plug with Anti-Spark Filter
• GPS Pre-Installed for More Safety at A Distance
• Special canopy to carry naked GoPro or Gopro Bones.
• The H-shaped frame structure for balance, no props in view.

Specifications

• Product Name: iH3 O3 4S HD BNF
• FC: BLITZ Mini F7 FC
• ESC: BLITZ Mini E55 4-IN-1 ESC
• Video Transmission: DJI O3 Air Unit
• Frame: 168±2mm (wheelbase)
• Motor: XING 1504 3100KV motors
• Prop: HQ 3.5*2.5*3 propellers
• Weight of the Aircraft: Approx. 216±5 g
• Takeoff Weight:  314±10g（With 4S 850mAh Battery）/ 348±10g（With 4S 1050mAh Battery）
• Dimensions (L×W×H): 135×100×40 mm (From Canopy)
• Max Speed: 110 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 3200m
• Max Hover Time: Approx. 12 mins (No Load with 4S 850mAh Battery)
• Max Wind Speed Resistance: Level 5
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: DJI O3 Air Unit Dual-band Antenna
• GNSS: GPS+Galileo

Video Transmission

• Product Name: DJI O3 Air Unit
• Weight: Approx. 290 grams（headband included）
• Dimensions (L×W×H): L167 * W1039 * H 813mm
• Screen Size (single screen): 0.49-inch
• Resolution (single screen): 1920×1080
• Refresh Rate: Up to 100 Hz
• Interpupillary Distance Range: 56-72 mm
• Diopter Adjustment Range: -8.0 D to +2.0 D
• FOV (single screen): 51°
• Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
• Transmission Power (EIRP):
• 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
• 5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
• Max Video Transmission Bitrate: 50 Mbps
• Operating Temperature Range: 0° to 40° C (32° to 104° F)
• Power Input: 7-9 V (1.5 A)

Packing List

• 1 x iH3 O3 4S HD BNF
• 1 x DJI O3 Air Unit Antenna
• 1 x Battery pads
• 1 x Prop(Pair)
• 1 x Screw Bag
• 1 x Naked Gopro Adapter Cable

---------

Related Article:

(If there is any information error in the article, the product description shall be the standard.)

iFlight iH3 Review

The iFlight iH3 Micro Quad with Split Mini Camera is an RTF (ready-to-fly) drone that comes equipped with a Runcam Split Mini HD camera, capable of recording 1080p HD footage while serving as the FPV camera simultaneously. This review will delve into the features, performance, and specifications of this micro quadcopter.

Specifications and Frame Design:
The iFlight iH3 Micro Quad boasts a compact and lightweight design, specifically tailored to accommodate the Runcam Split Mini HD camera. Its "H" frame design ensures that propellers remain outside the camera's field of view. The frame is constructed with a 2mm thick carbon fiber top plate and 3mm thick bottom plates (arms), ensuring a balance between durability and weight. With diagonal motor-to-motor distance measuring 142mm, side-to-side width of 118mm, and a front-to-back length of approximately 80mm, the frame offers a well-proportioned size for efficient maneuverability.

Electronics and Components:
The iH3 Micro Quad is equipped with an iFlight Mini F3 flight controller featuring an MPU6000, Betaflight OSD, and a 5V@3A BEC (Battery Eliminator Circuit) on a 20x20mm board. The Flytower 15A BLheli_S 4in1 ESC supports protocols such as Multishot and DShot600, delivering responsive and efficient performance. The quadcopter utilizes Tachyon T1408 4100KV motors that can accommodate both 9mm and 12mm mounting patterns, ensuring compatibility with a wide range of motors. The Emax AVAN Mini 3024 3-blade propellers provide efficient thrust and maneuverability. The FPV system comprises the Runcam Split Mini camera, capable of recording HD footage at 1080p/60fps while also serving as the FPV camera. The IFlight Force Mini VTX offers 48 channels and output power options of 25mW, 100mW, and 200mW for reliable video transmission. The quadcopter utilizes a Foxeer antenna with SMA connector for improved signal reception. The use of an XT30 connector for the LiPo battery ensures secure and efficient power delivery.

Flight Experience:
The iFlight iH3 Micro Quad delivers an enjoyable flight experience, showcasing nimble and agile performance. While the quadcopter is recommended to be flown with 2S 850mAh or 3S 550mAh LiPo batteries, the reviewer found success with a 3S 650mAh battery, achieving a flight time of approximately 4 minutes. The quadcopter exhibits smooth flight characteristics and handles well after some tuning. The Runcam Split Mini camera captures high-quality footage without any noticeable jello effect, resulting in visually appealing recordings.

Conclusion:
The iFlight iH3 Micro Quad with Split Mini Camera offers a convenient RTF solution for those seeking a compact drone capable of recording HD footage. Although the build quality and component choices may not be at the cutting edge, the quadcopter performs admirably during flight and produces impressive video quality. The OSD flickering issue reported by the reviewer can be addressed by adding a capacitor to the XT60 pads. Overall, the iFlight iH3 Micro Quad presents a viable option for individuals interested in a 3" build featuring the Runcam Split Mini camera, delivering an enjoyable flying experience and excellent video performance at an affordable price point.
