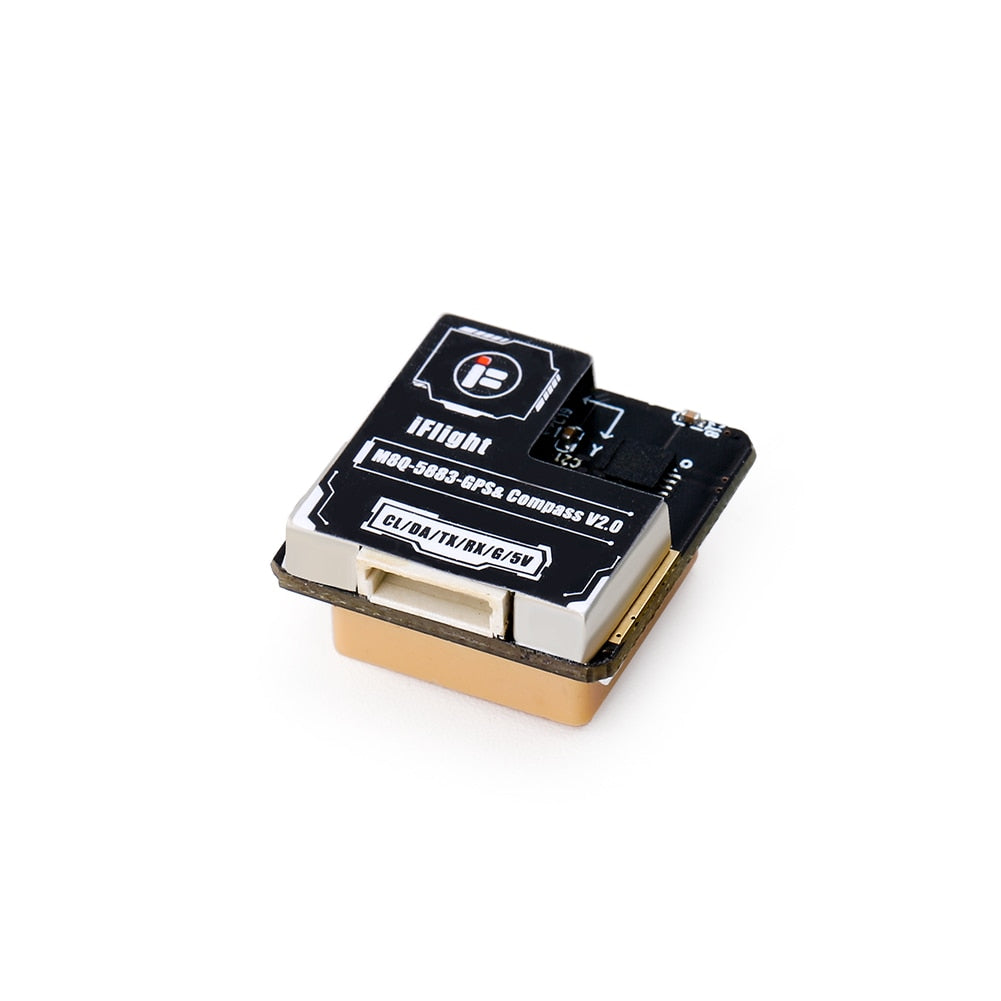

iFlight M8Q-5883-GPS GPS Module V2 SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: GPS

Tool Supplies: Cutting

Size: 20*20*10.8MM

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: GPS

Quantity: 1 pcs

Origin: Mainland China

Model Number: M8Q-5883-GPS Module

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Features：

• 10 Hz Refresh rate (600 times/second)

• Additional front-end LNA (Low Noise Amplifier)

• High sensitivity 15x15mm GPS patch antenna

• Built-in TCXO crystal and farad capacitor for faster hot start

• Compass module QMC5883L integrated

Specifications:

• GPS module: GPSSAM-M8Q

• Frequencies： 72 channel

• Compass module: QMC5883L

• Baud Rate：4800bps-115200bps (Default - 9600bps)

• Sensitivity:  Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm

• Cold start：<29s

• Hot start： <2s

• Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

• Maximum height: 50.000m

• Maximum speed: 500 m/s

• Speed accuracy: 0.05 m/s

• Maximum acceleration: ≦ 4G

• Refresh Rate: 10 Hz

• GPS patch antenna size: 15 x 15 mm

• Total dimensions：20 x 20 x 10.8 mm

• Weight:  8g

• Input Voltage： 3.3V-5V，current 25mA

• GPS pin definition: RX/TX UART

• Compass pin definition: SDA/SLA

Package included:

• iFlight M8Q-5883 GPS *1 pc
  SH-1.0-4Pin silicon wire *1 pc
