X08H Plus Specifications

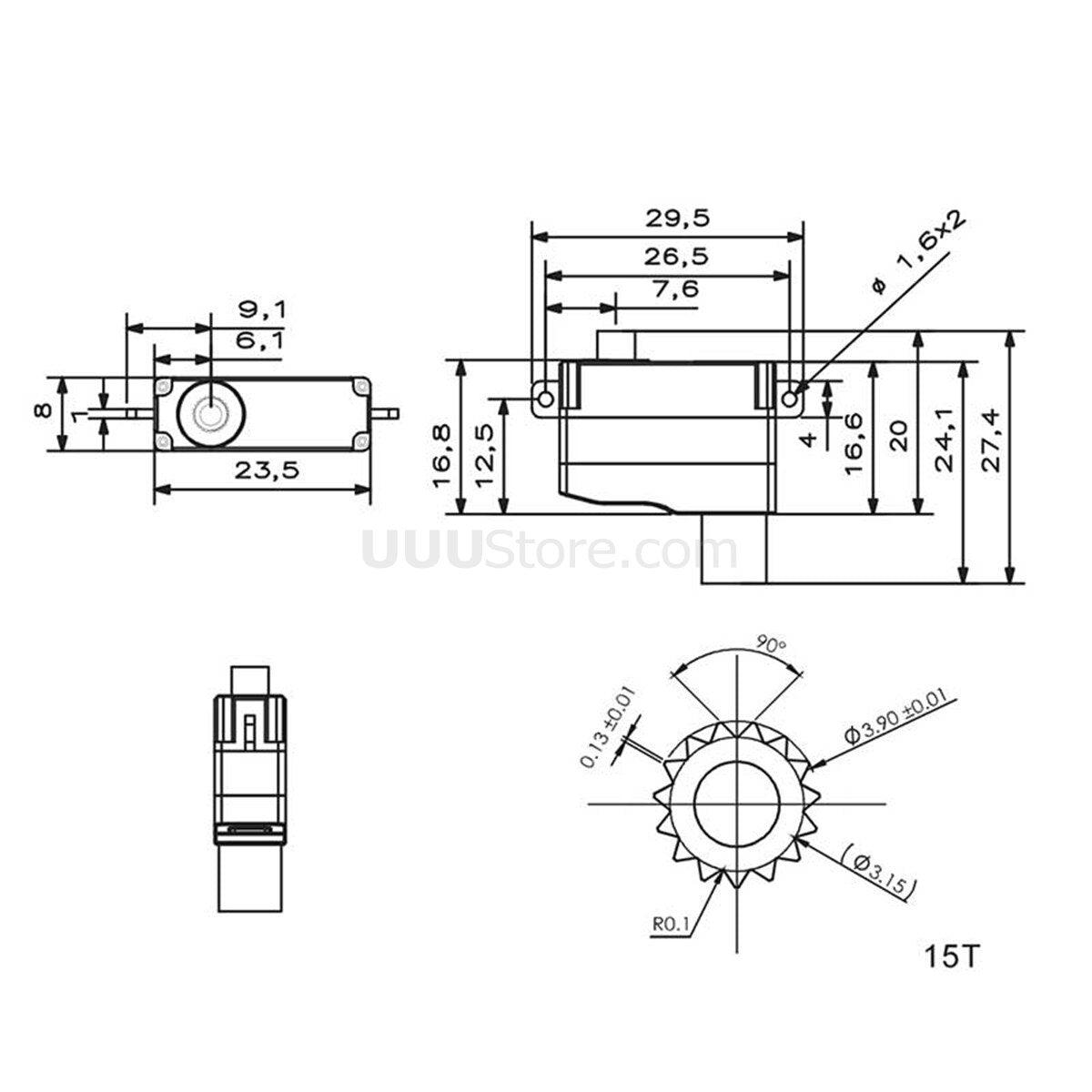

Product Specifications: * Dimension: 26.5mm x 76mm x 23.5mm (Orange) * Signal: Red * Positive Wire: Brown * Negative Wire: - * Specification: + PWM Impulse Signal: Operating Voltage DC - 7.4V + Impulse Voltage (TTL Level): - HIGH: Minimum 3V, Maximum VCC - LOW: Minimum 0V, Maximum 1.8V * Operating Voltage: 3.8V to 8.4V * Impulse Time: 1000-2000us * Stall Torque: 4.8Kg/cm (at 7.99V) * Angle: -60°/+60° (within 100ms)

The KST X08H Plus Metal Gear servo has the following specifications: it is a digital wing coreless servo that operates within a voltage range of DC 3.8-8.4V, with a maximum torque of 4.8kg.cm at 7.4V. The stall current is 0.65A to 0.95A, while the rated torque and speed are 0.15A and 3802/second, respectively. The unload speed is 500
