MATEK  F405-MINITE - Mateksys FLIGHT CONTROLLER SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

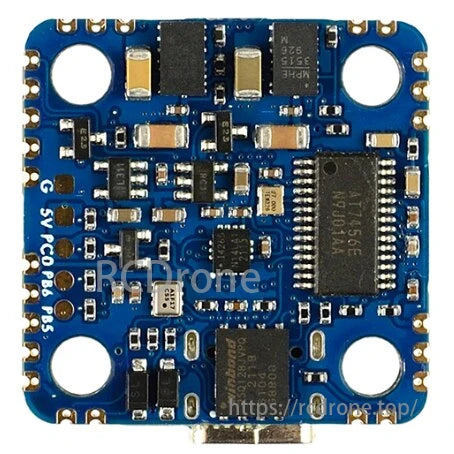

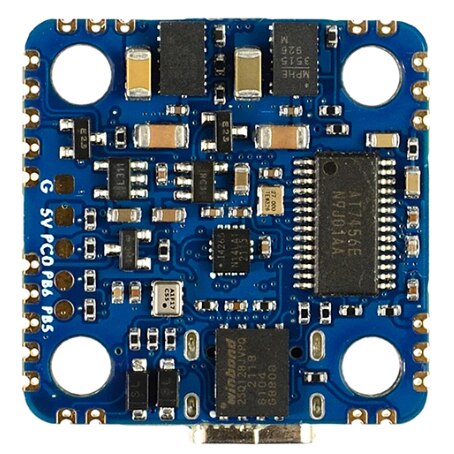

FLIGHT CONTROLLER F405-MINITE

The new features of F405-miniTE compared with F722-miniSE(EOL)

• F405 has 1MB flash which can run with ArduPilot.  even with INAV firmware, some features will be removed on F722 due to limited flash.

• The advantage of F722 is all UARTs have builtin inversion which is not needed when CRSF protocol is widely used on new receivers.

• Redesigned target MATEKF405TE support 8x bi-directional DSHOT.

• Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX

• Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE support 8motors+3servos in INAV/BF multirotor mixer

• InvenSense GEN3 IMU ICM426XX

FC Specifications

• MCU: STM32F405RGT6

• IMU: ICM42605 or ICM42688-P

• OSD: AT7456E, DJI OSD

• Baro: Goertek SPL06-001 (I2C)

• Blackbox: 16M-byte Flash memory

• 6x UARTs,  1x Softserial_Tx option

• 12x PWM outputs (8x Dshot)

• 1x I2C

• 4x ADC (VBAT, Current, RSSI, Airspeed)

• 2x PINIO

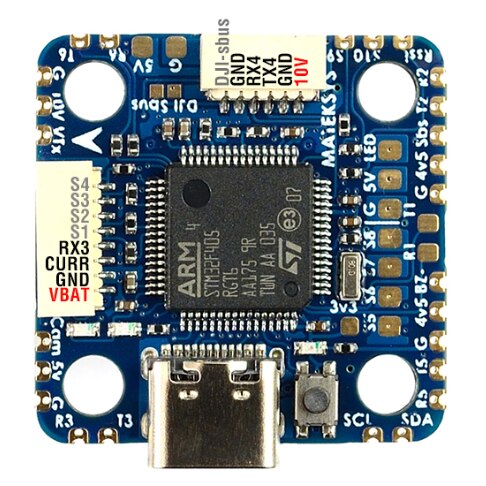

• 1x SH1.0_8pin connector (Vbat/G/Curr/R3/S1/S2/S3/S4)

• 1x SH1.0_6pin connector for DJI FPV Air Unit

• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

• Dual BEC, 5V 1.7A & 10V 1.4A

• 10V output ON/OFF switchable

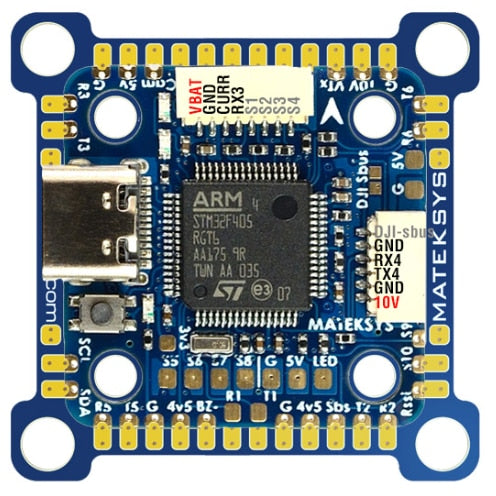

• Convertible 20mm to 30.5mm mounting

Power

• Input: 6~30V (2~S LiPo)

• BEC: 5V 1.7A,  Max.2A

• BEC: 10V 1.4A  for VTX or DJI Air Unit

• For stable 10V output, input voltage should > 11V,  when input voltage =<11V, output = 90% input voltage.

• Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)

• No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware

• ArduPilot: MatekF405-TE

• INAV: MATEKF405TE

• BetaFlight: MATEKF405TE

Physical

• Mounting

  • 20 x 20mm/Φ3mm with Silicon Grommets

  • 20 x 20mm/Φ2mm with Silicon & Brass Grommets

  • 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets

• Dimensions:  28 x 28 mm

• Weight: 5g

Including

• 1x FC F405-miniTE

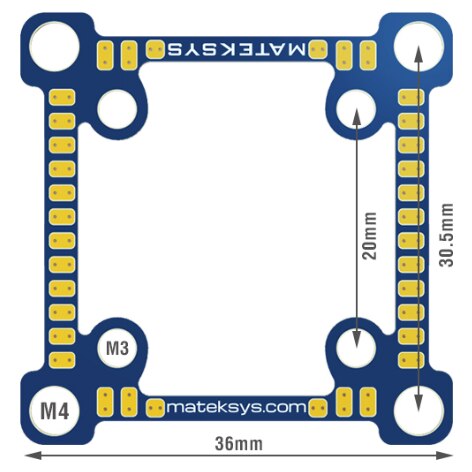

• 1x 20mm to 30.5mm conversion plate(blue PCB)

• 6x Silicon grommets M4 to M3

• 6x Brass grommets M3 to M2

• 1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC

• 1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit

TEKSYS 5 3v3: onboard BEC SV 1.7A cont; max.2A (SV is not supplied by USB) 4V5: 4.44.8V, Max 80OmA, the voltage is also supplied when connecting via USB .

When using a non-DJI FPV remote controller, keep the unbrided DJI-SBUS pin disconnected from SHI 0-6P connector. Disable SATR VTX control, LED, and set 115200 baud rate. AUTO ESC and 58 are also disabled.
