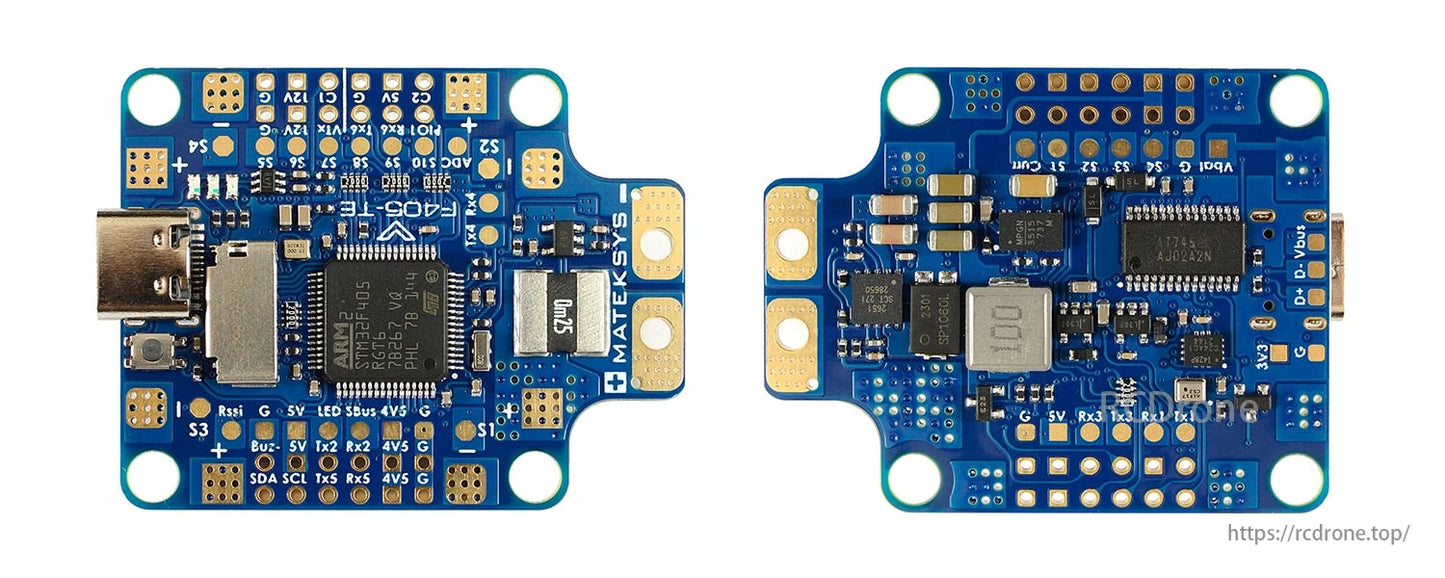

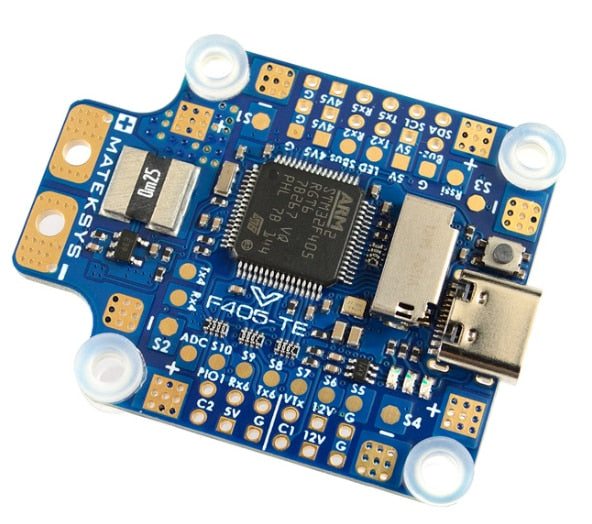

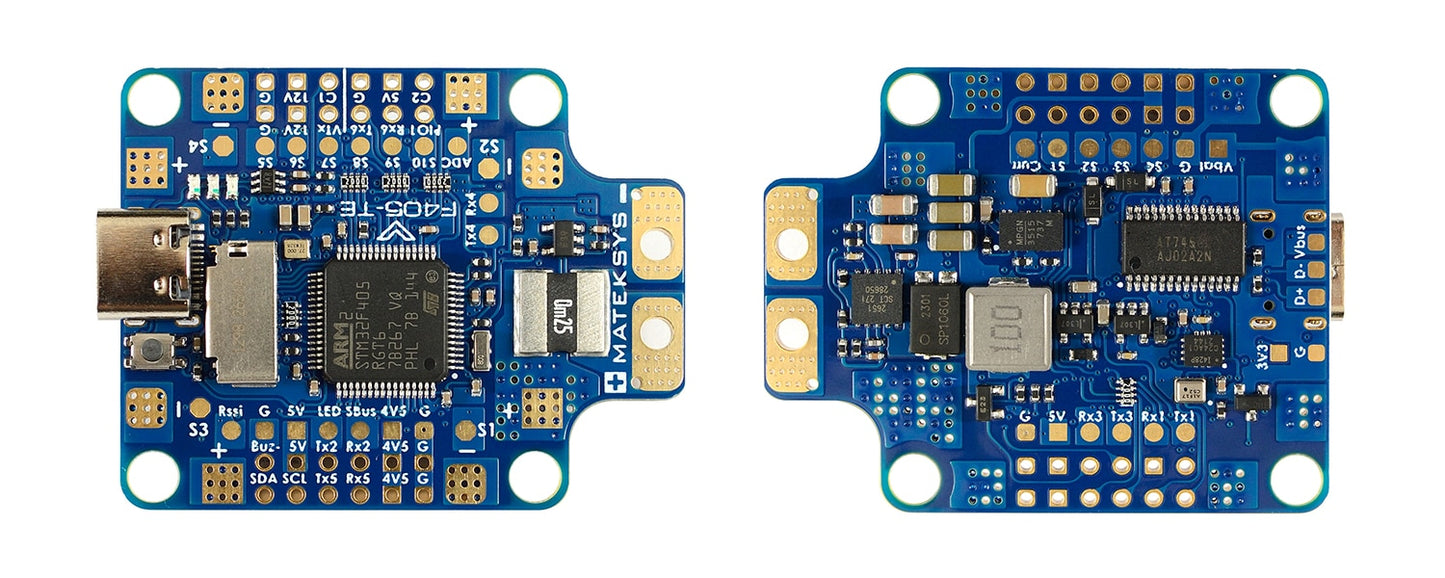

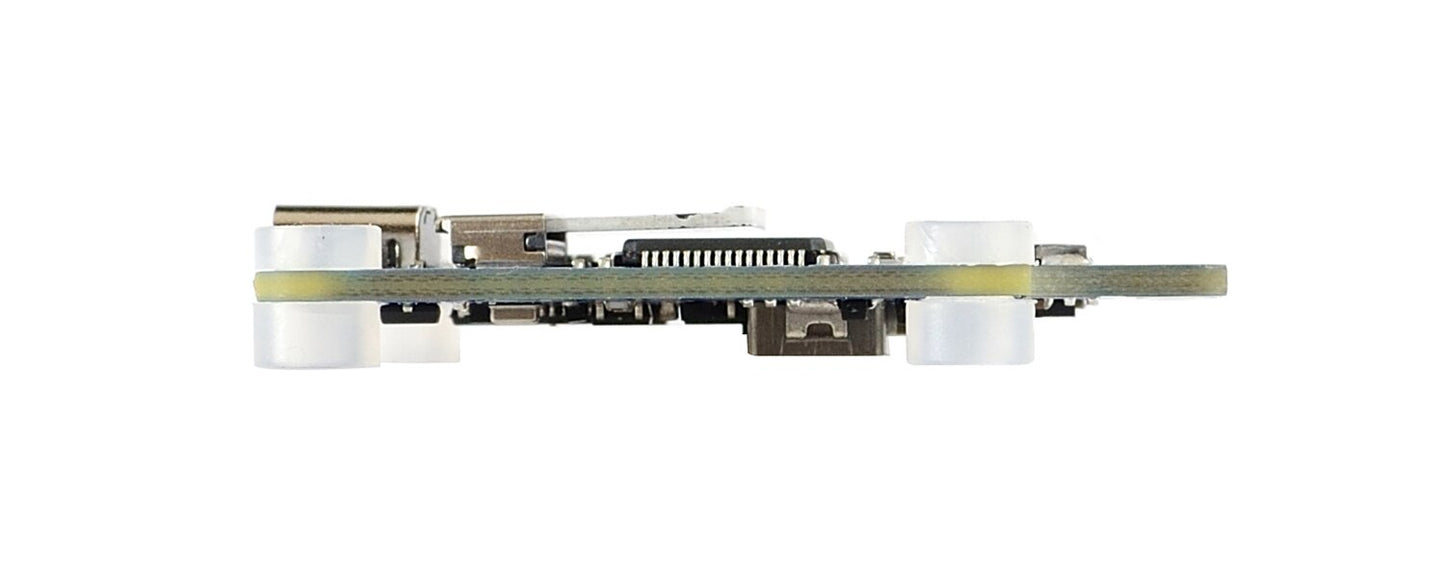

MATEK  F405-TE - Mateksys FLIGHT CONTROLLER SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

Specifications

• MCU: 168MHz STM32F405RGT6

• IMU: ICM42688-P (SPI)

• Baro: SPL06-001 (I2C)

• OSD: AT7456E (SPI)

• Blackbox: MicroSD slot (SPI)

• 6x UARTs,  1x Softserial_Tx option(INAV/BF)

• 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)

• 1x I2C

• 4x ADC (VBAT, Current, RSSI, Airspeed)

• 1x spare PINIO

• 4x individual ESC power/signal pads

• 1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND

• Built in inverter on UART2-RX for SBUS input

• Switchable Dual Camera Input

PDB Specifications

• Input: 9~36V (3~8S LiPo)

• PDB: 4x 35A (Max.4x 50A)

• BEC: 5V 1.5A

• BEC: 12V 2A

• LDO 3.3V: 200mA

• Current Senor: 220A,  3.3V ADC  (INAV/BF scale 150,  ArduPilot  66.7 A/V)

• Battery Voltage divider 1K:20K (INAV scale 2100,  BF scale 210,  ArduPilot BATT_VOLT_MULT 21.0)

Firmware

• ArduPilot: MatekF405-TE

• INAV: MATEKF405TE_SD

• BetaFlight: MATEKF405TE

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

• Dimensions:  36 x 46 mm

• Weight: 10g

Including

• 1x F405-TE

• 6x silicon grommets M4 to M3

• 1x Rubycon ZLH 35V/470uF (Low ESR)
