JX Digital Servo SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 10
Size: As show
Remote Control Peripherals/Devices: Battery
Recommend Age: 14+y,12+y
RC Parts & Accs: Servos
Origin: Mainland China
Model Number: 17g PDI-1181MG
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters

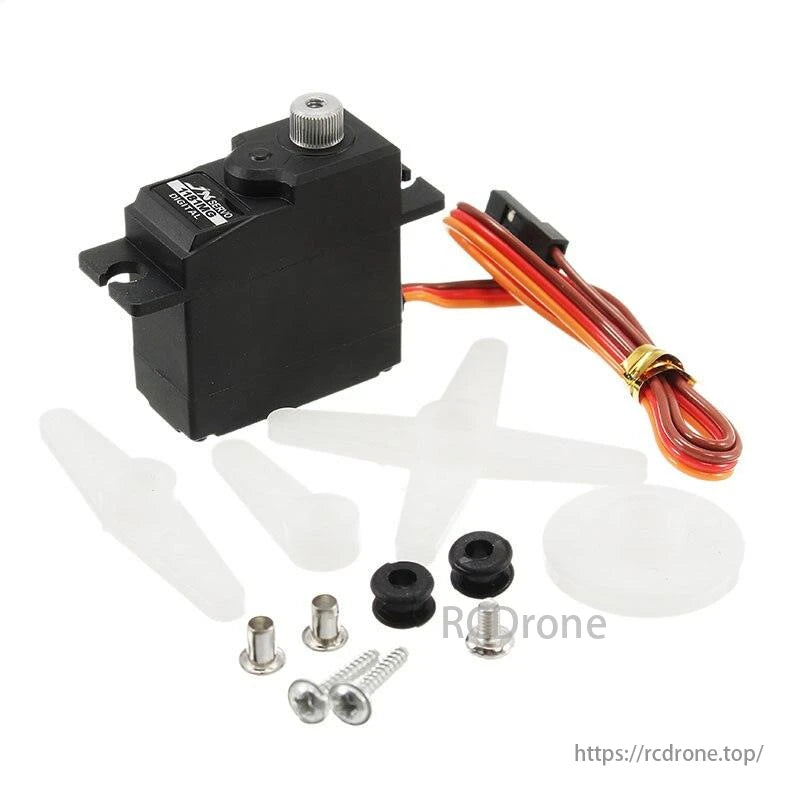

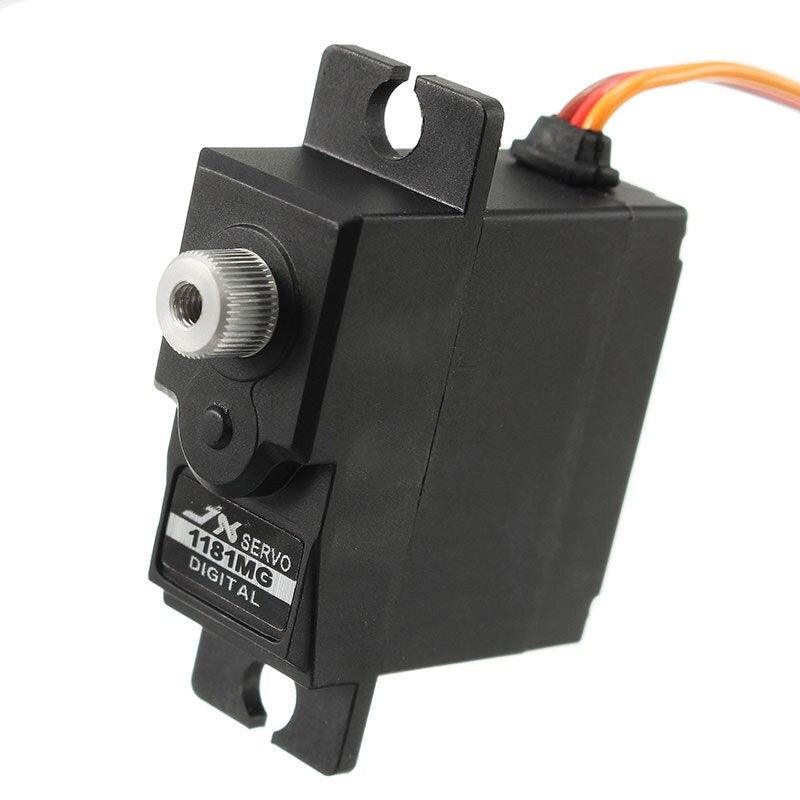

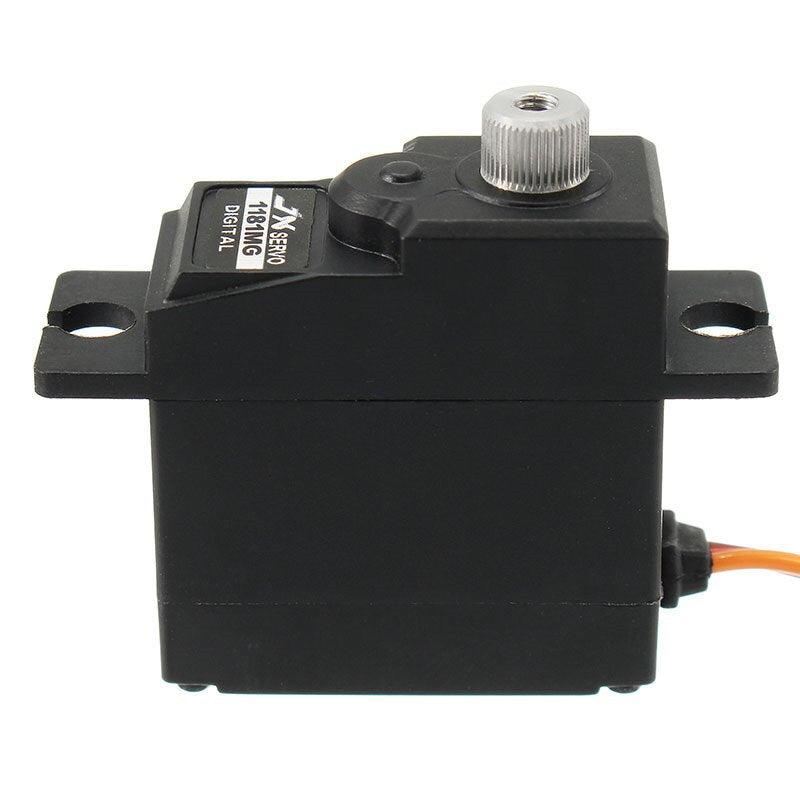

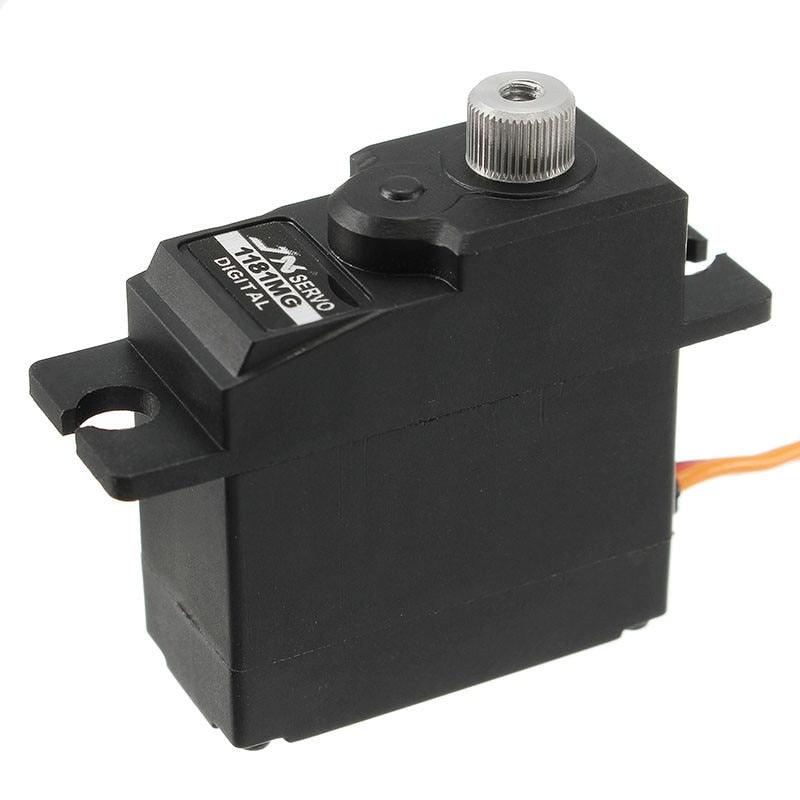

Original JX Digital Servo 17g Metal Gear PDI-1181MG For RC helicopter/ RC Car/ RC Boat/ RC Airplane
Description
Name: Digital Servo
Brand: JX
Gear: Metal Gear
Frequency: 300hz
Dead CH: 2μs
Middle CH: 1500μs
Control board: 0.5ms-2.5ms(200°)
Motor: core motor
Operating Speed: 0.13sec / 60 degrees (4.8V no load)
Operation Voltage: DC 4.8 - 6.0V
Stall torque: 3.0kg.cm(4.8V)
3.6 kg.cm(6.0V)
Weight: 17.5g
Cable: JR 180mm
For: RC helicopter/ RC Car/ RC Boat/ RC Airplane
