• M8N SE100 GPS x 1

• Metal rod bracket x 1

• Connecting cable x 1

• Metal fixing gasket x 2

• Foam fixed sticker x 1

     Package Include (Separately Purchase):

• A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K

• B.Geomagnetic I2C interface

• Current: 50~55mA

• Sensitivity Tracking&Nav: -167dBm; Reacquisition: -163dBm

• Sensitivity Cold Start: -151dBm; Hot start: -159dBm

     GPS Connect Ports:

• Velocity Precision: 0.1m/s

• Max Height: 50000m

• Max Speed: 515m/s

• Max Acceleration: 4G

• Update Rate: 10Hz

• Time to First Fix: Cold start: 26s, Hot start: 1s

• Power Supply: voltage 5VDC±5%

• Size: 1.89*1.6*0.59in

• Current: 50~55mA

     SE100 GPS Module Specification:

 【High-performance】: Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.

【Positional Accuracy and Quick】: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1.

【Top Configuration】: Design with U-box UBX-M8030(M8), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.

 【Mini Size】: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it’s perfect for you racing drone and quadcopter.            【Excellent Stable】: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.Double Filter:SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.

SE100 GPS Features:

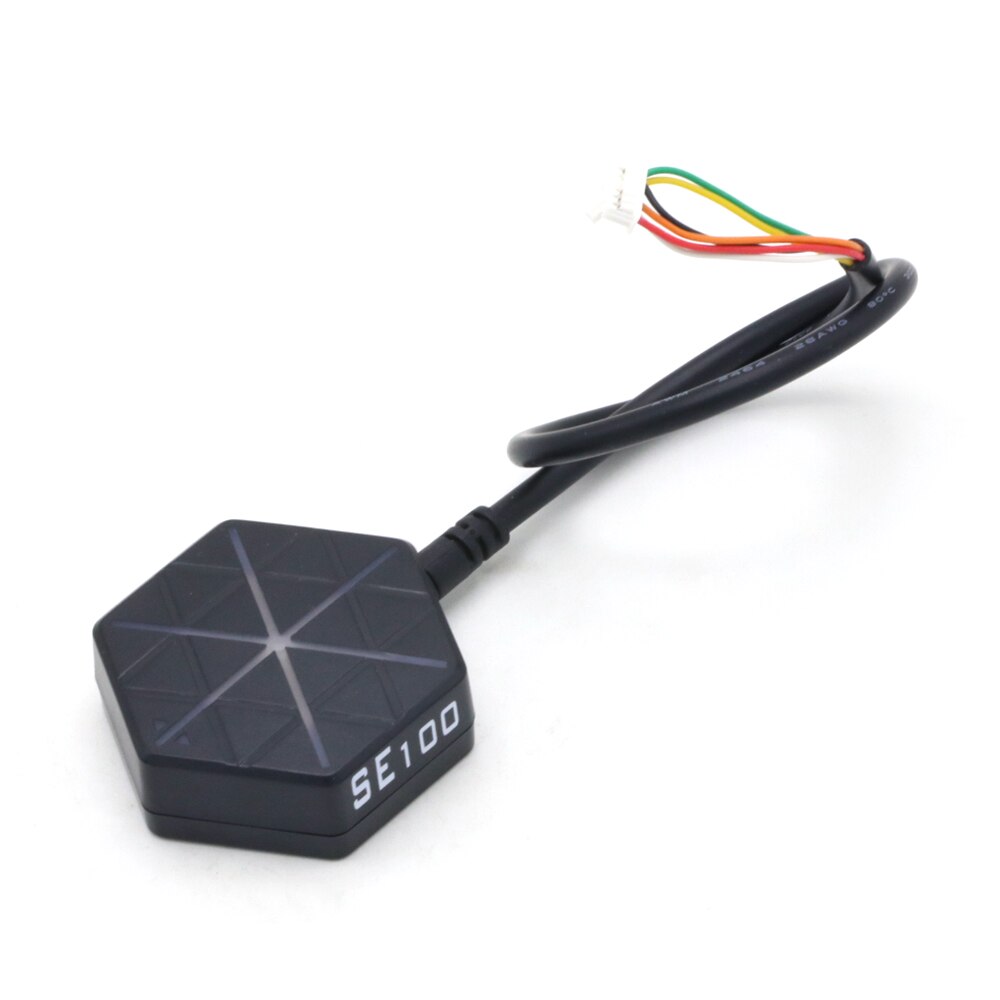

SE100 GPS Module

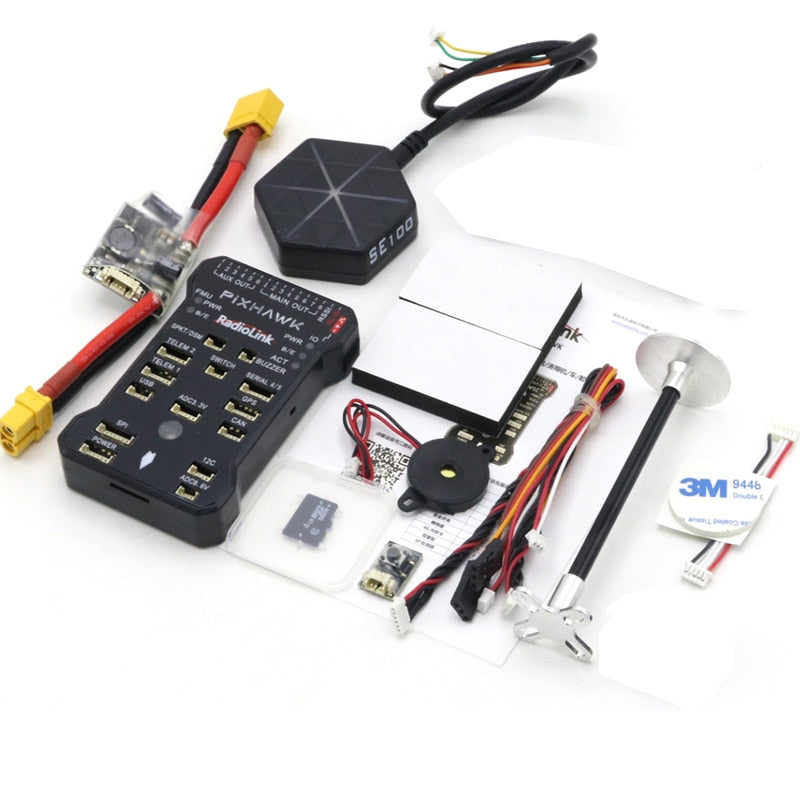

• PIXHAWK x 1

• Power Module (2s-6s)x 1

• Safety Button x 1

• Double-Sided Adhesive Tape x2

• Buzzer x 1

• Micro-SD TF Card(4G) x 1

• Three-wire Servo Cable x 1

• Safety Button Connect Cable x1

• Receiver Connect Cable x1

• Power Module Connect Cable x1

Package Included(Separately Purchase Pixhawl)

• Connector Port: JST GH connector

• Receiver In: PPM/SBUS

• Transmitter: 6 oneshot/PWM

• USB Voltage: 5v+-0.3v

• Work Voltage: 5.1v

• Work Temperature Rang: -40~80°

• Support Models: Long-wheelbase Quadcopter/6-8 Axis Multirotor

• Mini Pix Size: 8.2*4.3*1.7cm

• Weight: 30g

PIXHAWK Flight Controller Specifications:

Easy to Set Up
No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website. Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner. Then, enjoy your fly.

• 32 bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)

• 168 MHZ / 256 KB RAM / 2 MB Flash

• 32bit Fault Protection Coprocessor

• ST Micro L3GD20H 16 bit gyroscope

• ST Micro LSM303D 14 bit accelerometer/magnetometer

• MPU 6000 3-axis accelerometer/gyroscope

• MEAS MS5611 barometer

Top Configuration

Radiolink Pixhawk Description:

• 【High-end Configuration】--Advanced 32F427 ARM Cortex M4 Core high-performance processor, 32bit fail-safe co-processor, MPU 6000 3-axis accelerometer.



• 【Excellent Performance】--New layout and technical upgrade base on 3DR PIX. A powerful hardware device can create, you can implement more functions as you want by simple programming.



• 【Stabilization】--Producing by automatic and unique automation software testing, it achieved interference less from inner components, built-in barometer sensor to make altitude hold stabilization.



• 【Easier Setting】--No complicated setup for beginner and professor player, easy to operation calibration settings on Mission Planner, you will have a good experience of using Radiolink Pixhawk.



• 【Multiple Function】--Support OSD and GPS module and more, suit for Long-wheelbase Quadcopter/6-8 Axis Multirotor.

Radiolink Pixhawk Features:

User Instruction Reference:http://ardupilot.org/planner/docs/mission-planner-overview.html

Reduce the mutual interference of the internal components of the flight control board, achieve noise less, more accurate of compass, and make flight safer.

Anti-static from SMT to welding, all the chips, processor, sensors and others are import with whole package by primary agency, dust-free environmental protection workshop and automatic manufacture ensure the PIXHAWK are durable.

Based on the original functions of the 3DR PIX, almost two years of technical development in the field of flight controllers by the Radiolink technical team, redesigned and innovated the PIX original circuit, and repeatedly tested the function to achieve better performance.

PIXHAWK Flight Controller

3.3 LED indicator arcuno Dower sinai Bus signal input 5 Bus output SD card Main outputs Auxiliary outputs Input/output reset button Flight management reset button Micro USB port (controller arej network)

Receiver Sensitivity: 167 dBm; Reacquisition Time: -163 dBm; Cold Start: -151 dBm. Baud Rates: 1.2 Kbps, 4.8 Kbps, 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, or 112.5 Kbps. Geomagnetic Interface: I2C, 1 port available.

RadioLink Electronic Co. Ltd. is a professional RC remo: control system designer and manufacturer . the company was founded on September 1st, 2003, and registered trademark in china_ European Union and USA .

The Pixhawk flight controller achieves reduced interference between internal components, minimizing noise and ensuring more accurate compass readings for enhanced safety during flight.

Radiolink dedicates approximately four months to thoroughly developing each feature of their Pixhawk, ensuring the highest level of quality in every aspect.

The Pixhawk PIX APM is a durable flight controller that features a reliable SPIRIT module. All the components, including the processor and sensors, are imported as a complete package from the primary supplier.

After-sales service: For inquiries, please call 755-8836-1717 (extension 882 or 886) or email [after_service@radiolink.com](mailto:after_service@radiolink.com) for assistance.

The RadioLink MBN GPS module offers an impressive 50cm position accuracy, utilizing signals from up to 20 satellites within just 6 seconds, even in open ground environments. It also features station-keeping ability for stable and reliable navigation.

The Radiolink MBN GPS module, which features the UBX-M8030 (M4B) chipset from Infineon, offers significant improvements over single GNSS systems. The module boasts a high-gain antenna with enhanced selectivity and power amplification capabilities, thanks to the HMC5983 component from Honeywell.

Exceptional performance enables accurate positioning within 50 cm, utilizing signals from up to 20 satellites that can be acquired in as little as 6 seconds even in open ground conditions.

Professional Design 13 years of RF experiences Radiolink MBN GPS . Appearance patent.

Magically wise and forward-thinking, this product's design combines the best of both worlds - scientific precision and magical appeal.

Wiring instructions: Connect the red wire to VCC (Voltage Common Collector), the white wire to TX (Transmit) for GPS, the yellow wire to RX (Receive) for NULL (no connection), and the black wire to GND (Ground). Additionally, the green wire is connected to CLK (Clock) and SDA (Serial Data Alternative) for 8-bit communication.
