RadioLink RC4GS V3 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y,14+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Plastic Type: ABS

Origin: Mainland China

Model Number: RC4GS V3

Material: Plastic

For Vehicle Type: Cars

Brand Name: RadioLink

RadioLink RC4GS V3: This remote controller features multiple upgrades, including SCH programmable dual mix control, with a range of 400 meters. It also comes equipped with gyro integrated and HV servo supported timer functions, as well as FPV head tracking capabilities.

RadioLink RC4GS V3 Transmitter features an ARM M4 processor, supporting up to 7 channels (4CH or 5CH or 2.4G) with a maximum distance of 400 meters. The transmitter includes a R6Fg Gyro inside the receiver for RC car or boat models V4V5. Key functions include: * Model storage: supports up to 30 models, with independent timer function and cruise control system * Head tracker function: available (yes/no) * FPV head track function: available (yes/no) * D/R switch: adjustable for each model * Low voltage alarm and RSSI alarm: independently settable for each model Additionally, the transmitter features a simulator function.

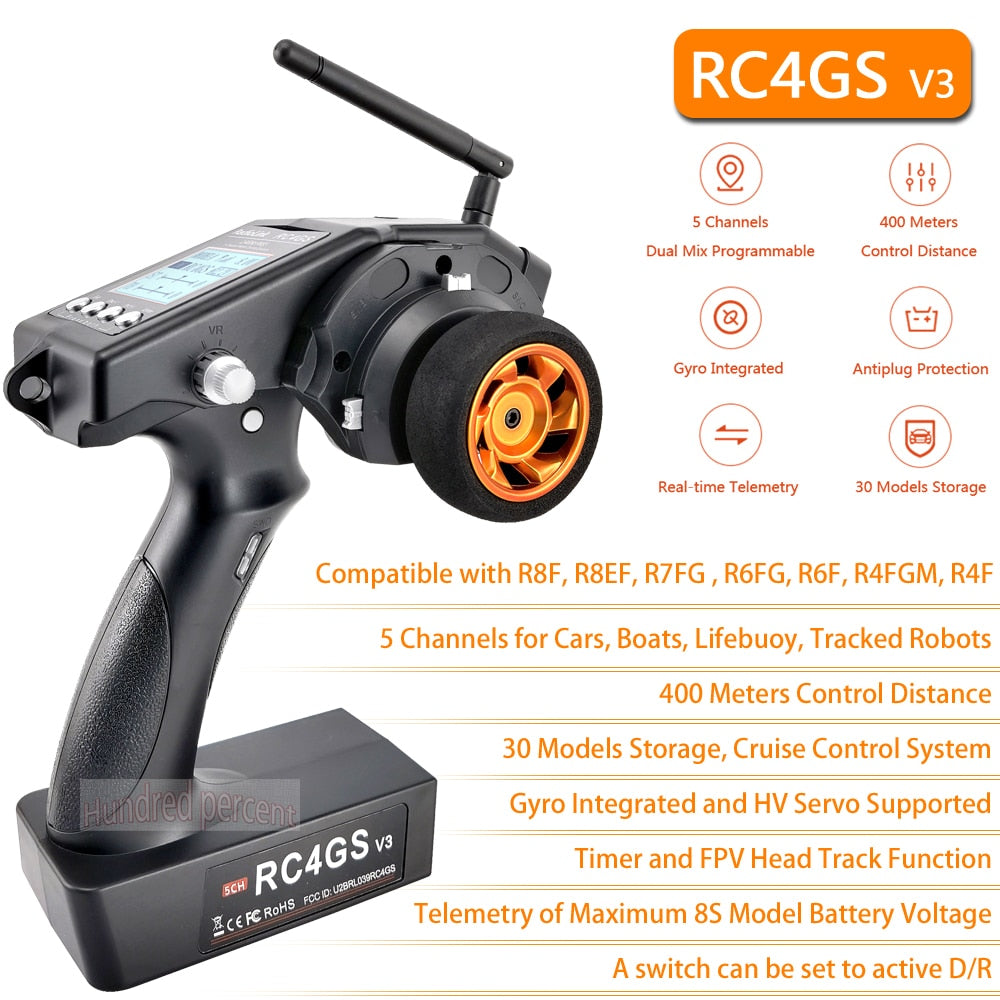

RadioLink RC4GS V3 is a 5-channel remote controller transmitter that offers a distance of up to 400 meters. It features dual mix programmable control, integrated anti-plug protection, real-time telemetry, and stores up to 30 models. This product is compatible with the R8F, R8EF, RZFG, and R6FG receiver modules.

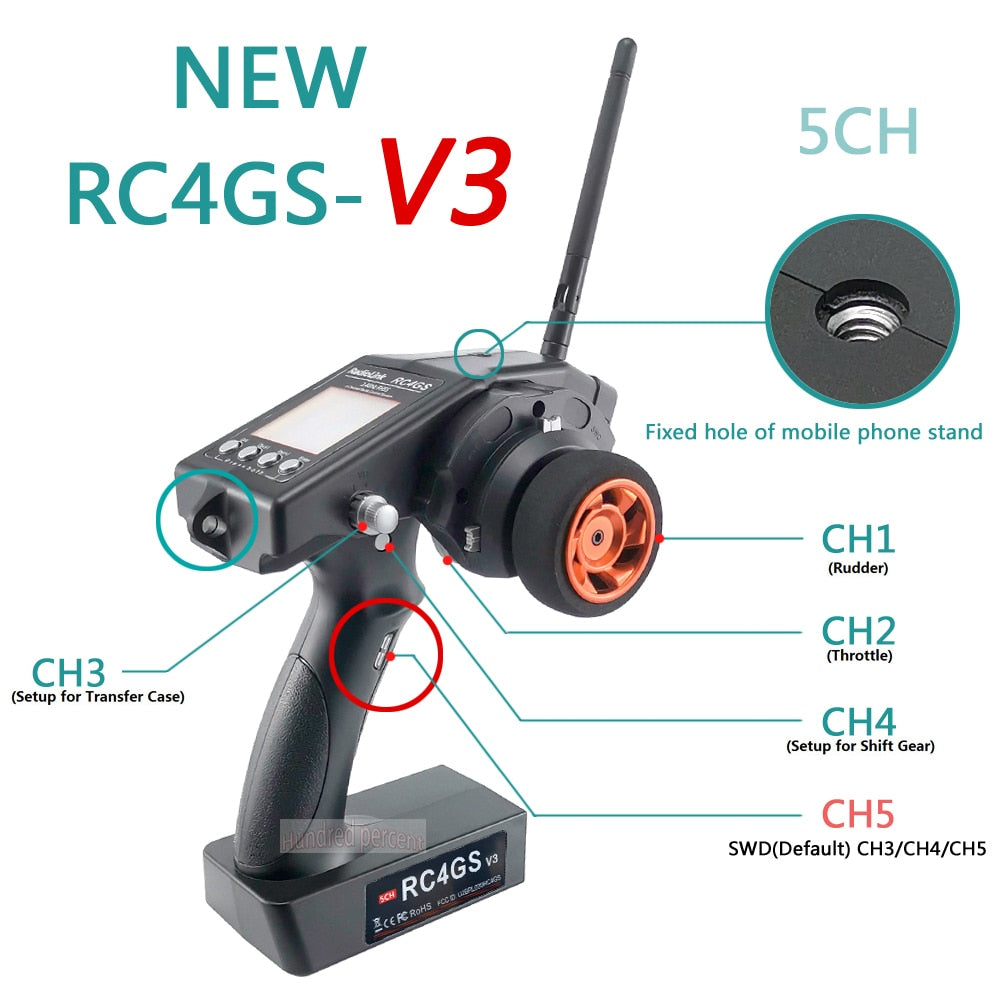

RadioLink RC4GS V3 features a fixed phone stand with channels: Channel 1 (Rudder), Channel 2 (Throttle), and Channel 3 (Setup for Transfer Case). It also includes CHB/CHA/CHS modes and has a 100% signal strength warranty (SWD).

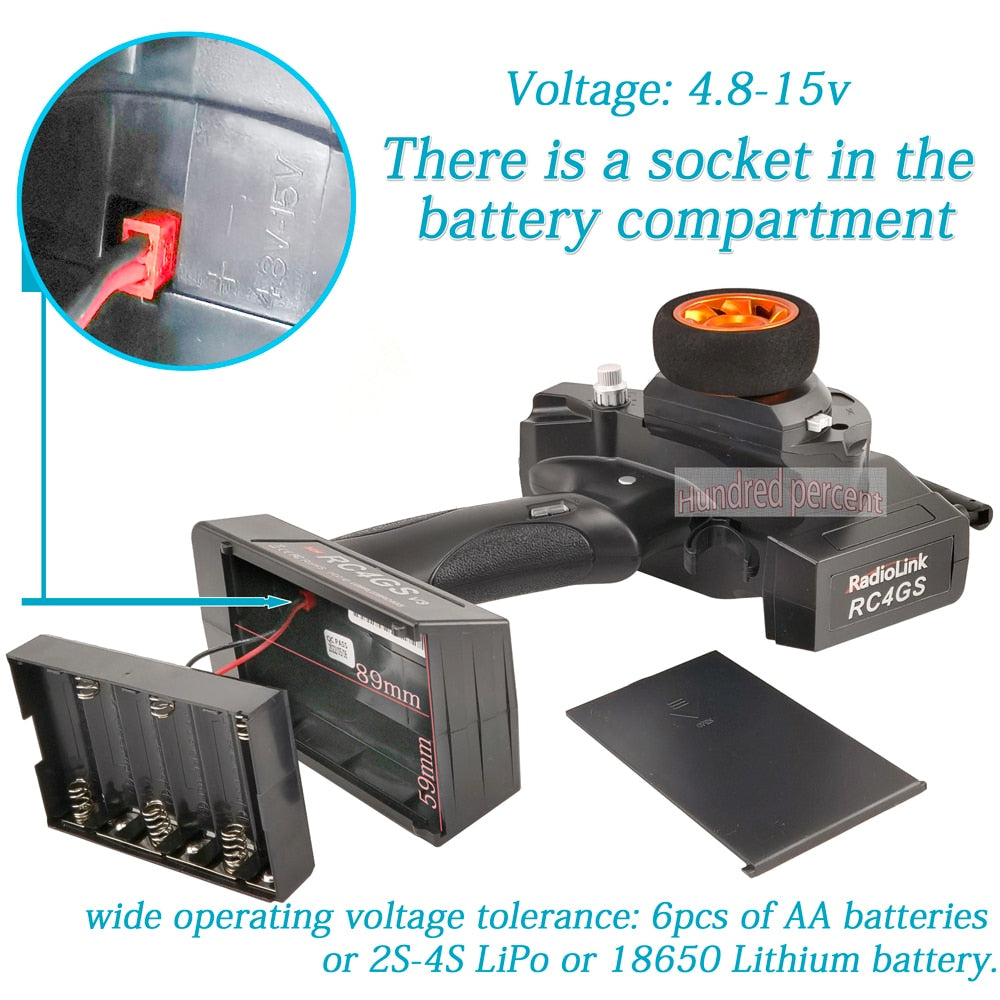

The RadioLink RC4GS V3 remote controller has a battery compartment with a socket that accepts batteries ranging from 4.8 to 15 volts, and measures approximately 2.25 inches (g9mm) in length.

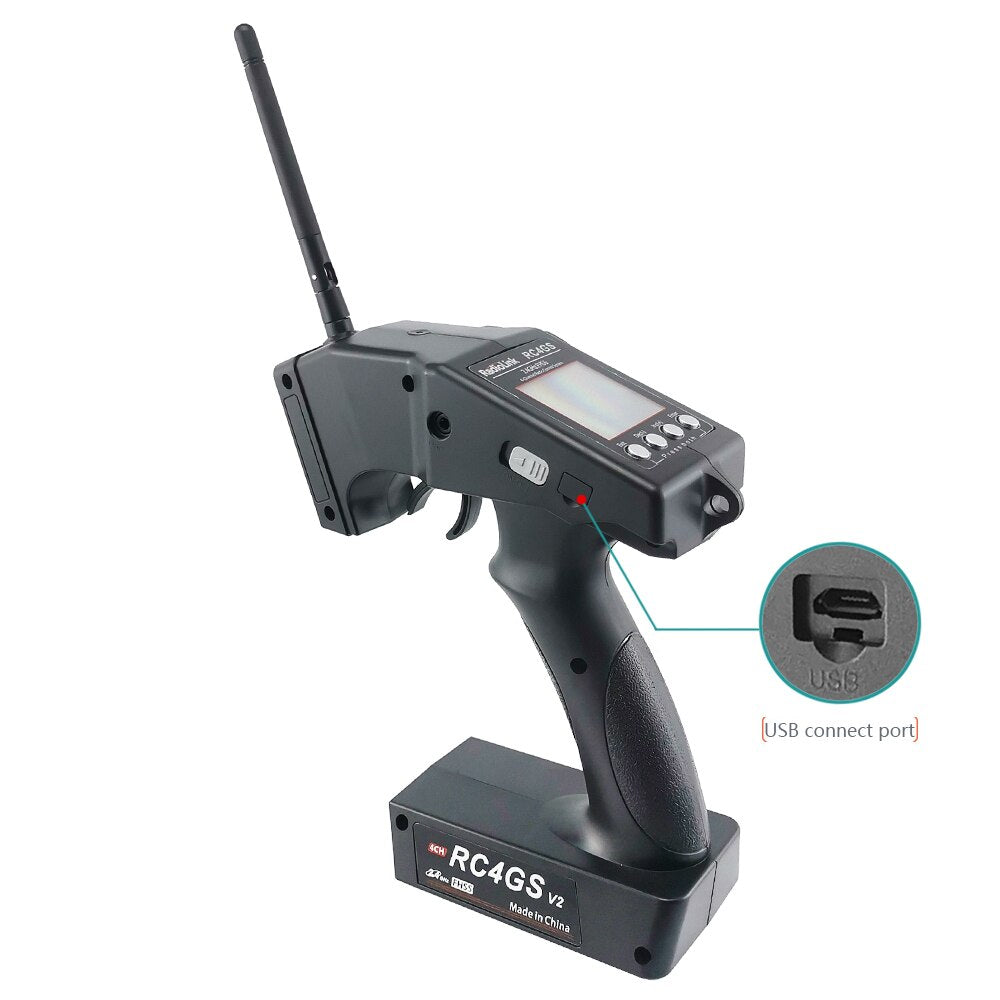

Easily update your RC4GS V3 using a USB connection to your computer. The intuitive software guide will walk you through the process, ensuring a seamless upgrade.

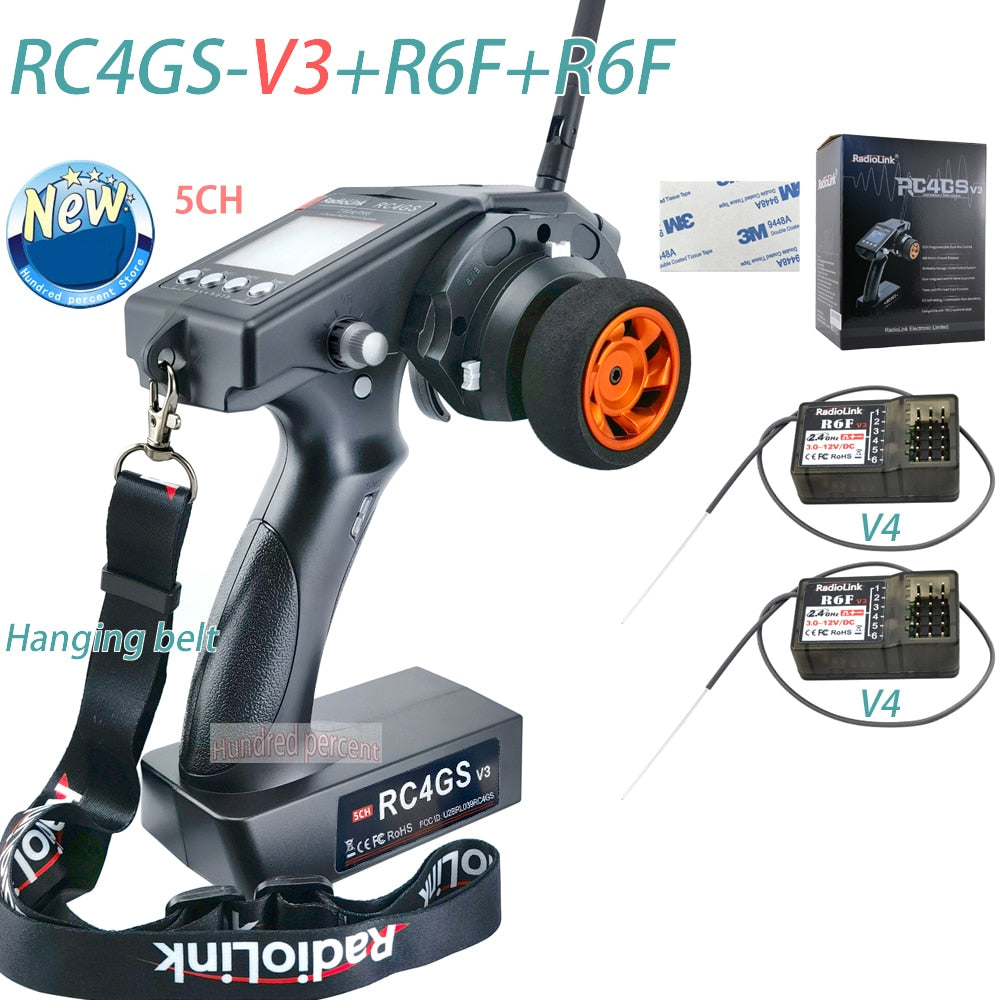

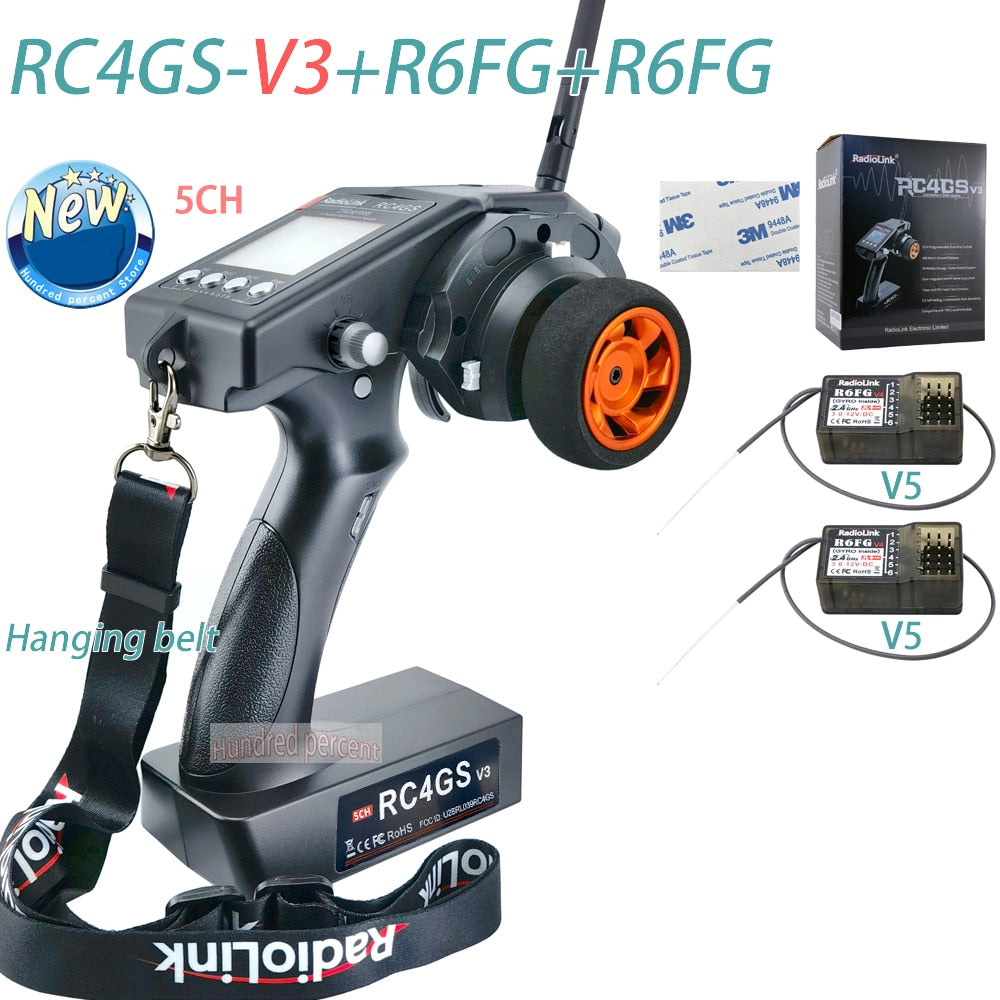

The RadioLink RC4GS V3 transmitter allows for arbitrary ID assignment and can store up to 30 model designations with active direction control (DIR). Additionally, it supports 10-way binding with receivers, making long-distance rescue or switching between RC cars or boats possible.

The dual-programmable mixing control allows for the implementation of front-wheel mix with rear-wheel steering. Channel 1 (CH1) corresponds to the rudder function, while Channel 2 (CH2) controls the throttle. Channels 3-7 (CH3-CH7) can be easily customized and programmed.

The DSC port located on the left side of the RC4GS V3 serves dual purposes. It enables connectivity to either a flight simulator or a TBS Crossfire system. The user can select from two operating modes: 'Simulator Mode' for integration with simulators, and 'Head Tracker Mode' for other applications.

Features include FPV head tracking function, TBS Crossfire functionality, and LoS (Line of Sight) detection.

Connect FPV goggles equipped with head-tracking function to the DSC port on the RadioLink RC4GS V3. When the head-track mode is selected, the port will output signals on channels 5 and 6 by default. Additionally, connect the roll servo and pitch servo used for pan-tilt control to the pins of the R6FG receiver.

RC4GS V3 Transmitter Size: 174.8*116.4*224.2mm(6.88*4.58*8.83") Channel: 5 channels Model Memory: 30 ID seed: 10 Antenna Length: 106mm(4.17") Control Range: 400 meters Operating Current: 4.8-16.8V, (6pcs of AA batteries or a 28-4S LiPo battery) RF Power: 2Odbm Frequency: 2.4Ghz

The RadioLink RC4GS V3 features a range of up to 400M, supporting 4-channel transmission with dual mix programming, gyro integration, and HV servo control. The transmitter also includes USB upgrade capabilities, an English menu, and fail-safe self-setting functions. Additionally, it features anti-plug protection and hundred percent store anti-polarity connect protection, ensuring the transmitter and receiver remain safe from damage even when connected in antipolarity for a long time.

The transmitter's steering-related servos have no impact on the maximum throttle angle travel. This function is effective in reducing unnecessary battery consumption while providing a smoother and more enjoyable driving experience.

The latest firmware for the RC4GS (version 4.0.0) offers superior performance with its programmable dual-mix control setup, allowing for optimized remote control experience.

The RC4GS remote controller features an upgradeable firmware system via USB, allowing for seamless updates using an Android device. This ensures that your transmitter always has access to the latest advancements in technology and programming. The 2.4GHz receiver supports up to 6 channels, integrating a gyro component and compatible with HV servos. Additionally, it includes CHI (rudder) control.

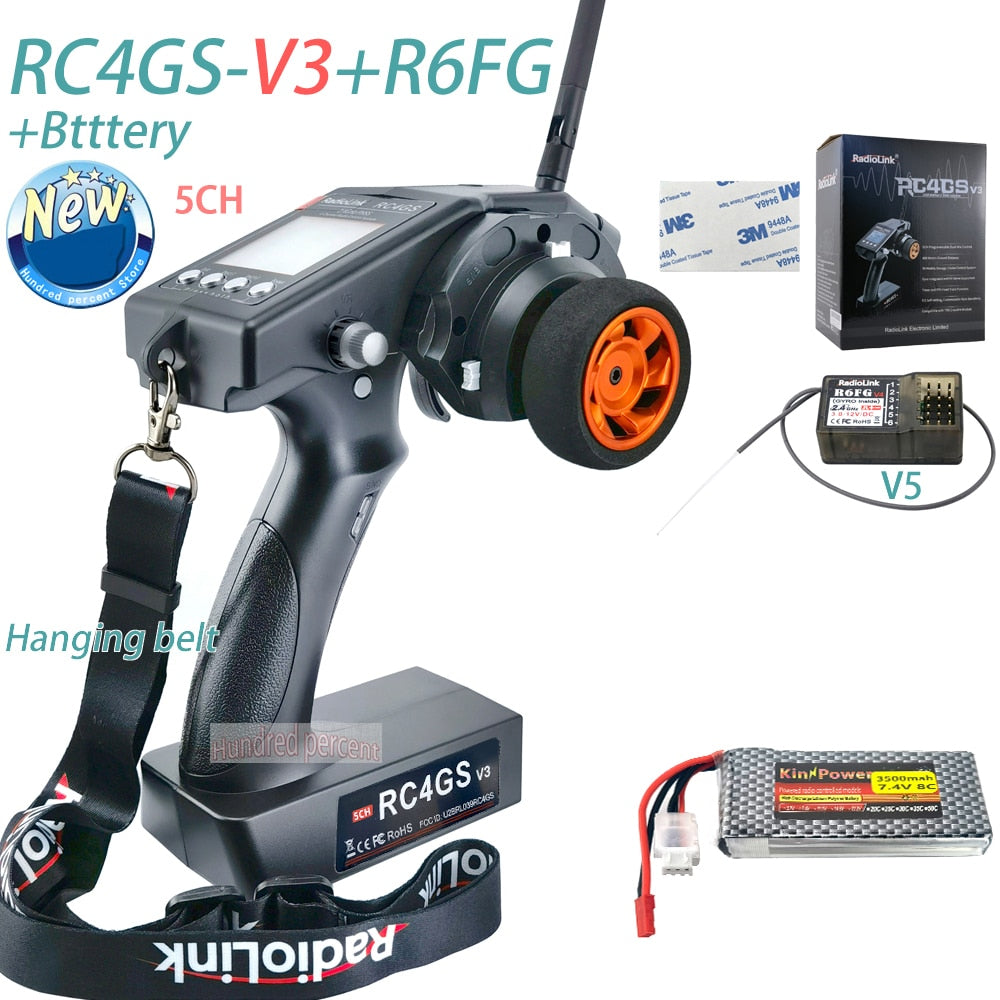

The waterproof R6Fg receiver will be packaged with the RC4GS V3 transmitter. The PCB board and pins on both components have undergone a similar waterproof treatment, utilizing nano-coating technology for added protection.

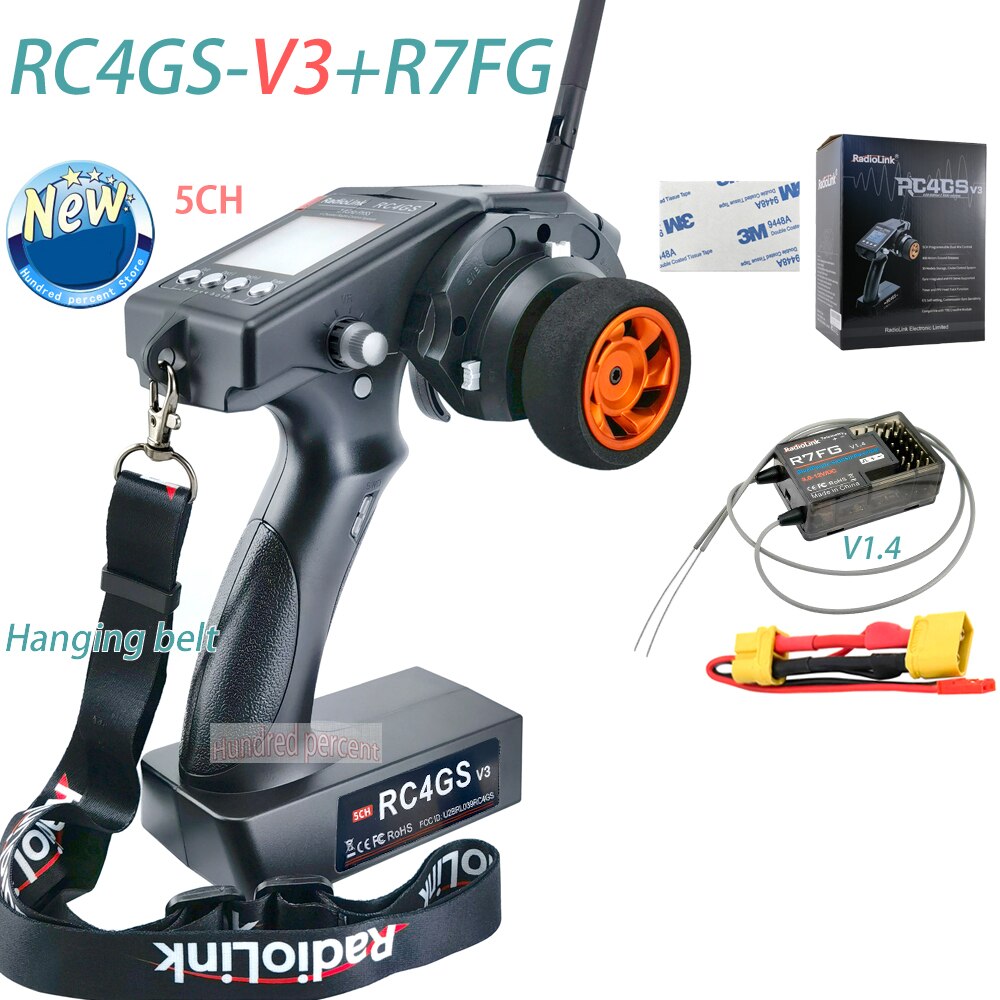

RZFG V1.A4 7-Channels Dual Antenna Receiver Telemetry of Vehicle Battery 8S RadioLink Telemetry.

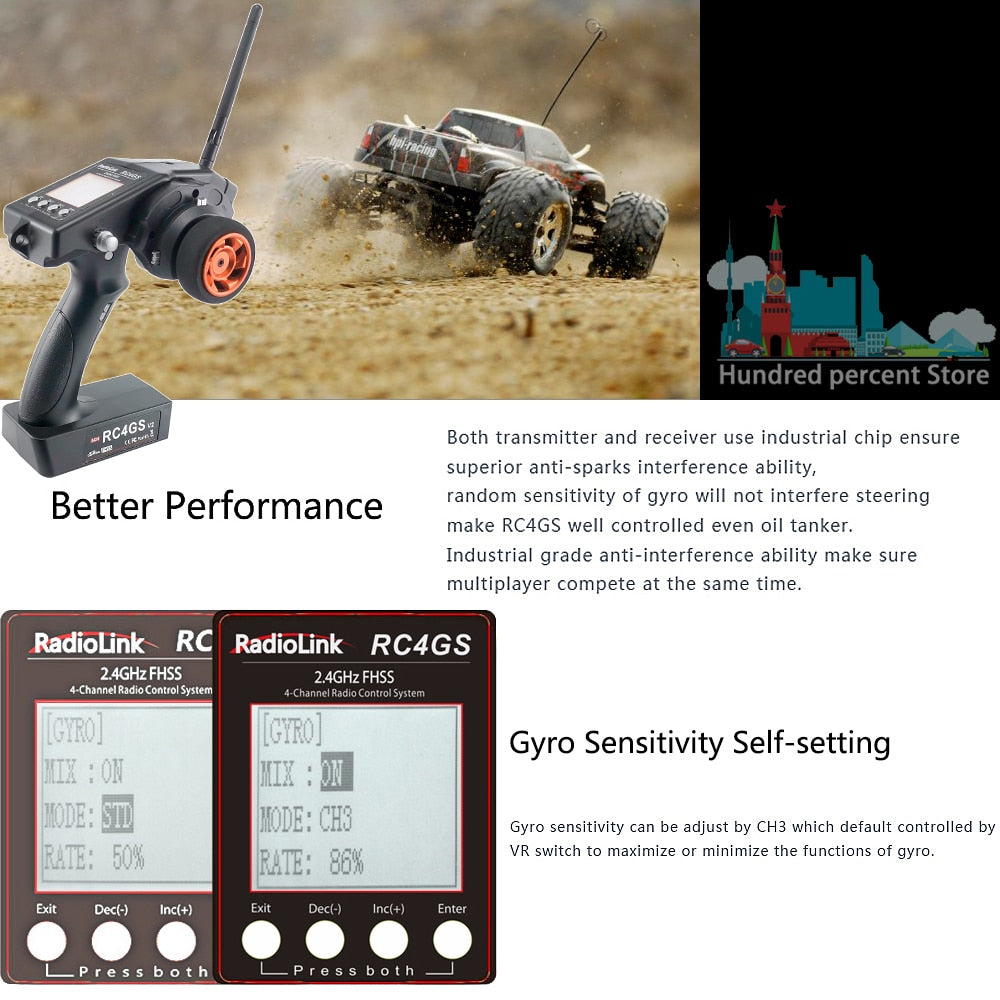

The receiver comes equipped with an integrated gyroscope, which ensures one-way transmission and prevents slipping or drifting, providing a stable and reliable connection.

The RadioLink RC4GS V3 uses the same Frequency Hopping Spread Spectrum (FHSS) technology as AT9S, which enables it to have superior anti-interference capabilities both within the same frequency band and across different frequency bands, thanks to its 67-channel pseudo-random frequency sequence hopping.

Q1: What battery is suitable to work with RC4GS/RC6GS? What's the voltage range?
A: The JST connector of RC4GS/RC6GS can be easily adapted for various battery, including LiPo battery of 2S to 4S and 6pcs of AA batteries. The voltage range is 4.8V to 15V.

Q2: Does RC4GS/RC6GS have telemetry function?
A: Yes. RC4GS with firmware of V6.0.1 and above/RC6GS with firmware of V6.0.0 and above is capable of returning signal strength, RSSI, RX voltage. If work with RadioLink receiver R7FG/R8F, vehicle voltage can also be returned. However, telemetry of motor speed and temperature is NOT available yet.

Q3: Can RC4GS/RC6GS control TRAXXAS or twin-engine RC cars?
A: Sure. RC4GS/RC6GS is a perfect remote control to all types of on-road electric powered or gasoline cars and twin-engine cars, tracked vehicles, crawlers, drift cars, tractor trucks, nitro cars, mini cars, sailboats, fishing boats.

Q4: How to setup dual ESC with RC4GS/RC6GS?
A: Select whichever two preferred channels and refer the PROGRAMMABLE MIX CONTROL setup part in the user manual of RC4GS/RC6GS or click below link for the detailed steps to setup mix control http://radiolink.com.cn/doce/programmable-dual-mix-control.html

Q5: How many models RC4GS/RC6GS can store?
A: RC4GS/RC6GS can store 10 models data at most.

Q6: What are the compatible receivers to RC4GS/RC6GS?
A: The standard packed receiver of RC4GS is R6FG while that of RC6GS is R7FG. Both of these two pistol grip radios are compatible with R6FG, R7FG, R8F, R6F, R4FGM and R4FGM is specially developed for mini cars.

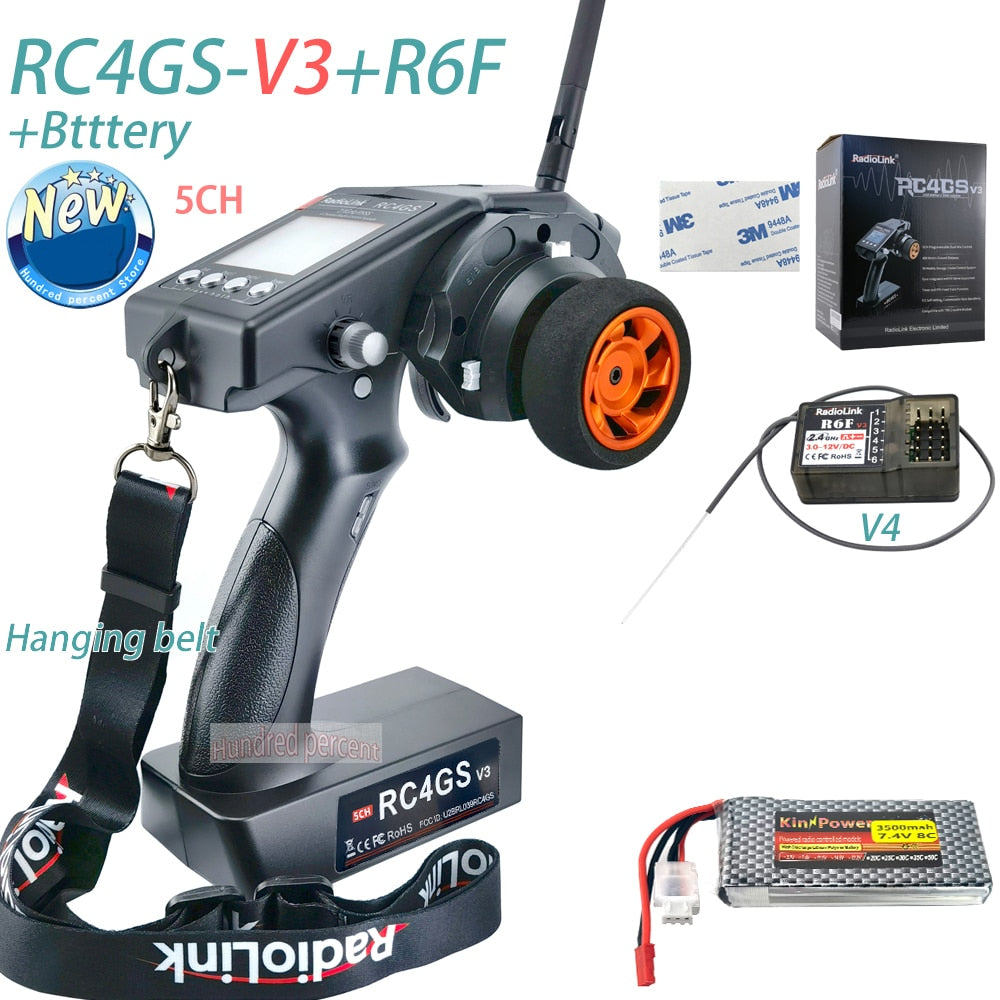

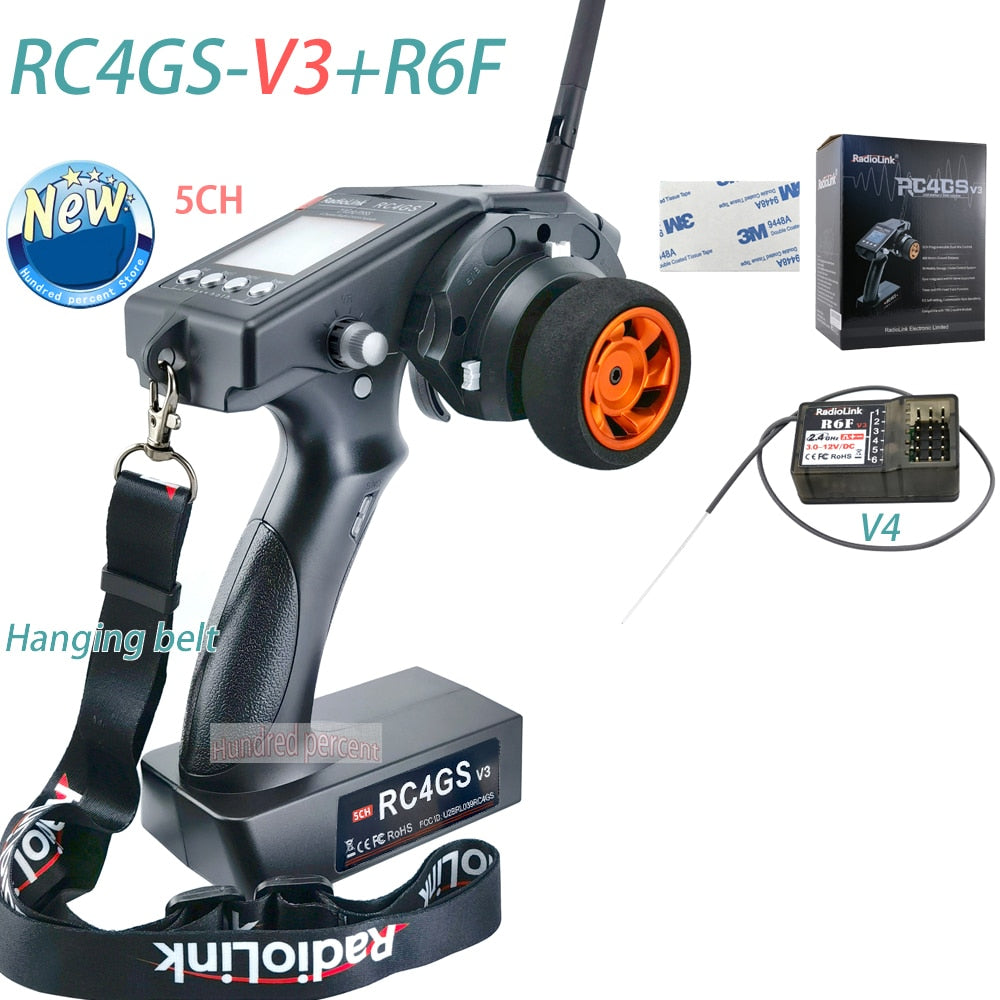

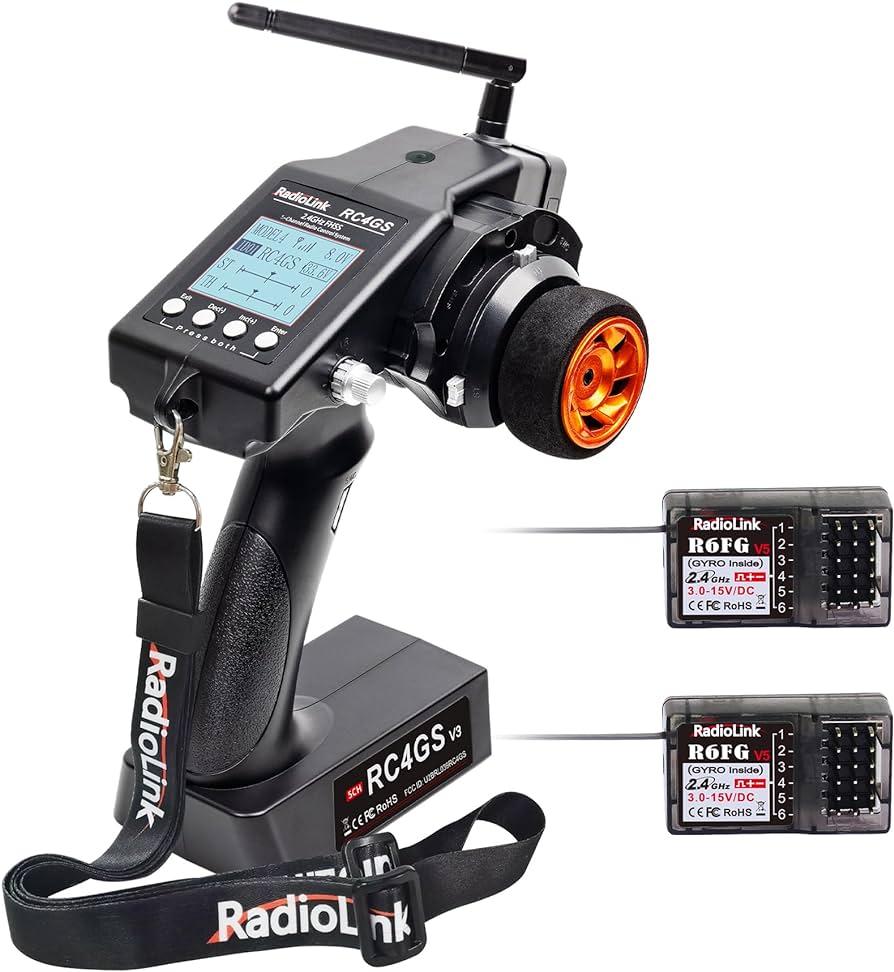

This product, RadioLink RC4GS V3, features a 2.4 GHz transmitter with 4CH/5CH/7CH channels, a range of up to 400 meters, and an R6Fg gyro receiver inside for use with RC cars or boats (V4/V5).
