SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: KV1100

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Origin: Mainland China

Model Number: Radiomaster Zorro

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: abay

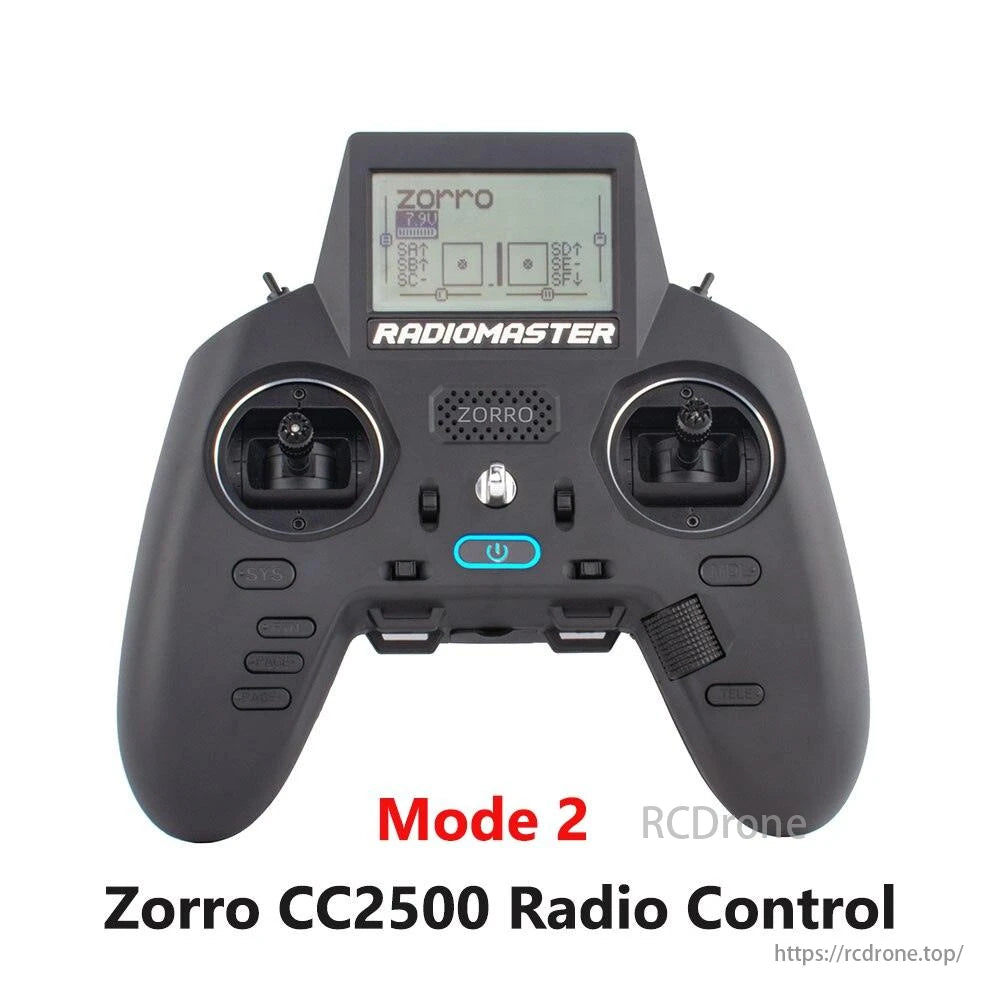

The new class leader in game control style radios is here! Meet the all new RadioMaster Zorro. Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Feature:

• Supports OPENTX&EDGETX,open-source operating systems,Oversized LCD with adjustable brighrness for any environment.

• Change between Mode 2 and Mode 1,Without Disassembly ;Adjuststable
  HallGimbals--Turn clockwise to increase
  travel(Max.54°）；Counter-clockwise to decrease travel(Min.38°）

• Improved metal roller offer precise control,Ergonomically
  designed,handle comfortable and easy to grip,Replaceable/upgradable
  non-slip Soft rubber/Leather grips

• 18350 battery compartments,supports USB-C direct charging,Supports
  external 2S battery power supply,reserve battery pack,Foldable
  antenna,Audio output,DSC port,SD card slot,USB port. DIY attachment
  points,Aux buttons.

• External Module bay for use with Crossfire/ELRS and other compatibale modules

Specs:

• Physical dimensions：170*159*108mm

• Weight：350 grams

• Operating frequency：2.400GHz-2.480GHz Internal RF Options：ELRS

• Supported protocols ：ELRS

• RF power： Up to 250mw ( CE & FCC Versions will be available) Antenna gain：Folding 2db

• Operational current：160mA 8.4V

• Operational voltage：6.6-8.4v

• DC Control distance： Receiver and Power Output dependant Operating system：OpenTX / EdgeTX Compatible Control channels：Maximum 16 (Rx dependent) Display ：128*64 Monochrome LCD Battery ：2 x 18350 (Not included)

• Charging ：Built in USB-C Charging

• Gimbal：Hall-effect

• Module bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

• Firmware Upgrade method：Via USB or SD card (SD Not included)

IGPEN SUPPORTS OPENTX OVERSIZED ADJUSTABLE ERGONOMICALLY SUPPORT S EXTERNAL SUPPORT &EDGETX LCD HALL GIMBALS DESIGNED 2S POWER SUPPLY TBSZELRS

The RadioMaster Zorro supports OpenTX and EdgeTX, open-source operating systems.

Features four high-frequency configurations in one, including the ELRS (MasterFire Combo) with CC2500, CC2500+, TBS SX1280, and 424342 protocols available.

Features an oversized LCD display with adjustable brightness, allowing for optimal viewing in various environments.

Spring-tensioned self-centering throttle adjustment can be changed between Mode 2 and Mode [blank] without disassembly.

Adjust the Hall Effect Gimbal's stick travel by turning the adjustment knob clockwise to increase the range (up to 542) or counterclockwise to decrease it (minimum 389).

Equipped with an ergonomically designed, comfortably gripped handle featuring a replaceable and upgradable non-slip soft rubber or leather grip.

ABZ Norm supports external 2S battery power supply, featuring an optional backup battery pack.

External module designed for use with Crossfire ExpressLRS (ELRS) and other compatible modules from TBS.

Physical Dimensions: The RadioMaster Zorro measures 170mm x 159mm x 108mm in size, weighing approximately 350 grams. Operating Frequency: It operates on a frequency range of 2.40 GHz to 2480 GHz, featuring CC2500 multi-protocol (4-in-1) and ELRS (2.4GHz) internal RF options.
