SIYI A8 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 4

Recommend Age: 14+y

Quantity: 1 pcs

Origin: Mainland China

Model Number: A8 MINI

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

Brand Name: aerops

Overall
Model: A8 mini
Video Output Port: Ethernet, HDMI, CVBS (AV)

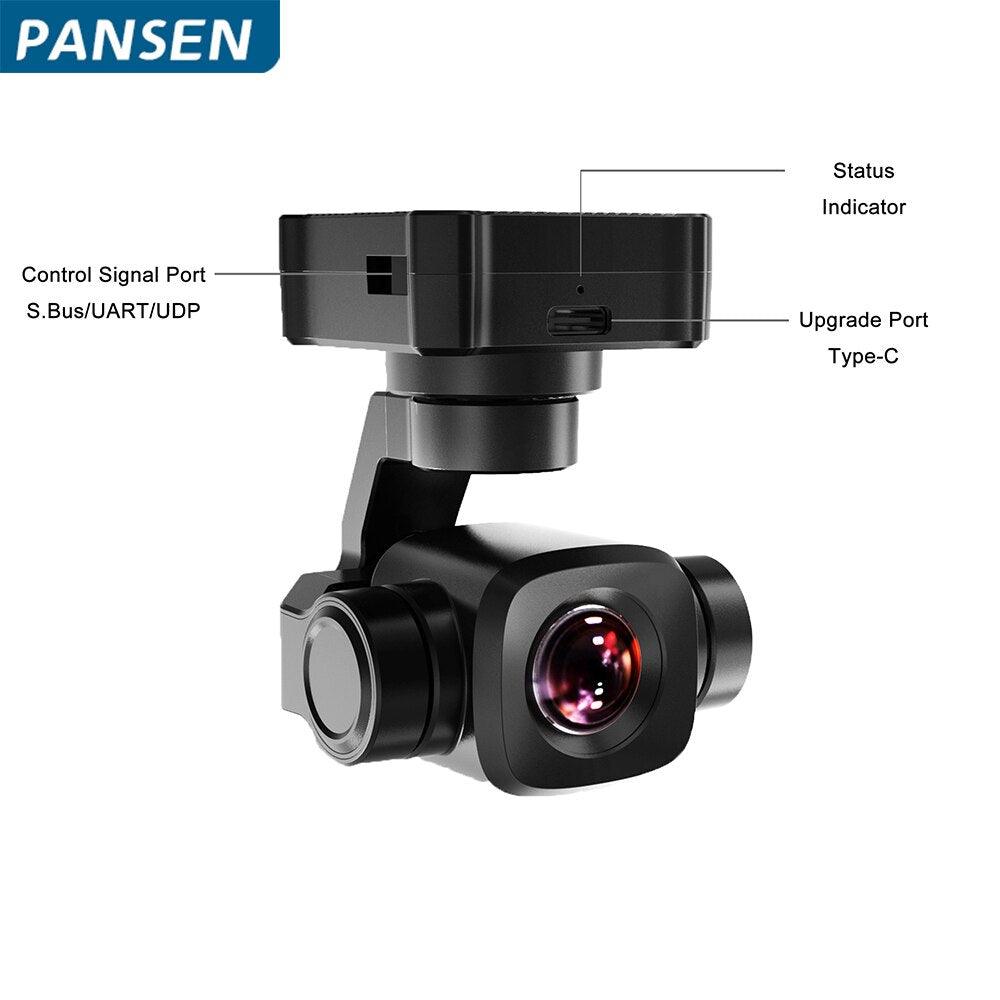

Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°

Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°

TF Recording Resolution:

• 4K (4096 x 2160) @ 25 fps

• 2K (2560 x 1440) @ 30 fps

• 1080p (1920 x 1080) @ 30 fps

• 720p (1280 x 720) @ 30 fps

Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White BalanceAuto

Sony CMOS Photo & Video Recording 6X 6X Digital Zoom Upside Down Mode Starlight Night Vision Camera 1/1.7 Inch 4K Ultra HD Identify Tracking .

The A8 Mini Gimbal Camera features an onboard Neural Processing Unit (NPU) equipped with innovative algorithms developed by SIYI, enabling enhanced processing capabilities.

The SIYI A8 mini gimbal camera features a powerful imaging system, equipped with a 1/1.7-inch Sony image sensor and an 8MP CMOS chip, capable of capturing remarkable photosensitivity and recording high-quality 4K video with smooth digital zoom capabilities up to 6X.

The SIYI A8 Mini gimbal camera features an automatic 'upside-down mode' that kicks in when the device is inverted, making it particularly convenient for use on various vehicles such as UGVs, USVs, robots, and robotic systems like drones.

The SIYI A8 Mini Gimbal Camera offers three convenient video output options: Ethernet, HDMI, and CVBS (AV). With an overall latency of just 6ms, users of FPV drones and RC planes can enjoy exceptionally low latency when using the CVBS video output.

The gimbal camera features several modes, including FPV Follow Lock, which allows for enhanced stable images. In FPV mode, the gimbal rotates simultaneously with the aircraft's roll, making it compatible with planes and racing drones. The follow mode enables the gimbal to track horizontally when the aircraft rotates, but not during any vertical movements.

The SIYI A8 mini gimbal camera features a 1/1.7-inch Starlight CMOS sensor that excels in low-light environments by preserving image brightness. Additionally, its HDR capabilities allow for precise capture of details in both highlights and shadows, effectively mitigating issues related to low light or backlit scenes.

The SIYI A8 mini gimbal camera features industry-leading 3-axis stabilization technology and high-precision FOC control algorithms, which effectively minimize image shake and ensure a stable image even when the aircraft or vehicle is in motion.

The SIYI A8 Mini camera features gimbal control with various output options, including video outputs for USB, UART, UDP, and HDMI connections, as well as composite video (CVBS/AV) input.
