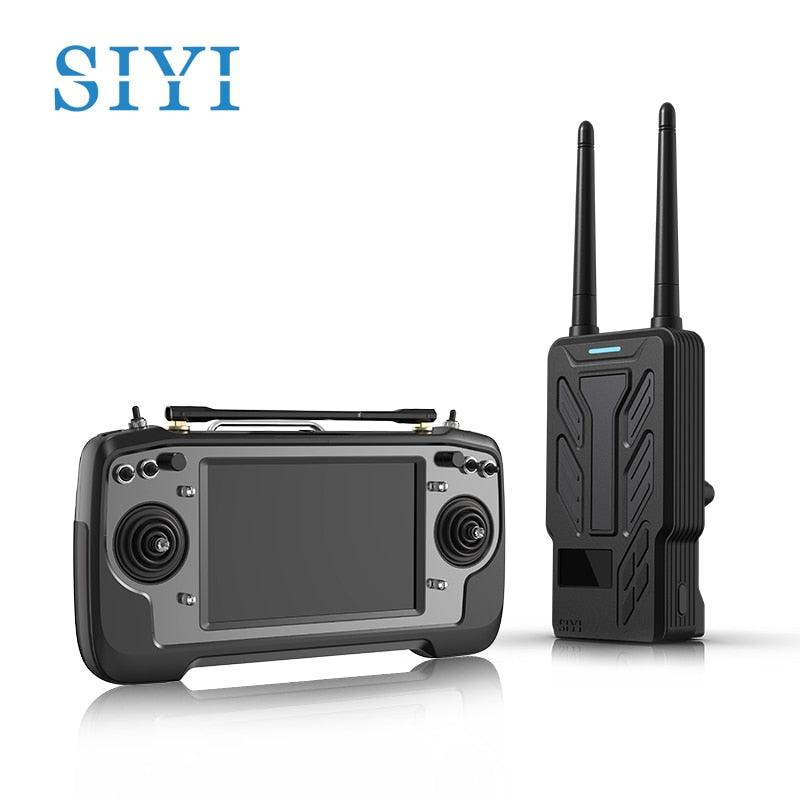

SIYI MK32 HM30 DUAL Enterprise Handheld Ground Station SPECIFICATIONS

Warranty: 12 months

Video Capture Resolution: 1080p FHD

Type: Airplane

State of Assembly: Ready-to-Go

Remote Distance: 15 km / 9.3 miles

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: US Plug

Package Includes: Original Box,Batteries,Charger,Remote Controller,USB Cable

Origin: Mainland China

Operator Skill Level: Expert

Model Number: MK32

Material: Plastic

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 10 Hours

Features: FPV Capable,GPS,Wi-Fi

Dimensions: 11cm-30cm

Controller Mode: MODE2

Controller Battery: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh

Control Channels: 12 Channels & Up

Charging Voltage: Transmitter: 5V/3A, Receiver: 15 ~ 59V

Charging Time: 3.5 Hours (PD fast charging, Type-C)

Certification: 3C

Camera Mount Type: Other

Brand Name: SIYI

Barcode: No

Aerial Photography: No

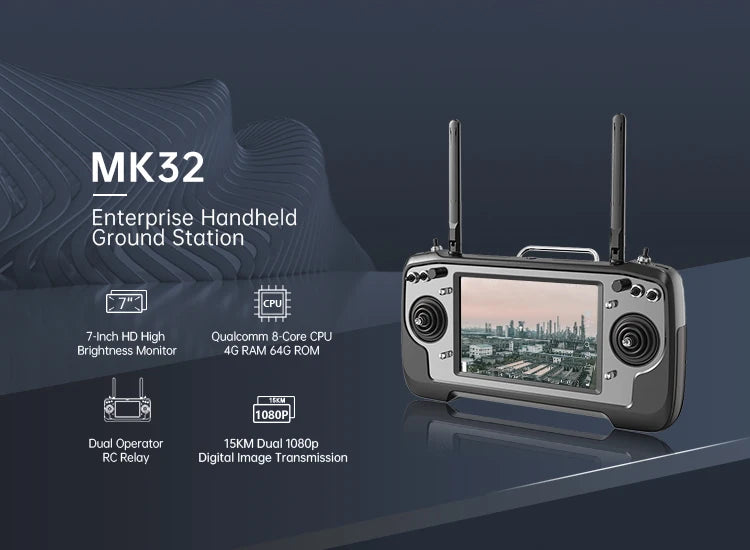

MK32 Enterprise Handheld Ground Station 7-Inch HD High Quakcomm Core CPU Brightness Monitor 4G RAM 64G ROM Duol Operator ISKM Dual 1O8Op RC Reloy Digital Image Transmission .

Featuring a built-in 7-inch high-definition (HD) monitor with a maximum brightness of 1000 nits, this system presents a high-contrast and clear screen display.

The SIYI MK32 wireless digital image transmission system utilizes SIYI's proprietary wireless HD image transmission technology, which enables automatic frequency adaptation to minimize interference.

MK32's Android system carries Qualcomm core which can smoothly decode 108Op 60 fps video streom by hardware In elther H264 or H265 format .

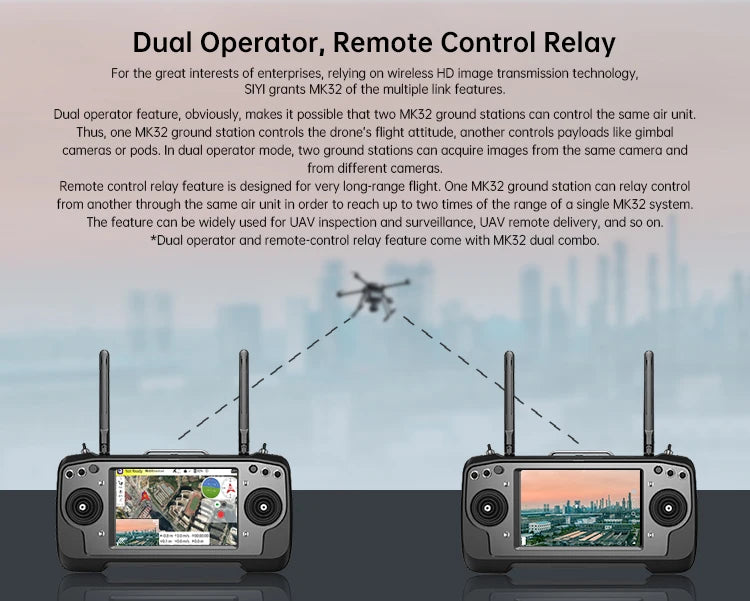

The dual operator feature enables simultaneous control of a single aerial unit by two ground stations. The remote control relay function is designed for extended-range flights, making it suitable for applications such as UAV inspection and surveillance, as well as remote delivery.

This handheld ground station image transmission system features an abundant interface, including a knob-based control panel with a three-stage switch, as well as output ports for Type-C SBus and PPM input. Additionally, it supports SIM cards, TF cards, and LAN connectivity via Ethernet charging.

The SIYI MK32 HM30 DUAL Enterprise Handheld Ground Station Image Transmission System features a three-stage switch with microphone input, as well as USB and HDMI connectivity. Additionally, it includes buttons for remote control operation and a centering dial for precise adjustments. The system also has a quick-release battery design for easy maintenance.

This system features multiple input options, including USB-A, S-Bus output for external links, PPM (pulse position modulation) output for an illumination simulator, and charging capabilities with transferable firmware updates. It also includes five bus outputs, a check via USB Type-C, as well as PPM output and FPM (full power management) input for monitoring charging status. Additionally, it offers cellular network connectivity, LAN SIM card slot, Ethernet output to PC, and TF card slot for selecting video stream and datalink modes.

The system features servo PWM channels for signal control, connecting devices like servos, camera pods, and FPV cameras. It also includes an HDMI to Ethernet converter, supporting inputs from I1 to 16.8 volts (with future hardware updates, it will be extended to support up to 25.2V input). Additionally, the xT6o Power Management Unit (PMU) supports power input ranging from 14 to 75.6V and has a built-in Battery Elimination Circuit (BEC) that provides an output of 45 to 185mA.

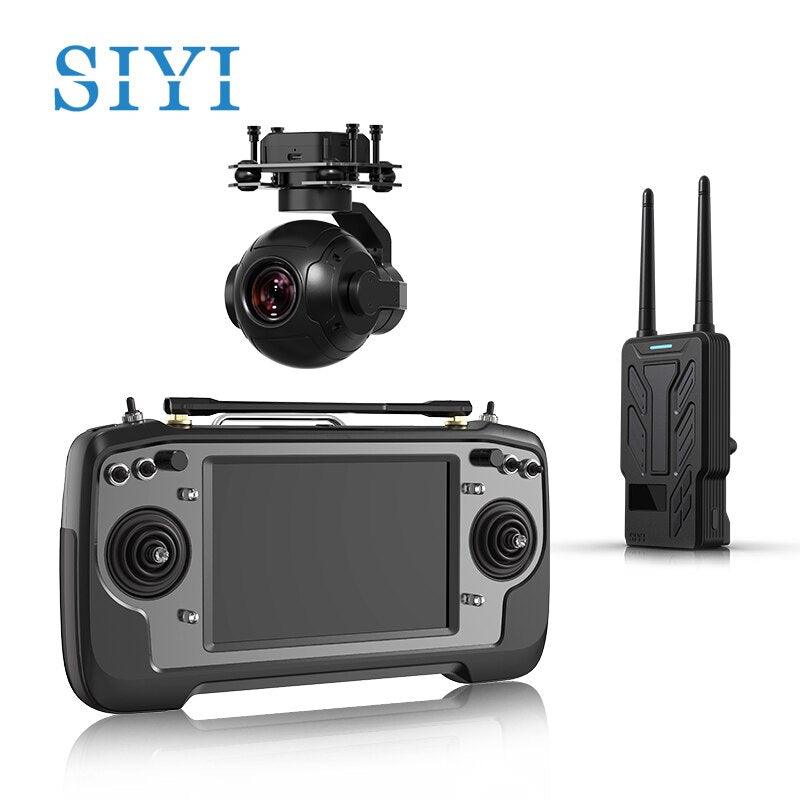

This system comes with various optional parts and combos, including the MK32 Standard Combo, MK33 Ground Station, MK34 Airborne Unit, and MK38 Airborne Unit. Additionally, it features an HDMI input converter for compatibility with dual systems such as the MK37 Dual Ground Station and the MK36/MK39 Dual Ground/Dual Air Systems.

An optional part is the A8 mini ZRIO Rim FPV Hub, which features a 4K mini zoom camera with 2K resolution and a 30x hybrid zoom function, as well as HD recording capabilities and gimbal stabilization.
