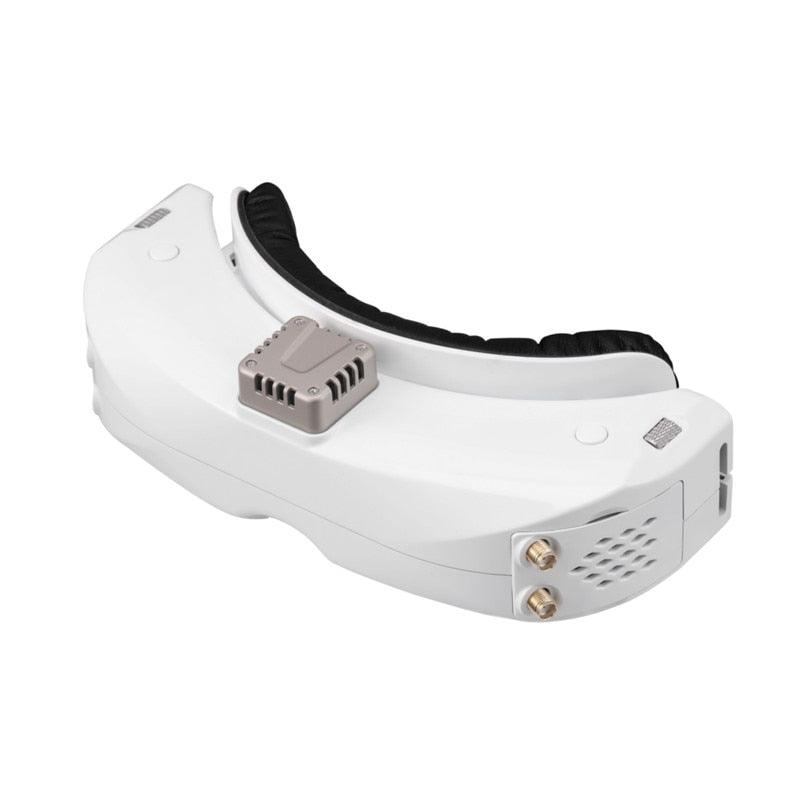

SKYZONE SKY04L V2 FPV Goggles - LCOS 1280*960 5.8G 48CH Steadyview Receiver DVR Build In Headtracker FOV39 2-6S FPV Glasses for RC FPV Drones

SKYZONE SKY04L LCOS 1280*960 5.8G 48CH Steadyview Receiver DVR Build In Headtracker FOV39 2-6S FPV Goggles for RC FPV Drones

Package Included:

1x SKY04L Goggles

1x Steadyview Receiver Module

2x Faceplate (wide and narrow)

1x Sponge

1x Zipper case

1x Power cable

1x Headtracker cable

2x 5.8GHz 2dB antennas

1x Video/Audio Cable

1x USB-C Cable

1x Uer Manual

Overview:

The SKY04L is lite version(also LCOS version) of SKY04 series.

With focus adjustment, 1280*960 high resolution LCOS screen , the screen have vivid color , pilot can see more details in the racing .

With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.

The new designed optics have focus adjustment feature and 39 degree field of view, give pilots more immersive FPV experience.

The new OS with 10 languages to set select, pilot have no trouble with the menu system, with shuttle wheel and new user interface, pilot can set all the settings just by rolling the wheel without taking off the goggle.

Specifications:

Brand Name: Skyzone

Item Name: SKY04L

Color: White

Screen: LCOS

Resolution: 1280X960

FOV(Diagonal): 39°

Aspect Ratio: 4:3/16:9

Focus: -6~+6 adjustable

Interpupillary Distance(IPD): 58-71mm

Receiver: 5.8Ghz 48CH Steadyview Receiver

Language: 10 Language

Power Supply: DC 6.5-25.2V/USB 5V

Power Consumption: 720mA at 12V

DVR: H264, 30fps,MOV 6Mbps, SD Card support up to 128Gb

Head Tracker: 3-axis Accelerometer, 3-axis gyroscope

Dimentions: 185*75*67mm

Weight: 267g

Features:

- 5.8G 48CH steadyview receiver

- Focus Adjustment -6~+6

- FOV 39°

- LCOS 1280*960 High Resolution Screen

- Dual Module Bay

- Bulit-in with de-fogging and heat-sink fan

- IPD range 5871mm

- Channel scanning

- Type C connector to upgarde the firmware or power goggle

- 2S-6S wide voltage support

- Build in Headtracker

- H.264 DVR, SD card support up to 128GB

Adjust focus using the shuttle wheel control, featuring a new UI with advanced screen settings in 10 languages.

The SKYZONE SteadyView Receiver seamlessly combines two signals into one, enhancing image stability and clarity in demanding conditions. Additionally, the module bay allows for easy upgrades, increasing the goggles' capabilities.

The new user interface (UI) features a shuttle wheel for easy navigation, with support for 10 languages. Additionally, the system includes an RSSI fan mode for frequency tracking at 5.790 MHz on Channel I. The supply head power can be calibrated for voltage, and the image display has adjustable speed settings. Other notable features include a rotary dial for setting preferences and beep notifications.

SKYZONE Shuttle Wheel Control eliminates the need to decipher complex multi-function buttons or 5-way joystick navigation, instead offering a smooth and intuitive shuttle control experience.

Skyzone optics boast a wide field of view (39 degrees) and feature adjustable focus, eliminating the need to use diopters.

The SKYZONE goggles feature a high-resolution, vivid-color LCOS (liquid crystal on silicon) display with a resolution of 1280x960 pixels. This technology provides both low latency and detailed visuals.

The SKYZONE Sky04L V2 FPV goggles feature an advanced OLED screen with switchable aspect ratio options. The device offers four preset settings and three customizable settings for indoor, outdoor, or various weather conditions.
