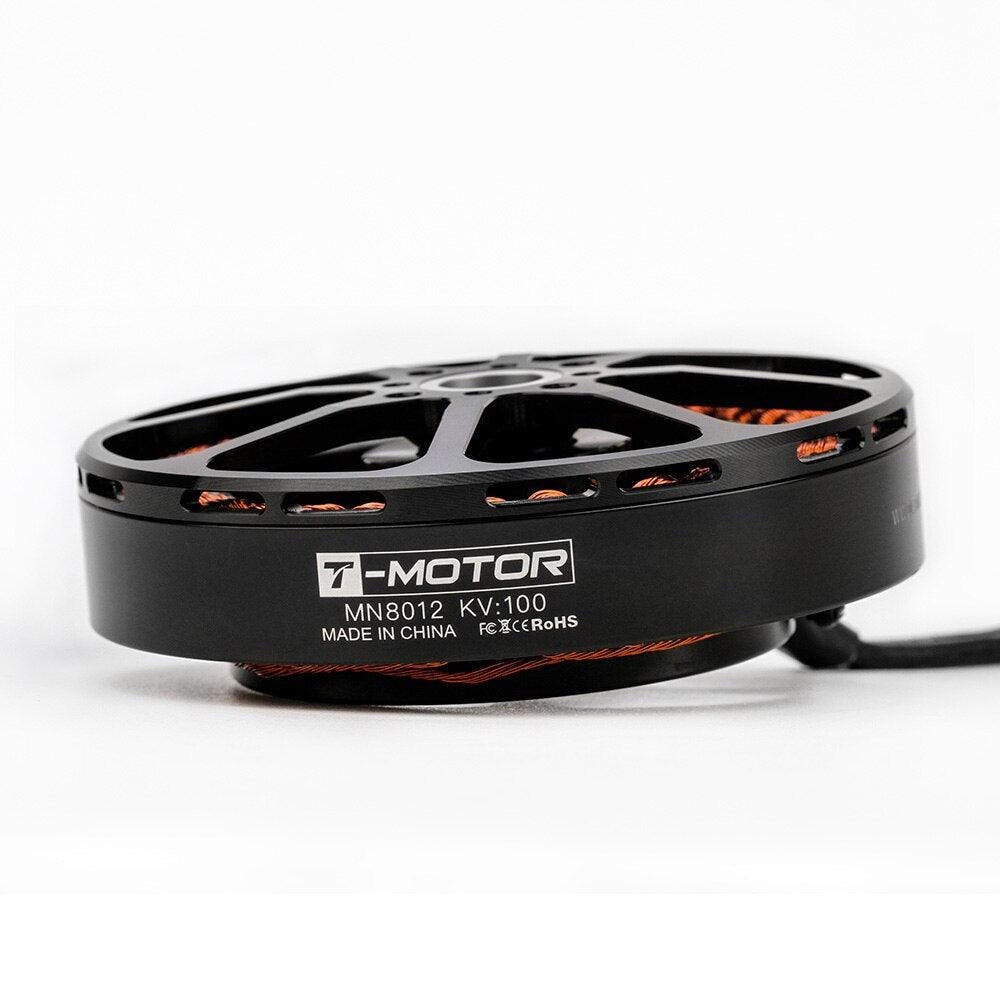

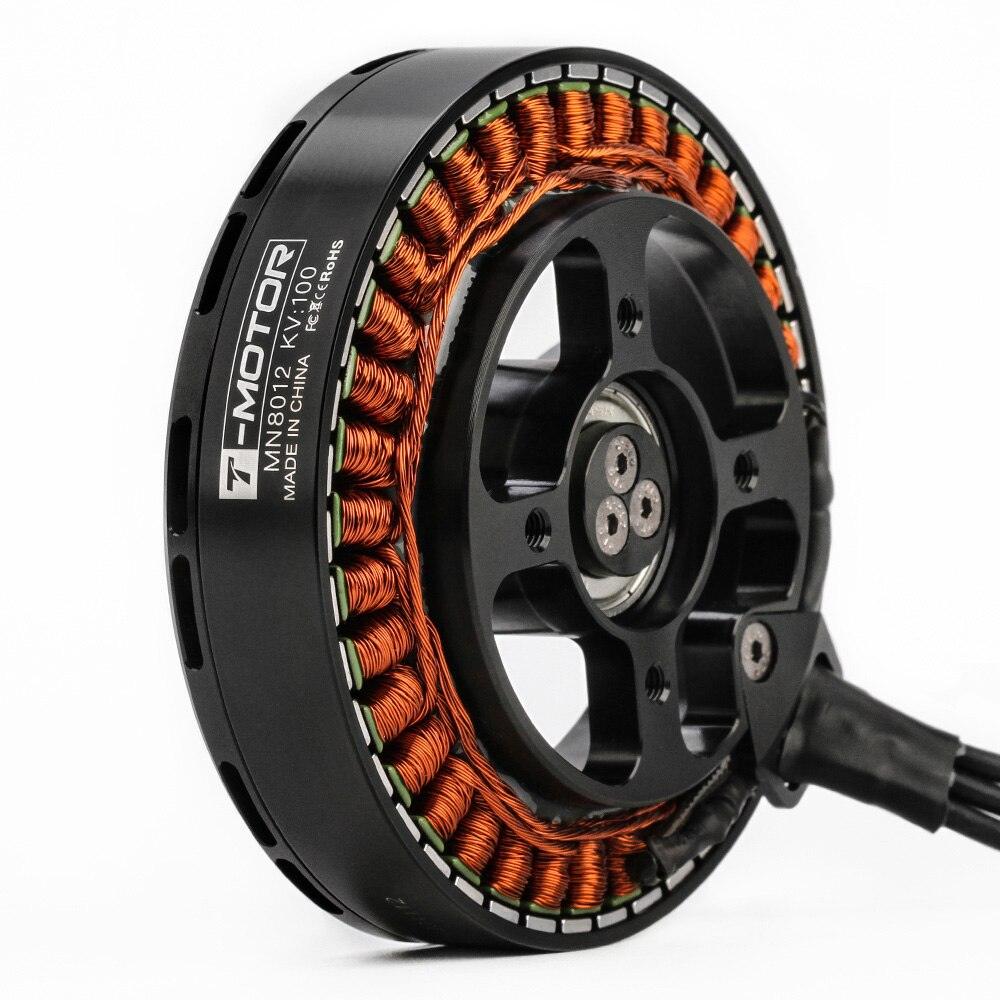

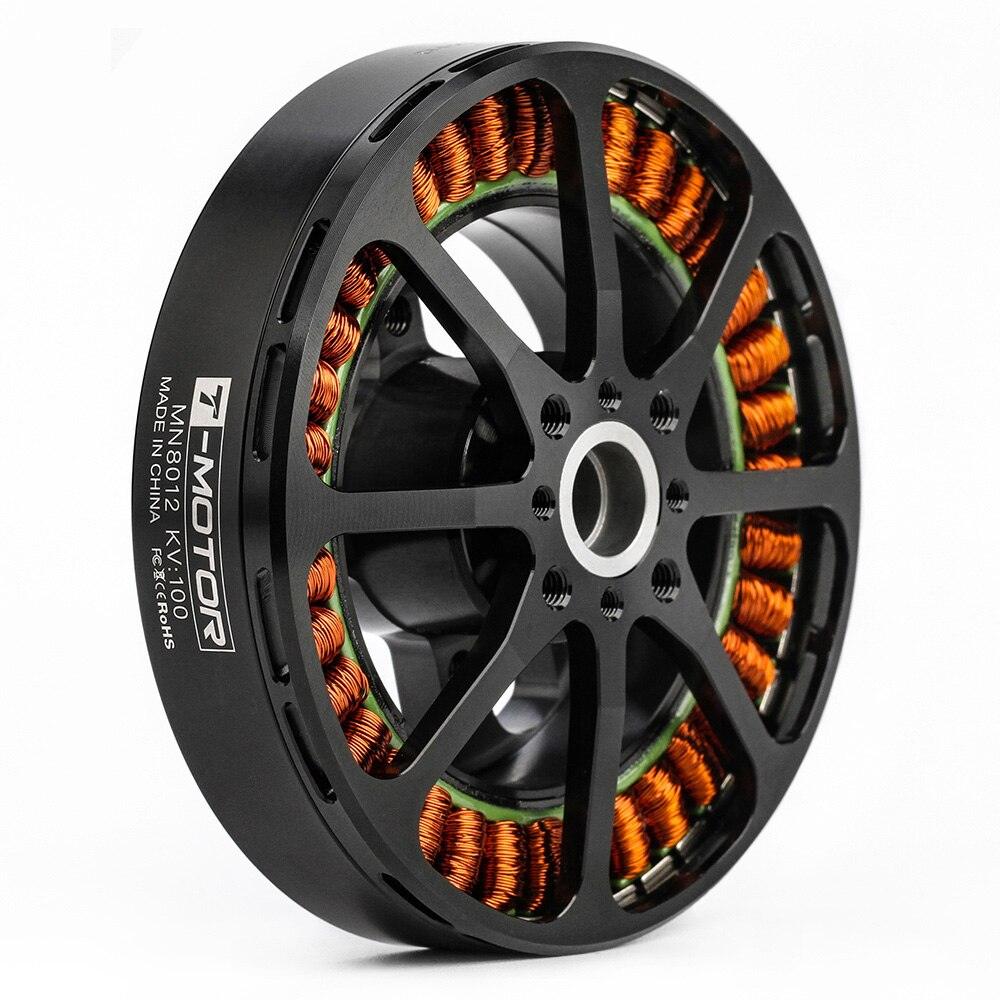

T-motor MN8012 KV100 12S Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN8012 KV100

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

Rated thrust: 3-6kg Multiple Choices TARGETING CENTRAL POSITION Na MN8014 MADE 0 MOTOR] KVOO FcTctat4s voe .

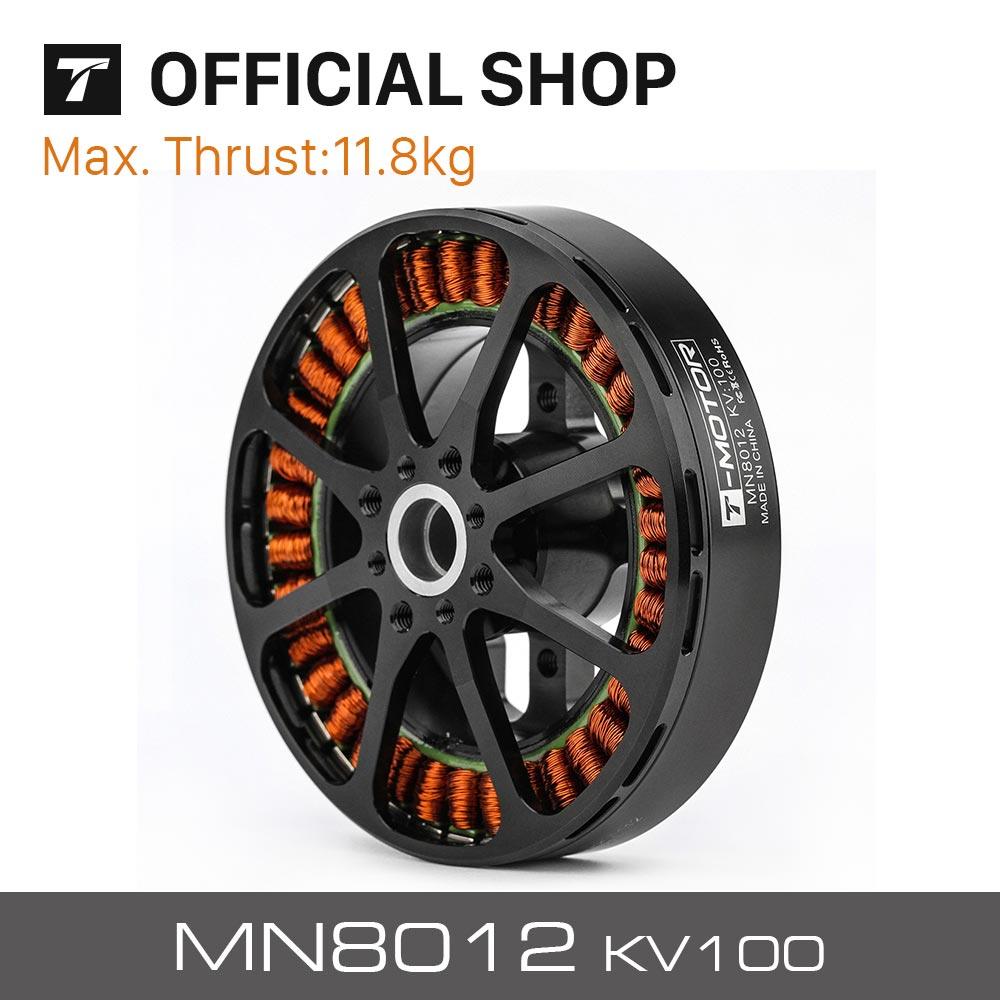

The T-Motor MN8012, MN8014, and MN8117 brushless motors feature max thrust values of 11.8kg, 13.9kg, and 16.8kg, respectively, with motor weights ranging from 351g to 453g. The power ratio for each motor is 34-35-37.

Recommendation for composite wing solutions: when configuring in a coaxial setup, a 25% thrust loss should be considered.

Featuring trusted performance and stable operation, this motor utilizes imported bearings and high-quality 7075 aviation-grade aluminum alloy to ensure a service life of up to 800 hours for extended flying times.

Featuring competitive performance, energy efficiency, and ease of maneuverability, this motor boasts a self-circulating cooling system, high-temperature-resistant wires, and arc magnets that work together to unlock its full potential for high-efficiency operation.

Specifications Motor Size 087.8*29mm Anti-rust treatment; Stator 1808' high temperature-resisting Configuration 36N42P Shaft Diameter IN: 12mm Bearing Imported 69012Z Magnet Level 180T high temperature resistance Lead Cable 16AWG*9Omm Copper Wire 2208' long temperature resistance Coil Insulation Test 100Ov/Ss Rotor Dynamic Balance Standard IP35 100 Rated IVoltage (Lipo) 125 Idle Current (1OV)
