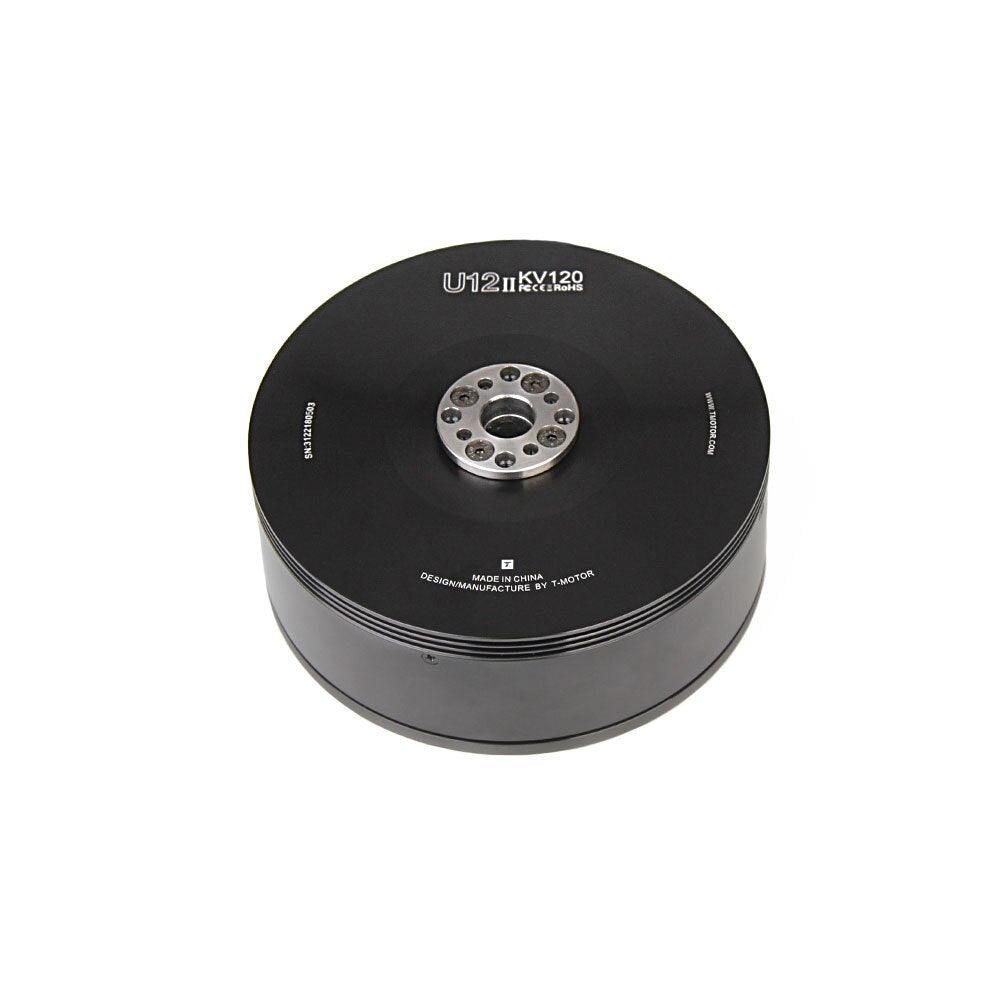

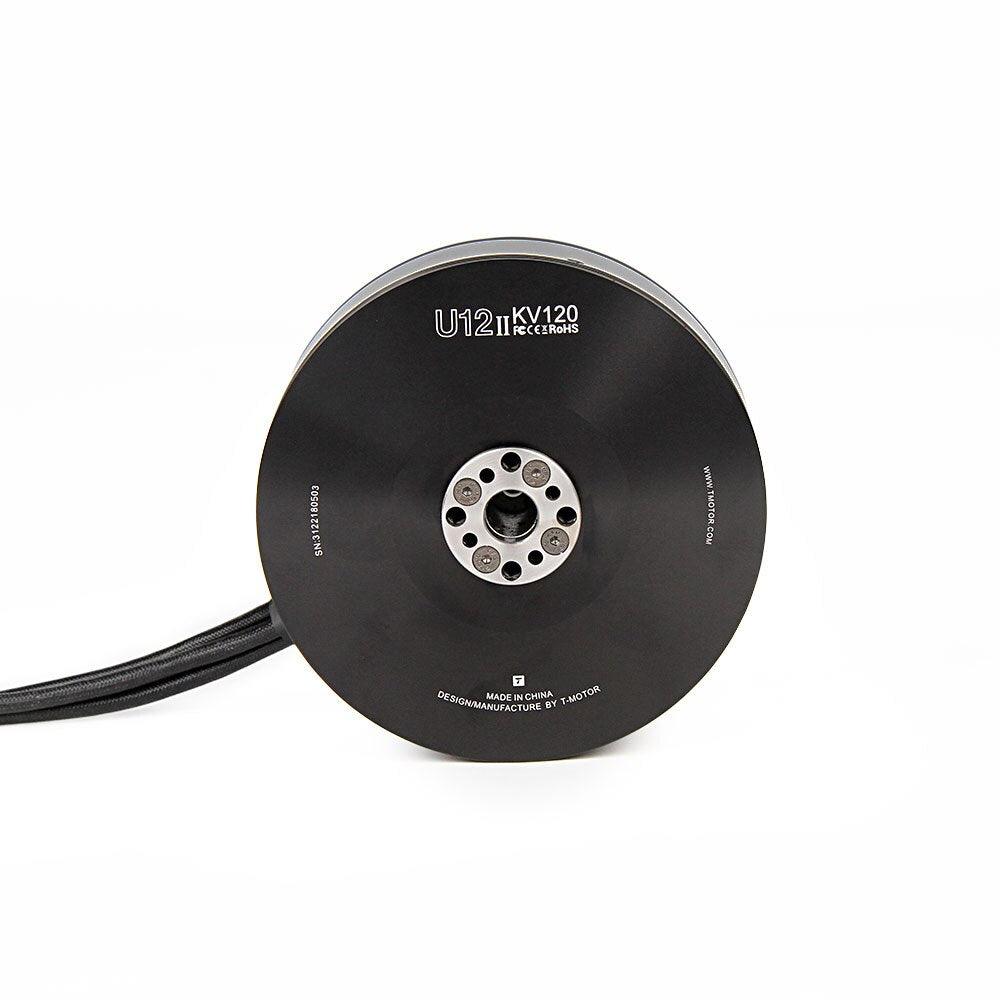

T-Motor U12II KV120 20KG Thrust  Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Tool Supplies: Battery

Size: 10s-14s

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: U12II KV120

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

u1211-a of thrust improvement *redesigned iron core *sine wave features #foc esc *silver winding *innovative cooling design leap *

1 desigmmanufacture uizukv1zo 'tnotor jude wchna ketntiteicke a f

The U12II KV120 motor achieves a remarkable 62% increase in payload capacity, with a power-to-weight ratio that delivers an impressive 27.73 kg of thrust for every kilogram of weight, boasting figures of 17.22 kg and 16.71 kg respectively.

The innovative iron core design enables the U12 to achieve a maximum thrust of 20 kg, a significant increase from its previous output of 13.641 kg. This substantial boost greatly enhances the aircraft's payload capacity, allowing for increased versatility and functionality.

The built-in array ensures efficient heat dissipation, guaranteeing reliable performance even when operating in temperatures up to 50°C.

Nothing can stop you from taking to the skies - not even heavy rainfall or desert conditions! With our efficient [KV120] design, you're free to soar.

motor protection for safe flight ip5s heavy rains and desert are not qualified to stop you from flying- efficient (designnanudacture = kv12o fcce_rohs

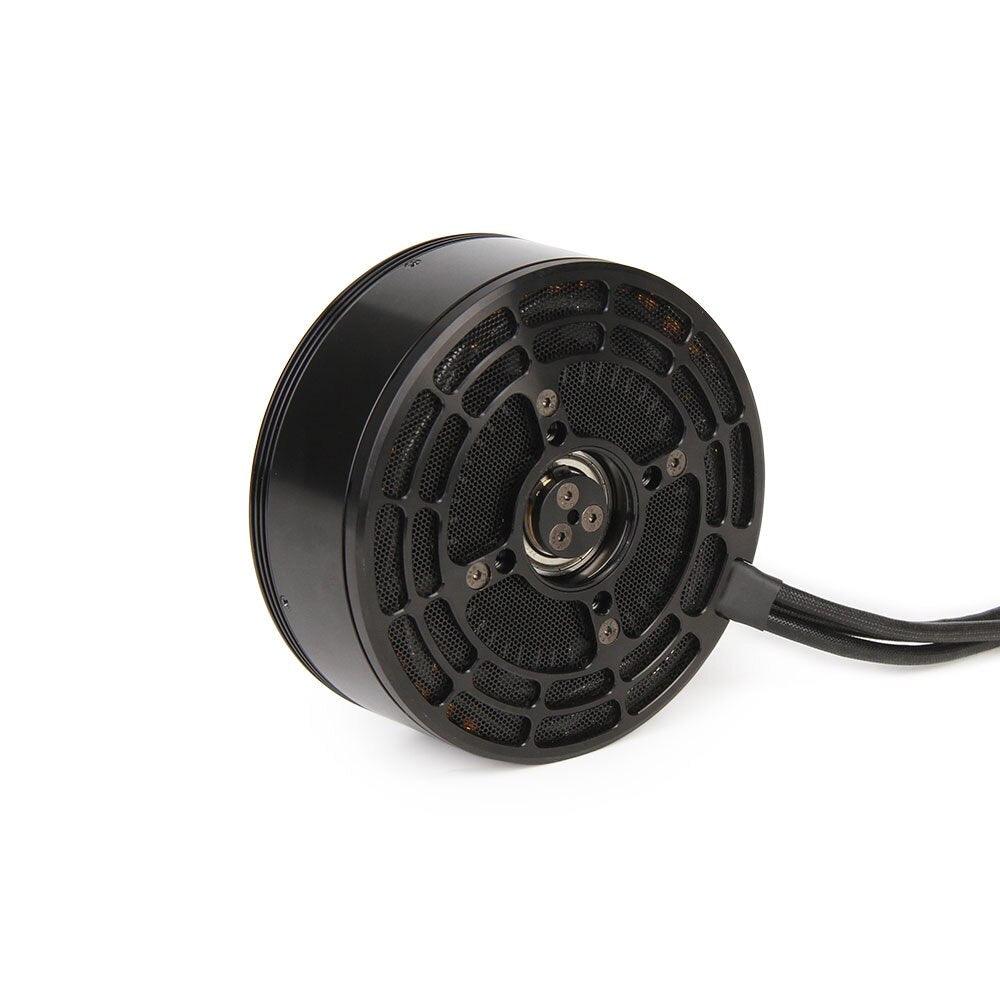

Advanced Dust Protection System Prevents motor contamination by blocking entry of sand, dust, foreign matter, and magnetic particles.

new dust prevention network protect motors from sand, dust; foreign matter and magnetic particles . new network diameter 1mm patent technology

Featuring an iron core with special anti-rust treatment, this motor has been tested to withstand exposure to salt spray for up to 48 hours.

iron core special anti-rust treatment: passing 48h salt spray test .

Service life: The motor can withstand an astonishing 1,500 flights without any issues. Additionally, the custom bearings ensure that the lifespan of these components remains at an impressive 1,000 hours under normal operating conditions, free from trouble.

motor service life 1500 flights are out of question 40minslllight .

The UH Arc magnet features high-grade magnets that enhance torque for improved efficiency in high-temperature applications. The motor boasts a remanence (Br) value of 1.3-1.33 Tesla and an intrinsic coercive force (Hci) of greater than 20 koe, allowing it to operate effectively in demanding conditions.

recommendation u12i1 + flame18oa + 30" carbon fiber prop uzukvize motoroosn ooain fun lustde a
