1 SINGLE-SIDED LAYOUT OF POWER 1 1 COMPONENTS OTO BRING STRONGER OUTPUT Adopting QN3109 5mQ MOS, the over-current capability of VSOA is increased by 1 8% compared with V4SA rol her

Introducing the brand new heat sink, designed to provide exceptional heat dissipation performance, offering improved thermal management.

The T-Motor V50A features a safest propulsion system, complying with GB/T 17350-2009 and GB/T 19001-2008 standards.

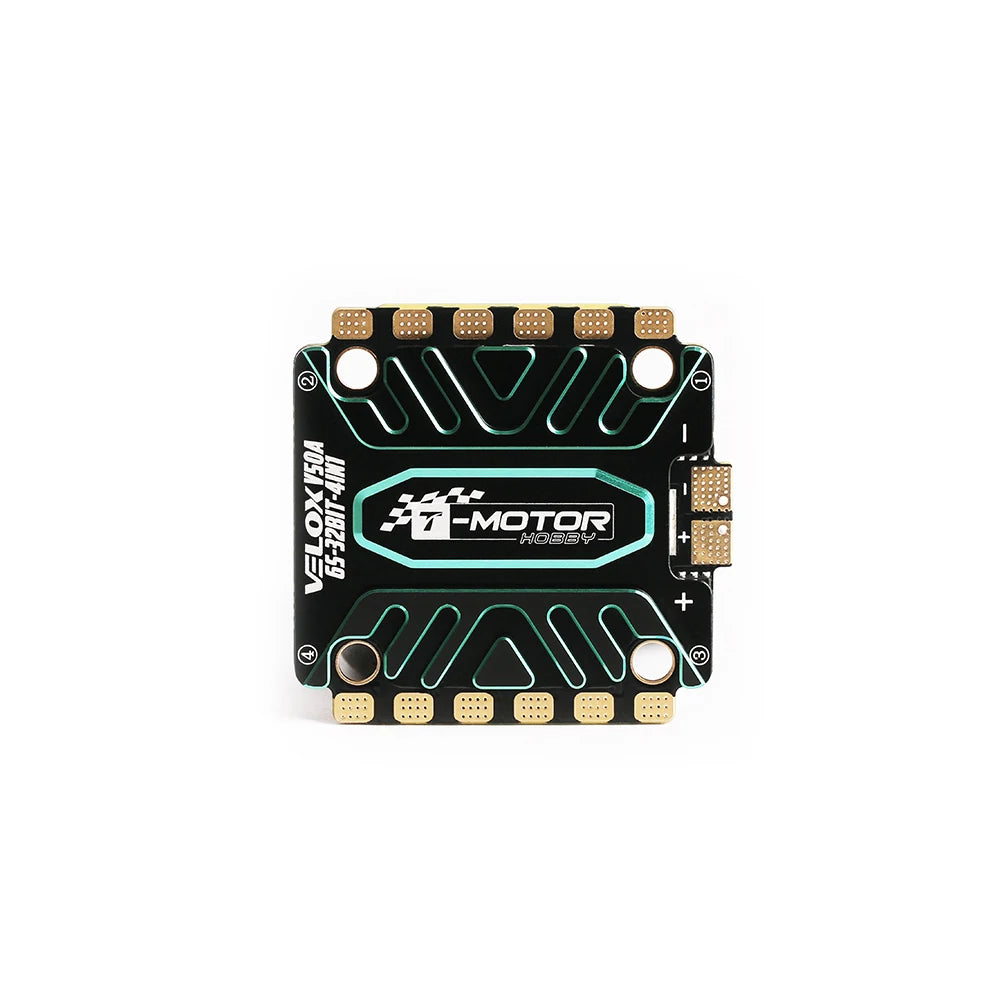

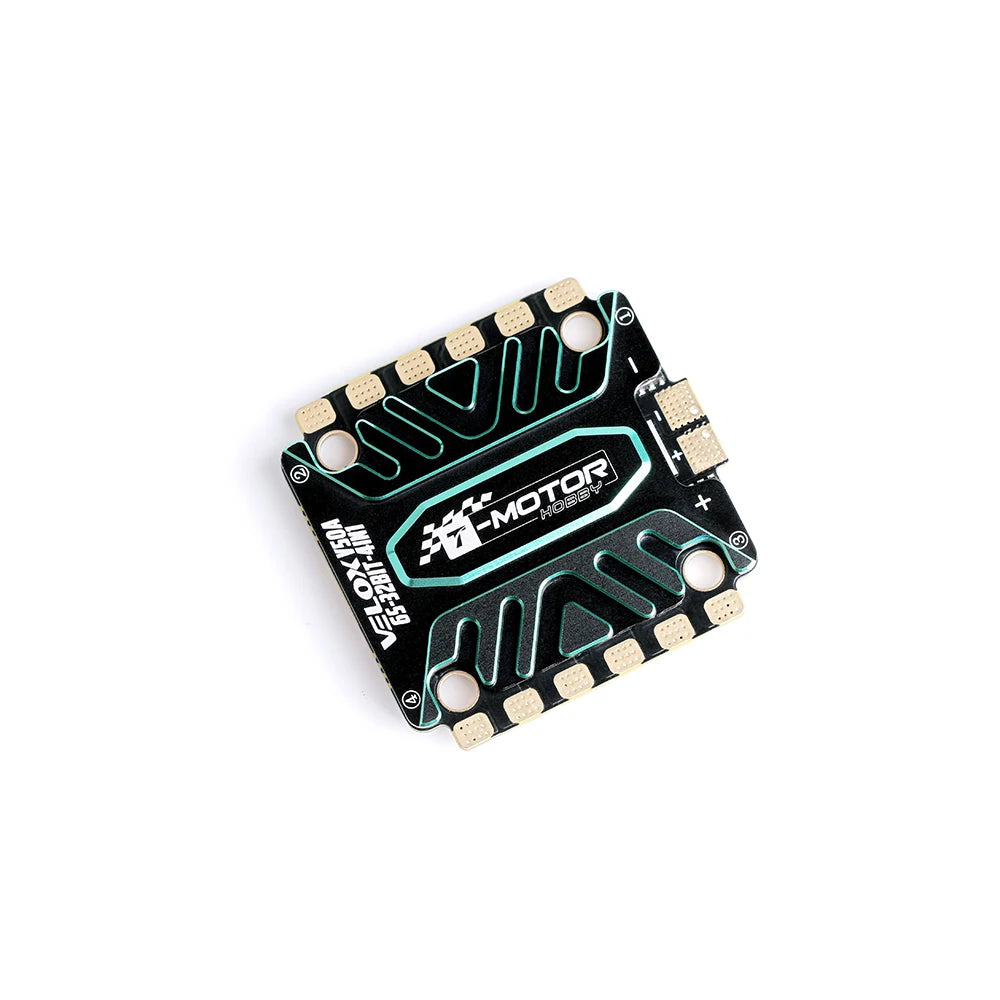

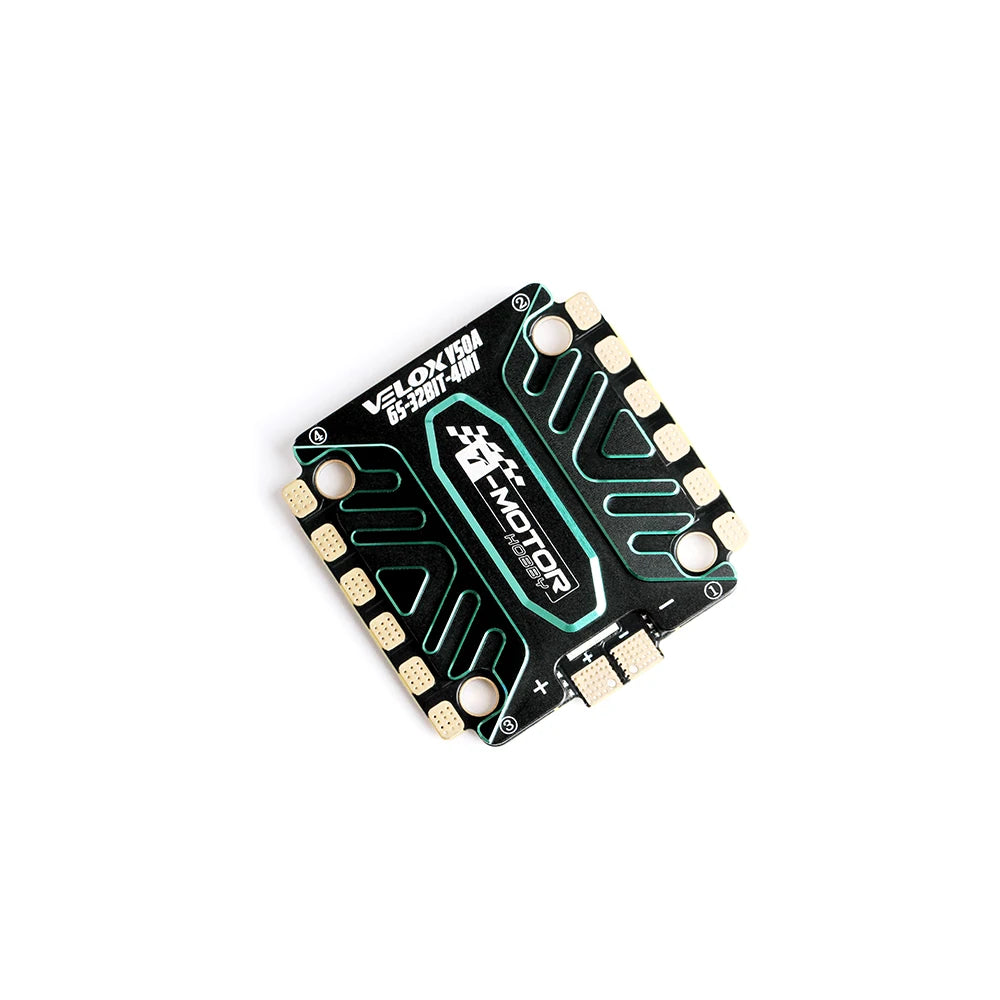

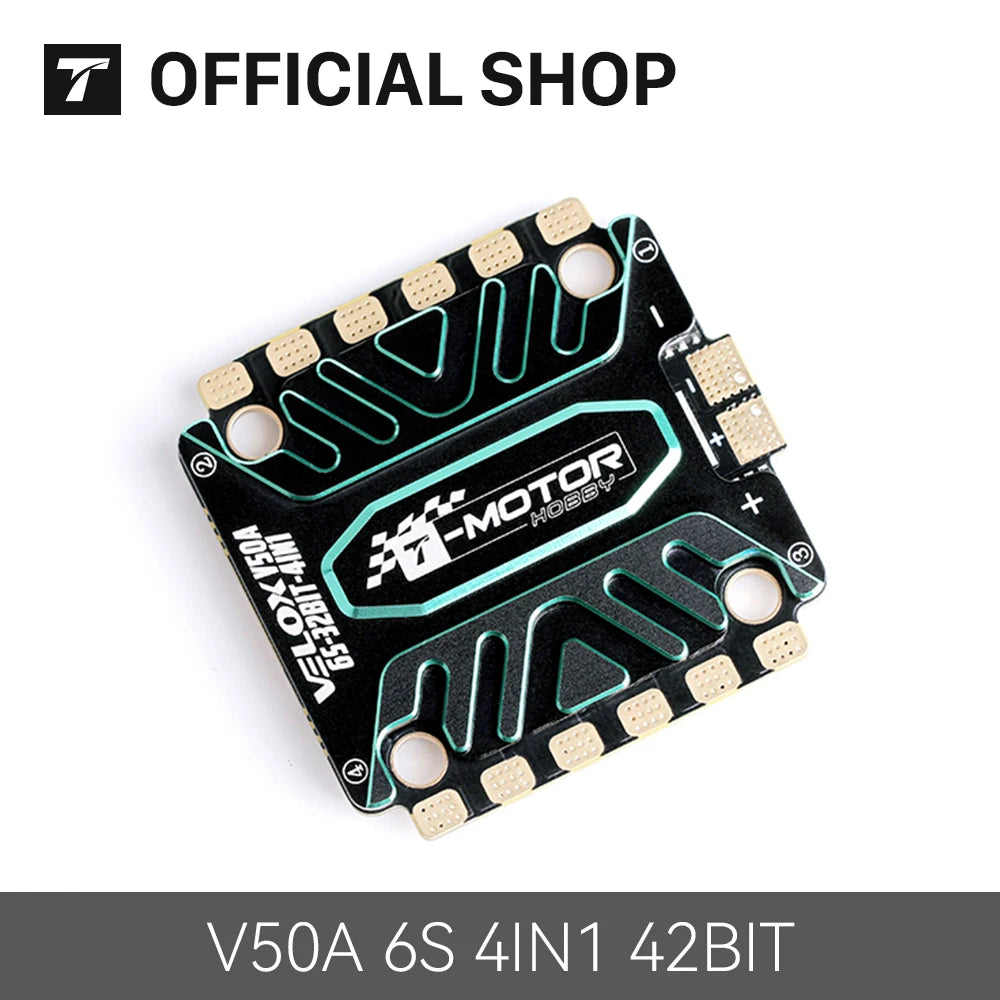

Product specifications: SPEC Model VSOA; Current Rating: 50A (peak current: 55A); Input Voltage: DC, 27V (compatible with 3-6S LiPo batteries); Weight: 18.5g; Size: 45.4mm x 43.8mm x 8mm.

Please note that this ESC (Electronic Speed Control) uses BLHeliSuite32 firmware from TMOTOR T4.02. Before using the ESC, please confirm that each interface definition is correct according to the manufacturer's specifications. If not, adjust the sequence at the first incorrect sequence to avoid damaging the ESC or flight controller.

Note: VBAT stands for battery voltage. When using this ESC with other equipment, ensure that there is no water present and check for any signs of overheating (e.g., solder joints or burnt tracks on components) before use.
