XROCK 3DR Radio Telemetry Module - 10KM 500mW 915Mhz 433Mhz Air Ground Interchangeable for APM PIXHAWK Pixhack RC FPV Drone

XROCK 3DR Radio Telemetry Module - 10KM 500mW 915Mhz 433Mhz Air Ground Interchangeable for APM PIXHAWK Pixhack RC FPV Drone

XROCK

$98.23 USD
$147.35 USD $98.23 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

90 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

XROCK 3DR Radio Telemetry Module SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Unit Type: Pack

Tool Supplies: Cutting

Technical parameters: Value 2

Size: AS DESCRIPTION

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Package Weight: 0.14kg (0.31lb.)

Package Size: 10cm x 15cm x 10cm (3.94in x 5.91in x 3.94in)

Origin: Mainland China

Model Number: 3DR Radio Telemetry

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

10KM XROCK 3DR Radio Telemetry Module 500mW 915Mhz 433Mhz Air Ground Interchangeable for APM PIXHAWK Pixhack RC Drone

Features:
- Air and Ground end is interchangeable
- Range: around 10000M
- Compatible with APM,PX4,PIXHAWK,PIXHACK,JIYI P2,JIYI P2 PRO
- Support:MissionPlanner,DroidPlanner,AndroPilot,PlayUAV
- 915Mhz
- Receive sensitivity: -110 dBm
- Transmite power: 100dBm(500mW)
- MAVLink protocol framing status documents
- Frequency modulation and Spread spektrum (FHSS)
- Self adaption to time duvision multiplexing
- Support LBT and AFA
- Could configure duty ratio
- Built-in error correcting code(up to 25% data bit error)
- Open source firmware
- AT command configure data transmission
- RT command remote control data transmission
- Based on HM-TRP wireless module, with Si1000 8051 micro controller and Si4432 wireless module

Dimensions:
55   x 25 x 13.5 mm (without antenna)

Electrical Data:
Supply Voltage: 5V DC (from USB or JST-GH)
Transmit Current: 110 mA at 20dBm
Receive Current: 55 mA
Serial Interface: 3.3 V UART

pairing steps
1. Power on the data transmission module, the green light flashes.
2. Press and hold the pairing button for 3 seconds, the red light flashes quickly to enter pairing mode. Pairing mode lasts 10 seconds.
3. Supply power to another data transmission module within 10 seconds, the green light is always on, indicating that the pairing is successful

Packing Content:
- 1 x Telemetry Module for air
- 1 x Telemetry Module for Ground
- 2 x Folding Antenna
- 2 x 4-wire connector cable
- 1 x TYBE-C to TYBE-C Cable

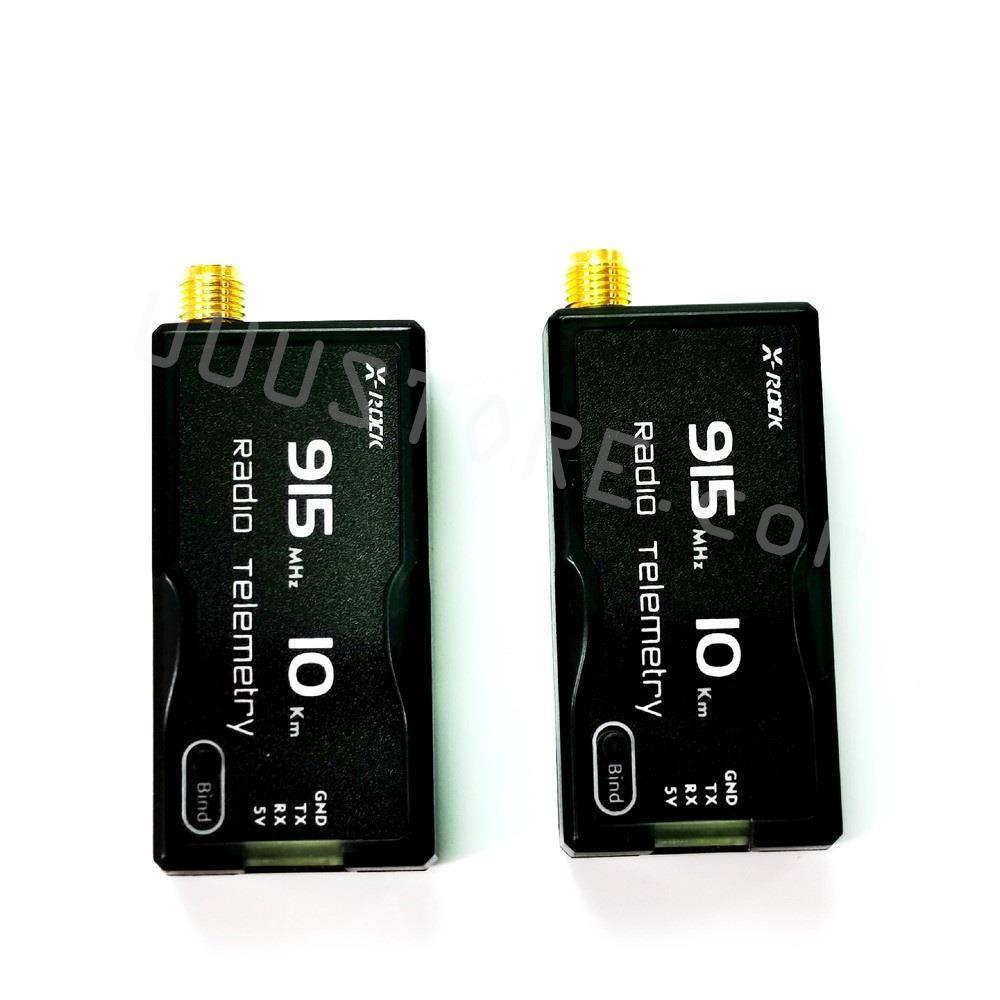

XROCK 3DR Radio Telemetry Module, Air side/Ground side exchangeable,no need discrimin

XROCK 3DR Radio Telemetry Module, press and hold the pairing button for 3 seconds, the red light flashes quickly to enter

XROCK 3DR Radio Telemetry Module 500mW 915Mhz 4

XROCK 3DR Radio Telemetry Module - 10KM 500mW 915

XROCK 3DR Radio Telemetry Module, supply power to another data transmission module within 10 seconds, the green light is always on,

XROCK 3DR Radio Telemetry Module, press and hold the pairing button for 3 seconds, the red light flashes quickly to enter

XROCK 3DR Radio Telemetry Module, power on the data transmission module, the green light flashes
