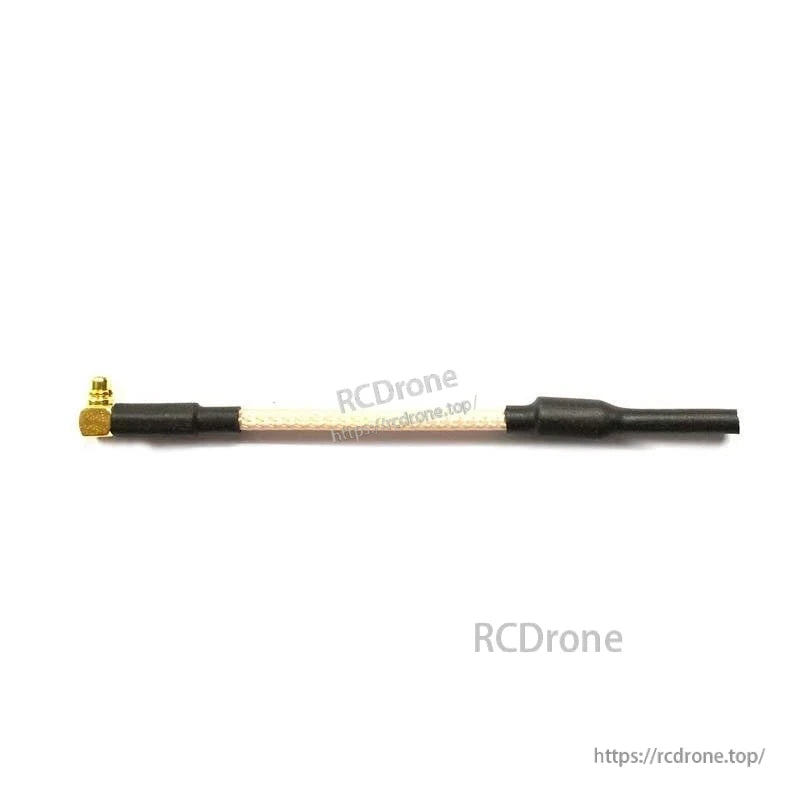

  • Side view of the antenna coax cable assembly with right-angle MMCX connector and insulated tip
1 4

HGLRC 5.8GHz ANGLE MMCX Linear 2dBi Omni Antenna (RG178, 78mm, 2.1g) for RC Drone

HGLRC 5.8GHz ANGLE MMCX Linear 2dBi Omni Antenna (RG178, 78mm, 2.1g) for RC Drone

HGLRC

$9.19 USD
$9.19 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

The HGLRC 5.8GHz ANGLE MMCX linear omni-directional antenna is a compact antenna designed for RC drone and other 5.8G wireless applications. It uses an MMCX connector and RG178 cable, with 2dBi gain and 50 ohm impedance.

Key Features

  • 5.8G band support: 4900 MHz to 5900 MHz
  • Linear, omni-directional radiation
  • MMCX connector with RG178 cable
  • Compact and lightweight: 78mm length, 2.1g weight
  • S.W.R: <= 2.5 @ 5700 MHz to 5900 MHz

For product selection help or after-sales support, contact https://rcdrone.top/ or support@rcdrone.top.

Specifications

Product ANGLE MMCX 5.8GHz Antenna
Connector MMCX
Cable RG178
Frequency 4900 MHz ~ 5900 MHz
Gain 2dBi
Impedance 50 ohm
S.W.R <= 2.5 @ 5700 MHz ~ 5900 MHz
Length 78mm
Weight 2.1g
Signal directivity High-gain omni-directional antenna
Usage RC Model, Wireless AP, Router etc.

What’s Included

  • 1 x ANGLE MMCX 5.8GHz Antenna

Applications

  • RC model and RC drone 5.8GHz wireless systems
  • 5.8GHz wireless AP / router antenna replacement (MMCX interface)
