SLAMTEC LPX-E3P1 360° Industrial Monitoring LiDAR, 25m Recognition Range, 20Hz, USB Type-C IO
SLAMTEC LPX-E3P1 360° Industrial Monitoring LiDAR, 25m Recognition Range, 20Hz, USB Type-C IO
Slamtec
تعذر تحميل توفر الالتقاط
Overview

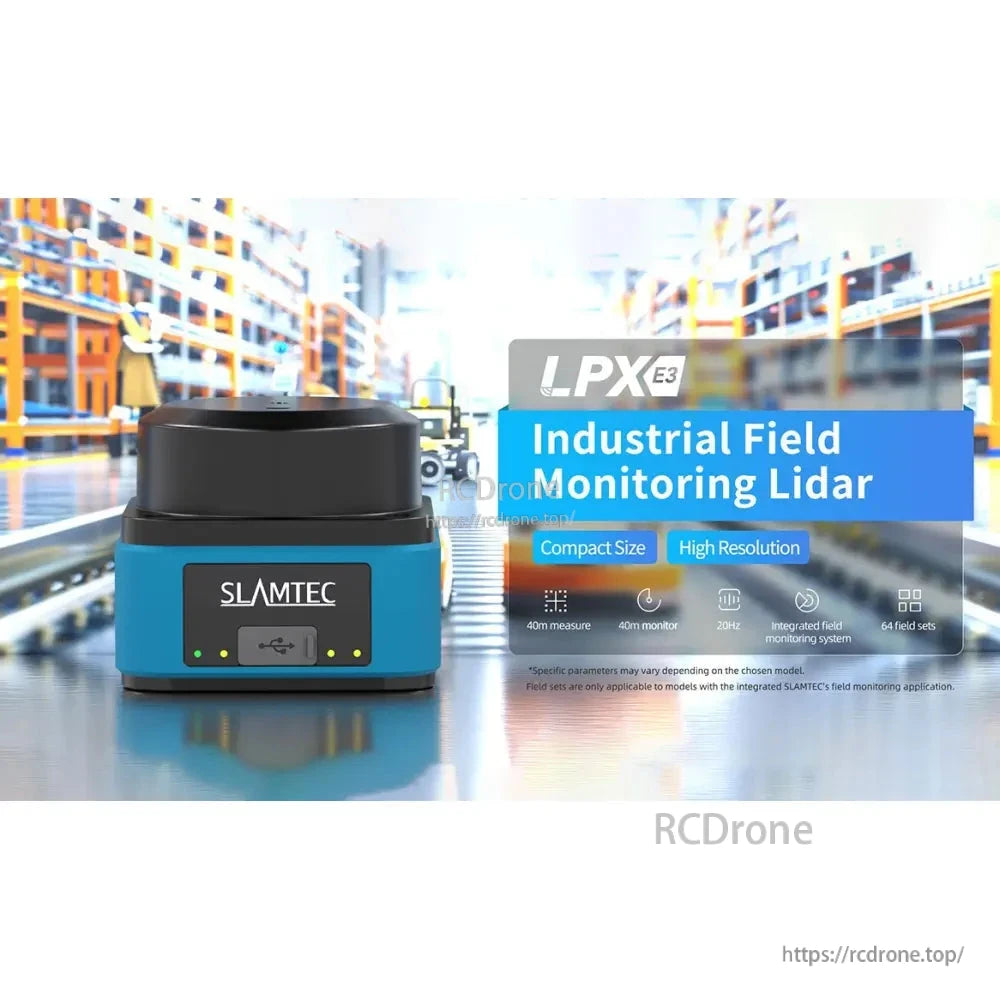

SLAMTEC LPX-E3P1 is an industrial monitoring LiDAR in the LPX-E3 series, designed for 360° field monitoring applications. The LPX-E3 series features an integrated real-time field monitoring system with IO output, enabling detection of objects within designated areas and convenient connection to controllers and actuators in industrial environments.
Key Features
- 360° industrial field monitoring LiDAR (LPX-E3 series)
- Integrated field monitoring system with multiple output formats (field monitoring data output: IO)
- Monitoring field configuration: 3 simultaneous monitoring fields; up to 64 monitoring field sets (model-dependent)

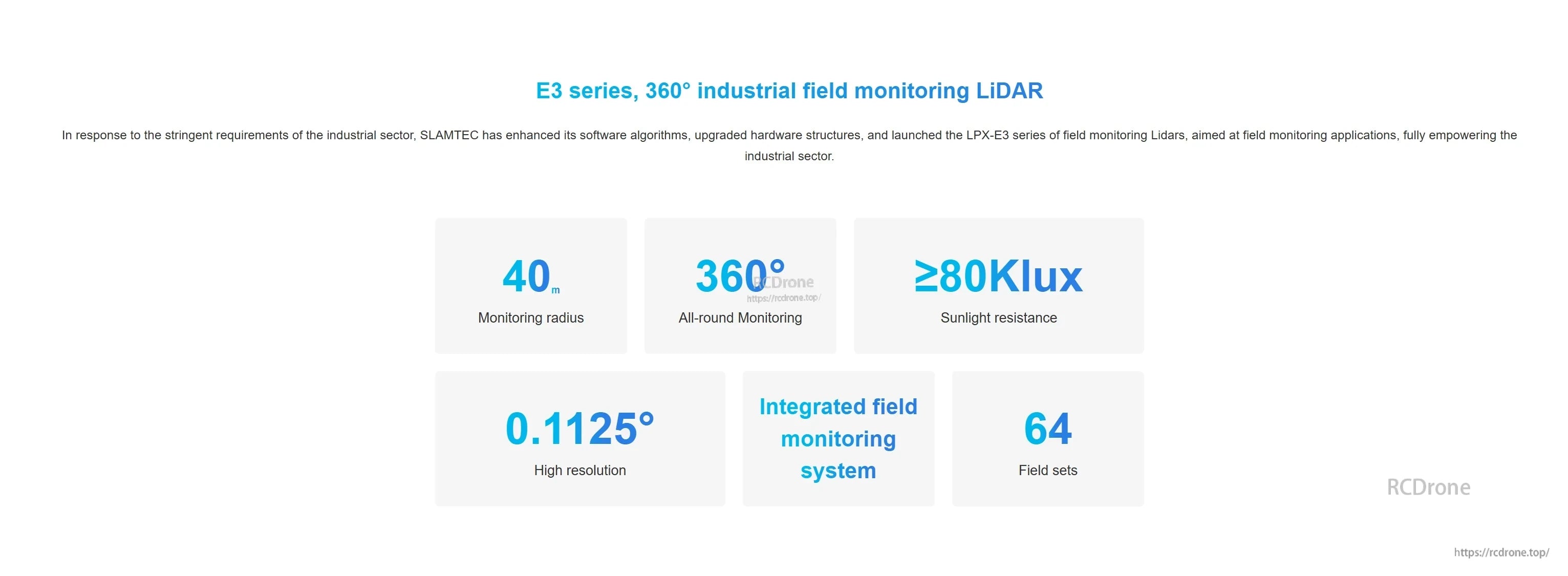

- High-resolution scanning (LPX-E3 series highlights include 0.1125° high resolution on supported configurations)
- Ambient light resistance: up to 80 Klux (80,000 Lux) anti-interference ability of ambient light
- Low-reflectivity detection: down to 2% reflectivity (Alarming level specified at ≥2% reflectivity; series text highlights low-reflectivity detection)
- ScanDesigner configuration software for field setup (free graphic editing/dragging, flexible placement adjustment, associated masked mode)
Specifications
Measurement Performance (LPX-E3 Series)
| Series | LPX-E3 Series | |
| Model | E3P1 | E3P2 |
| Scanning Radius |
0.05 - 25m (Recognition (≥70% Reflectivity)) 0.05 - 10m (Warning (≥10% Reflectivity)) 0.05 - 4m (Alarming (≥2% Reflectivity)) |
0.05 - 40m (Measurement (≥70% Reflectivity)) 0.05 - 40m (Recognition (≥70% Reflectivity)) 0.05 - 15m (Warning (≥10% Reflectivity)) 0.05 - 5m (Alarming (≥2% Reflectivity)) |
| Blind Range | 0.05m | |
| Sampling Rate | 20Hz | 10/15/20Hz |
| Angular Resolution | 0.225° @ 20Hz |
0.1125° @ 10Hz 0.17° @ 15Hz 0.225° @ 20Hz (Typical) |
| Field Monitoring Data Output | IO | |
| Number of Field Sets | 64 Field Sets @ 20Hz | 64 Field Sets @ 20Hz (Typical) |
| 48 Field Sets @ 15Hz | ||
| 32 Field Sets @ 10Hz | ||
| Simultaneous Field Sets Monitoring | 1 (incl. 3 fields) | |
| Communication Interface | USB Type-C | |
| Point Cloud Outputs | NIL | |
| Range Resolution | 10mm | |
| Measurement Accuracy | ± 30mm | |
| Operating Temperature | 0°C~50°C | |
Note: Field sets are applicable to models that include SLAMTEC's integrated field monitoring application.

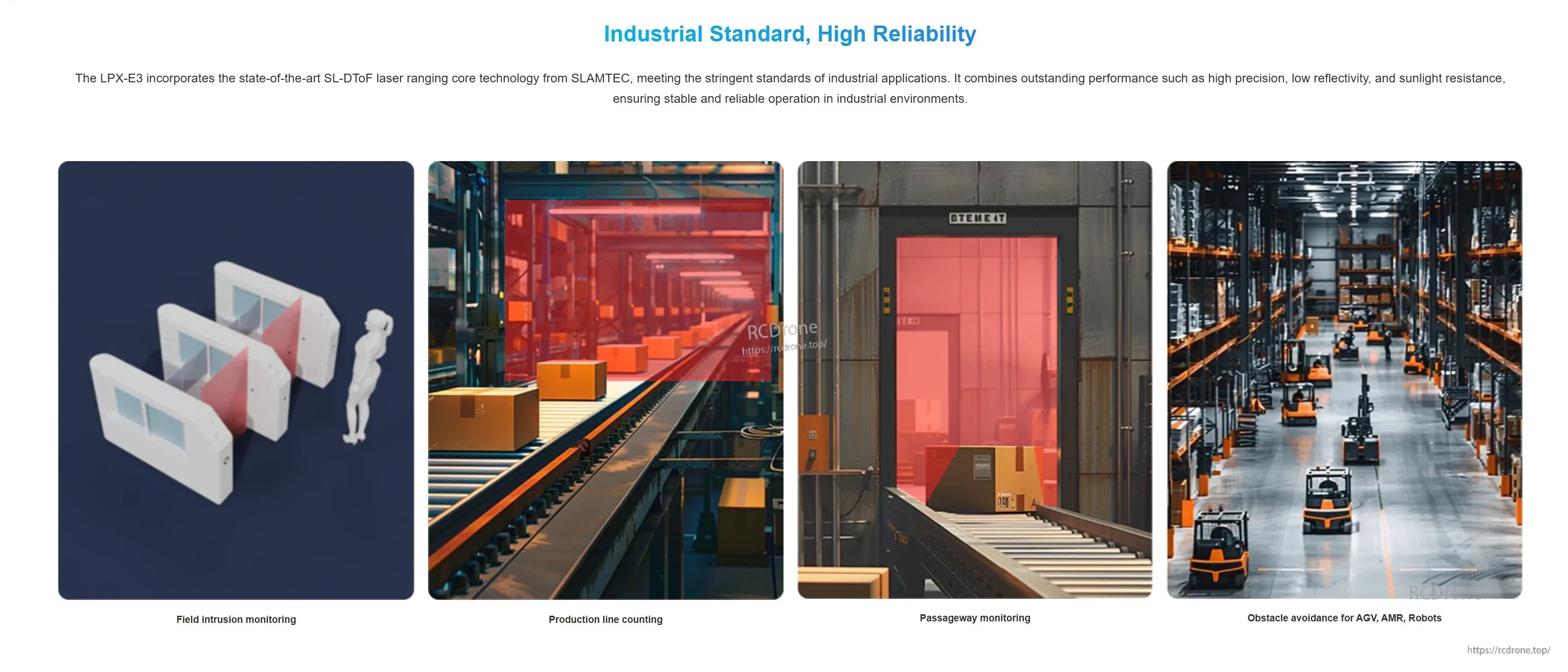

Applications
- Restricted-area / zone monitoring (field monitoring)
- Production line counting
- Passageway monitoring
- Obstacle avoidance for AGV, AMR, and robots
Support
For integration and selection guidance (for example, choosing between E3P1 and E3P2 ranges and update rates), contact [email protected] or visit https://rcdrone.top/.
Details

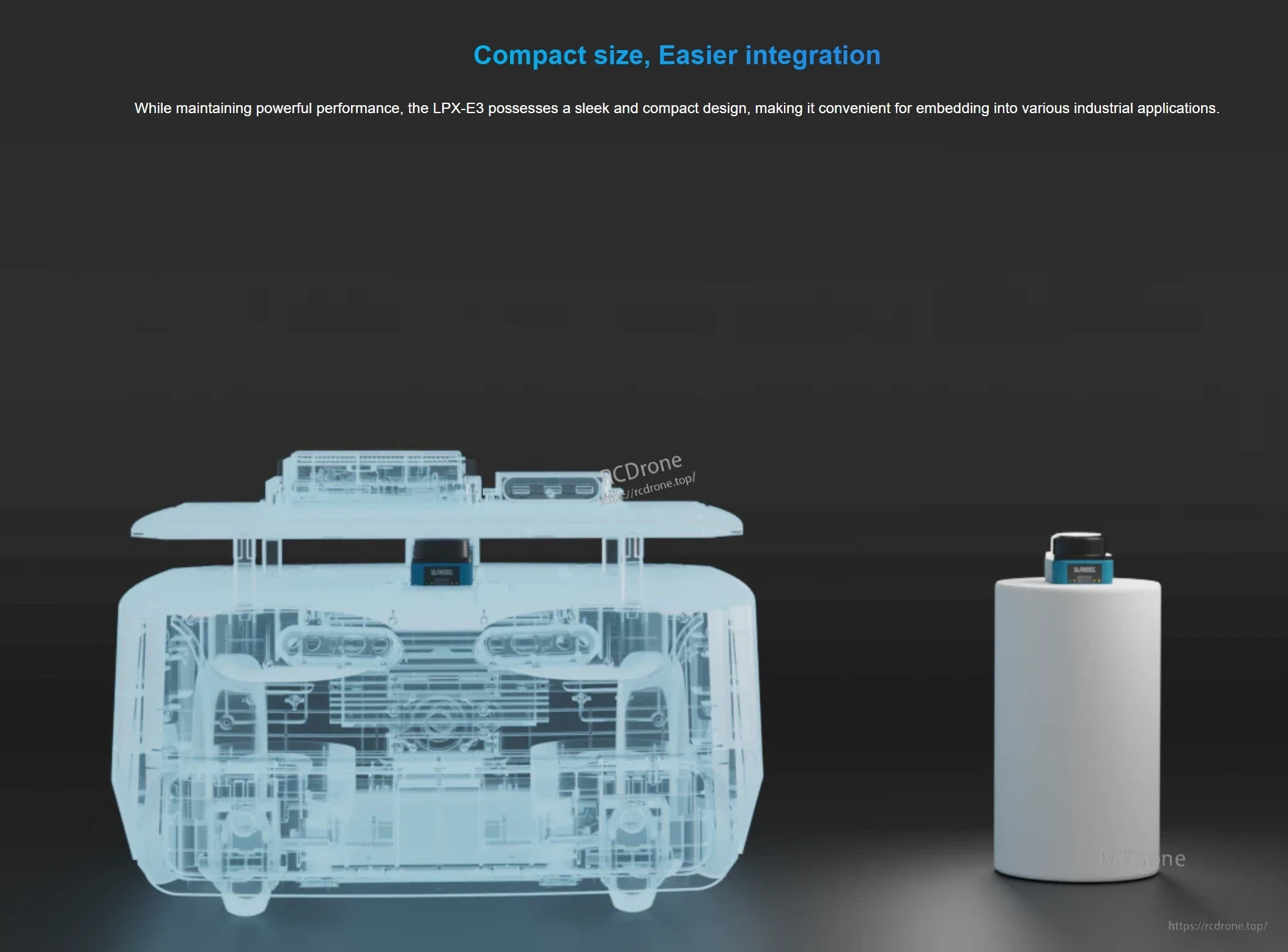

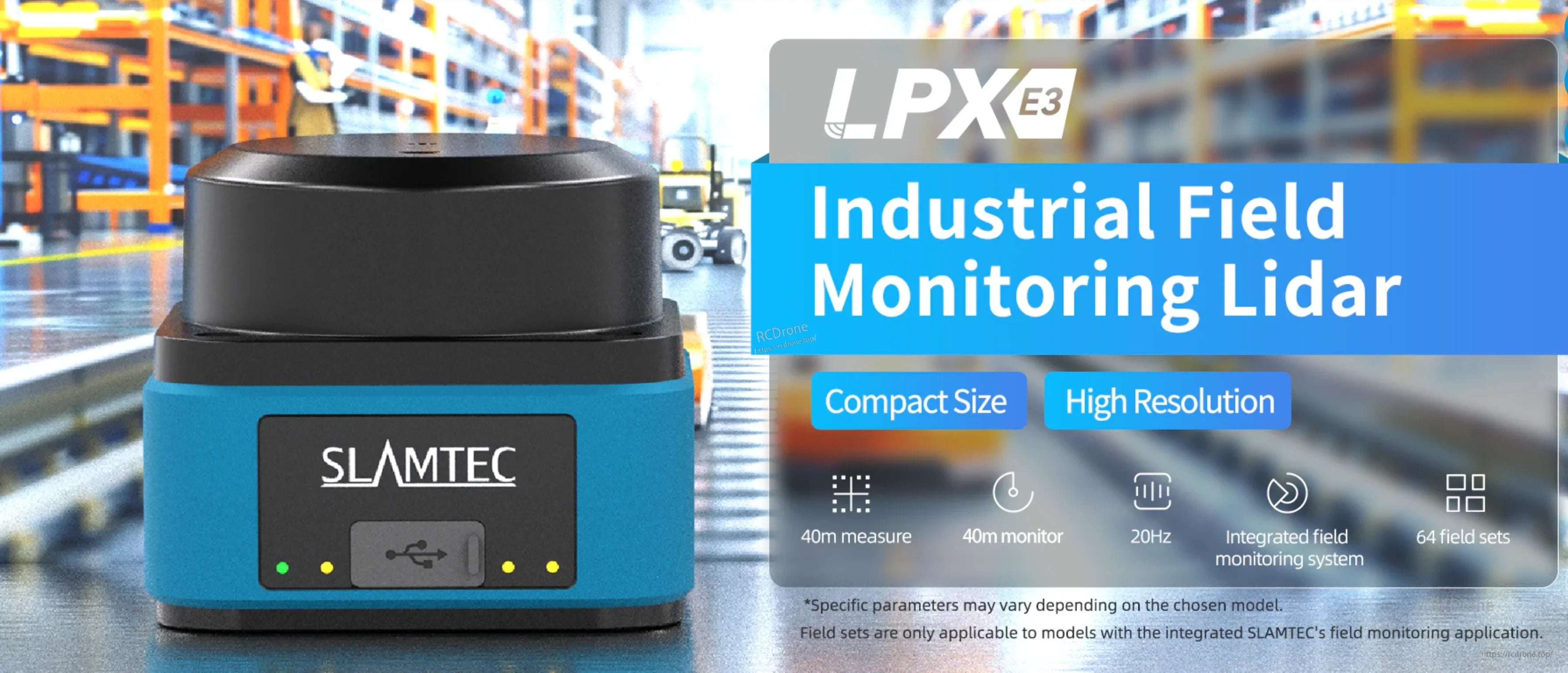

Built for 360° industrial field monitoring, the LPX‑E3P1 combines a compact form factor with an integrated monitoring system for fast automation deployment.
High-resolution scanning and strong ambient-light resistance support reliable perimeter and zone monitoring in bright factory environments.

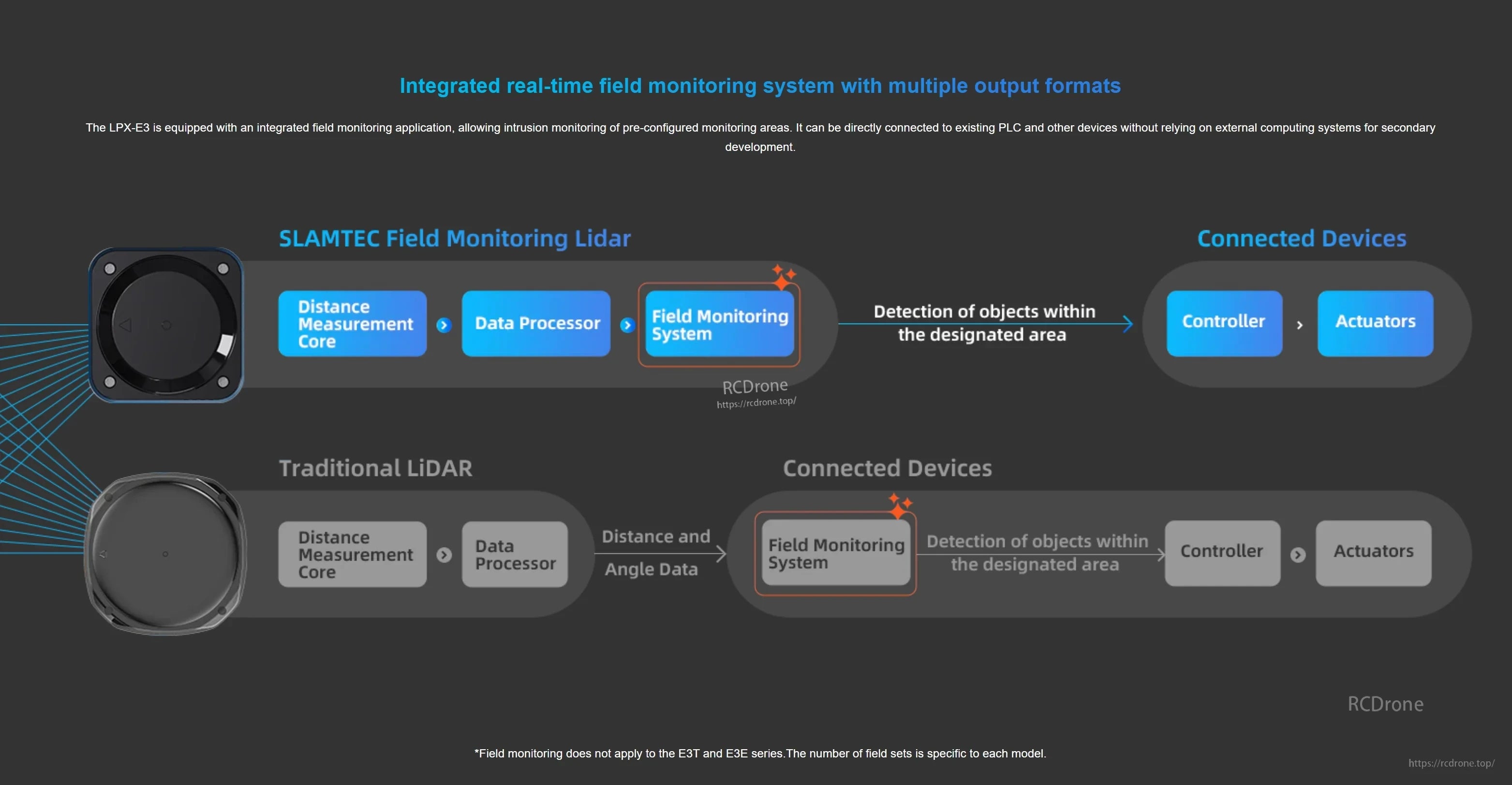

IO field monitoring output makes it easy to connect to controllers and actuators for stop, alarm, or counting logic in real time.
Common use cases include restricted-area monitoring, production-line counting, passageway supervision, and obstacle avoidance for mobile robots.

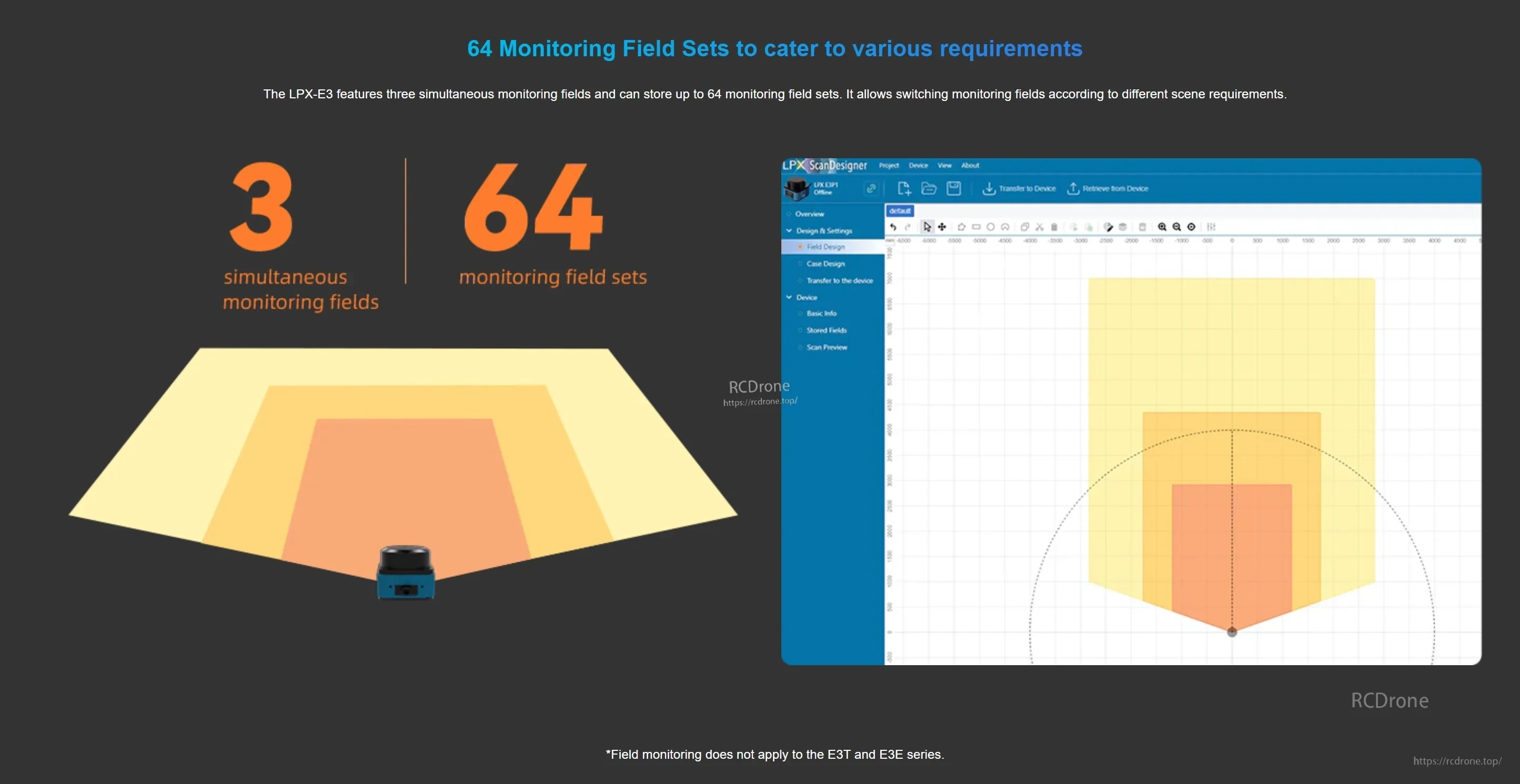

Configure up to three monitoring fields at once, with multiple field sets available for different work modes and shift layouts.

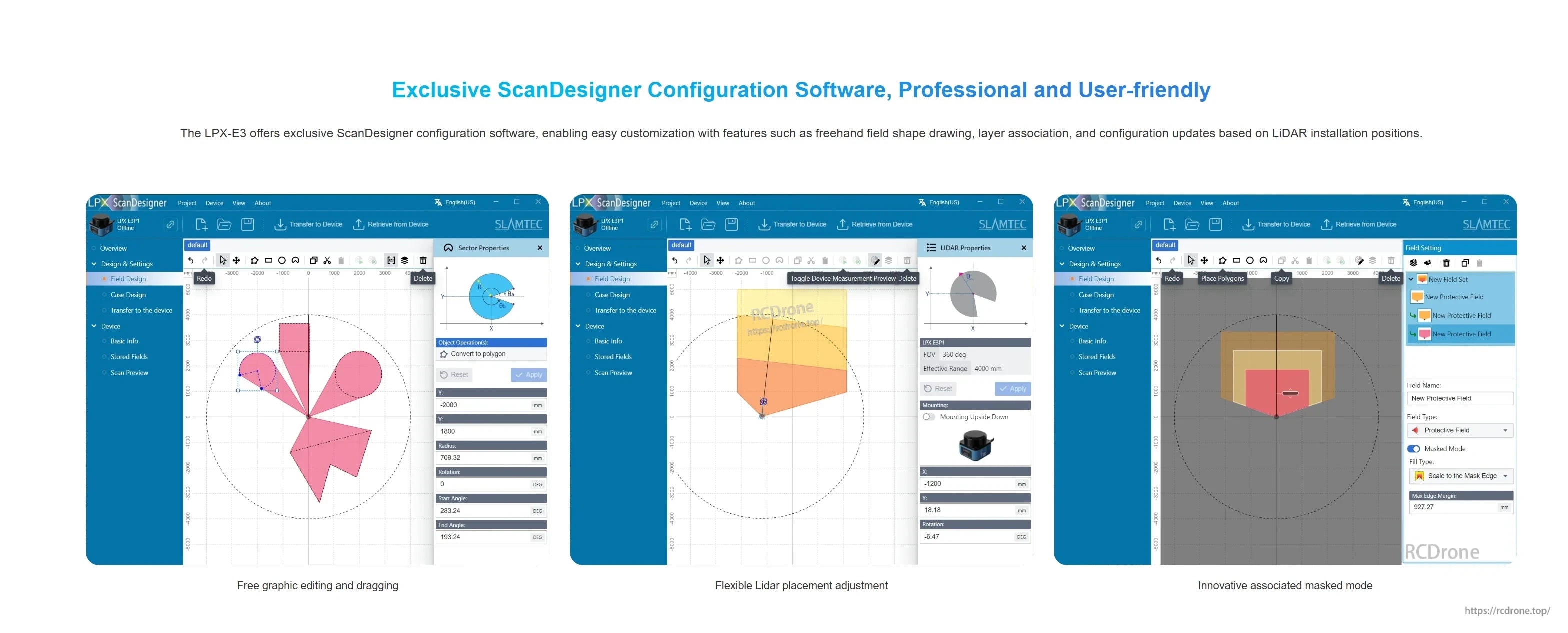

ScanDesigner software enables drag-and-drop field setup, mask editing, and flexible placement adjustments during commissioning.

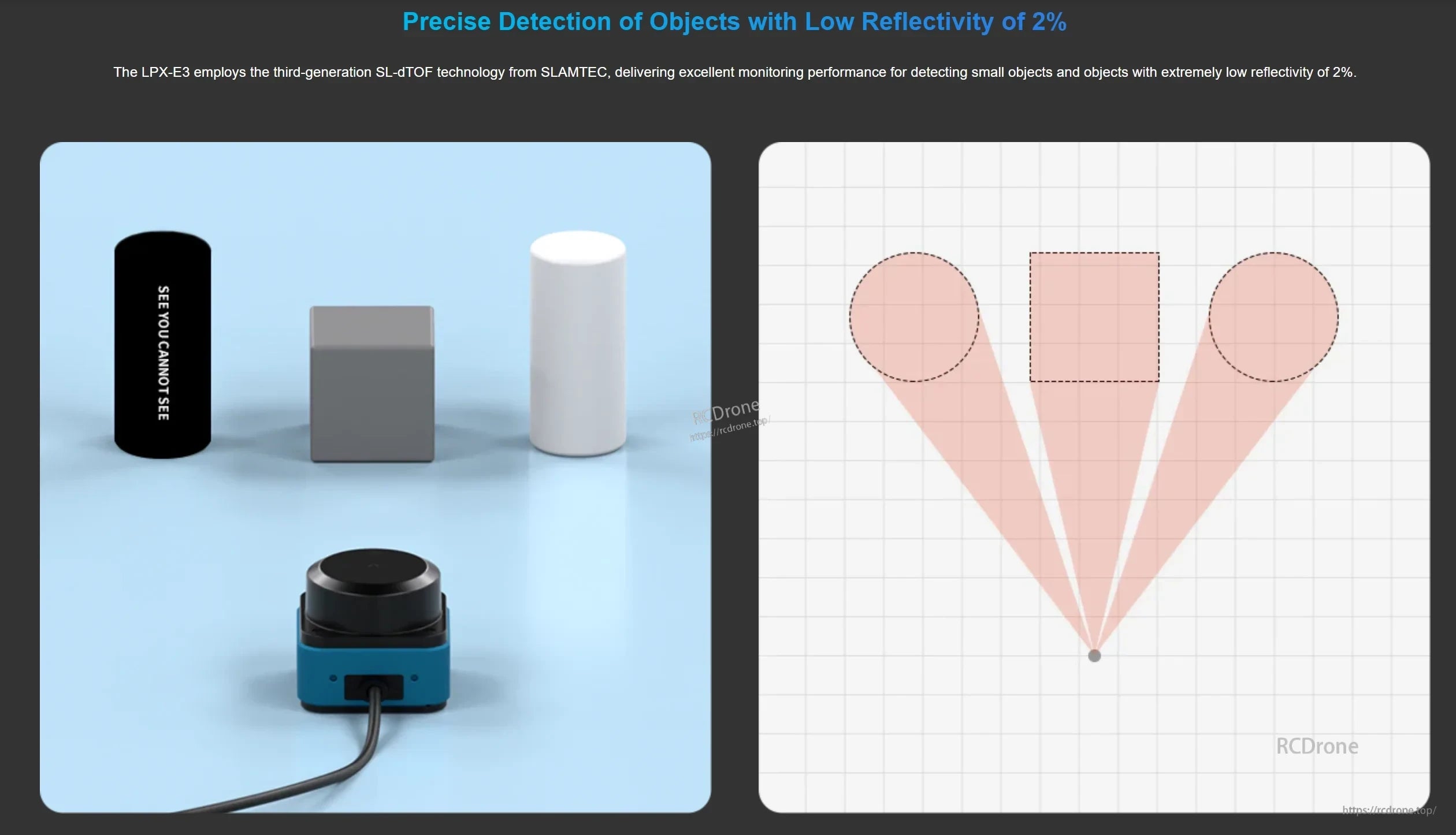

Detection performance supports low-reflectivity targets, helping maintain stable monitoring even on dark or matte surfaces.
With resistance up to 80,000 lux, the sensor is designed to reduce interference from strong sunlight and bright lighting.
