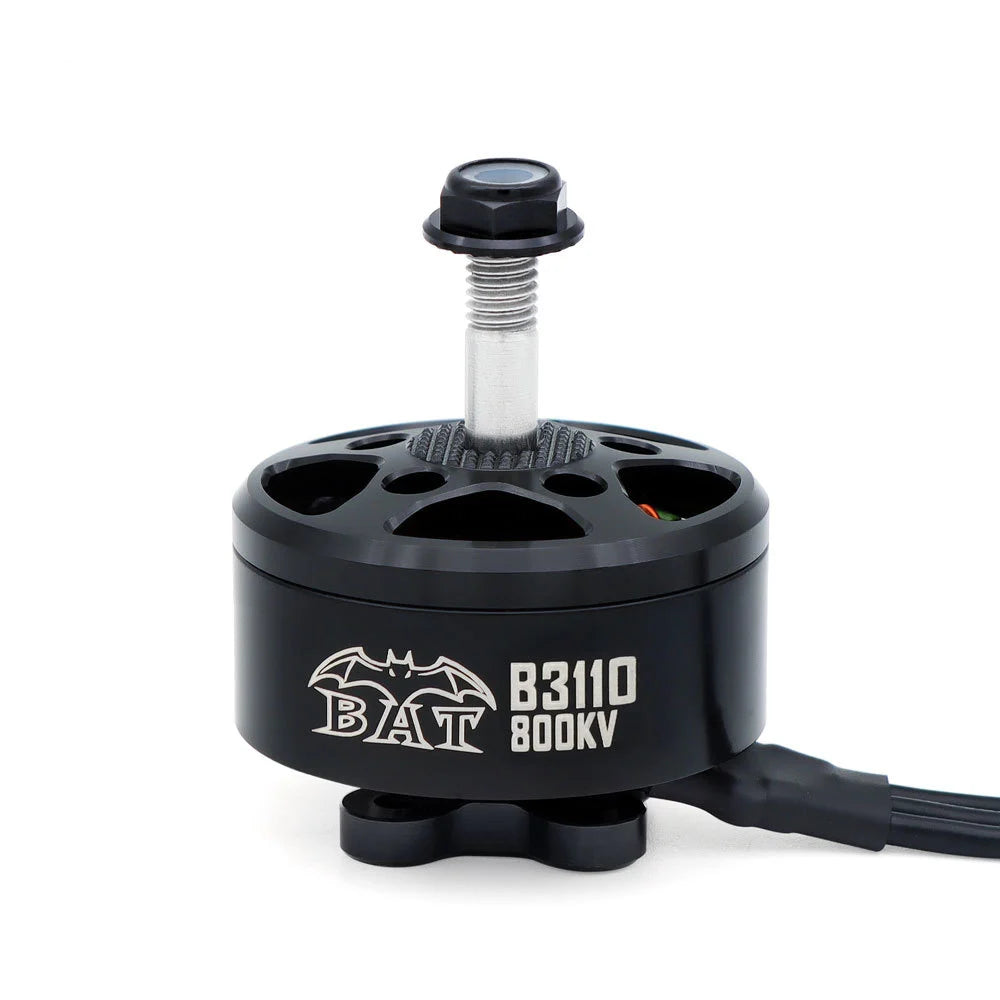

• Surpass Hobby BAT B3110 Brushless Motor 800KV front view with threaded prop shaft
  • BAT B3110 1580KV FPV drone motor front view with black housing and threaded shaft

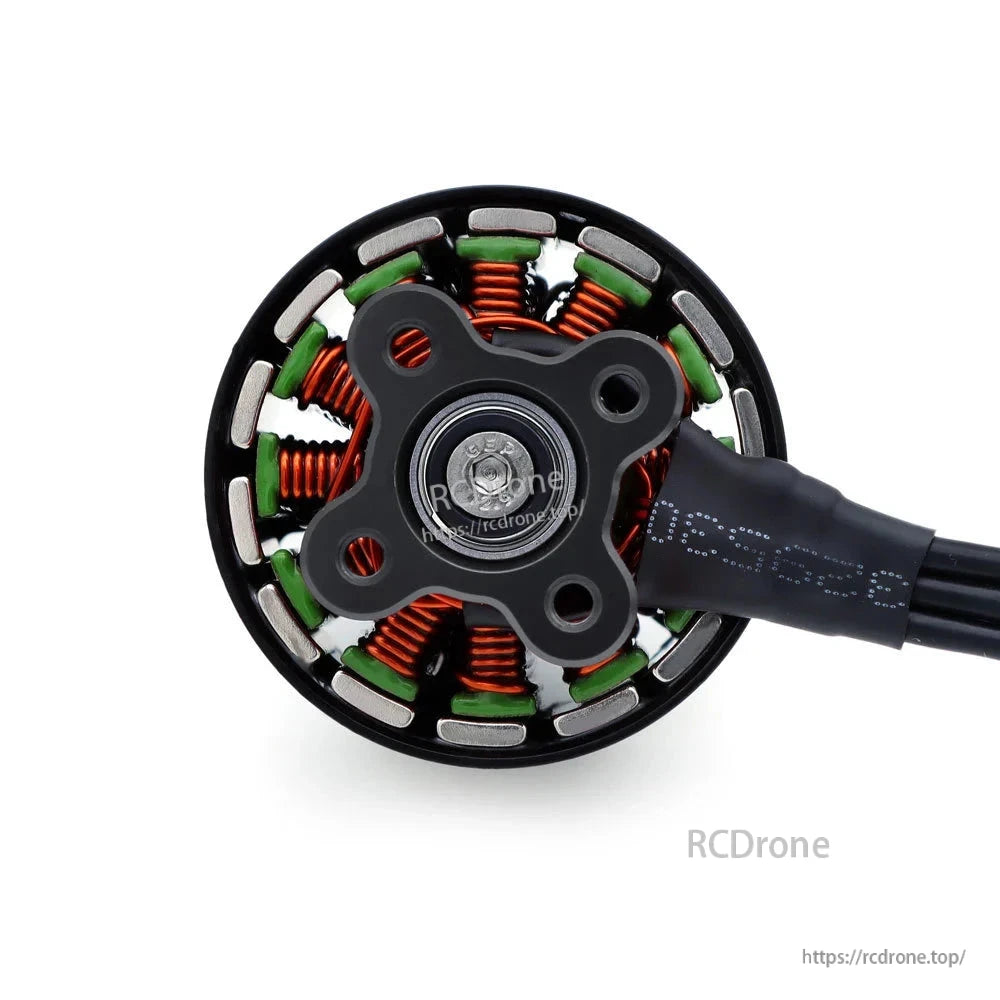

  • Surpass Hobby BAT B3110 Brushless Motor underside showing copper windings and mounting base
  • BAT B3110 1280KV brushless motor front view with logo, prop shaft, and lead wires

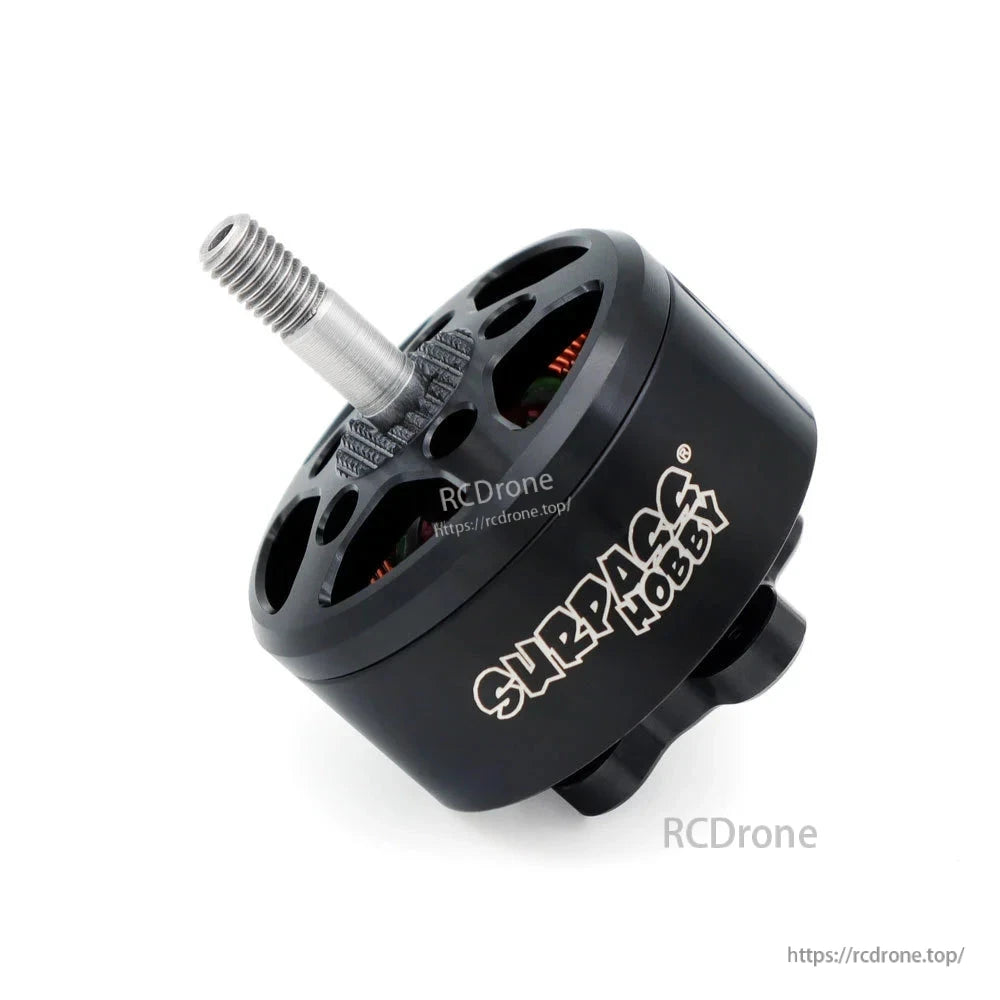

  • Angled side view of black BAT B3110 motor housing with vent openings and threaded shaft

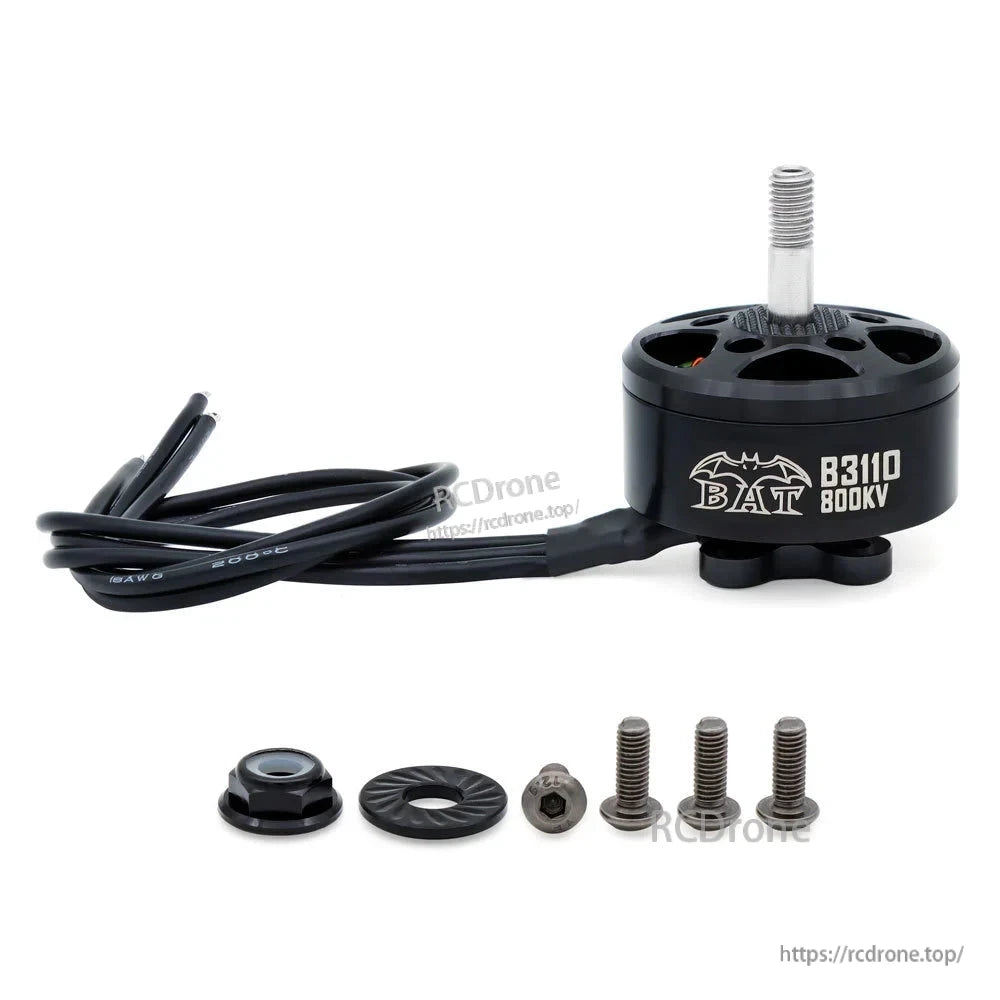

  • BAT B3110 800KV motor with lead wires, prop adapter hardware, nut, washer, and mounting screws

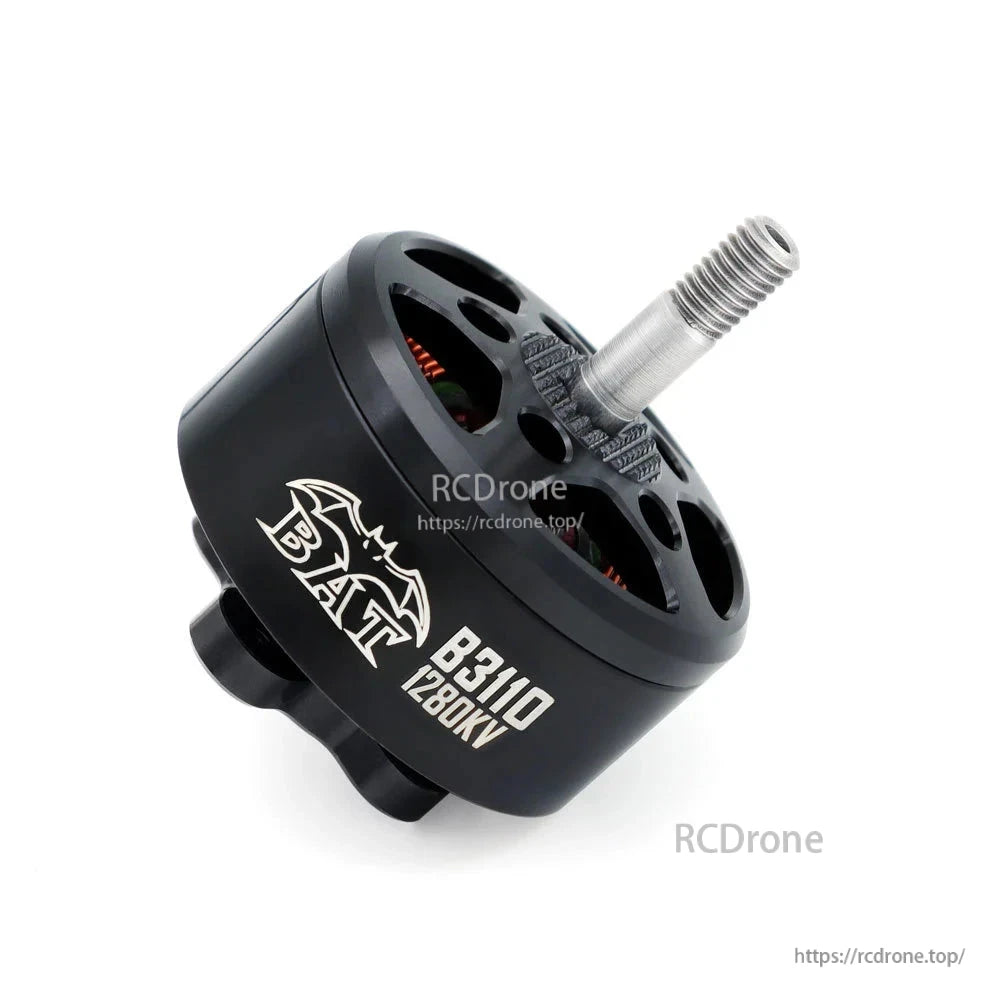

  • Angled view of BAT B3110 1200KV brushless motor with vented bell and threaded prop shaft

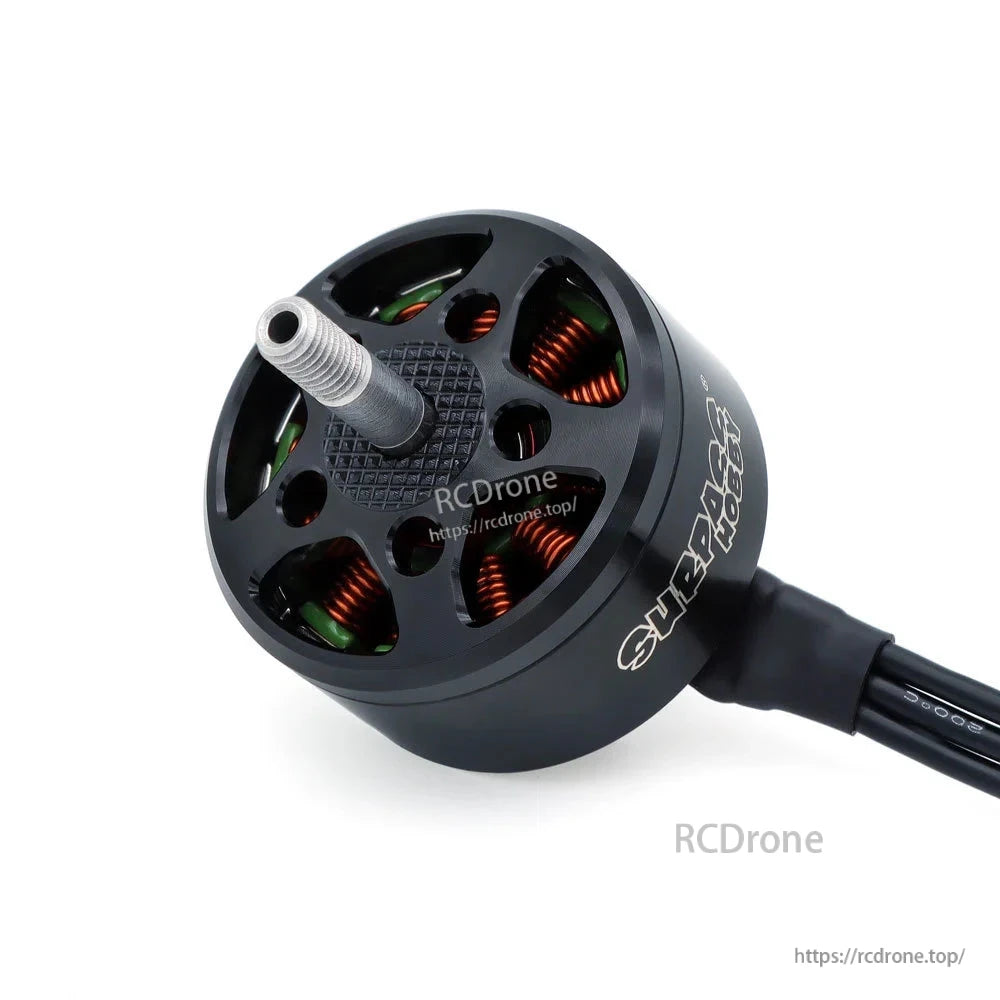

  • Close-up top view of vented brushless motor bell with visible copper windings and wire lead
1 8

Surpass Hobby BAT B3110 Brushless Motor 800KV-1580KV for 6-8 Inch FPV Drones

Surpass Hobby BAT B3110 Brushless Motor 800KV-1580KV for 6-8 Inch FPV Drones

Surpass Hobby

$33.00 USD
$33.00 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

The Surpass Hobby BAT B3110 Brushless Motor is designed for 6-8 inch FPV drones. Available in 800KV, 1280KV, and 1580KV versions, it uses a 31 x 10 mm stator, a 14-pole rotor, and an M5 threaded shaft for compatible FPV propellers.

Key Features

  • 48SH rotor NdFeB magnet tiles.
  • High-precision bearing design.
  • 220 C rated single-strand copper wire.
  • 0.2 mm silicon steel sheets.
  • Detachable structure with ventilated front cover.
  • M5 shaft with a custom nut to protect the shaft threads.
  • Available in 1PCS and 4PCS quantity selections.

Specifications

Model BAT B3110
Motor Size 37.5 x 42.9 mm
Stator Size 31 x 10 mm
Weight 86 g
Rotor Poles 14
Shaft M5, clockwise thread
Mounting Pattern 19 x 19 mm, 4 x M3
KV Option Voltage Range Max Thrust Recommended Propeller
800KV 33 V 3659 g 8 x 4 x 3
1280KV 24 V 3820 g 8 x 4 x 3
1580KV 25 V 2801 g 6 x 4 x 3

For product support, contact [email protected].

Details

Surpass Hobby BAT B3110 brushless motor with exposed stator and listed KV thrust options

Built for 6–8 inch FPV drones, the BAT B3110 is available in 800KV, 1280KV, and 1580KV versions.

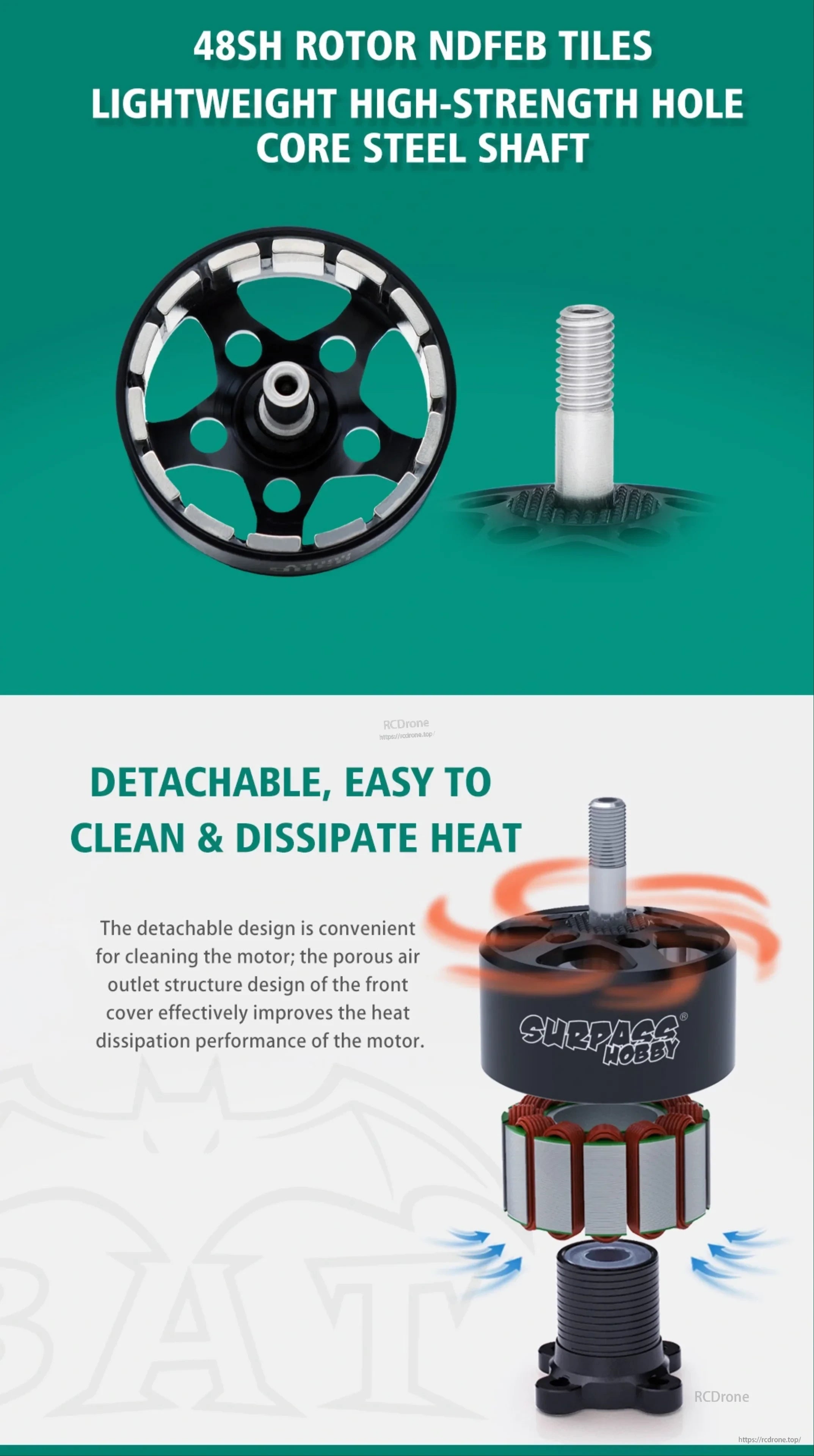

BAT B3110 motor rotor, threaded steel shaft, and detachable ventilated motor assembly

A detachable, ventilated construction supports easier cleaning and heat dissipation.

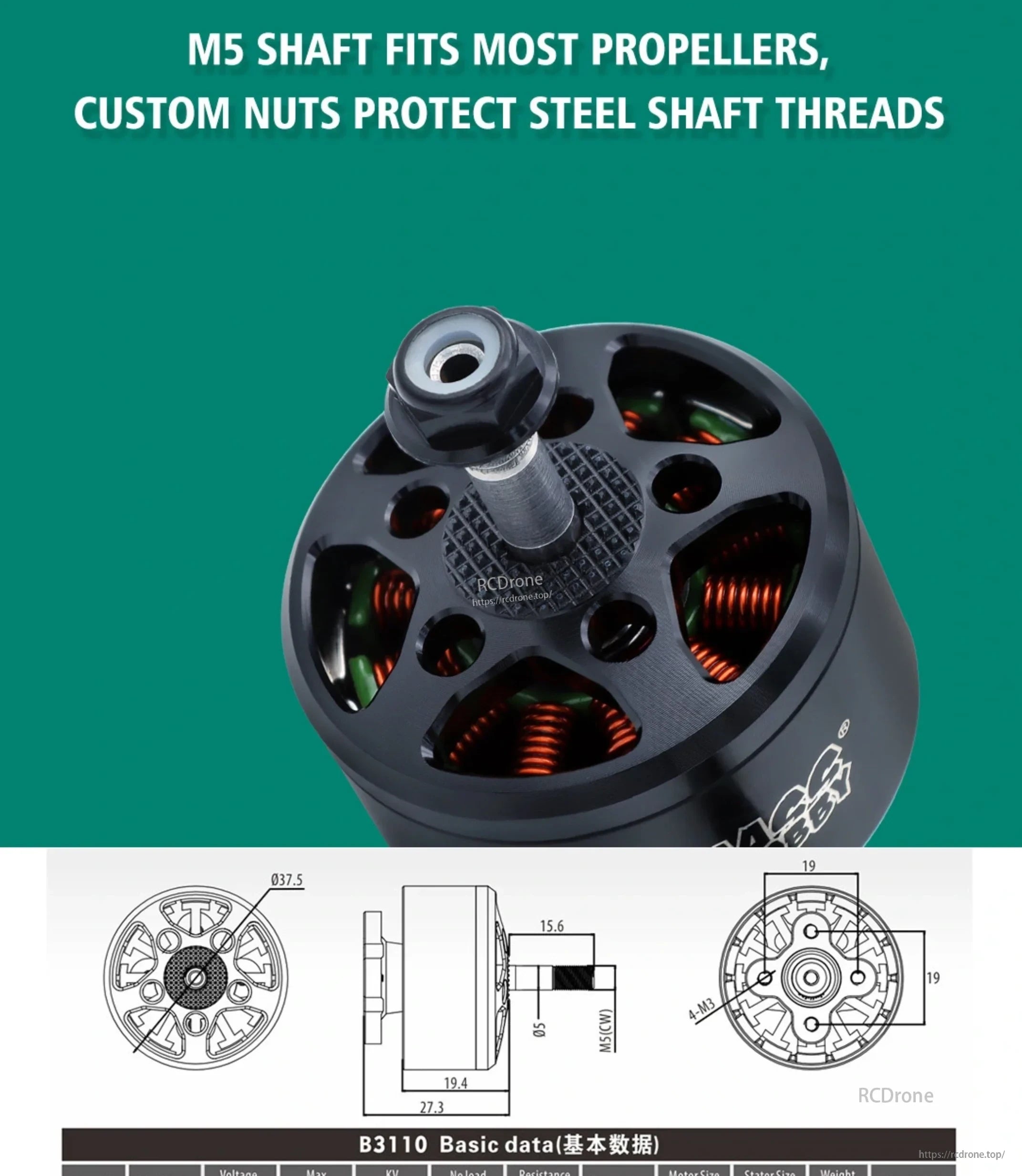

Close-up of BAT B3110 motor with M5 threaded shaft and custom protective nut

The M5 clockwise-thread shaft is paired with a custom nut to help protect the shaft threads.

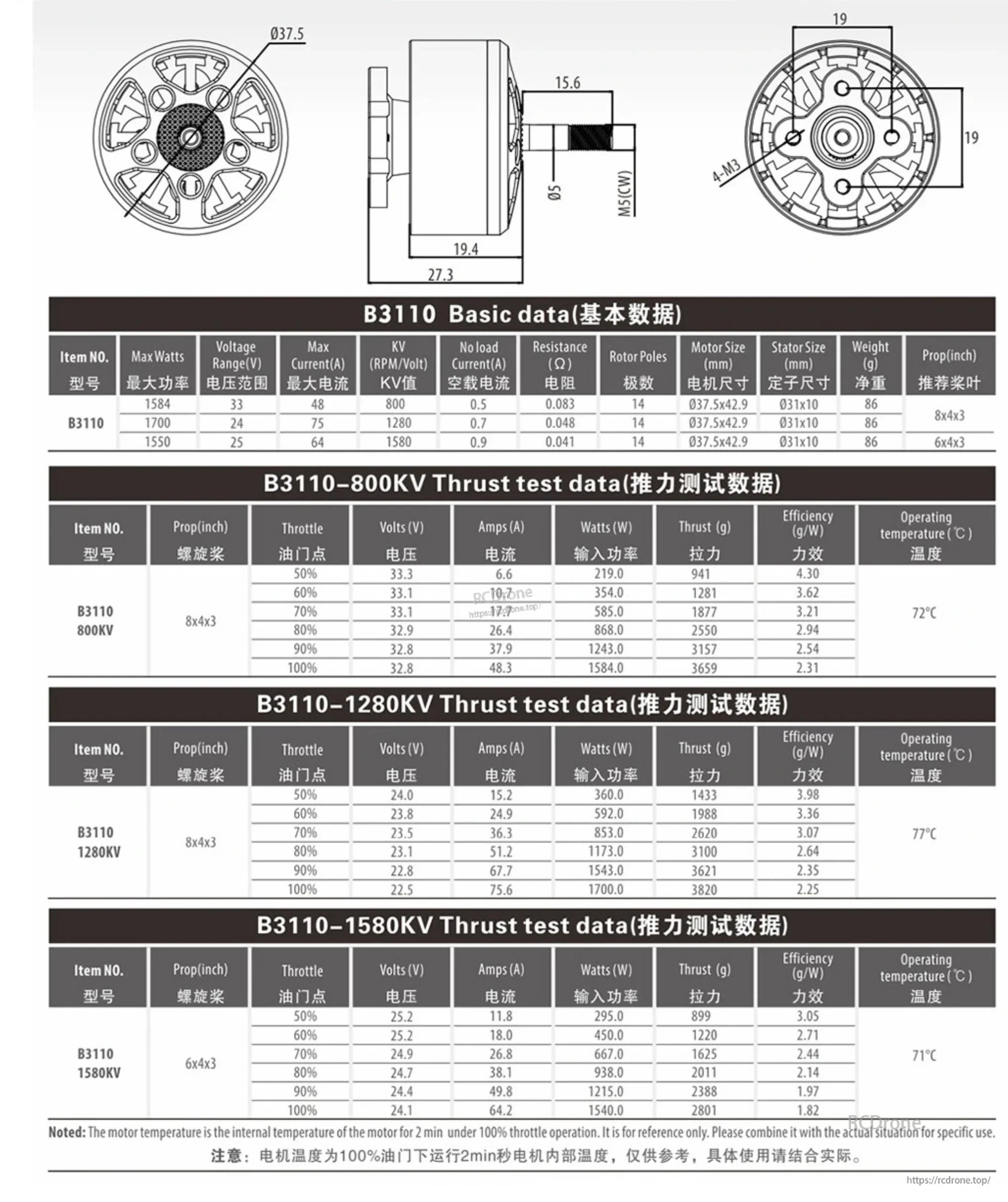

BAT B3110 motor dimensional drawing and thrust test tables for 800KV, 1280KV, and 1580KV
